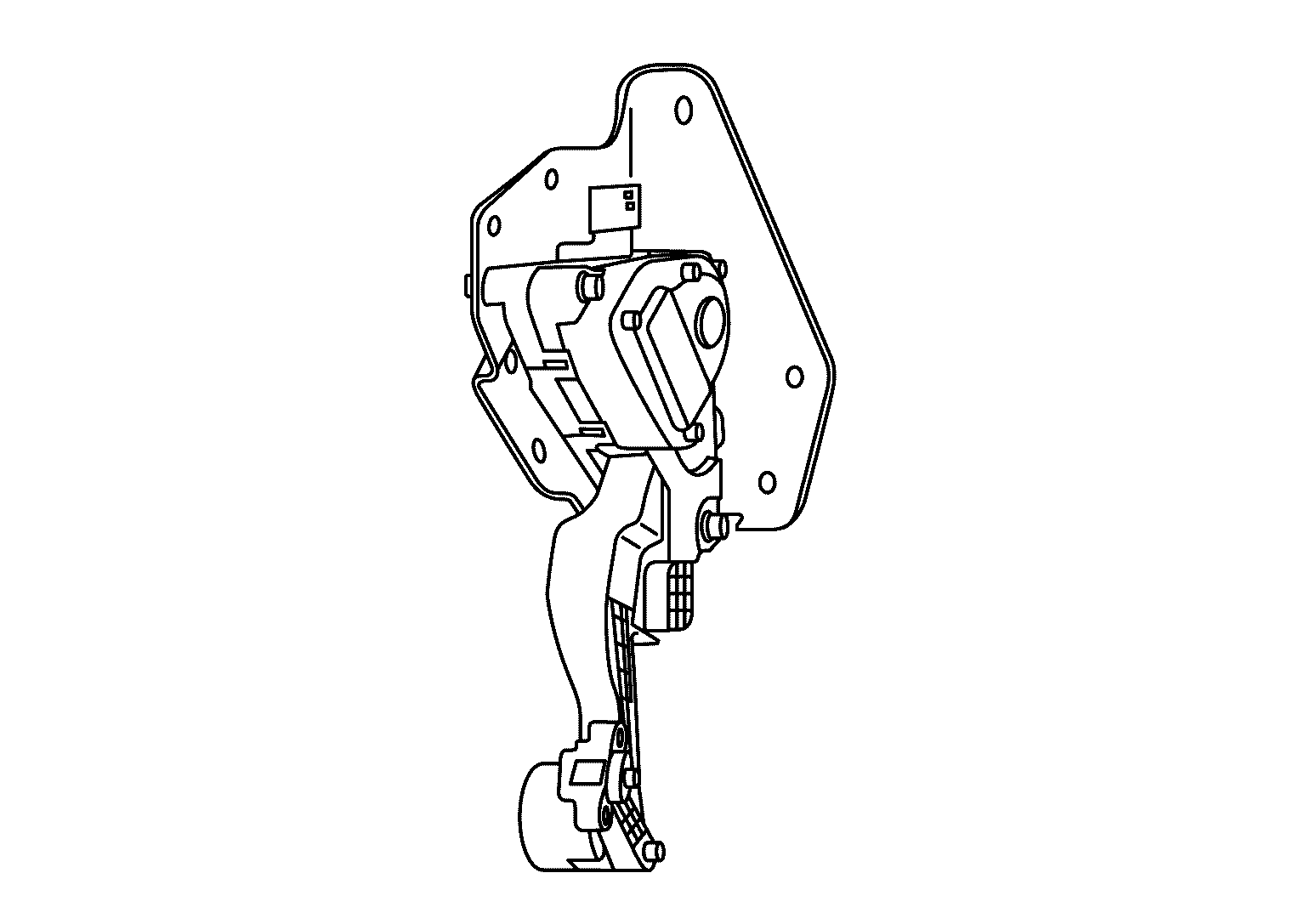

Accelerator Pedal Actuator

Installed to the upper portion of the accelerator pedal, this consists of the Accelerator Pedal Actuator together with the Accelerator Pedal Position sensor, and is linked with the accelerator pedal.

Courtesy of NISSAN NORTH AMERICA, INC.
If accelerator pedal feedback force control signal is received from ADAS Control Unit via ITS communication, it operates the integrated motor for applying control to move the accelerator pedal upward.
