DAST Calibration (Mode1): Description

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

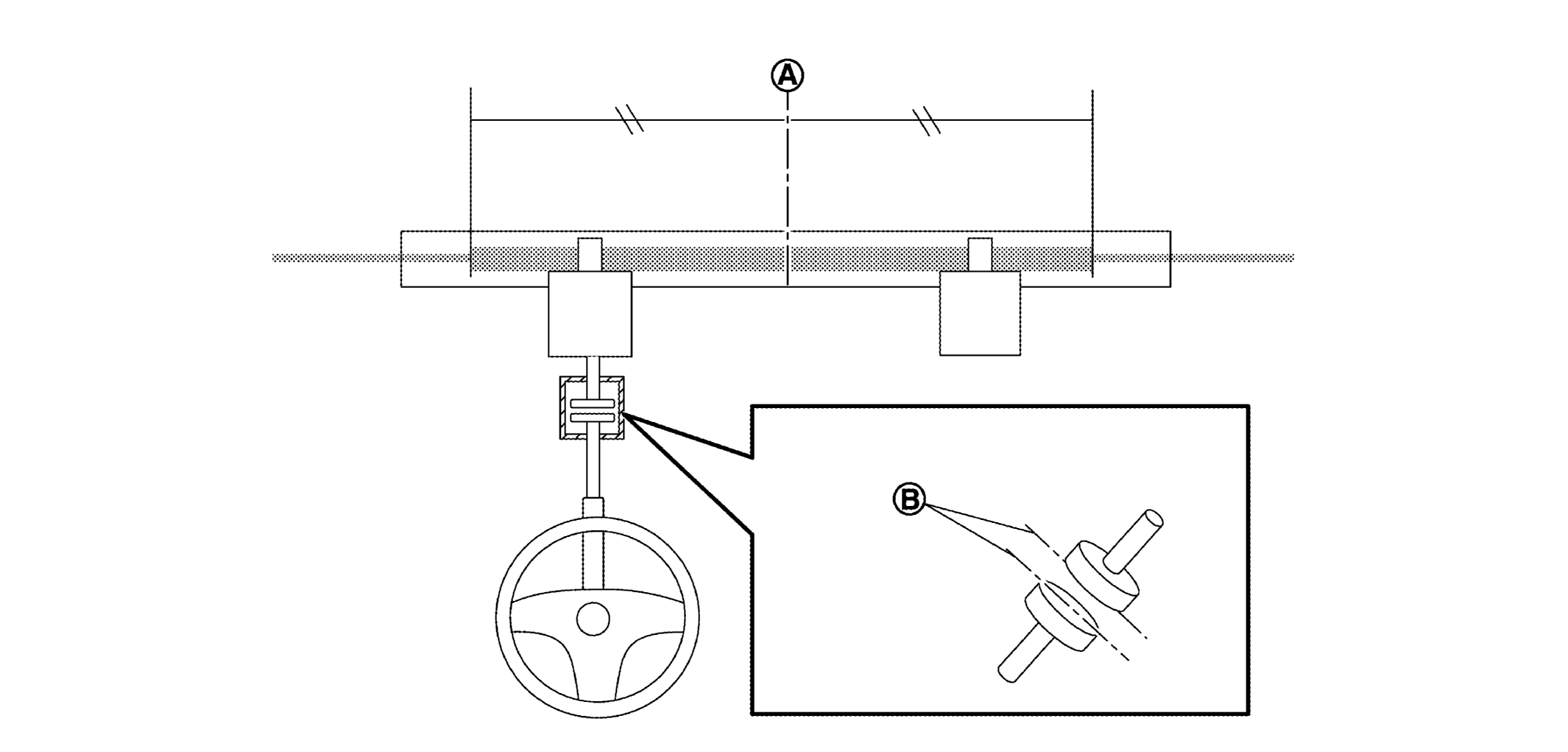

"DAST CALIBRATION (MODE1)" is a function to learn the neutral position of steering rack MARU-A-W and the clutch phase position MARU-B-W by moving the steering rack automatically. Refer to WORK PROCEDURE .

G09159423Courtesy of NISSAN NORTH AMERICA, INC.
