Component Location

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

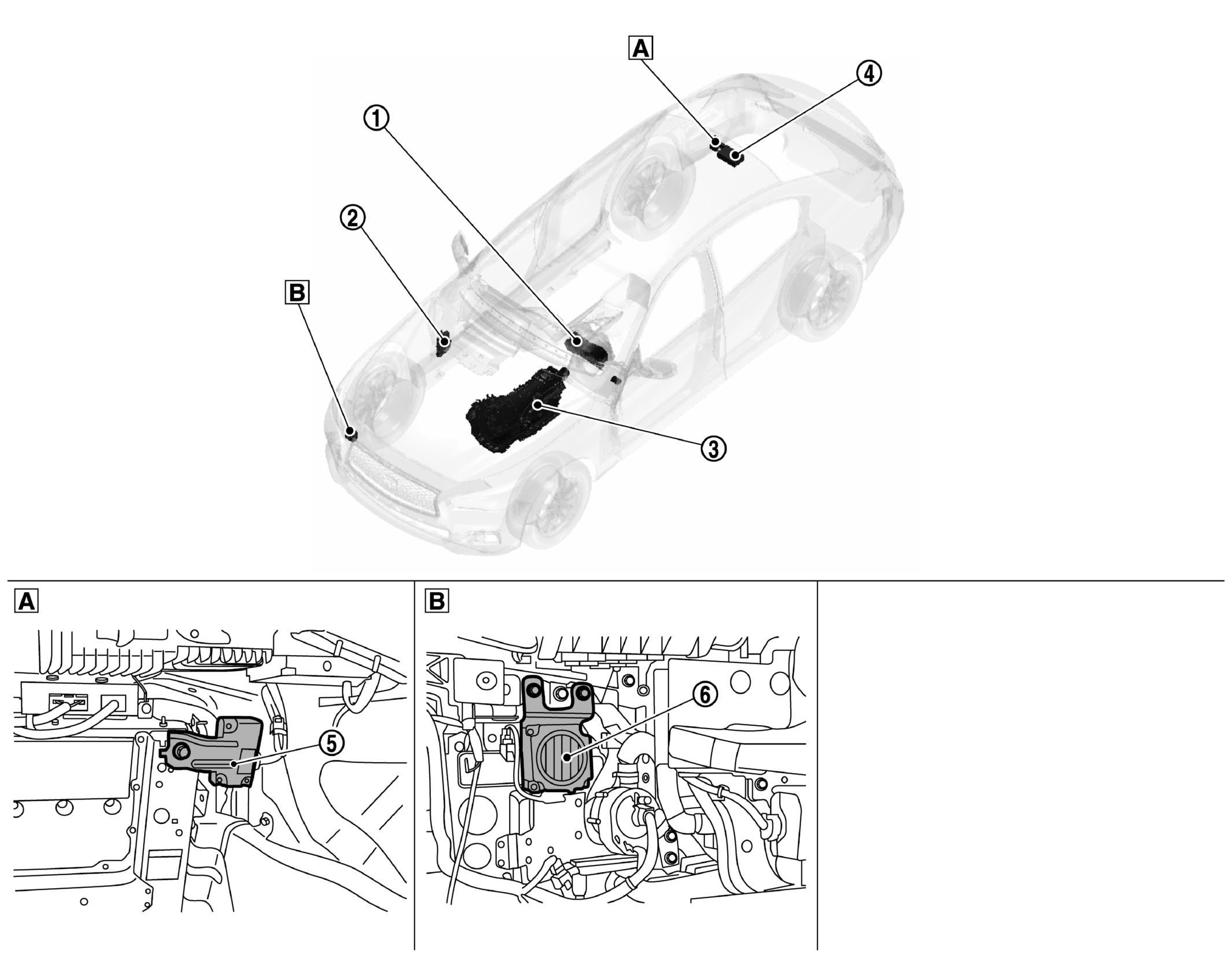

GNSJSMIA1980ZZ-980

Courtesy of NISSAN NORTH AMERICA, INC.

Right side of trunk room

Right inside of front bumper

No.	Component	Function
	Combination meter	Combination meter transmits the vehicle speed signals to the VSP control unit via the CAN communication. Combination meter receive the VSP OFF indicator signal from the VSP control unit via CAN communication.
	BCM	BCM transmit the stop lamp switch signal to the VSP control unit via the CAN communication Refer to COMPONENT LOCATION for detailed installation location.
	TCM	TCM transmit the shift position signal to the VSP control unit via the CAN communication.
	HPCM	HPCM transmits the following signals to the VSP control unit via the CAN communication. READY to drive indicator lamp request signal Engine speed signal Refer to COMPONENT LOCATION for detailed installation location.
	Approaching vehicle sound for pedestrians (VSP) control unit	Refer to APPROACHING VEHICLE SOUND FOR PEDESTRIANS (VSP) CONTROL UNIT .
	Approaching vehicle sound for pedestrians (VSP) speaker	Refer to APPROACHING VEHICLE SOUND FOR PEDESTRIANS (VSP) SPEAKER .
