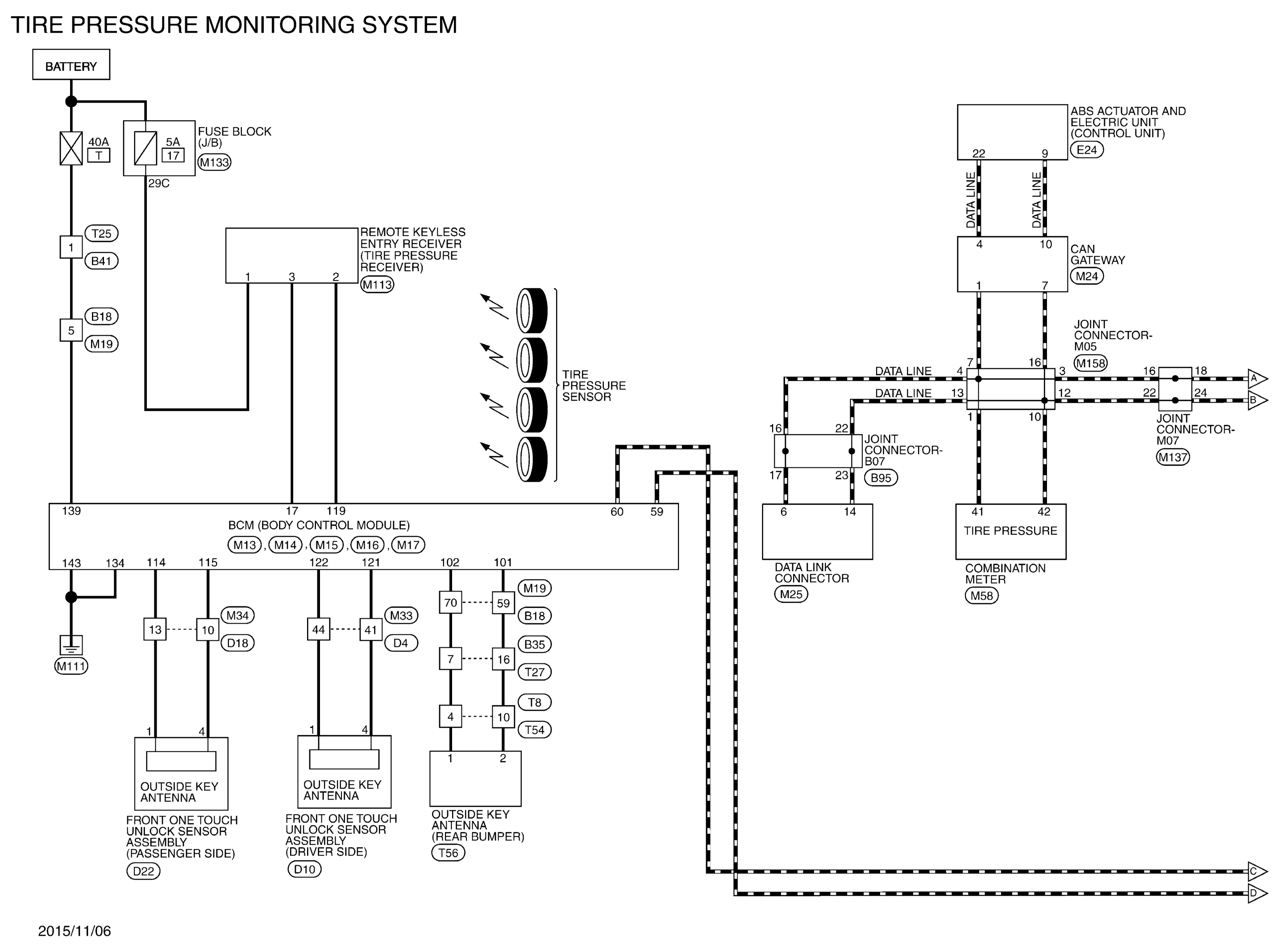

Tire Pressure Monitoring System: Wiring Diagram
WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|

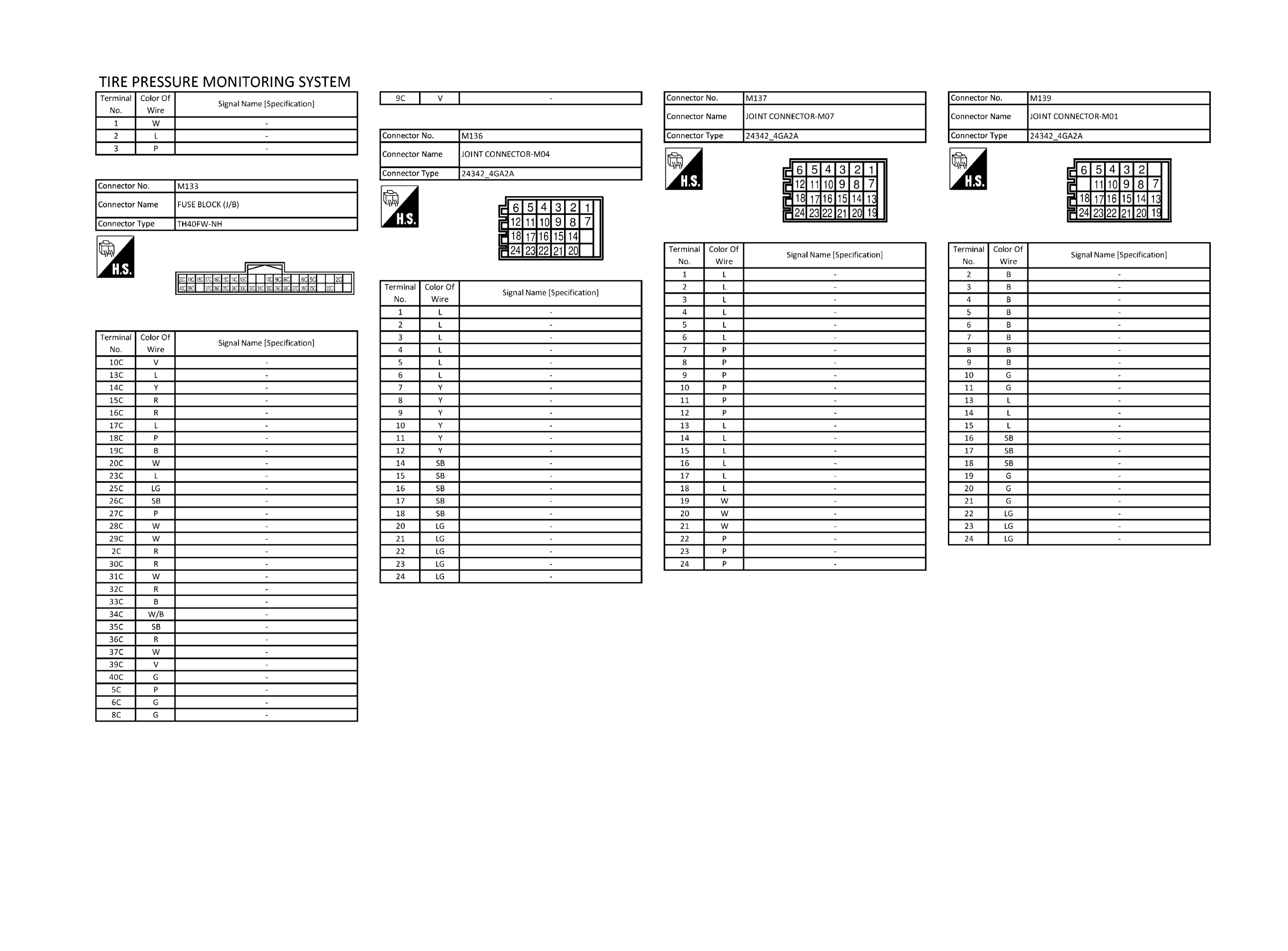

 Courtesy of NISSAN NORTH AMERICA, INC.
|

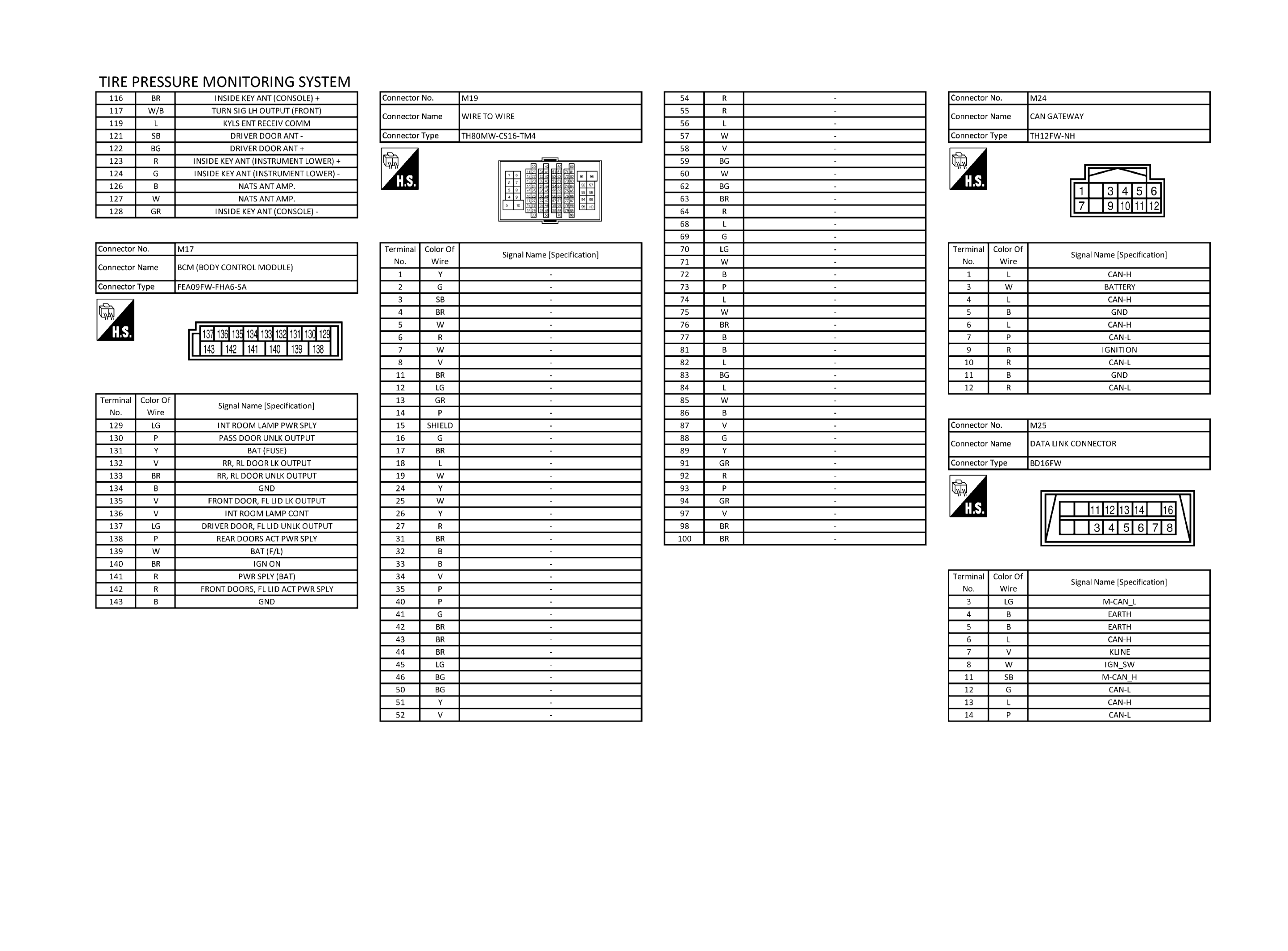

 Courtesy of NISSAN NORTH AMERICA, INC.
|

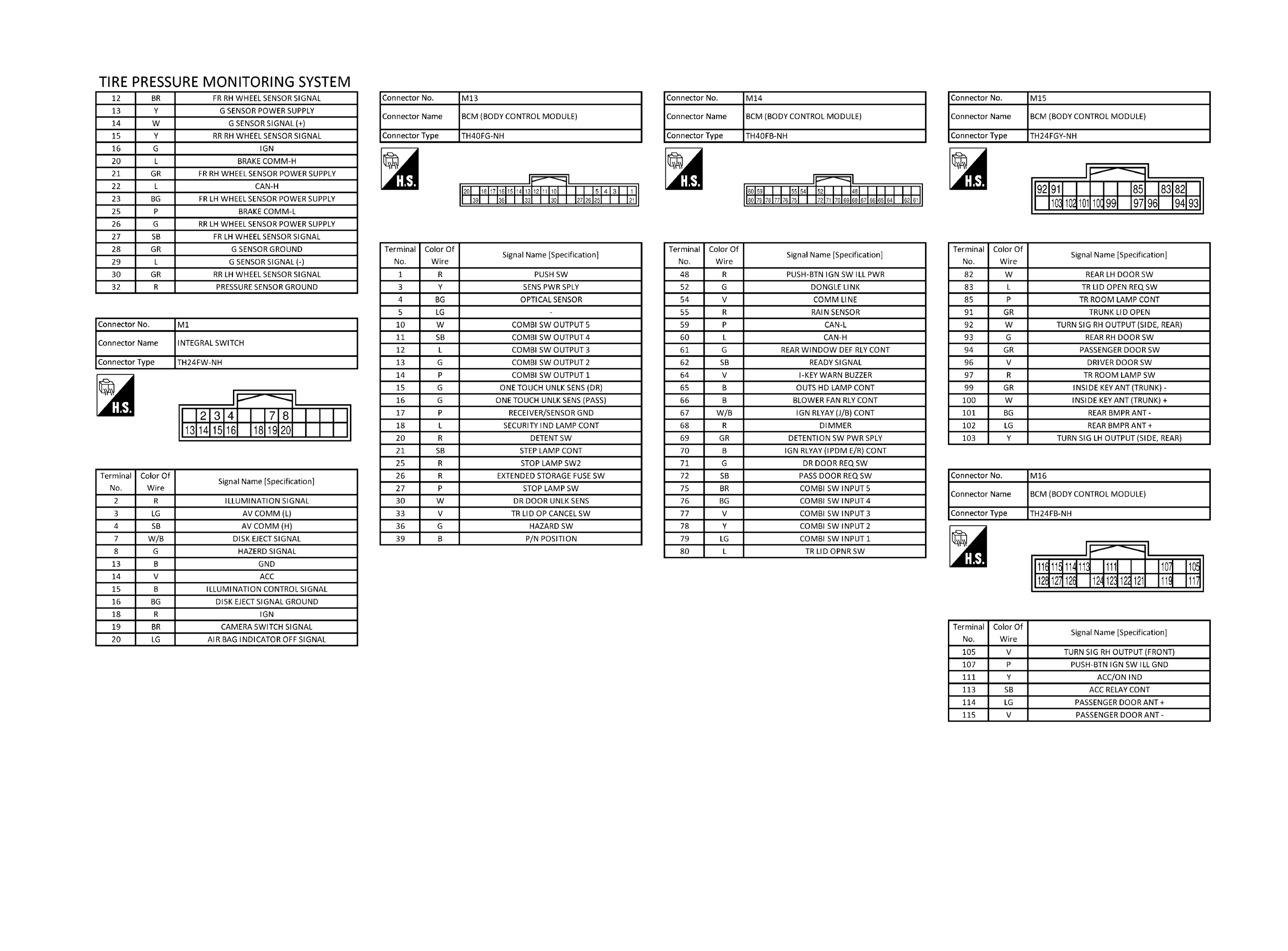

 Courtesy of NISSAN NORTH AMERICA, INC.
|

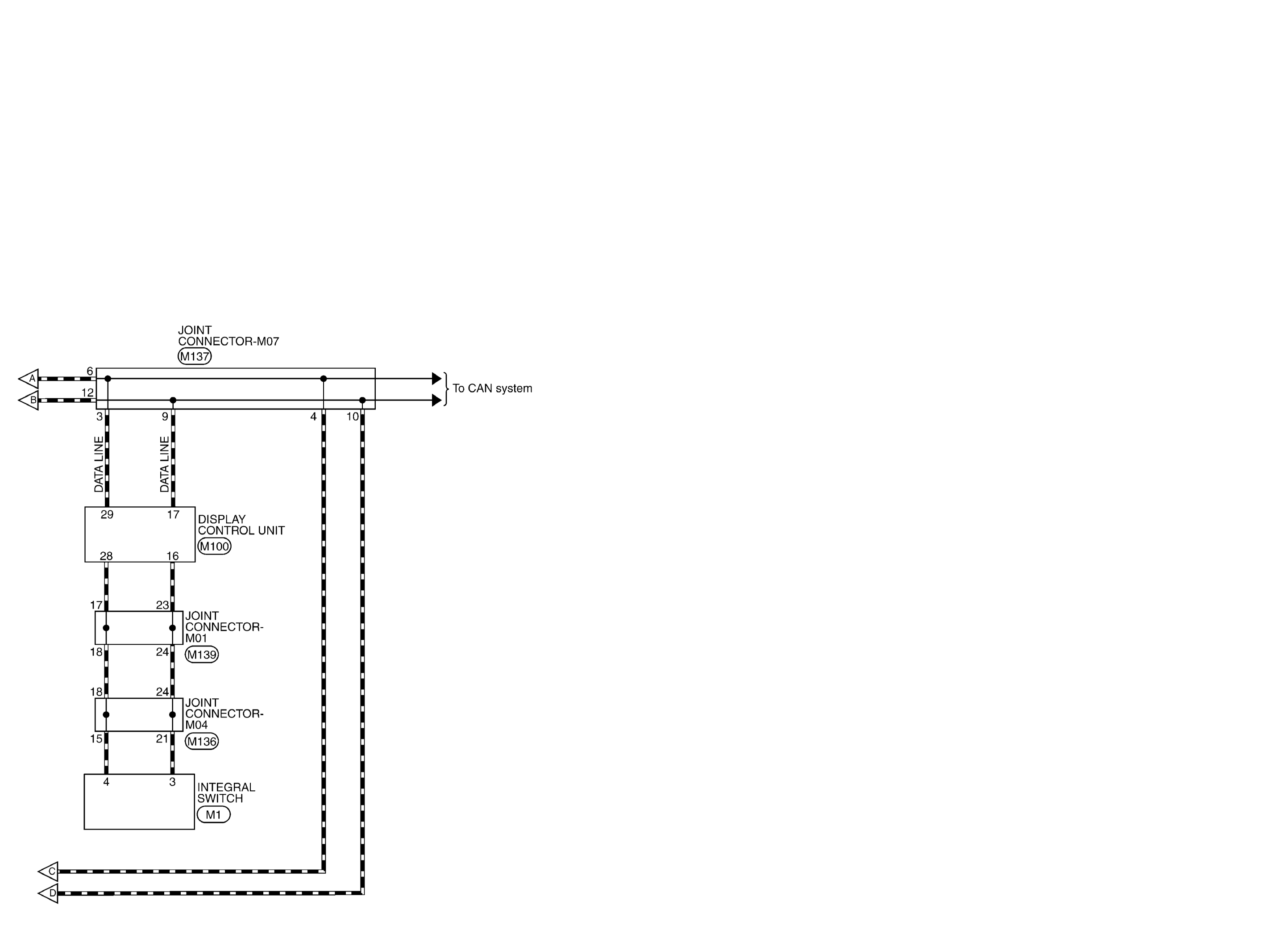

 Courtesy of NISSAN NORTH AMERICA, INC.
|

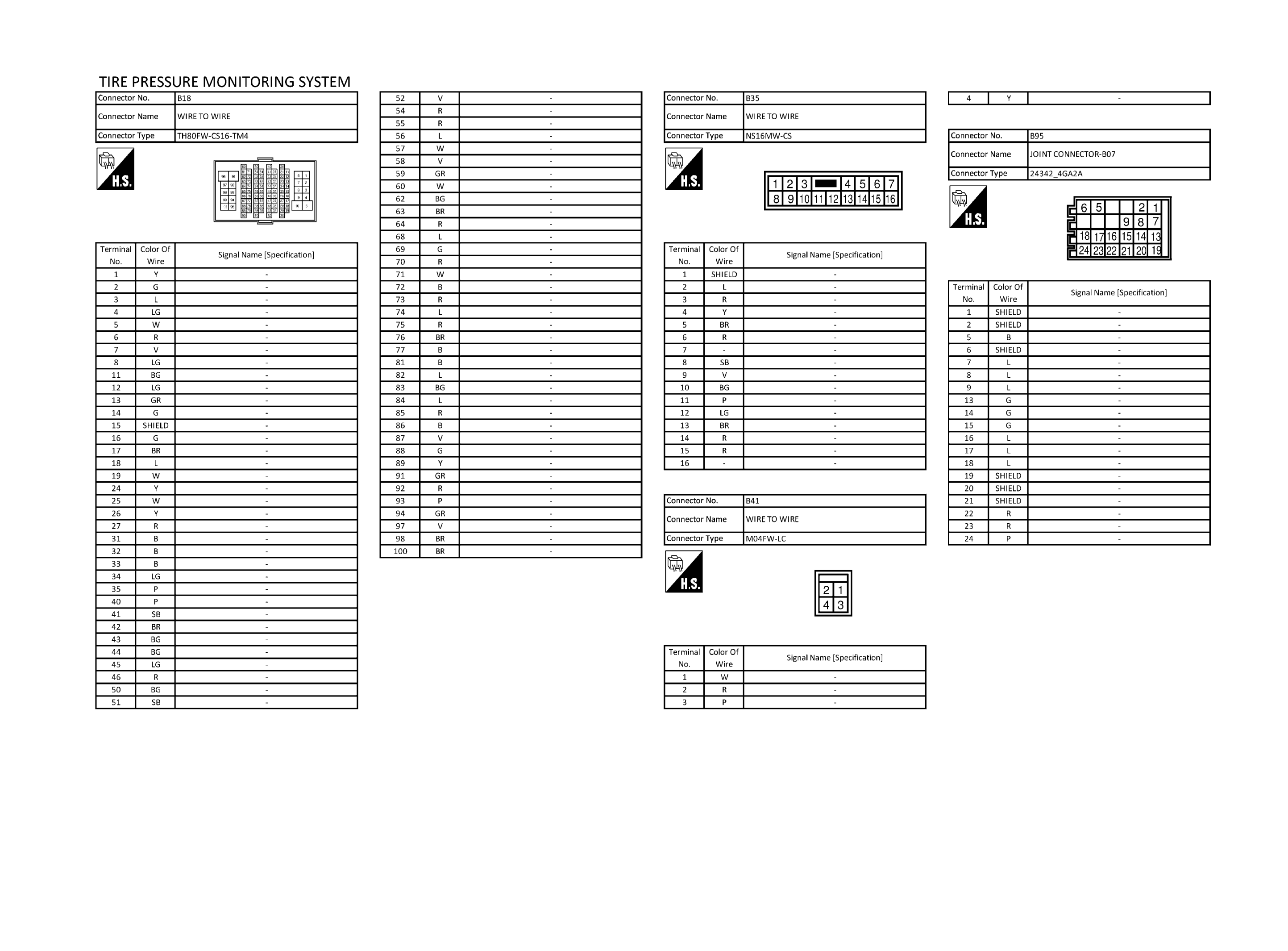

 Courtesy of NISSAN NORTH AMERICA, INC.
|

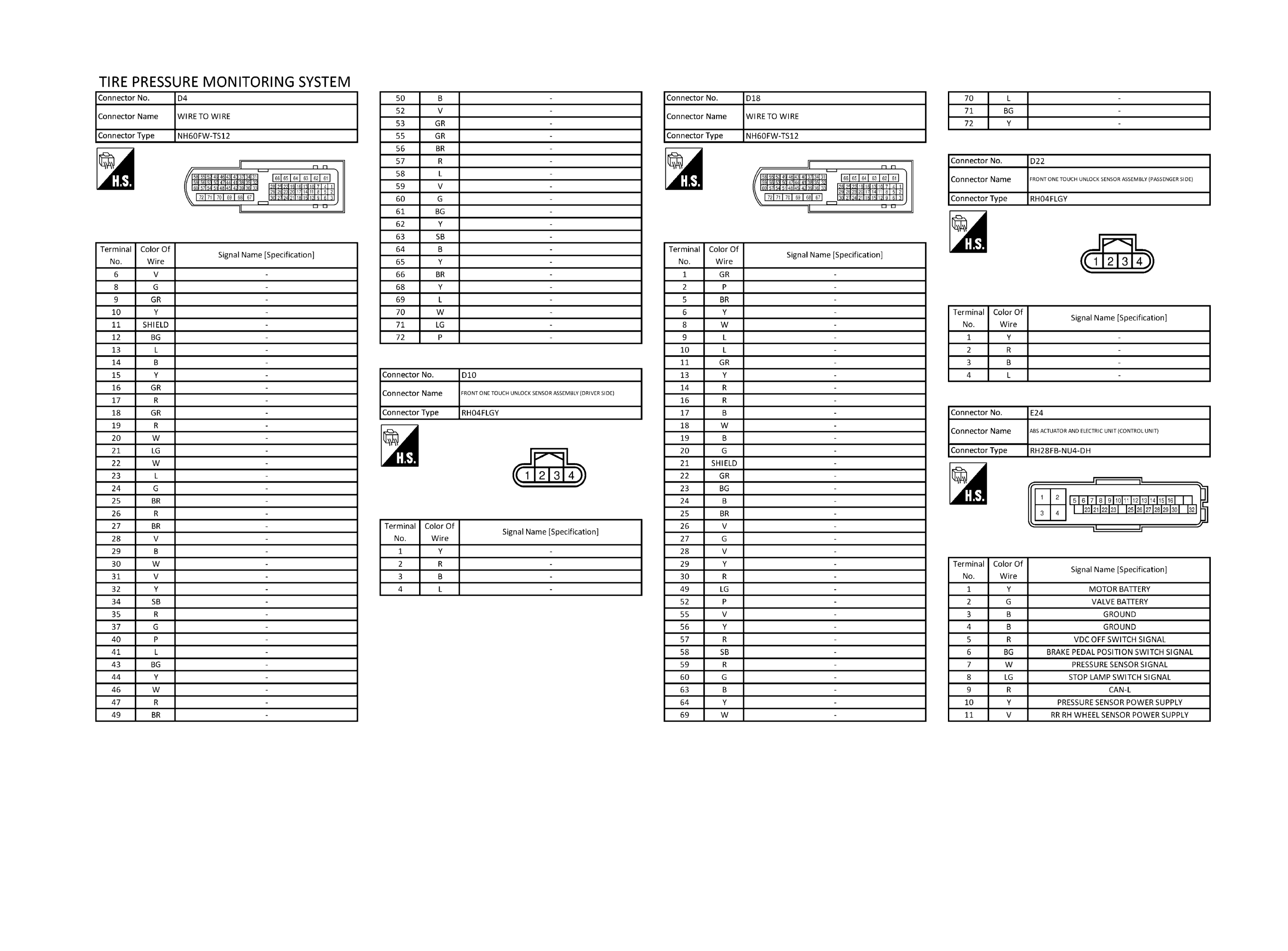

 Courtesy of NISSAN NORTH AMERICA, INC.
|

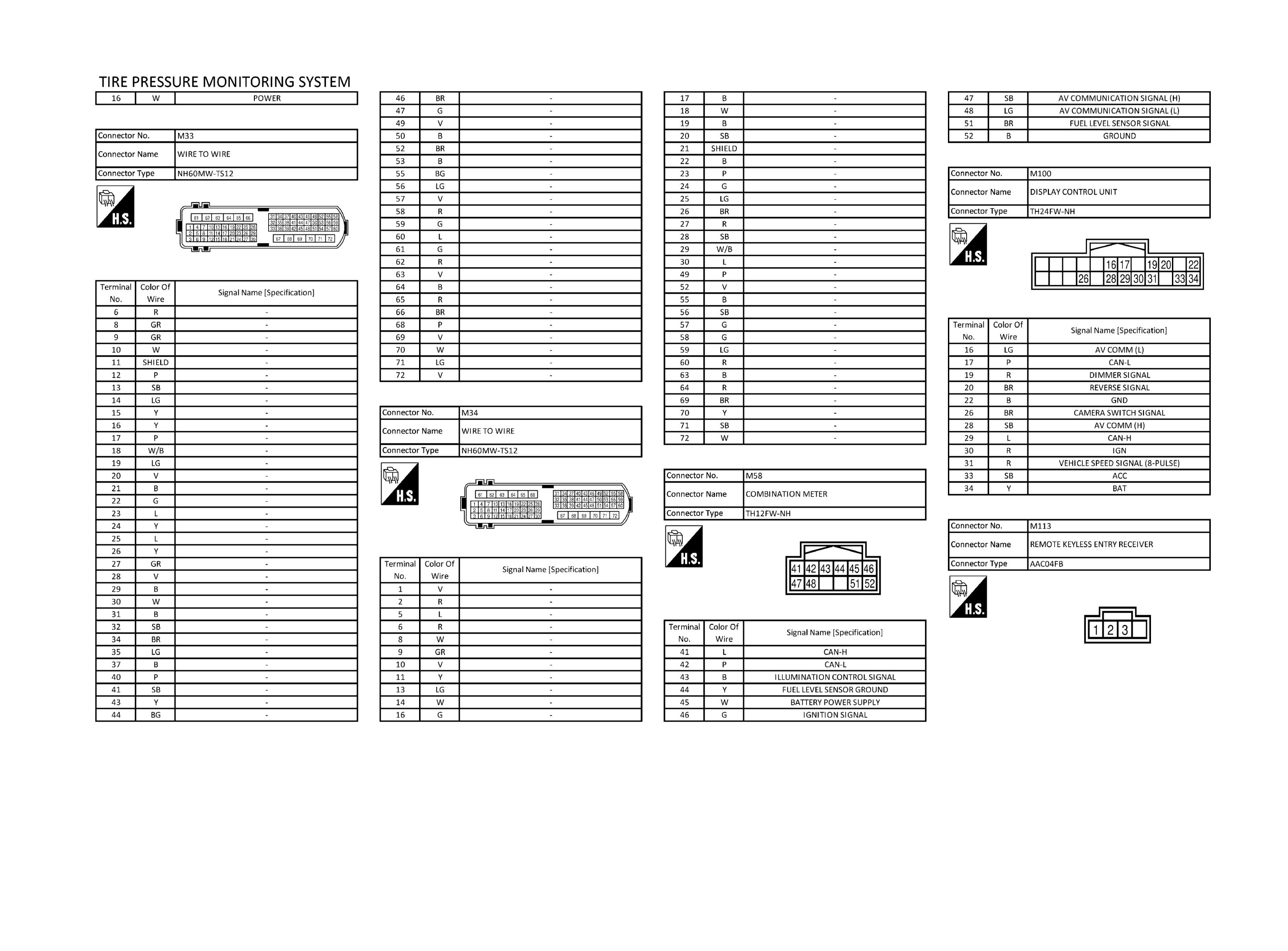

 Courtesy of NISSAN NORTH AMERICA, INC.
|

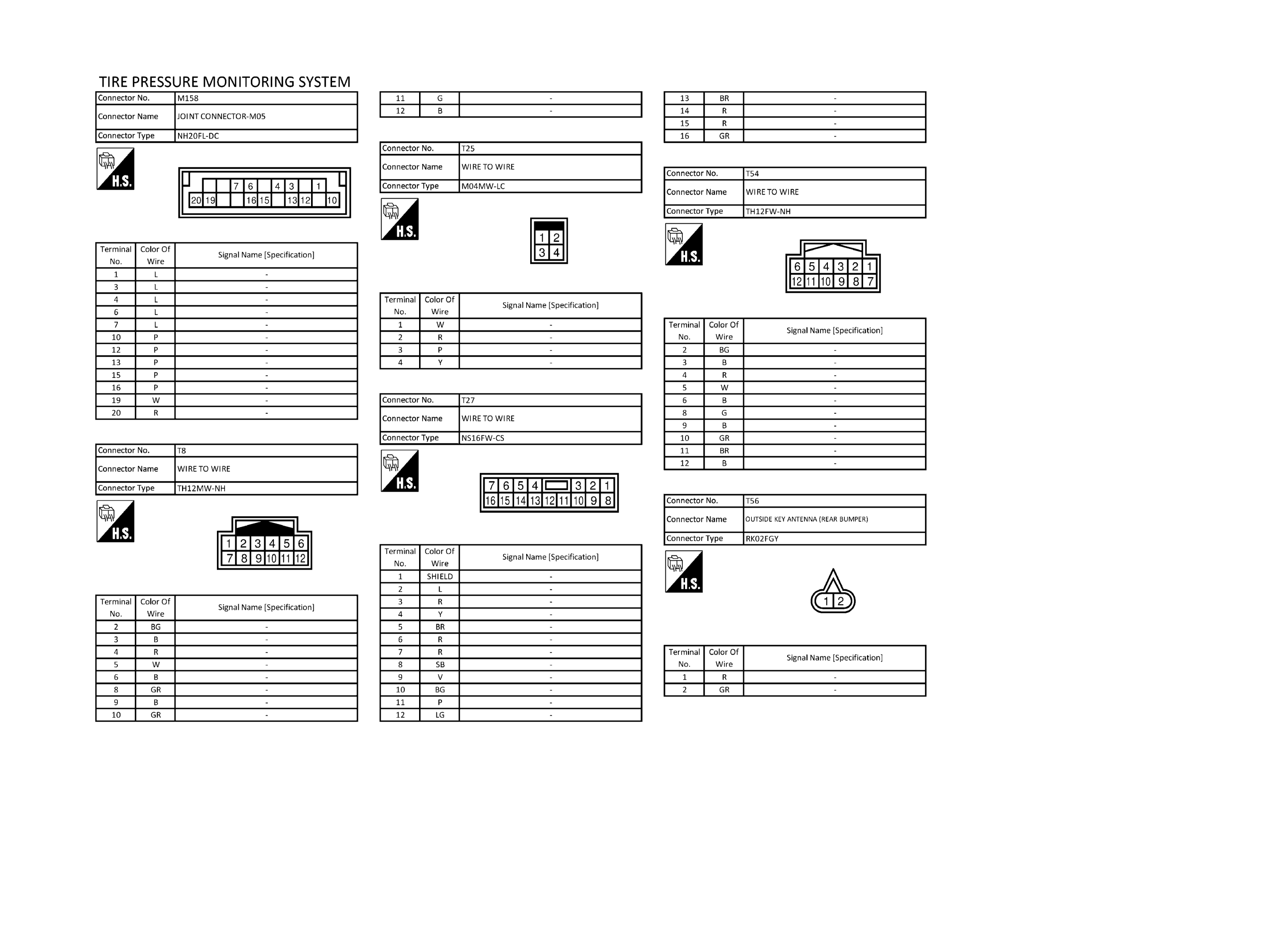

 Courtesy of NISSAN NORTH AMERICA, INC.
|
