Trunk Lid Stay: Disposal
WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
When performing disposal operation, wear the protective glasses and protective gloves.

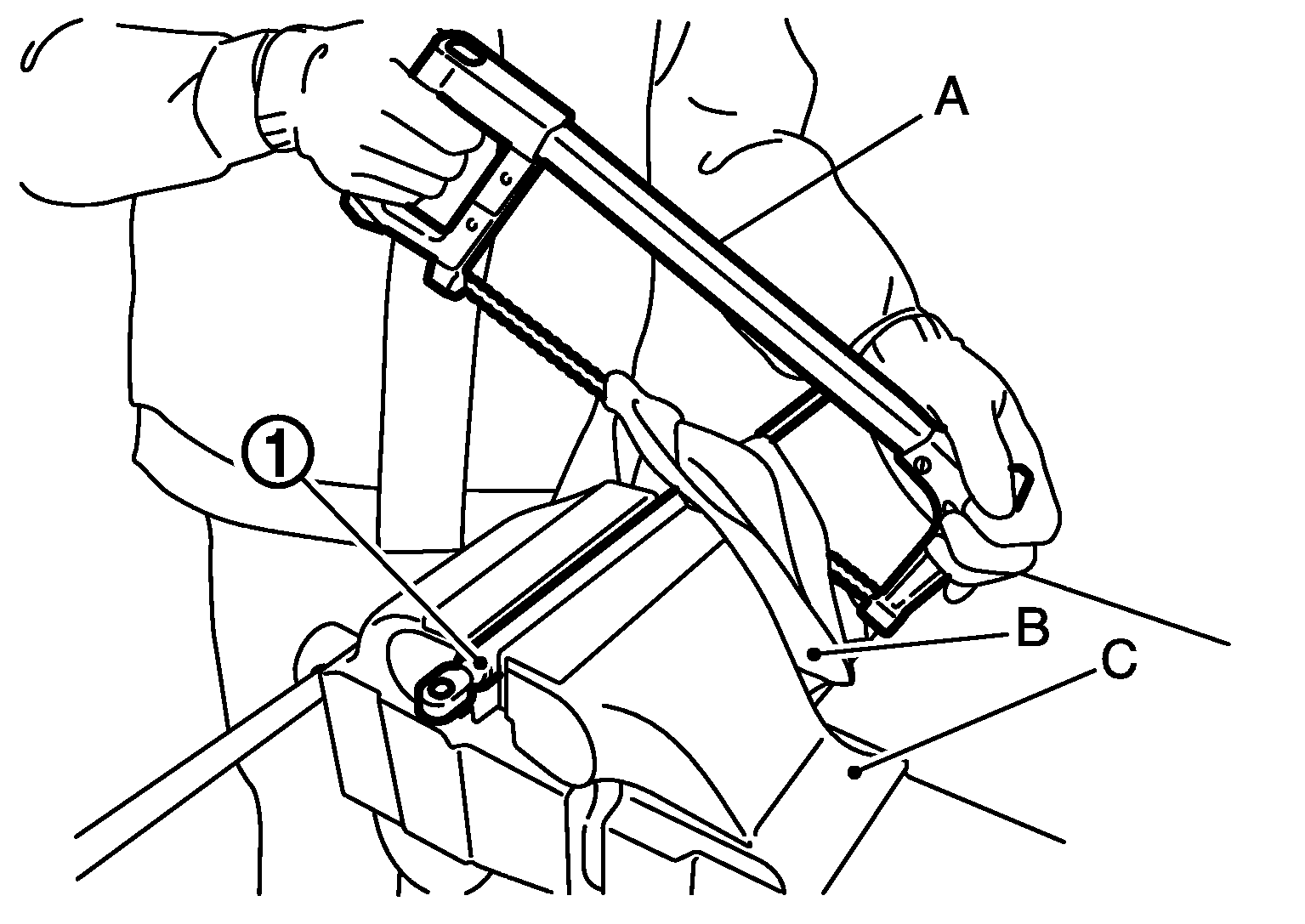

- Fix trunk lid stay
using a vise (C).
- Using hacksaw (A) slowly make 2 holes in the trunk lid stay, in numerical order 1 → 2 as shown in the figure, below, below.CAUTION:
When cutting a hole on hood stay, always cover a hacksaw using a shop cloth (B) to avoid scattering metal fragments or oil.
A : 20.0 mm (0.787 in) : Cut at the groove.
