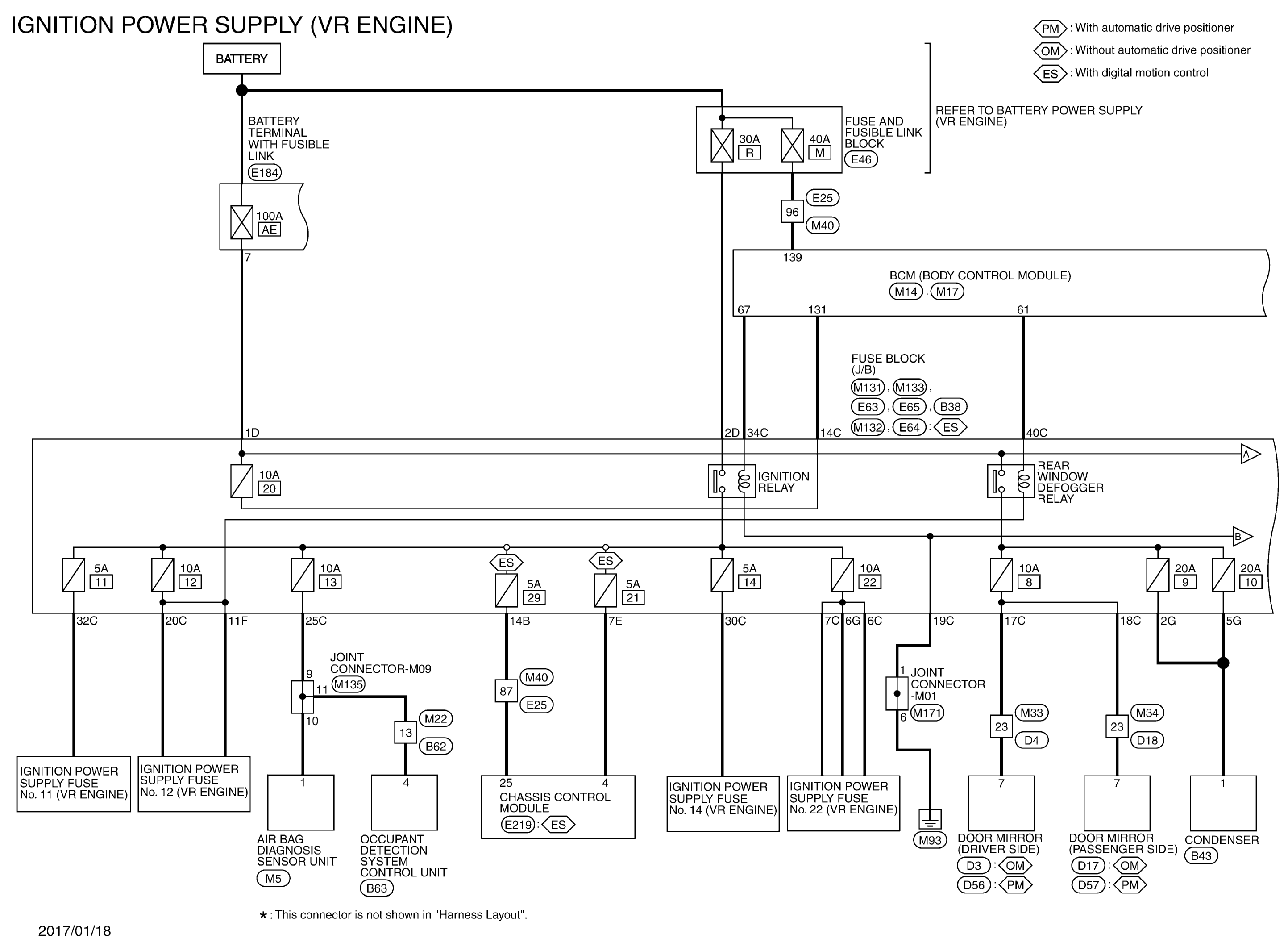

Wiring Diagram - Ignition Power Supply -

GNSJRMWL3261GB-261

Courtesy of NISSAN NORTH AMERICA, INC.

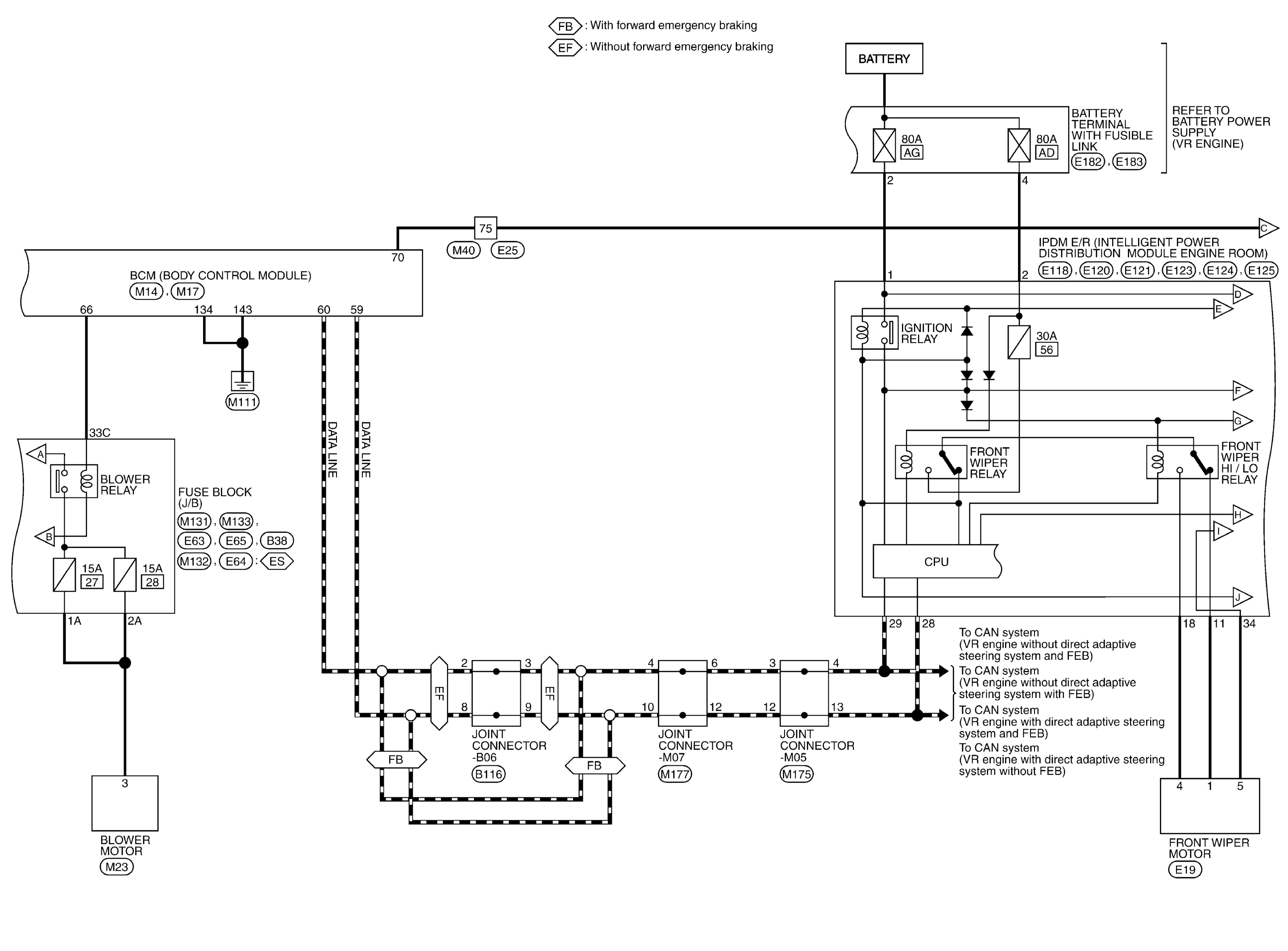

GNSJRMWL3262GB-262

Courtesy of NISSAN NORTH AMERICA, INC.

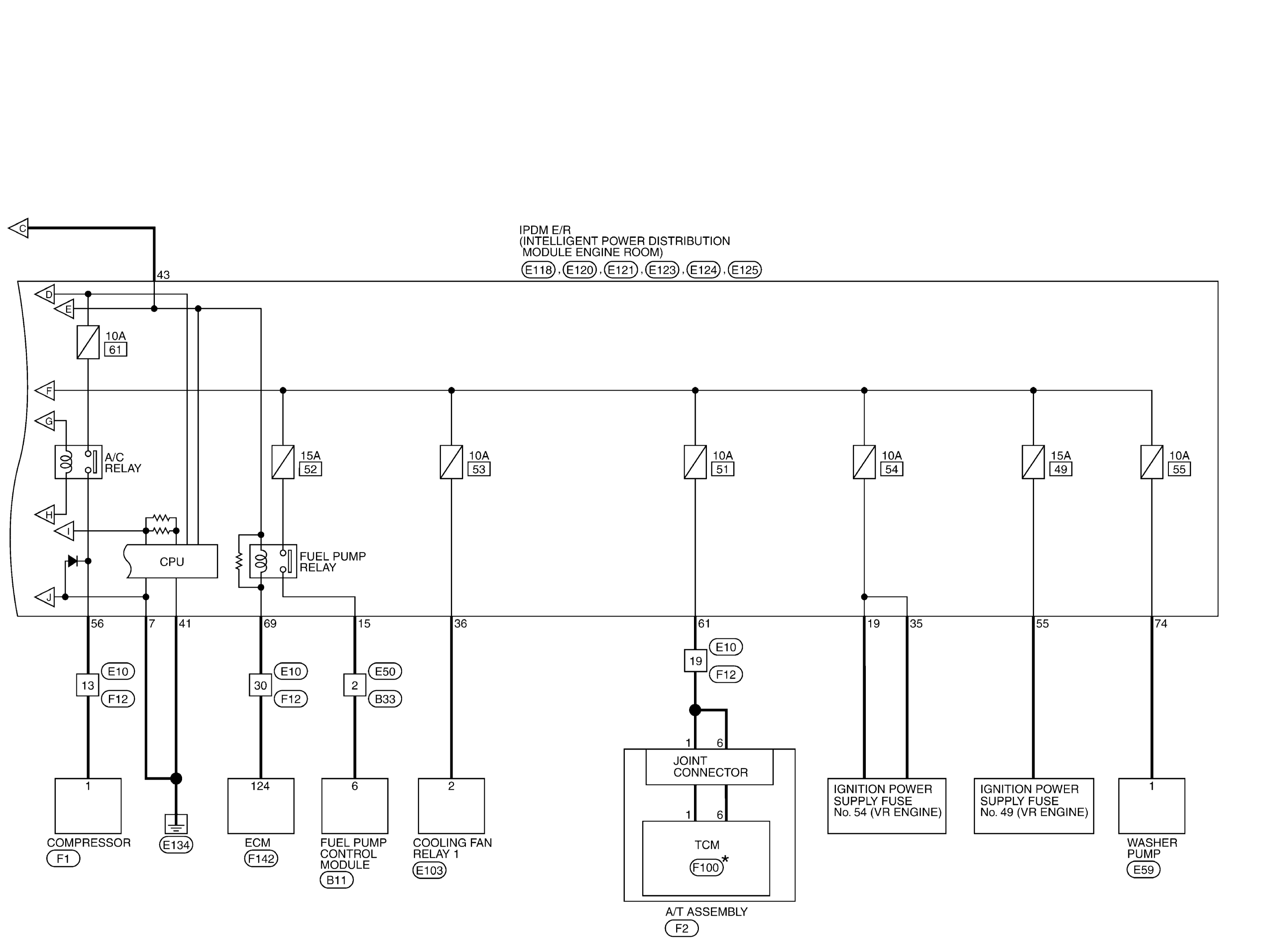

GNSJRMWL3263GB-263

Courtesy of NISSAN NORTH AMERICA, INC.

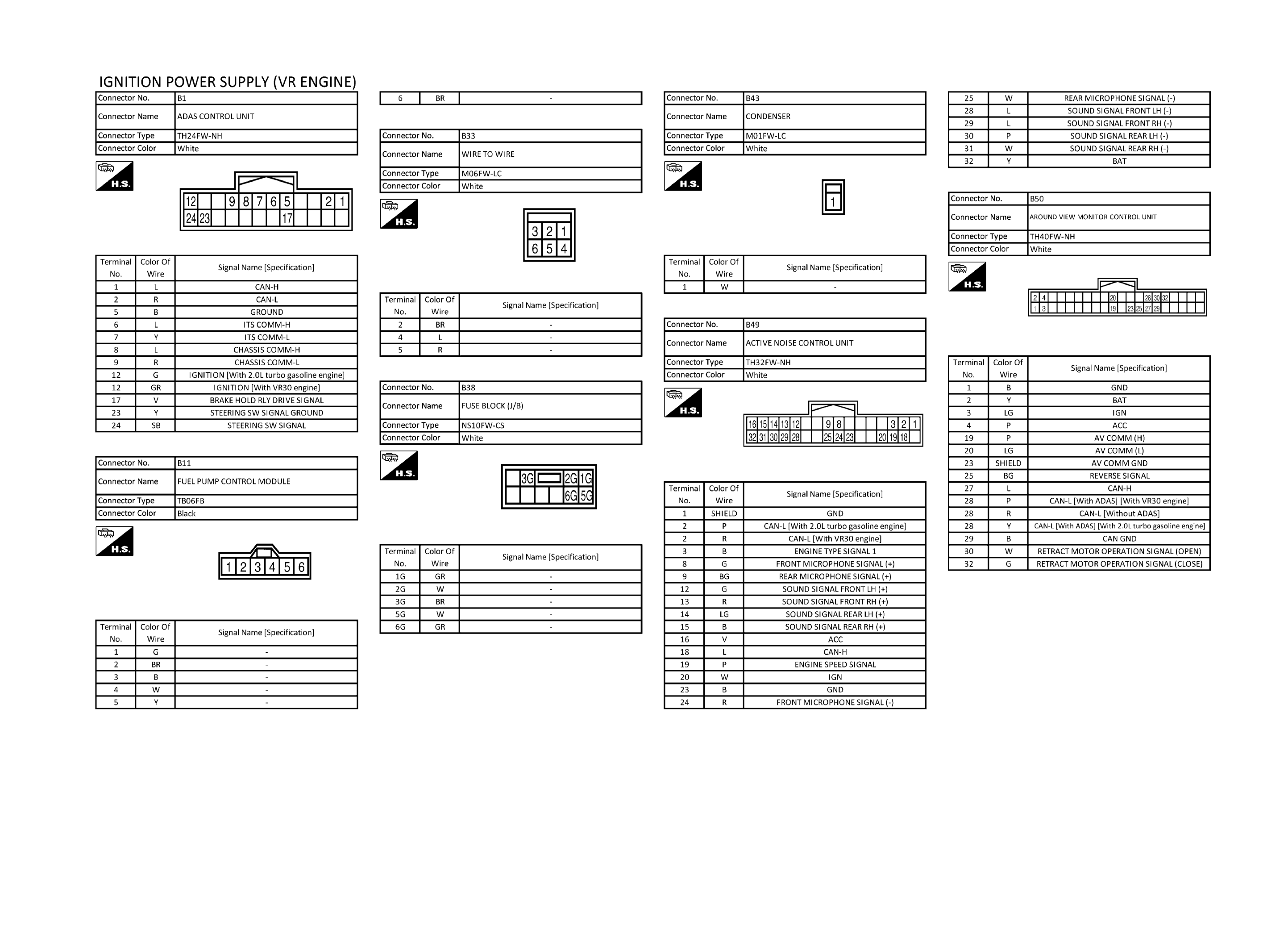

GNSJRMWL3264GB-264

Courtesy of NISSAN NORTH AMERICA, INC.

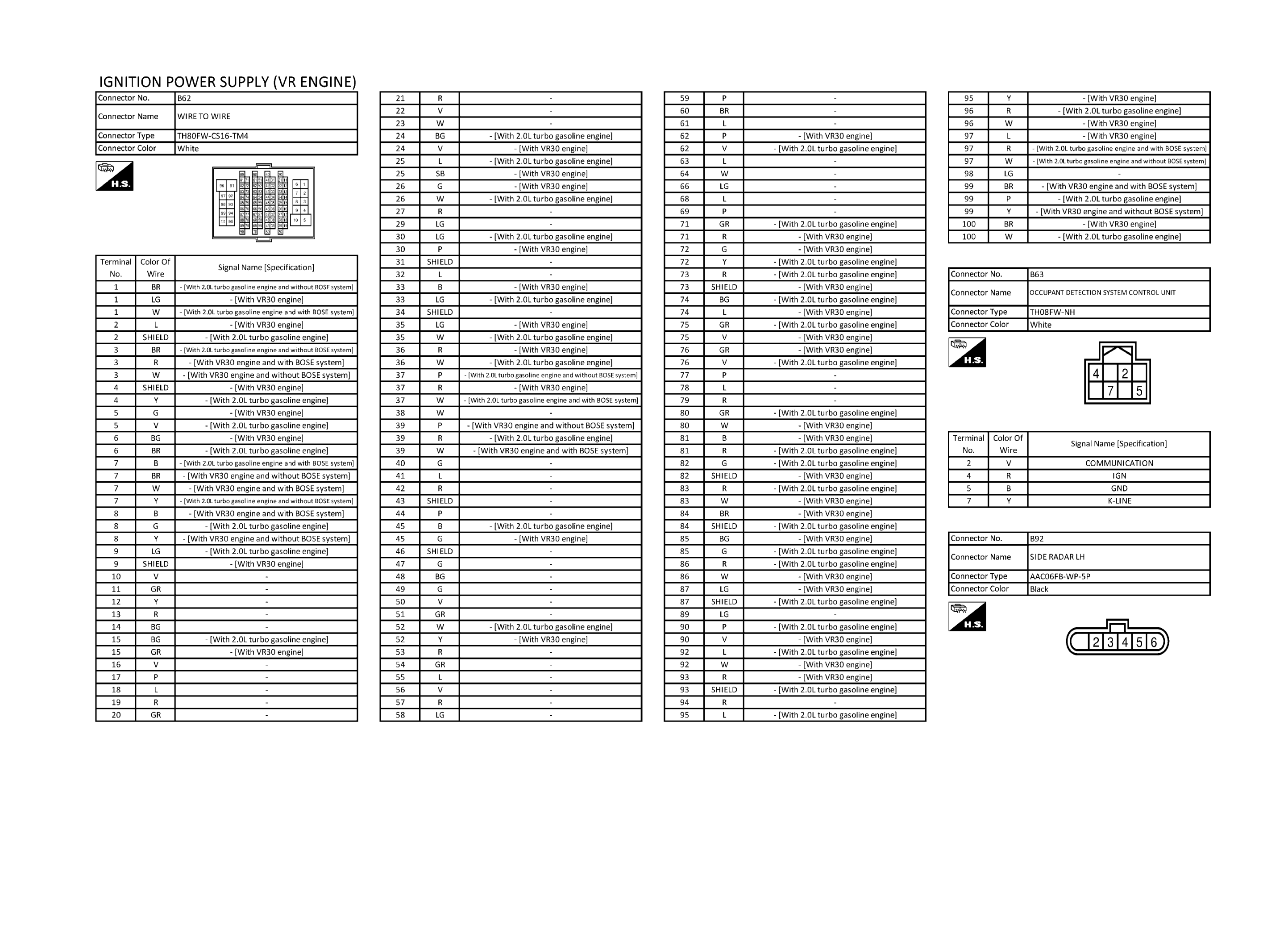

GNSJRMWL3265GB-265

Courtesy of NISSAN NORTH AMERICA, INC.

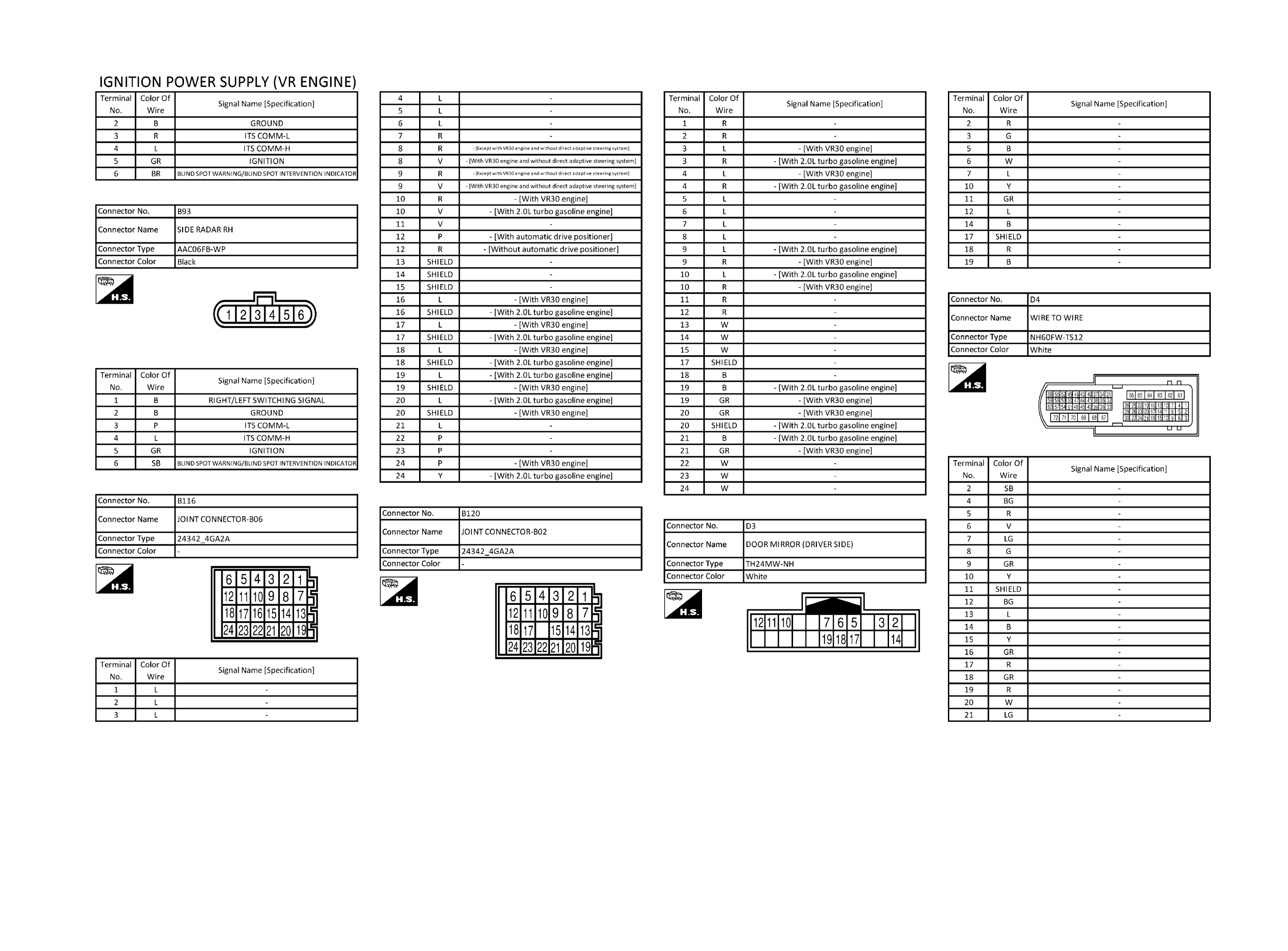

GNSJRMWL3266GB-266

Courtesy of NISSAN NORTH AMERICA, INC.

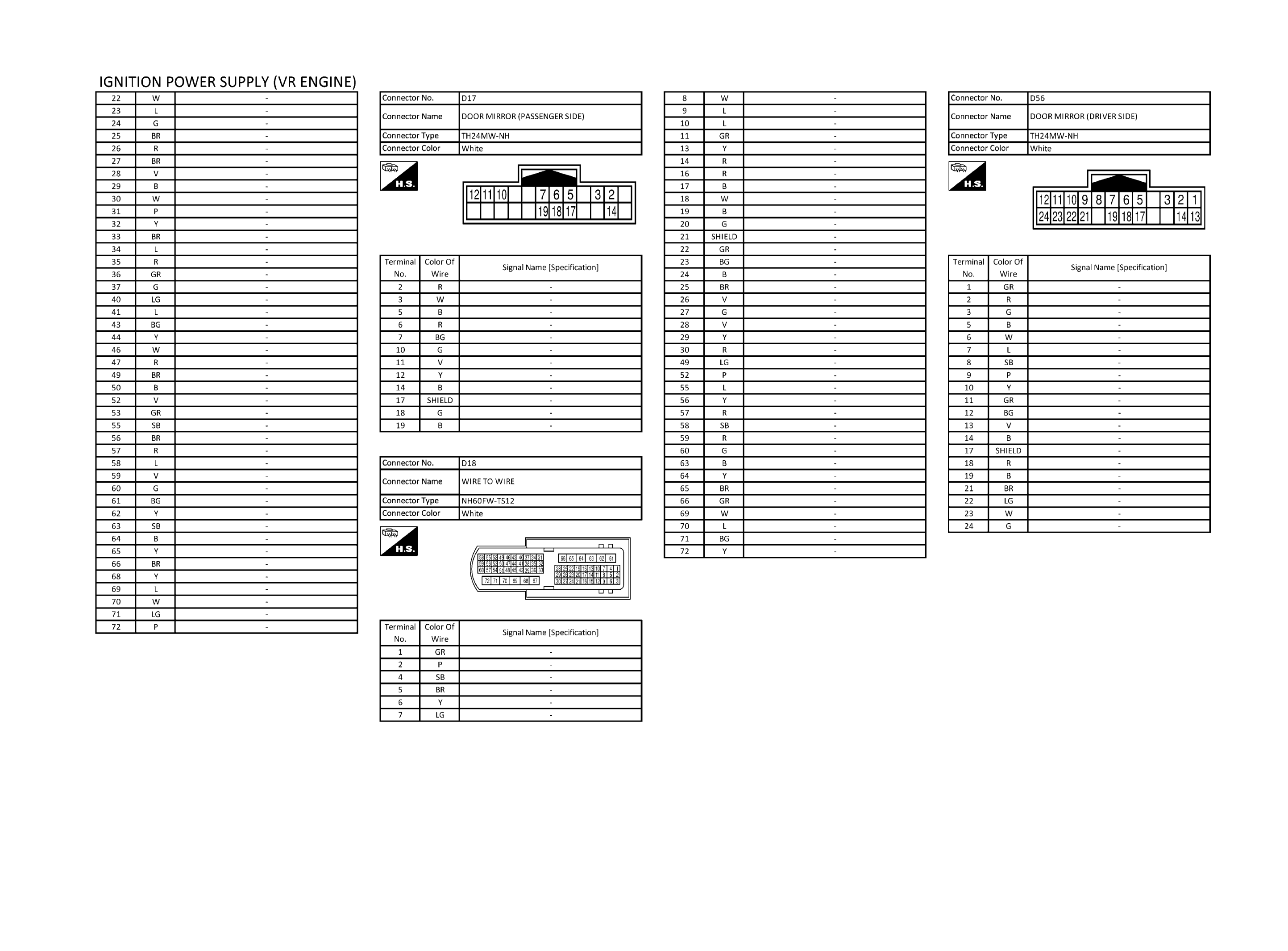

GNSJRMWL3267GB-267

Courtesy of NISSAN NORTH AMERICA, INC.

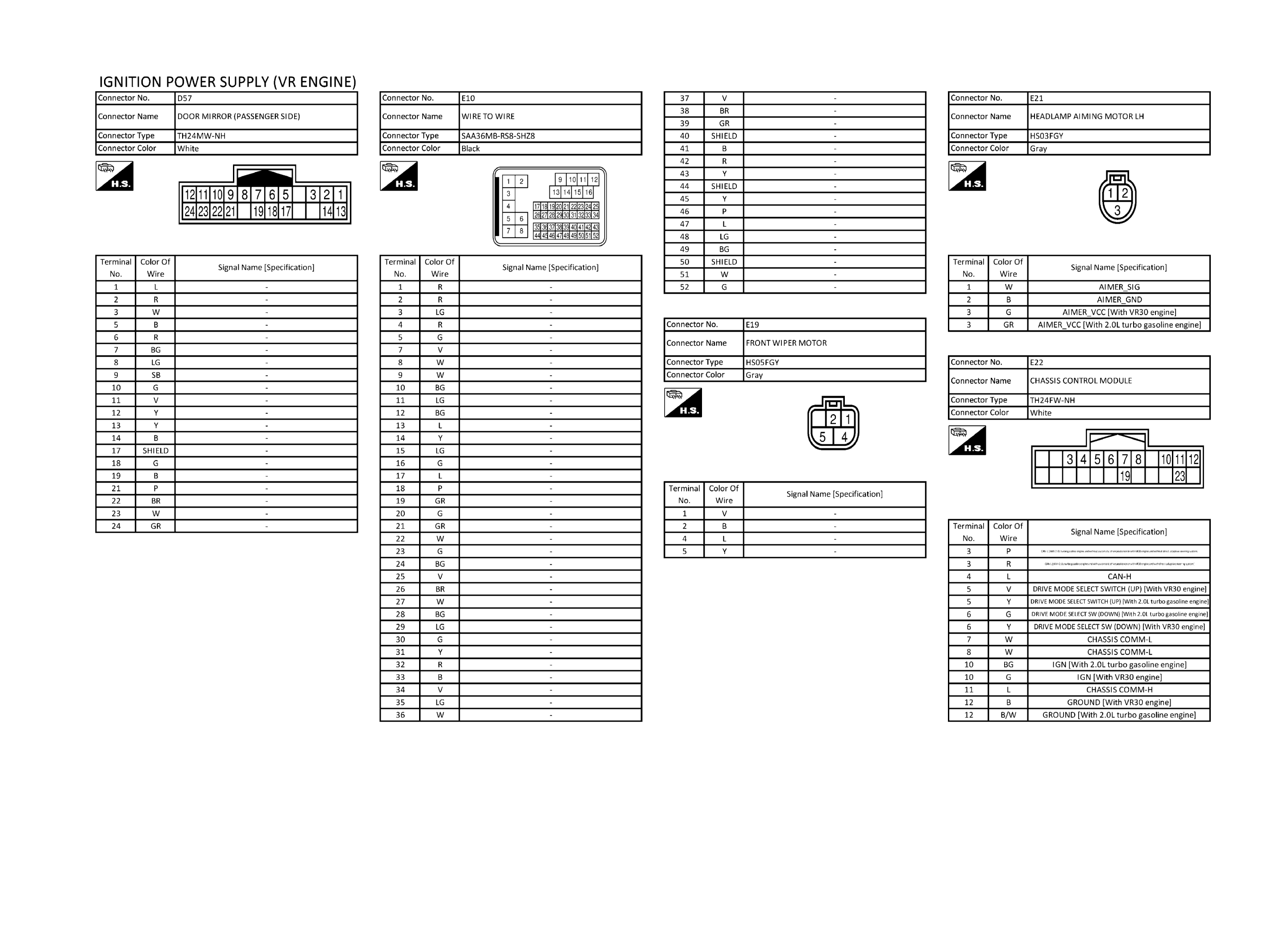

GNSJRMWL3268GB-268

Courtesy of NISSAN NORTH AMERICA, INC.

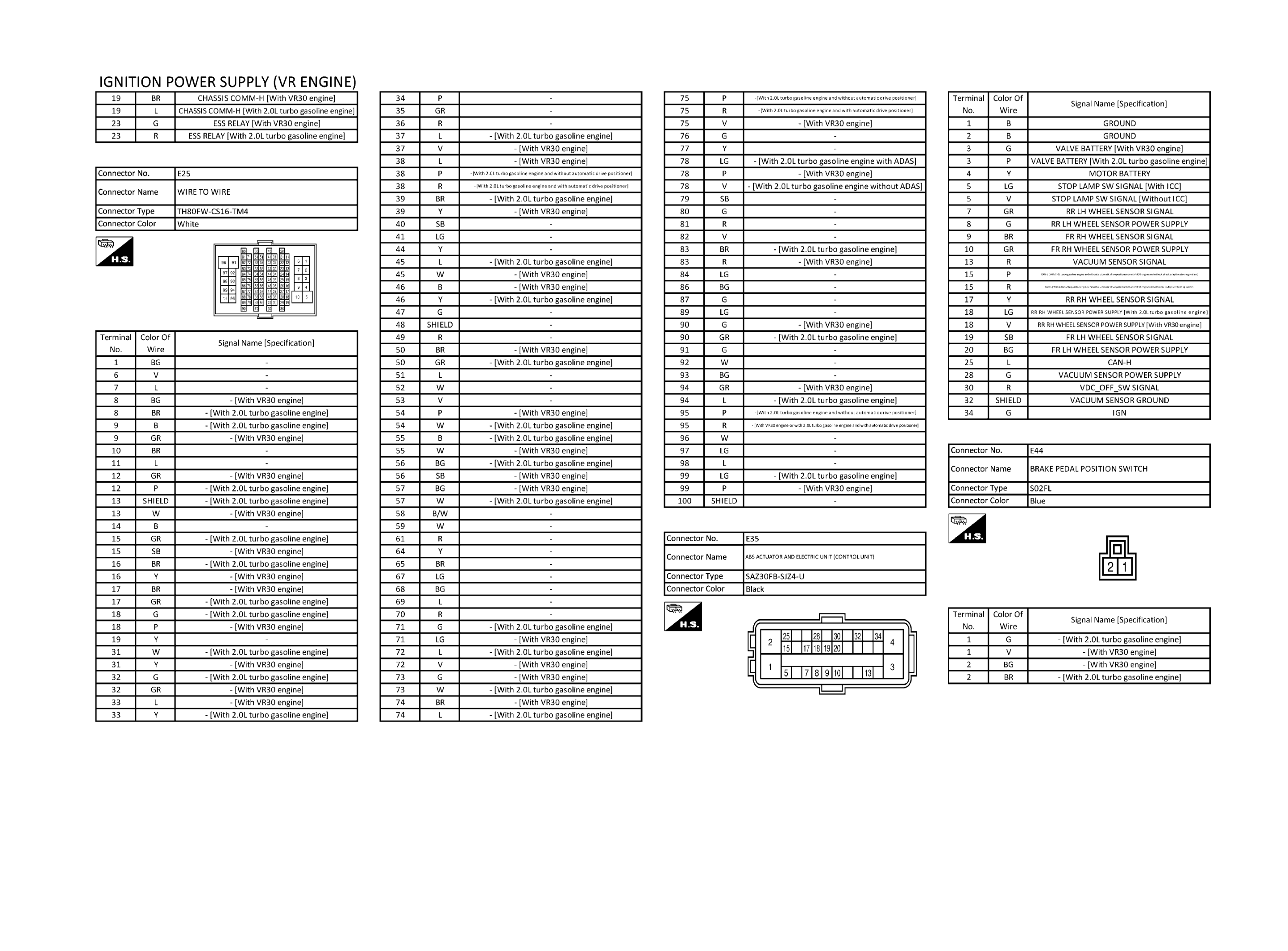

GNSJRMWL3269GB-269

Courtesy of NISSAN NORTH AMERICA, INC.

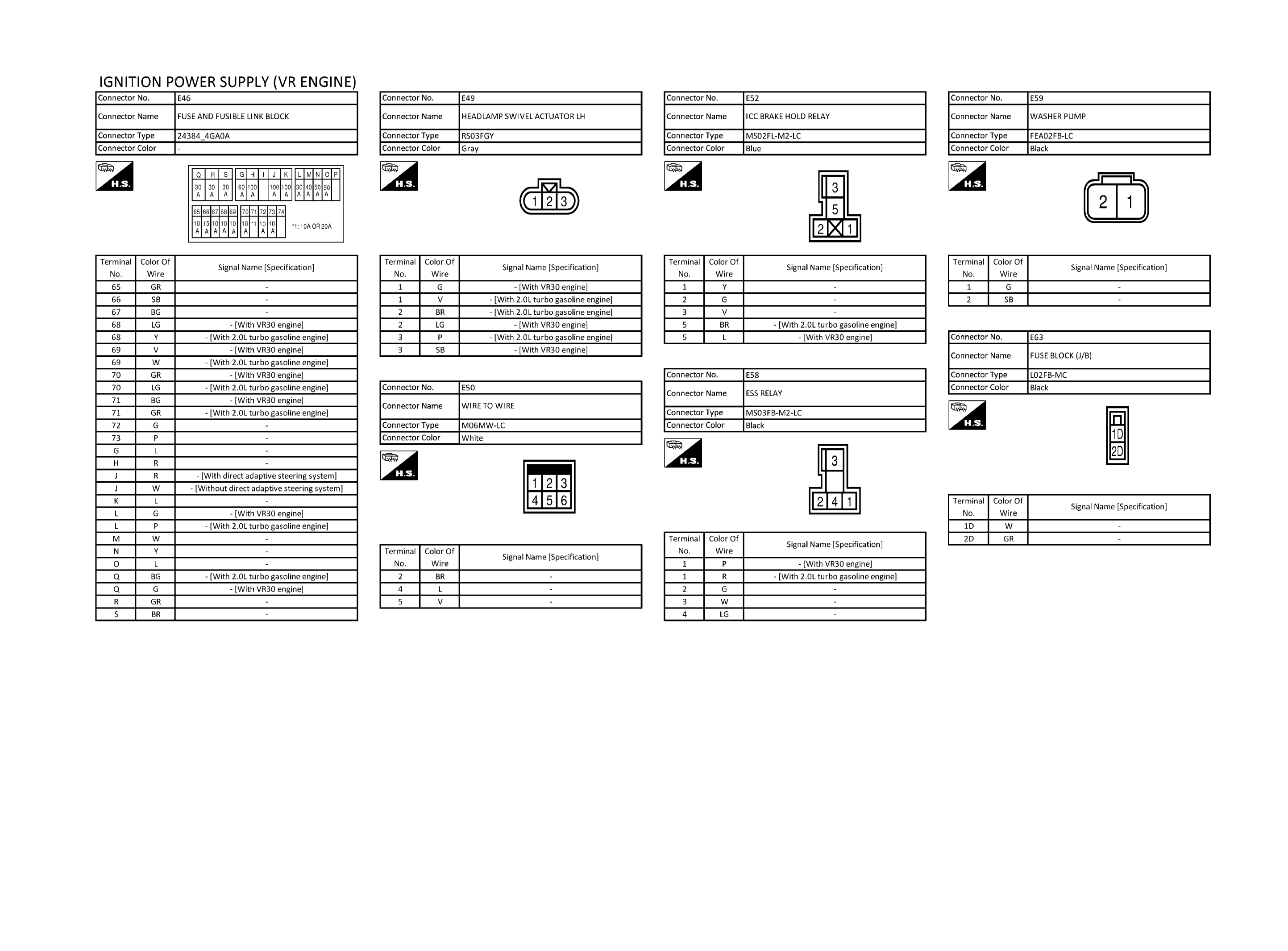

GNSJRMWL3270GB-270

Courtesy of NISSAN NORTH AMERICA, INC.

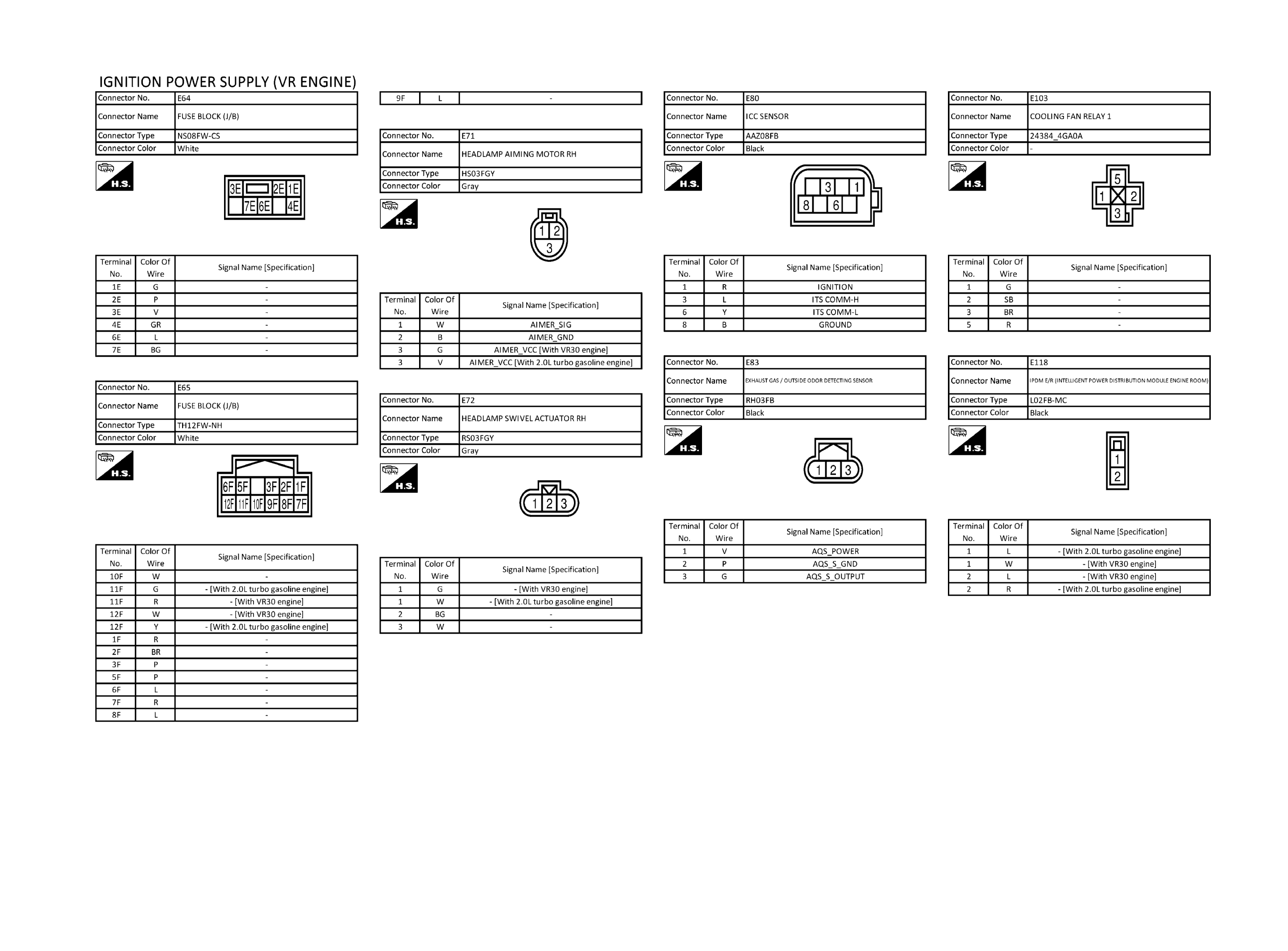

GNSJRMWL3271GB-271

Courtesy of NISSAN NORTH AMERICA, INC.

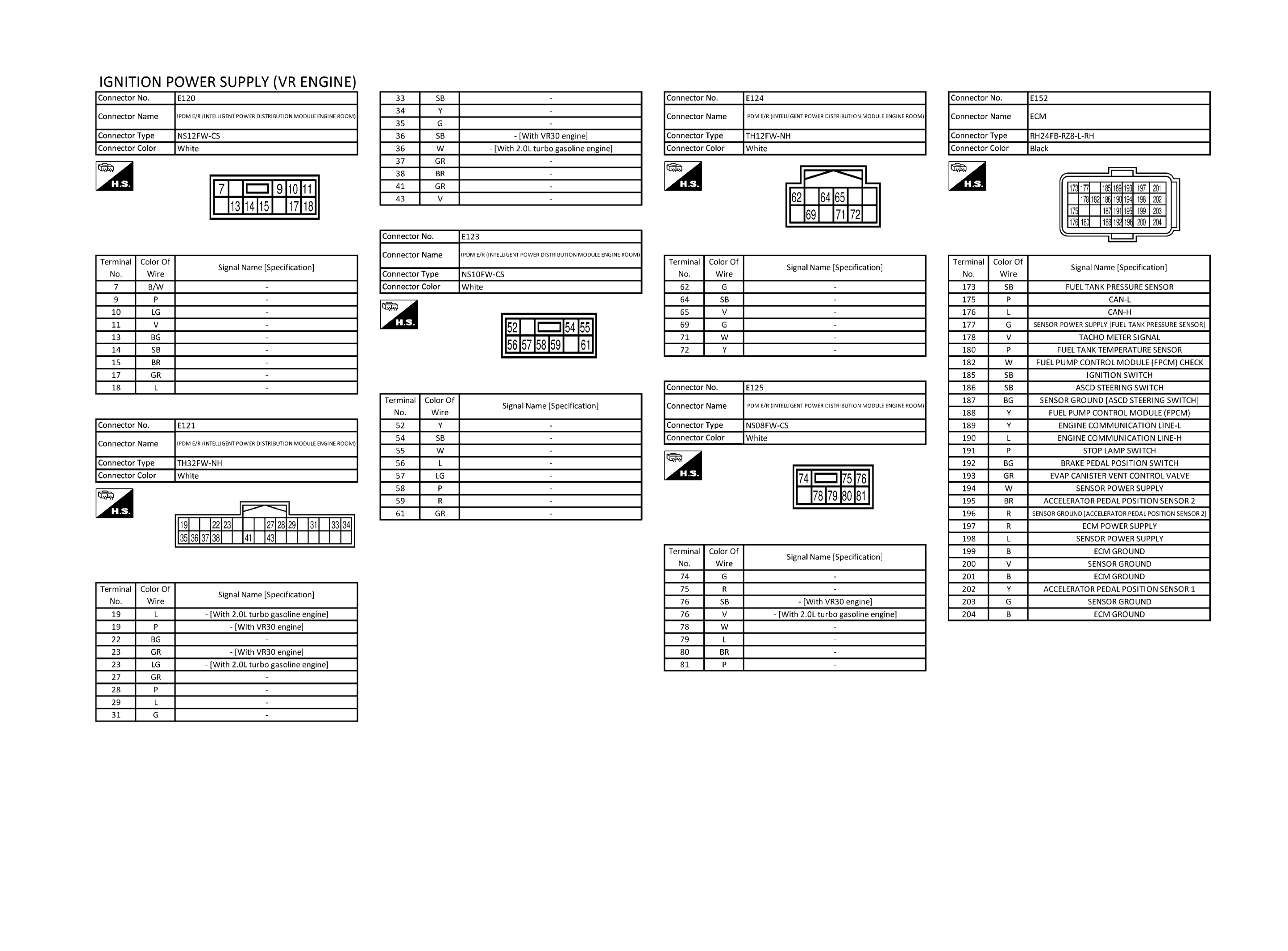

GNSJRMWL3272GB-272

Courtesy of NISSAN NORTH AMERICA, INC.

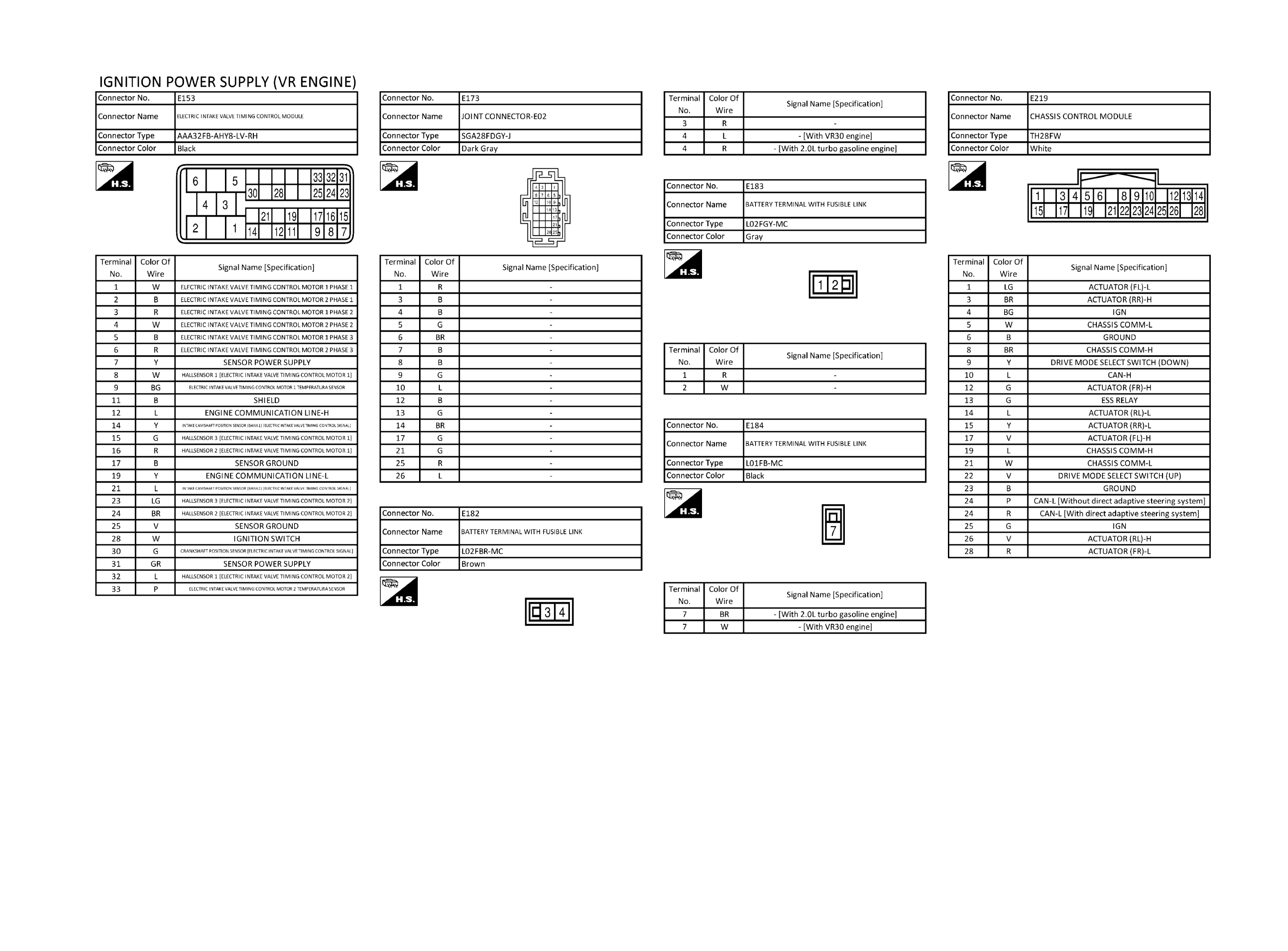

GNSJRMWL3273GB-273

Courtesy of NISSAN NORTH AMERICA, INC.

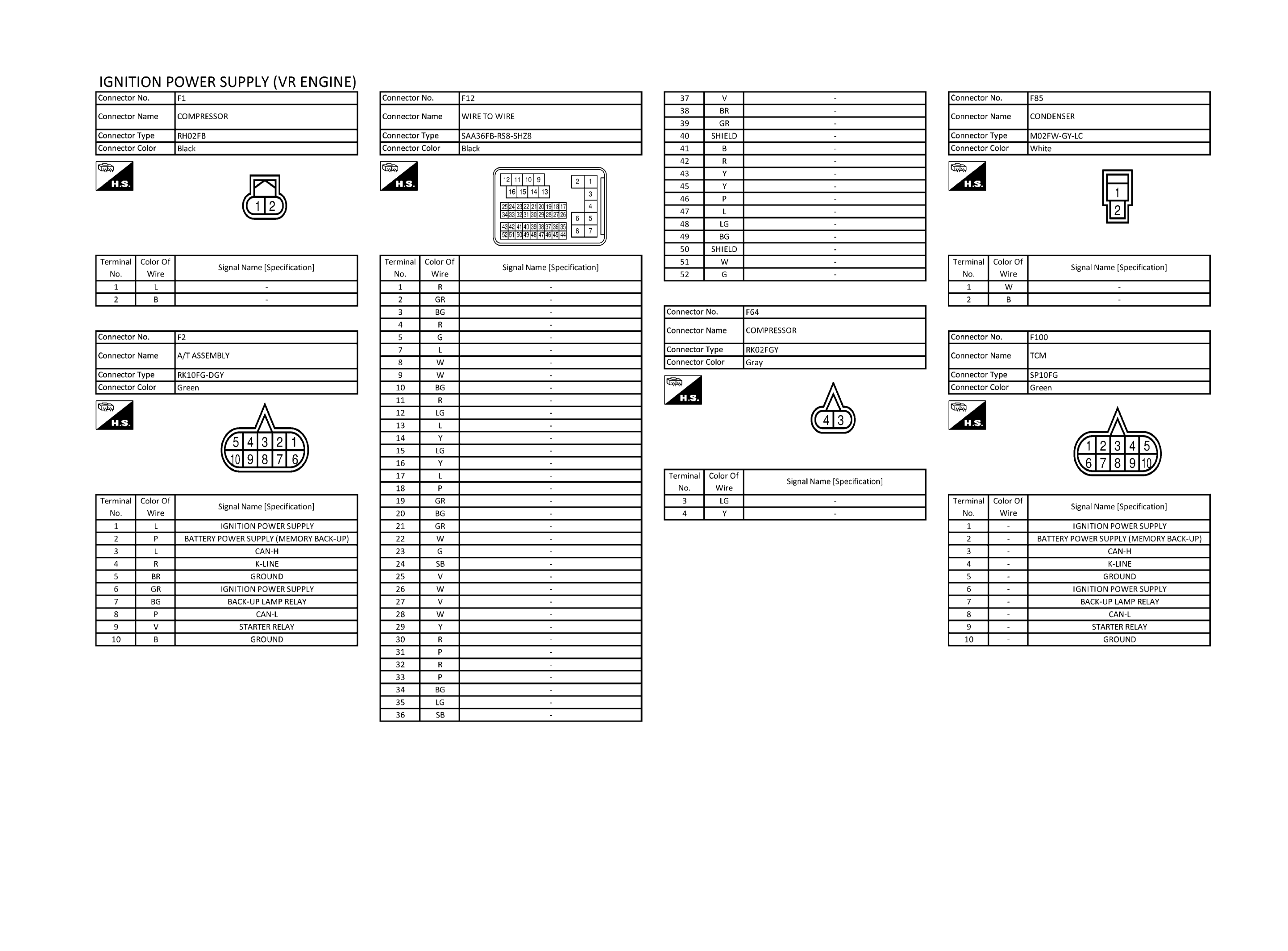

GNSJRMWL3274GB-274

Courtesy of NISSAN NORTH AMERICA, INC.

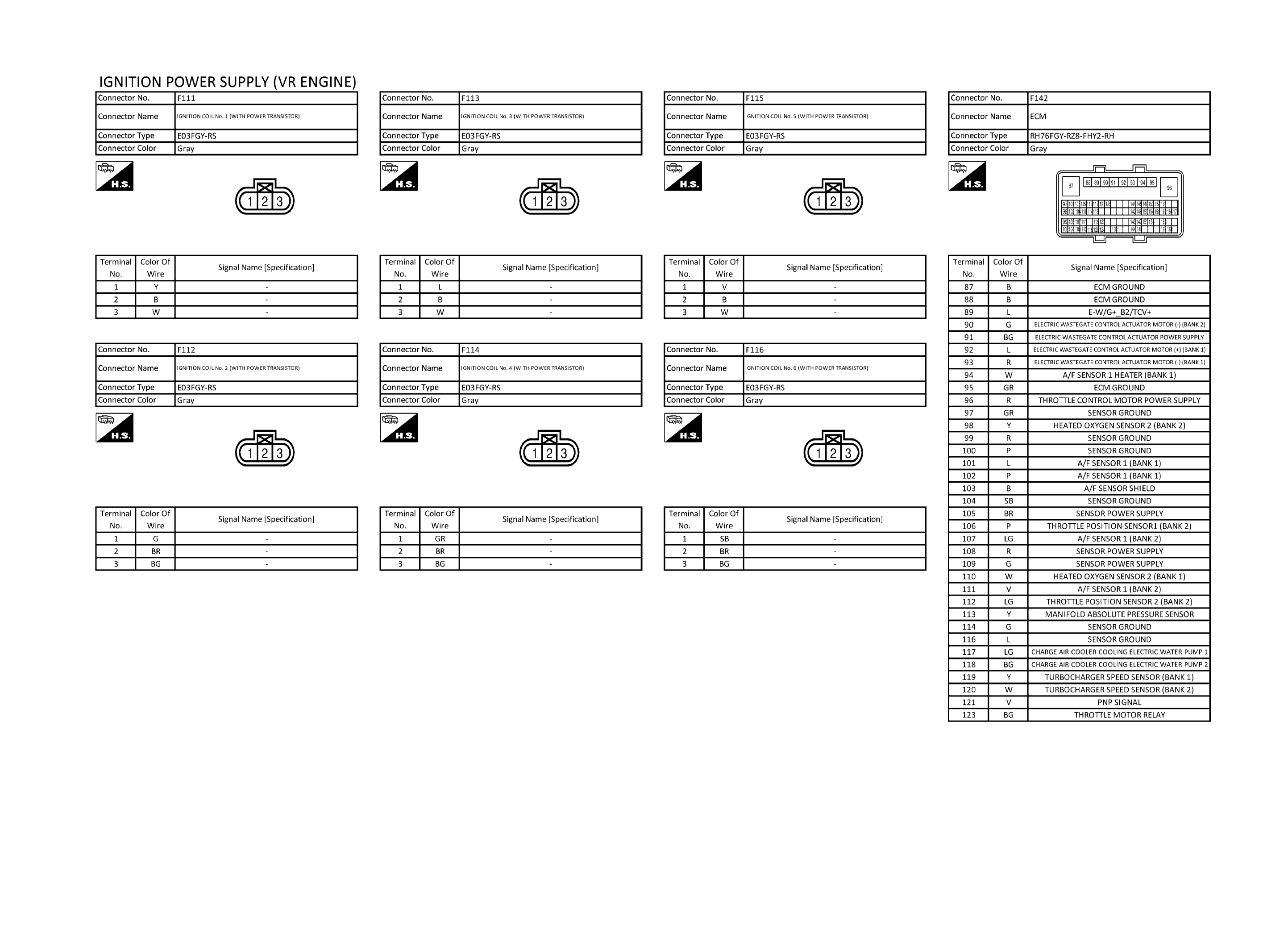

GNSJRMWL3275GB-275

Courtesy of NISSAN NORTH AMERICA, INC.

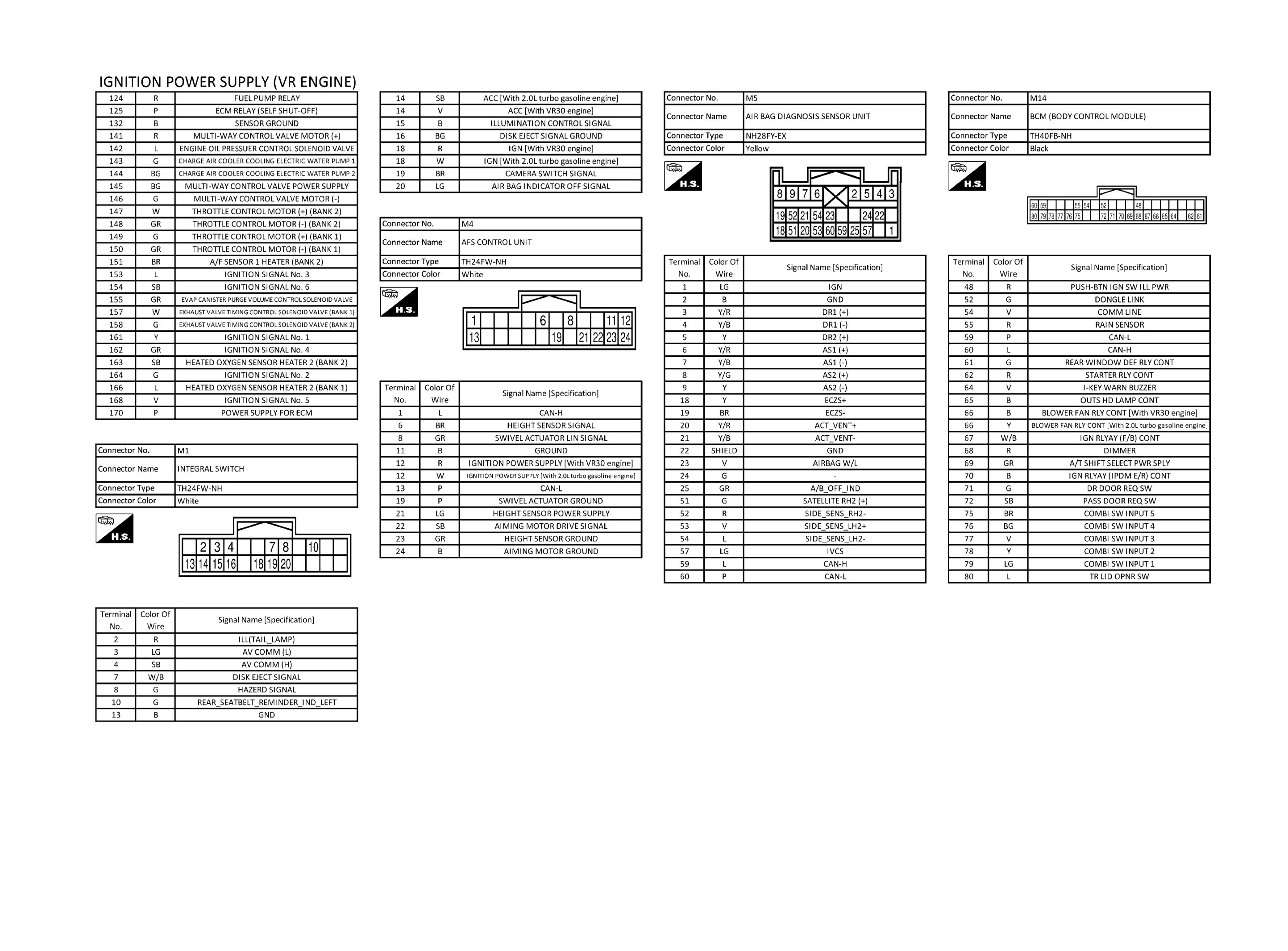

GNSJRMWL3276GB-276

Courtesy of NISSAN NORTH AMERICA, INC.

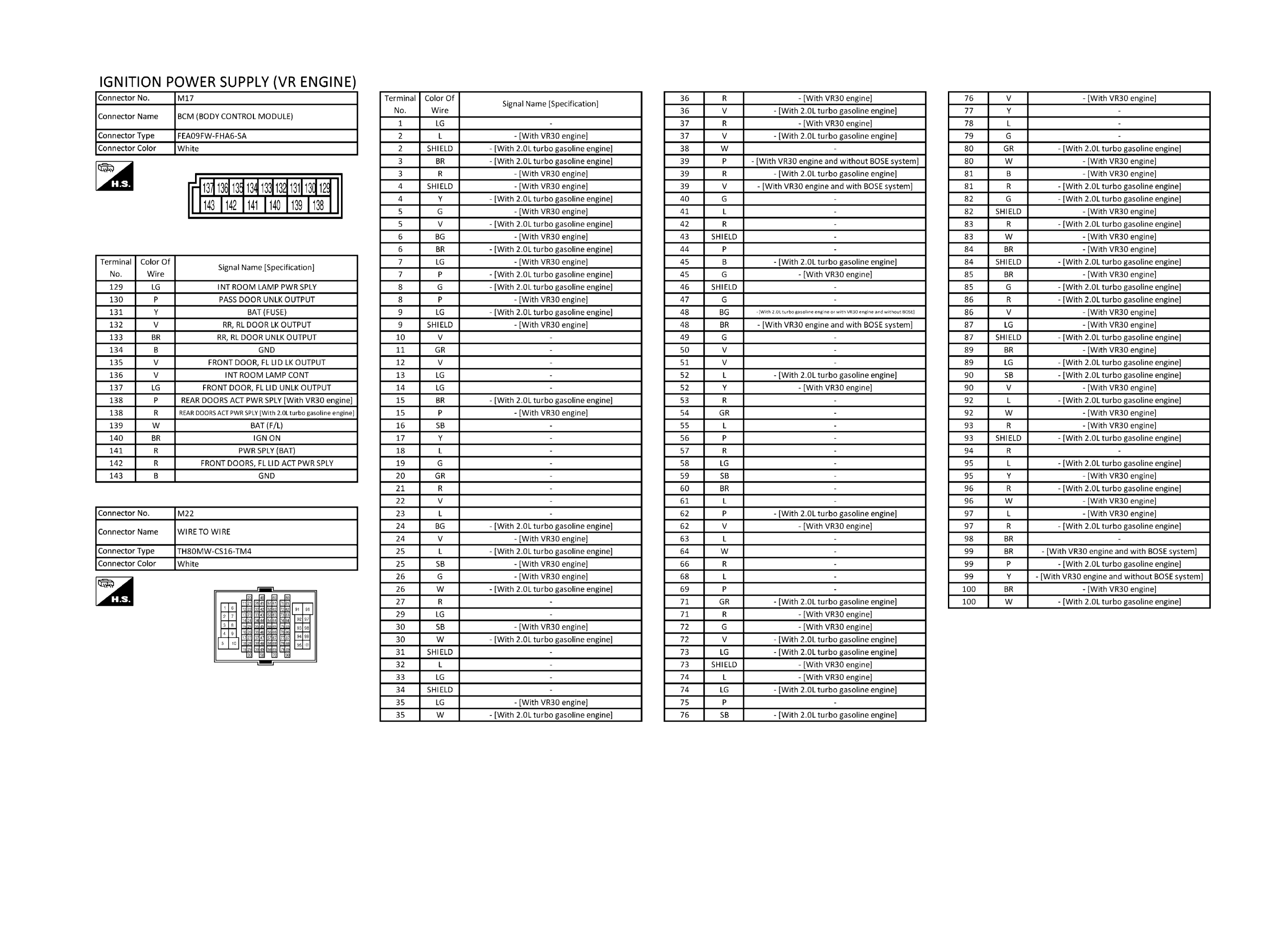

GNSJRMWL3277GB-277

Courtesy of NISSAN NORTH AMERICA, INC.

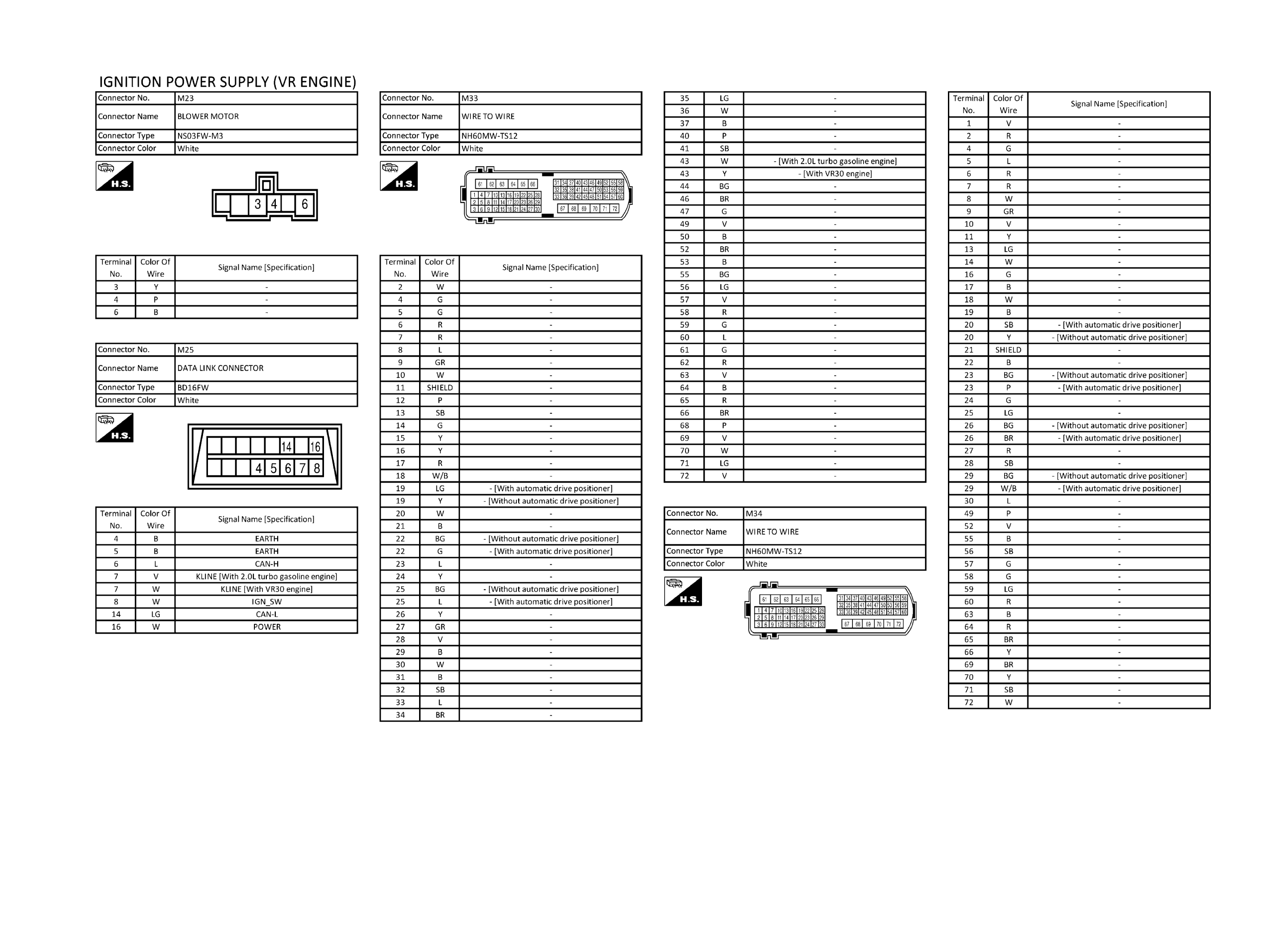

GNSJRMWL3278GB-278

Courtesy of NISSAN NORTH AMERICA, INC.

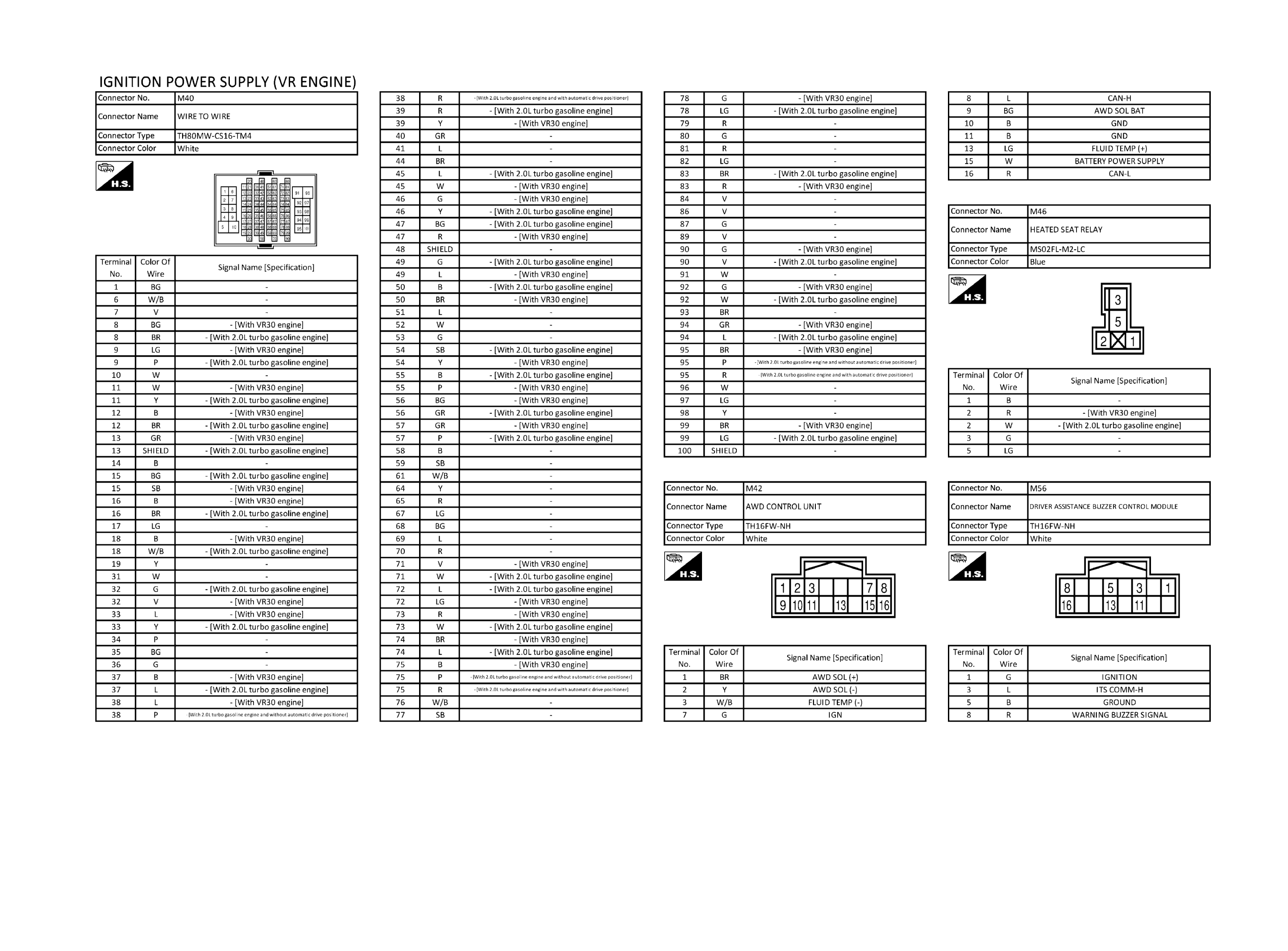

GNSJRMWL3279GB-279

Courtesy of NISSAN NORTH AMERICA, INC.

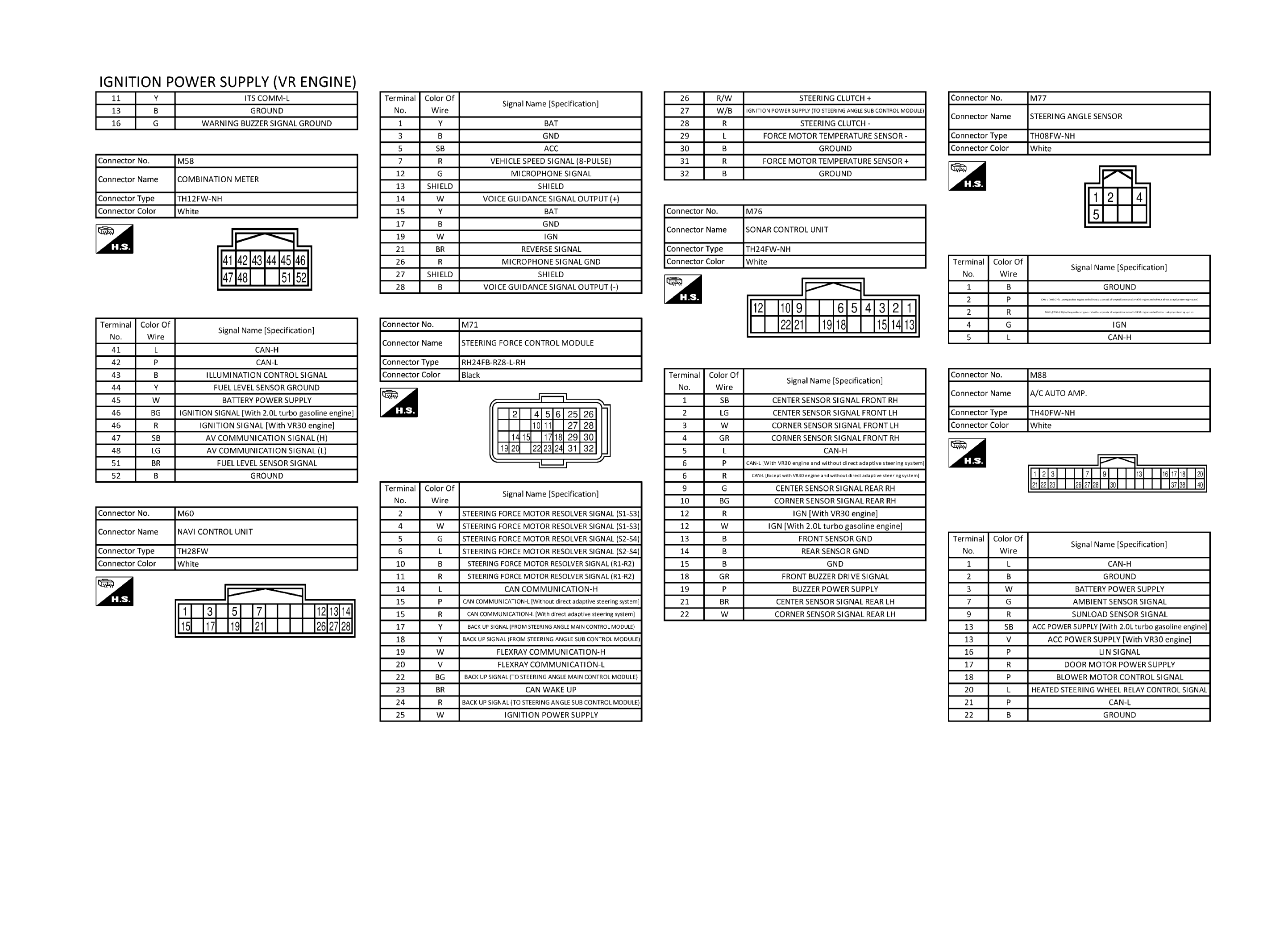

GNSJRMWL3280GB-280

Courtesy of NISSAN NORTH AMERICA, INC.

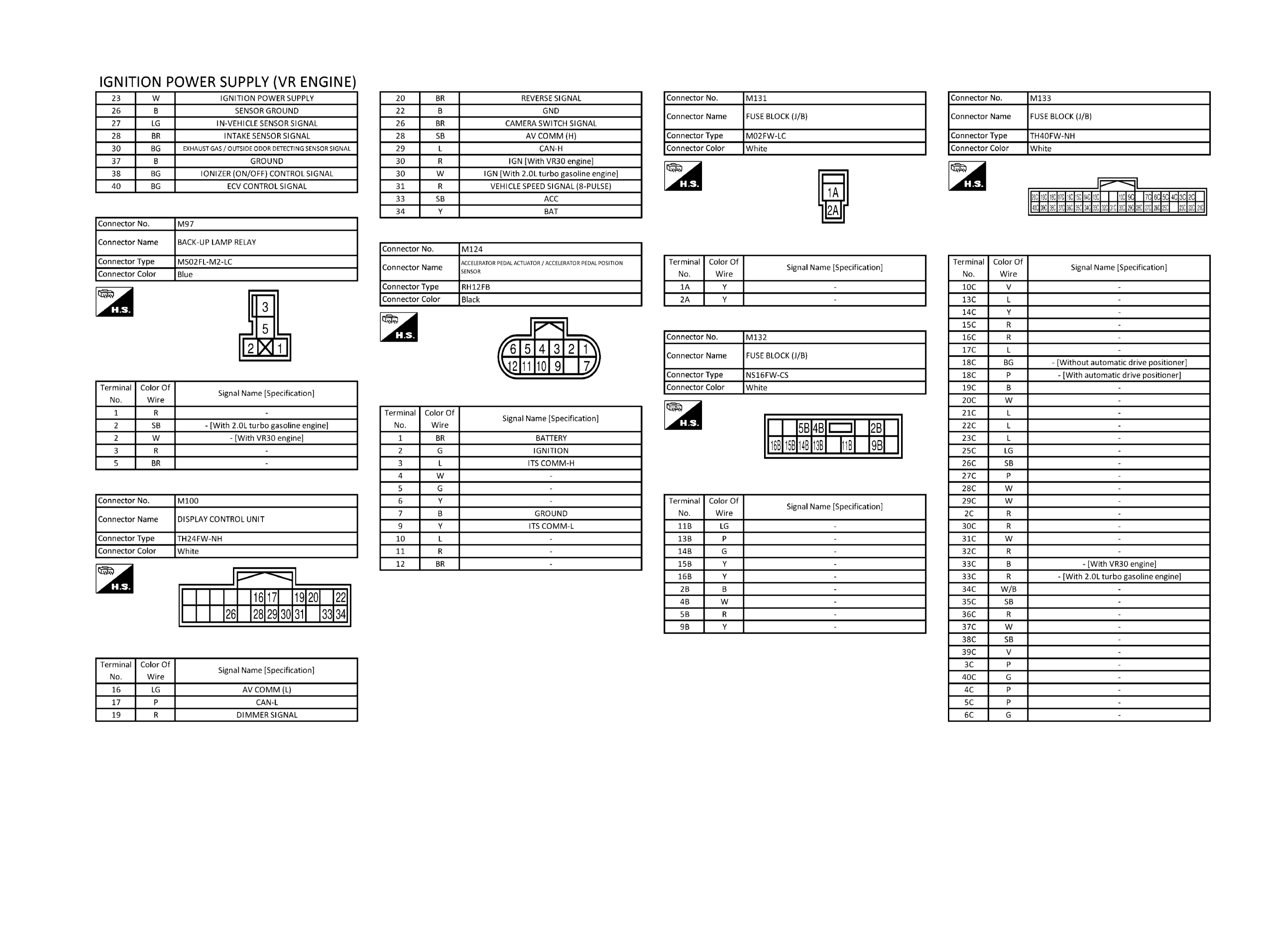

GNSJRMWL3281GB-281

Courtesy of NISSAN NORTH AMERICA, INC.

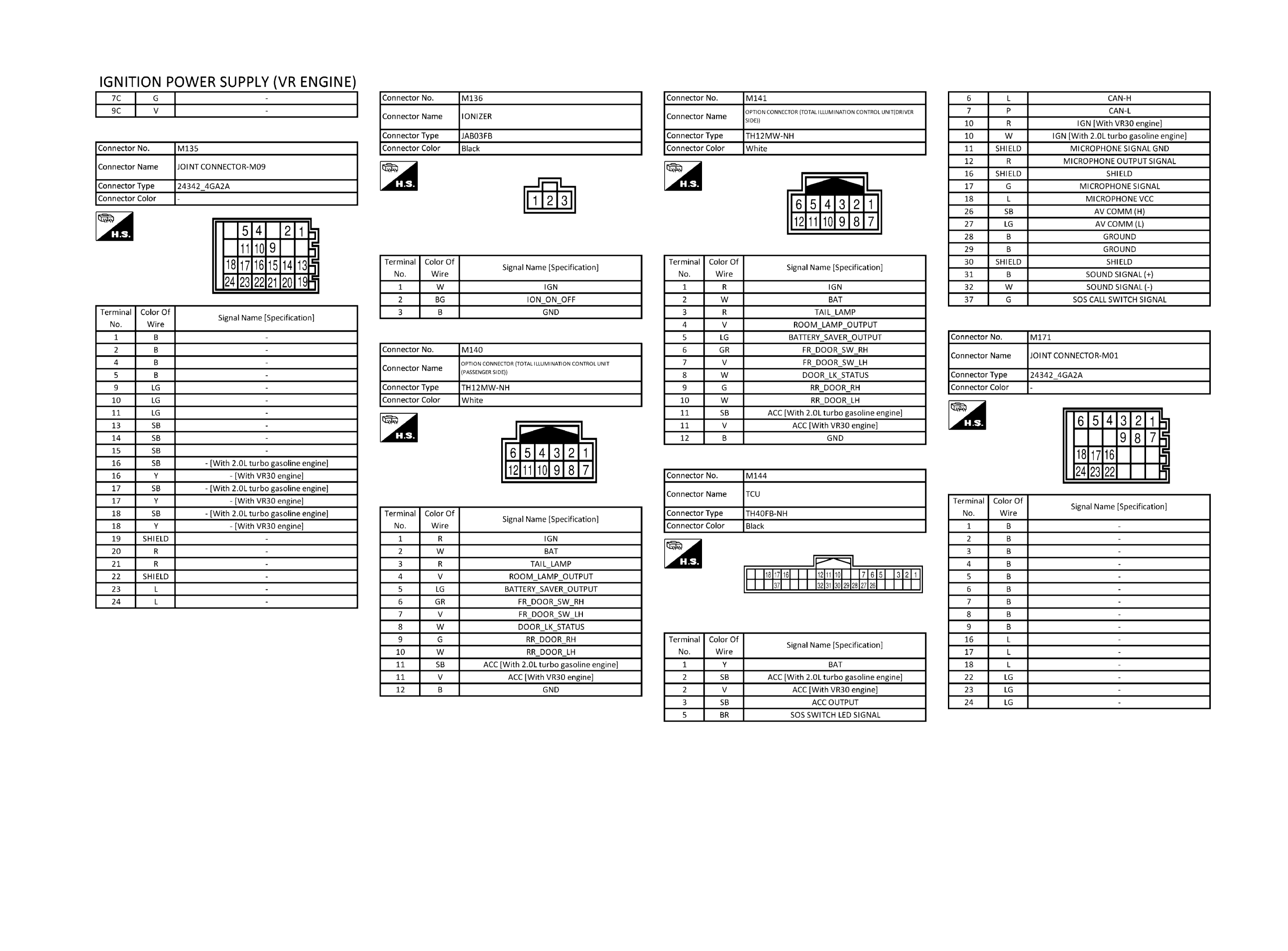

GNSJRMWL3282GB-282

Courtesy of NISSAN NORTH AMERICA, INC.

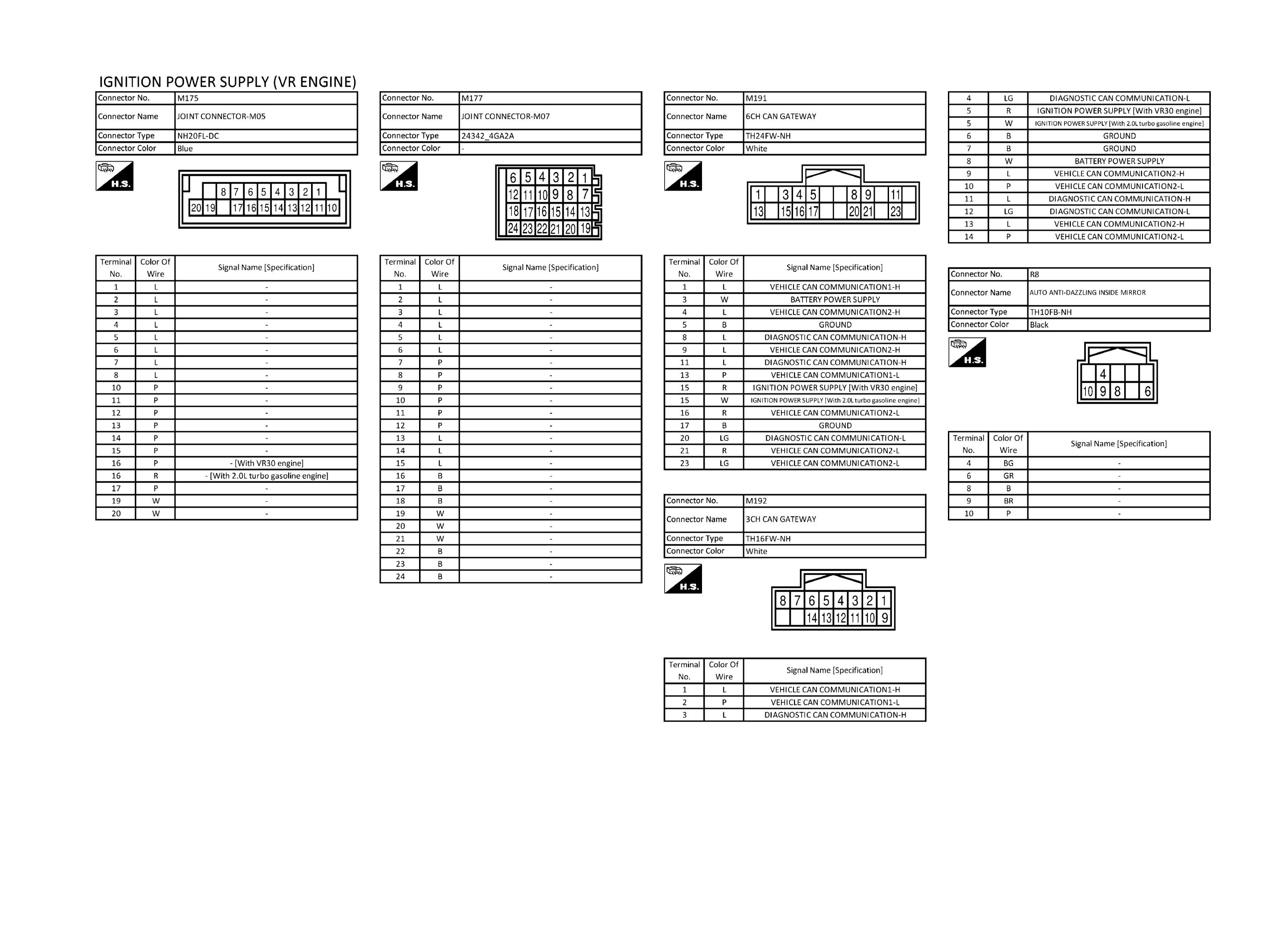

GNSJRMWL3283GB-283

Courtesy of NISSAN NORTH AMERICA, INC.

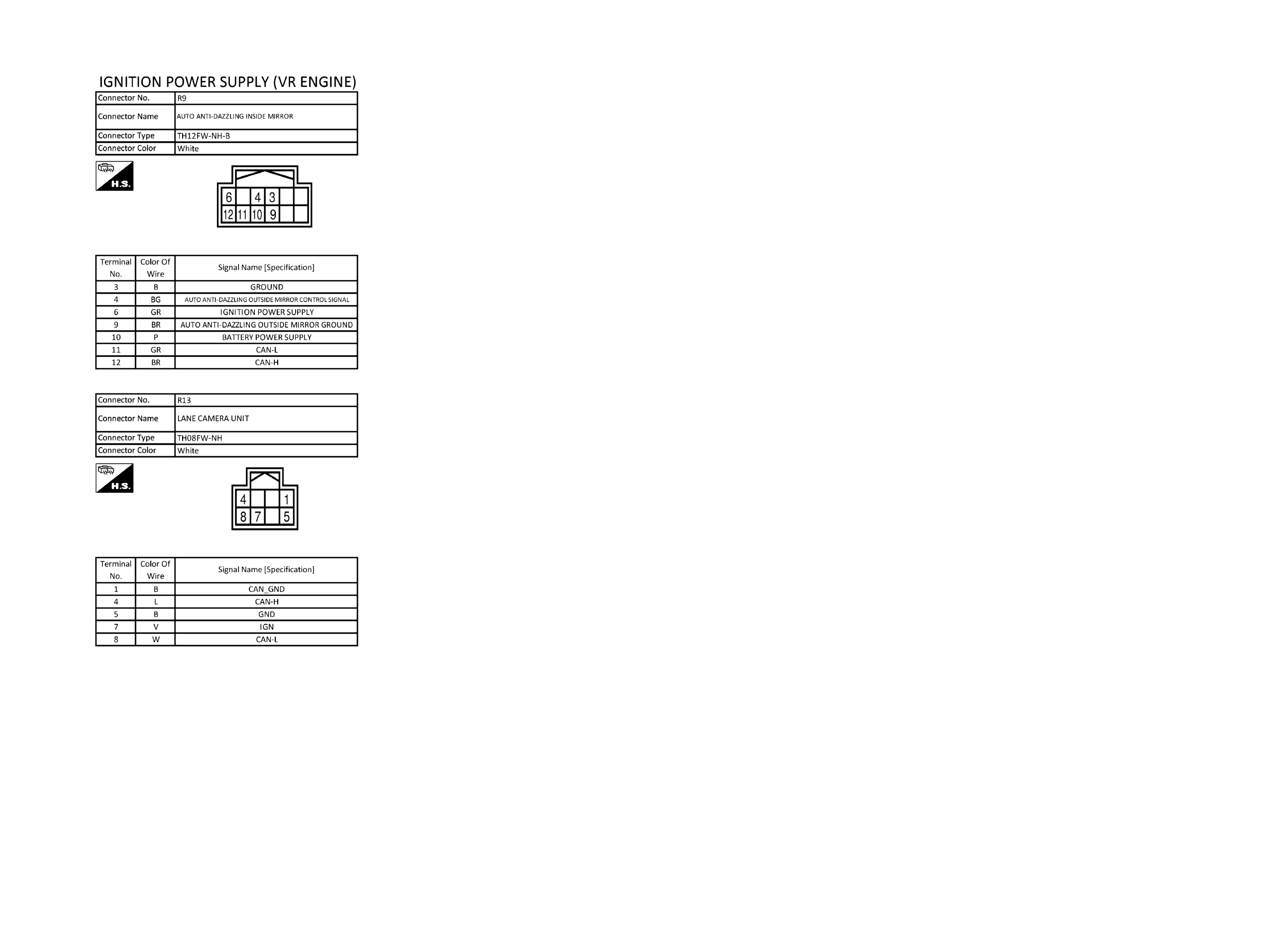

GNSJRMWL4549GB-549

Courtesy of NISSAN NORTH AMERICA, INC.
