Wiring Diagram - Battery Power Supply -

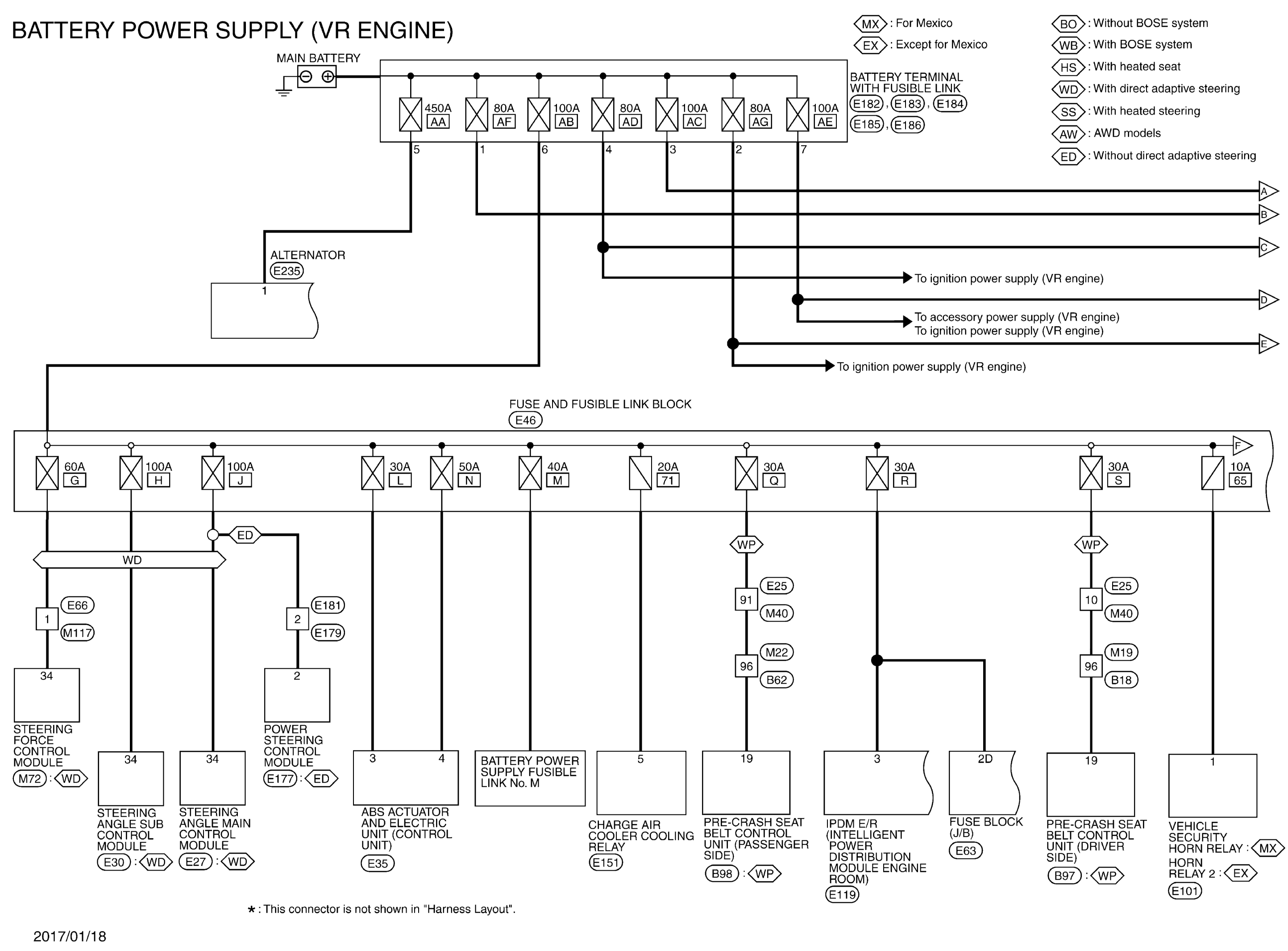

GNSJRMWL3195GB-195

Courtesy of NISSAN NORTH AMERICA, INC.

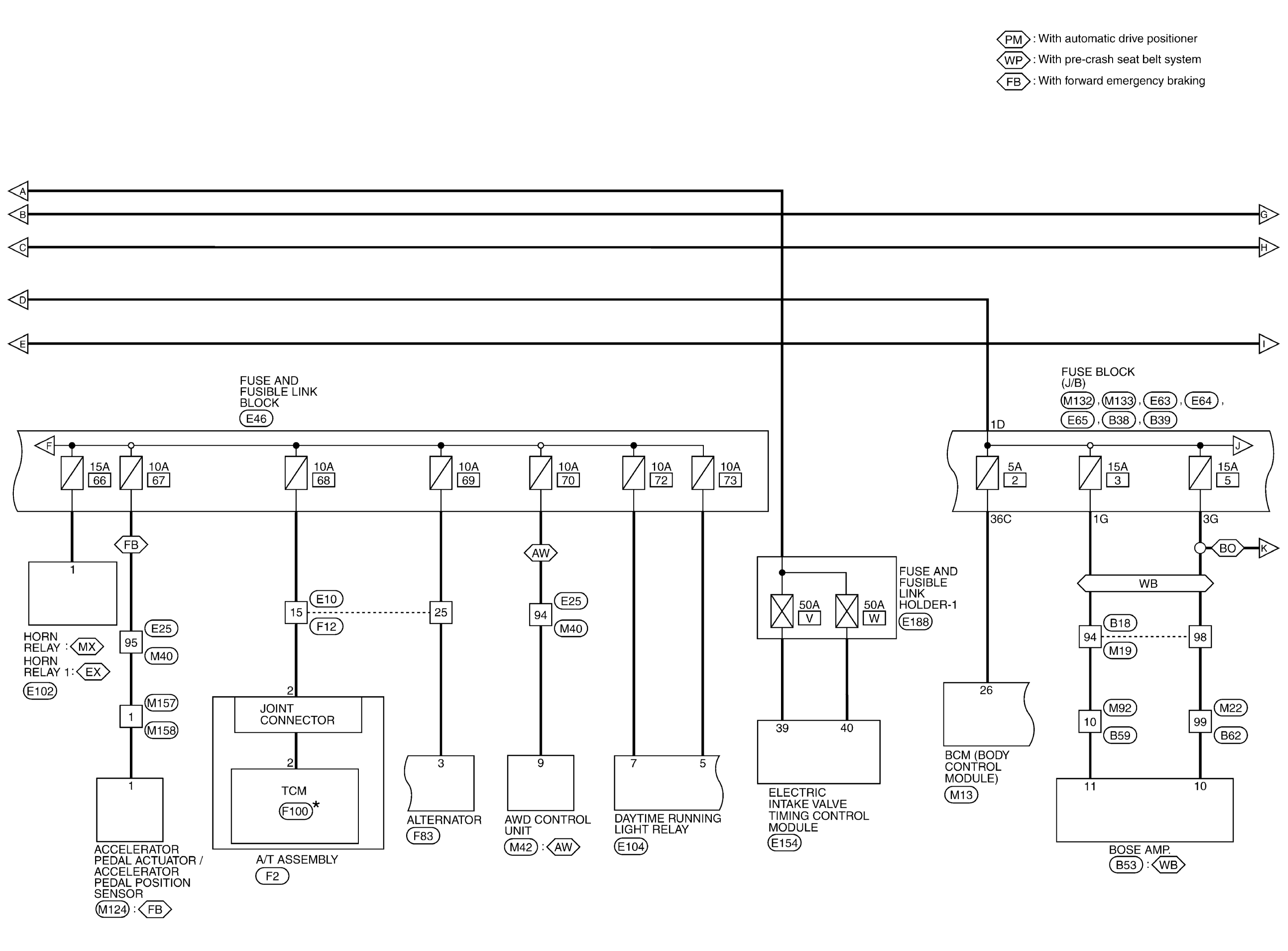

GNSJRMWL3196GB-196

Courtesy of NISSAN NORTH AMERICA, INC.

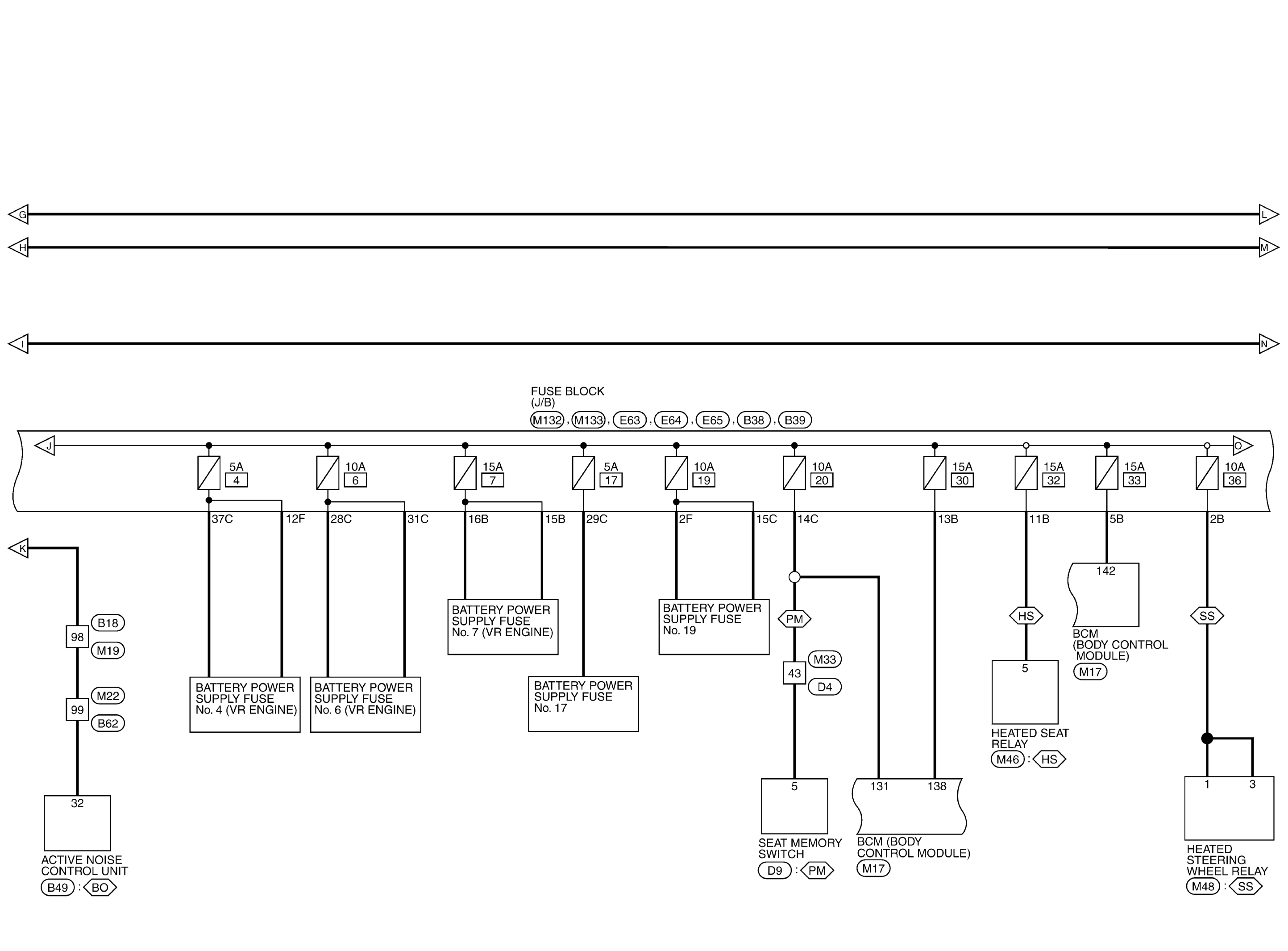

GNSJRMWL3197GB-197

Courtesy of NISSAN NORTH AMERICA, INC.

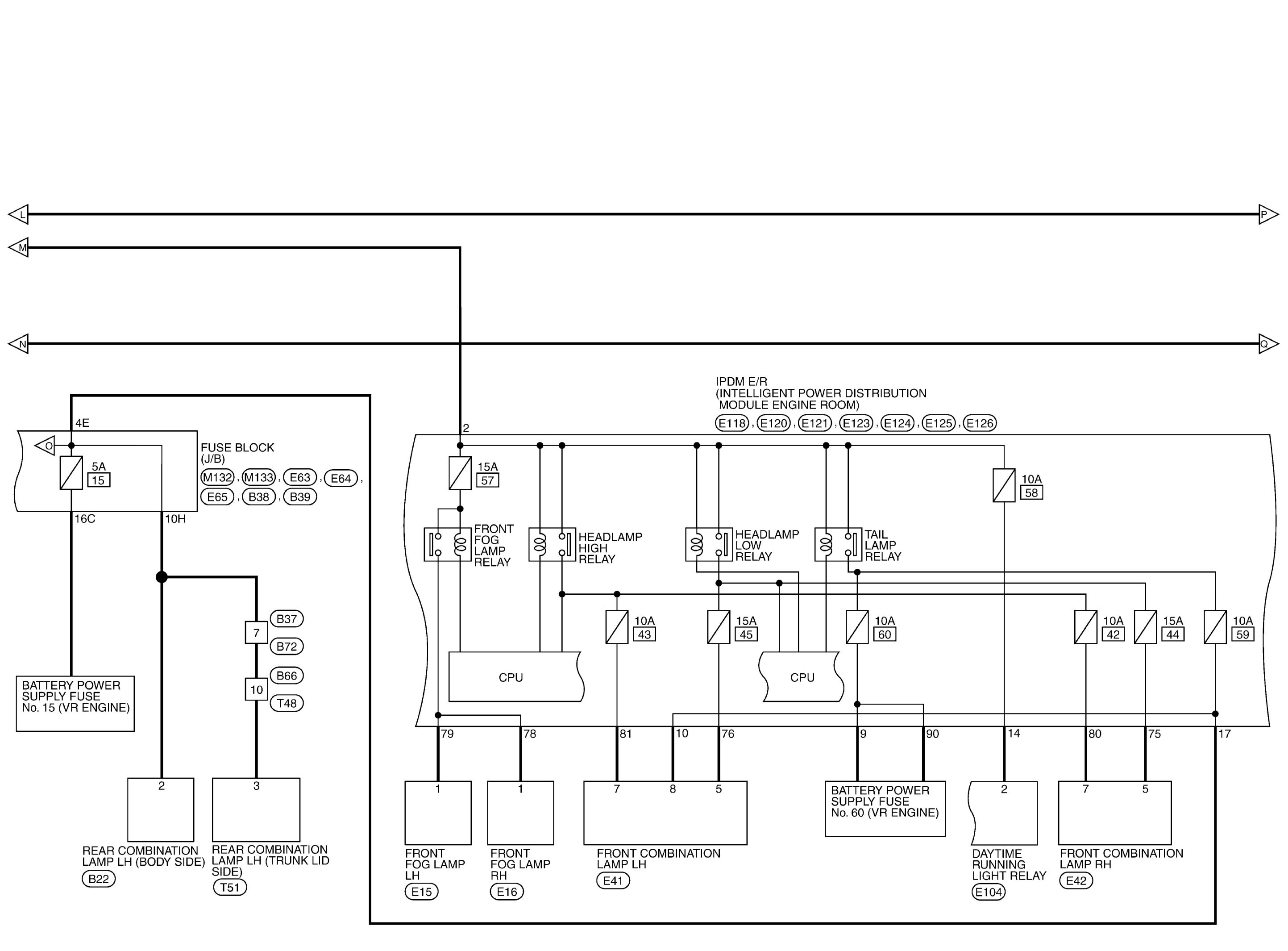

GNSJRMWL3198GB-198

Courtesy of NISSAN NORTH AMERICA, INC.

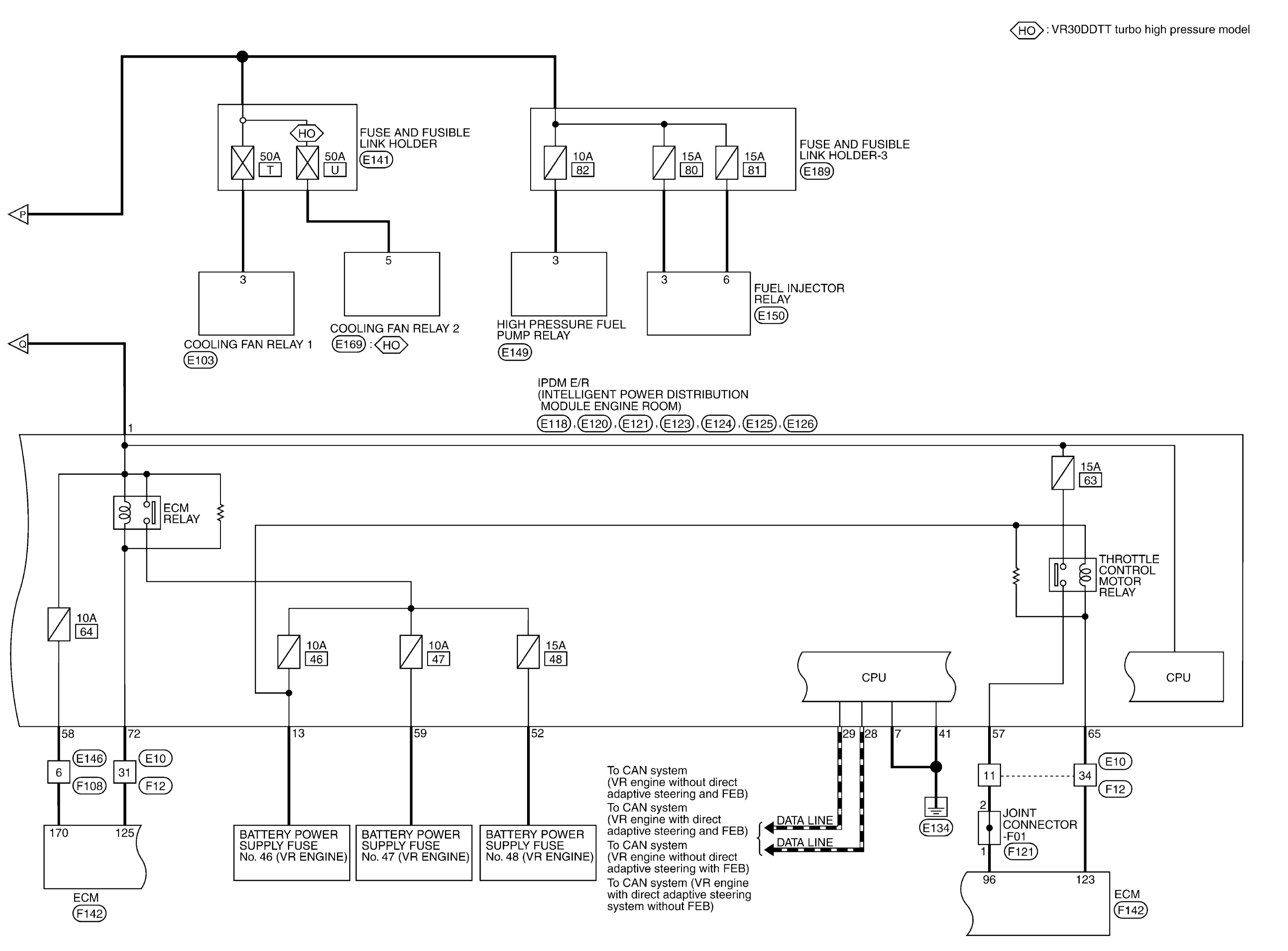

GNSJRMWL3199GB-199

Courtesy of NISSAN NORTH AMERICA, INC.

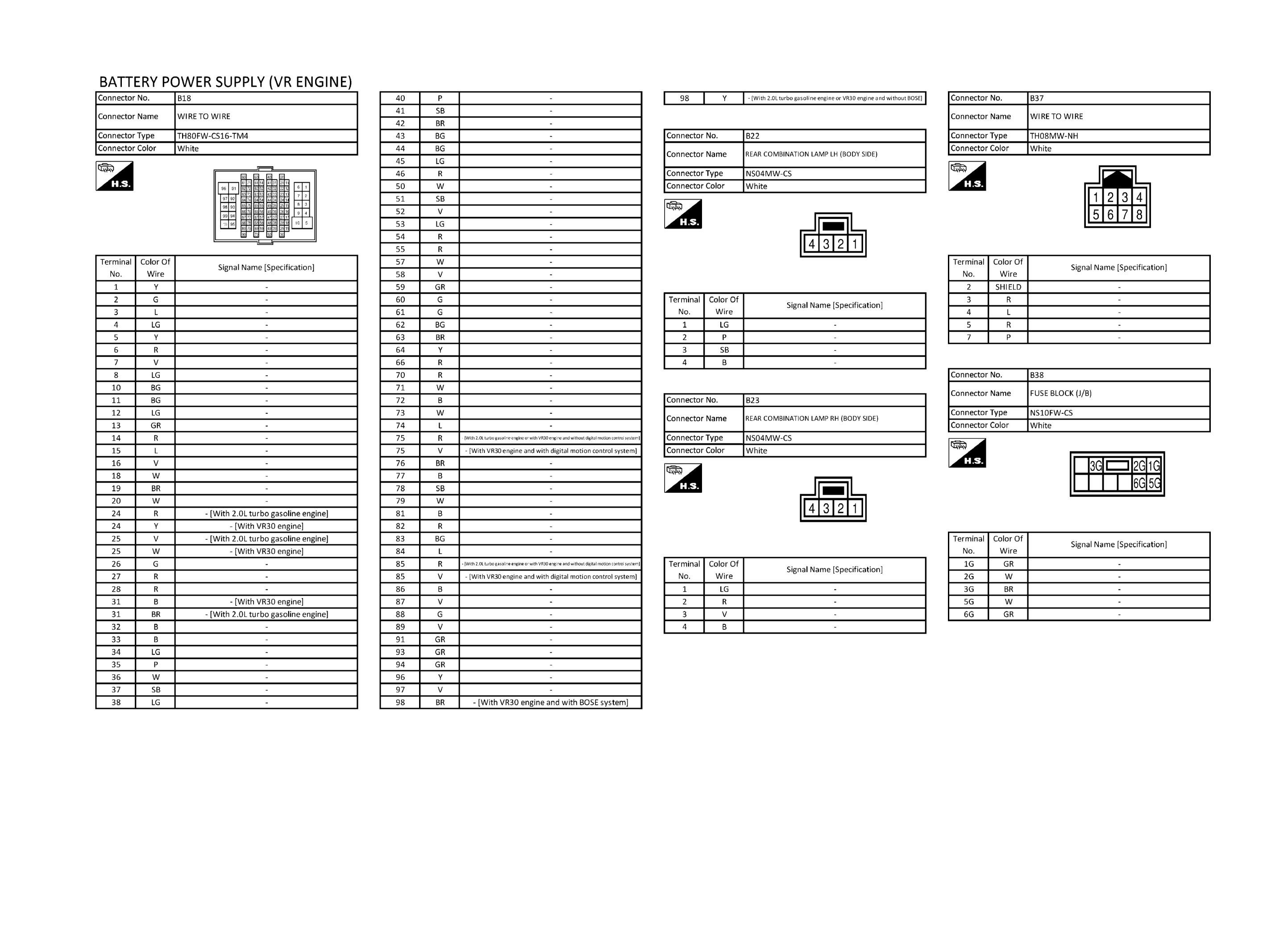

GNSJRMWL3200GB-200

Courtesy of NISSAN NORTH AMERICA, INC.

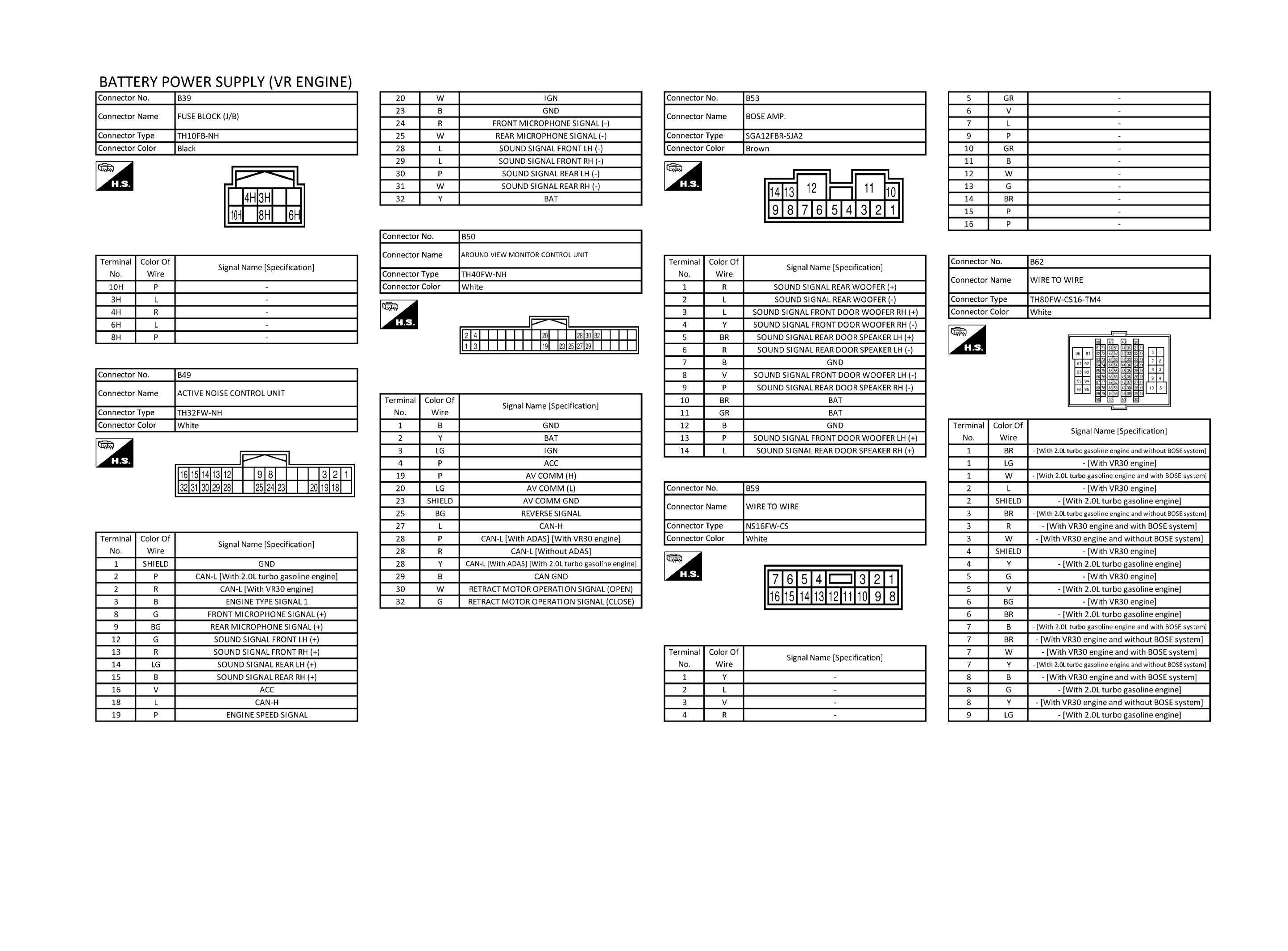

GNSJRMWL3201GB-201

Courtesy of NISSAN NORTH AMERICA, INC.

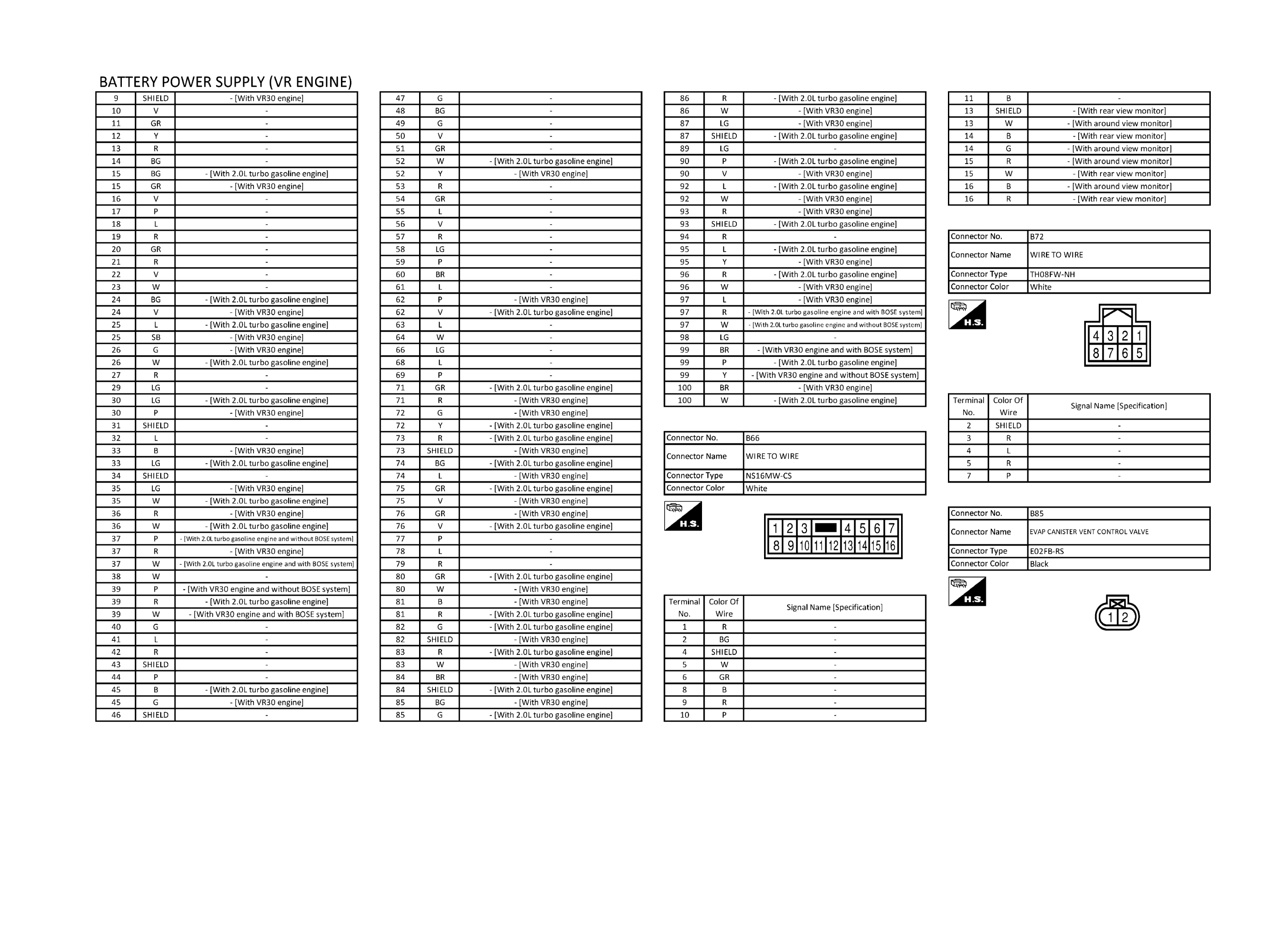

GNSJRMWL3202GB-202

Courtesy of NISSAN NORTH AMERICA, INC.

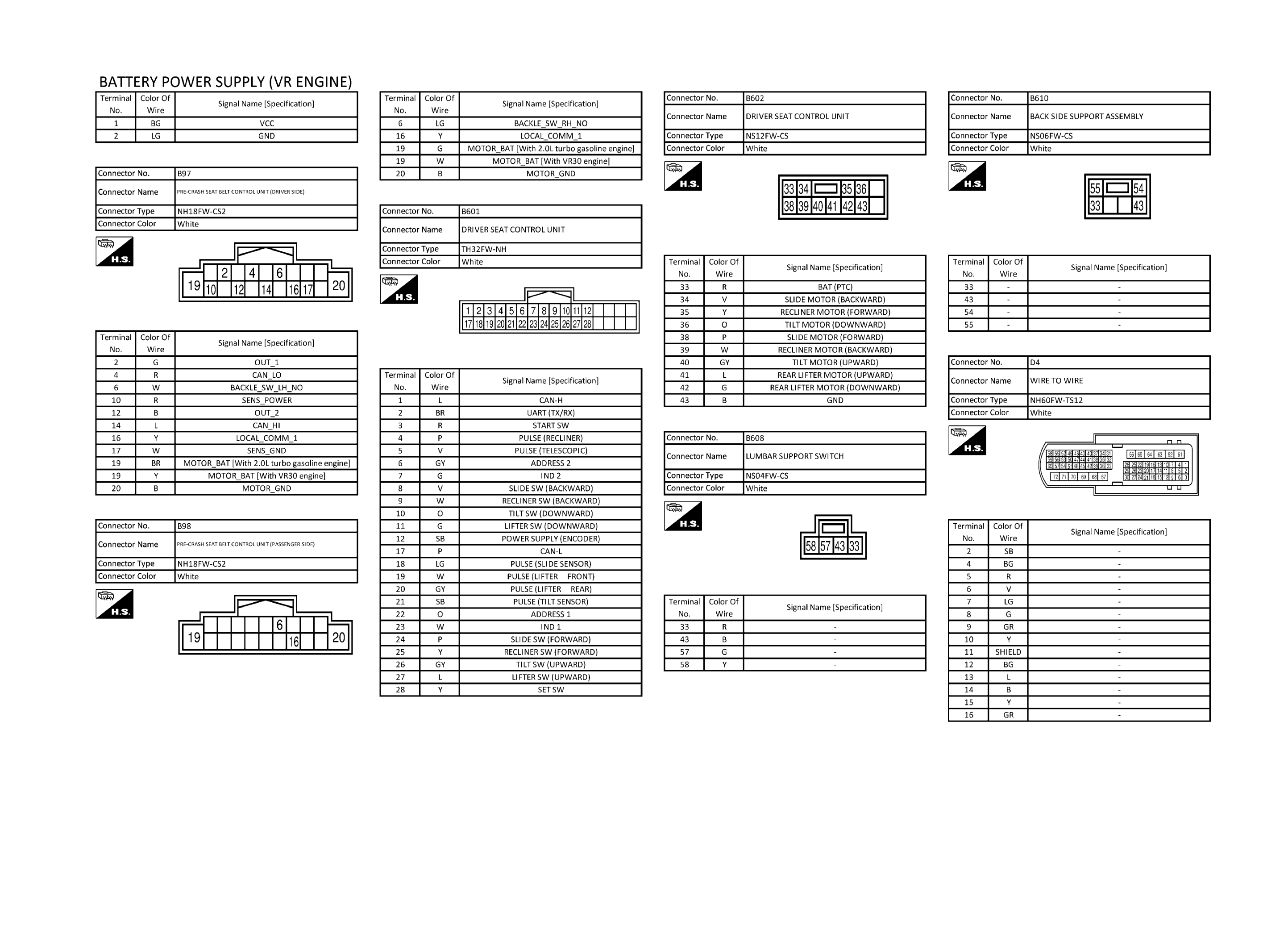

GNSJRMWL3203GB-203

Courtesy of NISSAN NORTH AMERICA, INC.

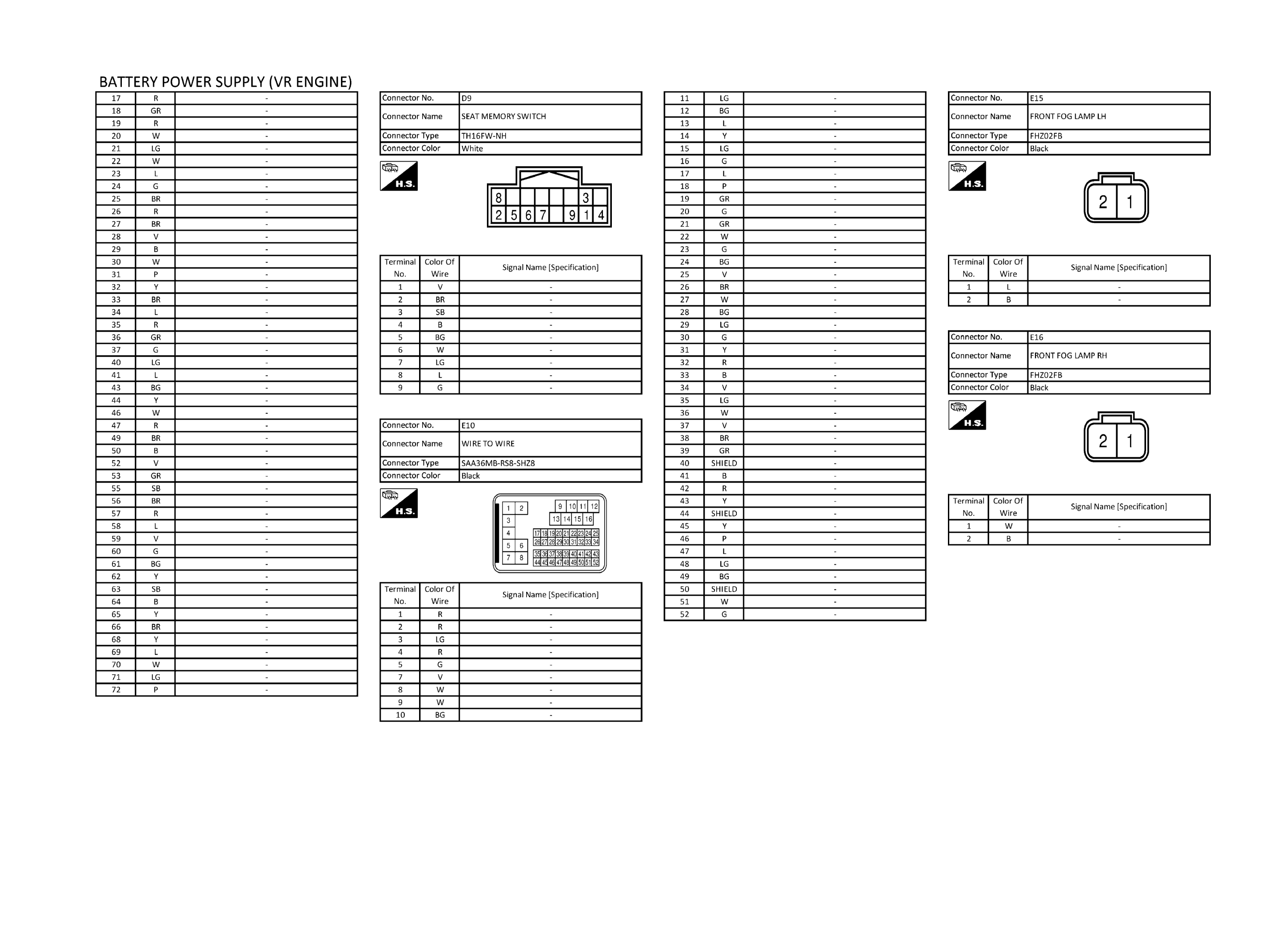

GNSJRMWL3204GB-204

Courtesy of NISSAN NORTH AMERICA, INC.

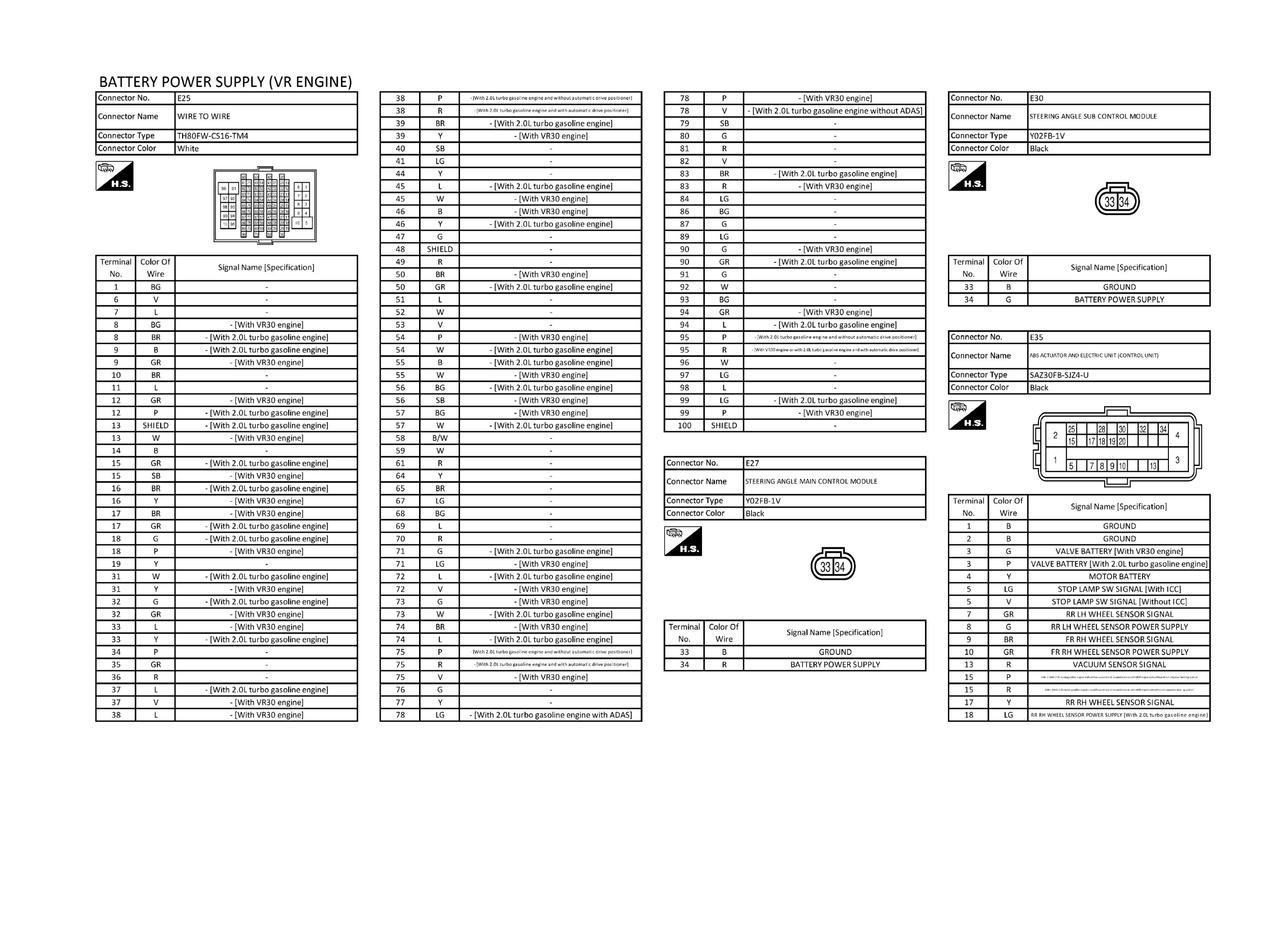

GNSJRMWL3205GB-205

Courtesy of NISSAN NORTH AMERICA, INC.

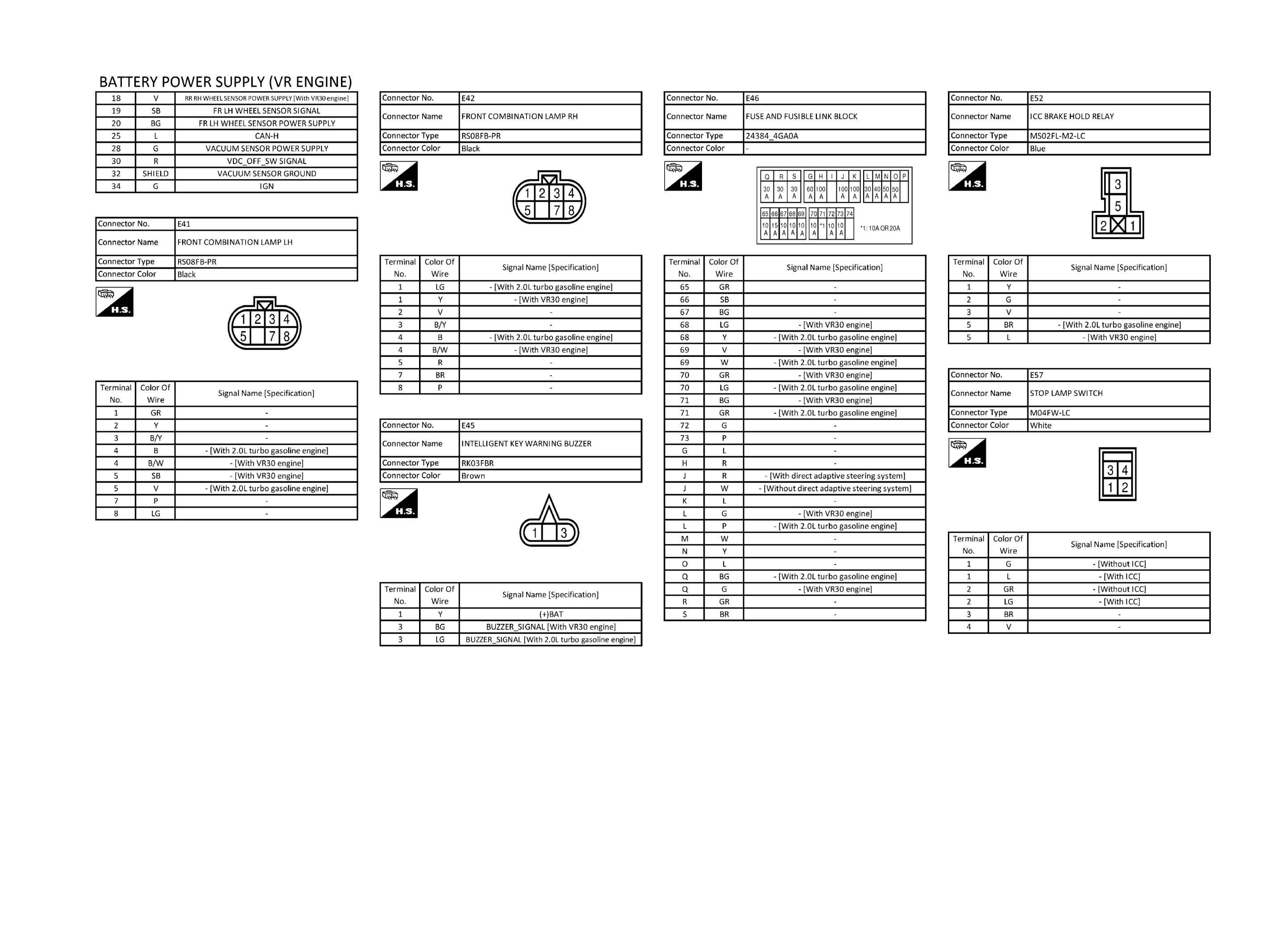

GNSJRMWL3206GB-206

Courtesy of NISSAN NORTH AMERICA, INC.

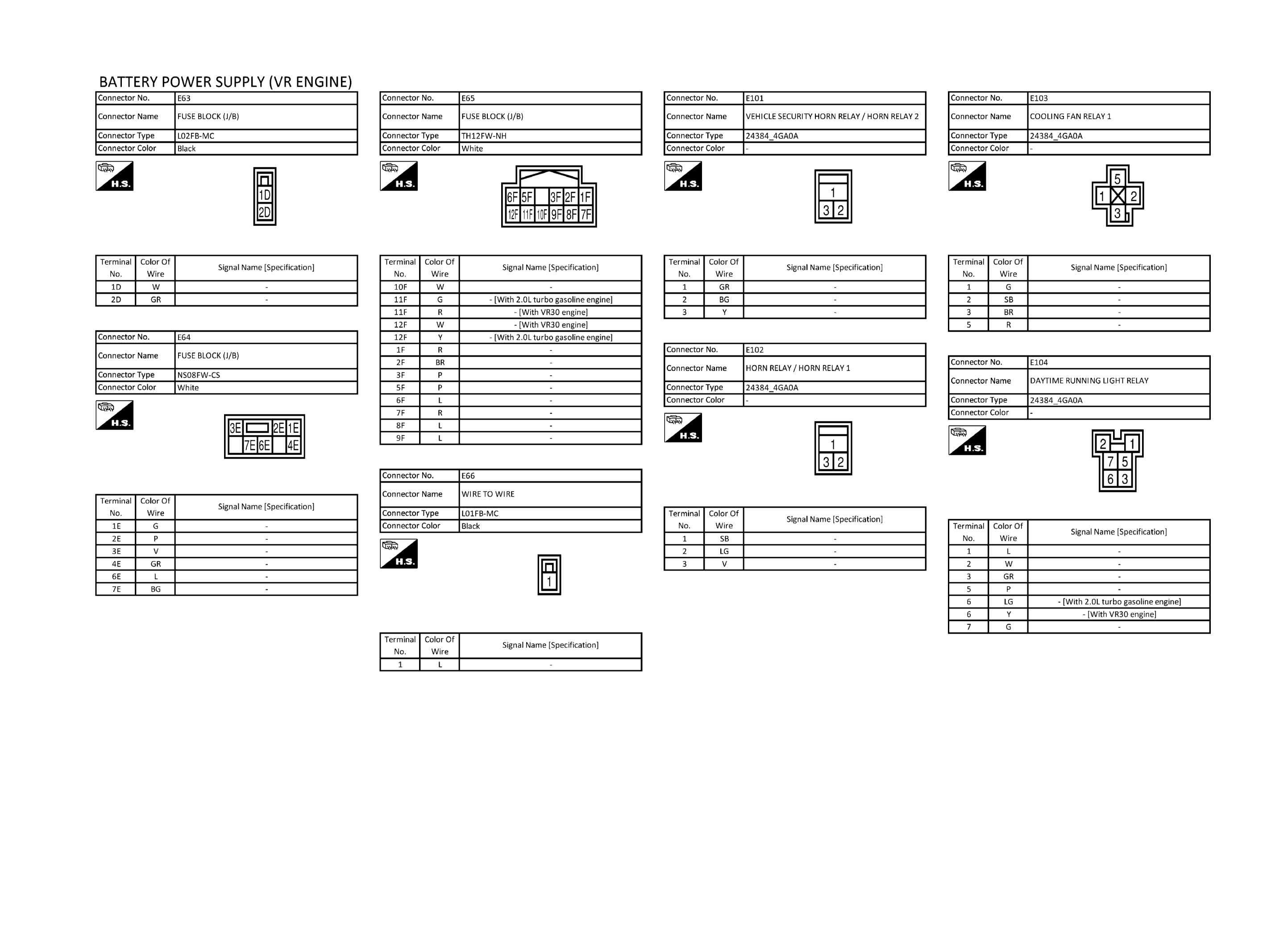

GNSJRMWL3207GB-207

Courtesy of NISSAN NORTH AMERICA, INC.

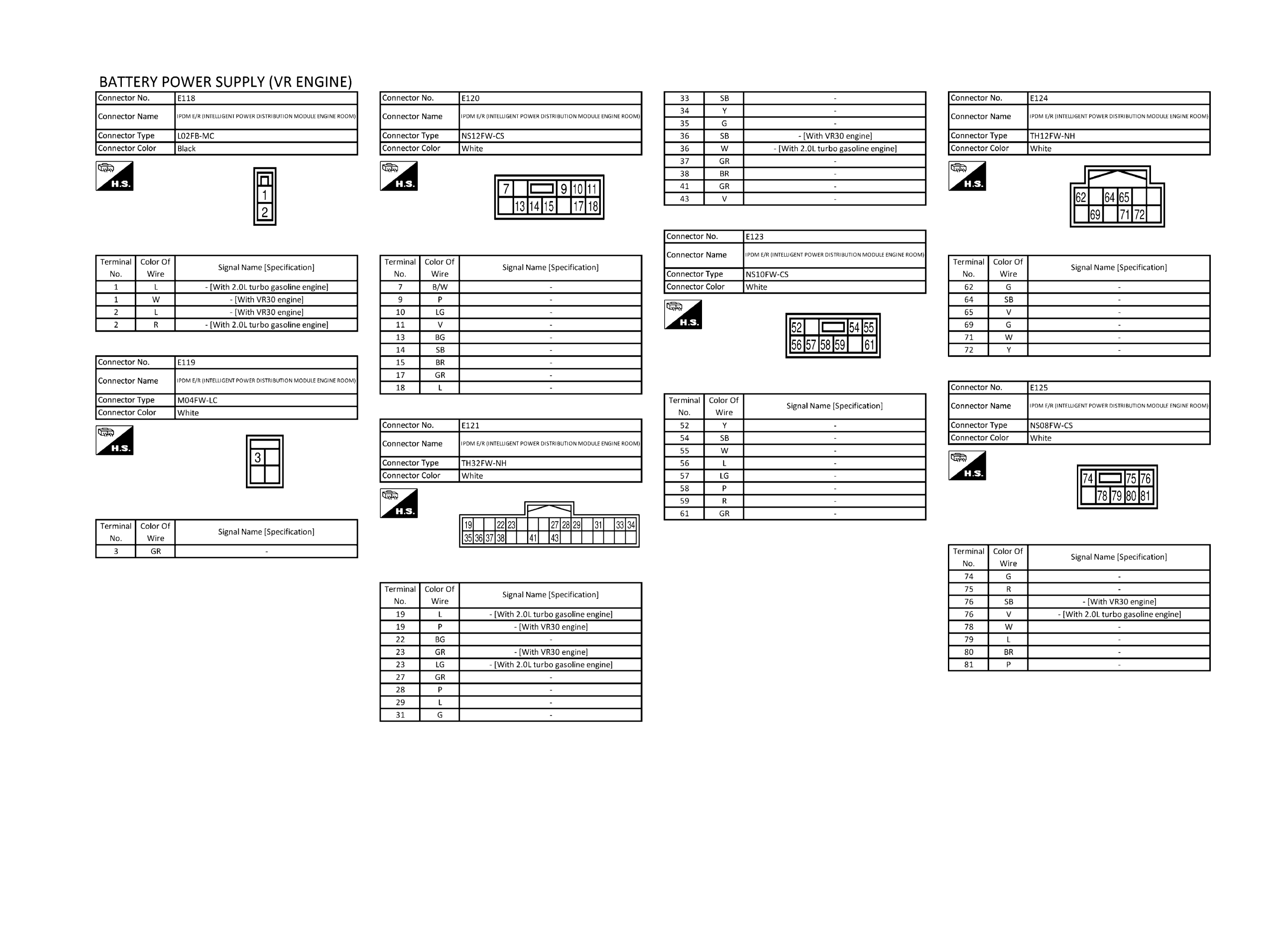

GNSJRMWL3208GB-208

Courtesy of NISSAN NORTH AMERICA, INC.

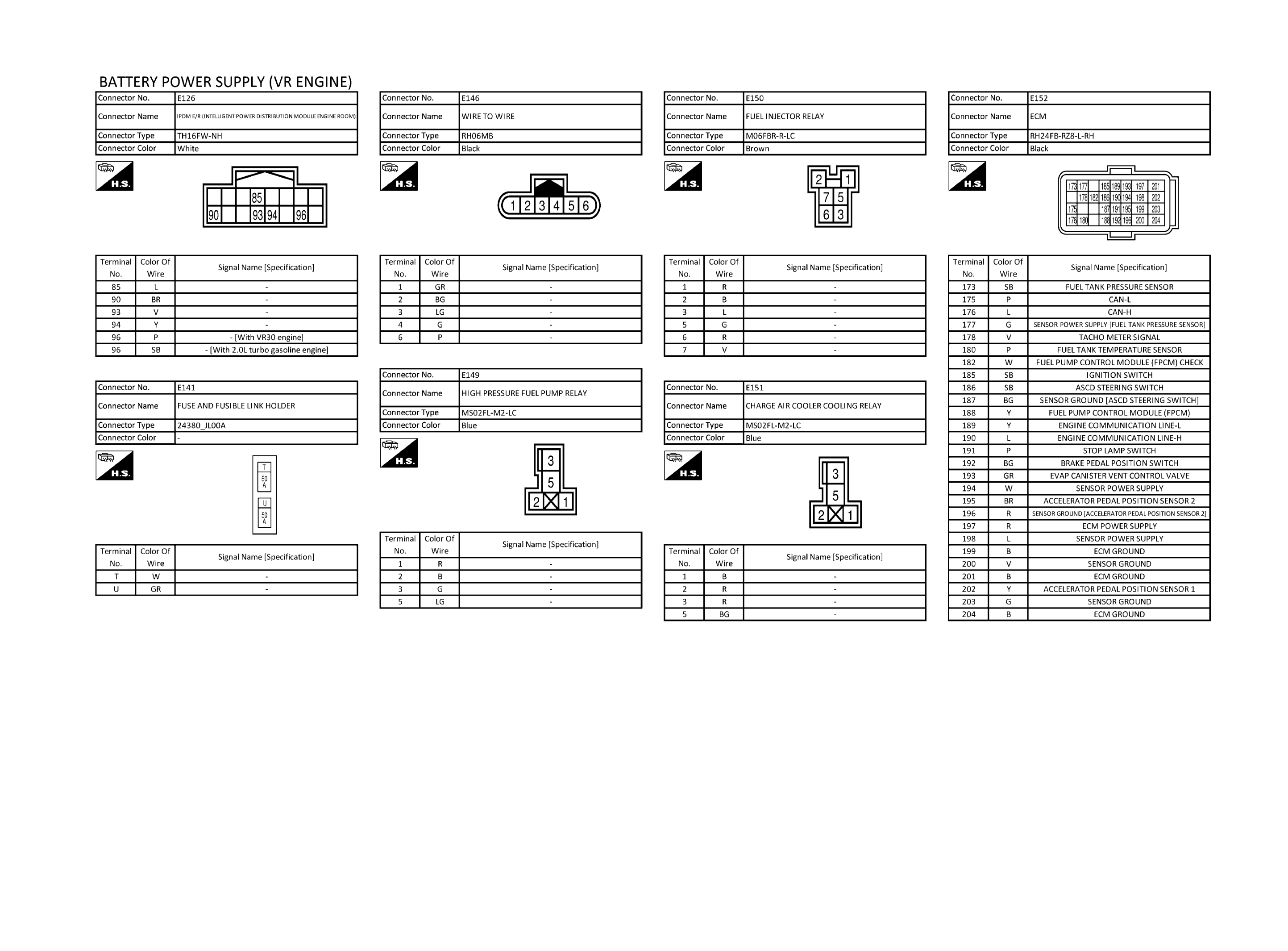

GNSJRMWL3209GB-209

Courtesy of NISSAN NORTH AMERICA, INC.

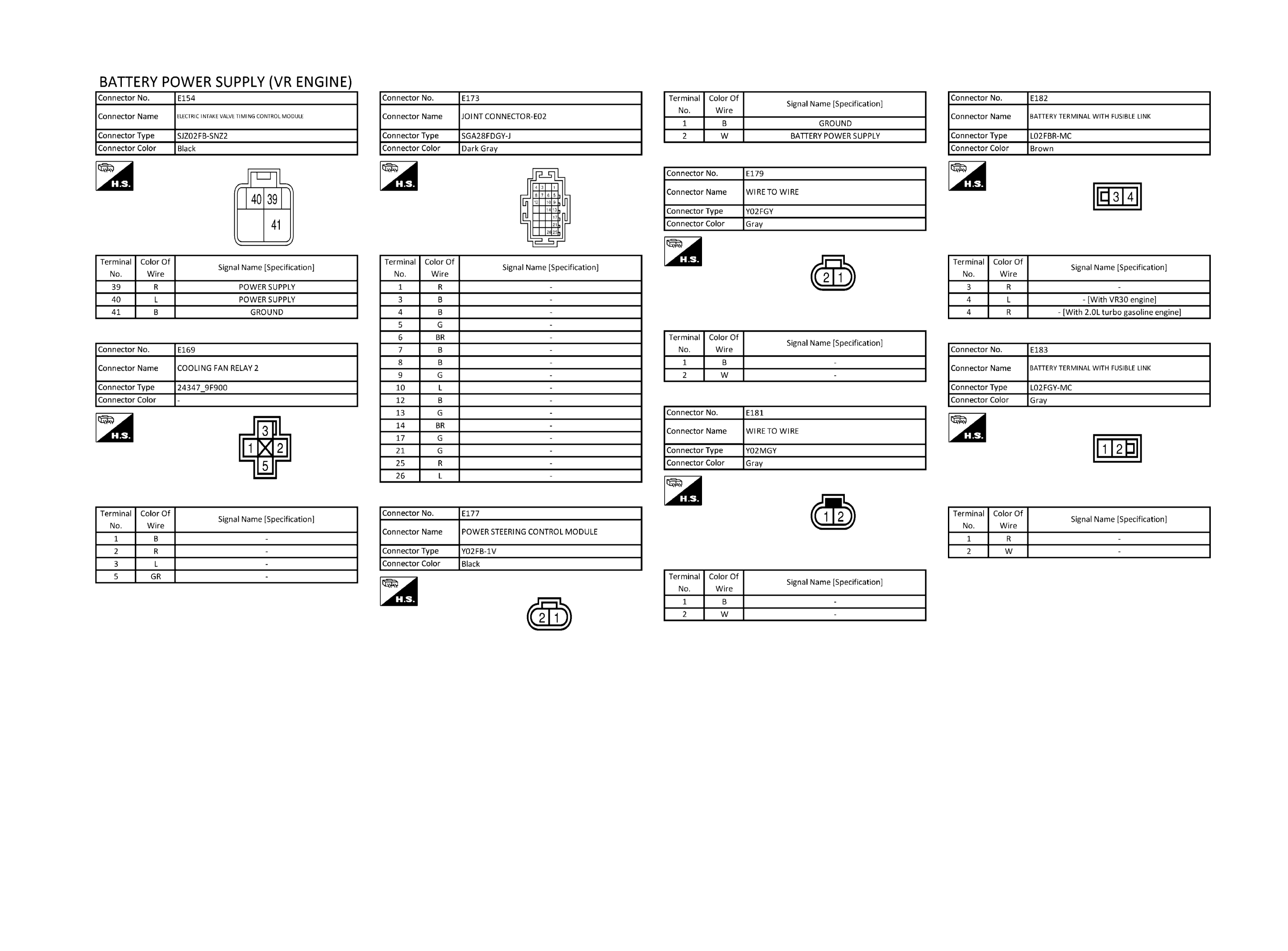

GNSJRMWL3210GB-210

Courtesy of NISSAN NORTH AMERICA, INC.

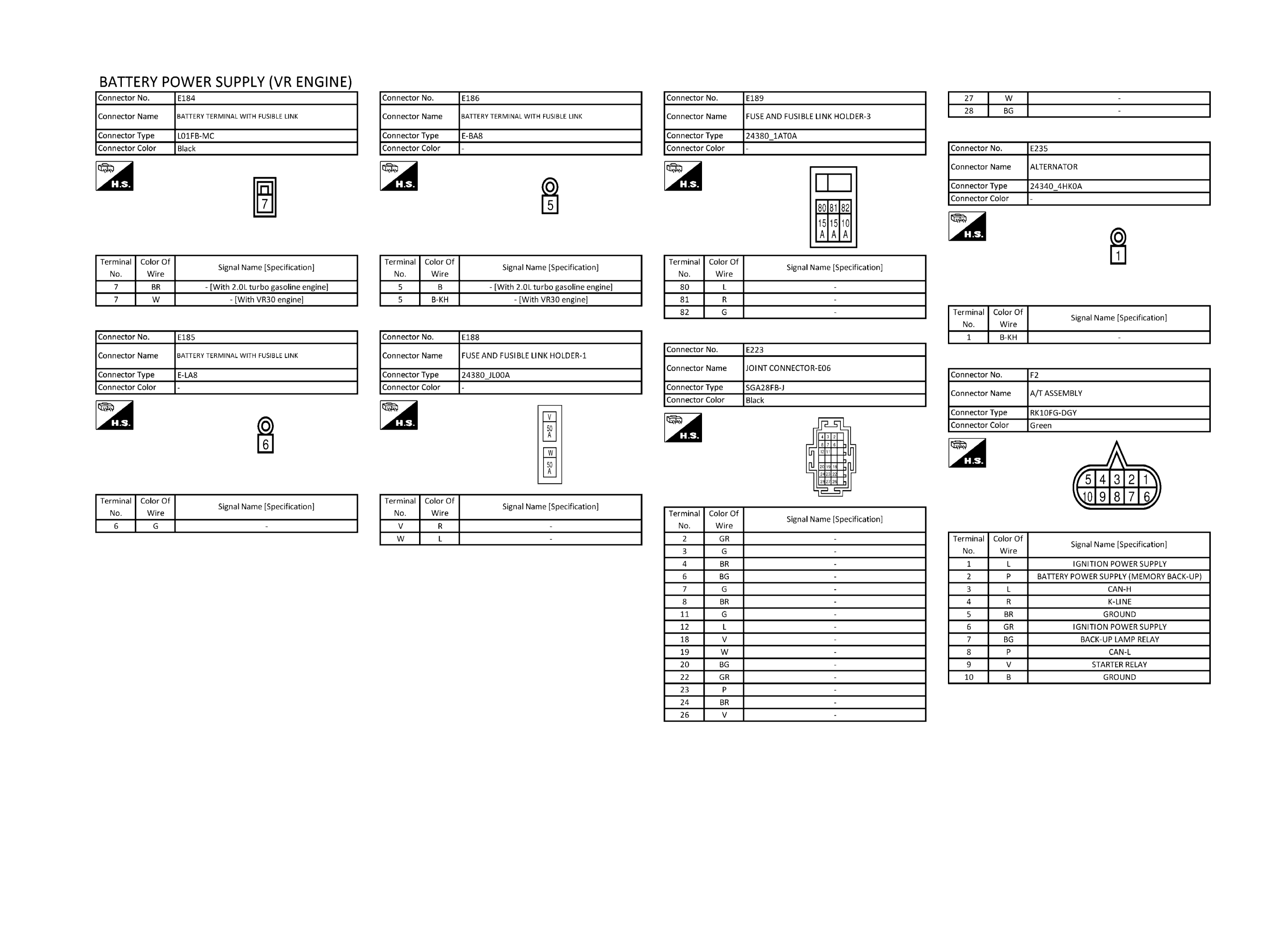

GNSJRMWL3211GB-211

Courtesy of NISSAN NORTH AMERICA, INC.

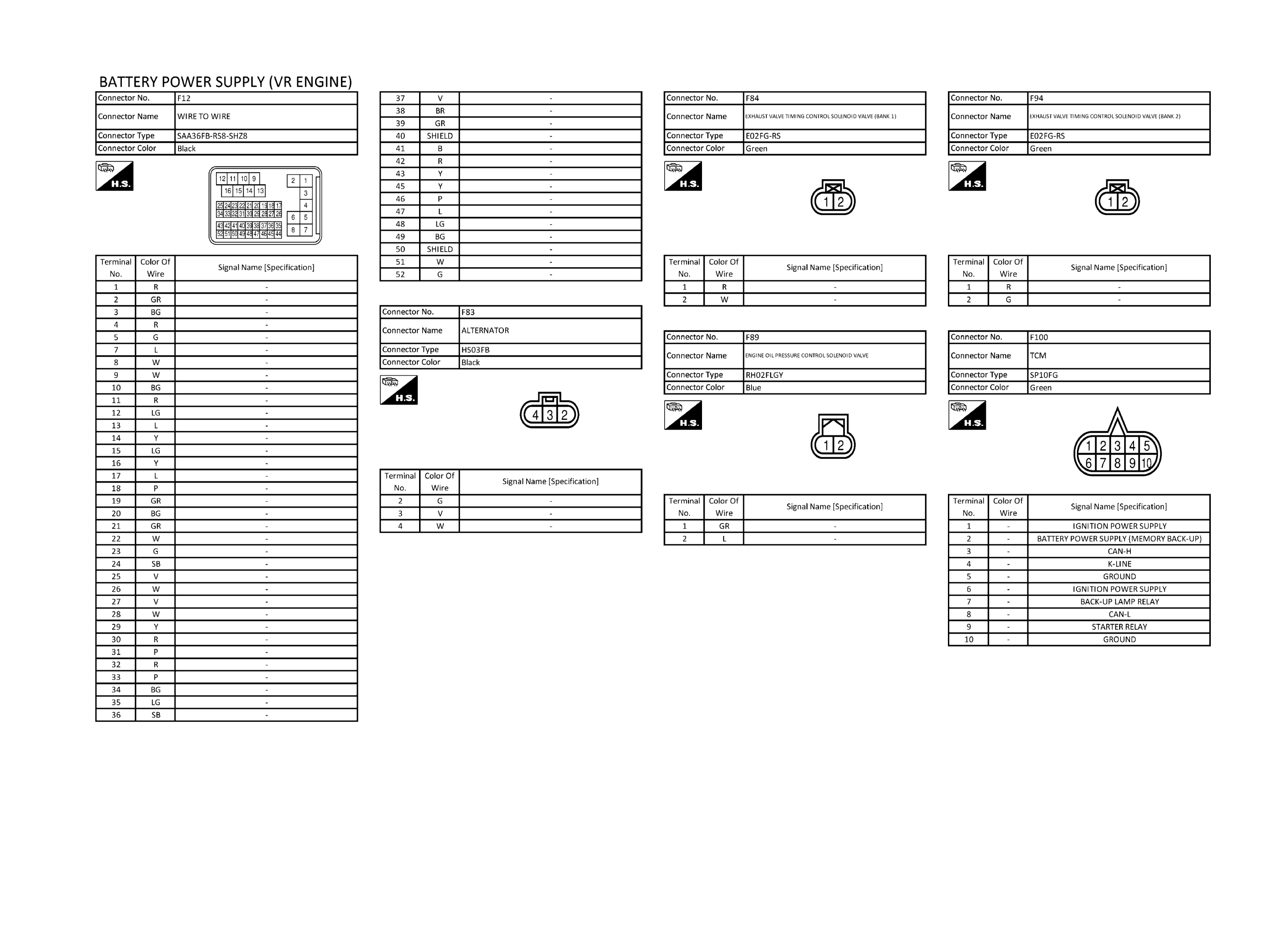

GNSJRMWL3212GB-212

Courtesy of NISSAN NORTH AMERICA, INC.

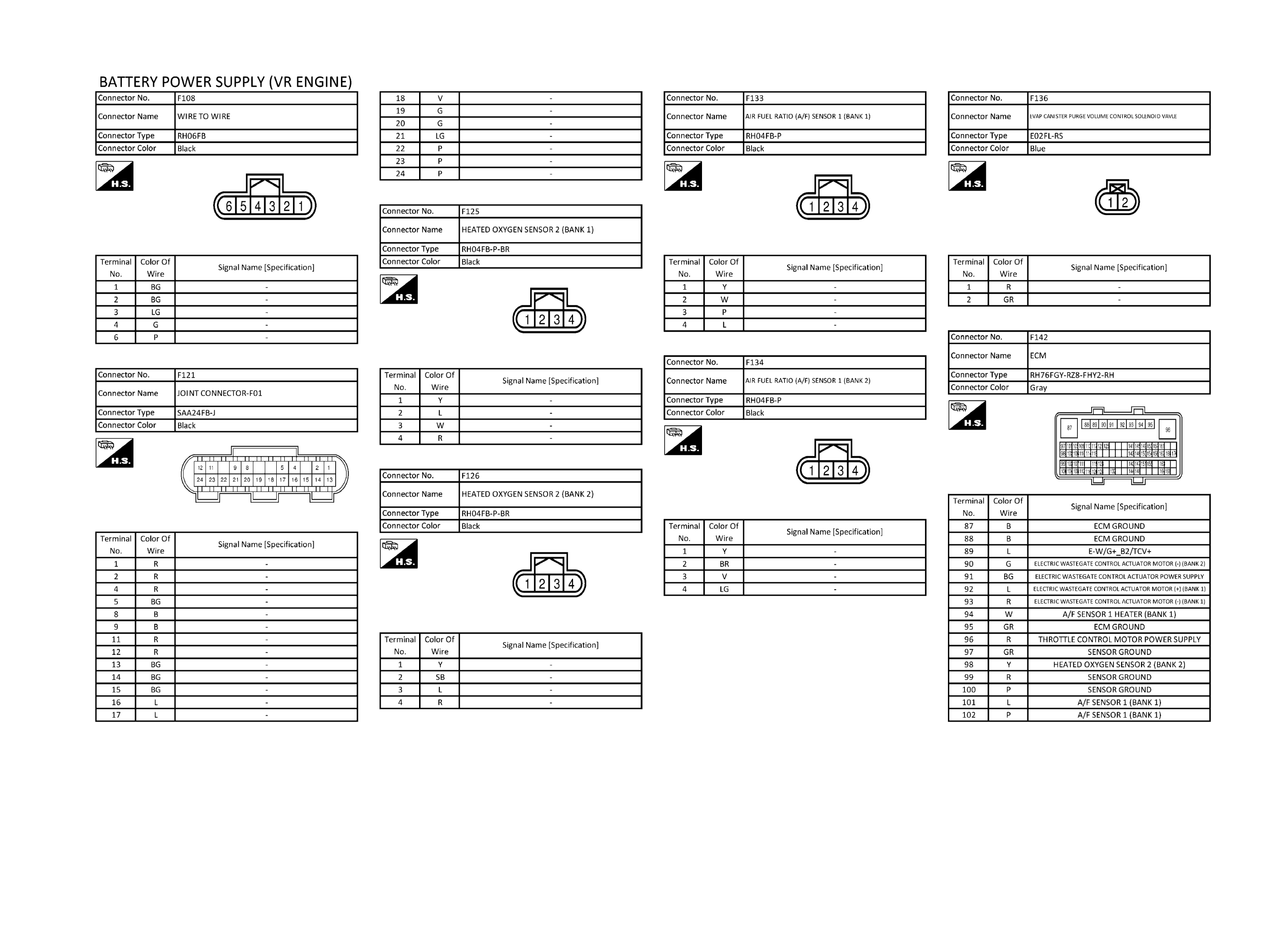

GNSJRMWL3213GB-213

Courtesy of NISSAN NORTH AMERICA, INC.

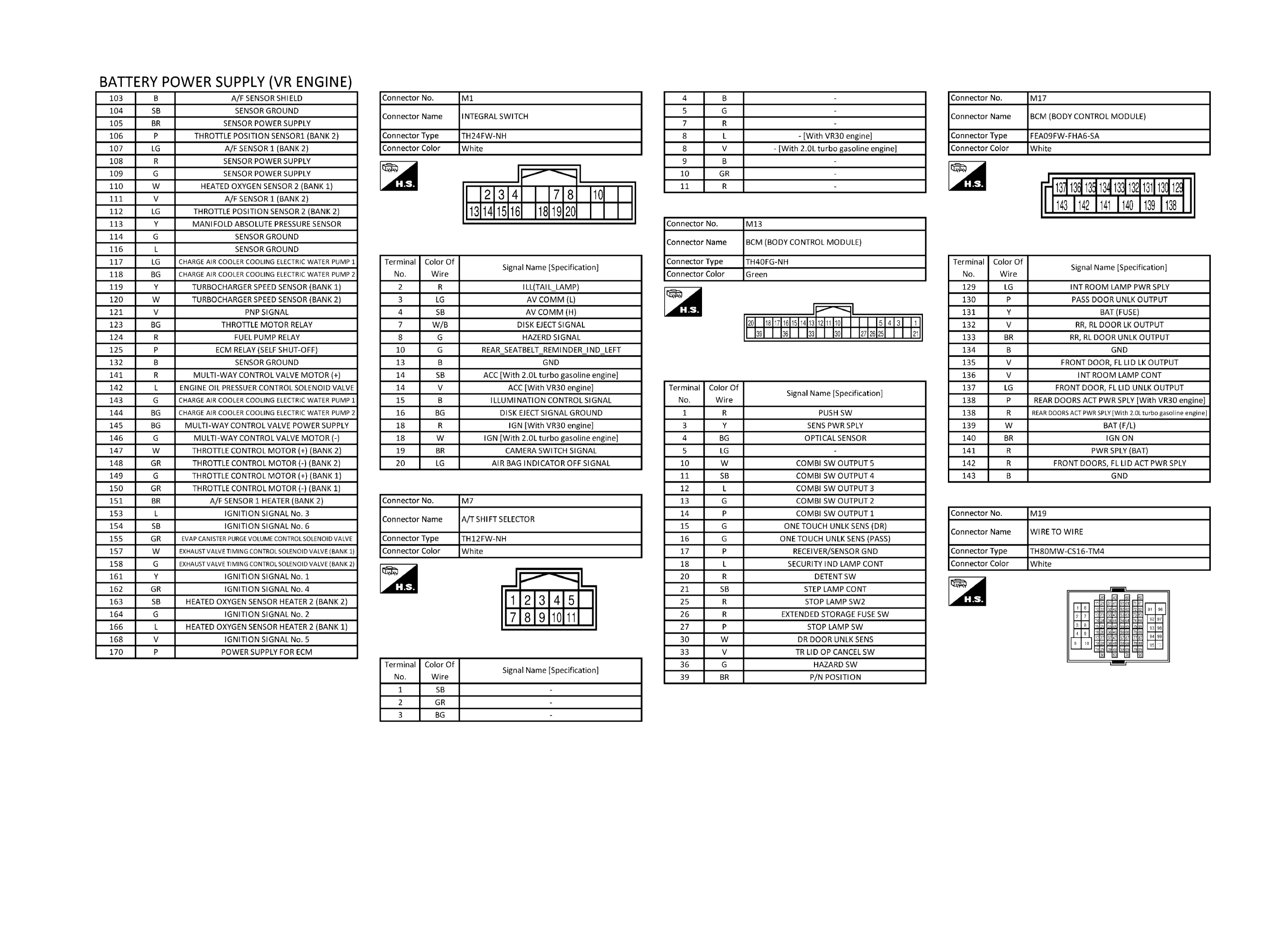

GNSJRMWL3214GB-214

Courtesy of NISSAN NORTH AMERICA, INC.

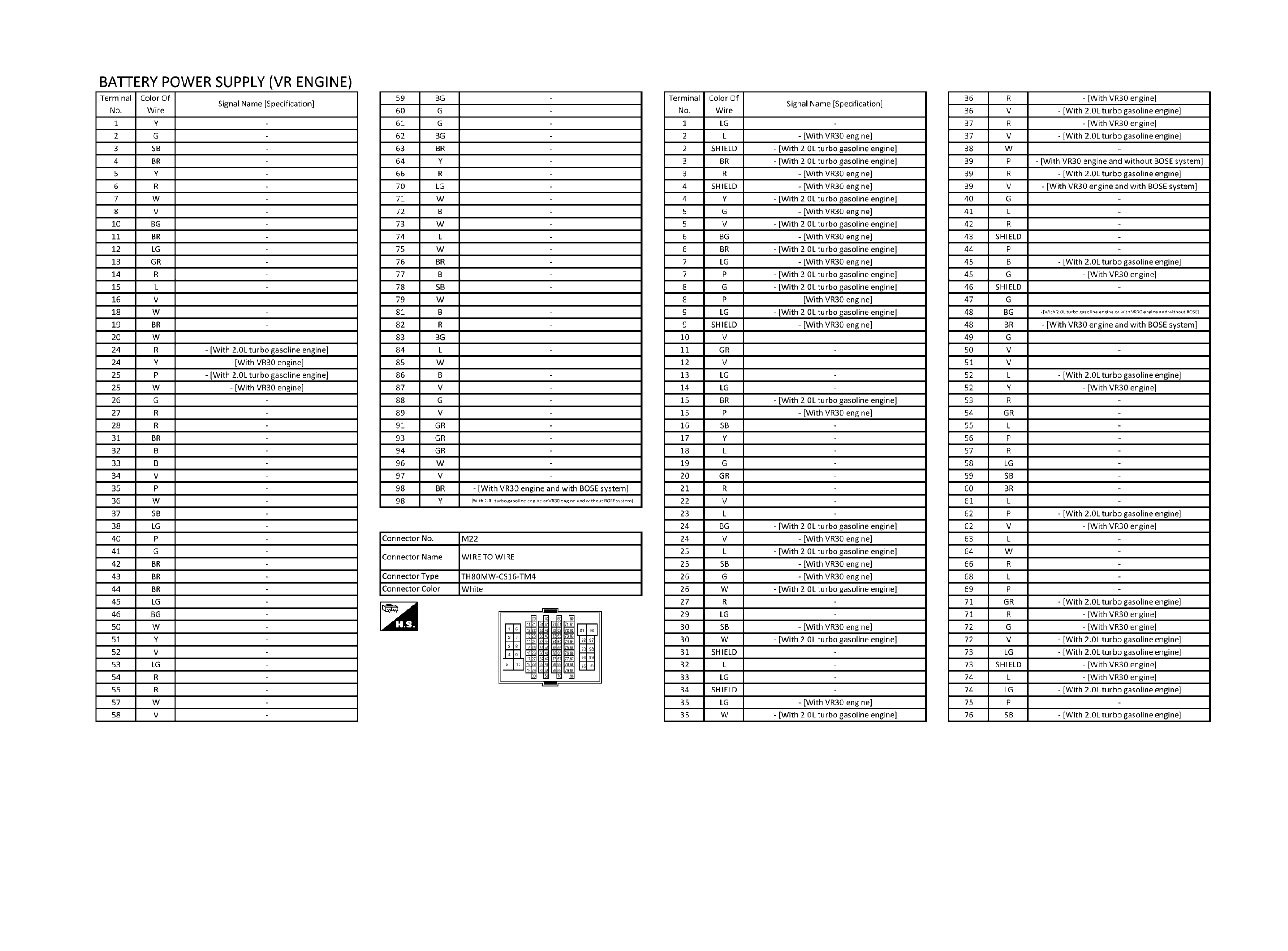

GNSJRMWL3215GB-215

Courtesy of NISSAN NORTH AMERICA, INC.

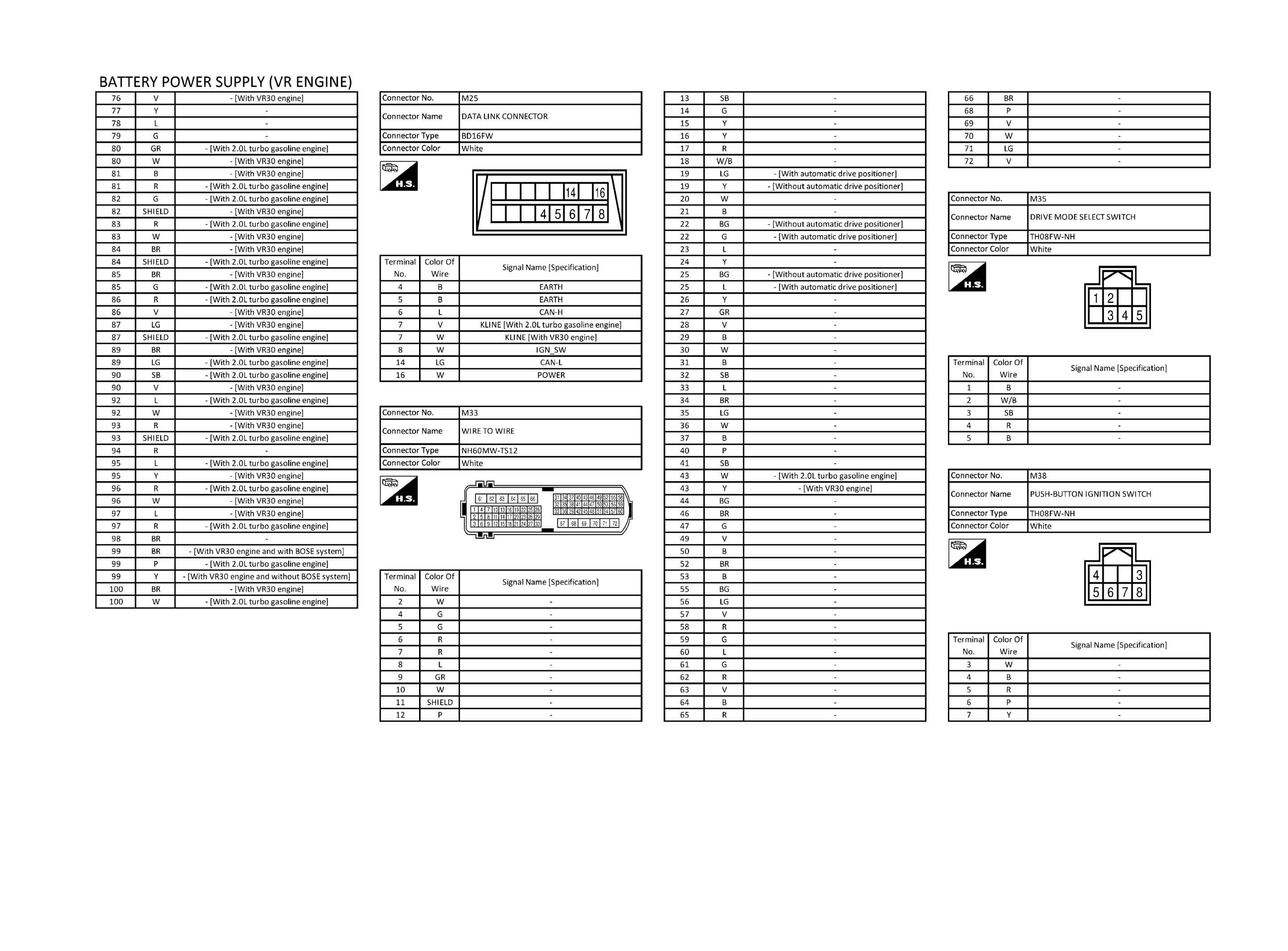

GNSJRMWL3216GB-216

Courtesy of NISSAN NORTH AMERICA, INC.

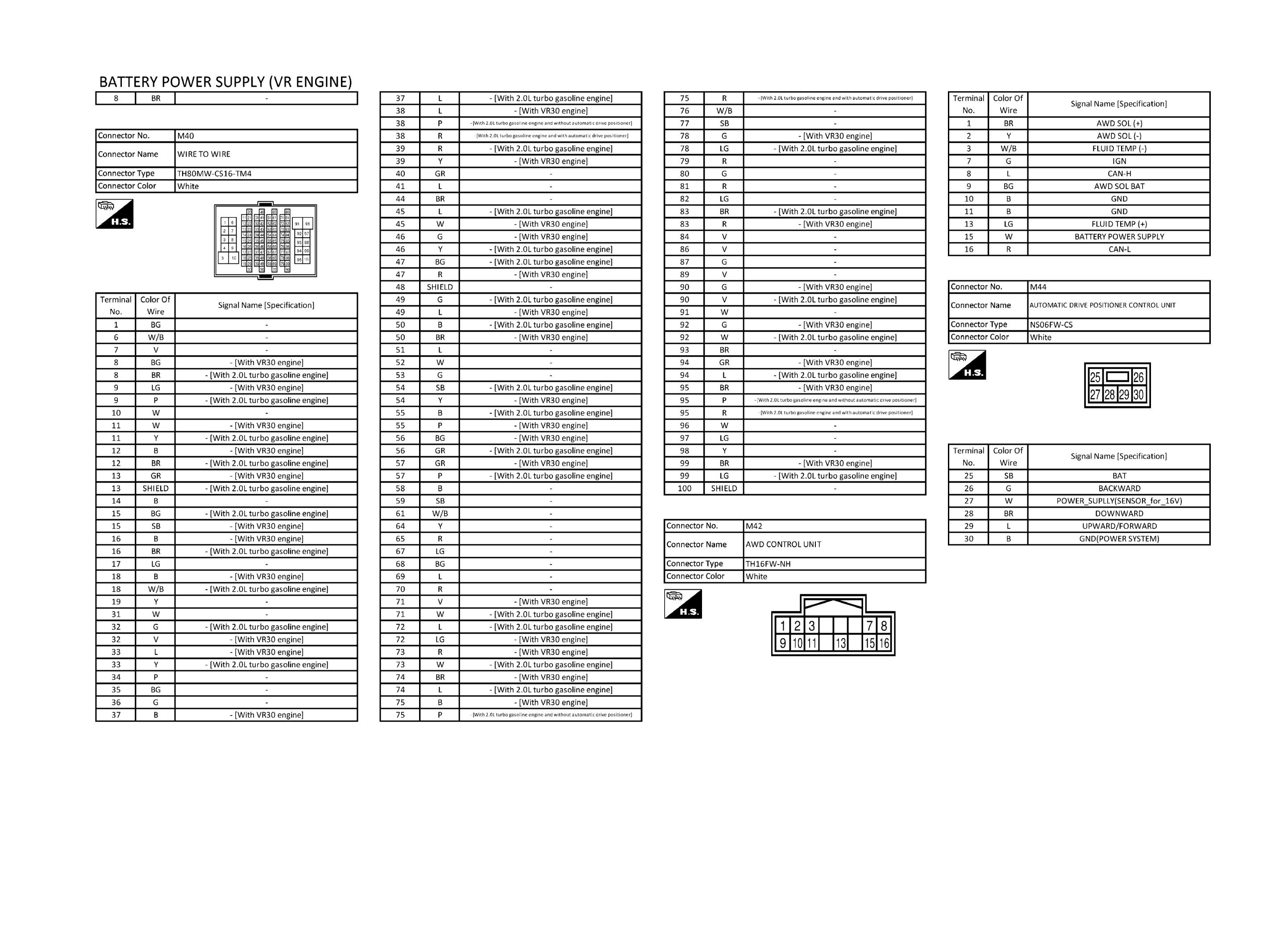

GNSJRMWL3217GB-217

Courtesy of NISSAN NORTH AMERICA, INC.

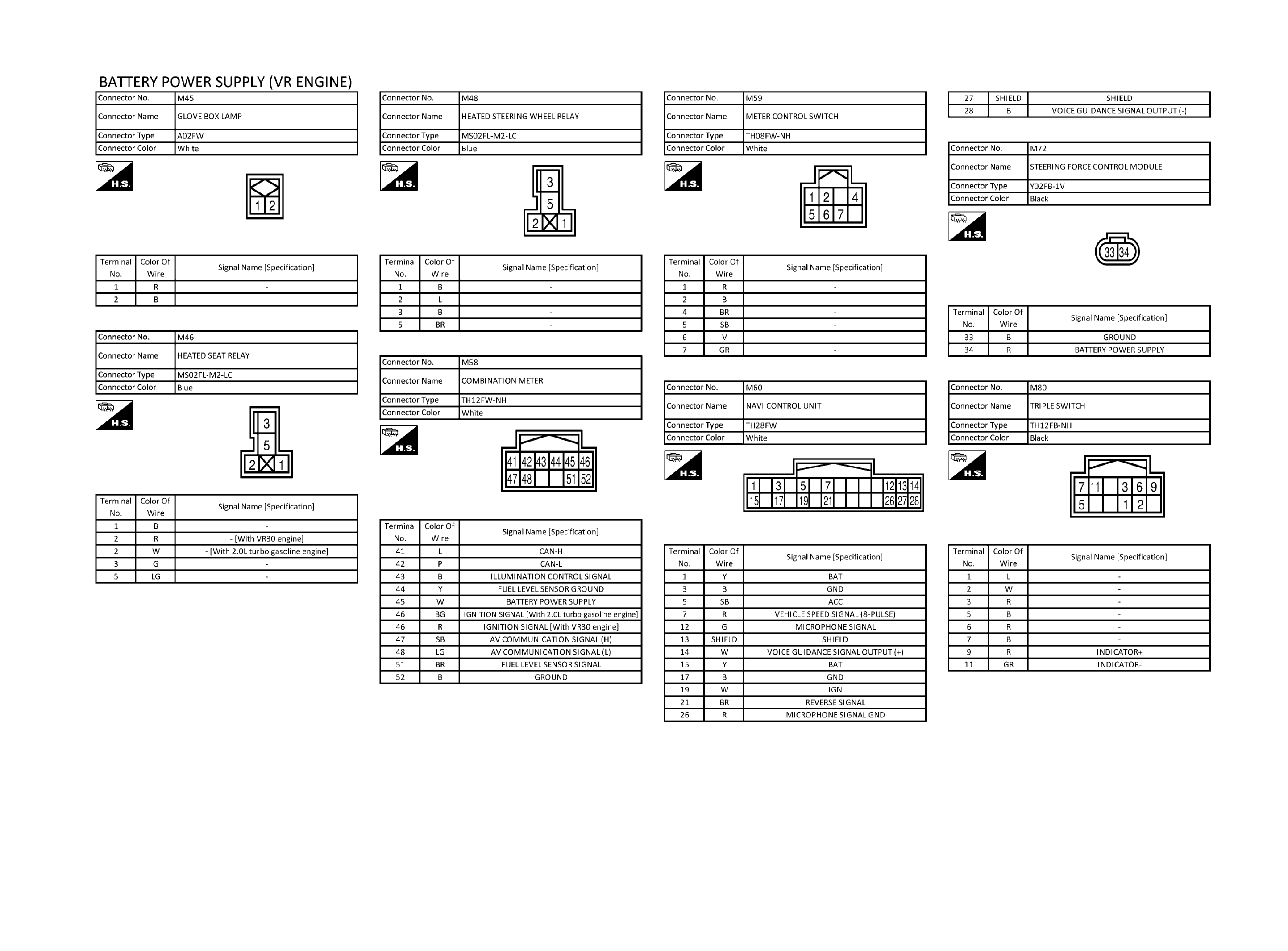

GNSJRMWL3218GB-218

Courtesy of NISSAN NORTH AMERICA, INC.

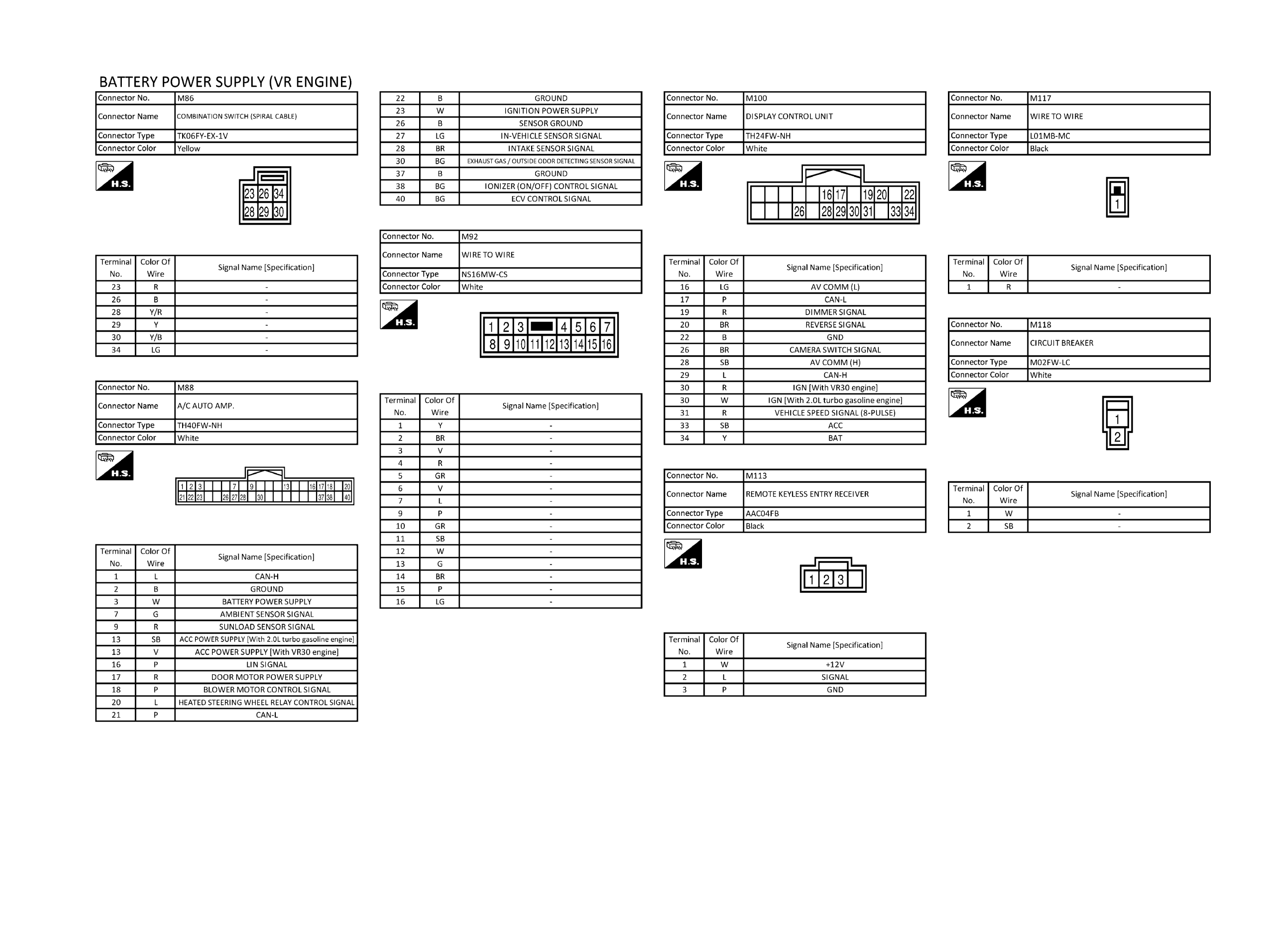

GNSJRMWL3219GB-219

Courtesy of NISSAN NORTH AMERICA, INC.

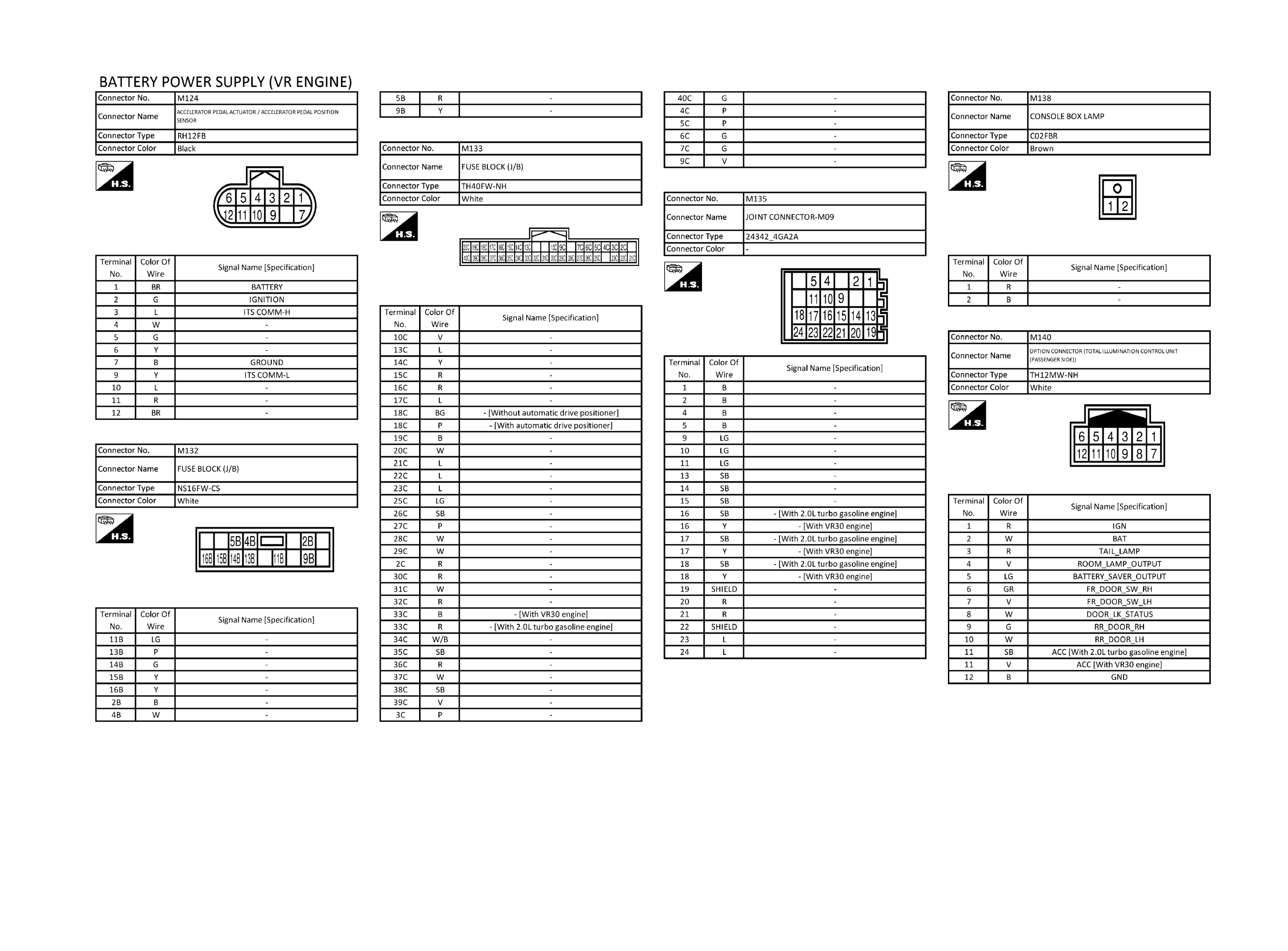

GNSJRMWL3220GB-220

Courtesy of NISSAN NORTH AMERICA, INC.

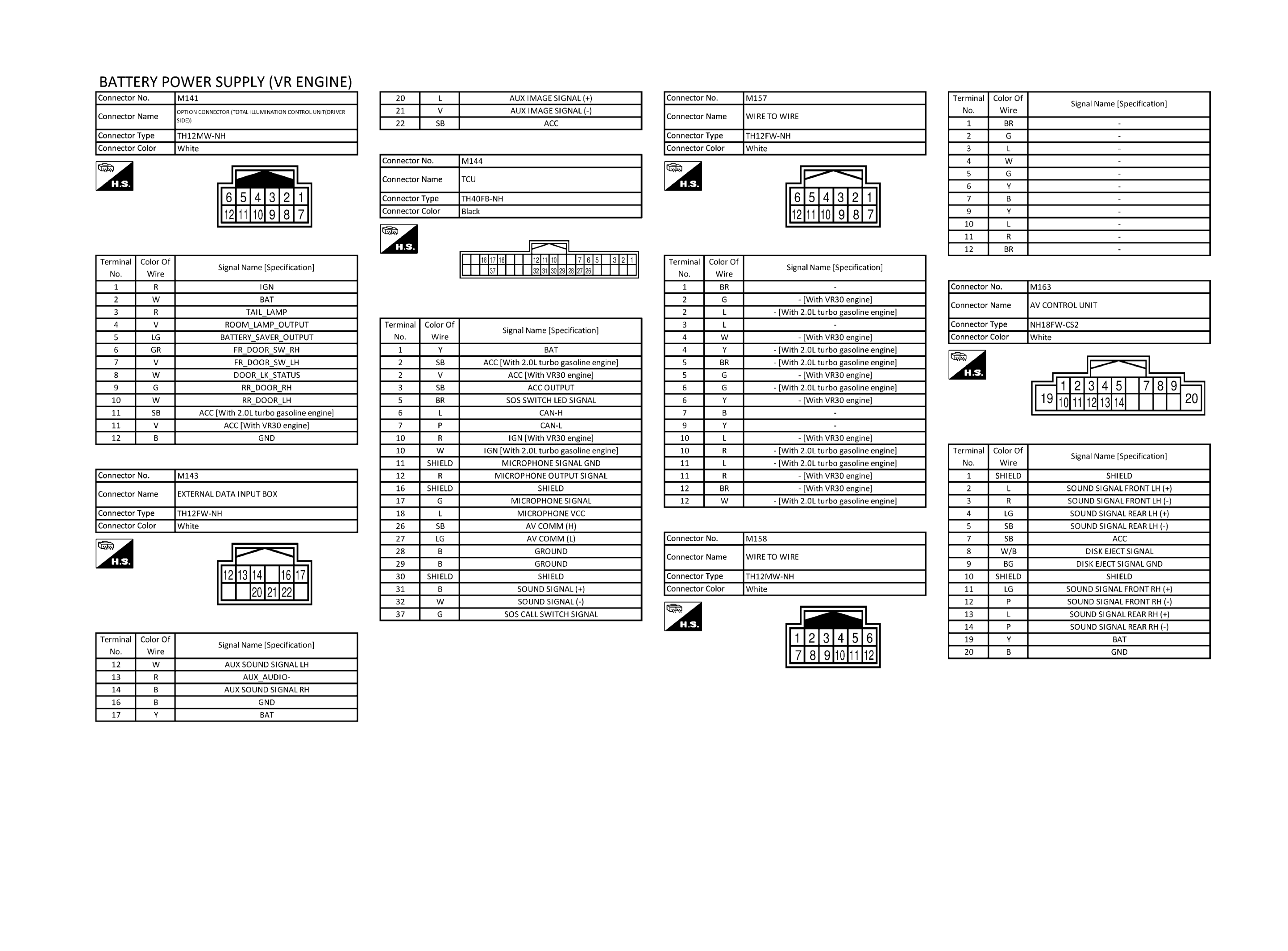

GNSJRMWL3221GB-221

Courtesy of NISSAN NORTH AMERICA, INC.

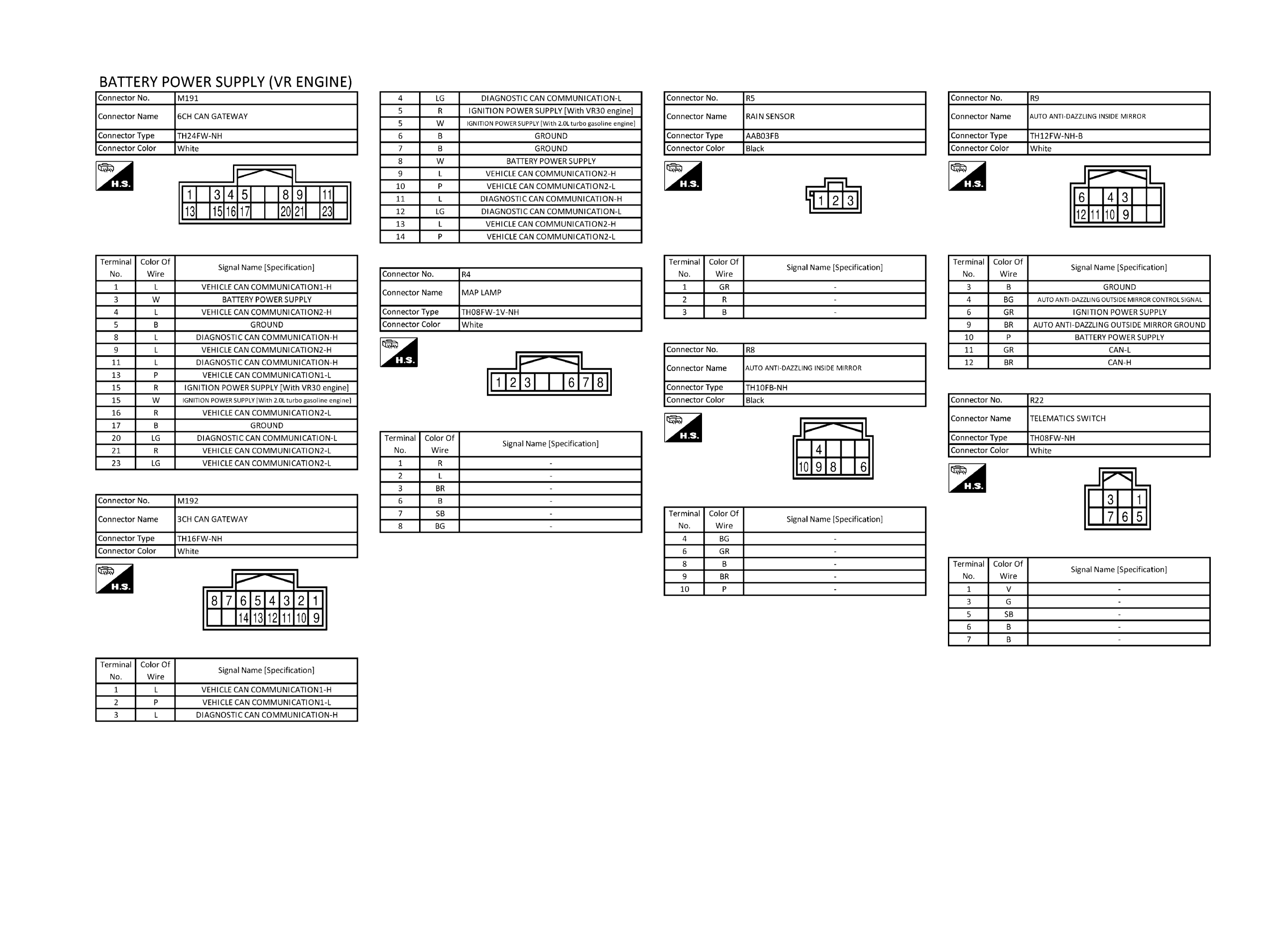

GNSJRMWL3222GB-222

Courtesy of NISSAN NORTH AMERICA, INC.

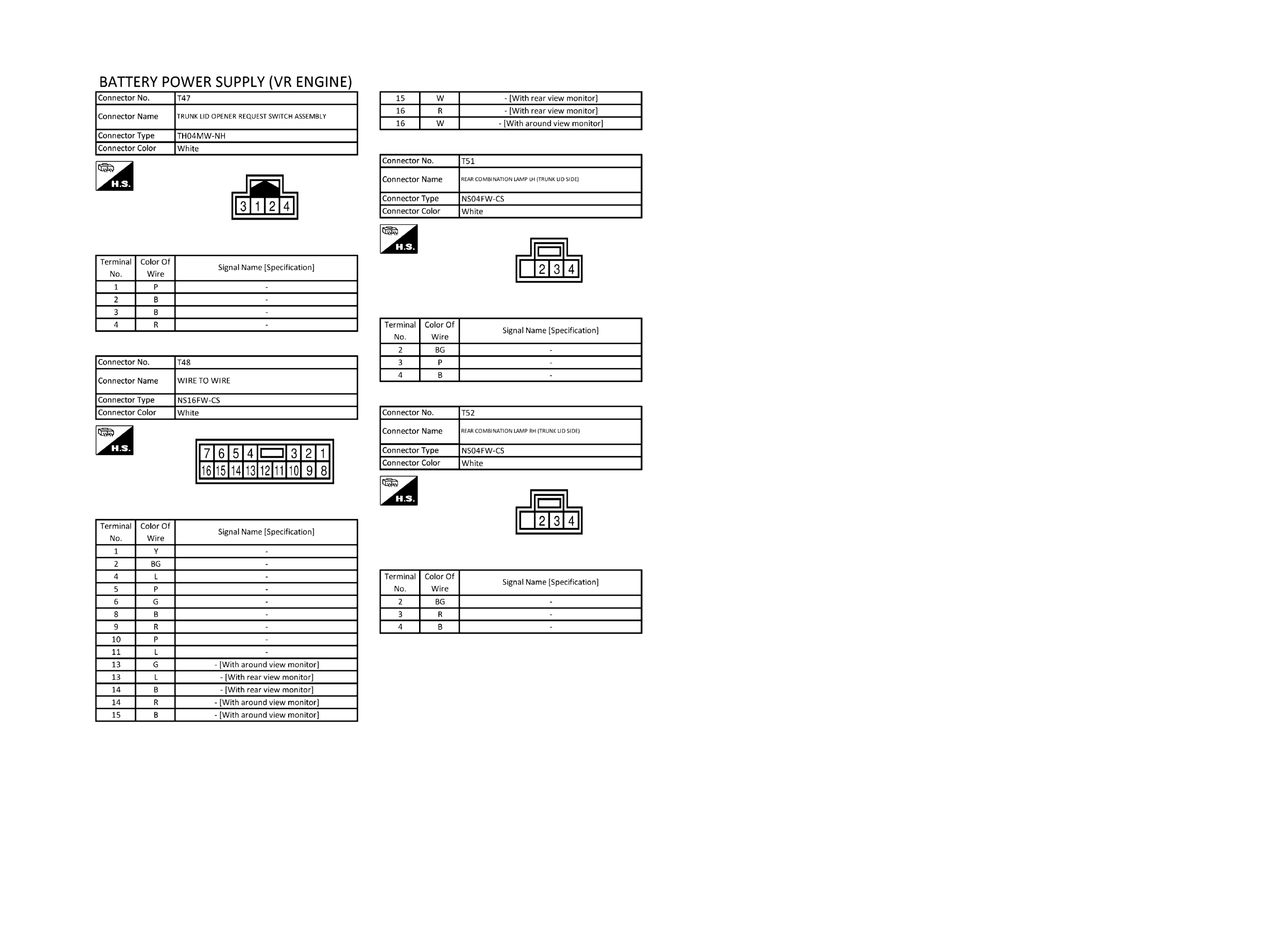

GNSJRMWL3223GB-223

Courtesy of NISSAN NORTH AMERICA, INC.
