Wiring Diagram - Accessory Power Supply -

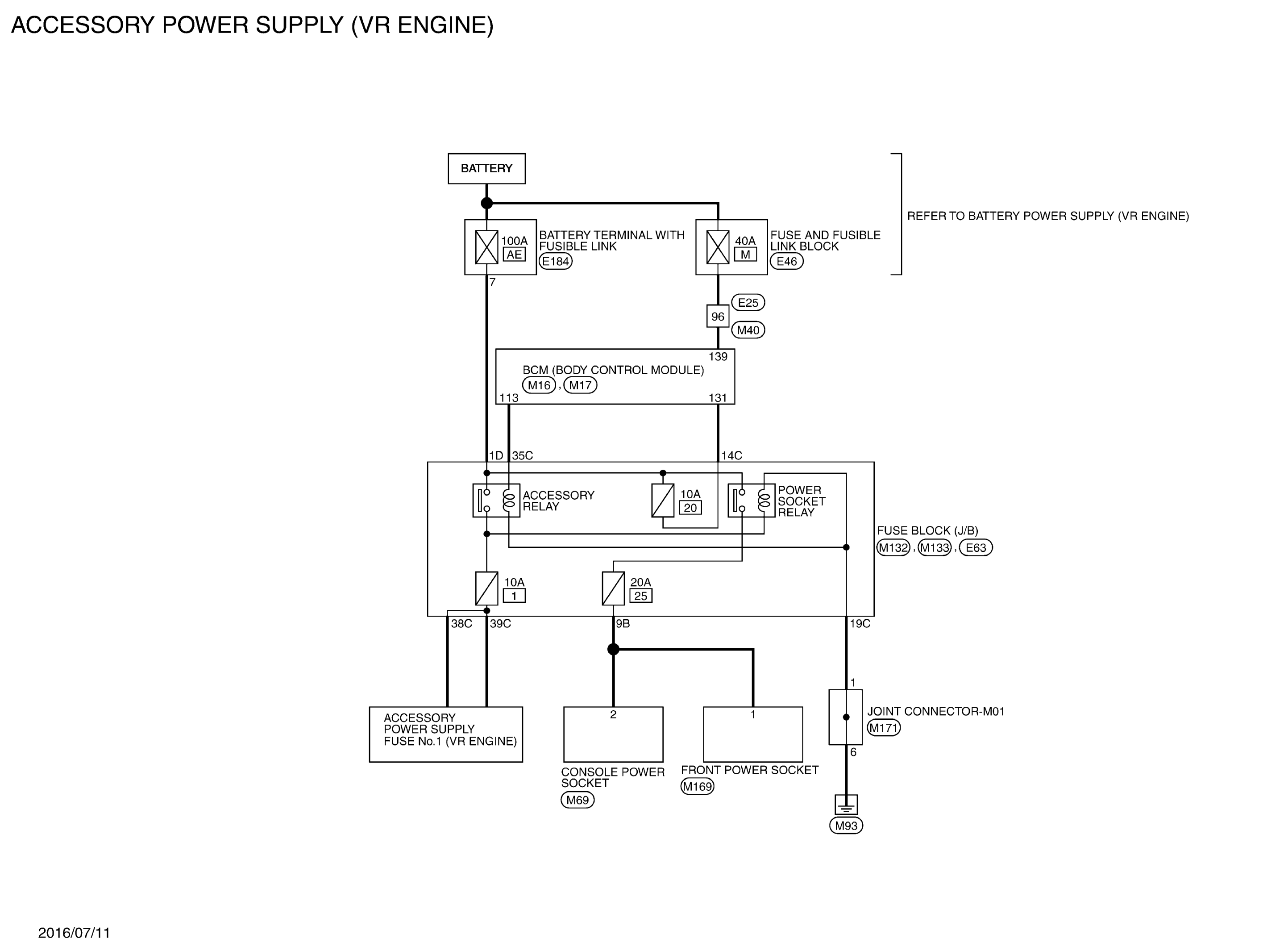

GNSJRMWK2724GB-724

Courtesy of NISSAN NORTH AMERICA, INC.

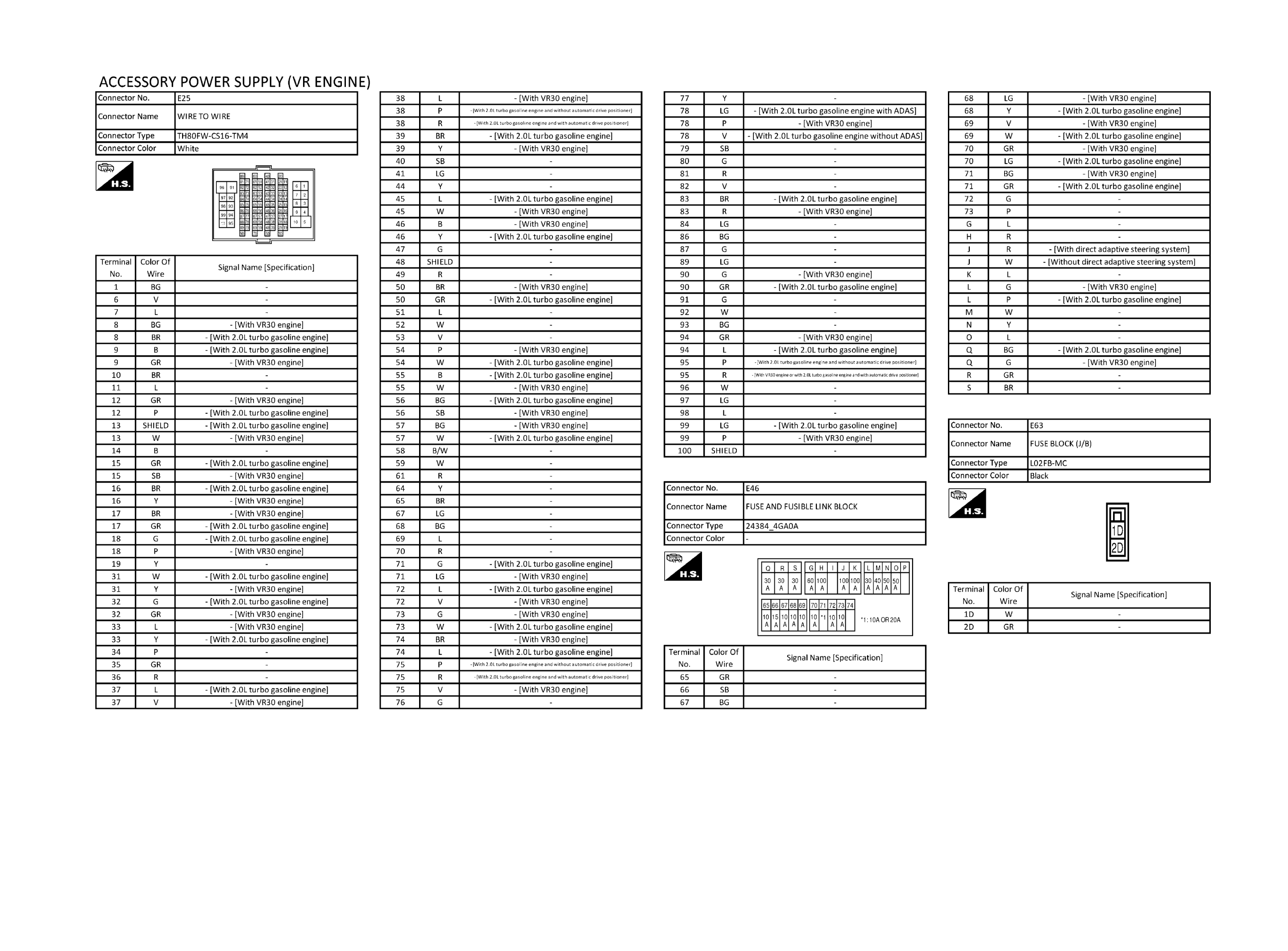

GNSJRMWL3250GB-250

Courtesy of NISSAN NORTH AMERICA, INC.

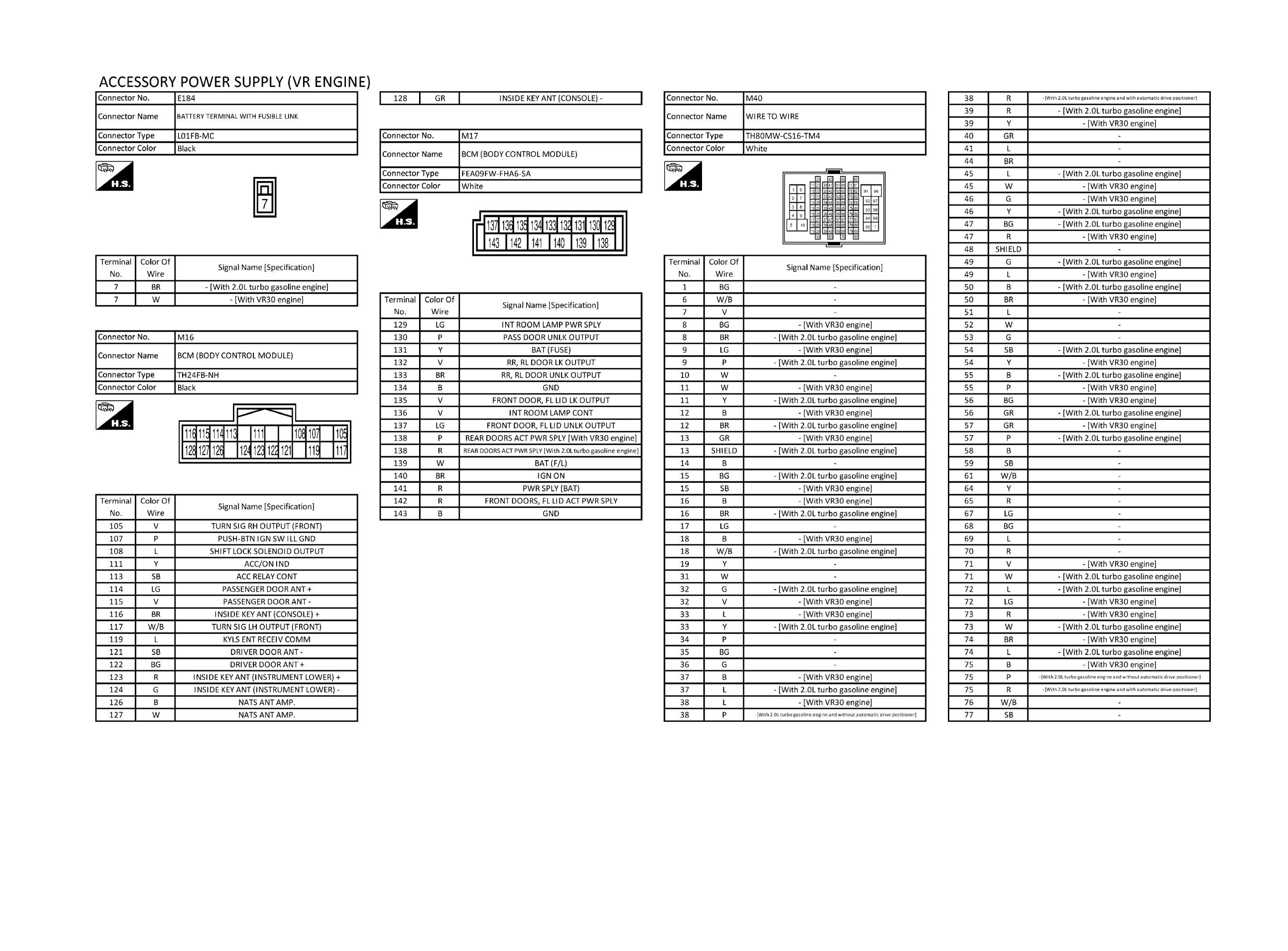

GNSJRMWL3251GB-251

Courtesy of NISSAN NORTH AMERICA, INC.

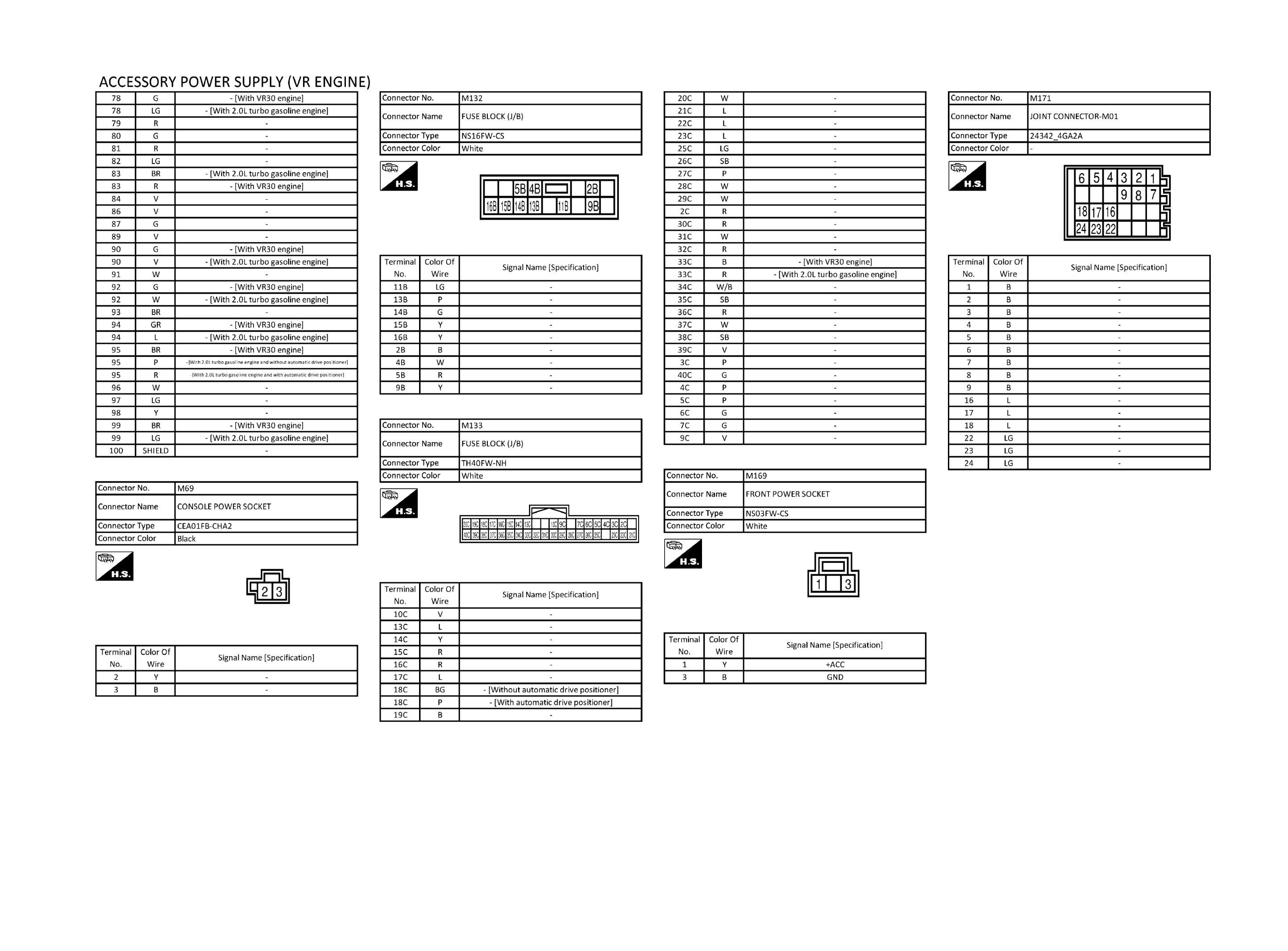

GNSJRMWL3252GB-252

Courtesy of NISSAN NORTH AMERICA, INC.
