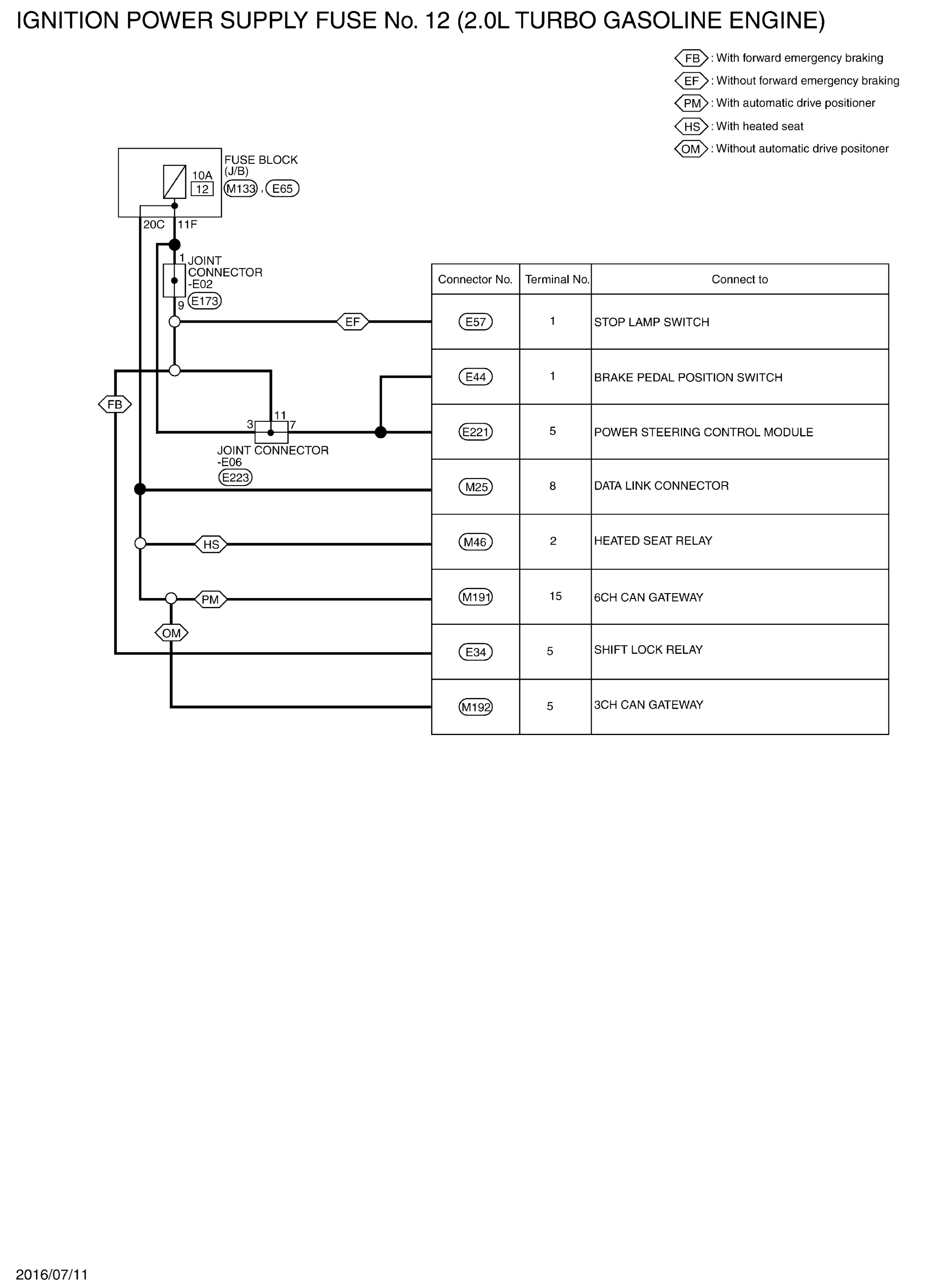

Wiring Diagram - Ignition Power Supply Fuse No. 12 -

GNSJRMWK2787GB-787

Courtesy of NISSAN NORTH AMERICA, INC.
