Home >> Infiniti >> 2017 >> Q50 Base, RWD >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Power Supply, Ground & Circuit Elements (Except Hybrid) >> Wiring Diagram >> Power Supply Routing Circuit >> 2.0L Turbo Gasoline Engine >> Wiring Diagram - Battery Power Supply Fuse No. 17 -

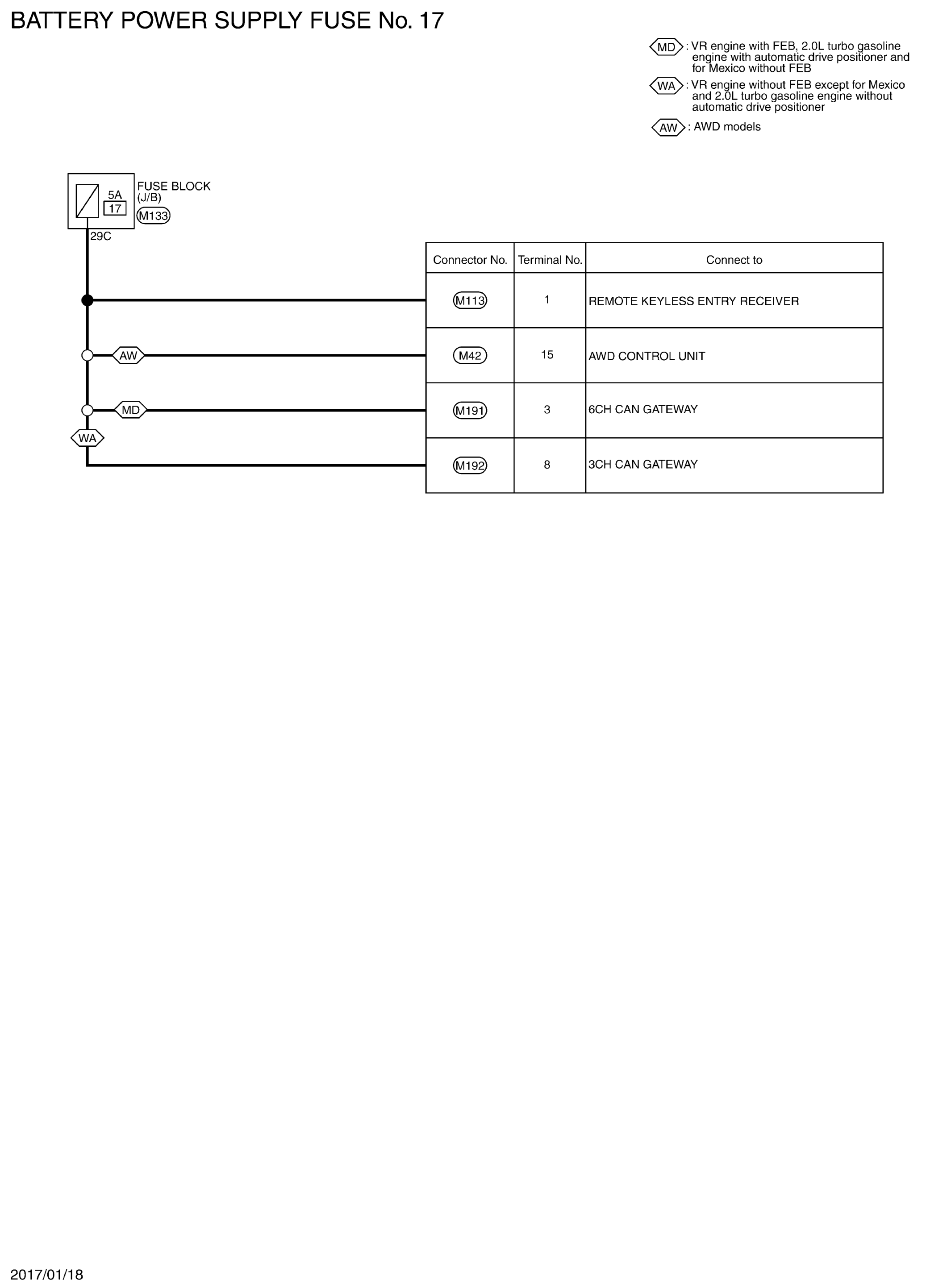

Wiring Diagram - Battery Power Supply Fuse No. 17 -

GNSJRMWL3249GB-249

Courtesy of NISSAN NORTH AMERICA, INC.
