Wiring Diagram - Battery Power Supply -

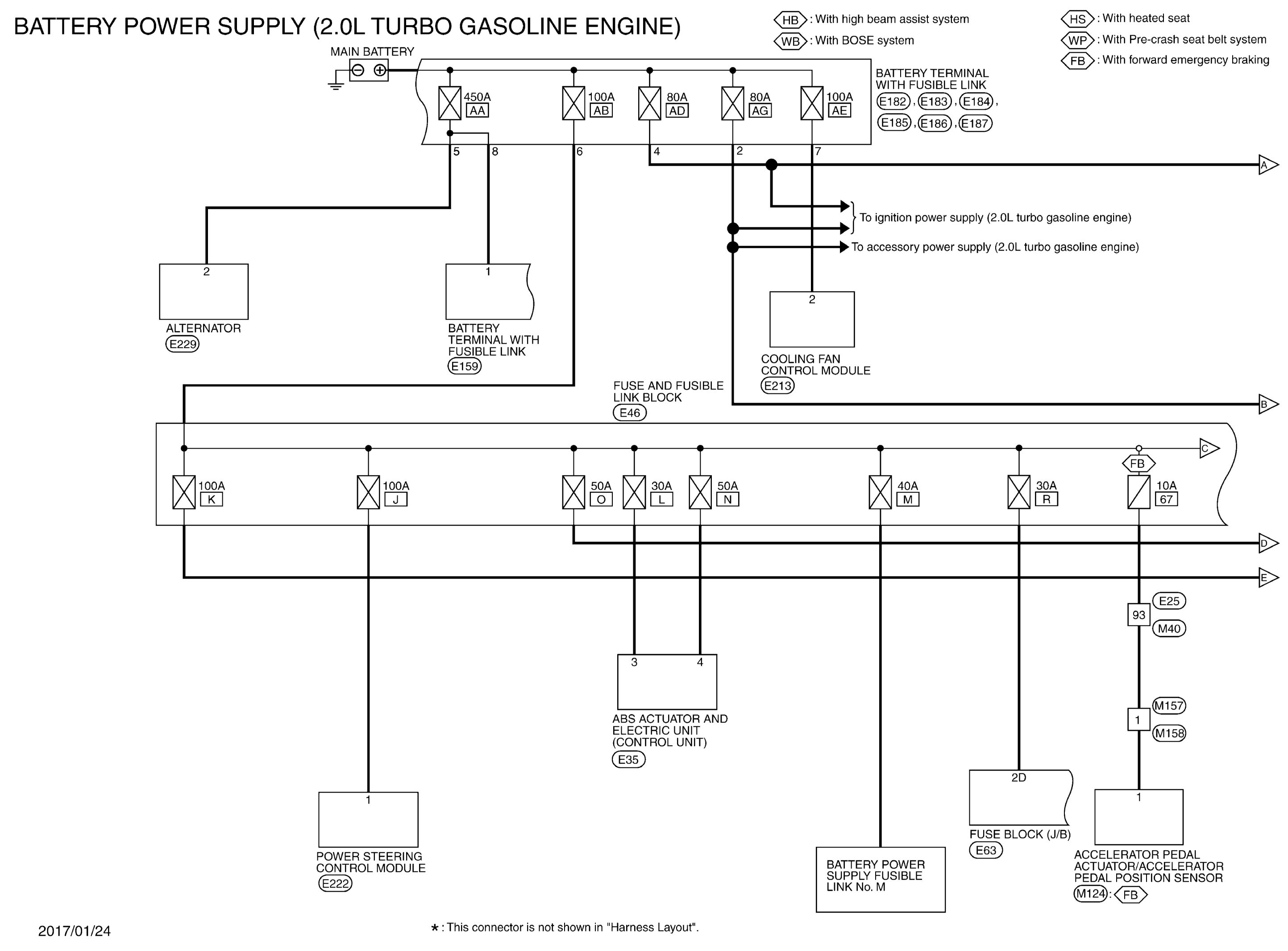

GNSJRMWL5208GB-208

Courtesy of NISSAN NORTH AMERICA, INC.

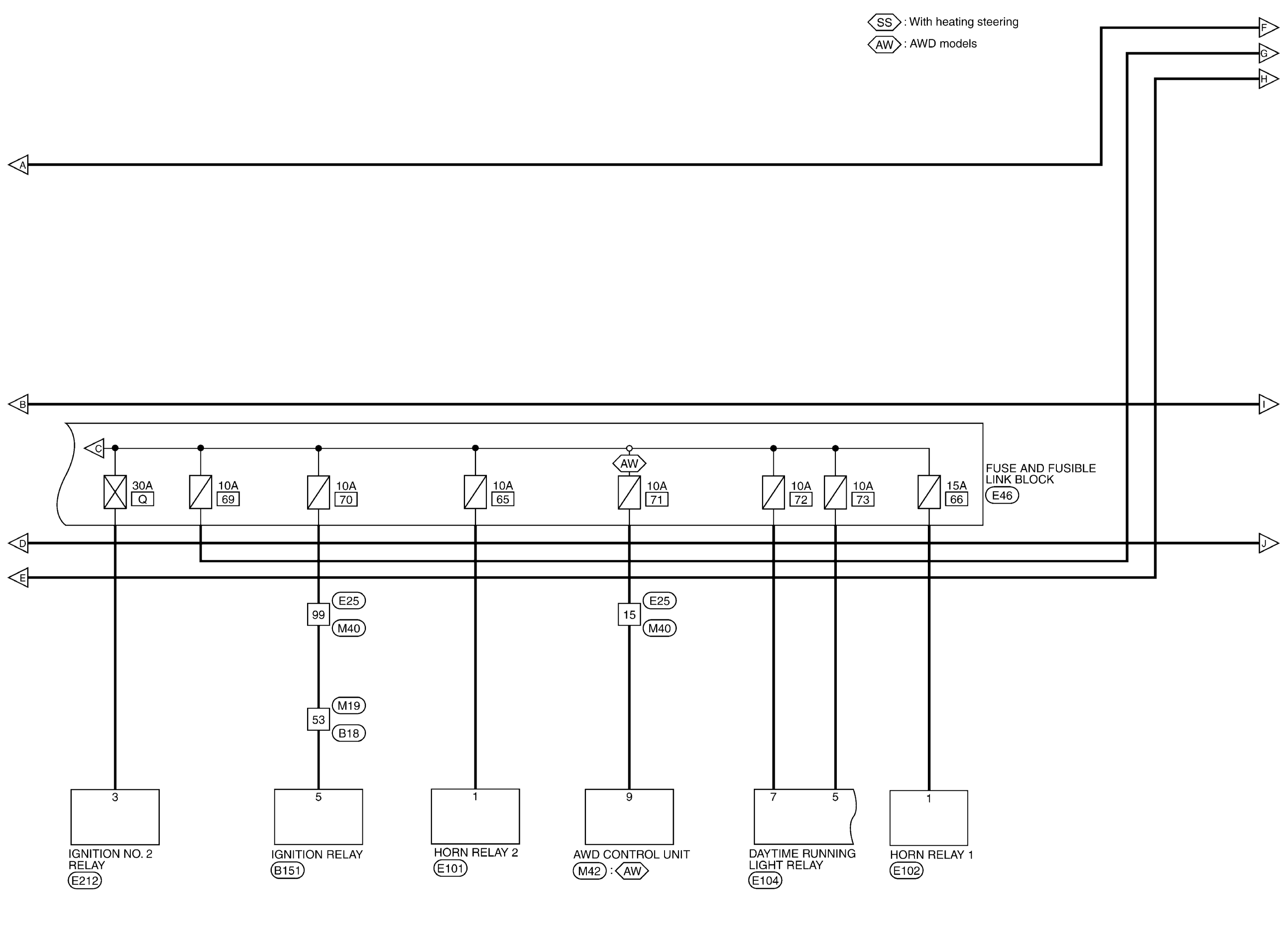

GNSJRMWL5209GB-209

Courtesy of NISSAN NORTH AMERICA, INC.

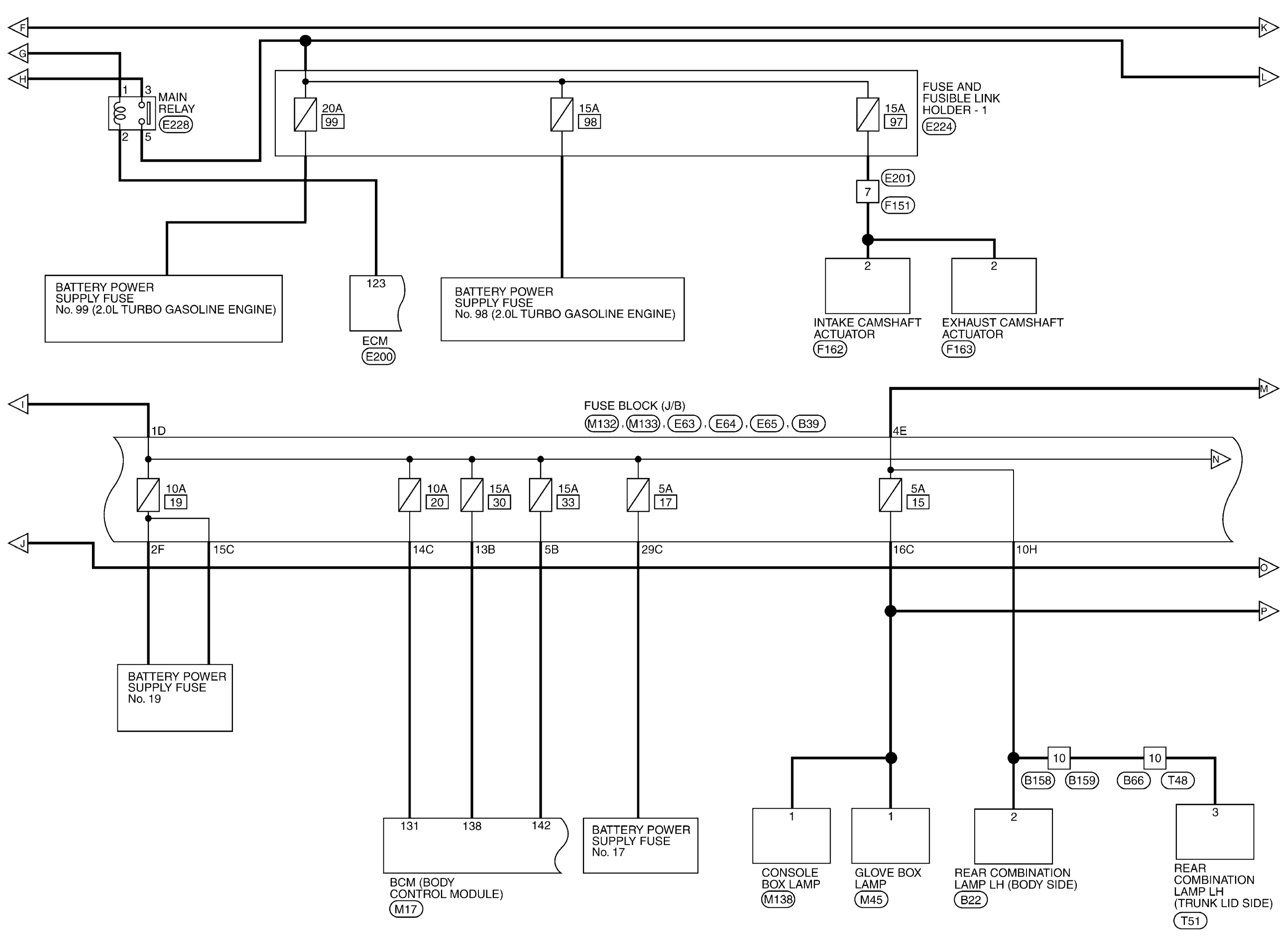

GNSJRMWL5210GB-210

Courtesy of NISSAN NORTH AMERICA, INC.

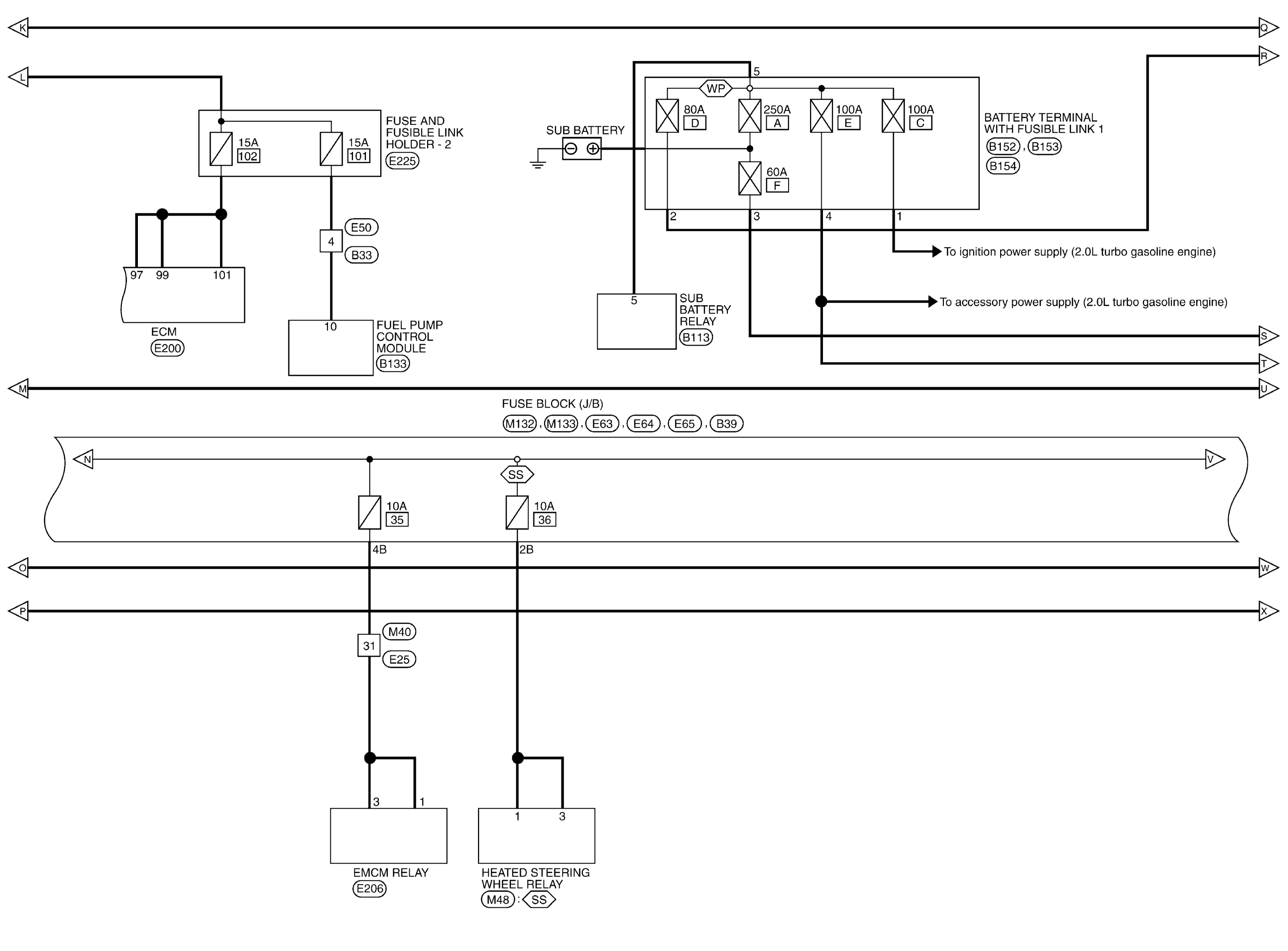

GNSJRMWL5211GB-211

Courtesy of NISSAN NORTH AMERICA, INC.

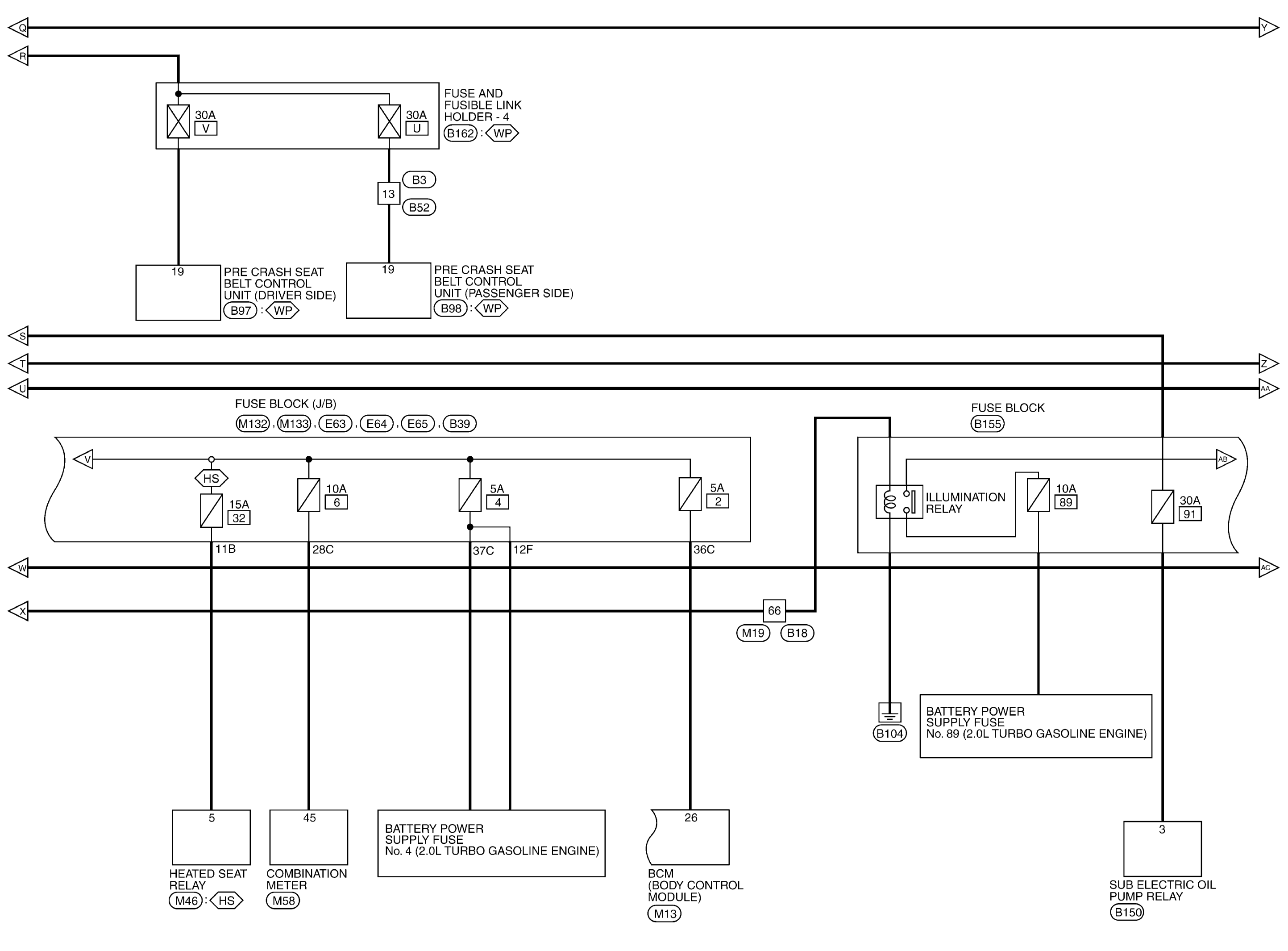

GNSJRMWL5212GB-212

Courtesy of NISSAN NORTH AMERICA, INC.

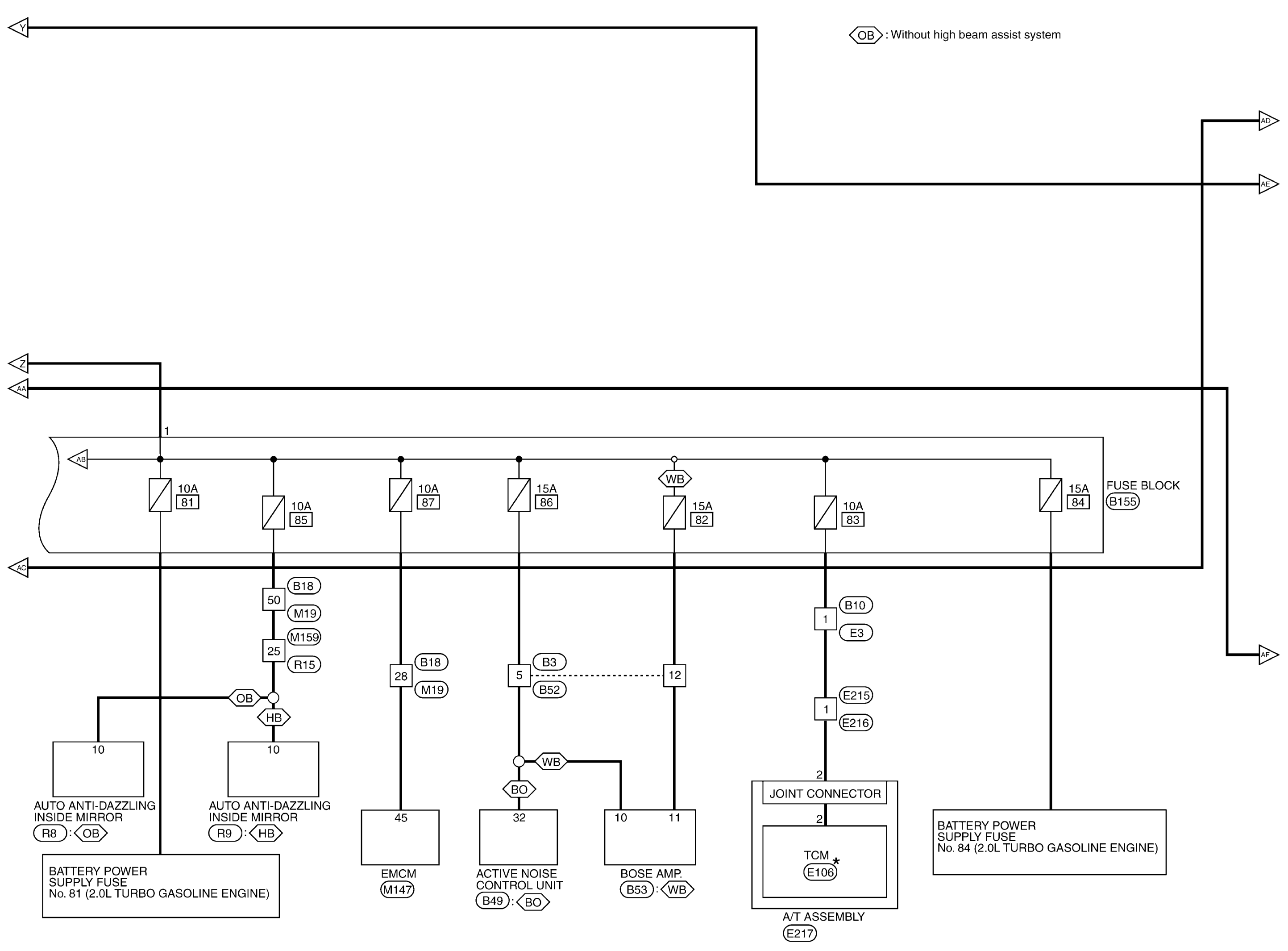

GNSJRMWL5213GB-213

Courtesy of NISSAN NORTH AMERICA, INC.

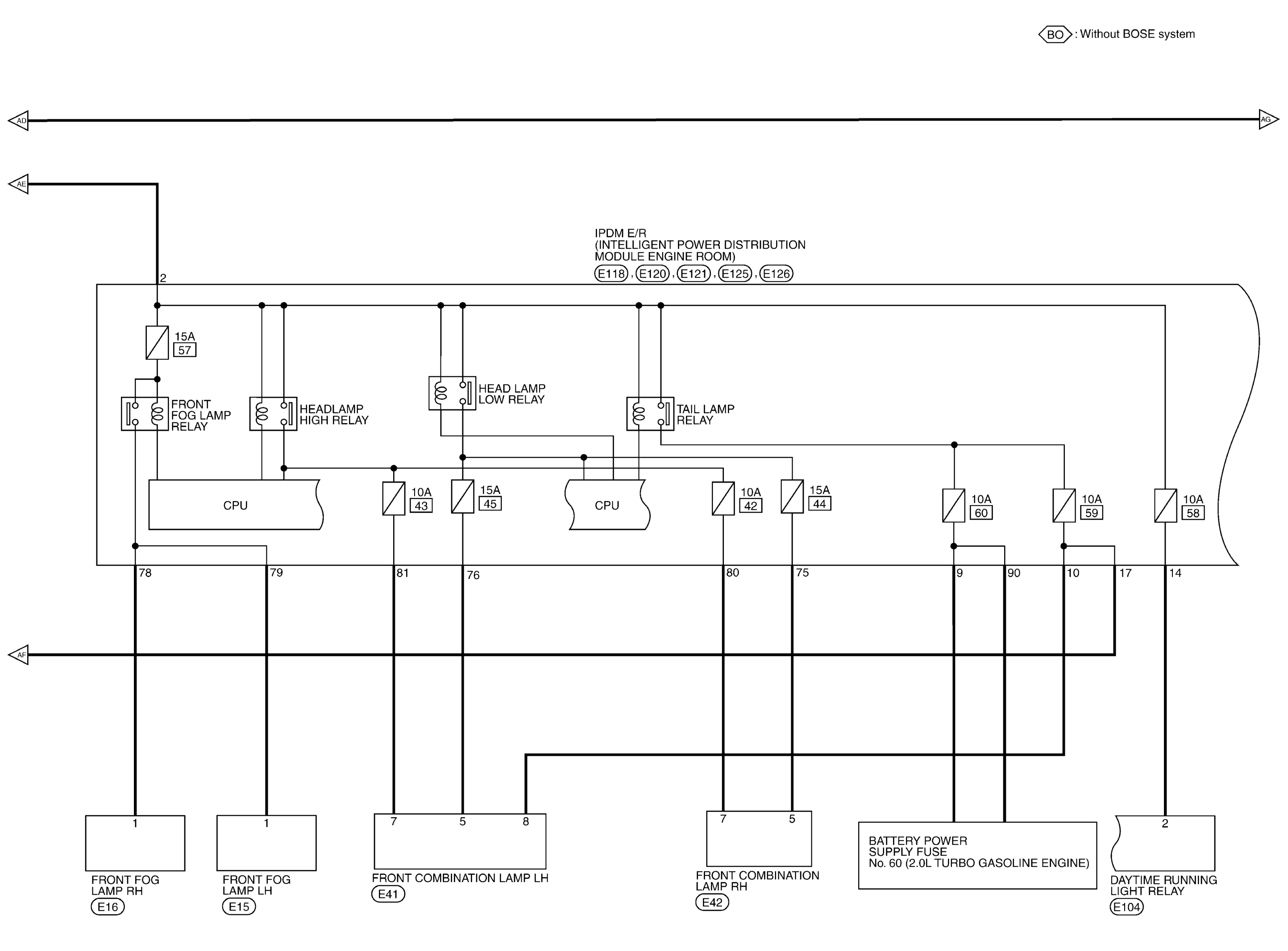

GNSJRMWL5214GB-214

Courtesy of NISSAN NORTH AMERICA, INC.

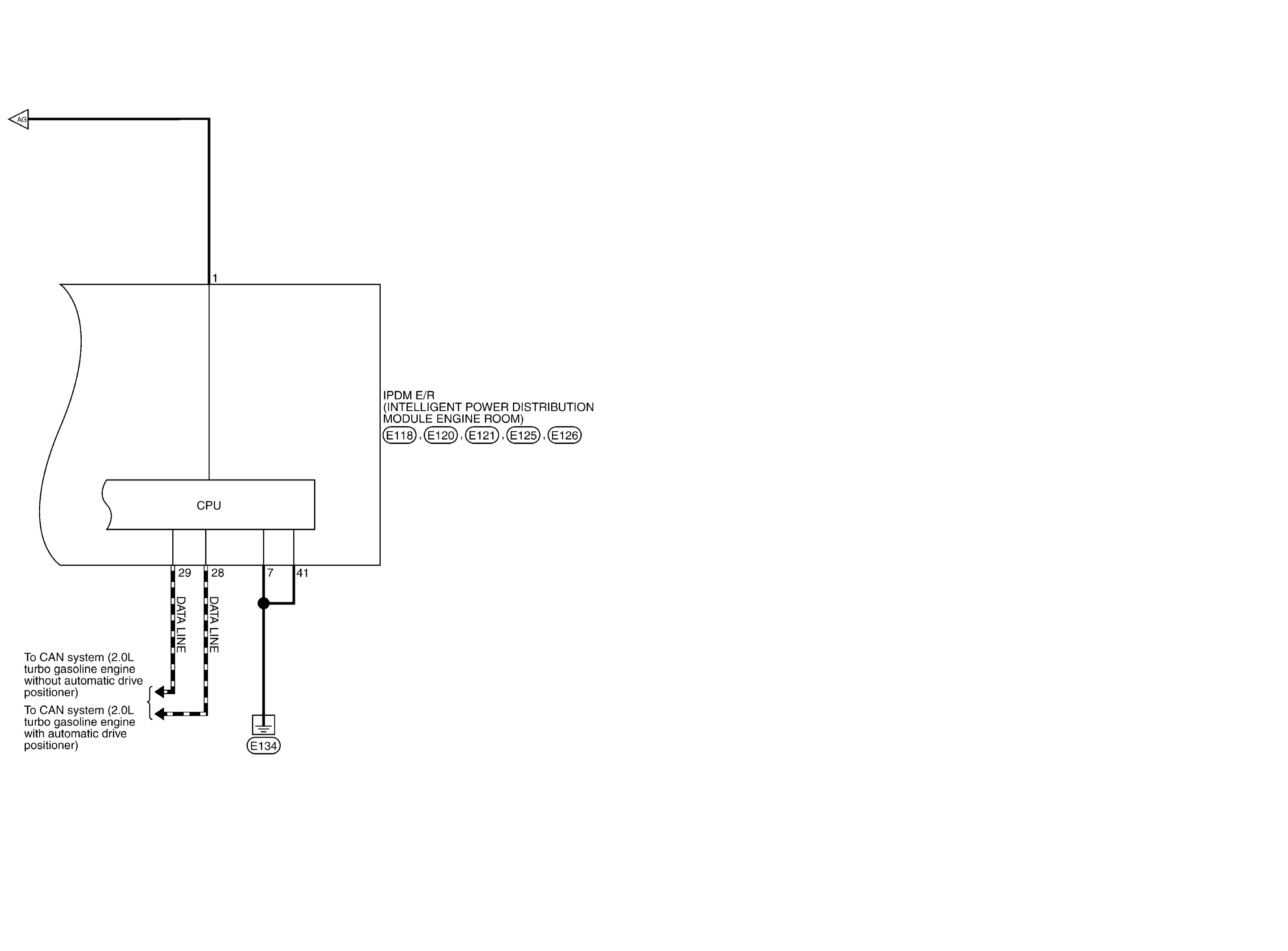

GNSJRMWL5215GB-215

Courtesy of NISSAN NORTH AMERICA, INC.

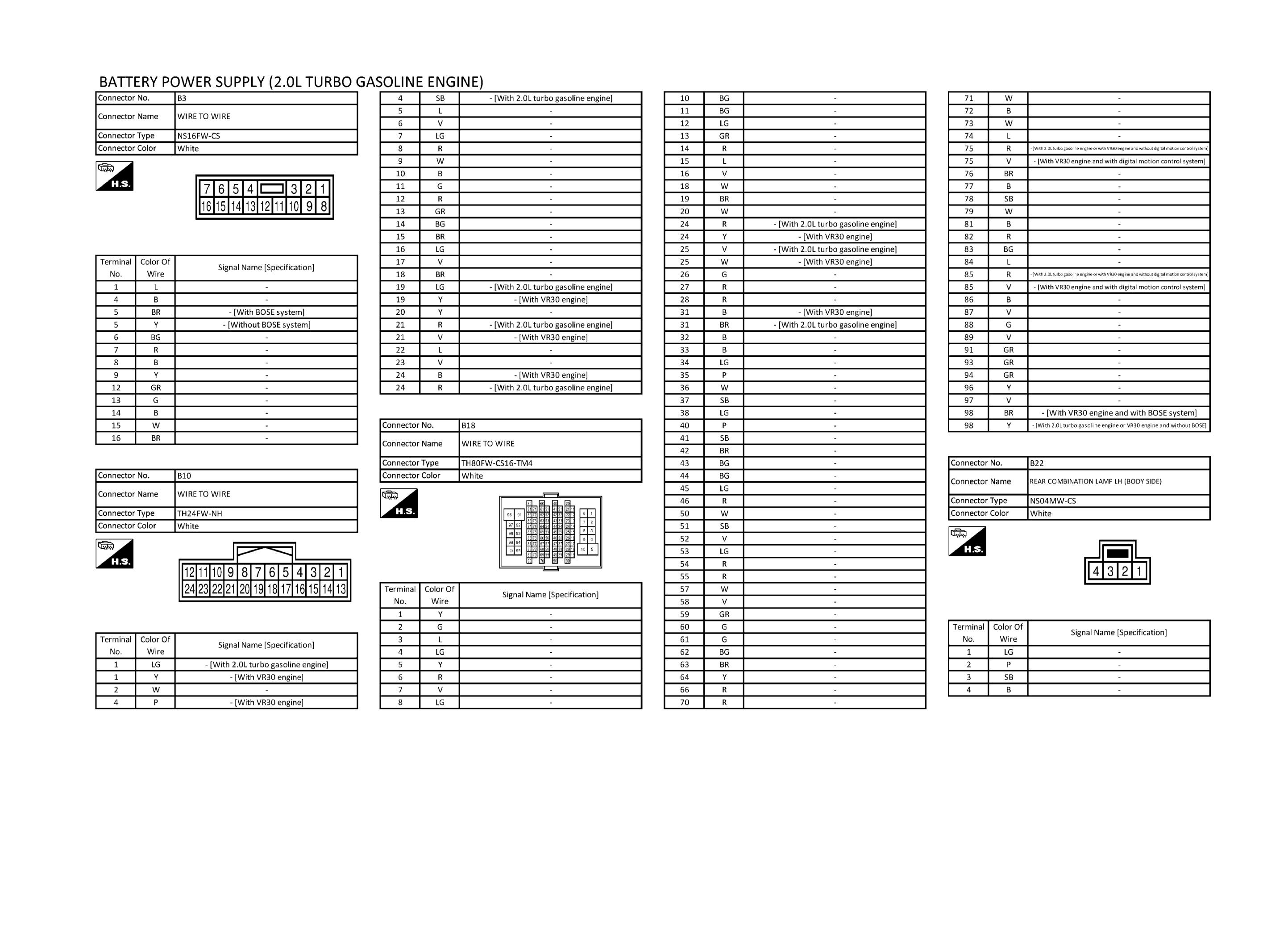

GNSJRMWL3224GB-224

Courtesy of NISSAN NORTH AMERICA, INC.

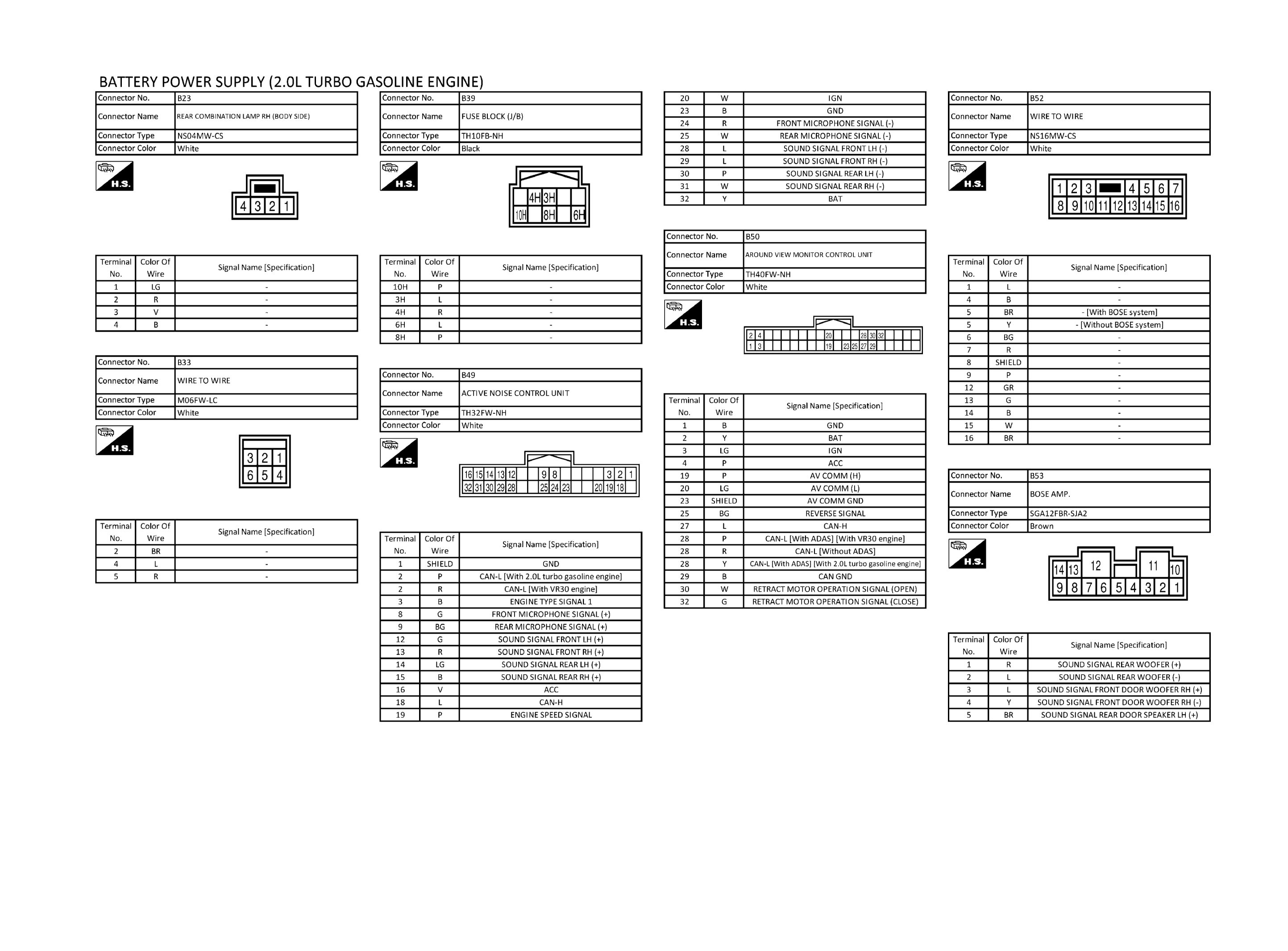

GNSJRMWL3225GB-225

Courtesy of NISSAN NORTH AMERICA, INC.

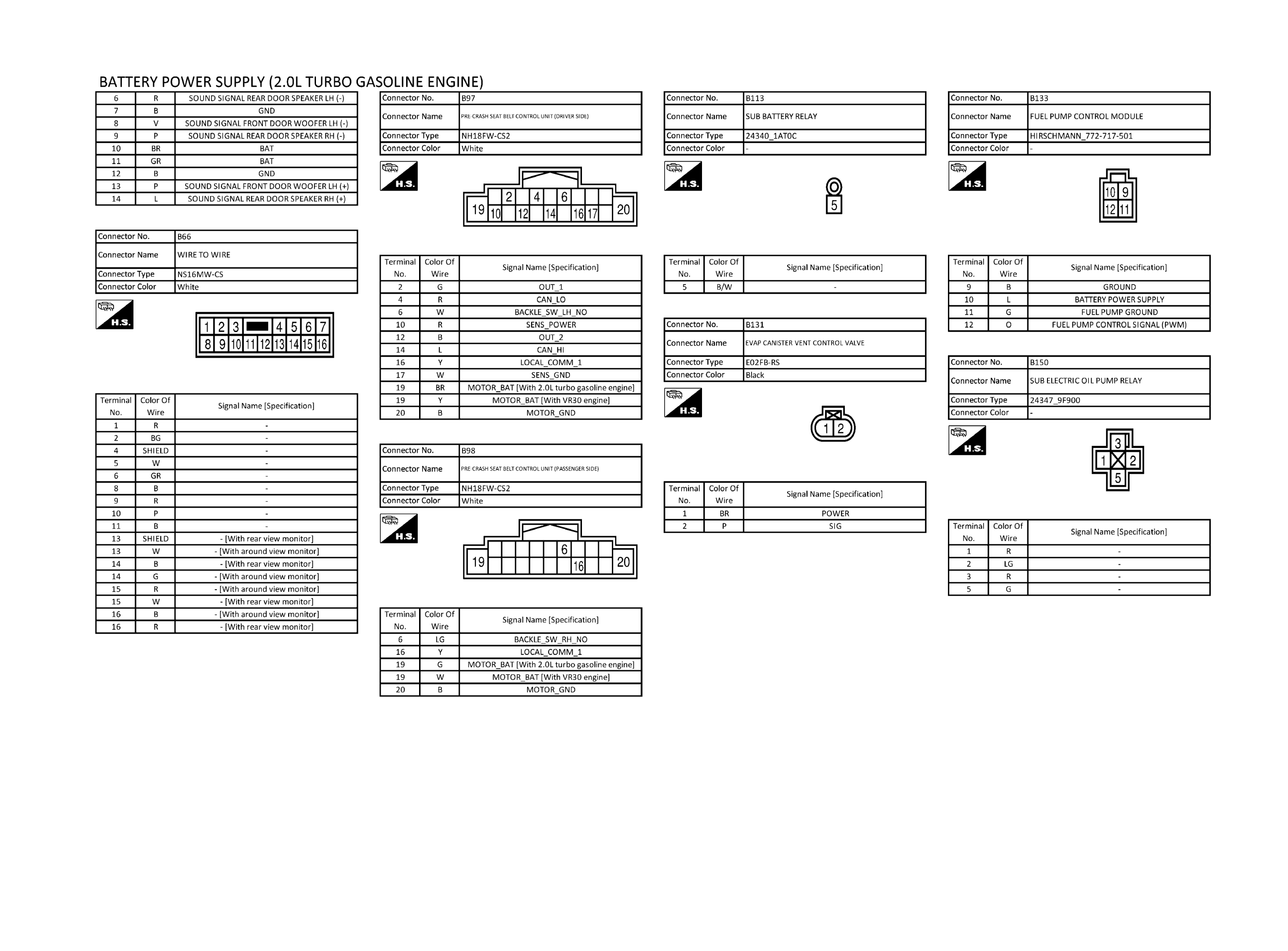

GNSJRMWL3226GB-226

Courtesy of NISSAN NORTH AMERICA, INC.

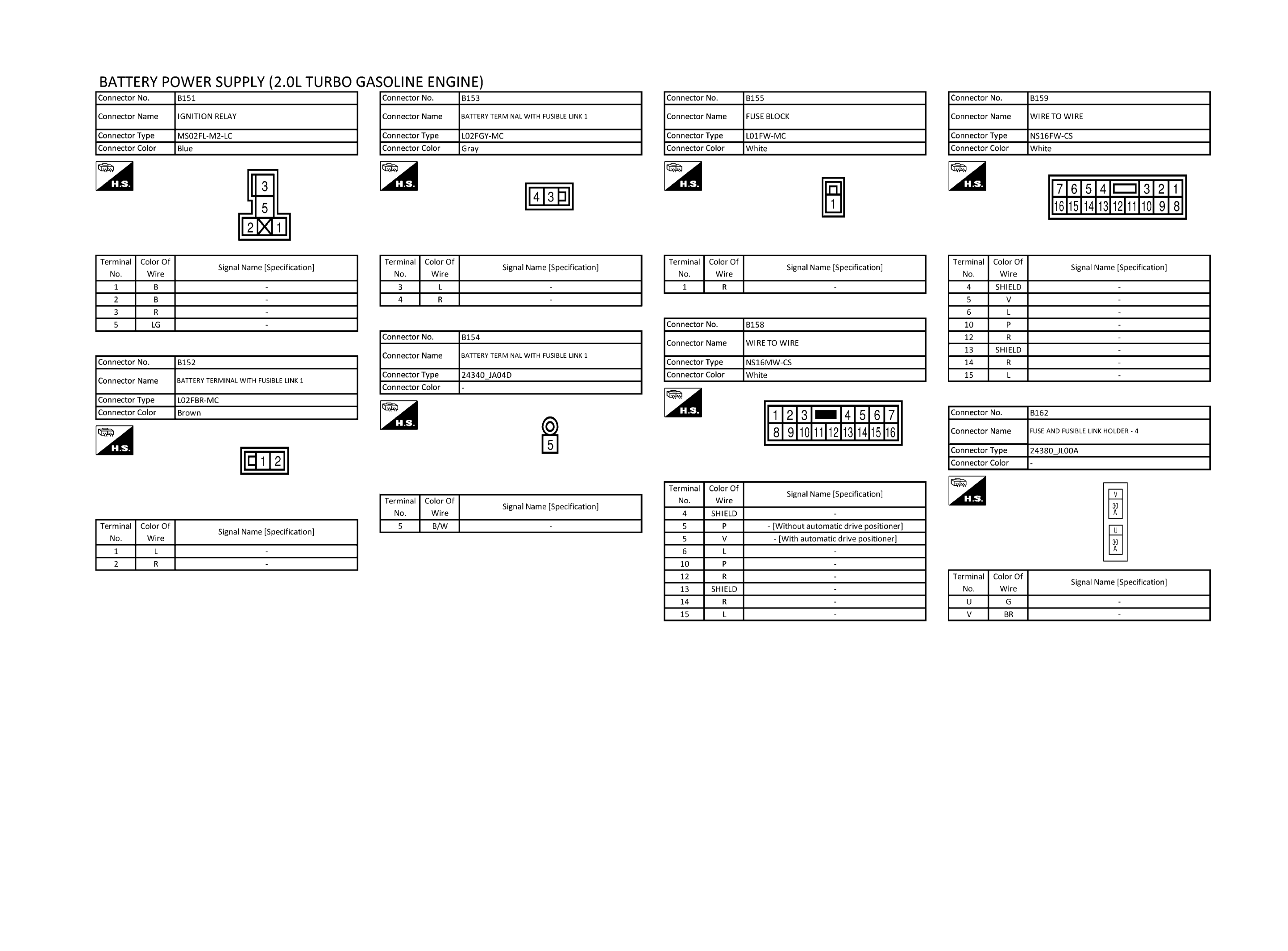

GNSJRMWL3227GB-227

Courtesy of NISSAN NORTH AMERICA, INC.

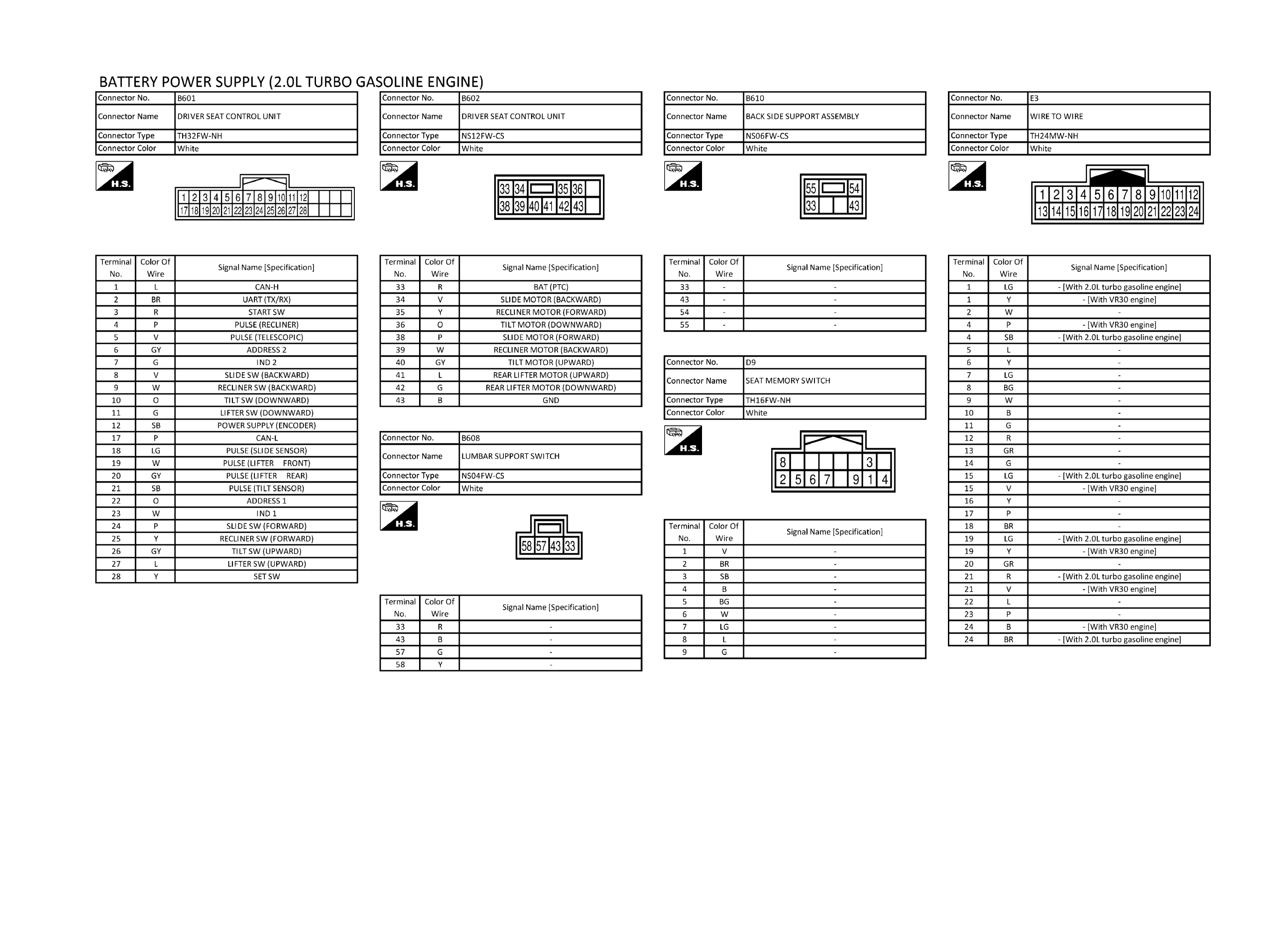

GNSJRMWL3228GB-228

Courtesy of NISSAN NORTH AMERICA, INC.

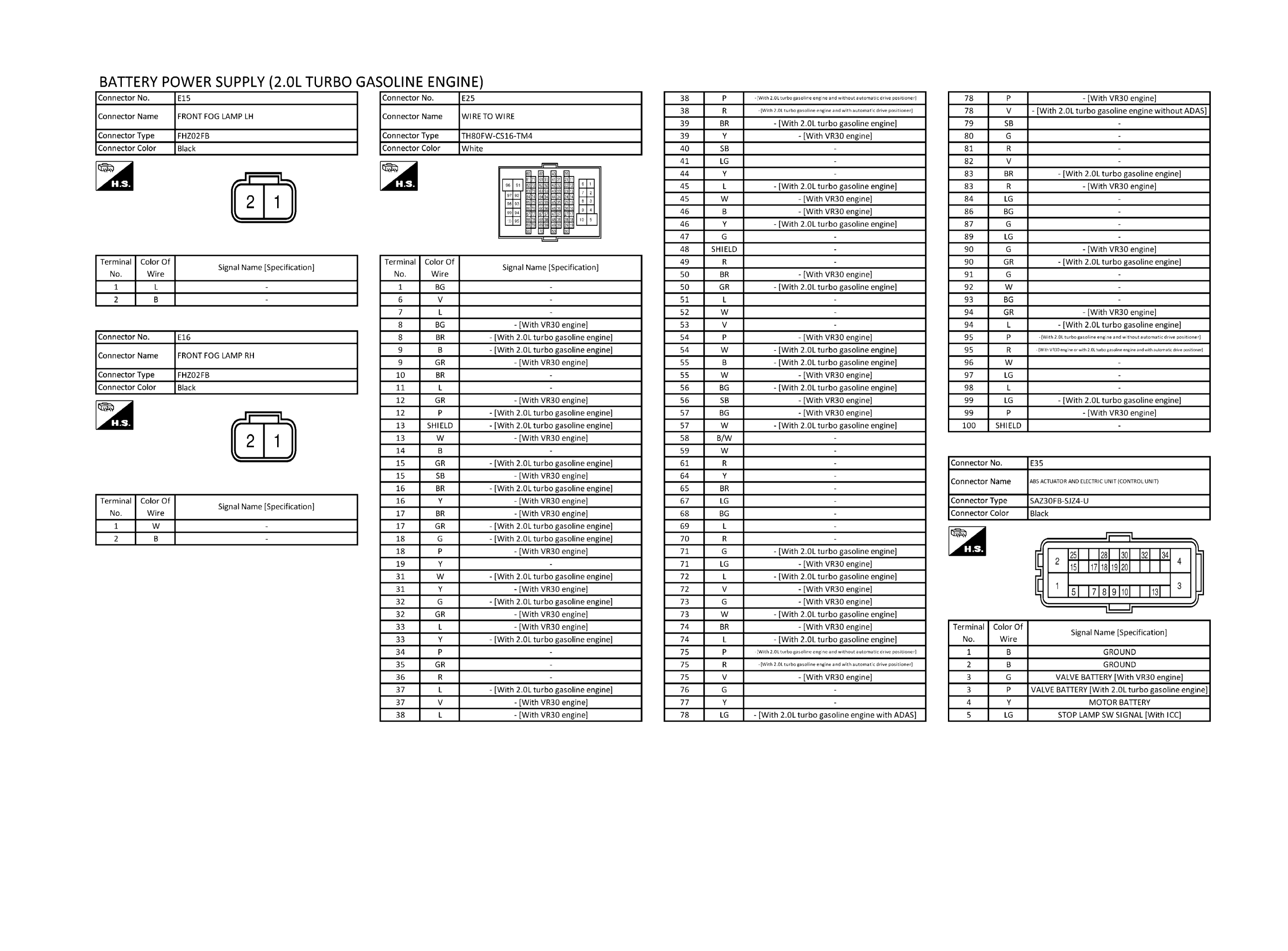

GNSJRMWL3229GB-229

Courtesy of NISSAN NORTH AMERICA, INC.

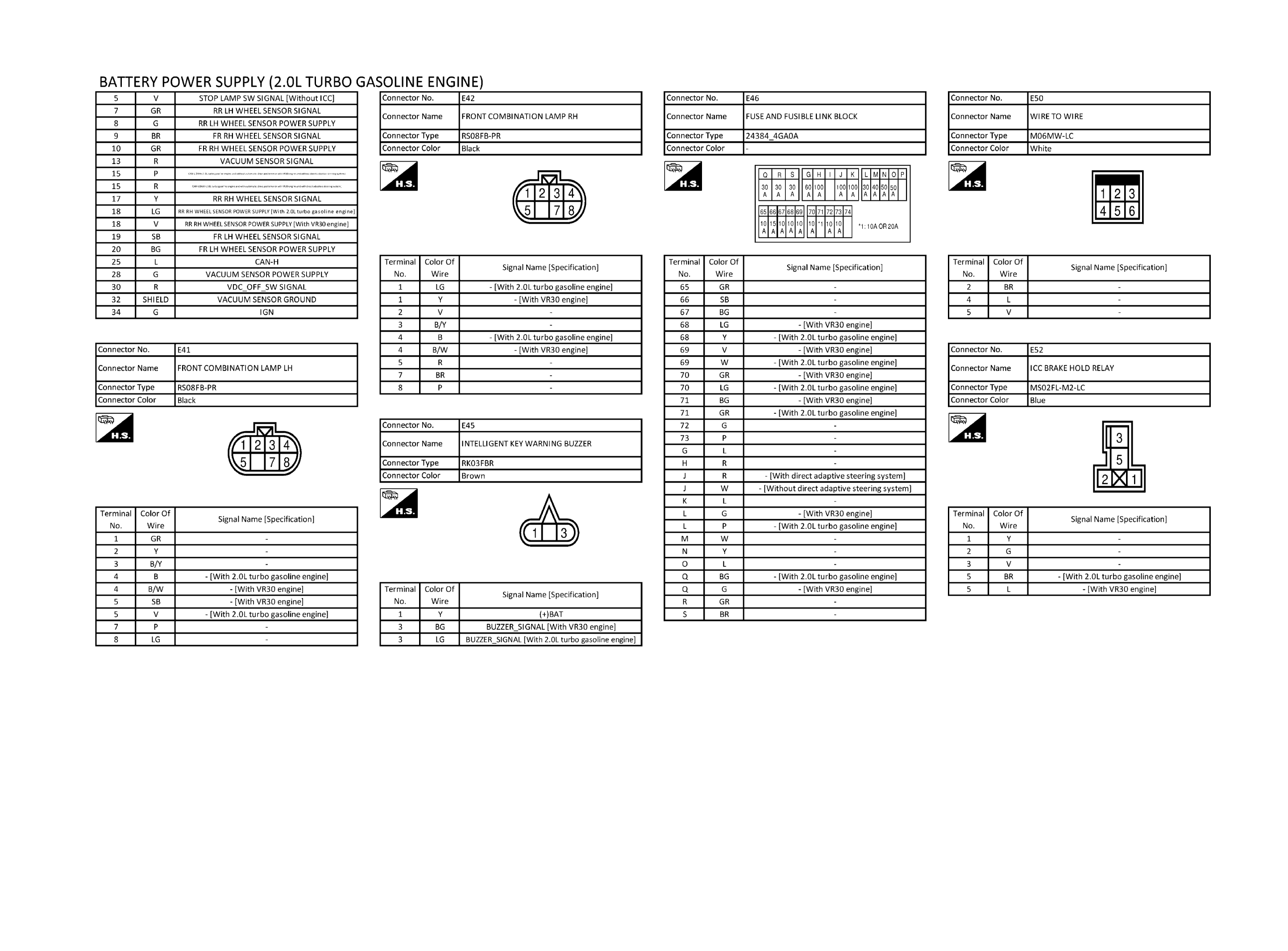

GNSJRMWL3230GB-230

Courtesy of NISSAN NORTH AMERICA, INC.

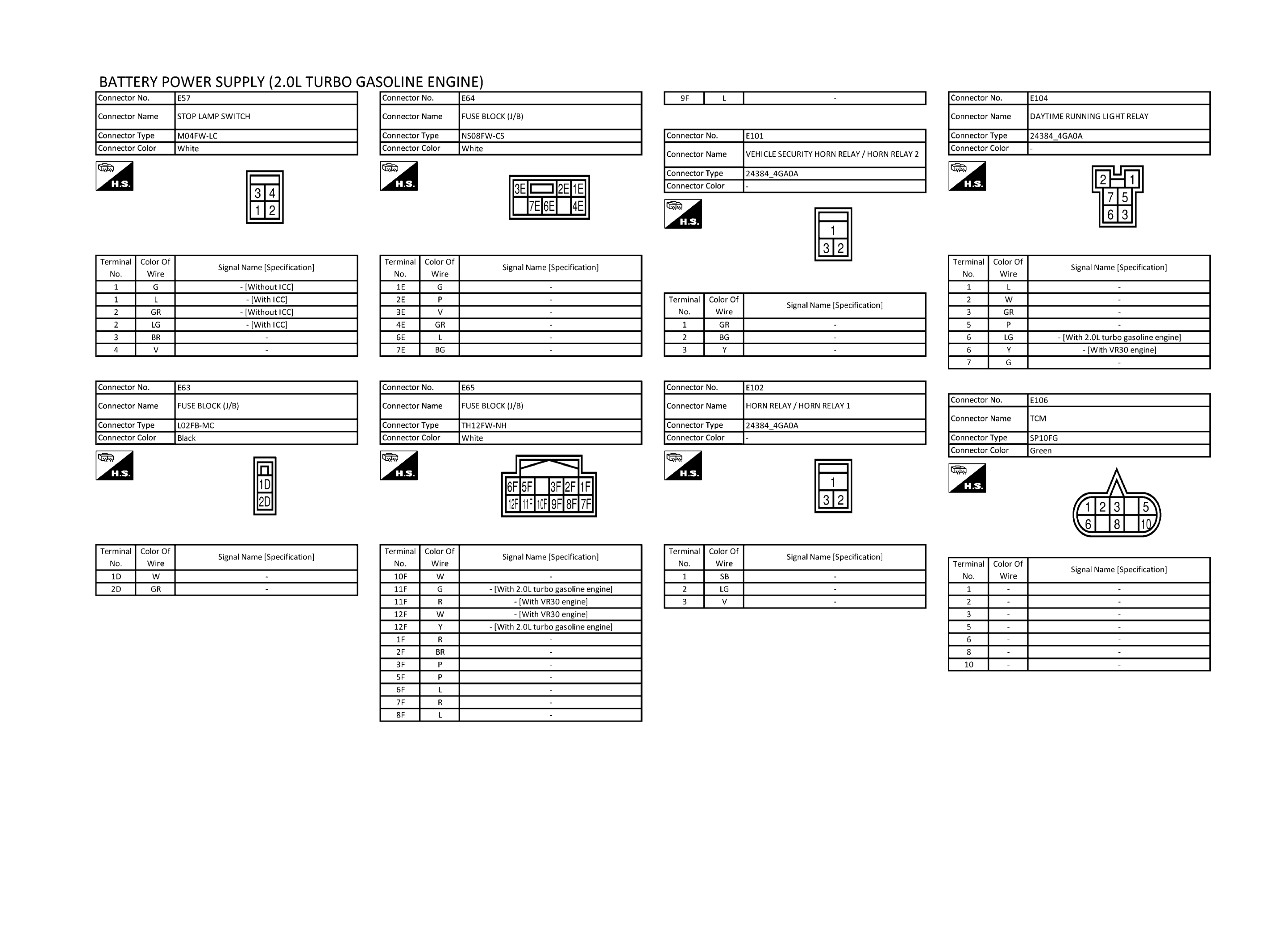

GNSJRMWL3231GB-231

Courtesy of NISSAN NORTH AMERICA, INC.

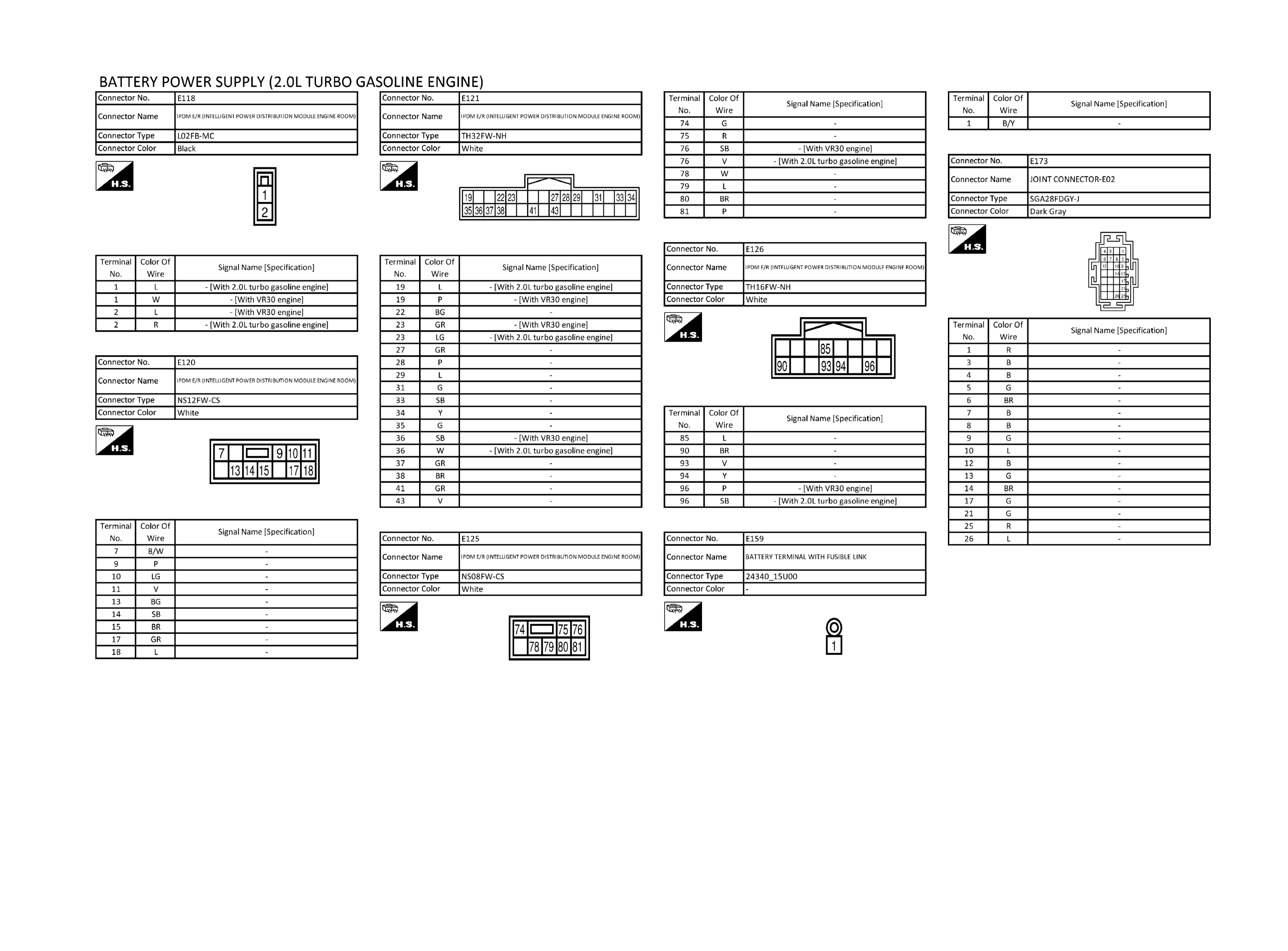

GNSJRMWL3232GB-232

Courtesy of NISSAN NORTH AMERICA, INC.

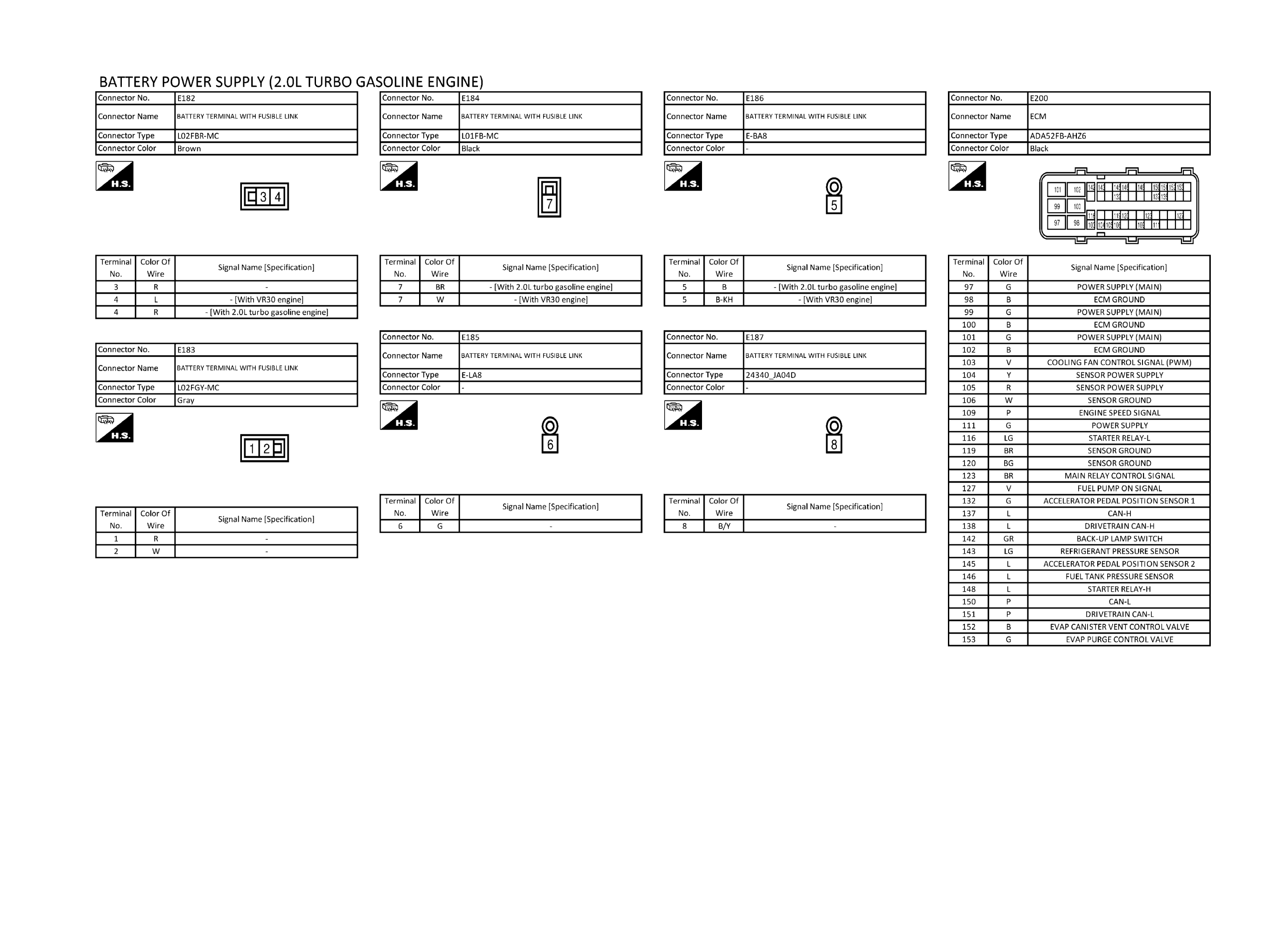

GNSJRMWL3233GB-233

Courtesy of NISSAN NORTH AMERICA, INC.

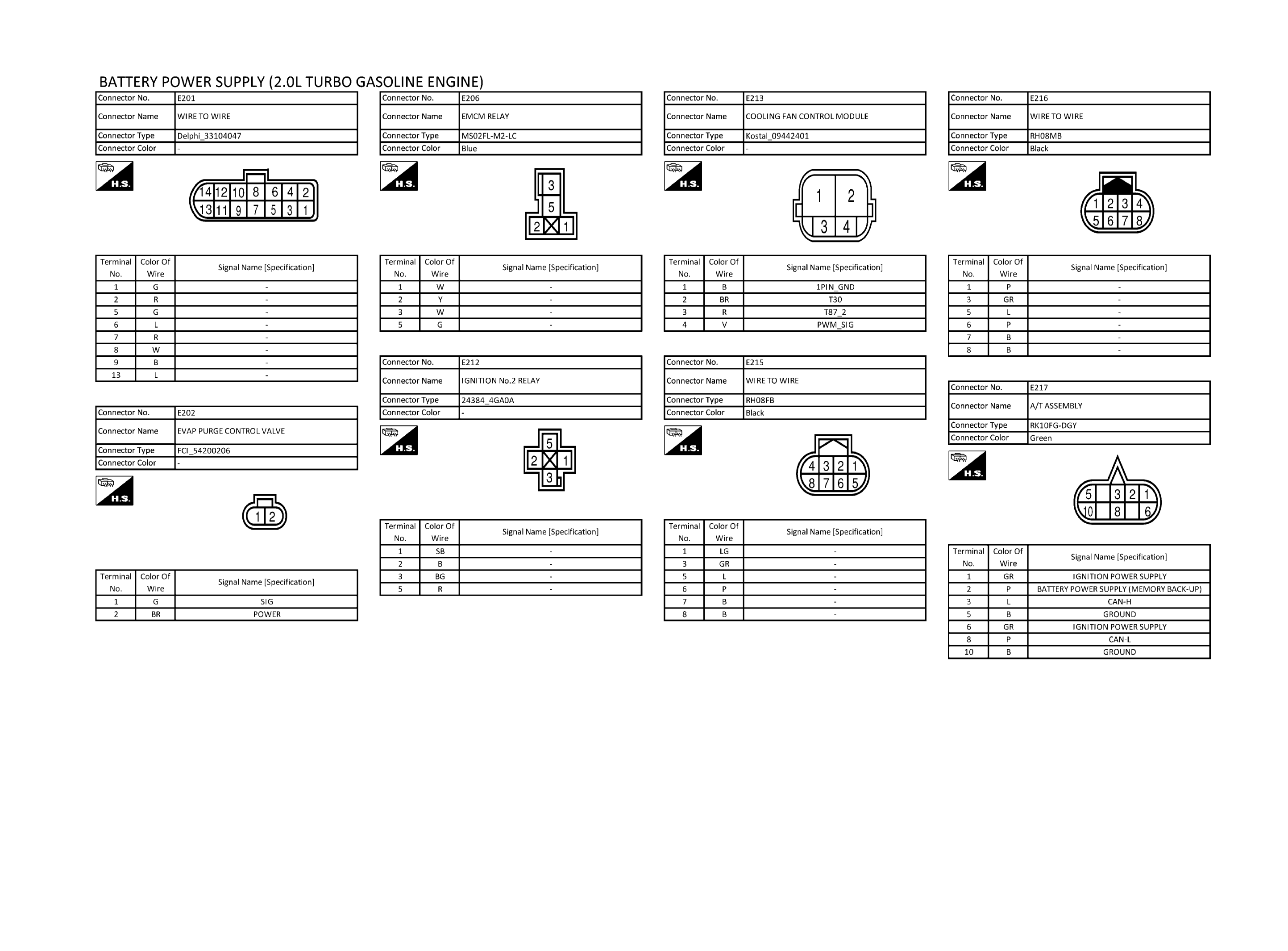

GNSJRMWL3234GB-234

Courtesy of NISSAN NORTH AMERICA, INC.

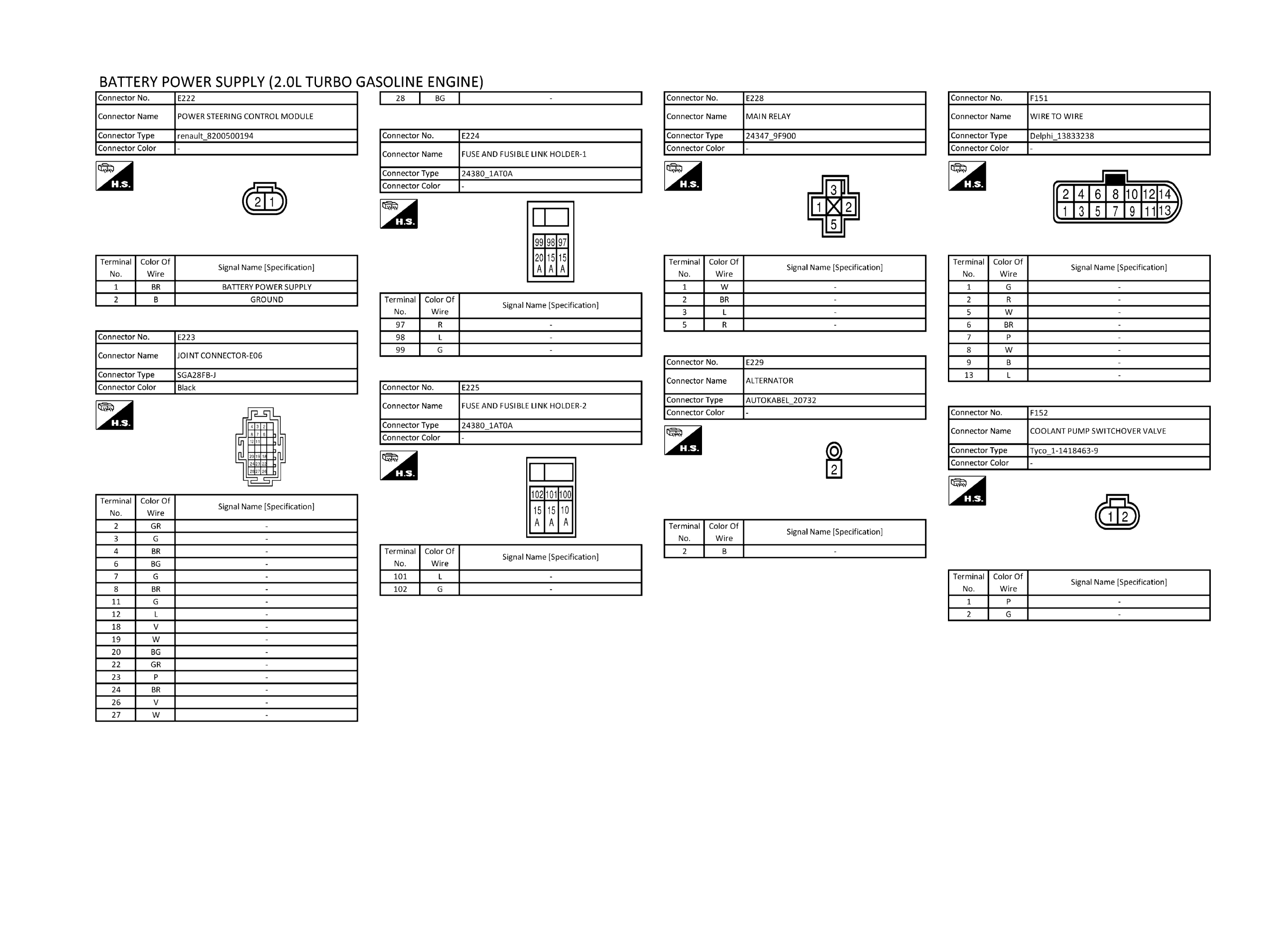

GNSJRMWL3235GB-235

Courtesy of NISSAN NORTH AMERICA, INC.

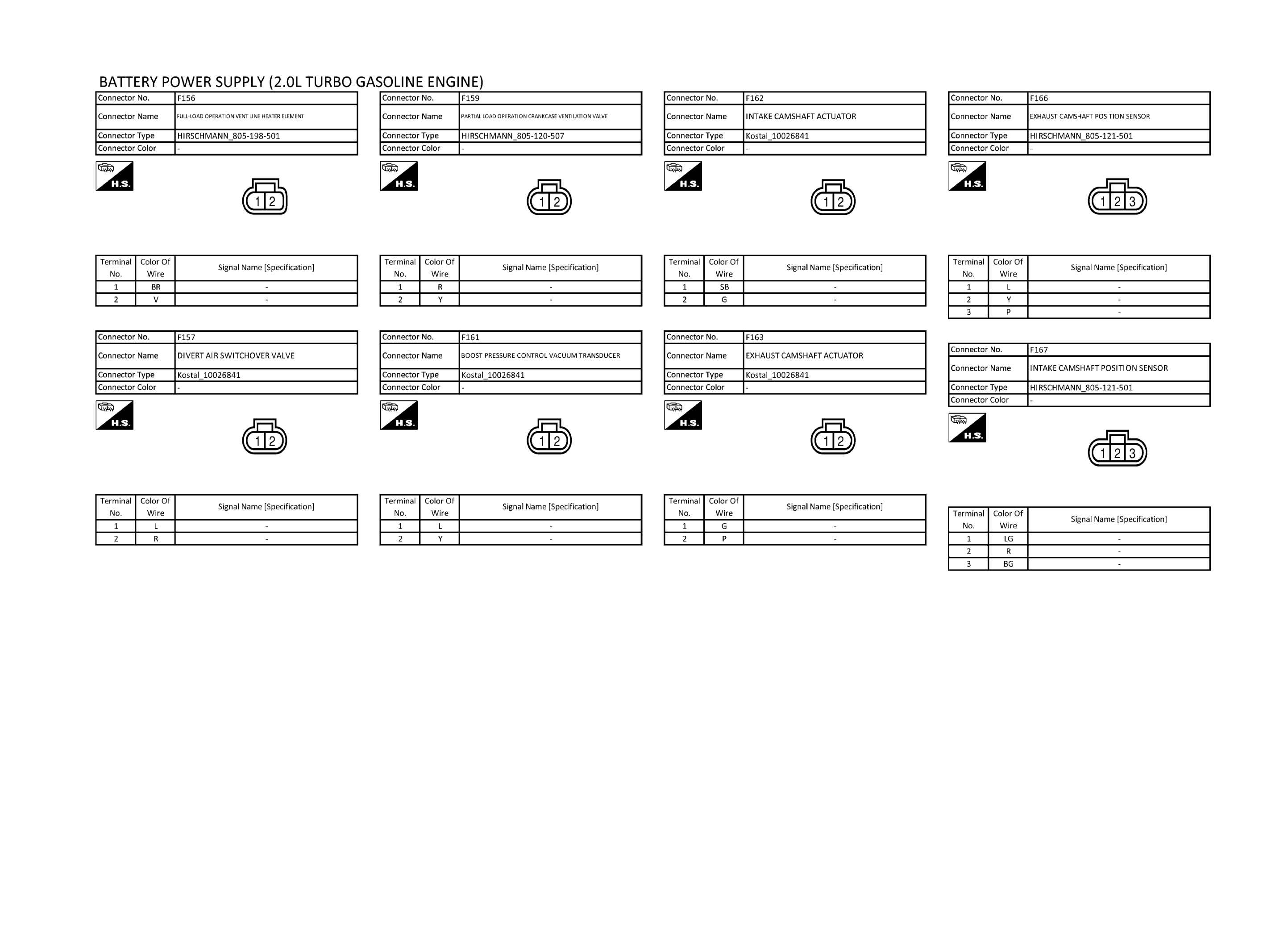

GNSJRMWL3236GB-236

Courtesy of NISSAN NORTH AMERICA, INC.

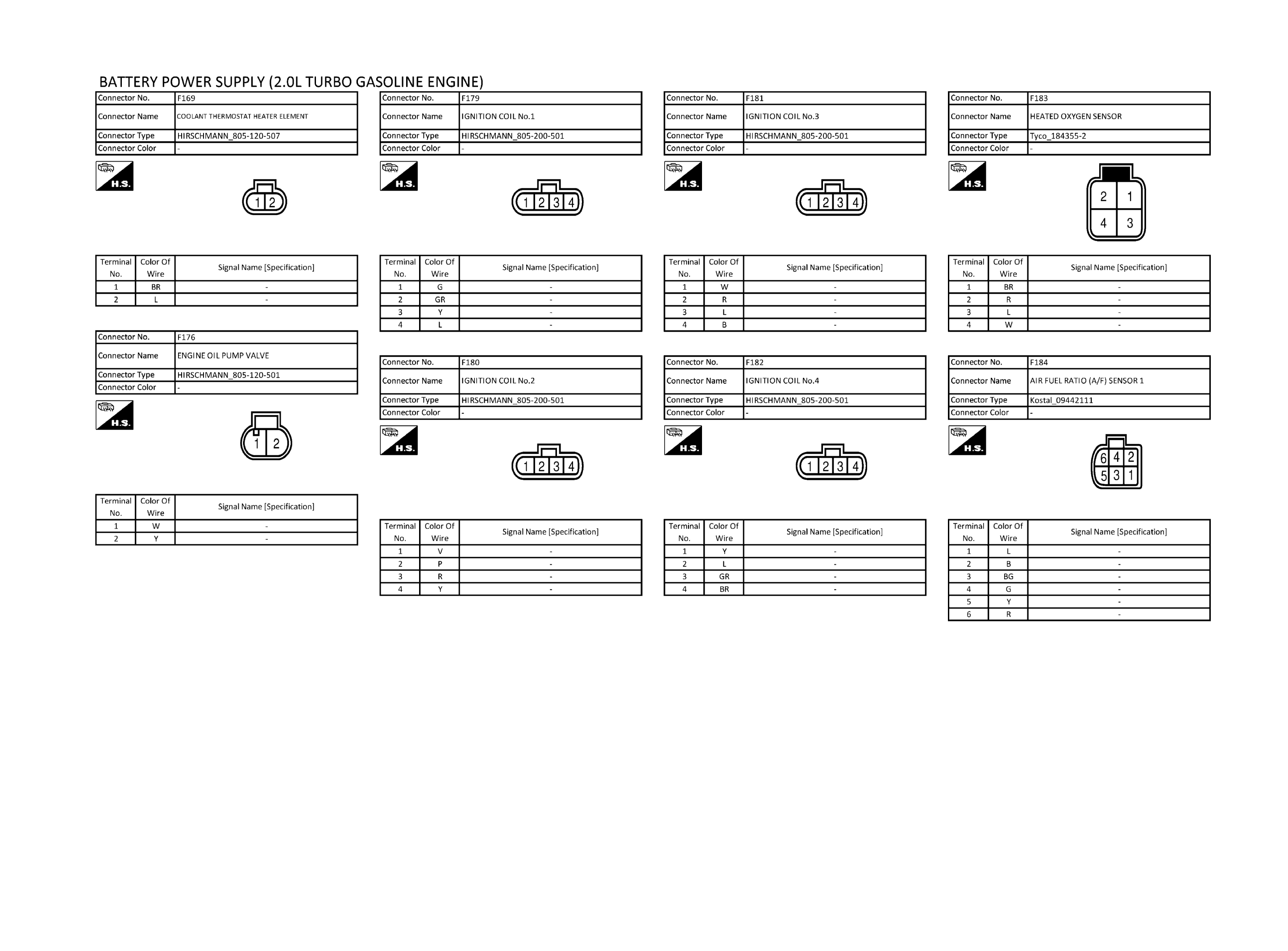

GNSJRMWL3237GB-237

Courtesy of NISSAN NORTH AMERICA, INC.

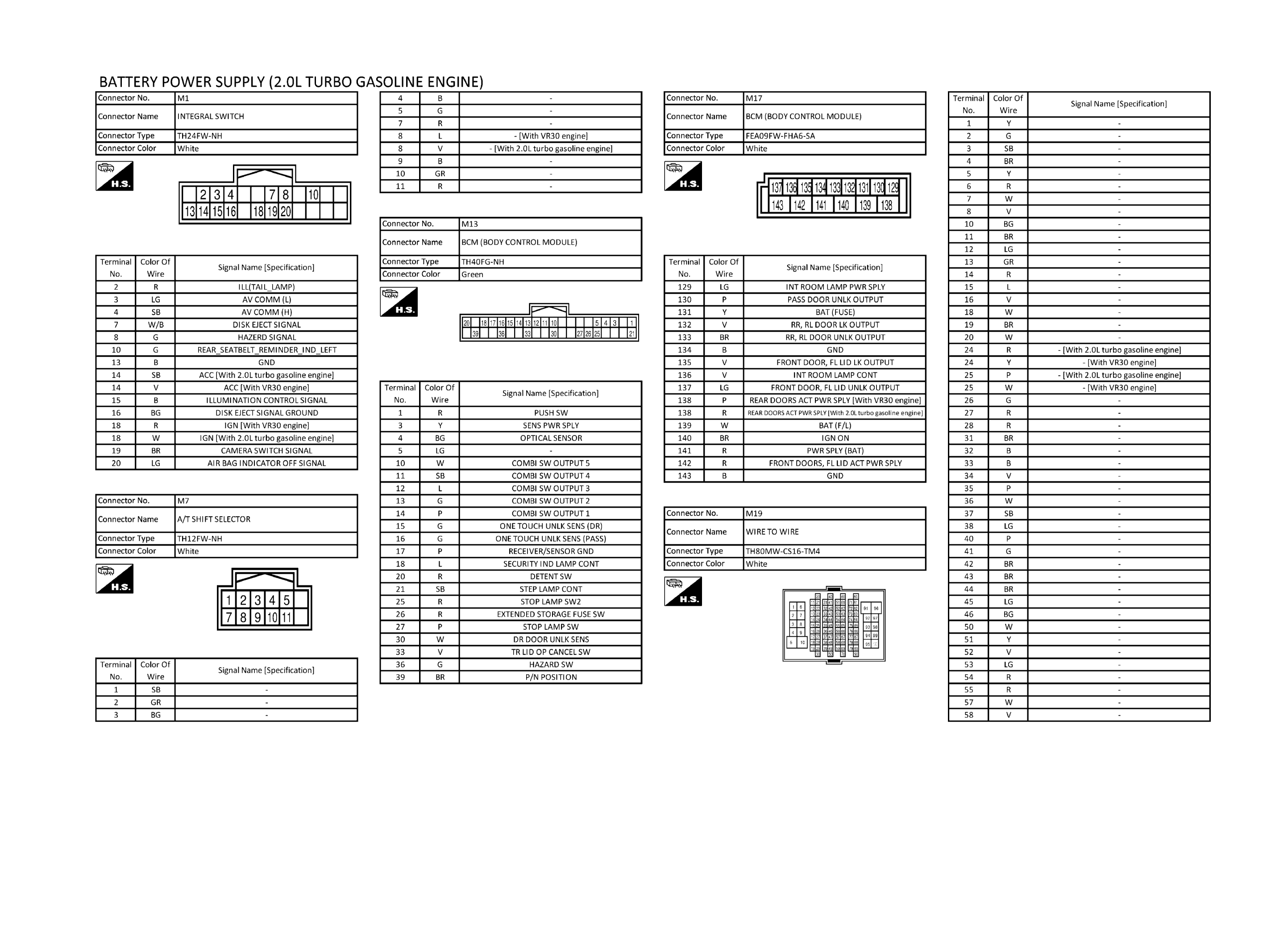

GNSJRMWL3238GB-238

Courtesy of NISSAN NORTH AMERICA, INC.

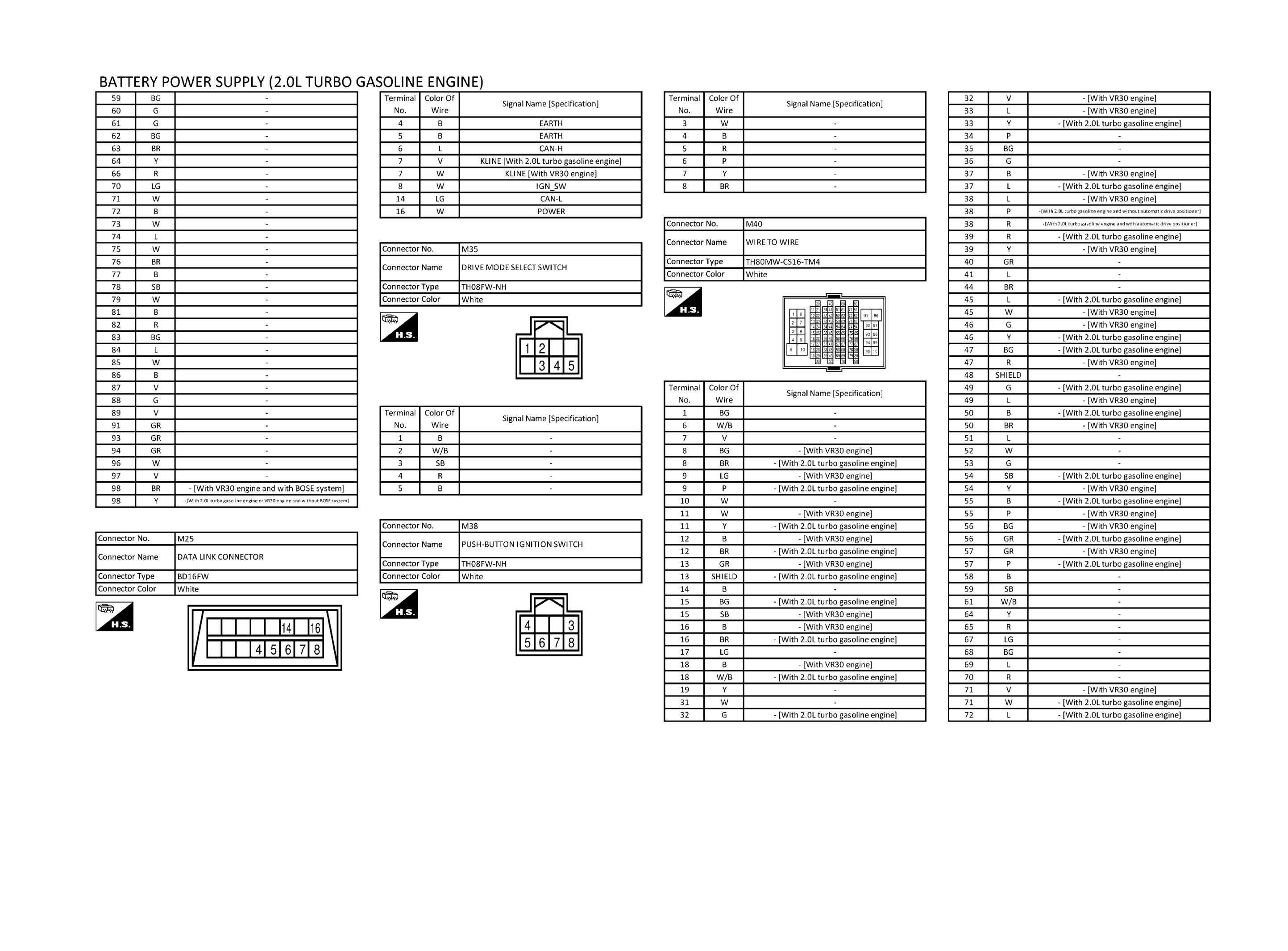

GNSJRMWL3239GB-239

Courtesy of NISSAN NORTH AMERICA, INC.

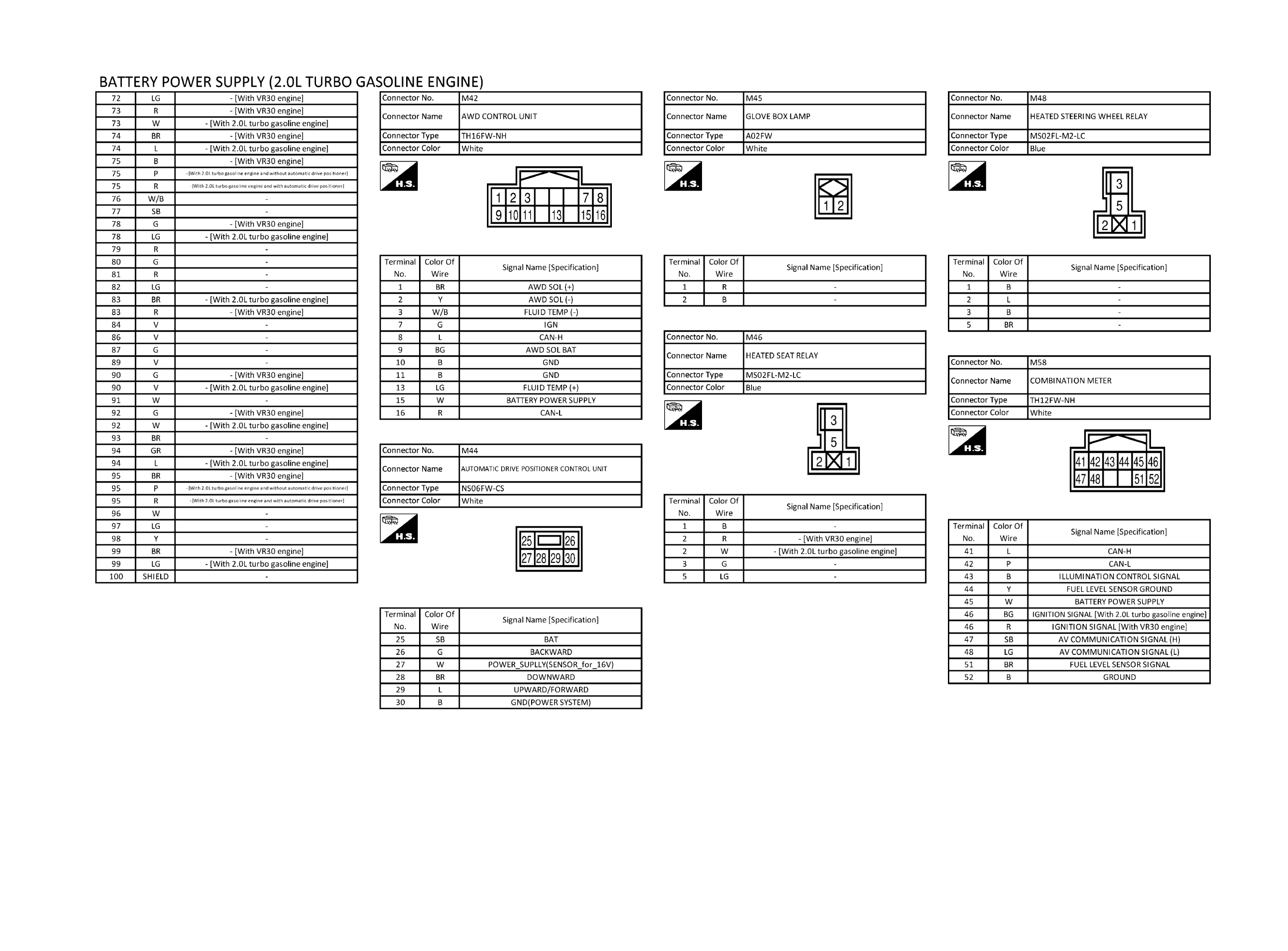

GNSJRMWL3240GB-240

Courtesy of NISSAN NORTH AMERICA, INC.

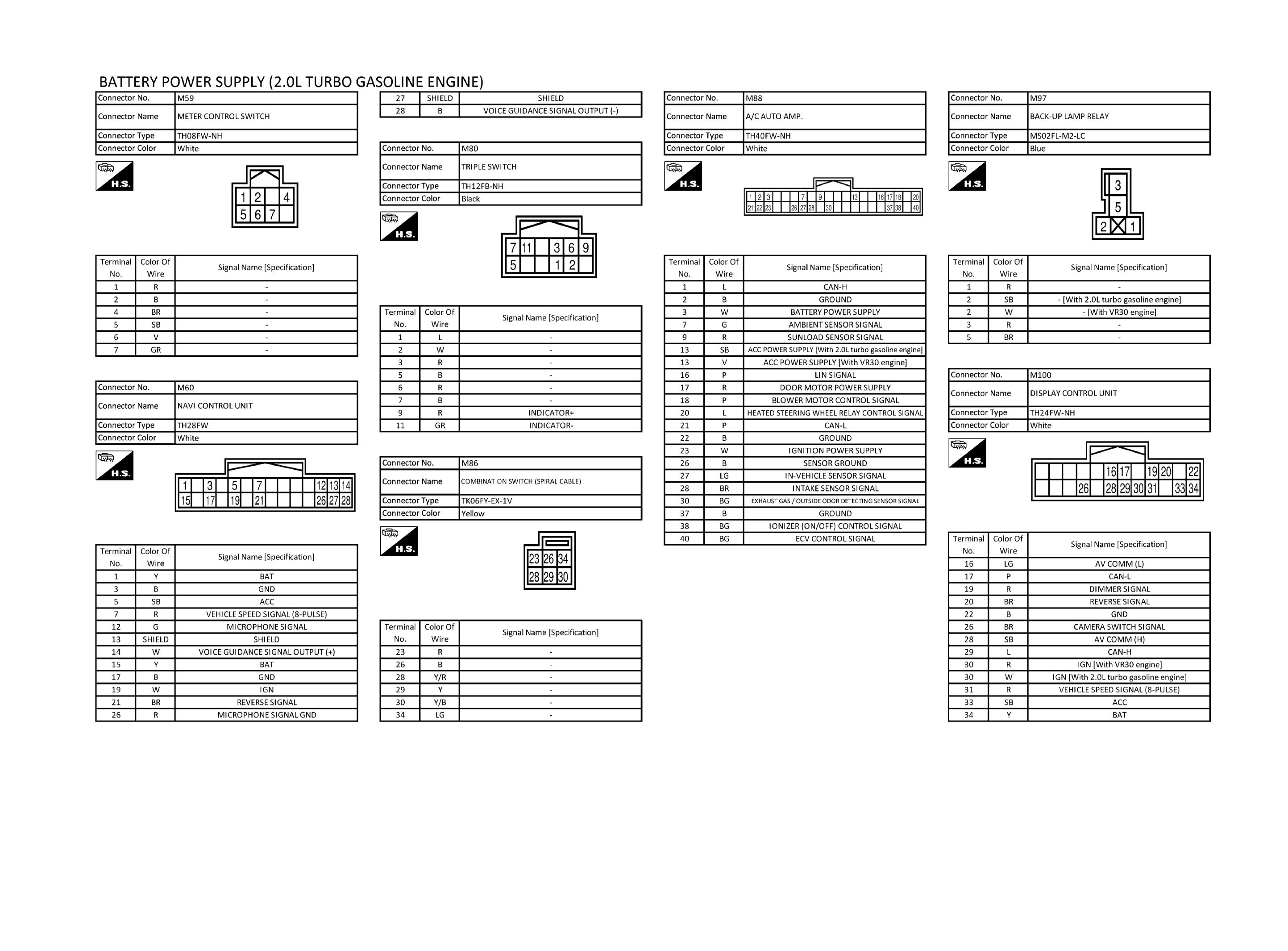

GNSJRMWL3241GB-241

Courtesy of NISSAN NORTH AMERICA, INC.

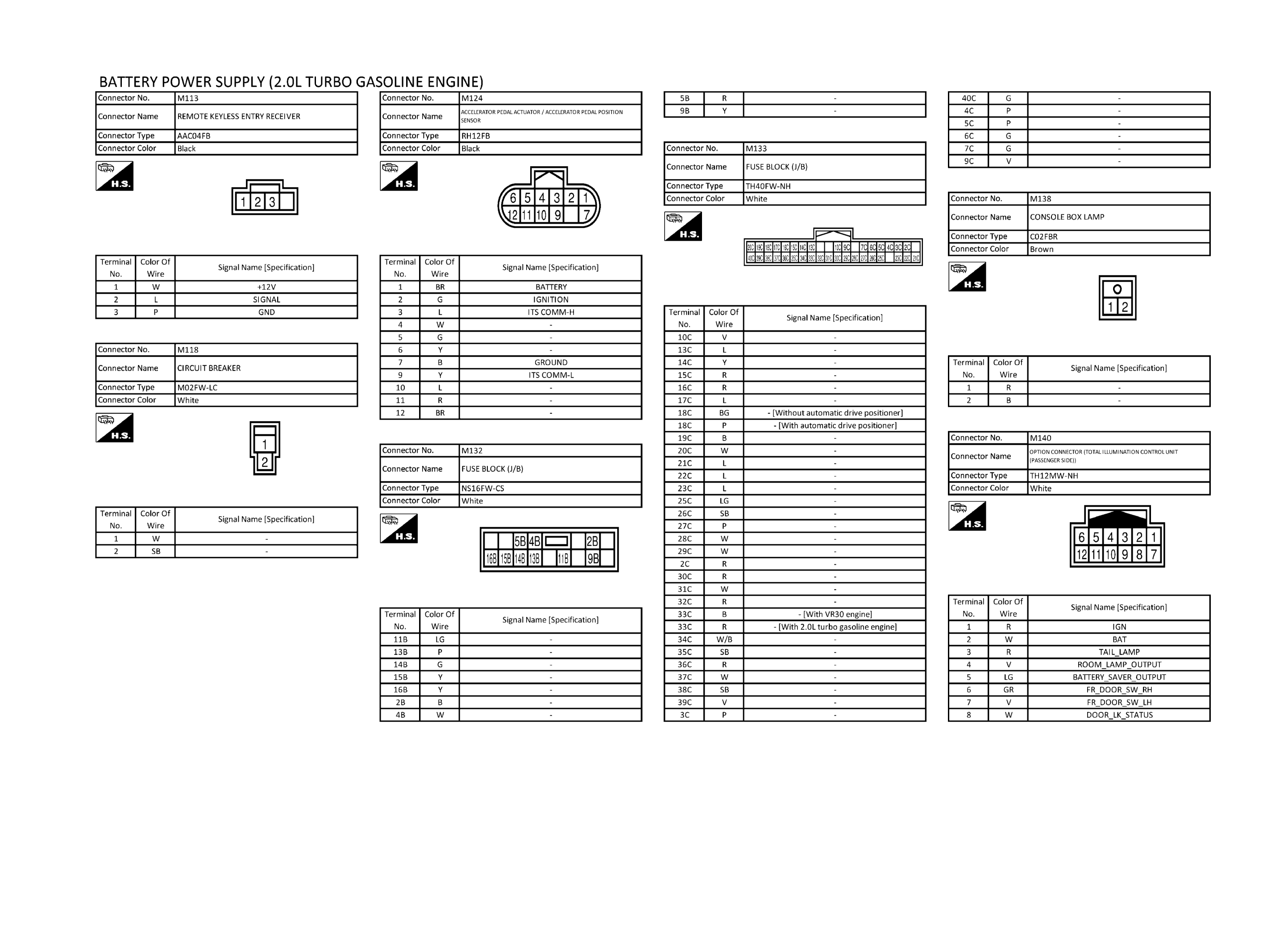

GNSJRMWL3242GB-242

Courtesy of NISSAN NORTH AMERICA, INC.

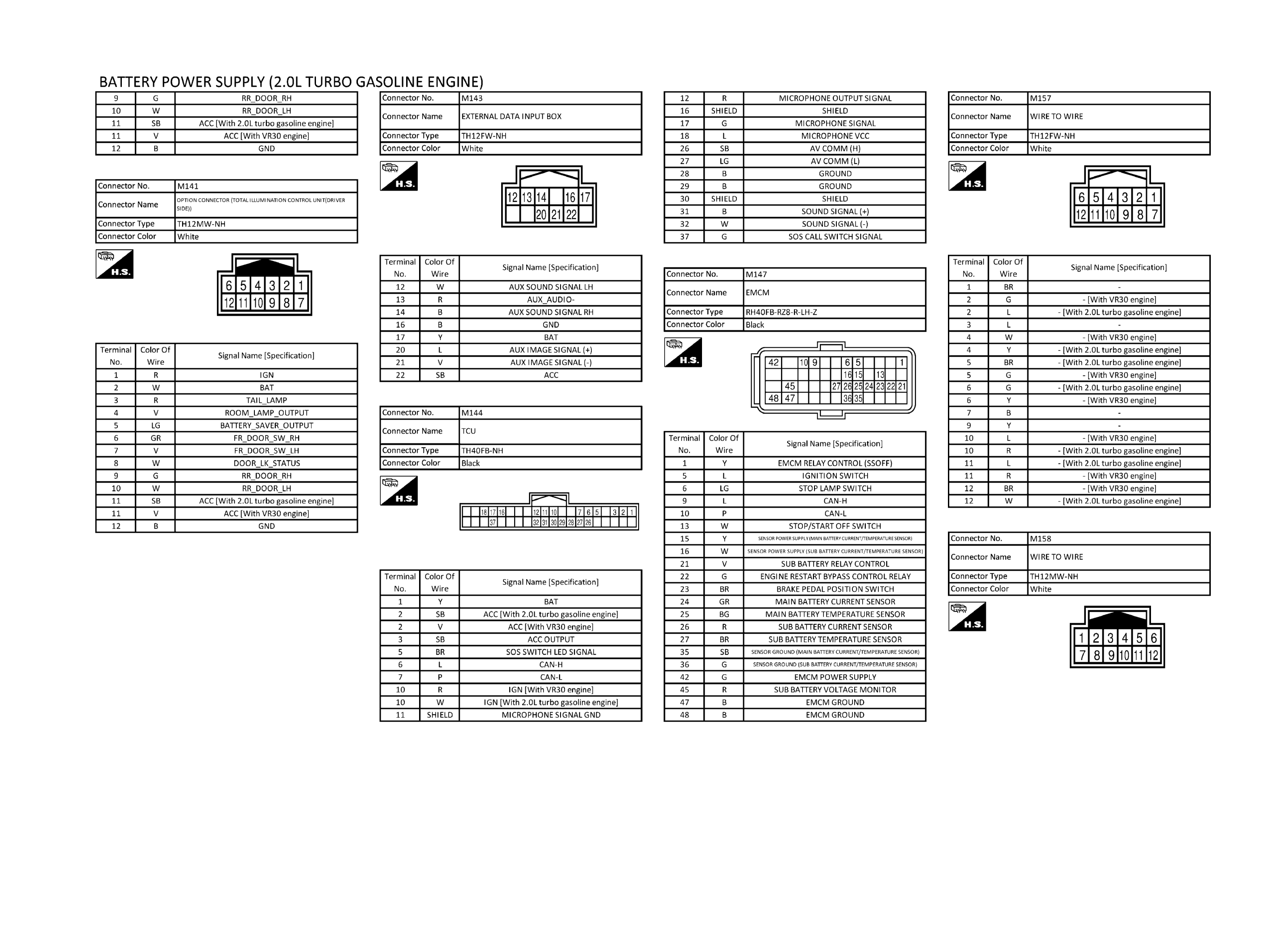

GNSJRMWL3243GB-243

Courtesy of NISSAN NORTH AMERICA, INC.

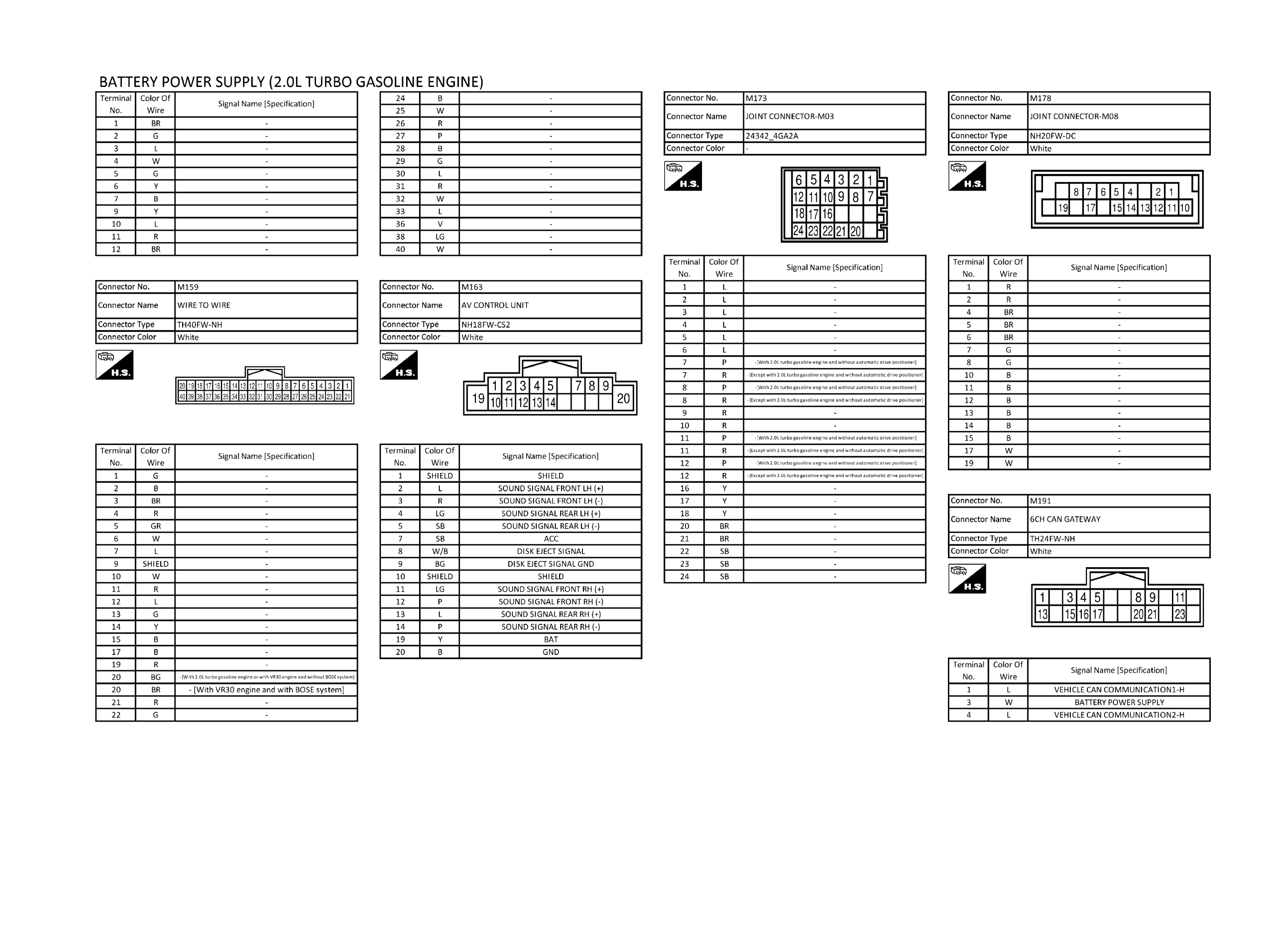

GNSJRMWL3244GB-244

Courtesy of NISSAN NORTH AMERICA, INC.

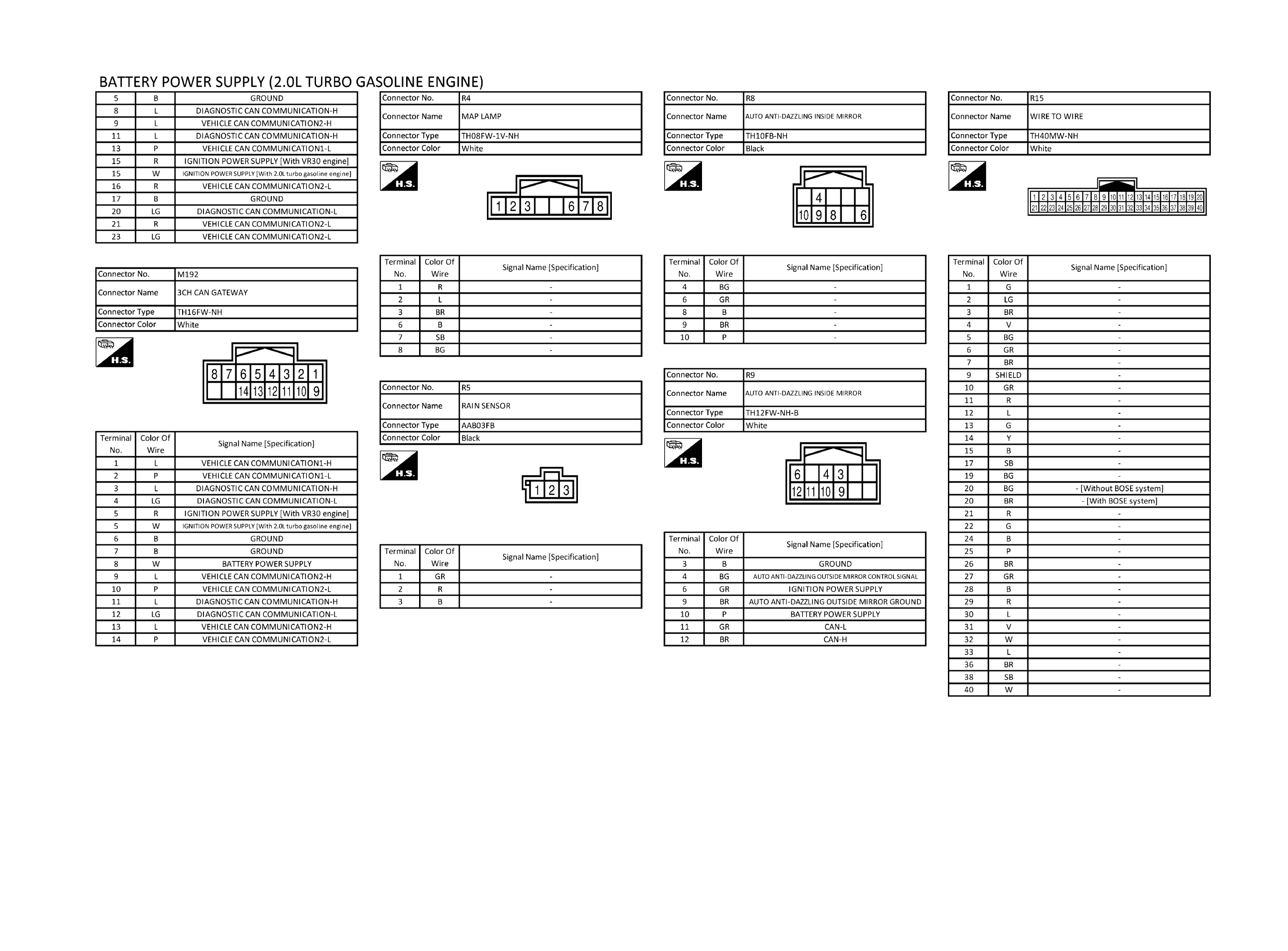

GNSJRMWL3245GB-245

Courtesy of NISSAN NORTH AMERICA, INC.

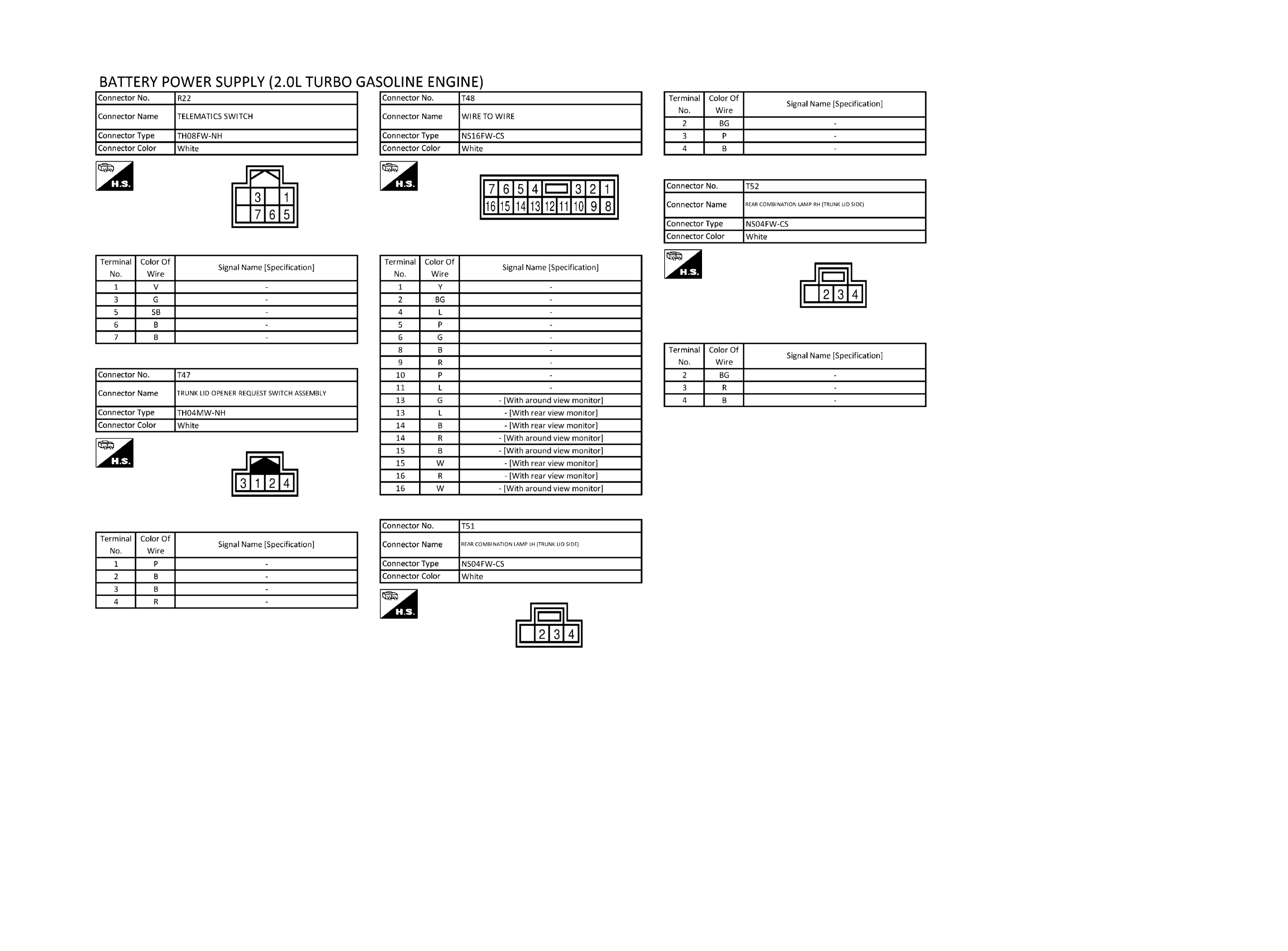

GNSJRMWL3246GB-246

Courtesy of NISSAN NORTH AMERICA, INC.
