Wiring Diagram - Accessory Power Supply -

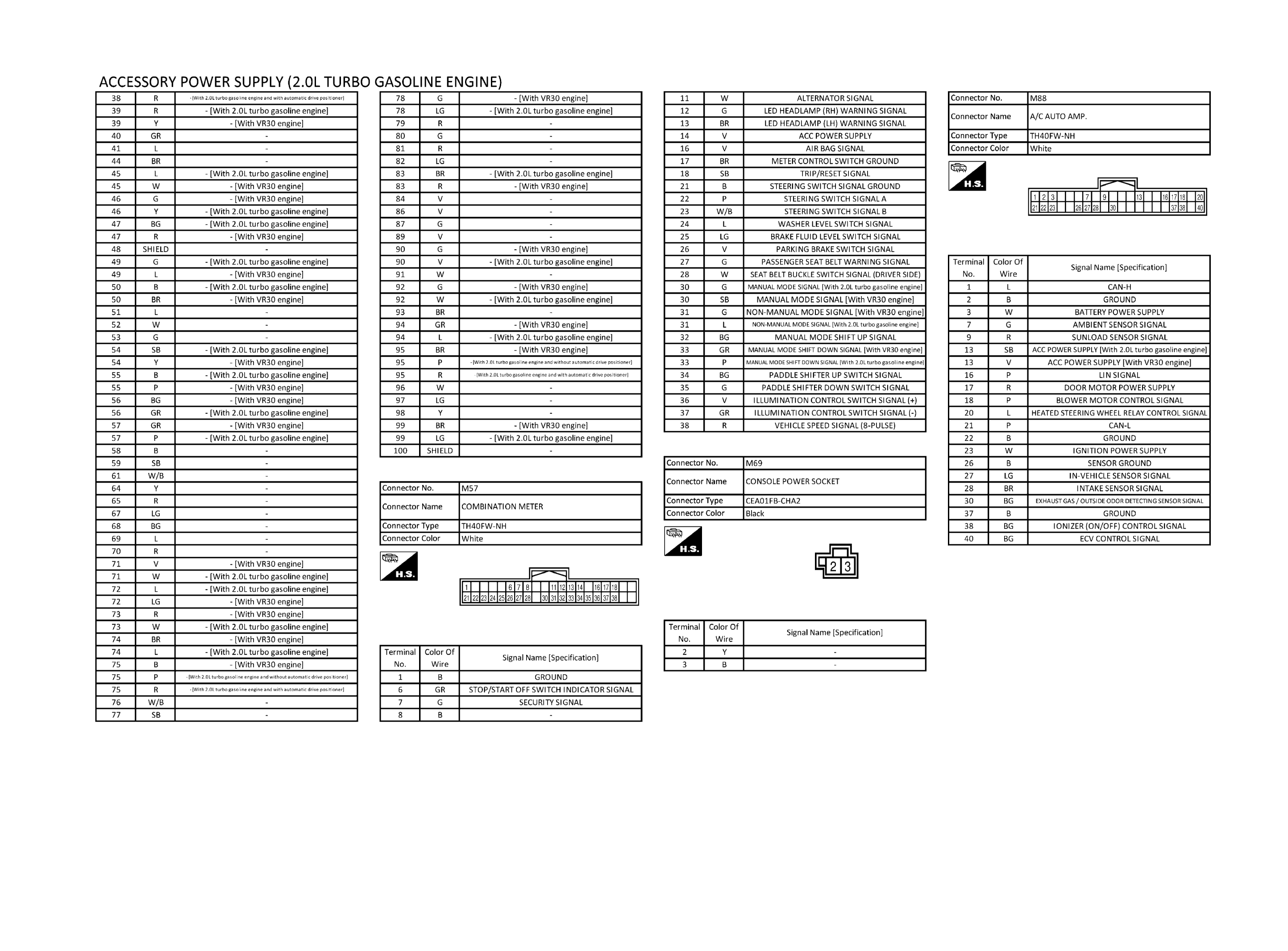

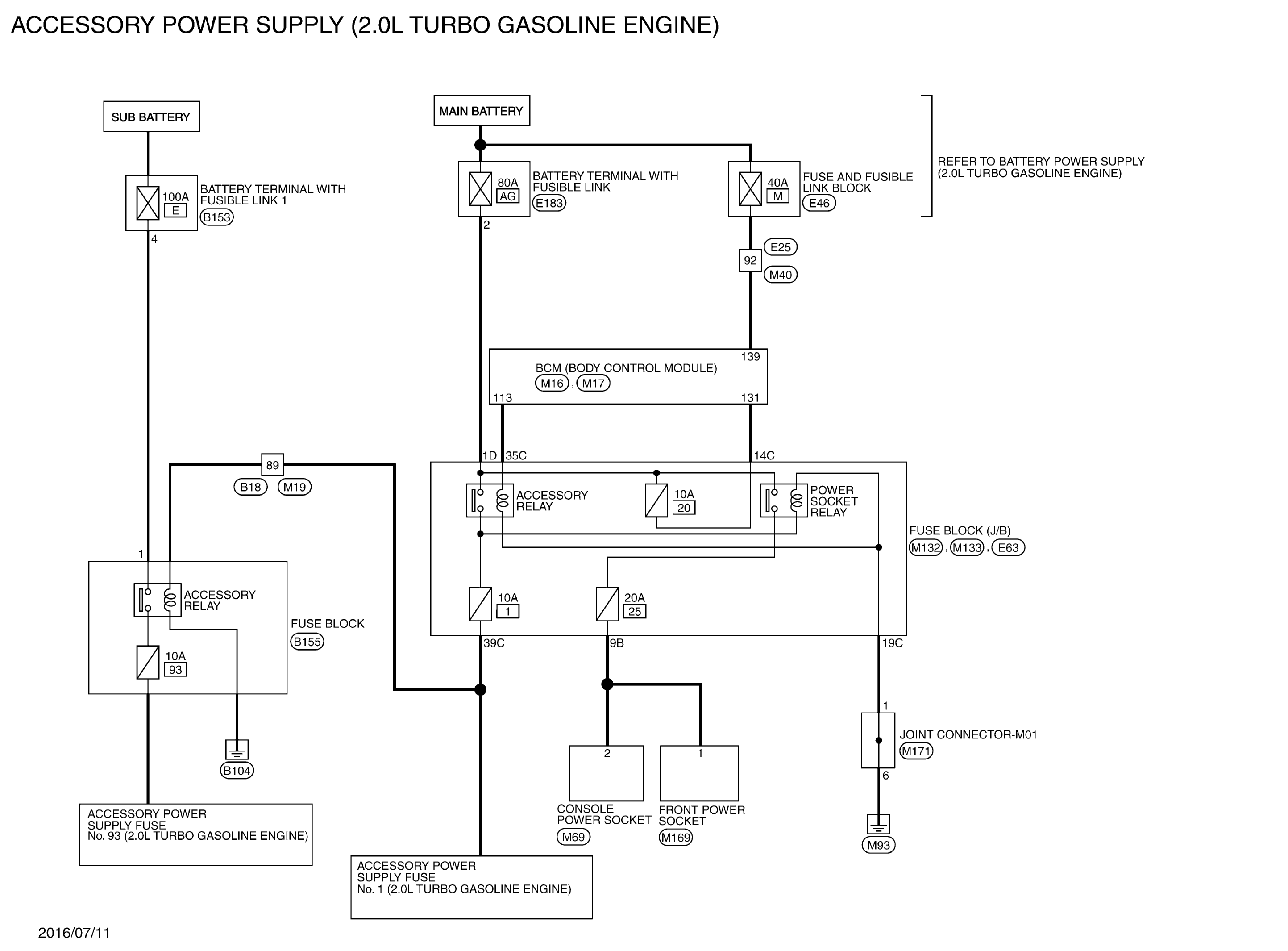

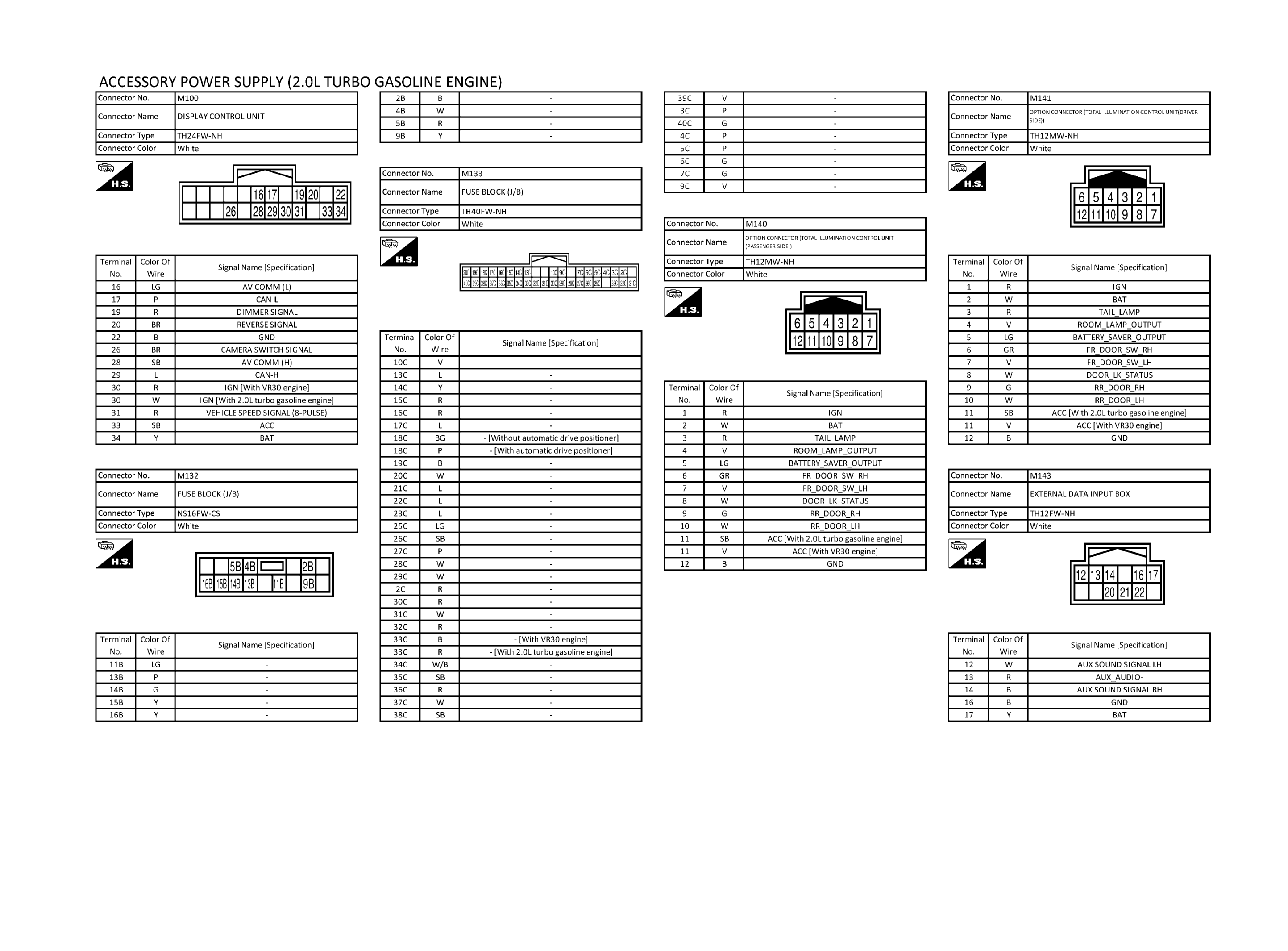

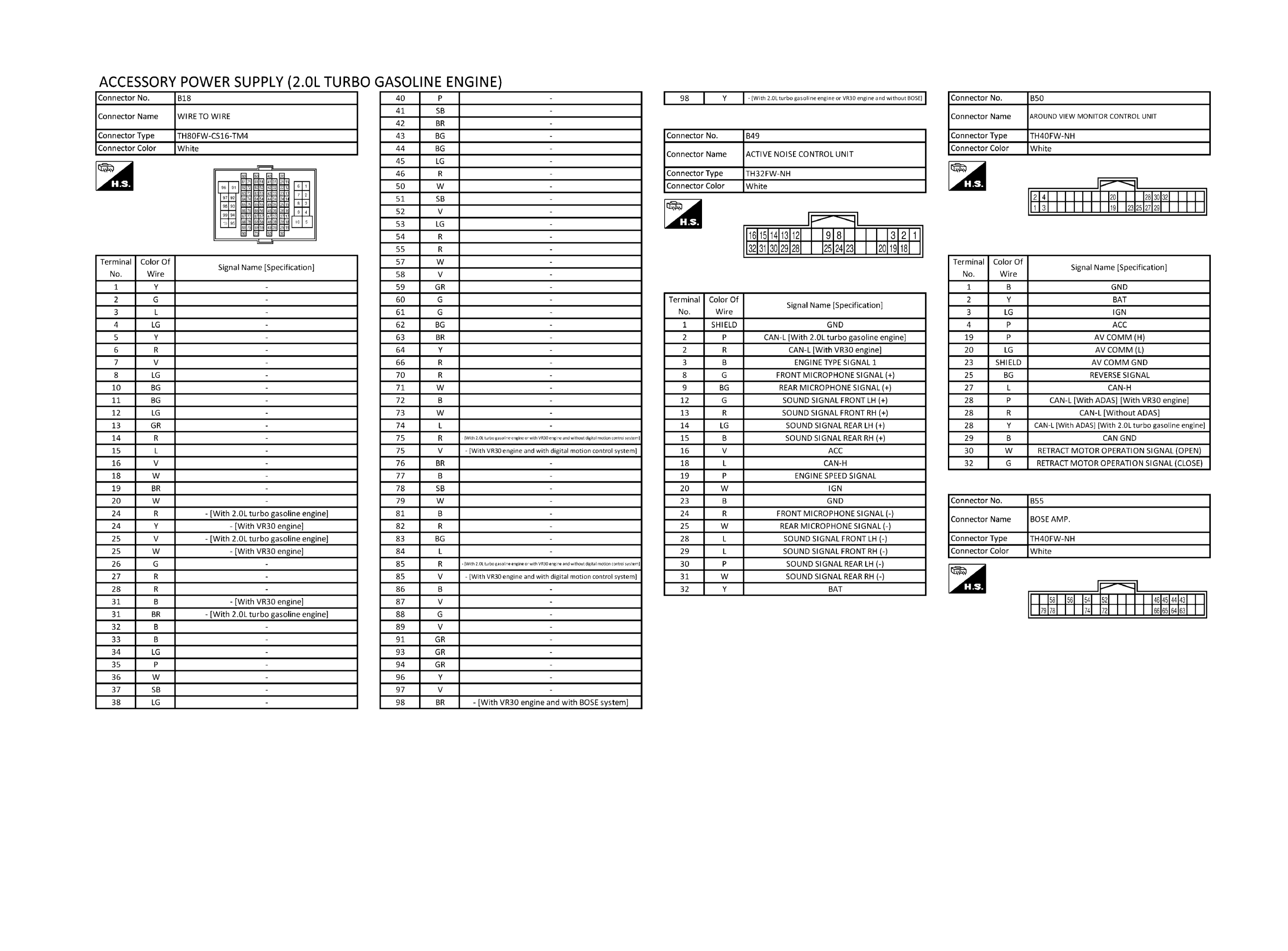

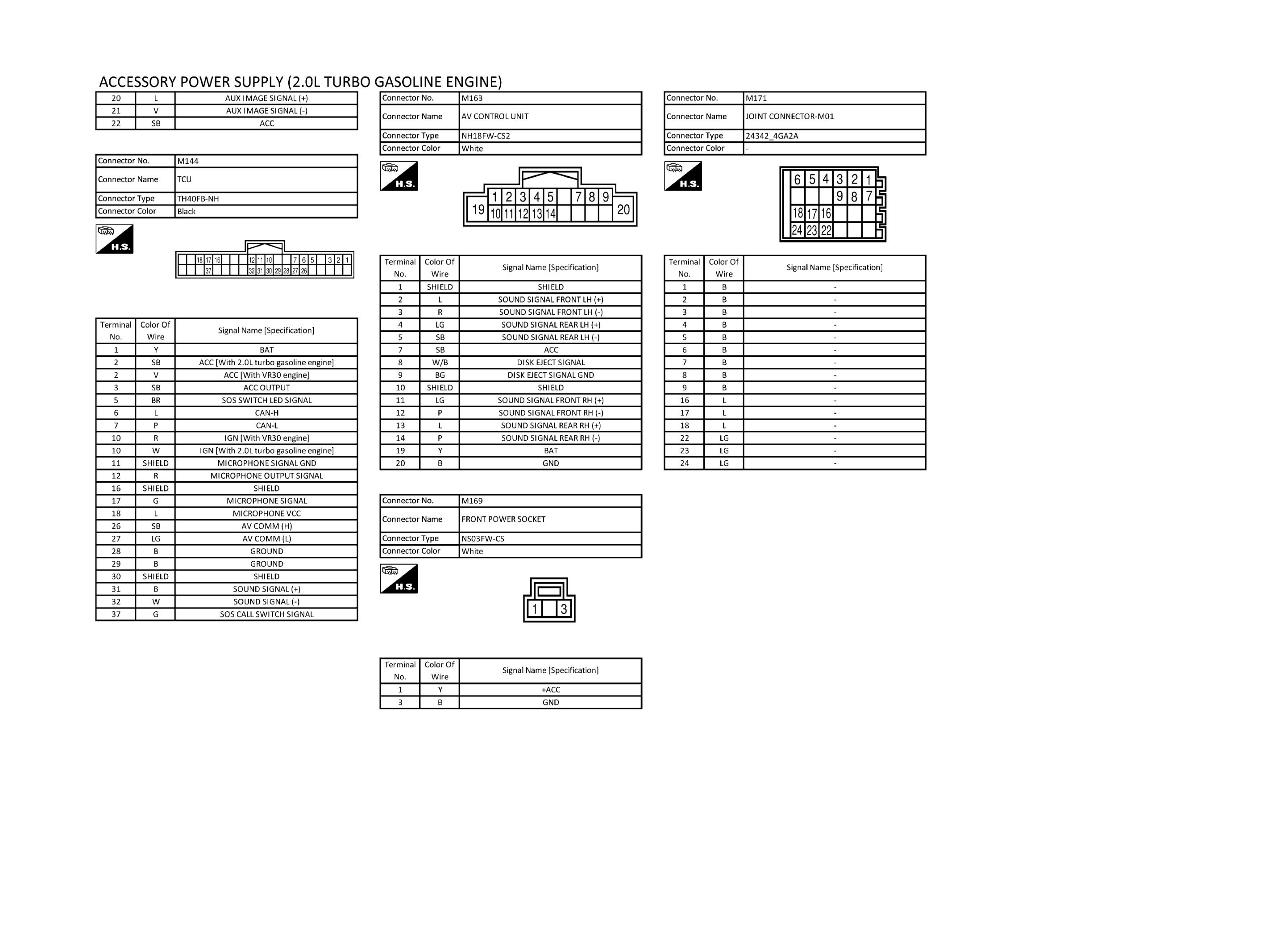

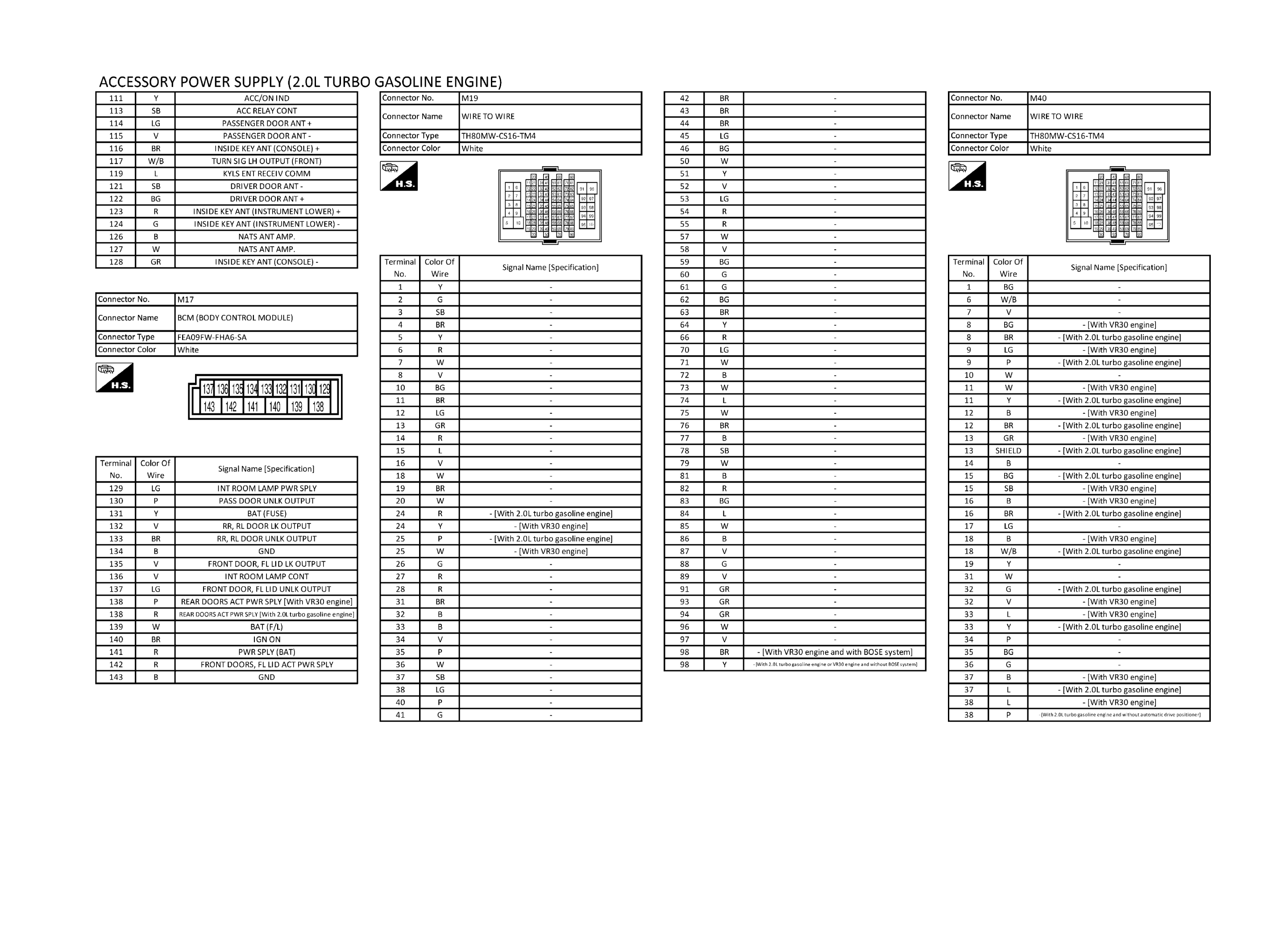

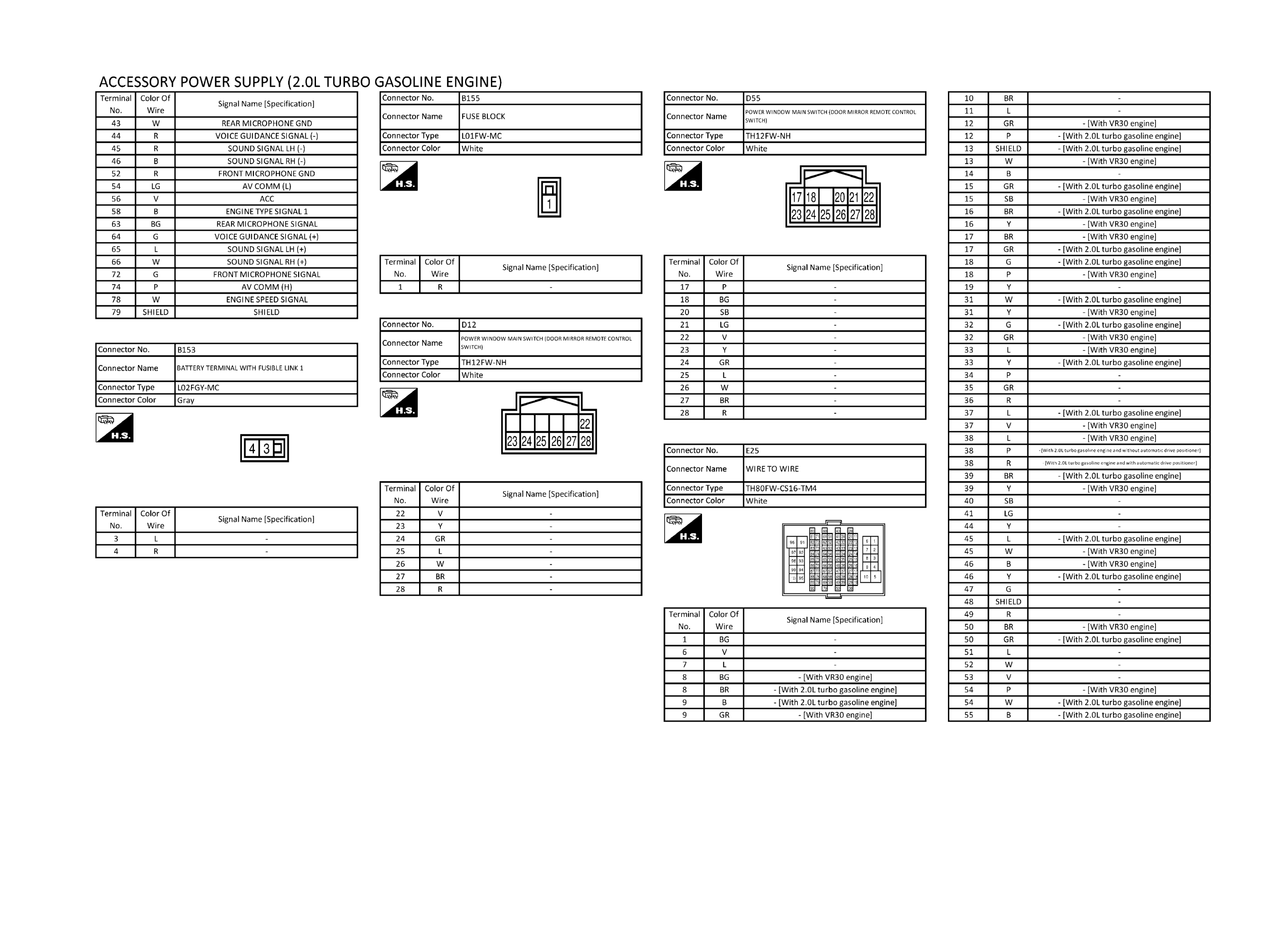

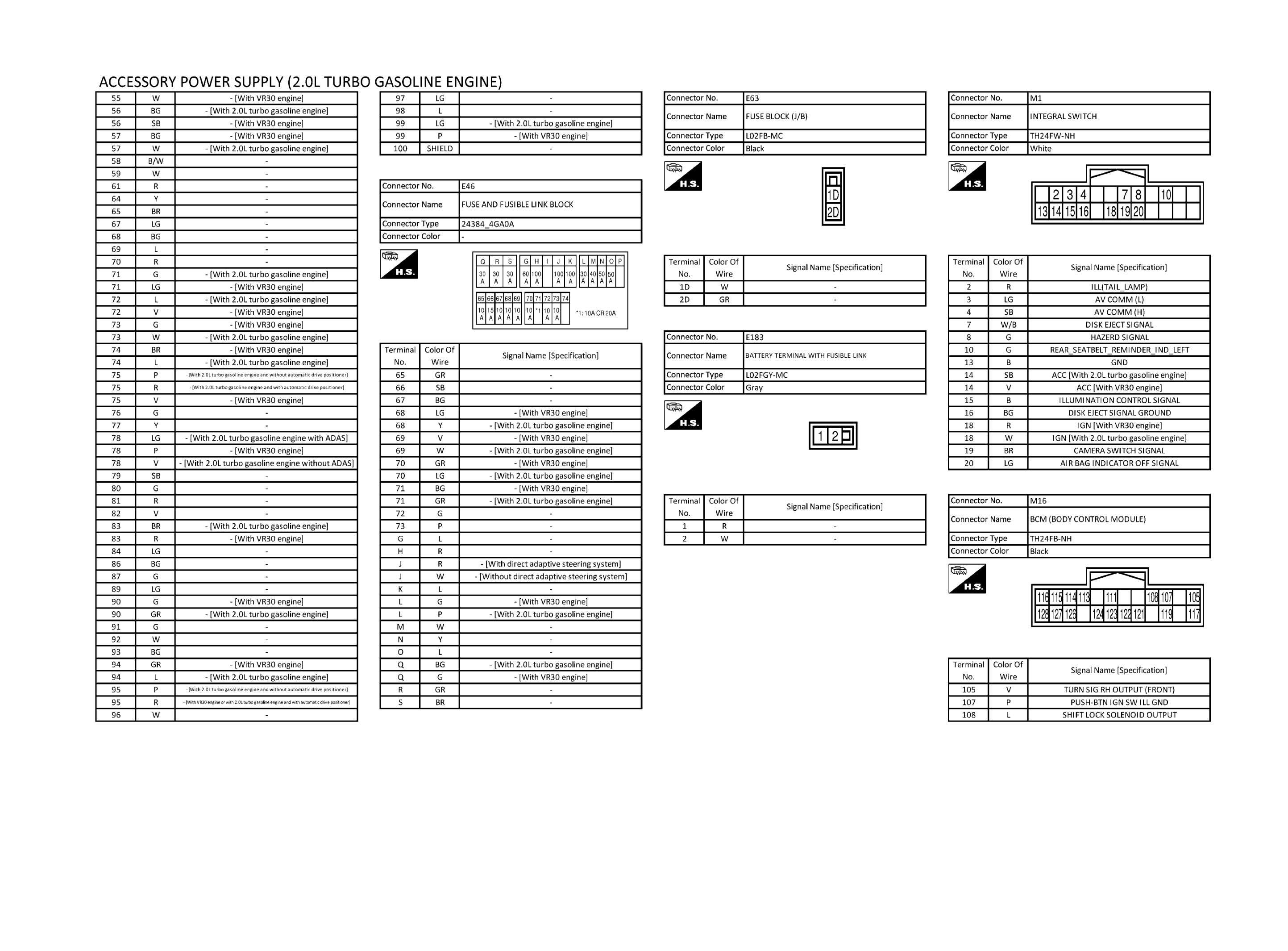

GNSJRMWK2729GB-729Courtesy of NISSAN NORTH AMERICA, INC.
GNSJRMWL3254GB-254Courtesy of NISSAN NORTH AMERICA, INC.
GNSJRMWL3255GB-255Courtesy of NISSAN NORTH AMERICA, INC.
GNSJRMWL3256GB-256Courtesy of NISSAN NORTH AMERICA, INC.
GNSJRMWL3257GB-257Courtesy of NISSAN NORTH AMERICA, INC.
GNSJRMWL3258GB-258Courtesy of NISSAN NORTH AMERICA, INC.
GNSJRMWL3259GB-259Courtesy of NISSAN NORTH AMERICA, INC.
GNSJRMWL3260GB-260Courtesy of NISSAN NORTH AMERICA, INC.
