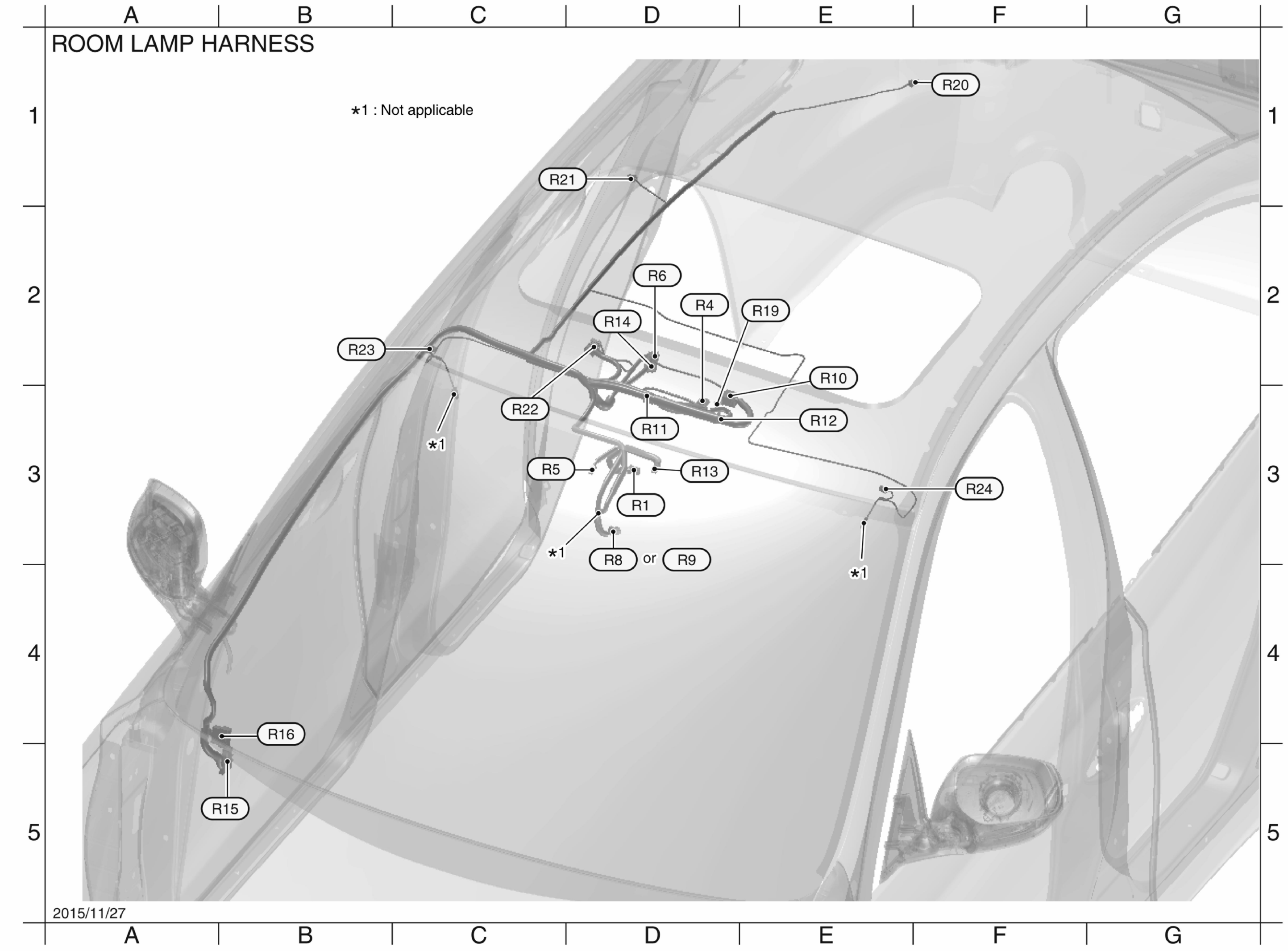

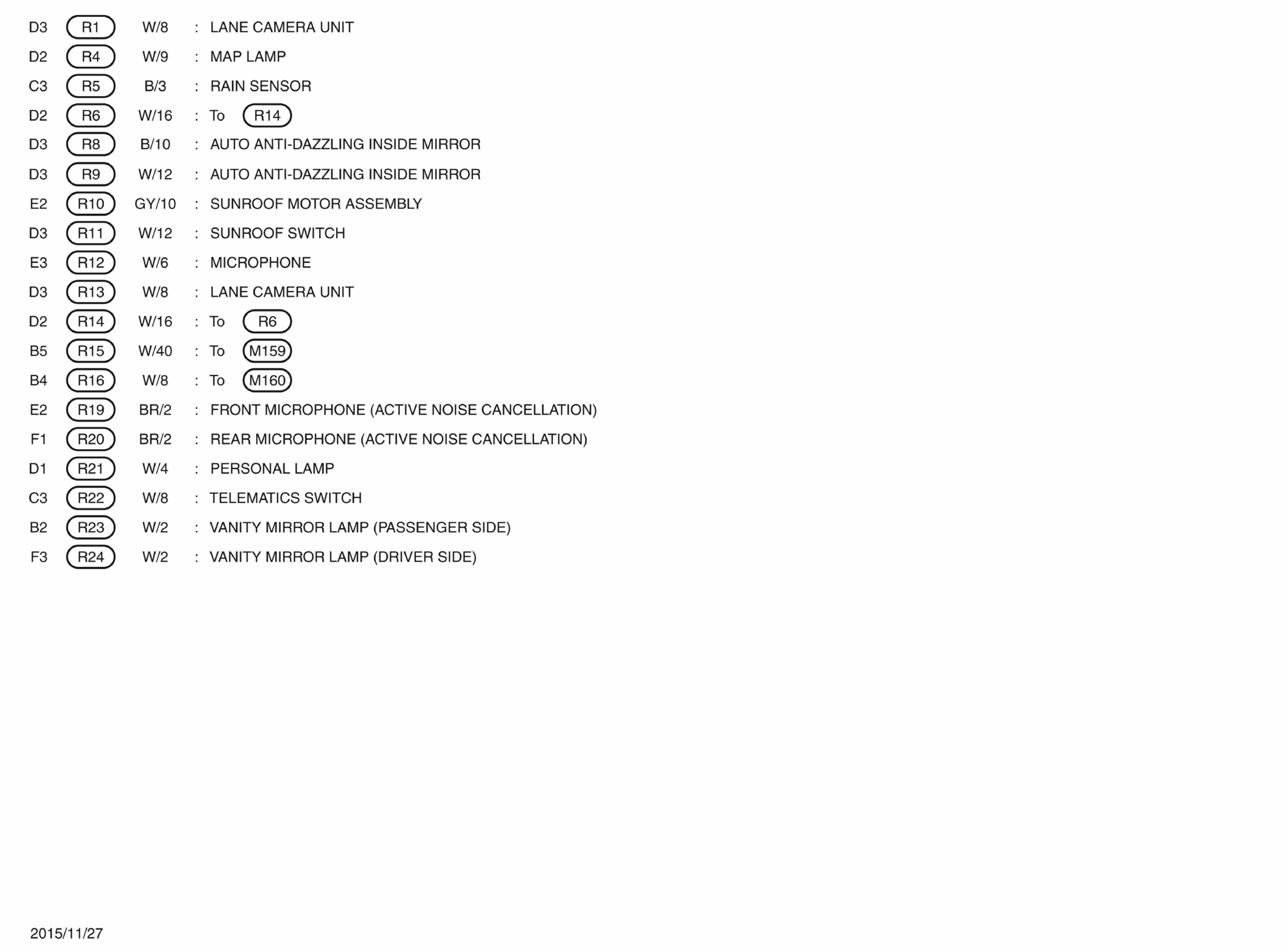

Home >> Infiniti >> 2017 >> Q50 Base, RWD >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Power Supply, Ground & Circuit Elements (Except Hybrid) >> Wiring Diagram >> Harness Layout >> Room Lamp Harness
