Engine Control Harness (2.0 Turbo Gasoline Engine)

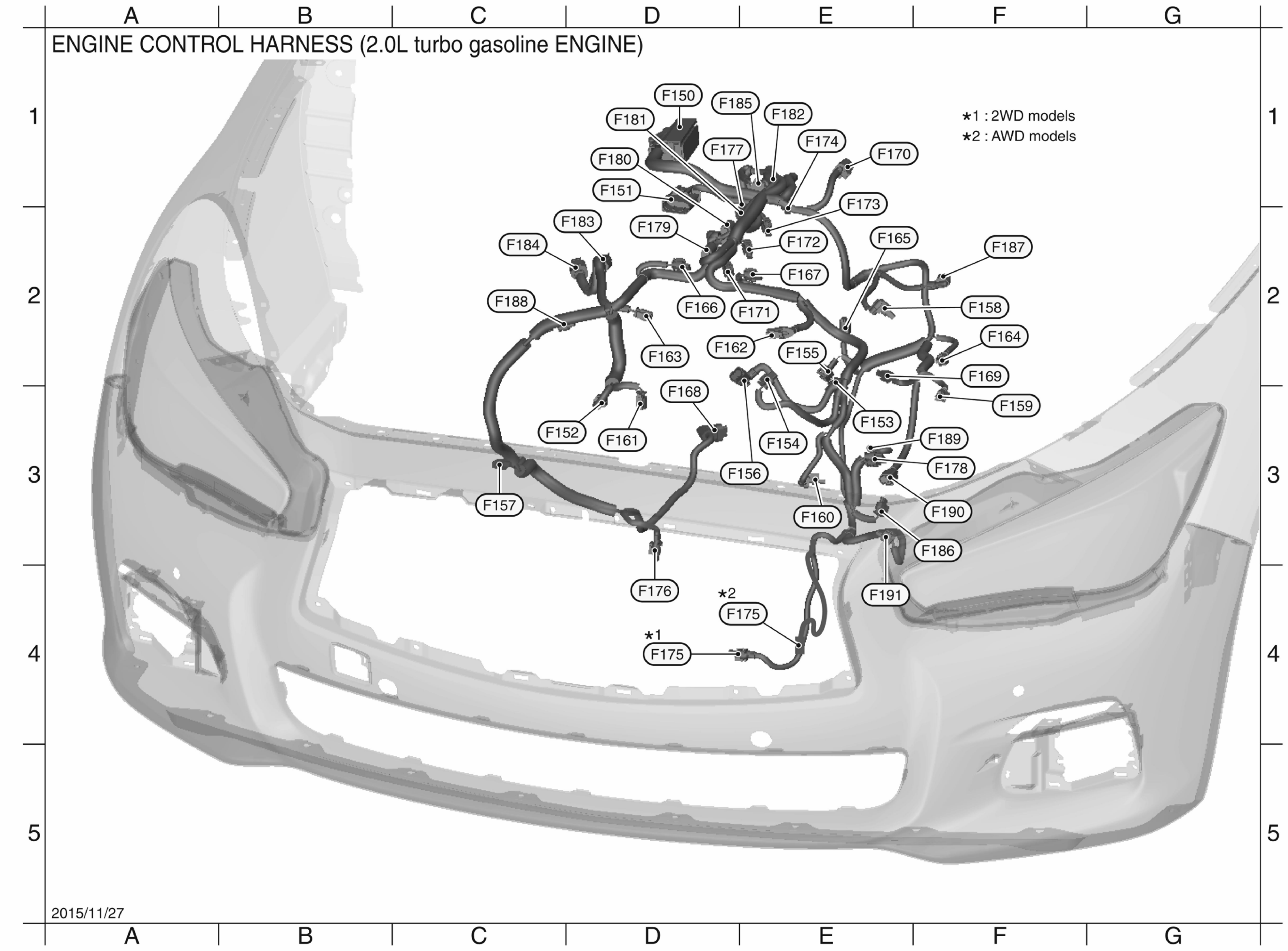

GNSJRMIC7838GB-838

Courtesy of NISSAN NORTH AMERICA, INC.

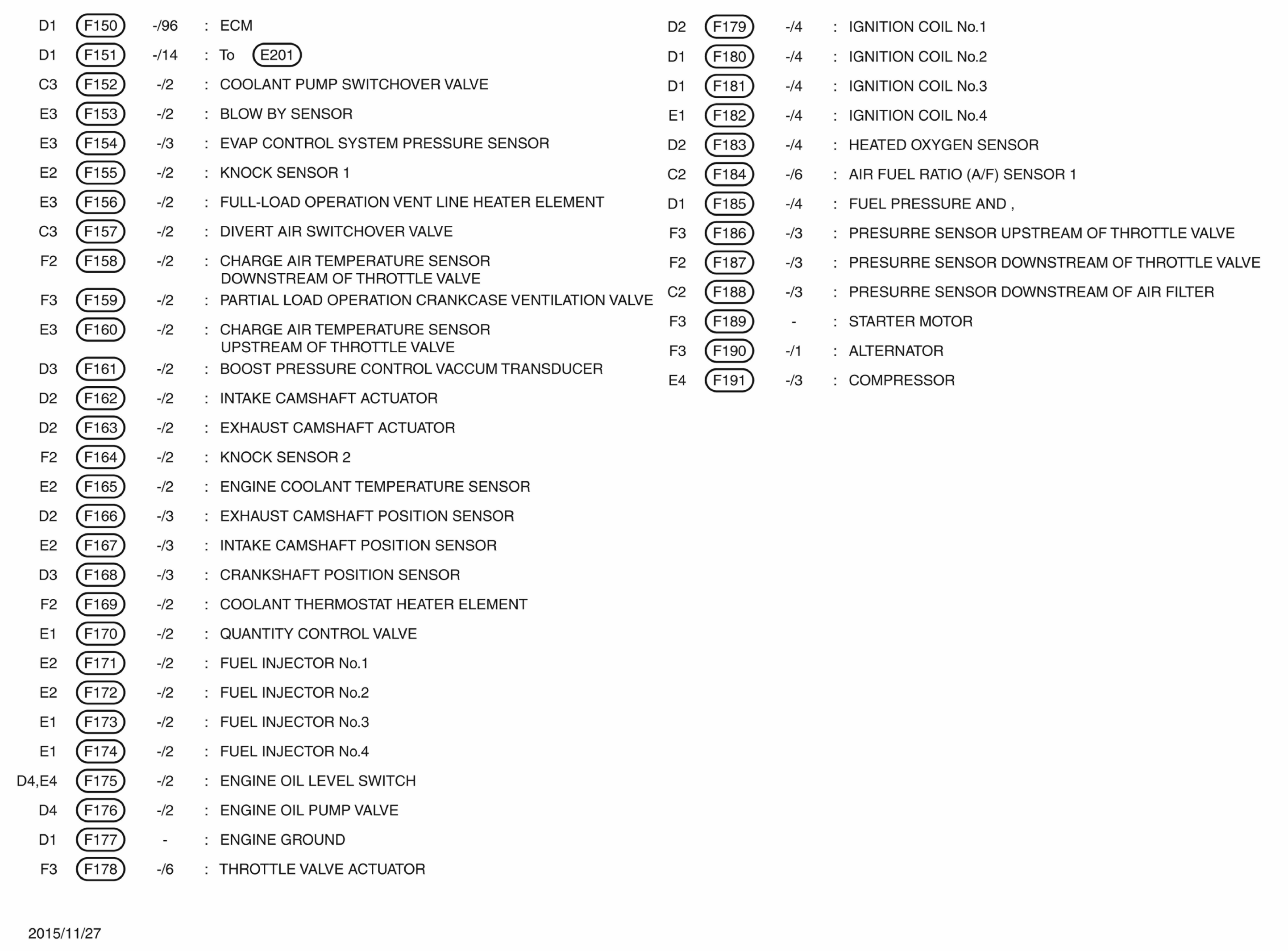

GNSJRMIC7839GB-839

Courtesy of NISSAN NORTH AMERICA, INC.
