Main Harness

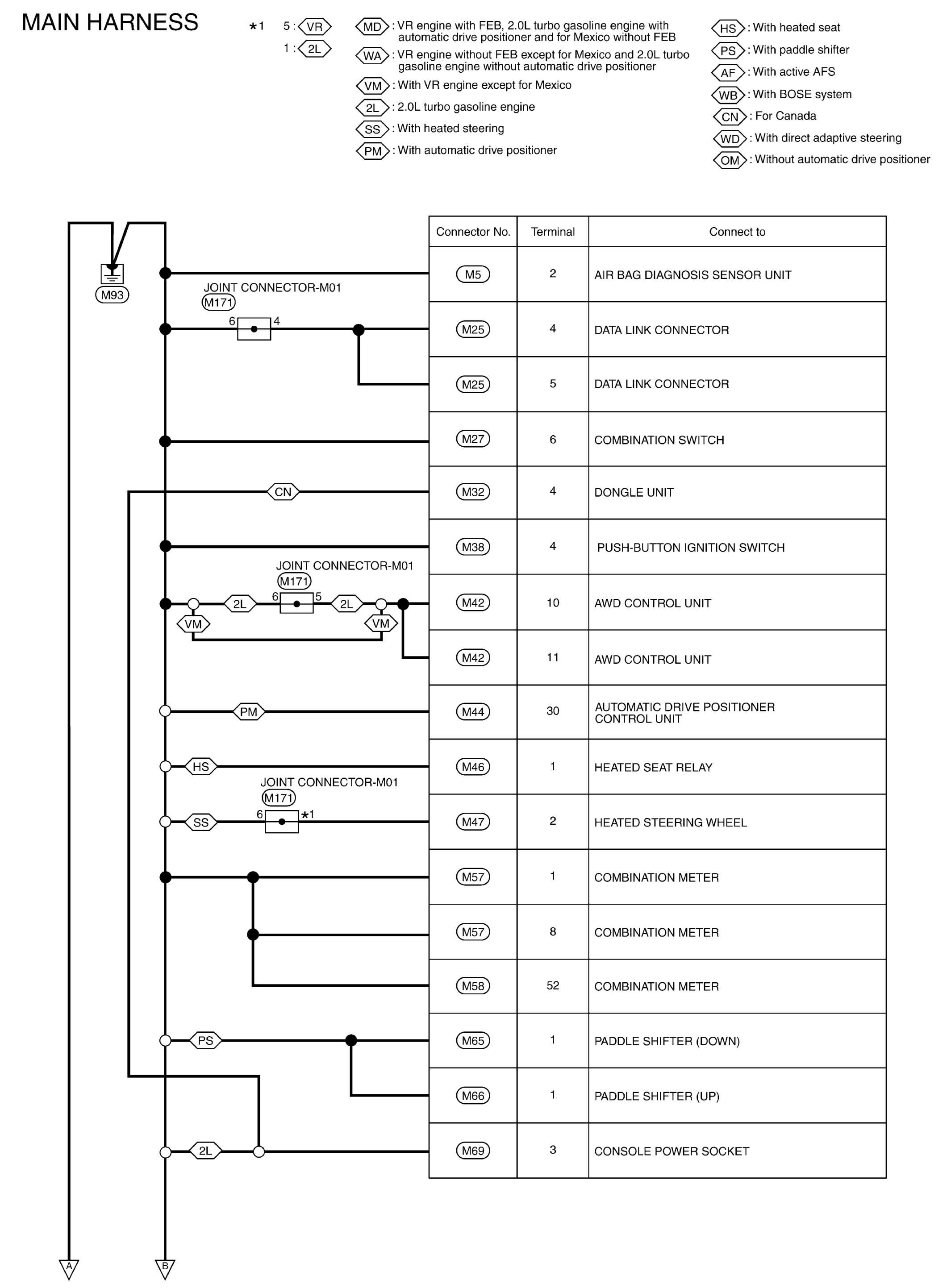

GNSJRMWL3318GB-318Courtesy of NISSAN NORTH AMERICA, INC.

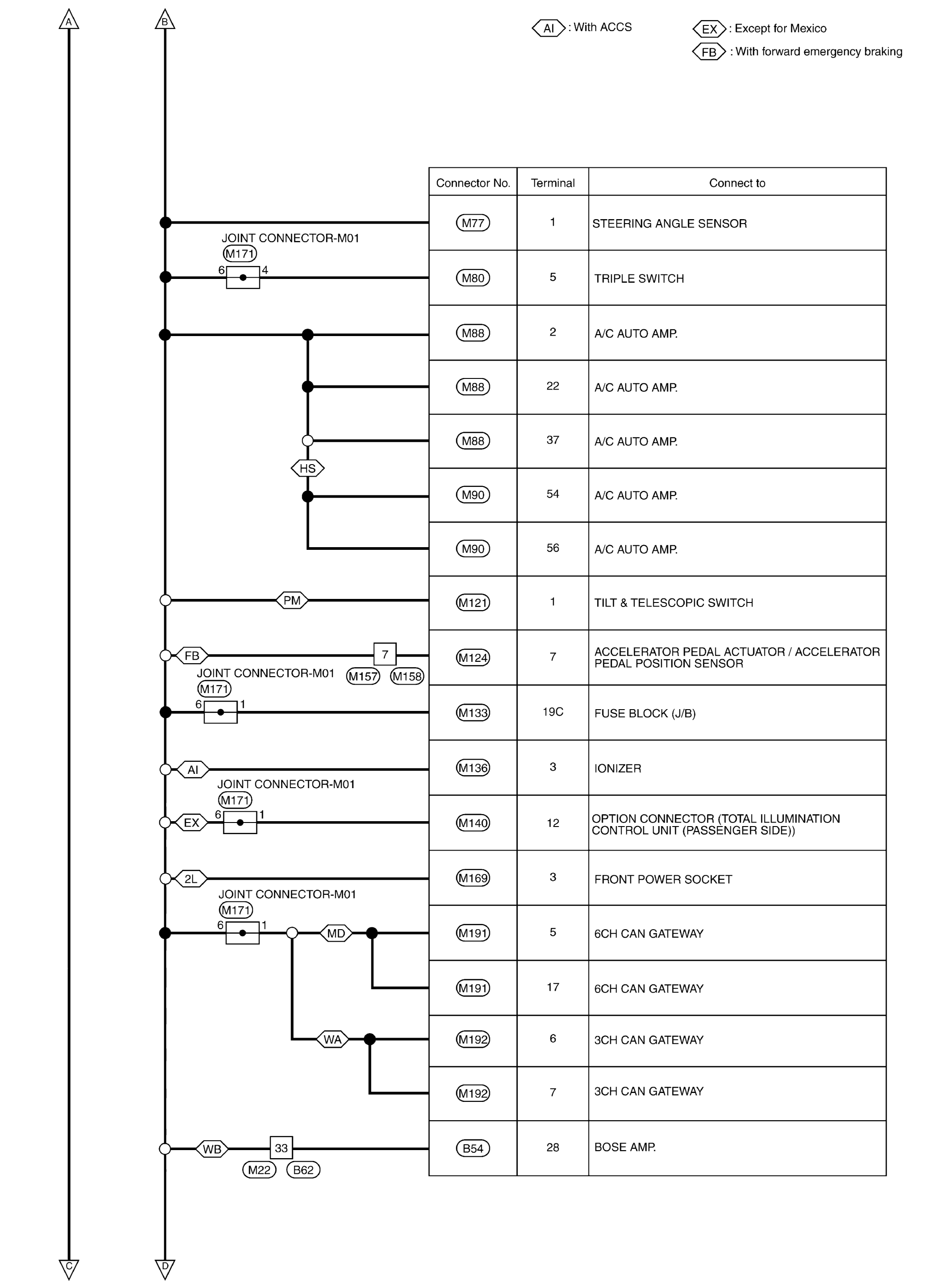

GNSJRMWL3319GB-319Courtesy of NISSAN NORTH AMERICA, INC.

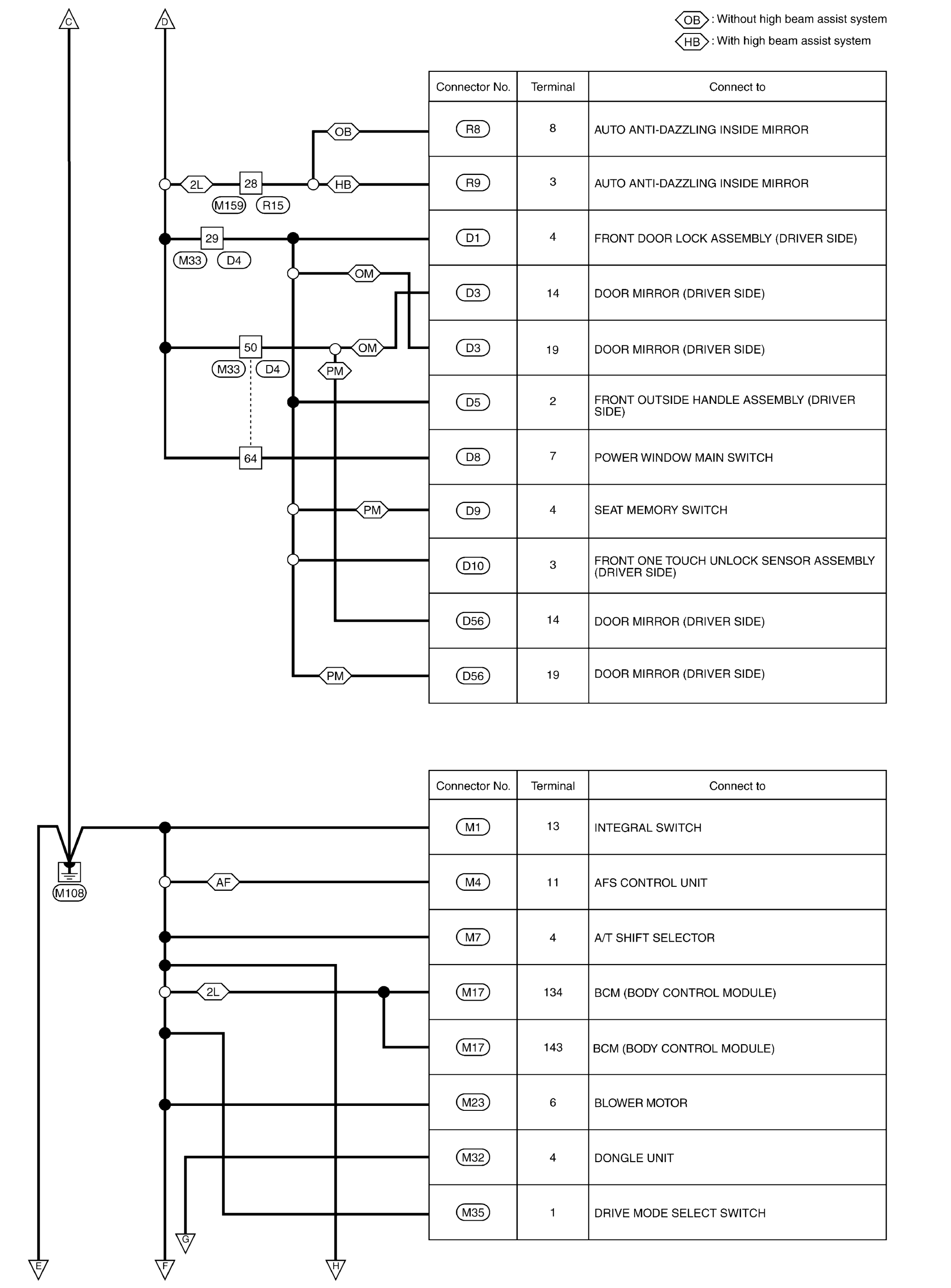

GNSJRMWL3320GB-320Courtesy of NISSAN NORTH AMERICA, INC.

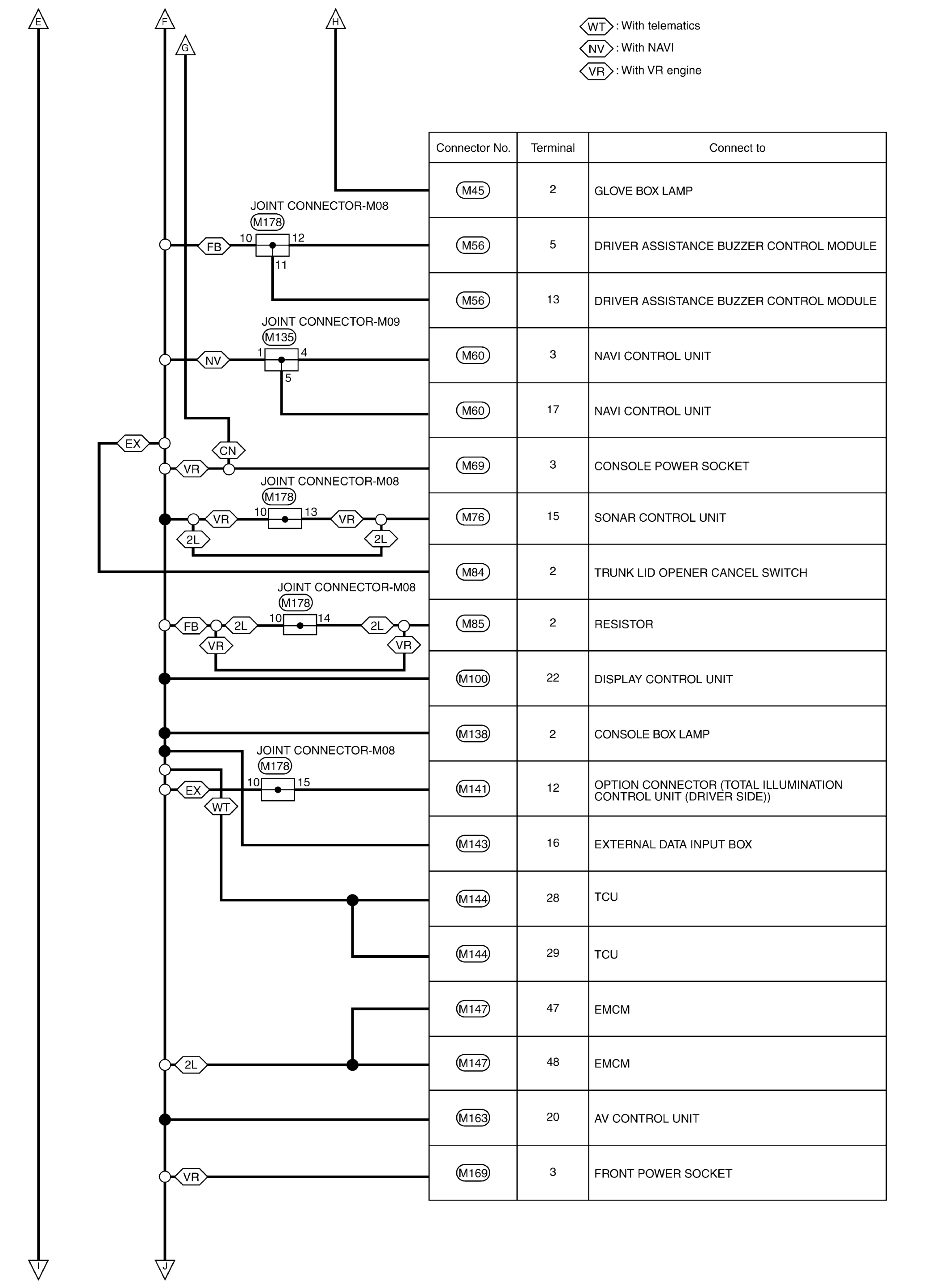

GNSJRMWL3321GB-321Courtesy of NISSAN NORTH AMERICA, INC.

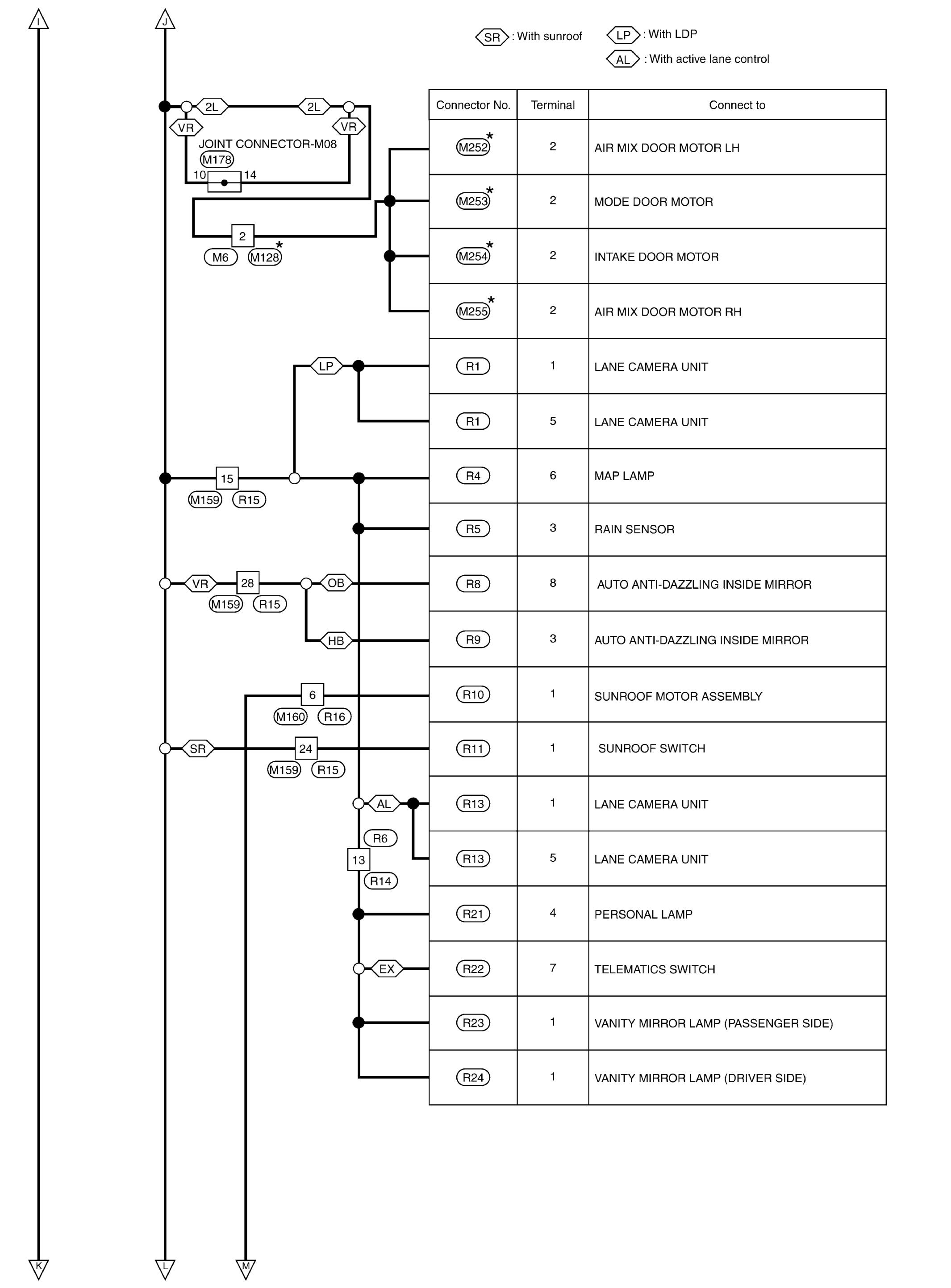

GNSJRMWL3322GB-322Courtesy of NISSAN NORTH AMERICA, INC.

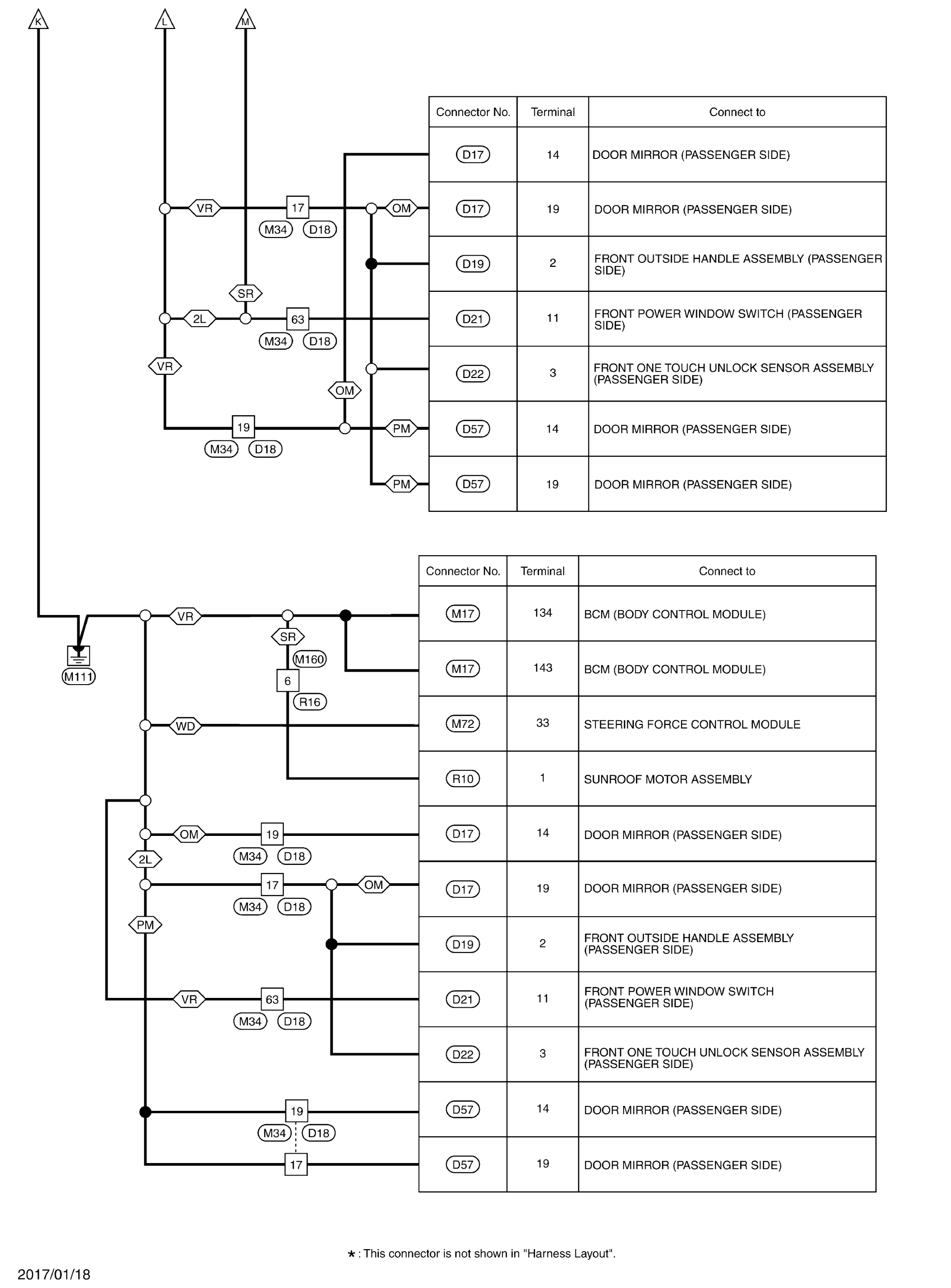

GNSJRMWL3323GB-323Courtesy of NISSAN NORTH AMERICA, INC.
