Fuse, Connector And Terminal Arrangement

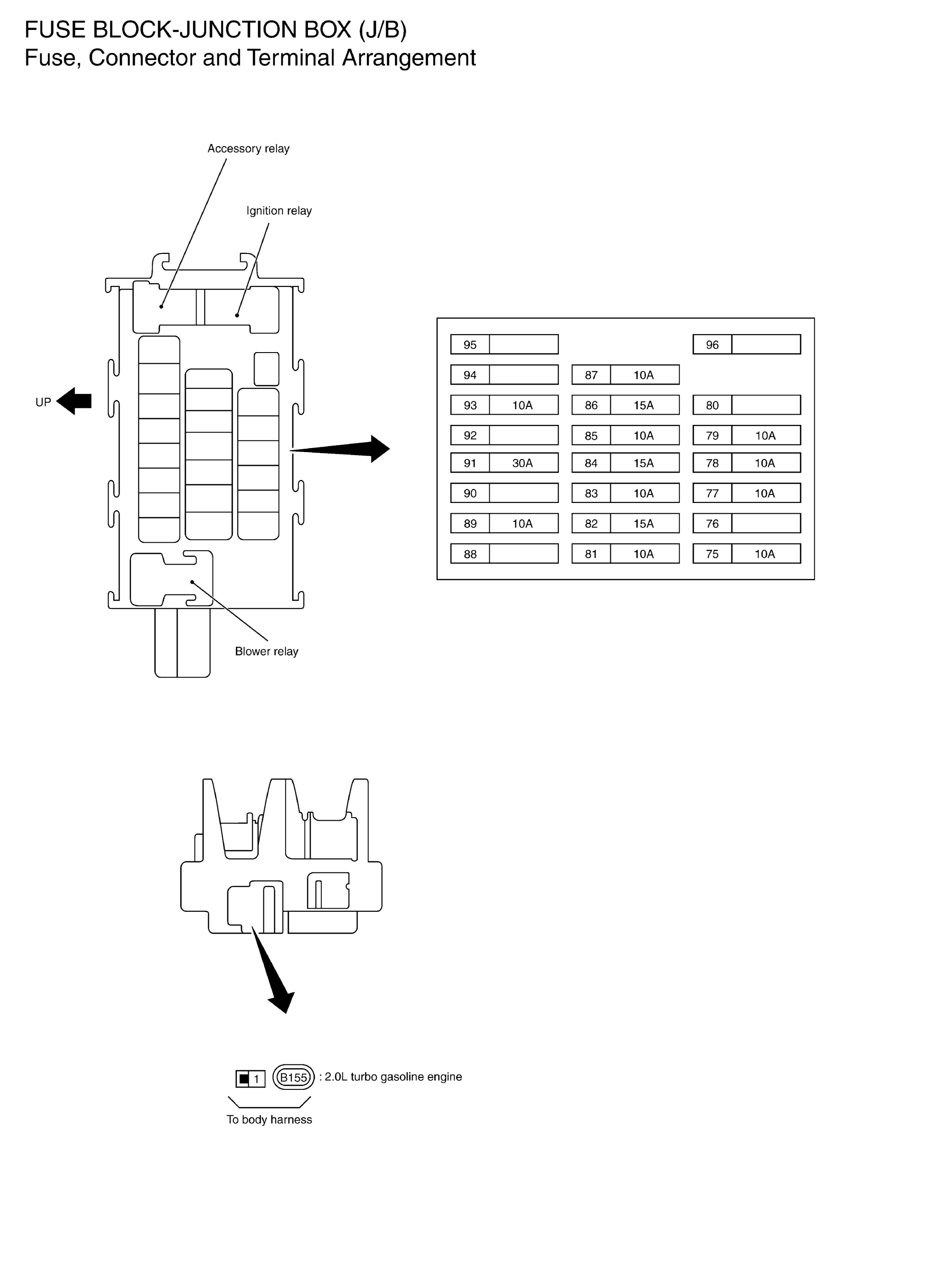

GNSJRMWL3310GB-310

Courtesy of NISSAN NORTH AMERICA, INC.

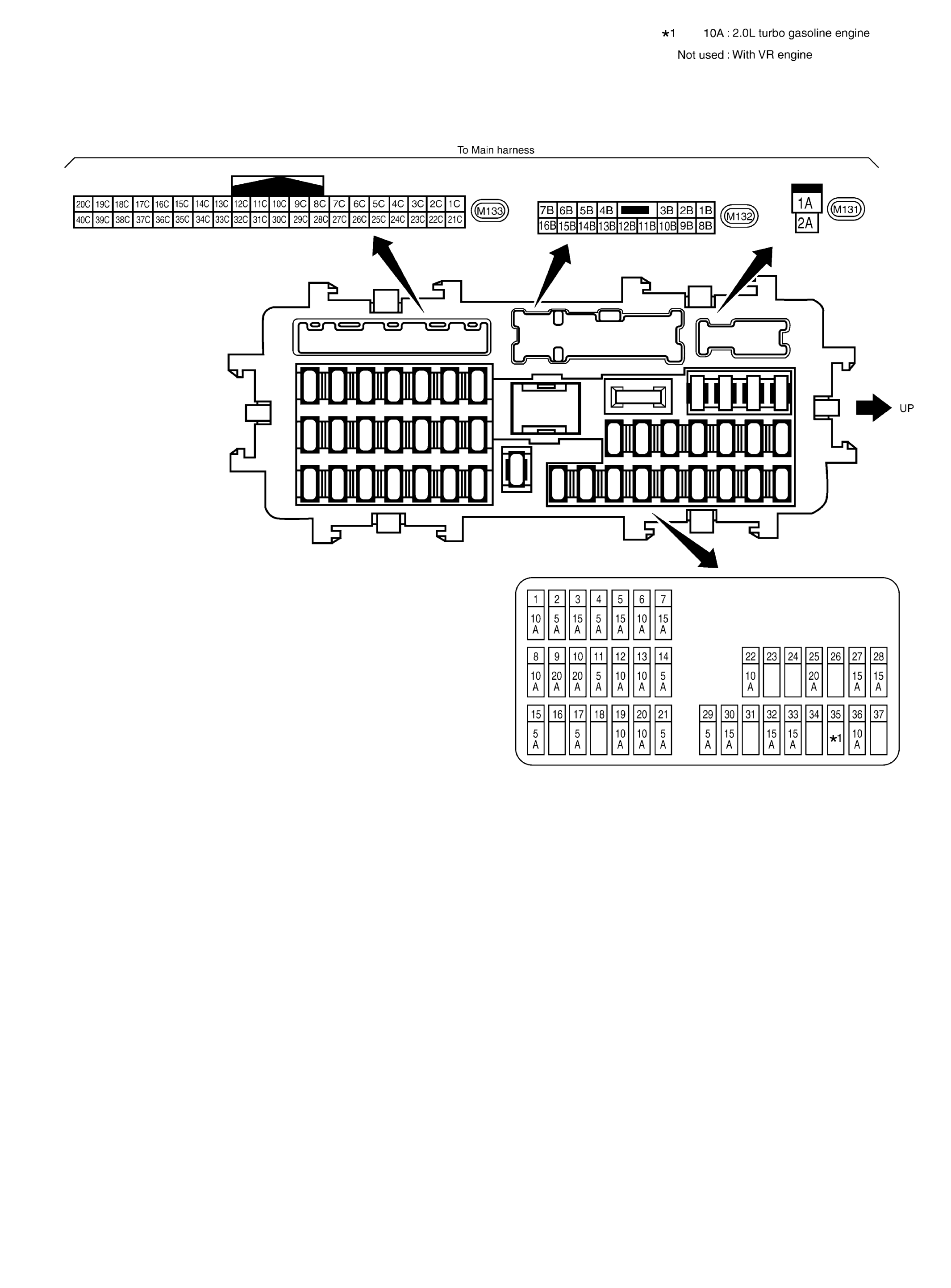

GNSJRMWL3311GB-311

Courtesy of NISSAN NORTH AMERICA, INC.

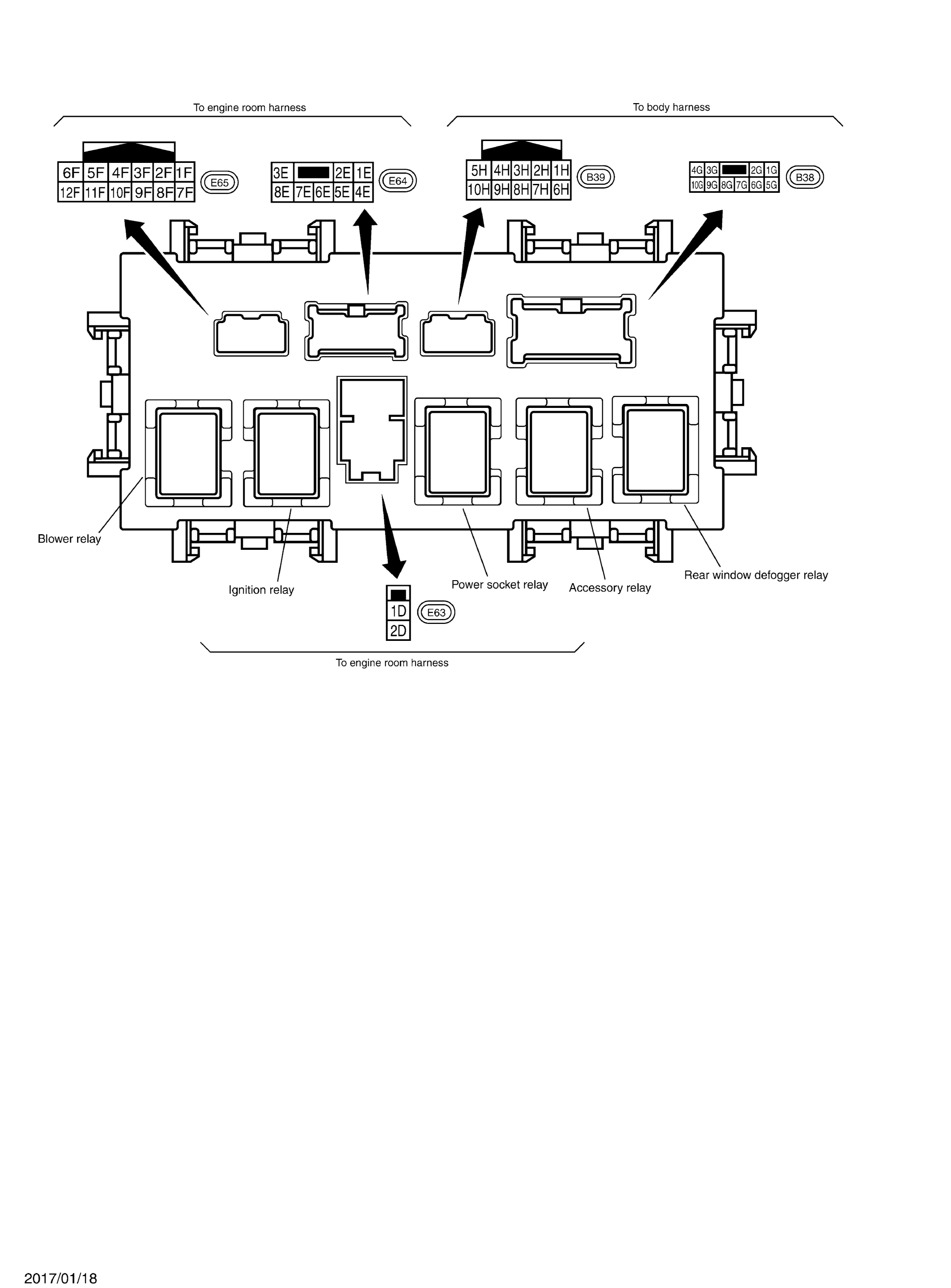

GNSJRMWL3312GB-312

Courtesy of NISSAN NORTH AMERICA, INC.
