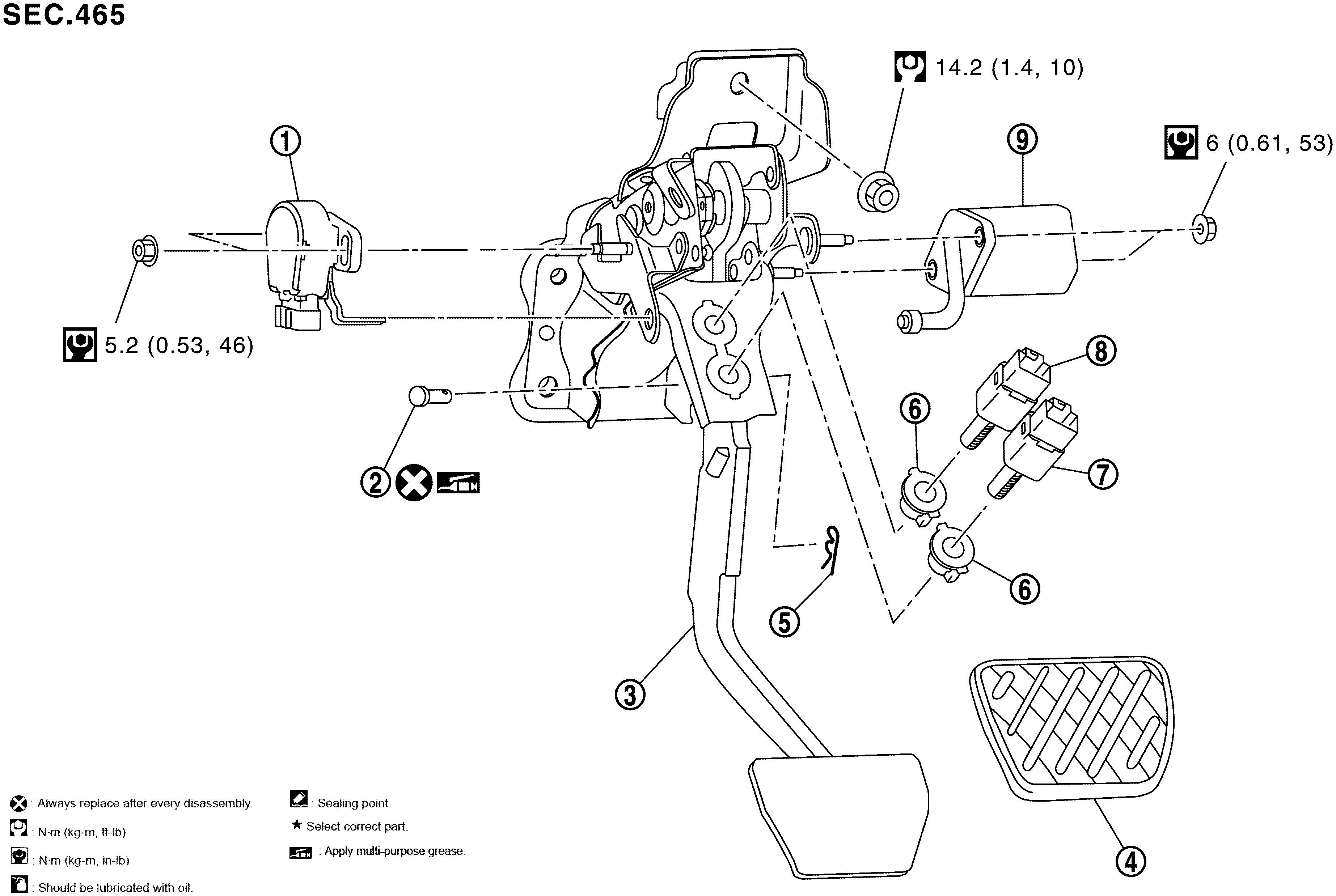

Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

	Stroke sensor	Clevis pin	Brake pedal assembly
	Brake pedal pad	Snap pin	Clip
	Brake pedal position switch	Stop lamp switch	Hysteresis unit assembly
: Apply multi-purpose grease.
: N•m (kg - m, ft - lb)
: N•m (kg - m, in - lb)
: Always replace after every disassembly.
