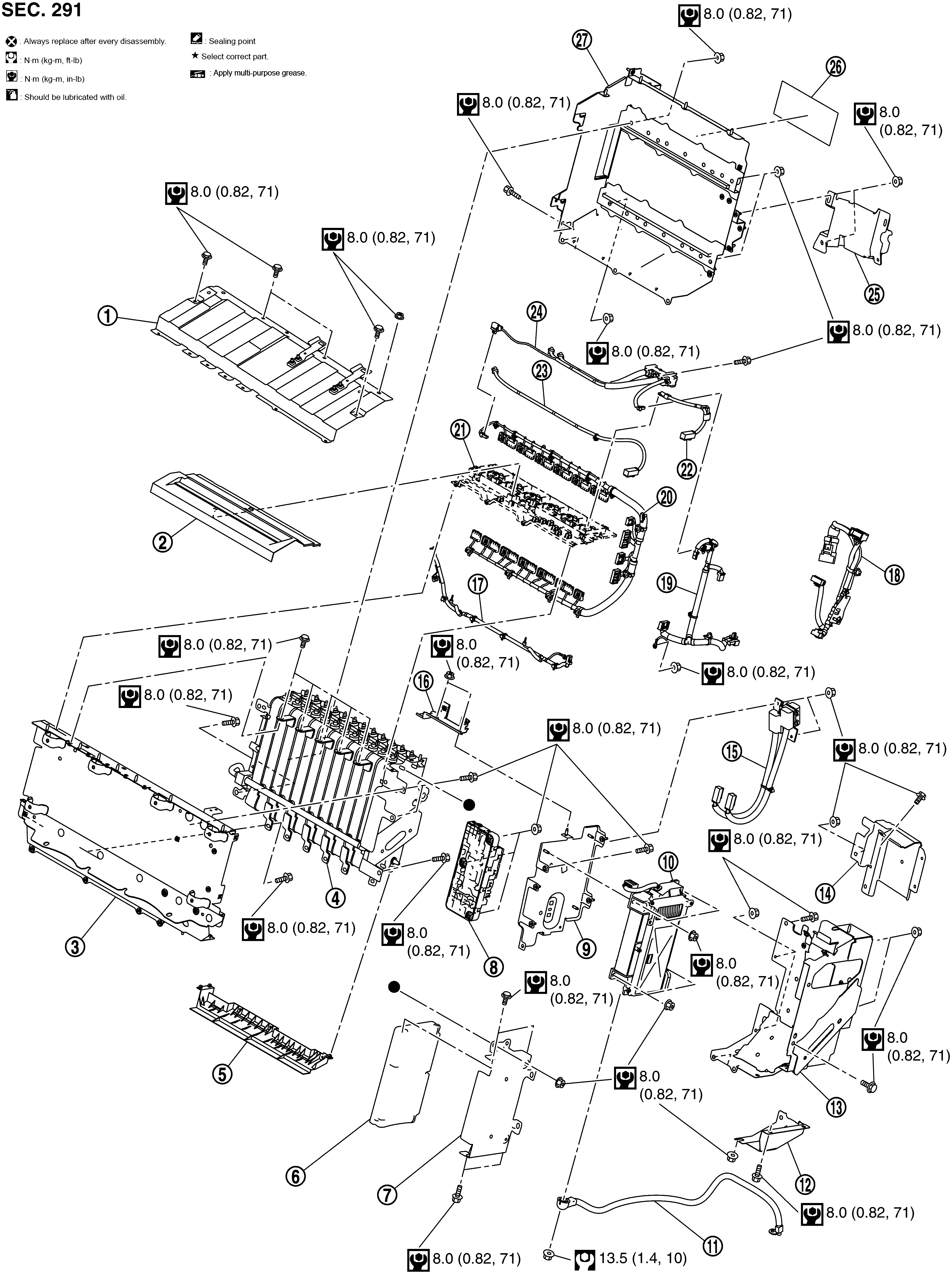

Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

	Battery cover front	Battery harness protector front	Battery cover lower
	Module stack assembly	Battery harness protector rear	Li-ion battery controller
	Li-ion battery controller cover	Battery junction box	Battery cover LH
	DC/DC converter	DC/DC converter harness	Terminal cover
	DC/DC converter cover	Terminal cover	High voltage harness
	SD/SW bracket	Battery temperature sensor	A/C high voltage harness
	Battery controller harness	Cell voltage detection harness	Bus bar module
	High voltage harness	High voltage harness	SD/SW harness
	Terminal cover	High voltage warning label	Battery cover upper
	: N•m (kg - m, in - lb)
	: N•m (kg - m, ft - lb)
, : Indicates that the parts connected at points with same symbol in actual vehicle.

Fig 1: Battery Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

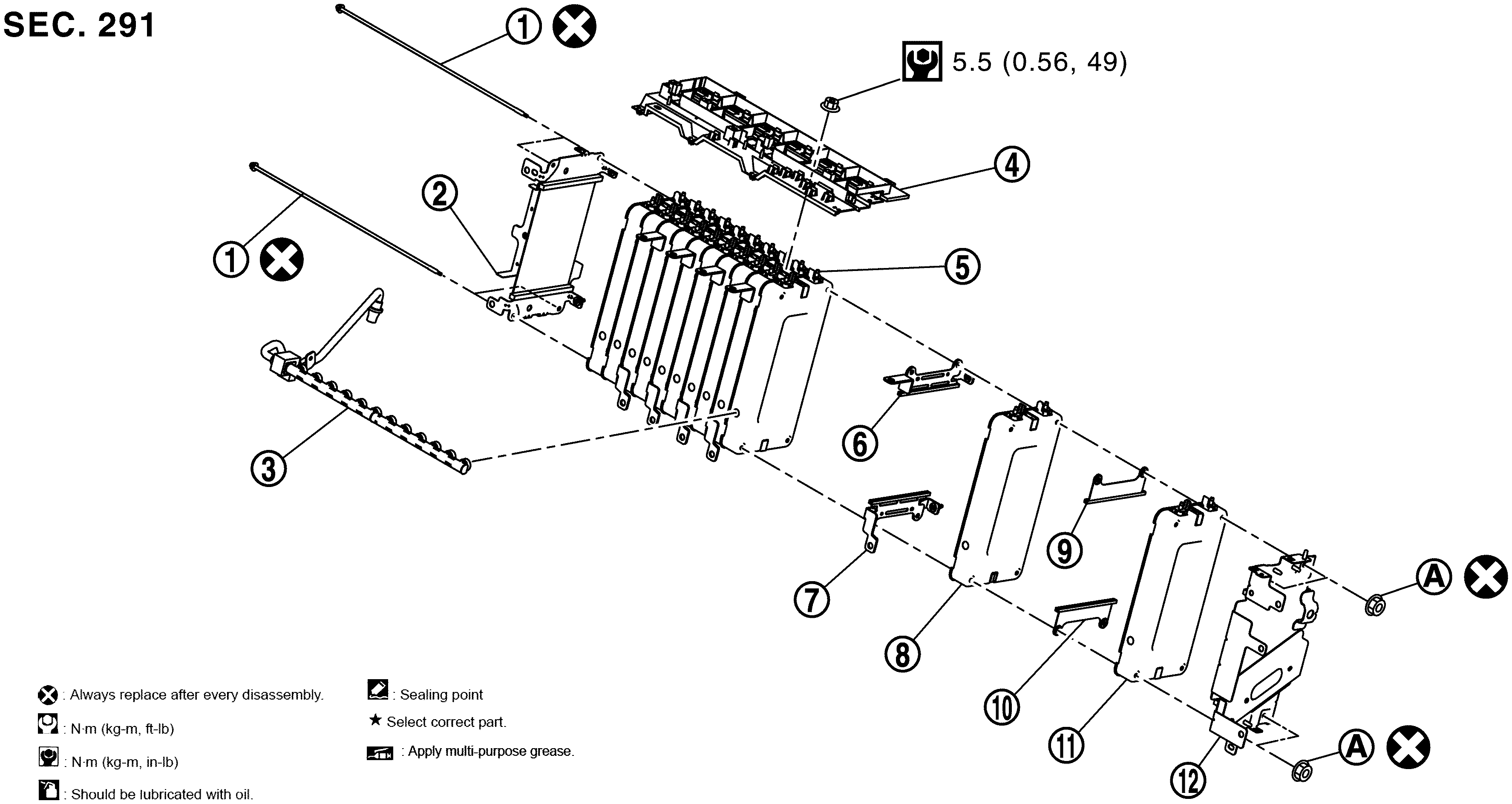

Through bolt	Battery mounting plate RH	Gas discharge tube
Bus bar	Module stack	Battery mounting plate B front
Battery mounting plate B rear	Module A	Battery mounting plate
Battery mounting plate	Module B	Battery mounting plate LH
Comply with the assembly procedure when tightening. Refer to DISASSEMBLY AND ASSEMBLY .
: Always replace every disassembly
: N•m (kg - m, in - lb)

Module Layout

Courtesy of NISSAN NORTH AMERICA, INC.

: Vehicle upper

: Module
