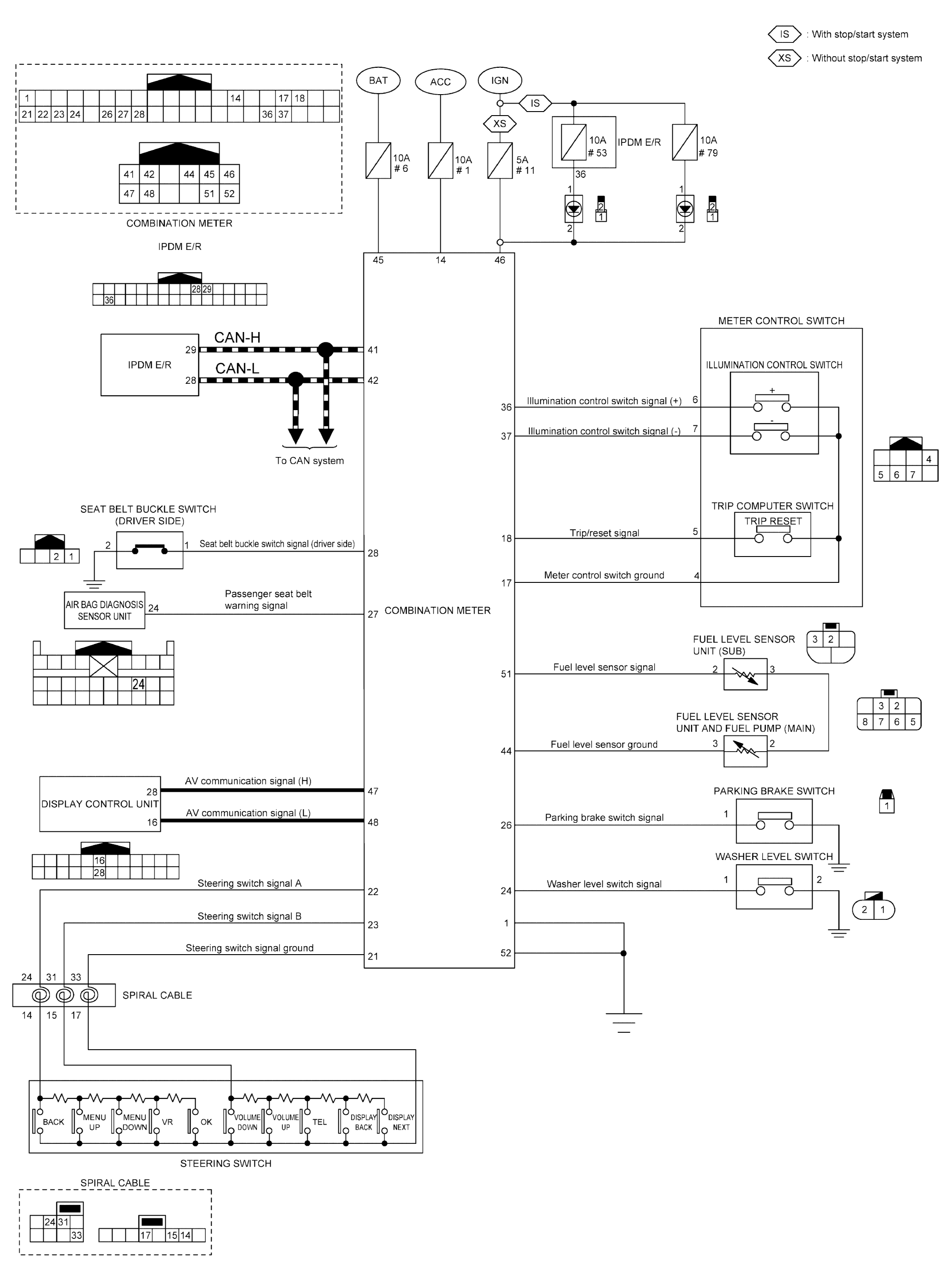

Home >> Infiniti >> 2017 >> Q50 Base, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter, Warning Lamp & Indicator (Except Hybrid) >> System Description >> System >> Meter System >> Circuit Diagram
