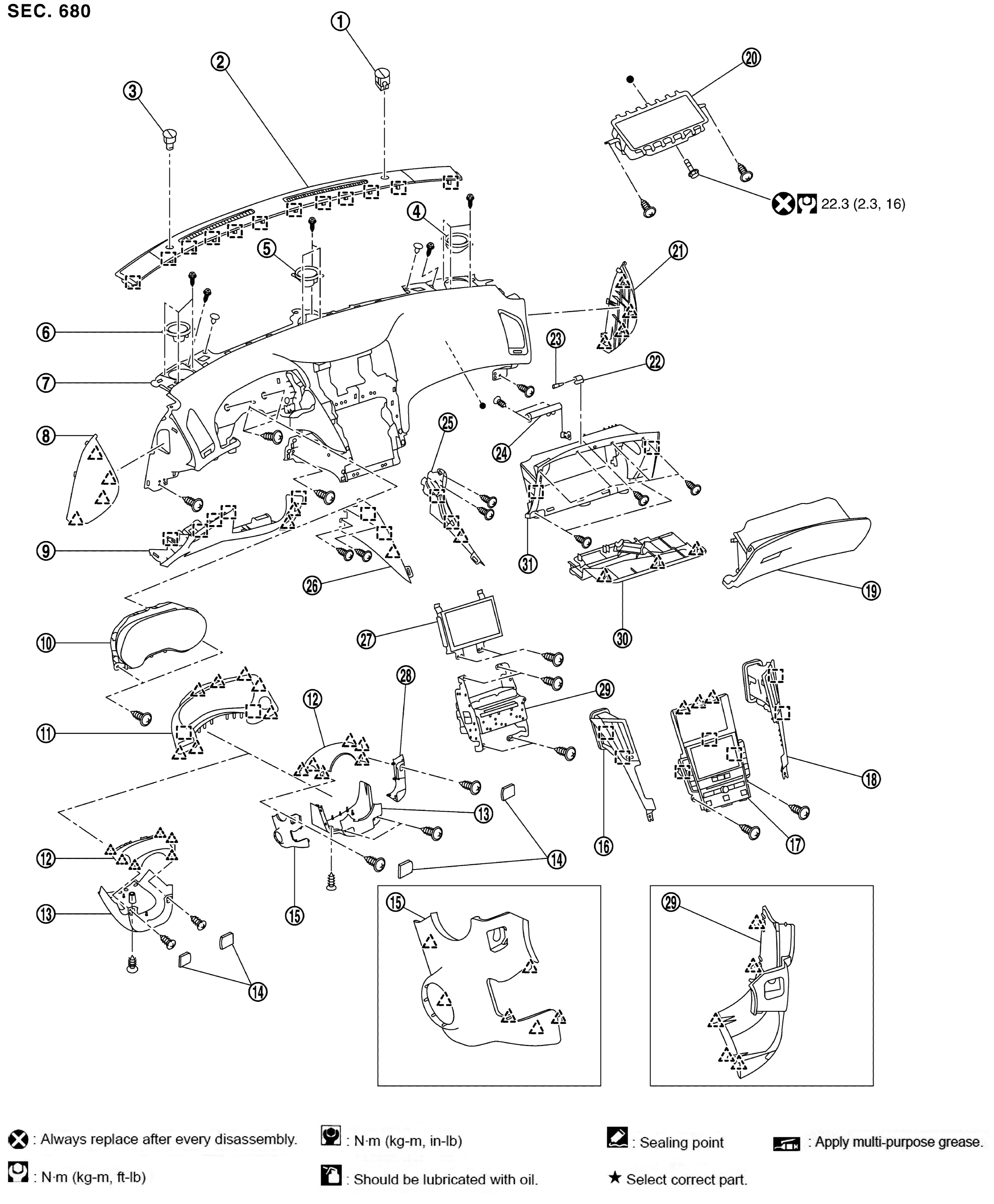

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Optical sensor		Front speaker grille		Sunload sensor
	Squawker RH (with squawker)		Center squawker (with squawker)		Squawker LH (with squawker)
	Instrument panel assembly		Instrument side finisher LH		Instrument lower panel LH
	Combination meter		Cluster lid A		Steering column upper cover
	Steering column lower cover		Steering column mask		Steering column cover LH (with paddle shifter)
	Instrument finisher D		Integral switch		Instrument finisher C
	Glove box assembly		Passenger airbag module		Instrument side finisher RH
	Bulb & socket housing		Bulb & socket		Glove box damper
	Instrument side panel RH		Instrument side panel LH		Display control unit
	Steering column cover RH (with paddle shifter)		AV & NAVI control unit		Instrument lower cover
	Instrument lower panel RH
	: Pawl
	: Metal clip
	Always replace after every disassembly.
	: N•m (kg - m, ft - lb)
: Indicates that the part is connected at points with same symbol in actual vehicle.
