Tire Pressure Receiver

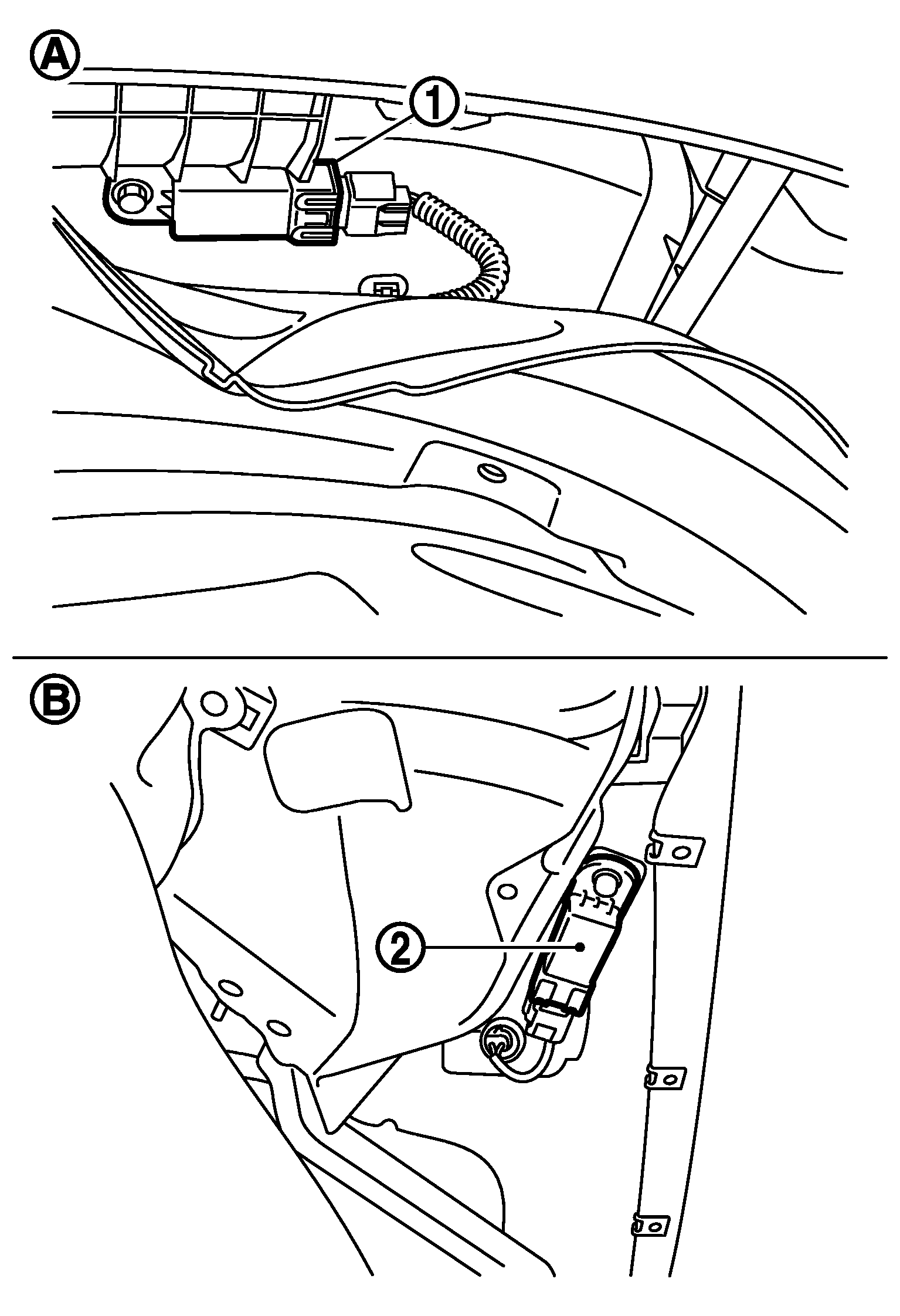

The front tire pressure receiver (1) and rear tire pressure receiver (2) receive the tire pressure signal by radio waves from the tire pressure sensor at each wheel, and transmit the tire pressure signal to the low tire pressure warning control unit.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| A |
: Front side |
| B |
: Rear side |
