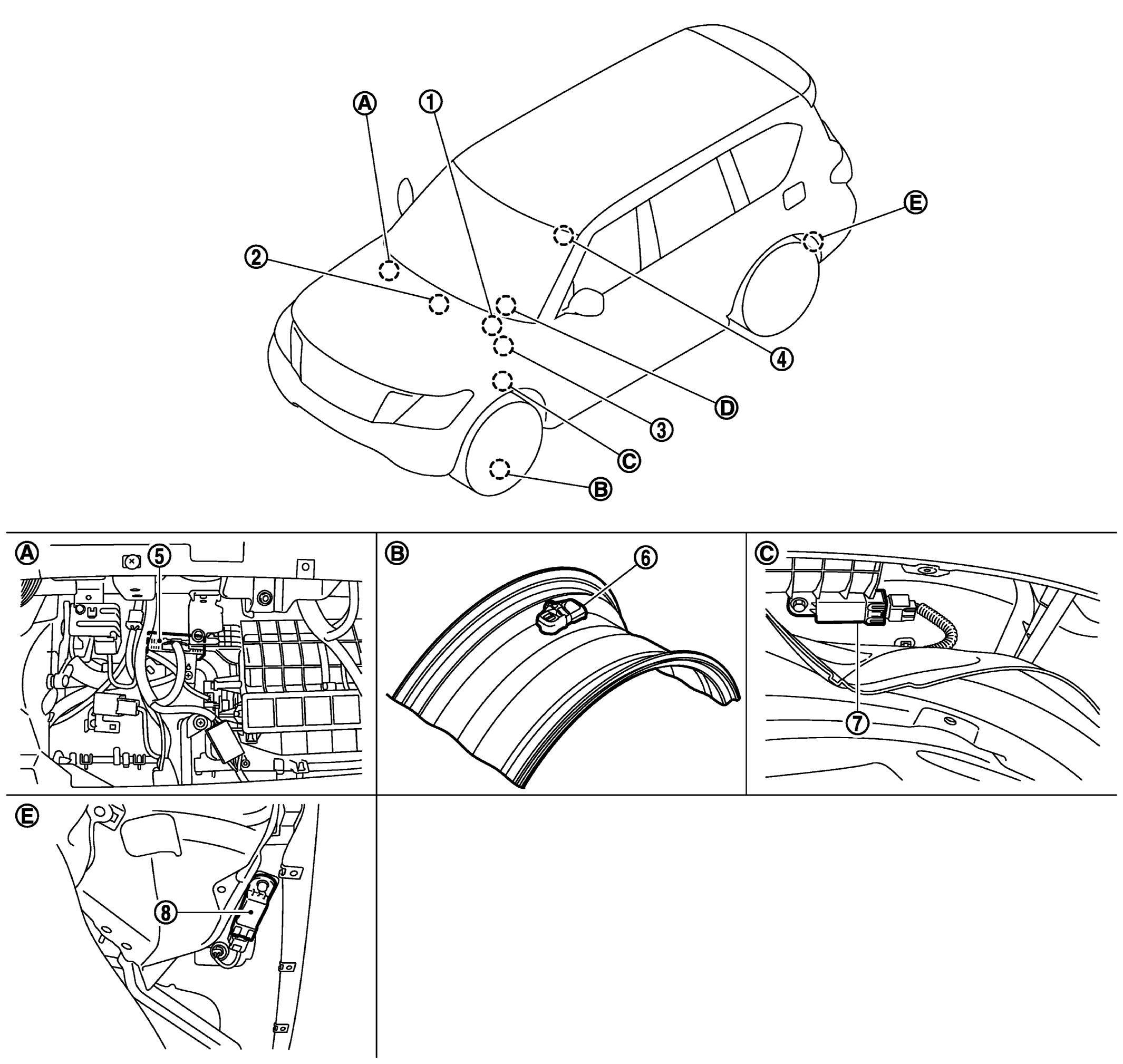

Component Location
| 1. | BCM Refer to COMPONENT LOCATION . |
2. | AV control unit Refer to COMPONENT LOCATION . |
3. | ABS actuator and electric unit (control unit) Refer to COMPONENT LOCATION . |
| 4. | TCM* Refer to COMPONENT LOCATION . |
5. | Low tire pressure warning control unit | 6. | Tire pressure sensor |
| 7. | Front tire pressure receiver | 8. | Rear tire pressure receiver | ||
| A. | Glove box assembly removed | B. | Wheel | C. | Fender protector (rear side) |
| D. | Low tire pressure warning lamp (in combination meter) | E. | Inside rear wheel house protector | ||
| *: TCM used for the tire inflation indicator function. | |||||
