Removal And Installation: Removal

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

  1. Remove steering column lower cover (1). Refer to REMOVAL AND INSTALLATION .

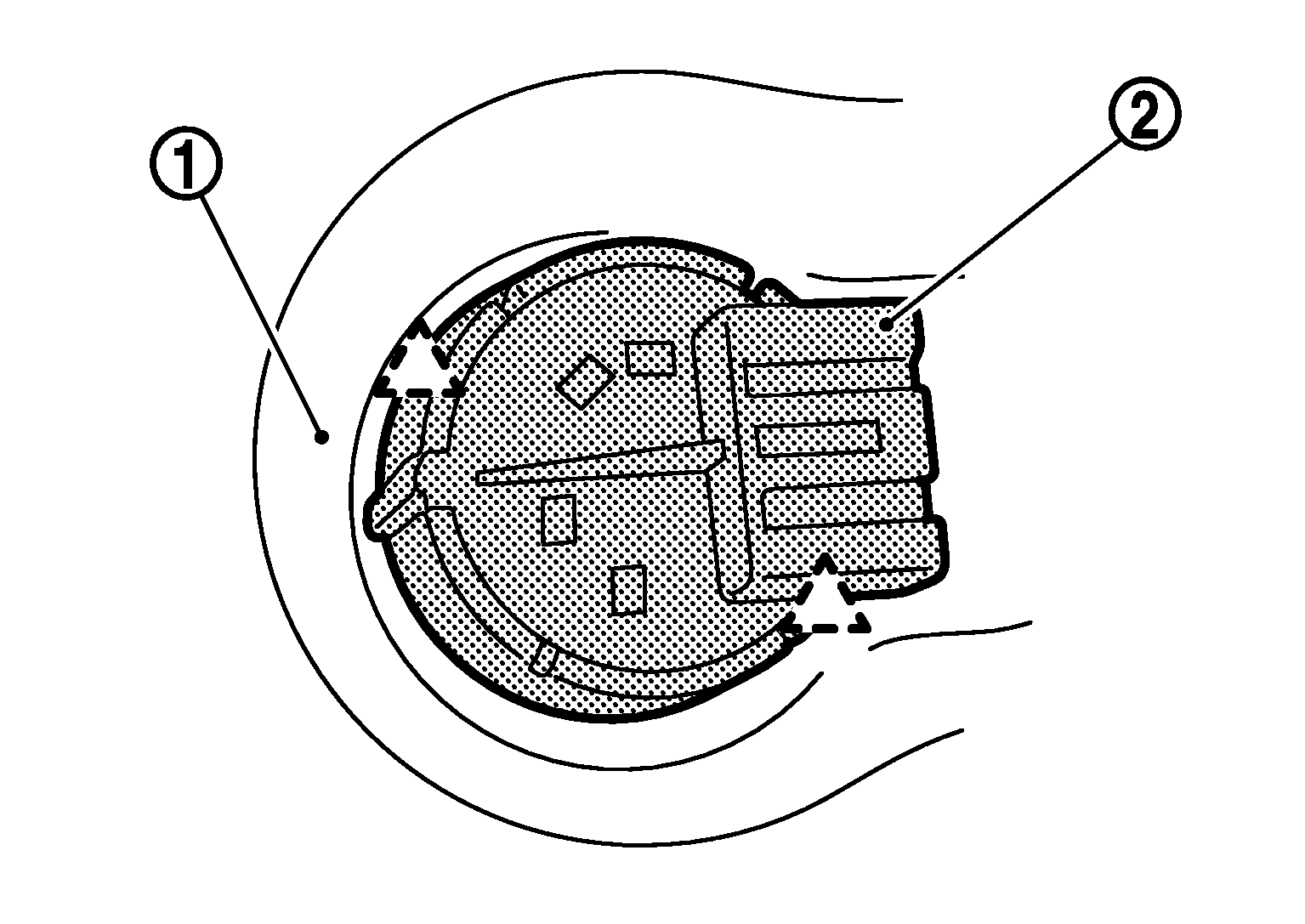

    G06991444Courtesy of NISSAN NORTH AMERICA, INC.
  2. Press pawls and remove tilt & telescopic switch (2) from the steering column lower cover (1).
    SANKAKU-H : Pawl
