Meter System: Wiring Diagram

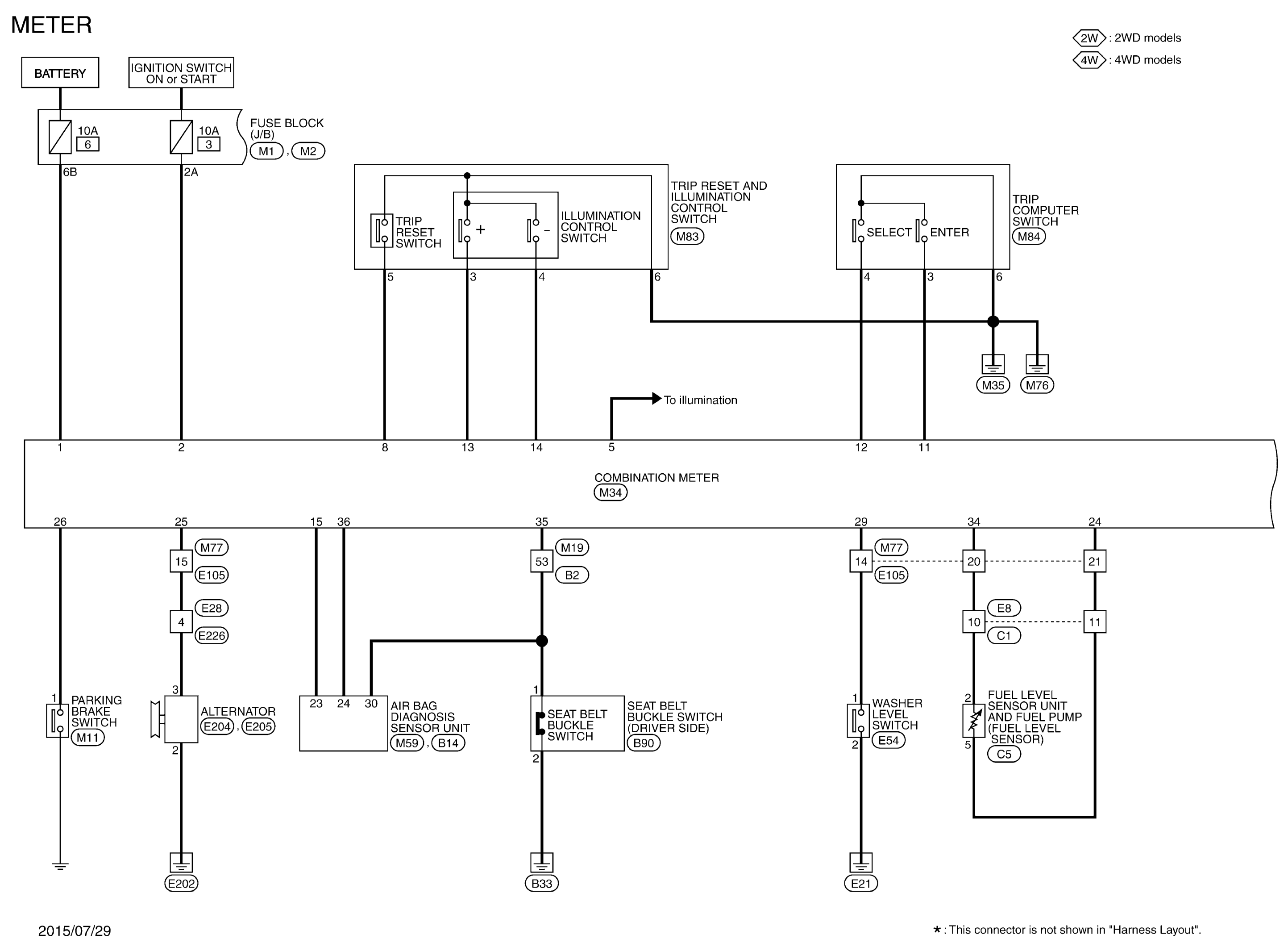

GNSJRNWF0454GB-454

Courtesy of NISSAN NORTH AMERICA, INC.

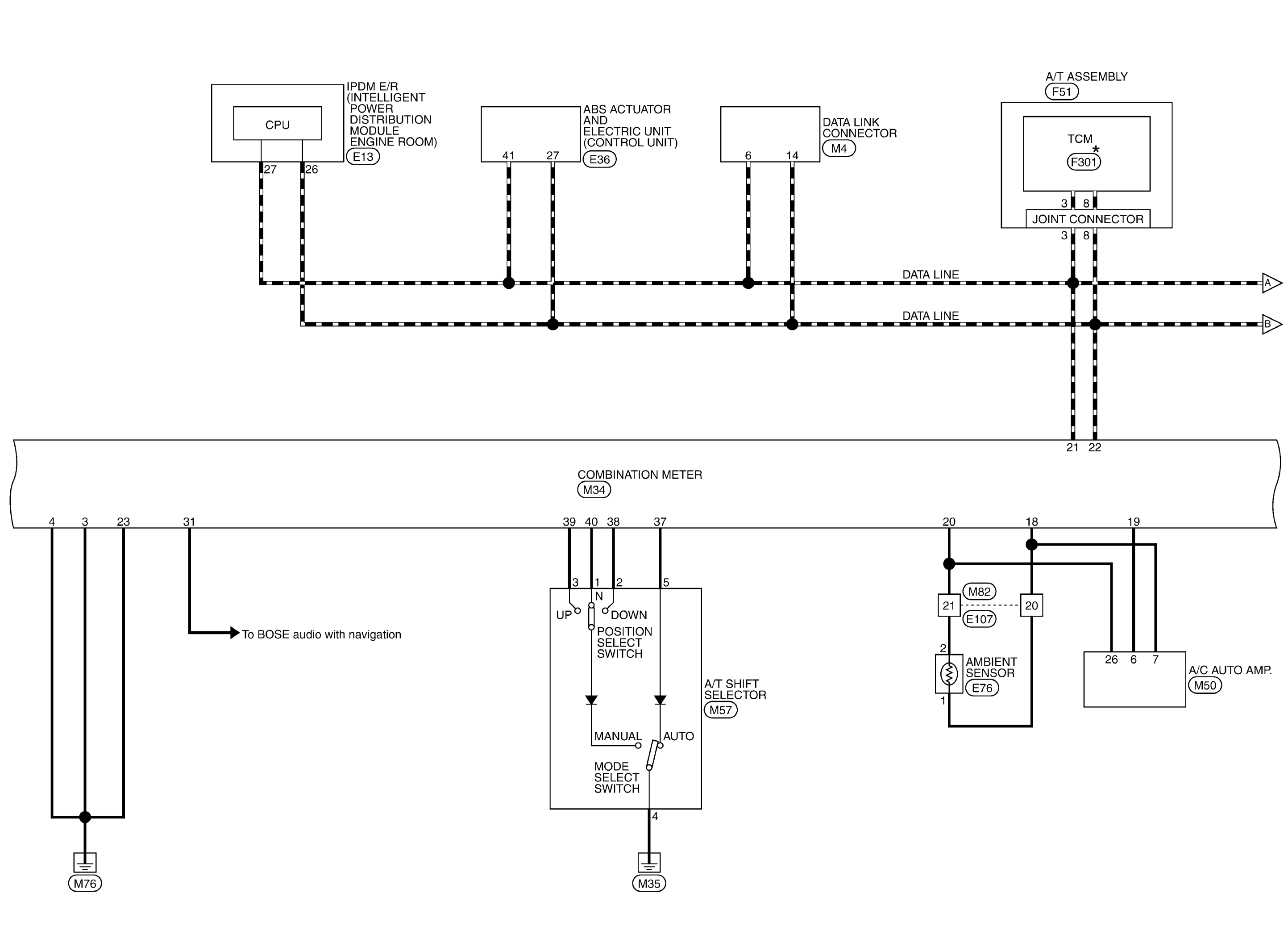

GNSJRNWF0455GB-455

Courtesy of NISSAN NORTH AMERICA, INC.

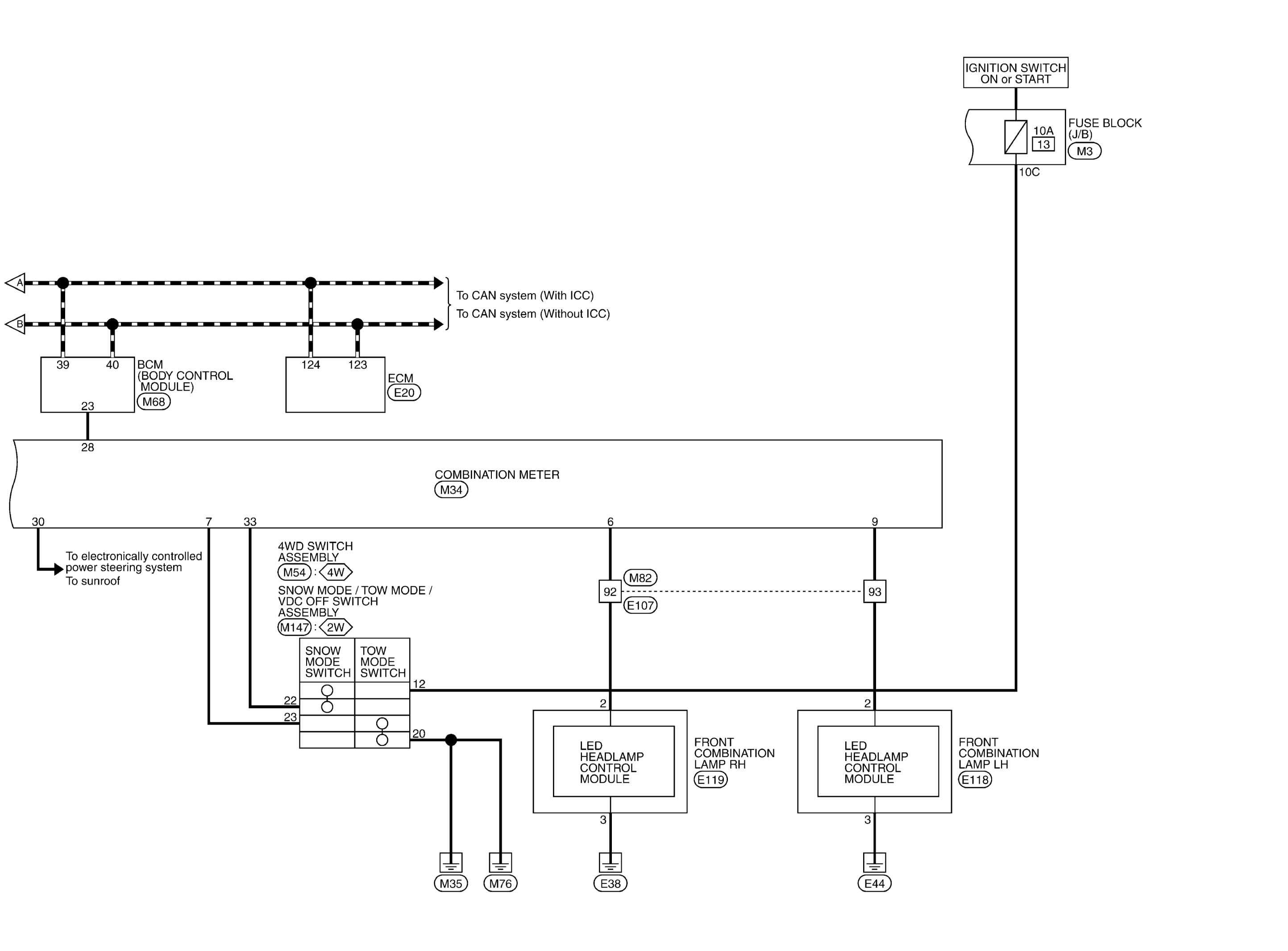

GNSJRNWF0456GB-456

Courtesy of NISSAN NORTH AMERICA, INC.

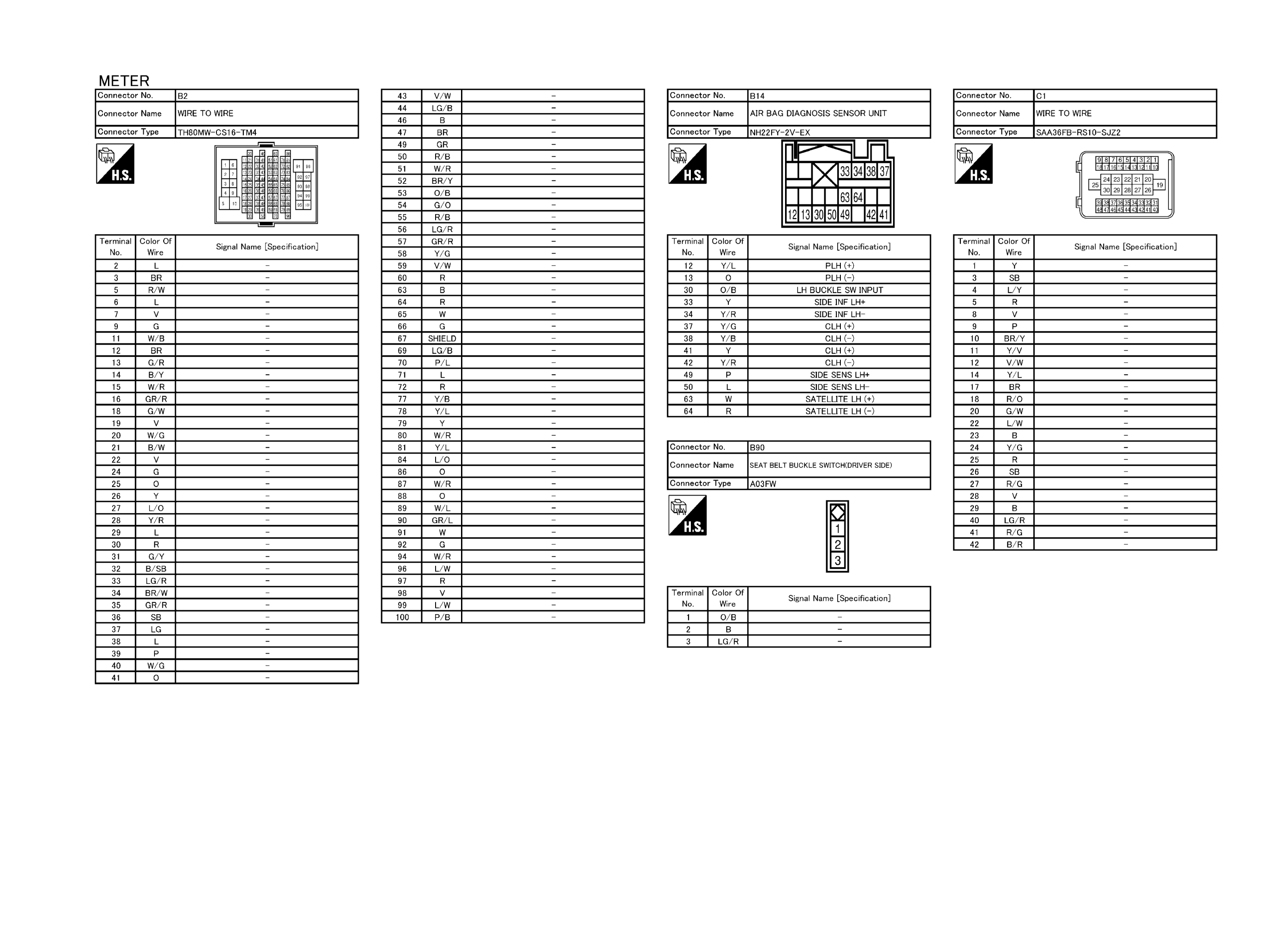

GNSJRNWF0457GB-457

Courtesy of NISSAN NORTH AMERICA, INC.

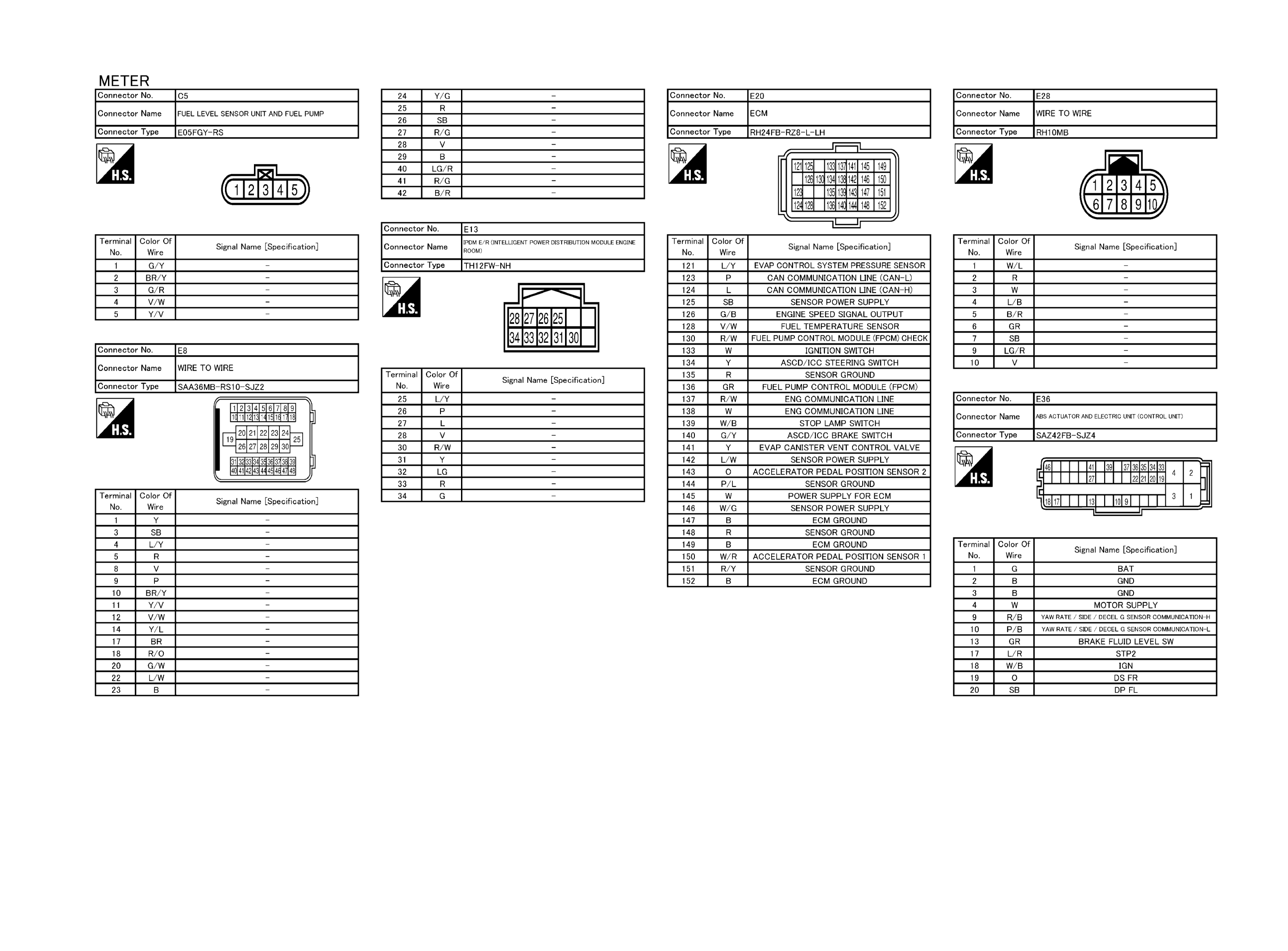

GNSJRNWF0458GB-458

Courtesy of NISSAN NORTH AMERICA, INC.

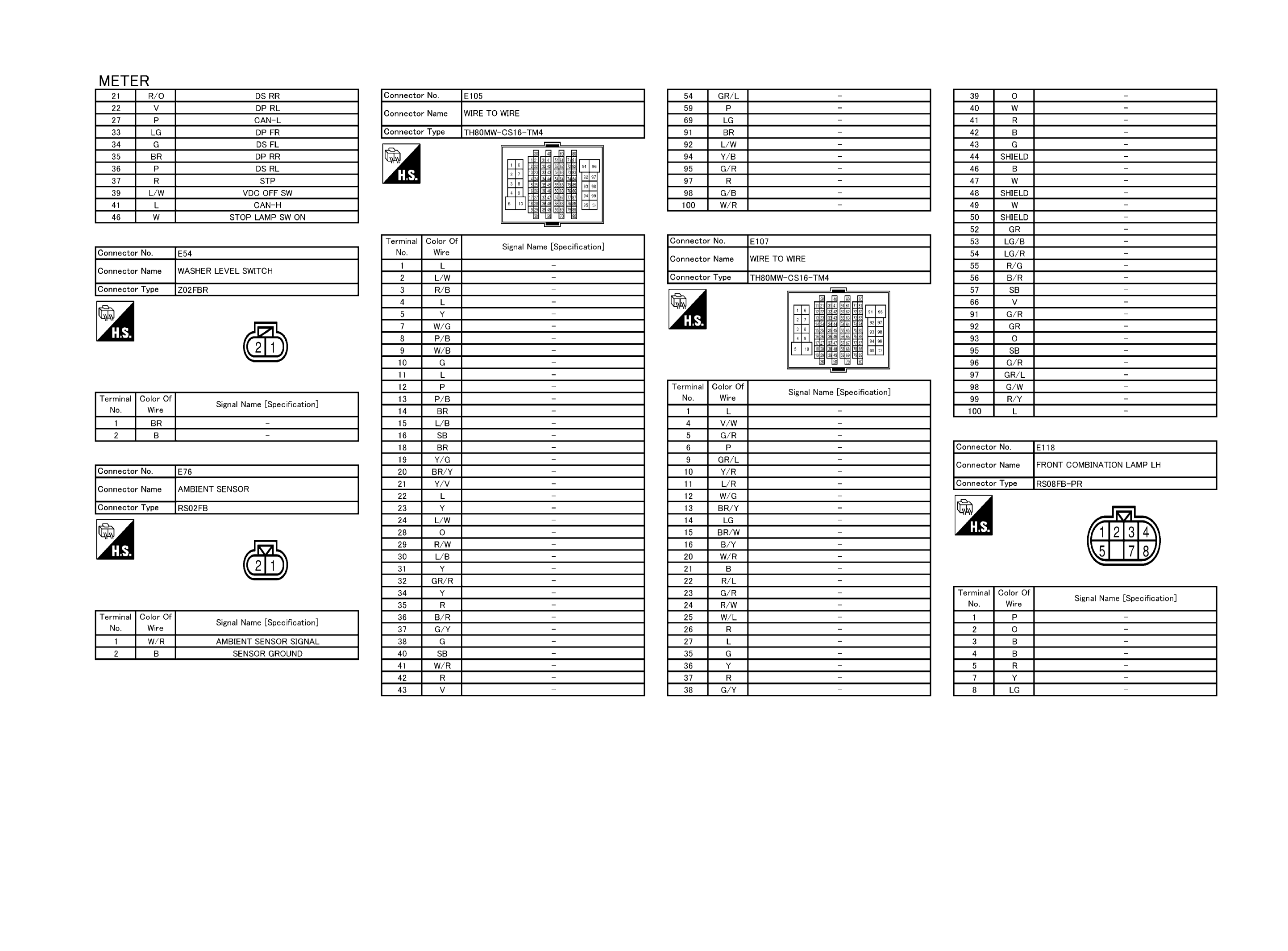

GNSJRNWF0459GB-459

Courtesy of NISSAN NORTH AMERICA, INC.

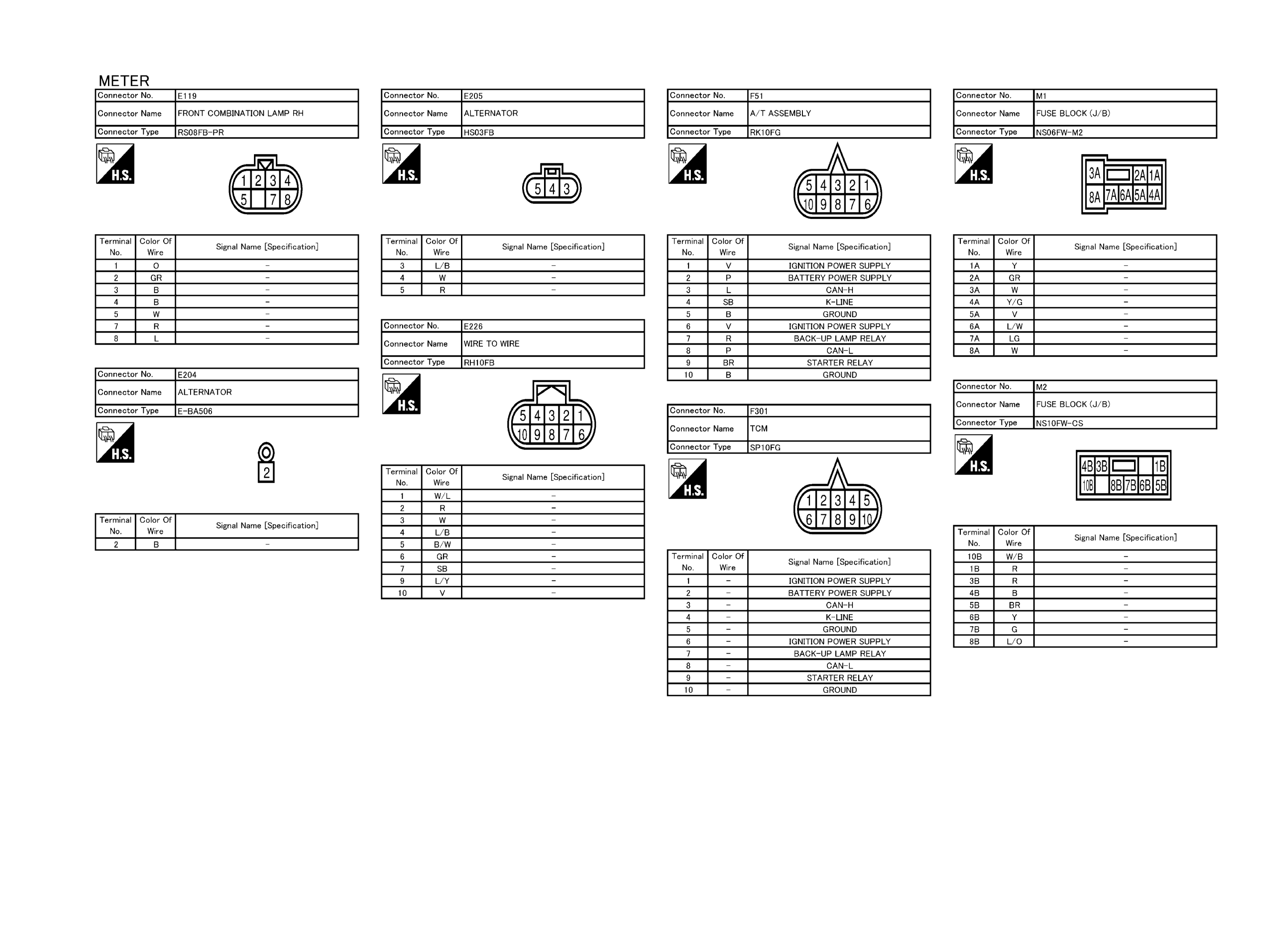

GNSJRNWF0460GB-460

Courtesy of NISSAN NORTH AMERICA, INC.

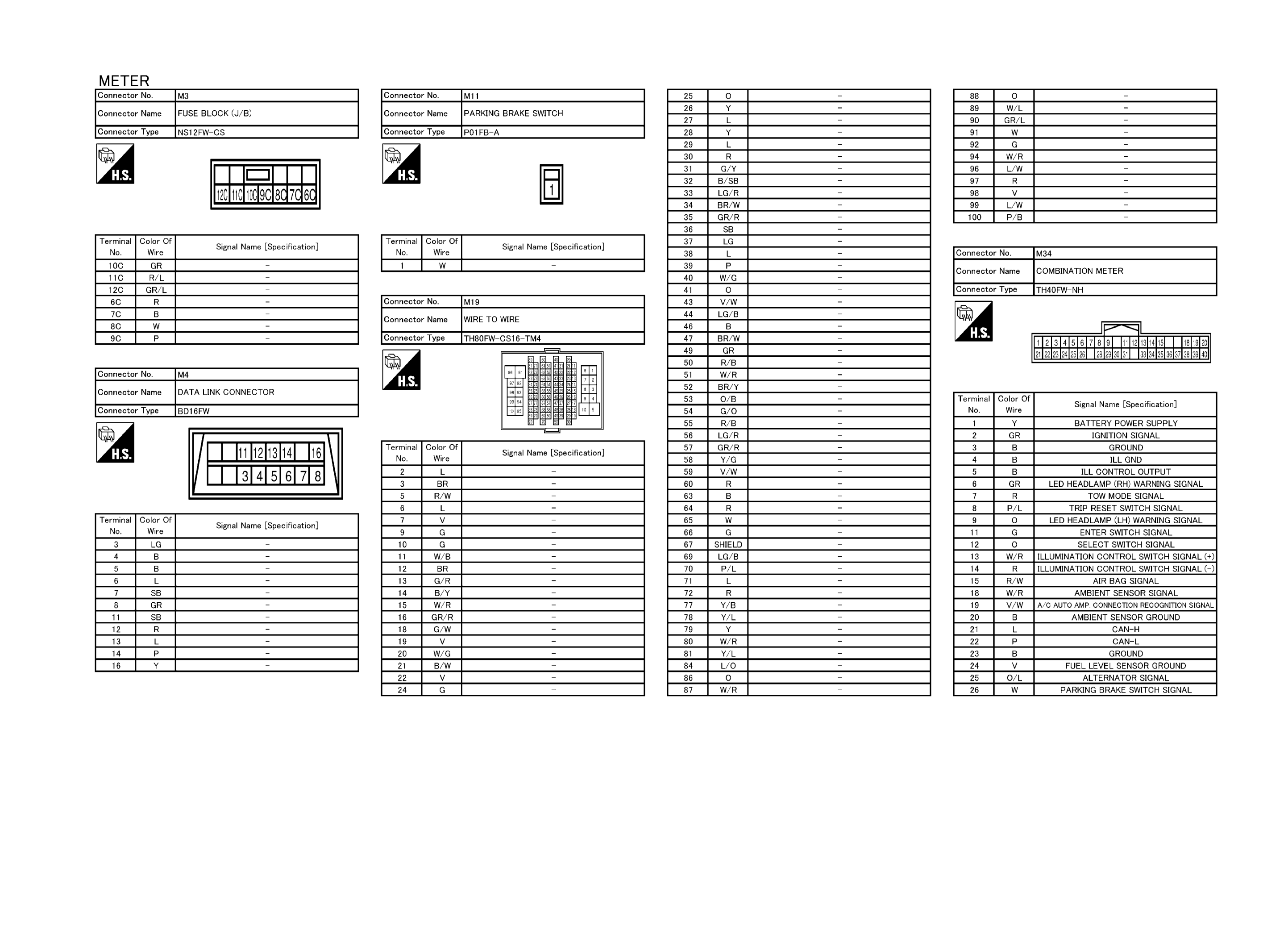

GNSJRNWF0461GB-461

Courtesy of NISSAN NORTH AMERICA, INC.

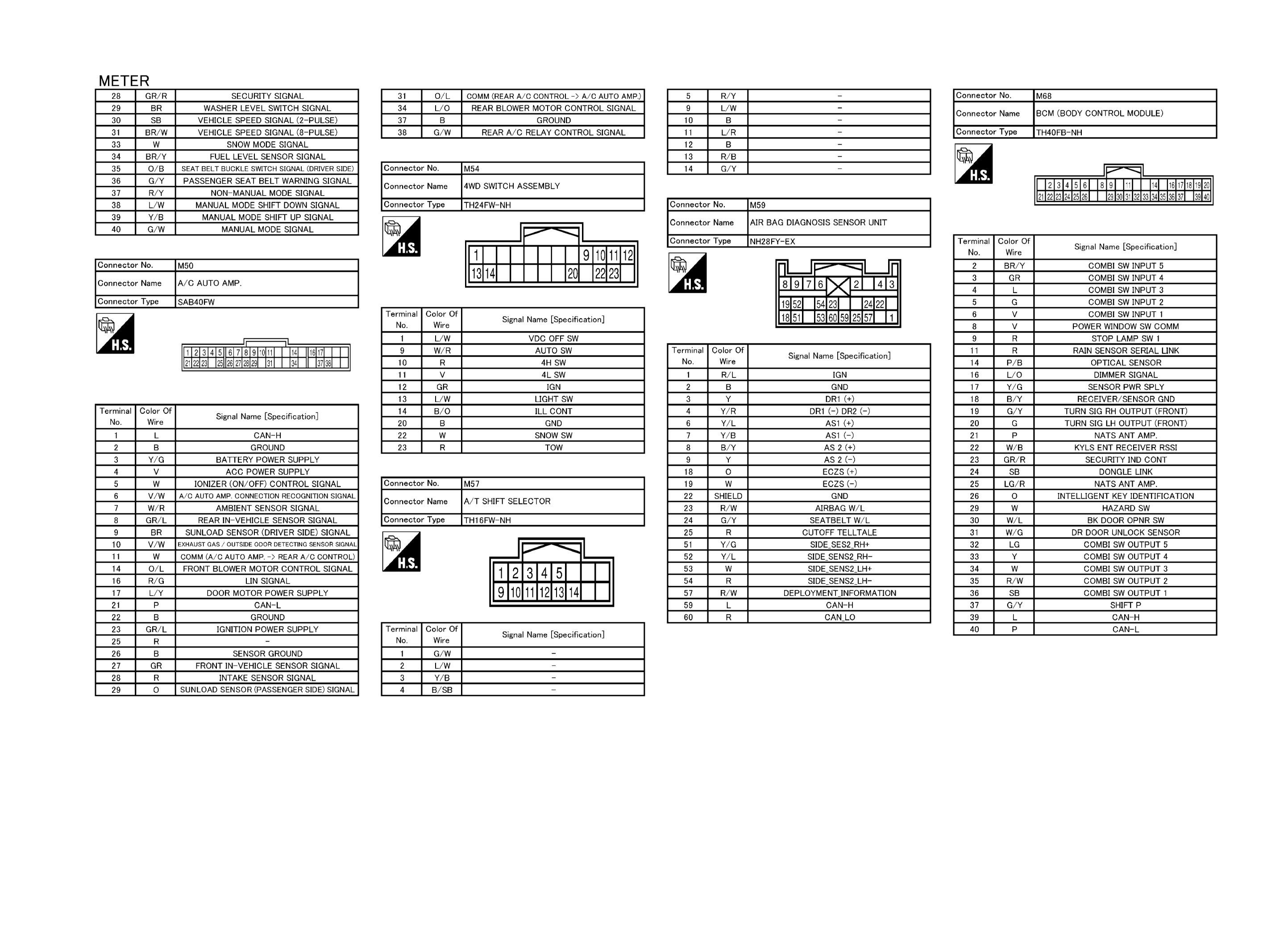

GNSJRNWF0462GB-462

Courtesy of NISSAN NORTH AMERICA, INC.

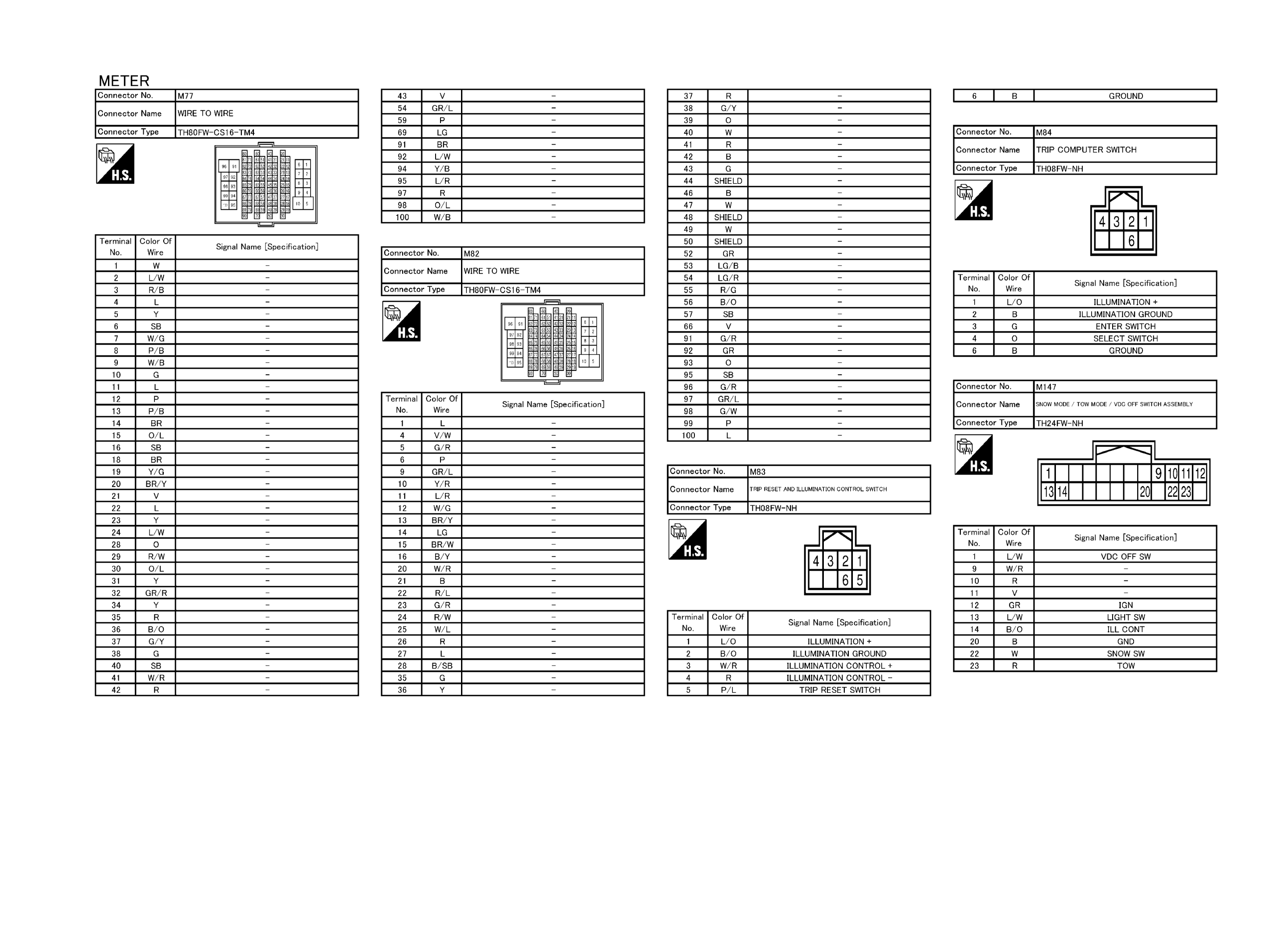

GNSJRNWF0463GB-463

Courtesy of NISSAN NORTH AMERICA, INC.
