Removal And Installation: Removal

  1. Remove instrument lower cover.

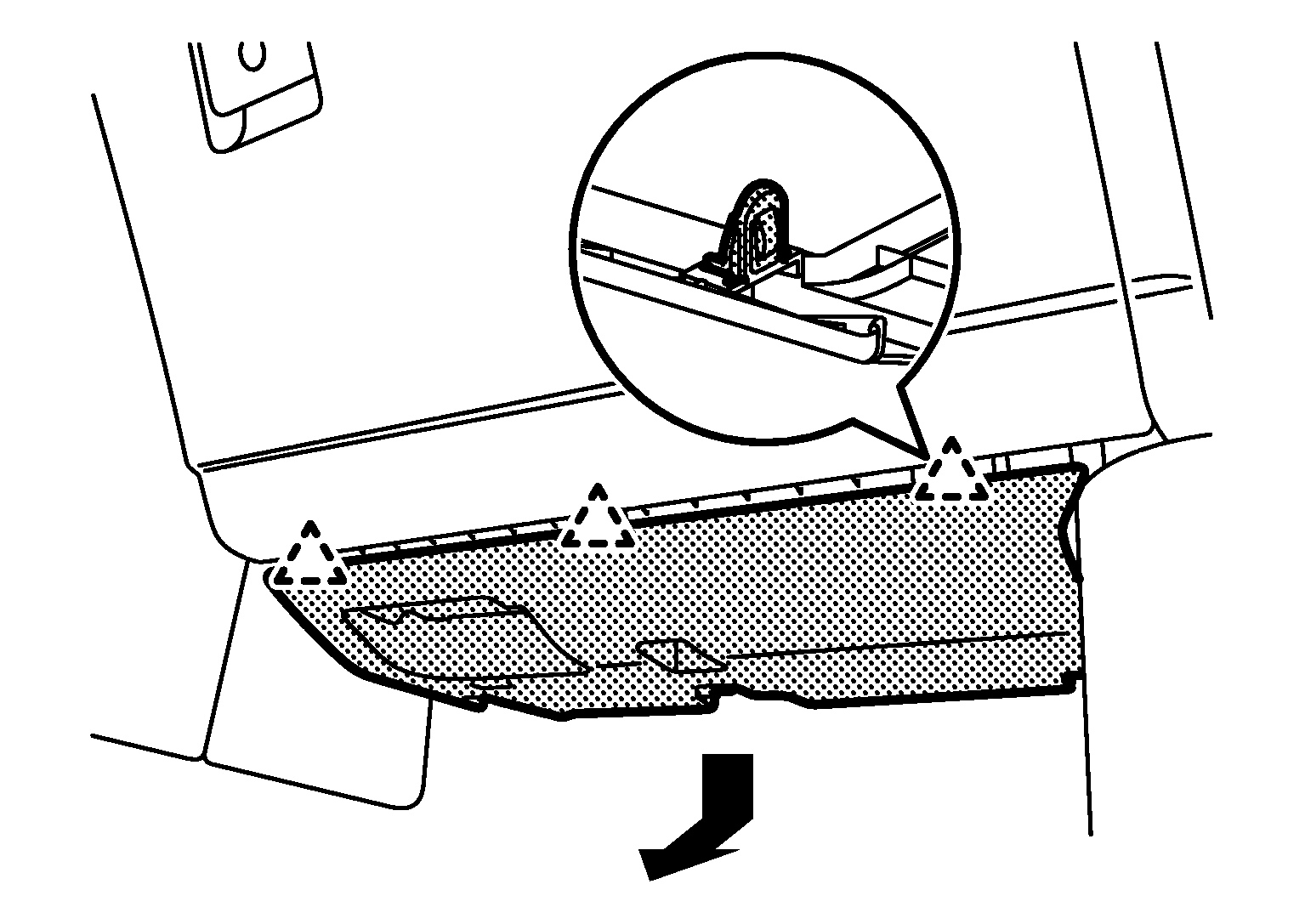

    GNSJMJIA3828ZZ-828Courtesy of NISSAN NORTH AMERICA, INC.
    1. Pull disengaged pawls downward.
    2. Pull back instrument lower cover.
    3. Disconnect harness connectors.
    SANKAKU-H : Pawl

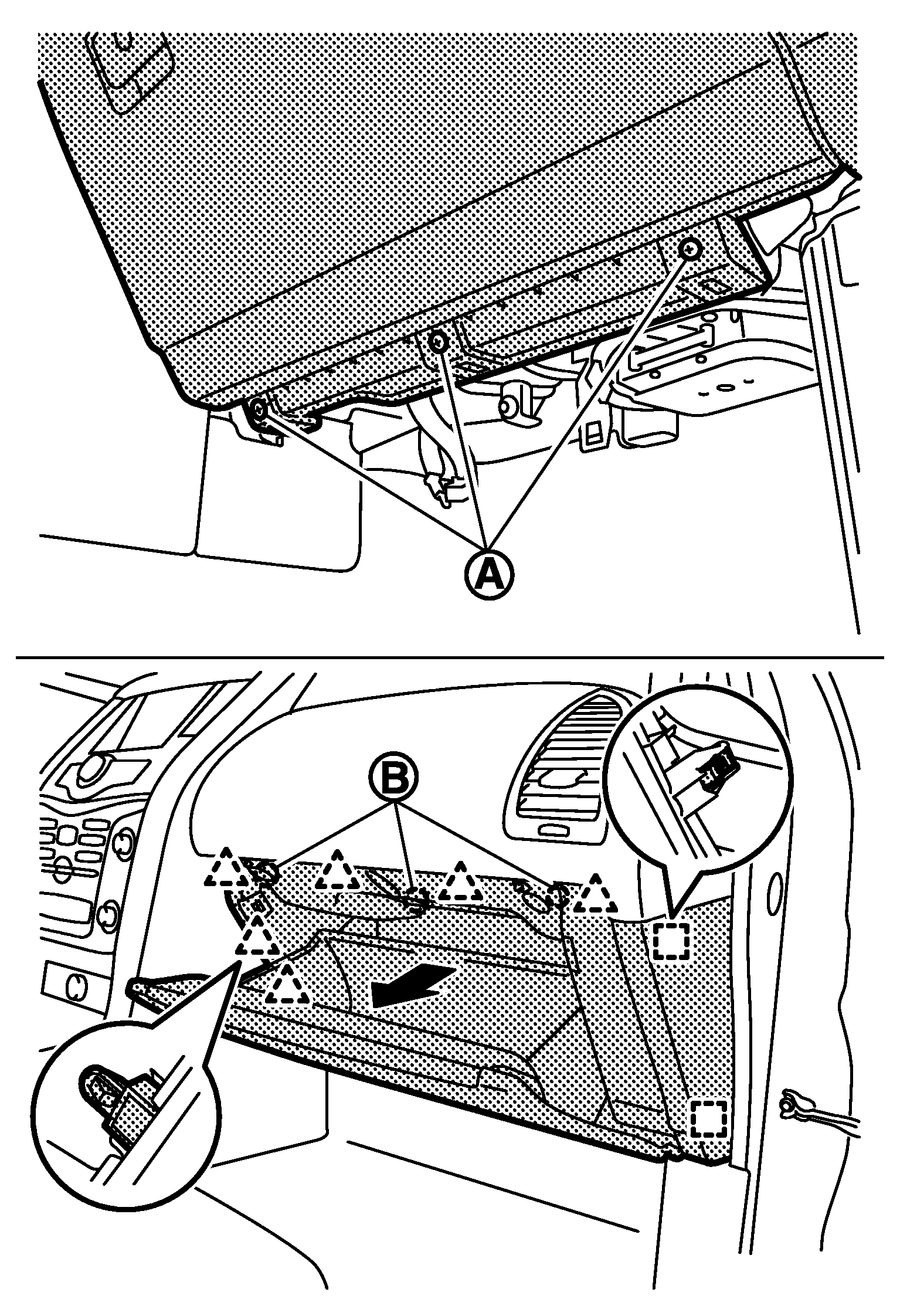

  2. Remove glove box assembly.
    G08257751Courtesy of NISSAN NORTH AMERICA, INC.
    1. Remove glove box assembly fixing screws (A).
    2. Open glove box lid.
    3. Remove glove box assembly fixing screws (B).
    4. Pull back glove box assembly.
    5. Disconnect harness connector.
    SANKAKU-H : Pawl
    SHIKAKU-H : Metal Clip
  3. Disconnect harness connector (A) of front passenger air bag module.

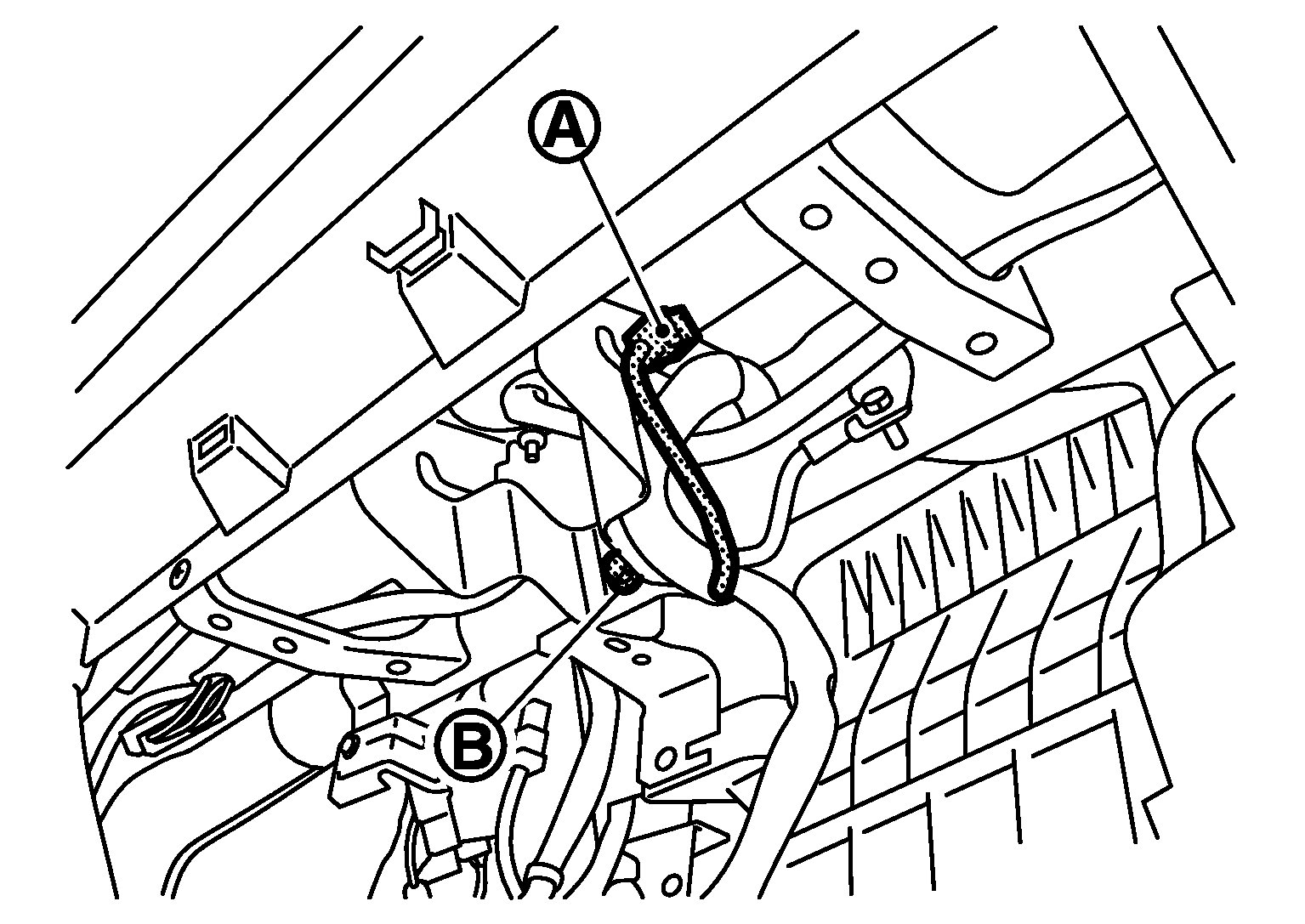

    G07025490Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove front passenger air bag module mounting bolt (B).
  5. Remove selector lever knob. Refer to REMOVAL AND INSTALLATION .
  6. Remove console finisher assembly.

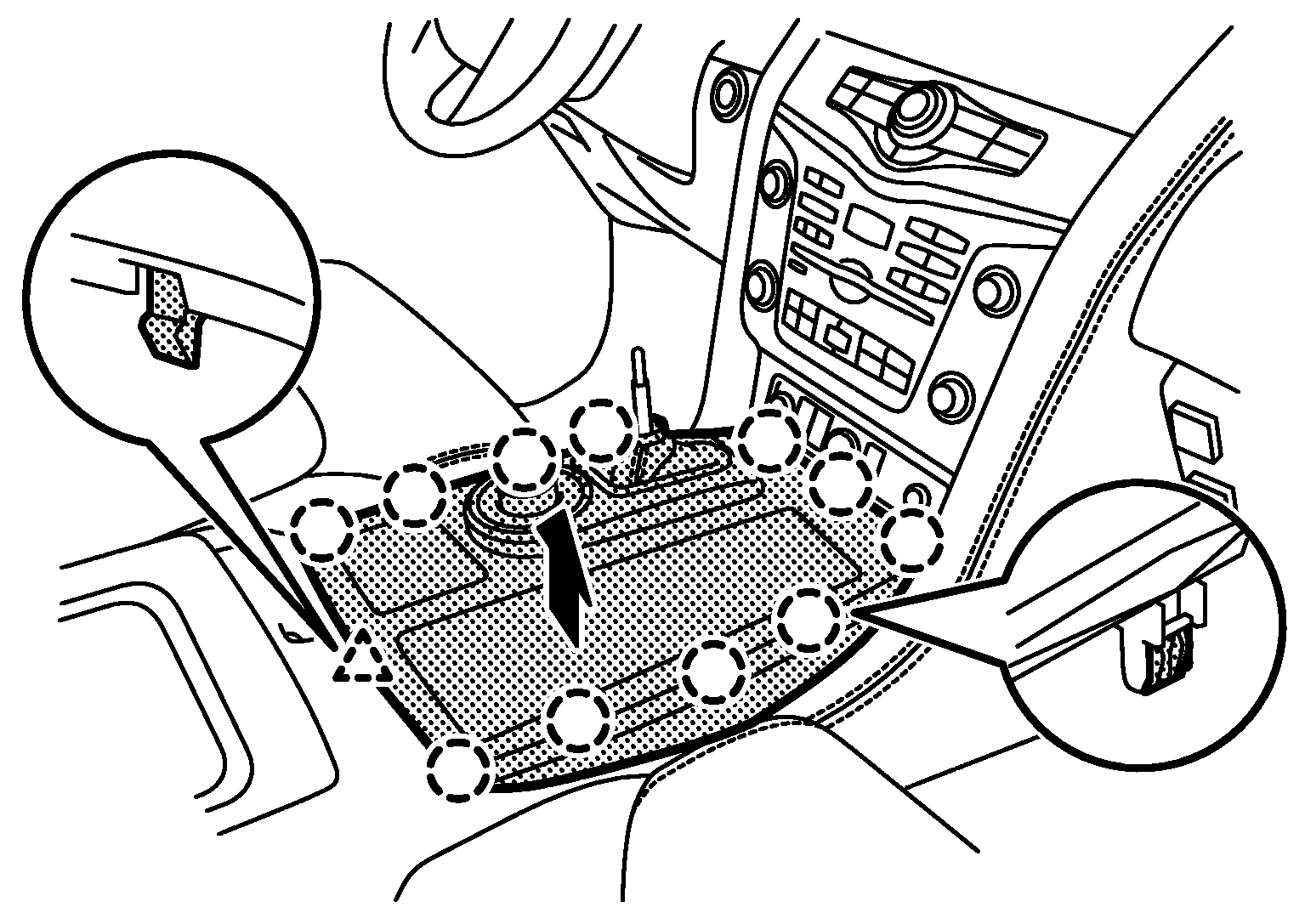

    GNSJMJIA3832ZZ-832Courtesy of NISSAN NORTH AMERICA, INC.
    1. Put front seat to rearmost position.
    2. Pull console finisher assembly upward to disengage from center console assembly.
    3. Disconnect harness connectors.
    MARU-H : Clip
    SANKAKU-H : Pawl
  7. Remove instrument center finisher RH.
    1. Pull the instrument center finisher RH lower side, and then disengage the fixing clip.

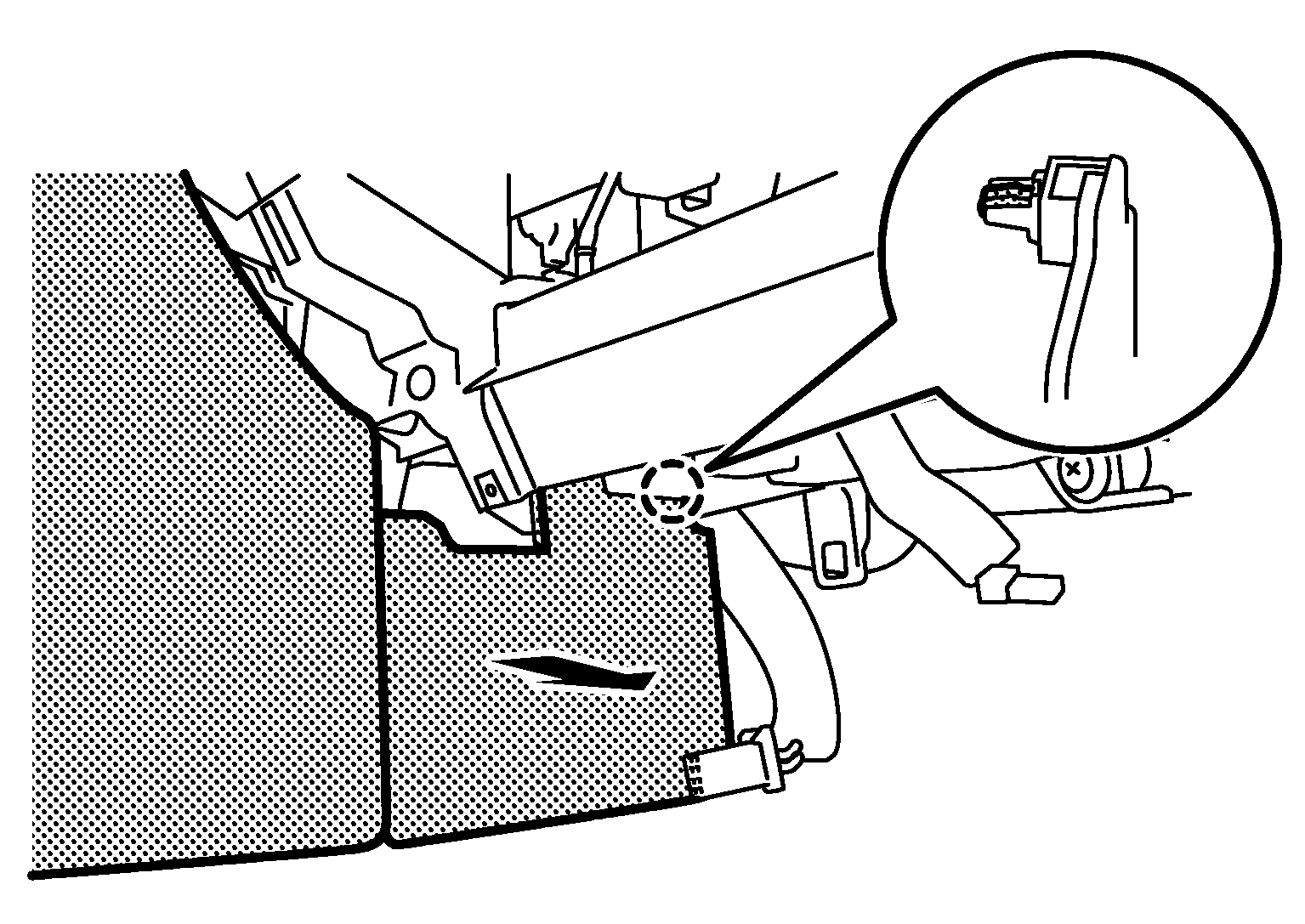

      GNSJMJIA4494ZZ-494Courtesy of NISSAN NORTH AMERICA, INC.
      MARU-H : Clip
    2. Pull back instrument center finisher RH, and then disengage metal clips.
    3. Disengage instrument center finisher RH fixing pawl from instrument panel assembly.

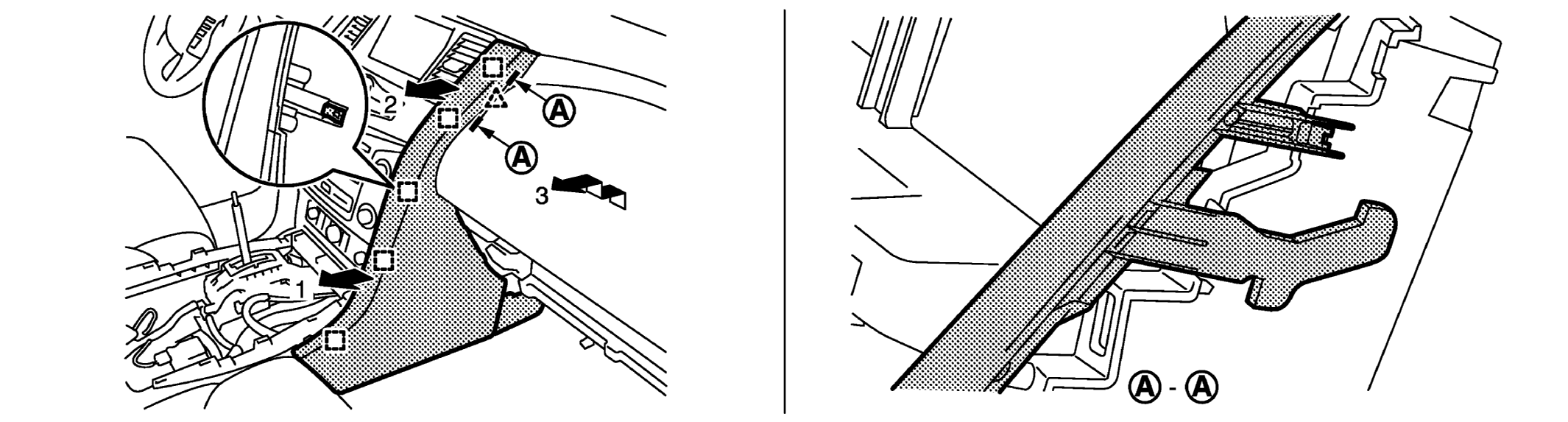

    GNSJMJIA4495ZZ-495Courtesy of NISSAN NORTH AMERICA, INC.
    SANKAKU-H : Pawl
    SHIKAKU-H : Metal Clip
  8. Remove front body side welt RH. Refer to REMOVAL AND INSTALLATION .
  9. Remove front pillar garnish RH. Refer to REMOVAL AND INSTALLATION .

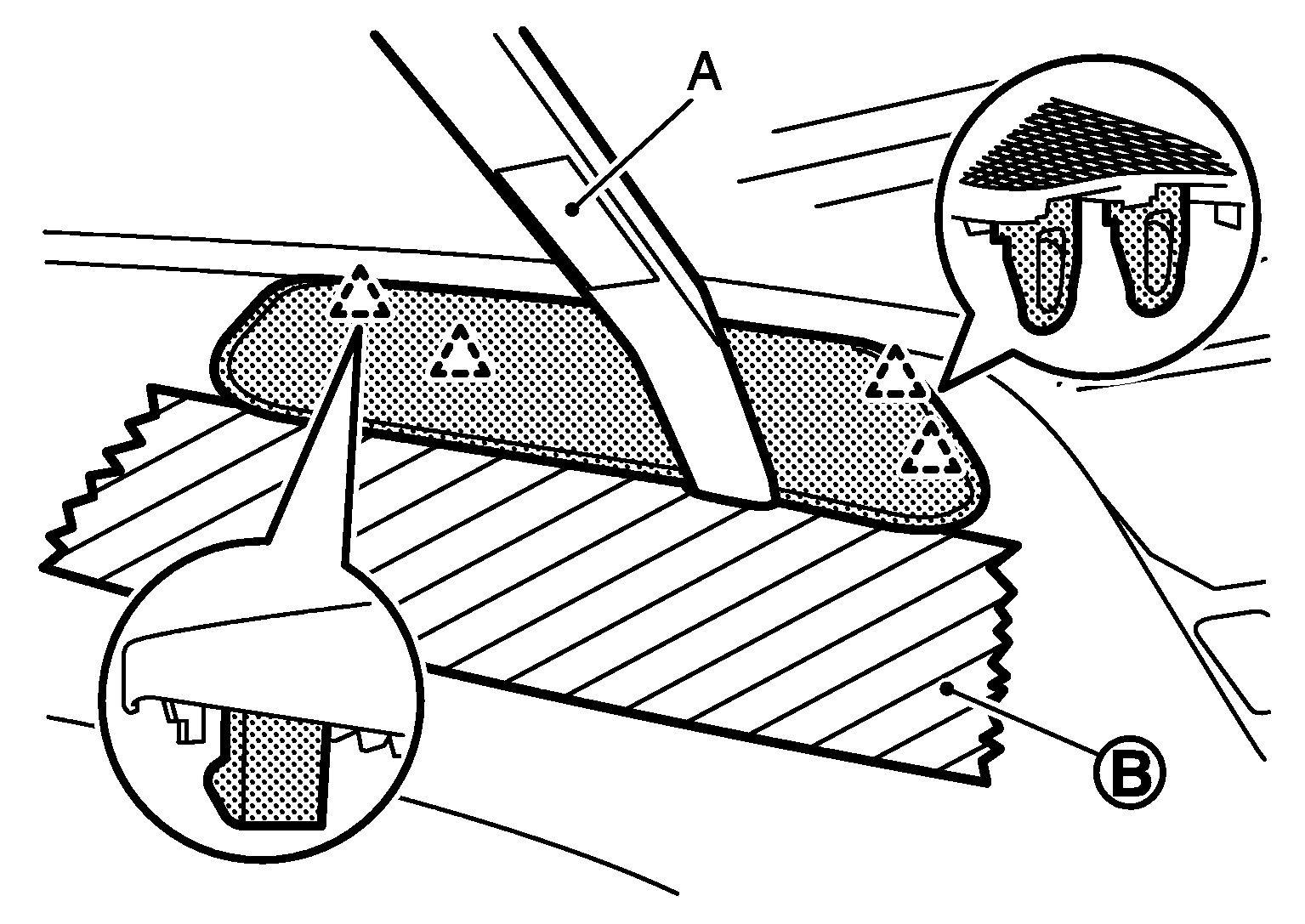

  10. Remove speaker grille RH.
    1. Disengage speaker grille RH fixing pawls with remover tool (A).
      GNSJMJIA3835ZZ-835Courtesy of NISSAN NORTH AMERICA, INC.
    2. Pull up speaker grille RH.
    CAUTION:

    Apply protective tape (B) on the part to protect it from damage.

    SANKAKU-H : Pawl
  11. Remove squawker RH. Refer to REMOVAL AND INSTALLATION .
  12. Remove front defroster grille RH. Refer to REMOVAL AND INSTALLATION .
  13. Remove front defroster grille LH. Refer to REMOVAL AND INSTALLATION .

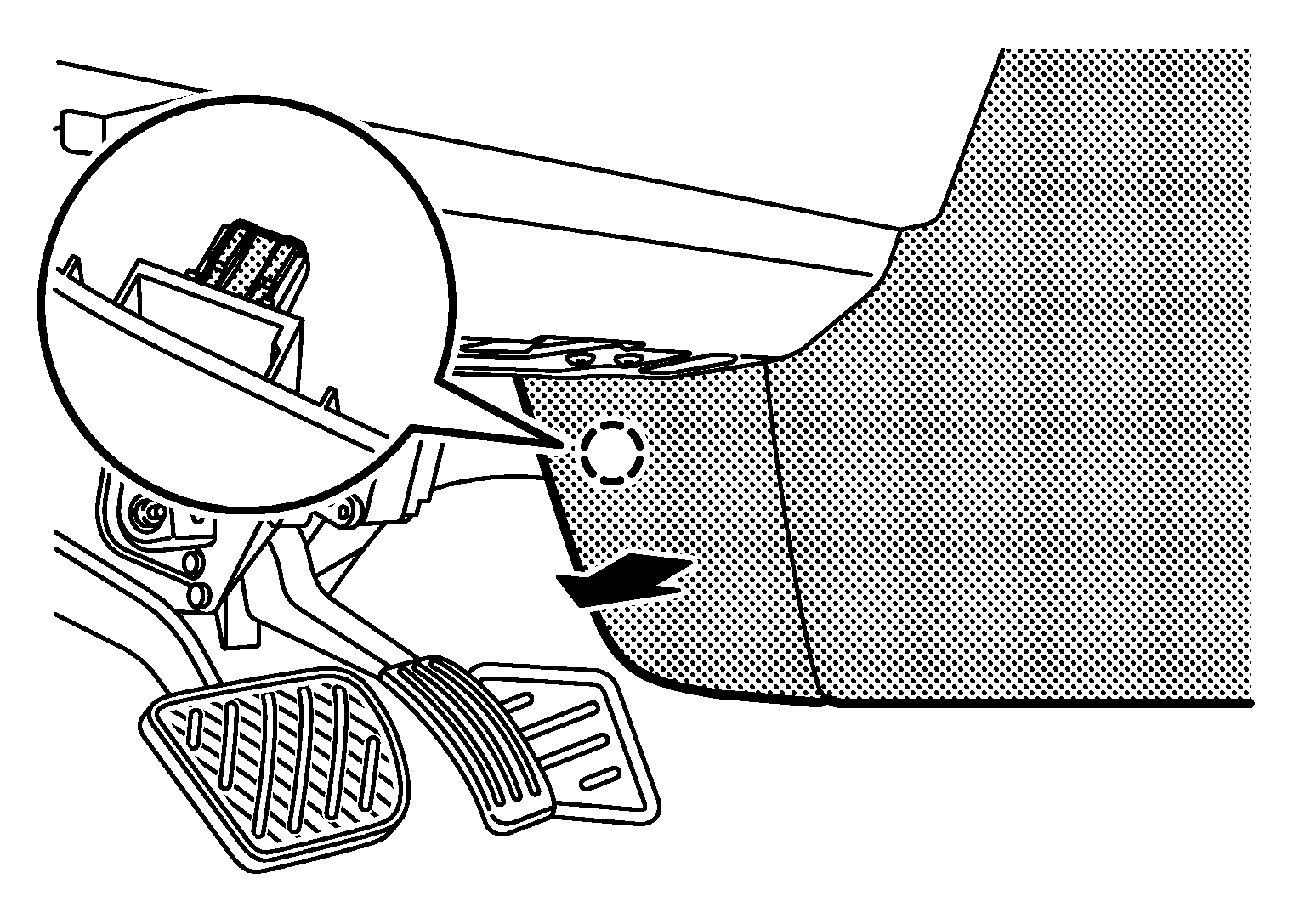

  14. Remove instrument center finisher LH.
    1. Pull the instrument center finisher LH lower side, and then disengage the fixing clip.
      GNSJMJIA4496ZZ-496Courtesy of NISSAN NORTH AMERICA, INC.
      MARU-H : Clip
    2. Pull back instrument center finisher LH, and then disengage metal clips.
    3. Disengage instrument center finisher LH fixing pawl from instrument panel assembly.

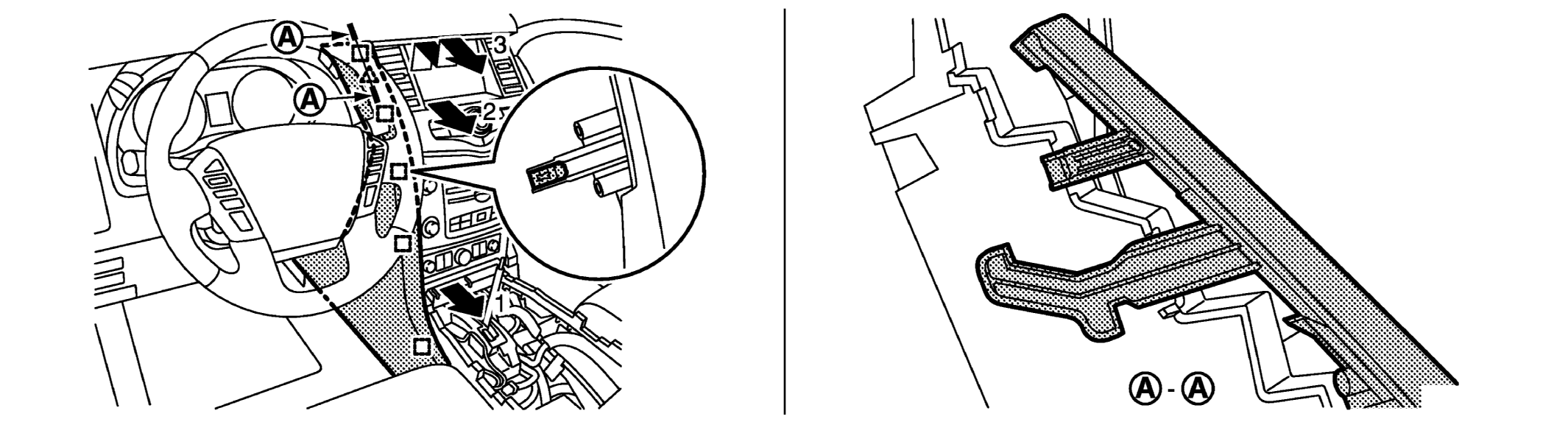

    GNSJMJIA4499ZZ-499Courtesy of NISSAN NORTH AMERICA, INC.
    SANKAKU-H : Pawl
    SHIKAKU-H : Metal Clip
  15. Remove console rear finisher.
    1. Put front seat to front most position.

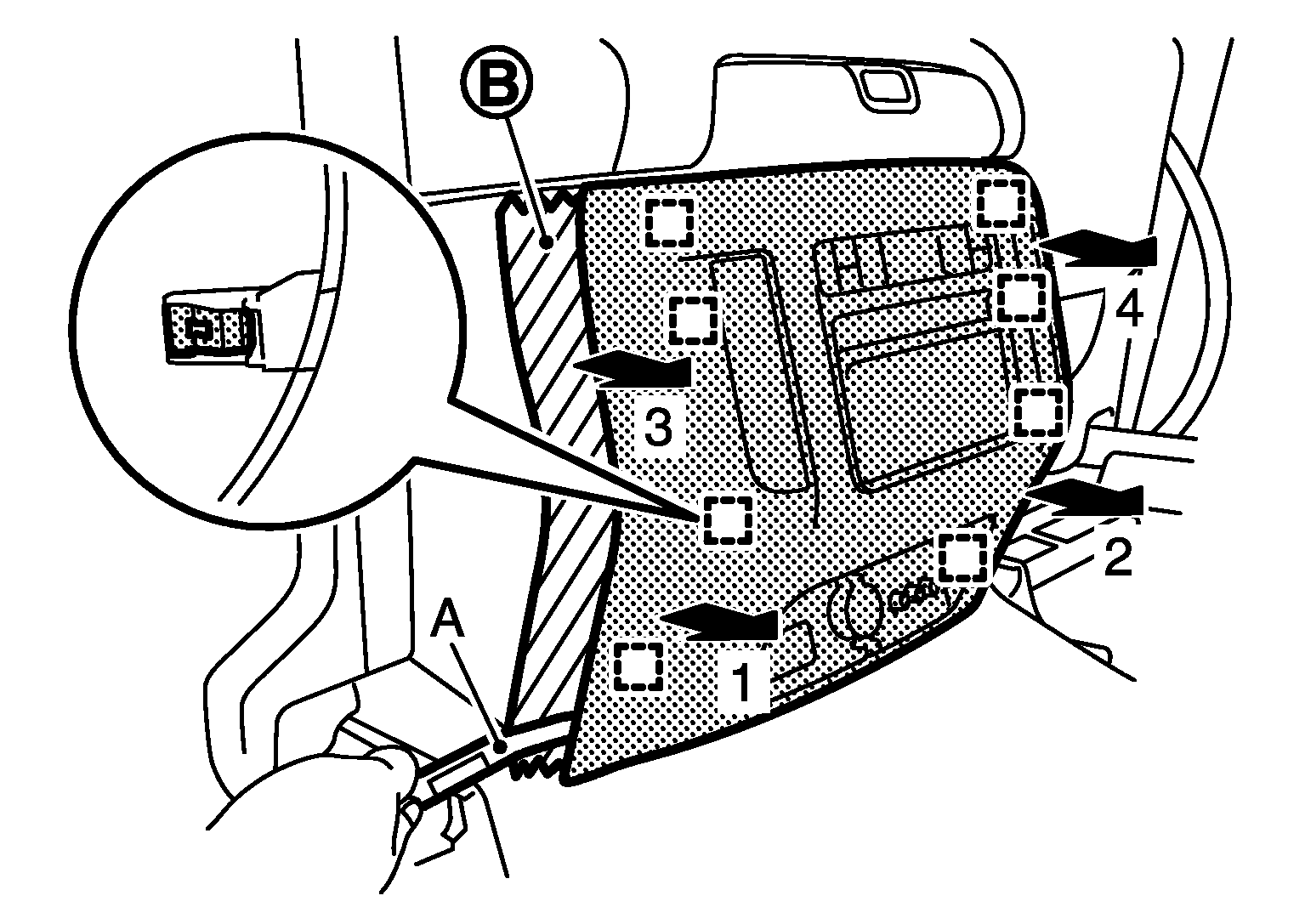

      GNSJMJIA3848ZZ-848Courtesy of NISSAN NORTH AMERICA, INC.
    2. Pull back console rear finisher with remover tool (A).
    3. Disconnect harness connectors and harness clips.
    CAUTION:

    Apply protective tape (B) on the part to protect it from damage.

    SHIKAKU-H : Metal Clip
  16. Remove center console assembly.
    1. Remove center console assembly rear side fixing screws (A).

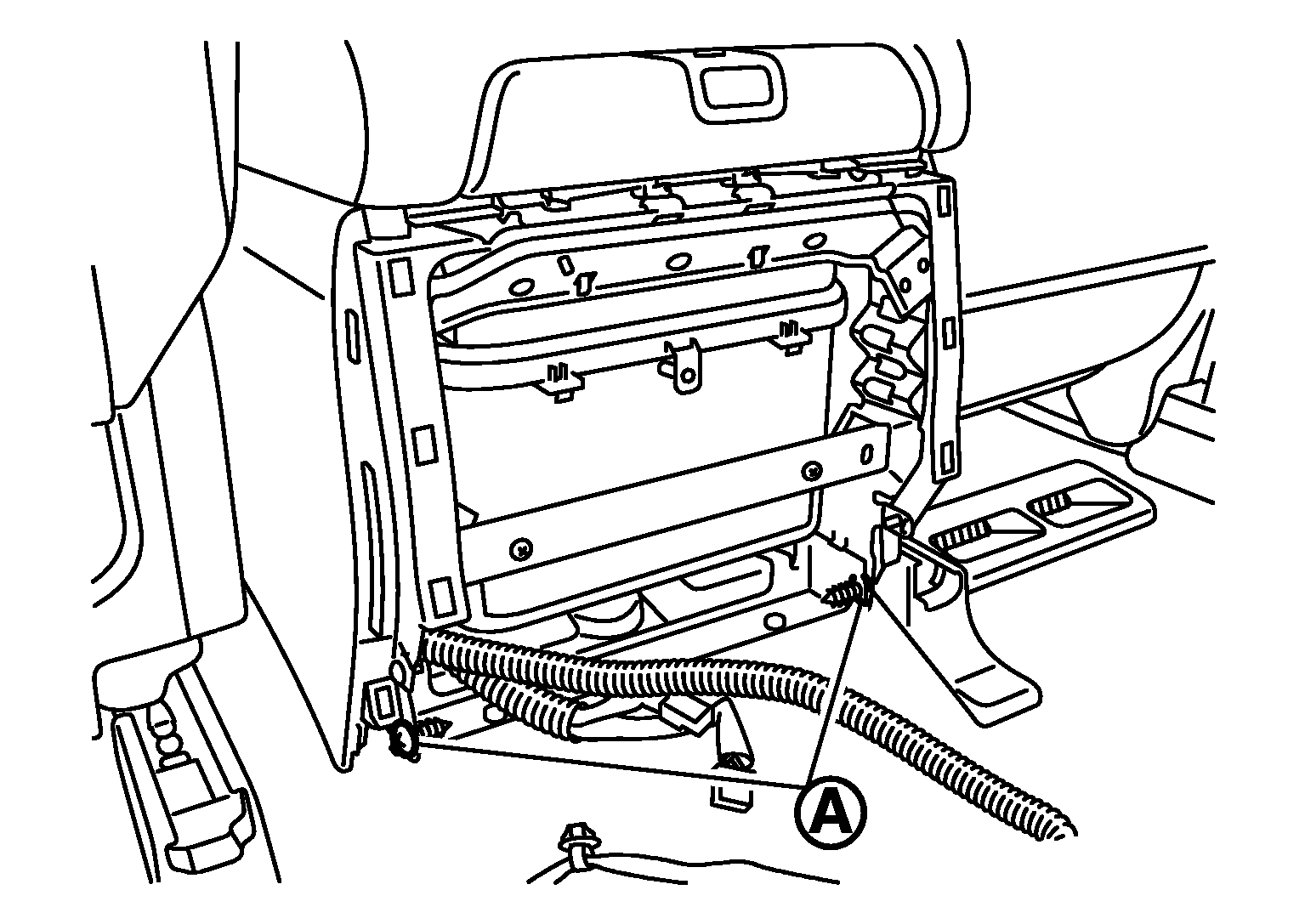

      G07025498Courtesy of NISSAN NORTH AMERICA, INC.
    2. Put front seat to rearmost position.

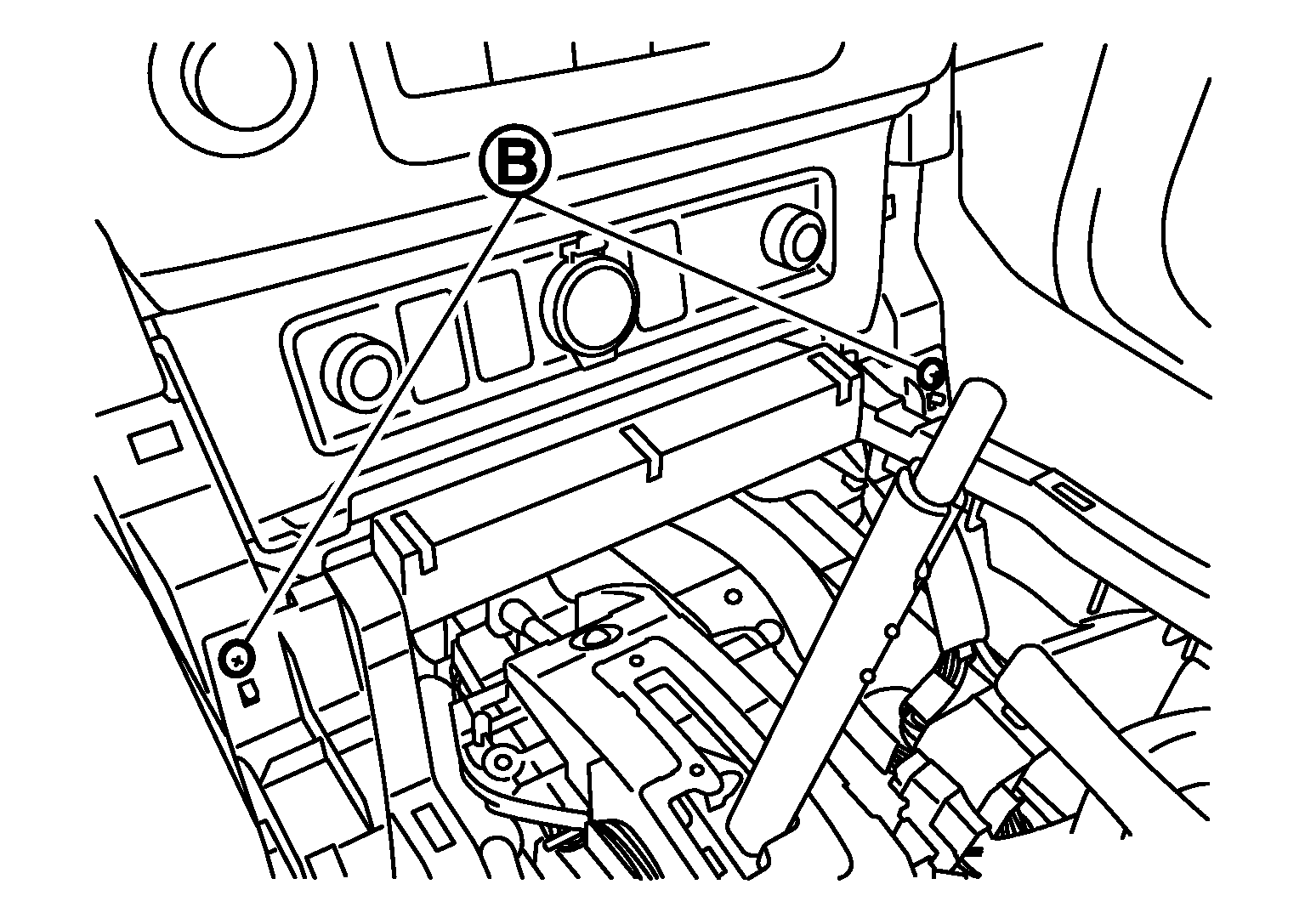

    3. Remove center console assembly front fixing screws (B).
      G07025499Courtesy of NISSAN NORTH AMERICA, INC.
    4. Lift up center console assembly back side, and then remove center console assembly.
  17. Remove front body side welt LH. Refer to REMOVAL AND INSTALLATION .
  18. Remove front pillar garnish LH. Refer to REMOVAL AND INSTALLATION .

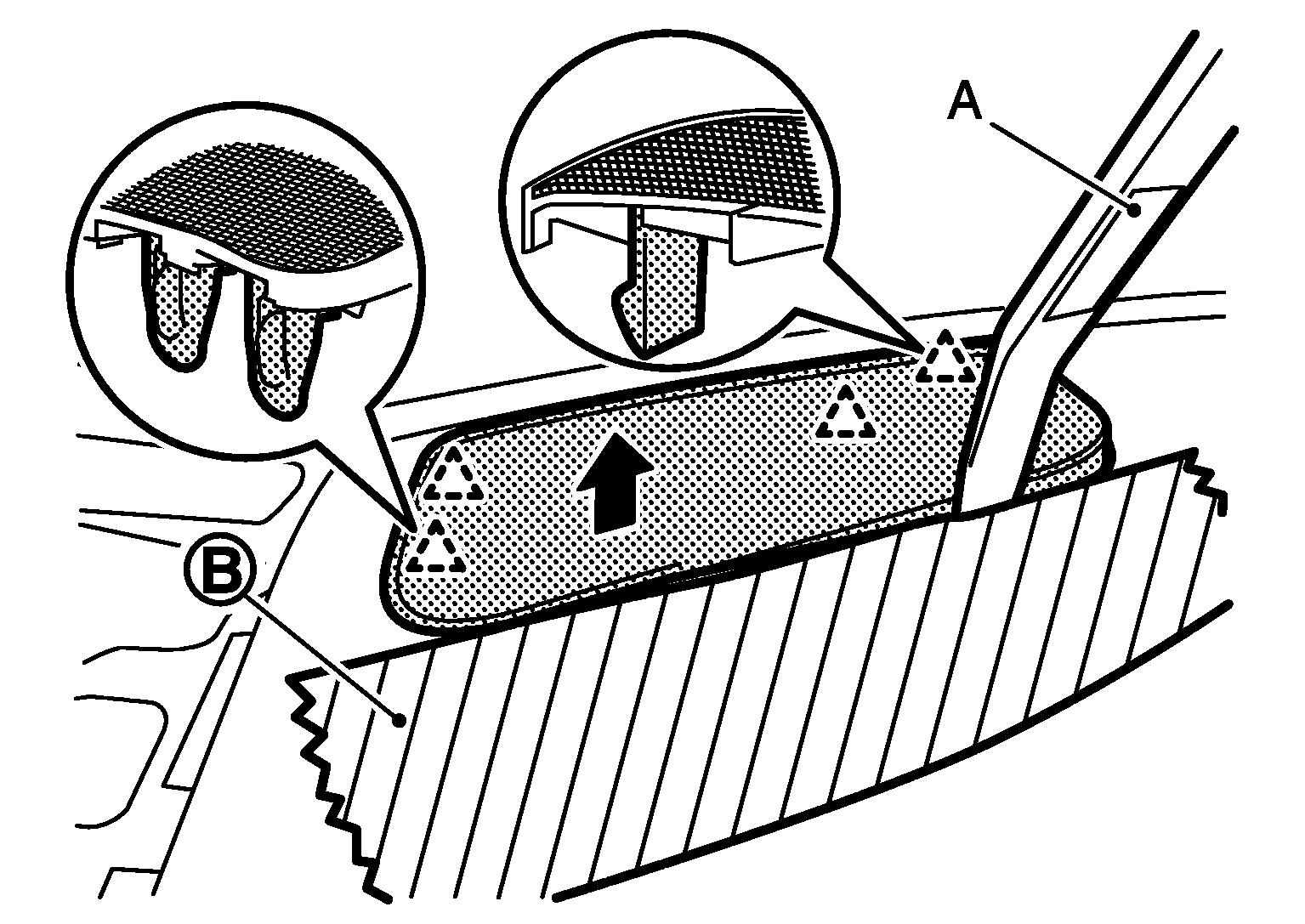

  19. Remove speaker grille LH.
    GNSJMJIA3839ZZ-839Courtesy of NISSAN NORTH AMERICA, INC.
    1. Disengage speaker grille LH fixing pawls with remover tool (A).
    2. Pull up speaker grille LH.
    CAUTION:

    Apply protective tape (B) on the part to protect it from damage.

    SANKAKU-H : Pawl
  20. Remove squawker LH. Refer to REMOVAL AND INSTALLATION .

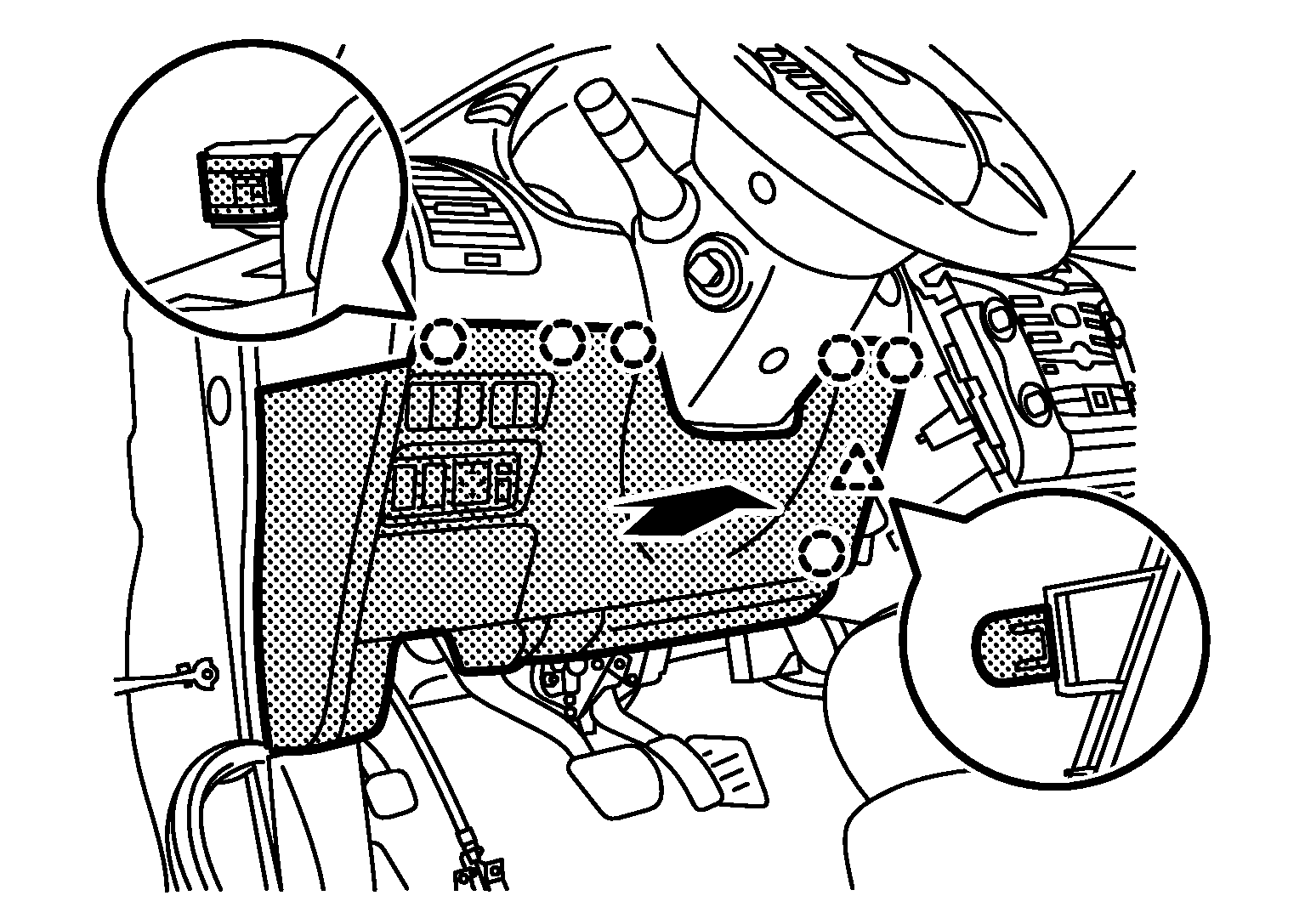

  21. Remove instrument lower panel LH.
    1. Remove food opener lever fixing bolts. Refer to REMOVAL AND INSTALLATION
    2. Pull back instrument lower panel LH, and then disengage the clips and pawl.
      GNSJMJIA3840ZZ-840Courtesy of NISSAN NORTH AMERICA, INC.
    3. Disconnect harness connectors and aspirator duct.
    MARU-H : Clip
    SANKAKU-H : Pawl
  22. Disconnect meter control switch harness connector (A).

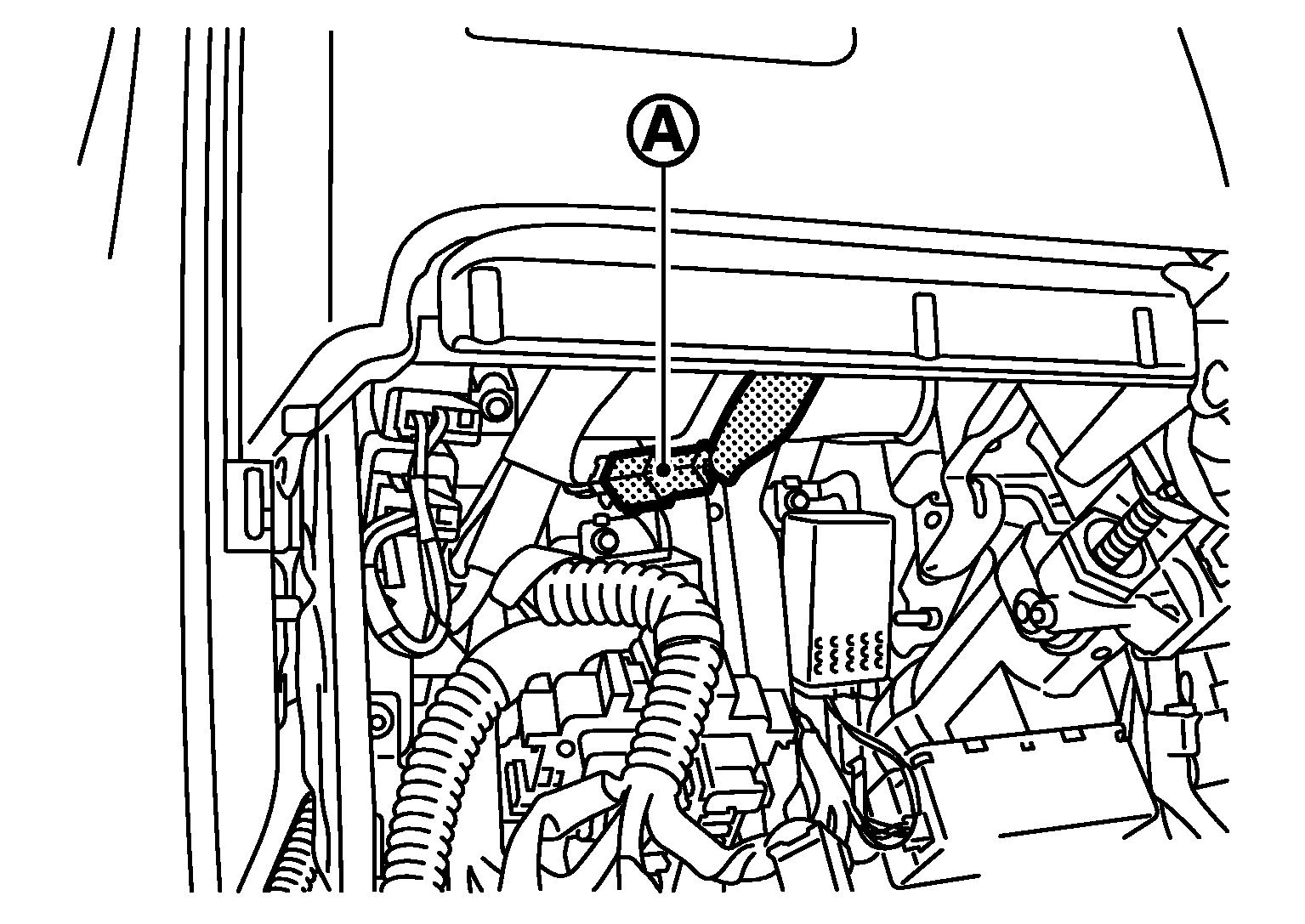

    G07025502Courtesy of NISSAN NORTH AMERICA, INC.
  23. Remove driver air bag module. Refer to REMOVAL AND INSTALLATION .
  24. Remove steering wheel. Refer to REMOVAL AND INSTALLATION .

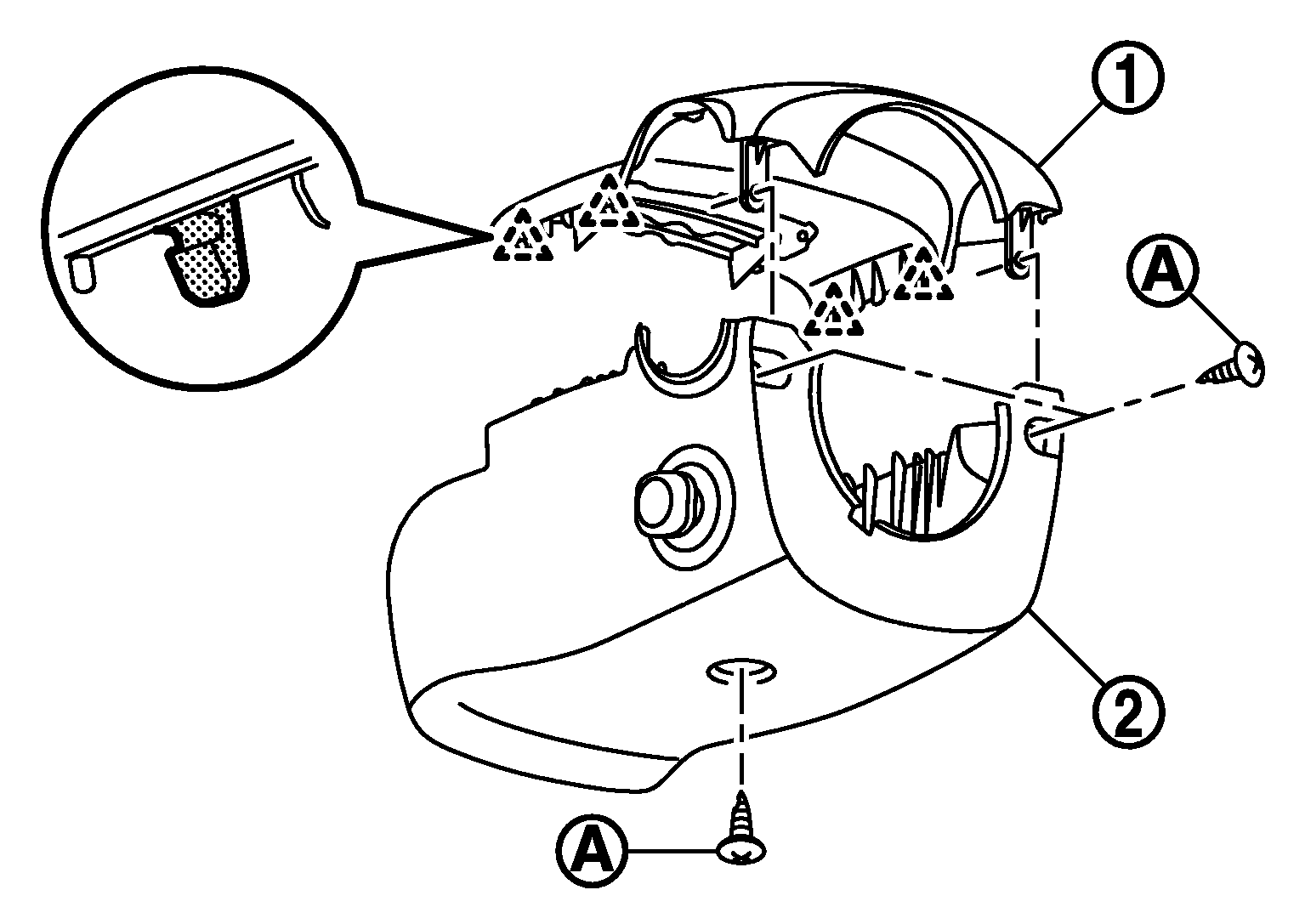

  25. Remove steering column covers.
    GNSJMJIA3842ZZ-842Courtesy of NISSAN NORTH AMERICA, INC.
    1. Remove steering column cover fixing screws (A).
    2. Pull up steering column upper cover (1), and then disengage steering column upper cove fixing pawls.
    3. Remove steering column upper cover.
    4. Pull down steering column lower cover (2), and then disconnect ADP steering switch connector (with ADP).
    5. Remove steering column lower cover.
    SANKAKU-H : Pawl
  26. Remove combination switch. Refer to REMOVAL AND INSTALLATION .
  27. Remove spiral cable. Refer to REMOVAL AND INSTALLATION .
  28. Remove cluster lid A.

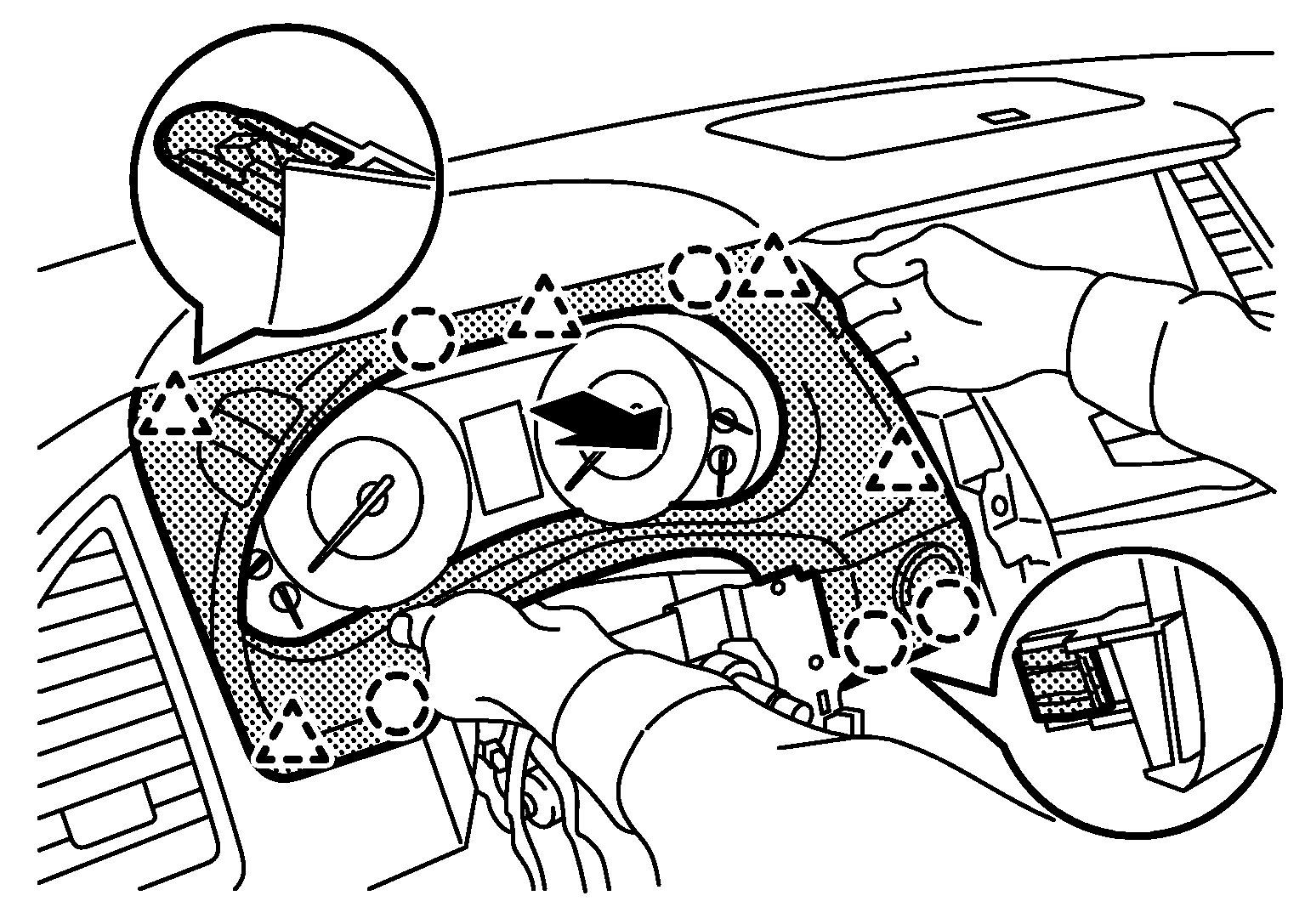

    GNSJMJIA3843ZZ-843Courtesy of NISSAN NORTH AMERICA, INC.
    1. Pull back cluster lid A, and then disengage the clips and pawls.
    2. Disconnect harness connectors.
    MARU-H : Clip
    SANKAKU-H : Pawl
  29. Remove combination meter. Refer to REMOVAL AND INSTALLATION .

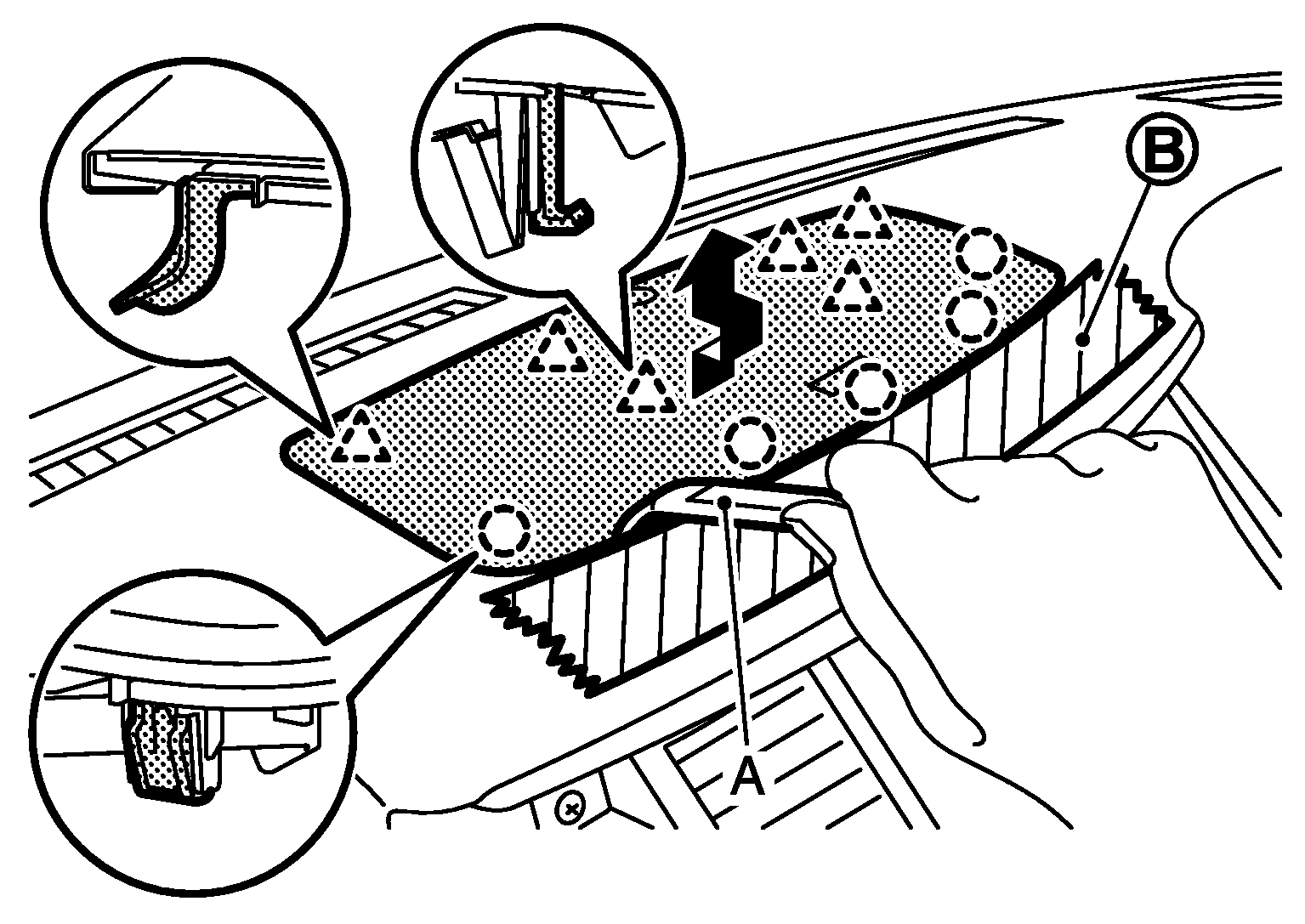

  30. Remove upper ventilator grille.
    GNSJMJIA3844ZZ-844Courtesy of NISSAN NORTH AMERICA, INC.
    1. Disengage upper ventilator grille fixing clips and pawls with remover tool (A)
    2. Pull toward the arrow direction.
    CAUTION:

    Apply protective tape (B) on the part to protect it from damage.

    MARU-H : Clip
    SANKAKU-H : Pawl
  31. Remove center speaker. Refer to REMOVAL AND INSTALLATION .
  32. Remove cluster lid C.

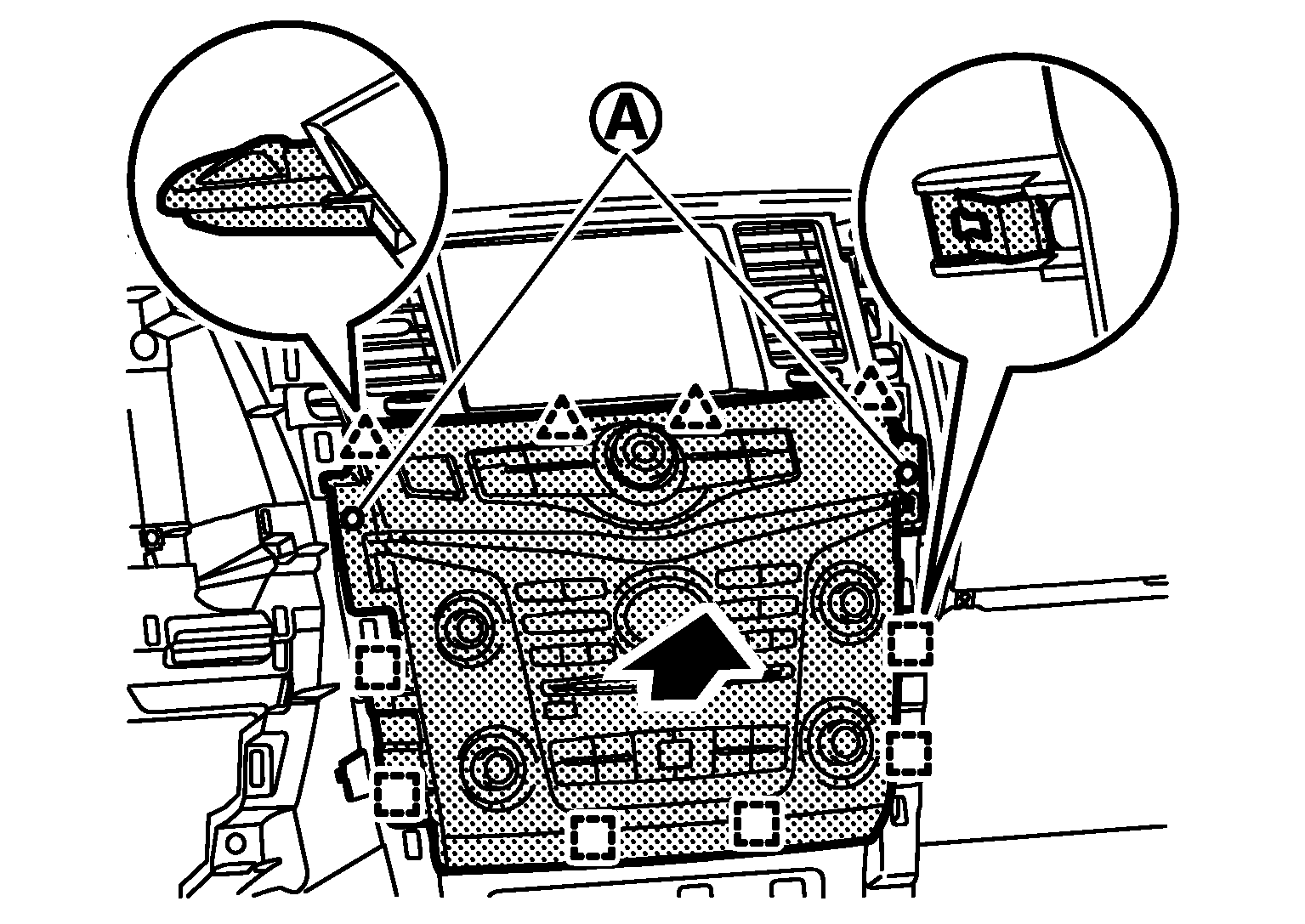

    GNSJMJIA4228ZZ-228Courtesy of NISSAN NORTH AMERICA, INC.
    1. Remove cluster lid C fixing screws (A).
    2. Pull back cluster lid C, and then disengage the pawls and metal clips.
    3. Disconnect harness connectors.
    SANKAKU-H : Pawl
    SHIKAKU-H : Metal Clip
  33. Remove cluster lid C lower.

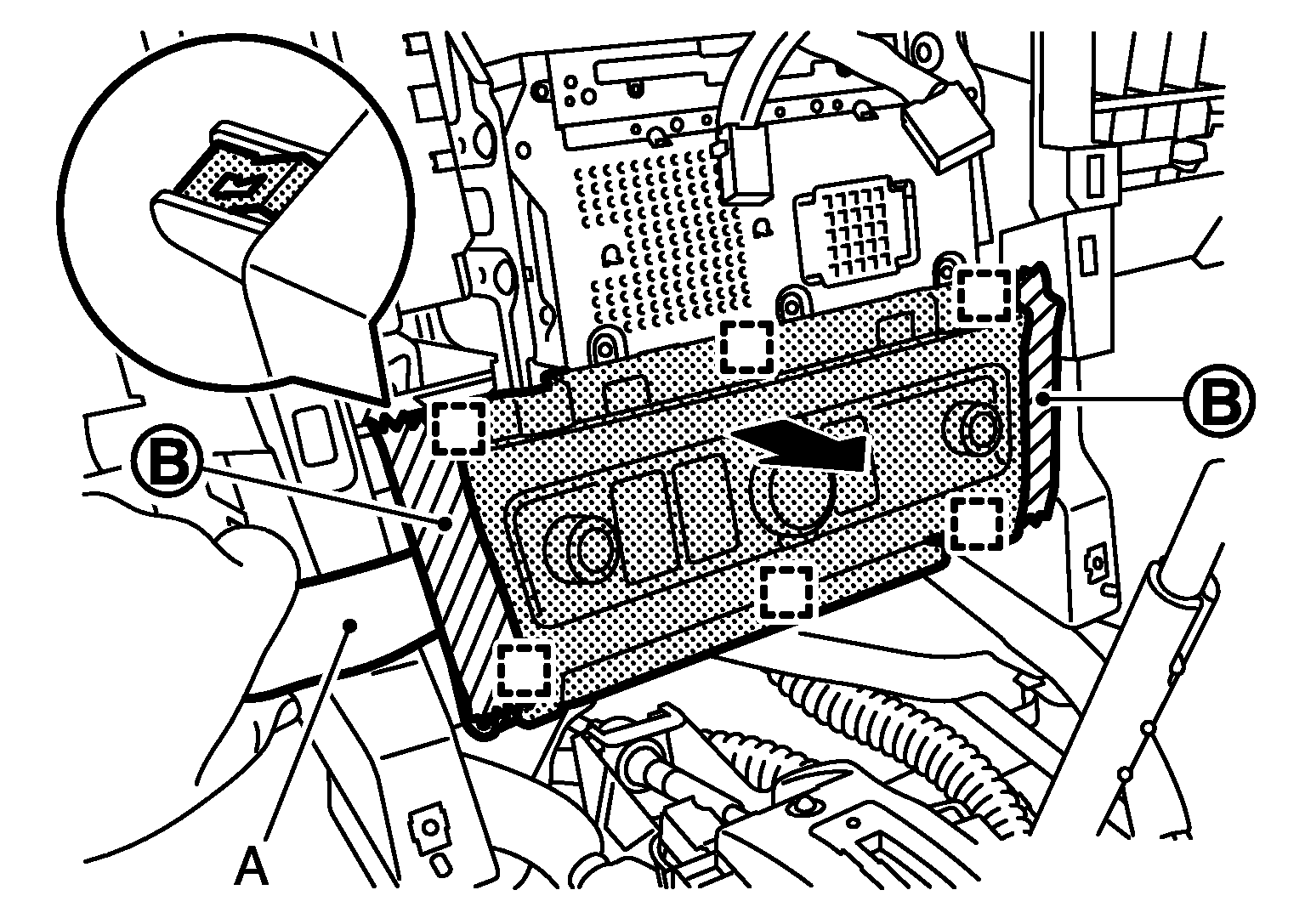

    GNSJMJIA3896ZZ-896Courtesy of NISSAN NORTH AMERICA, INC.
    1. Disengage cluster lid C lower fixing metal clips with remover tool (A).
    2. Pull back cluster lid C lower, and then disconnect harness connectors.
    CAUTION:

    Apply protective tape (B) on the part to protect it from damage.

    SHIKAKU-H : Metal Clip
    NOTE:

    When removing cluster lid C lower without removing center console.

    1. Disengage metal clips of lower side of cluster lid C lower using a remover tool (A).

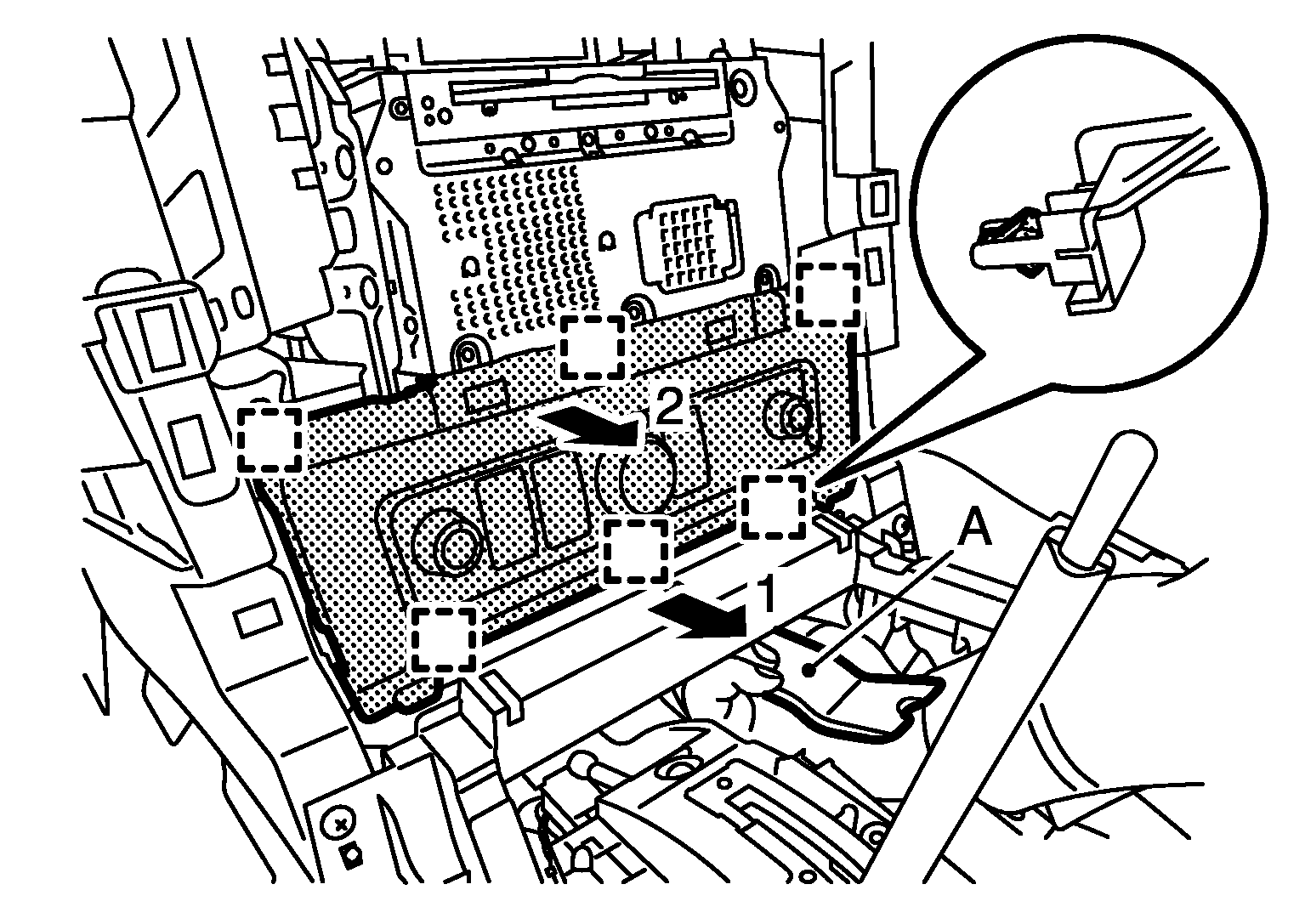

      GNSJMJIA3846ZZ-846Courtesy of NISSAN NORTH AMERICA, INC.
    2. Disengage metal clips of upper side of cluster lid C lower using a remover tool.
    3. Pull back cluster lid C lower, and then disconnect harness connectors.
    SHIKAKU-H : Metal clip
  34. Remove AV control unit. Refer to REMOVAL AND INSTALLATION .

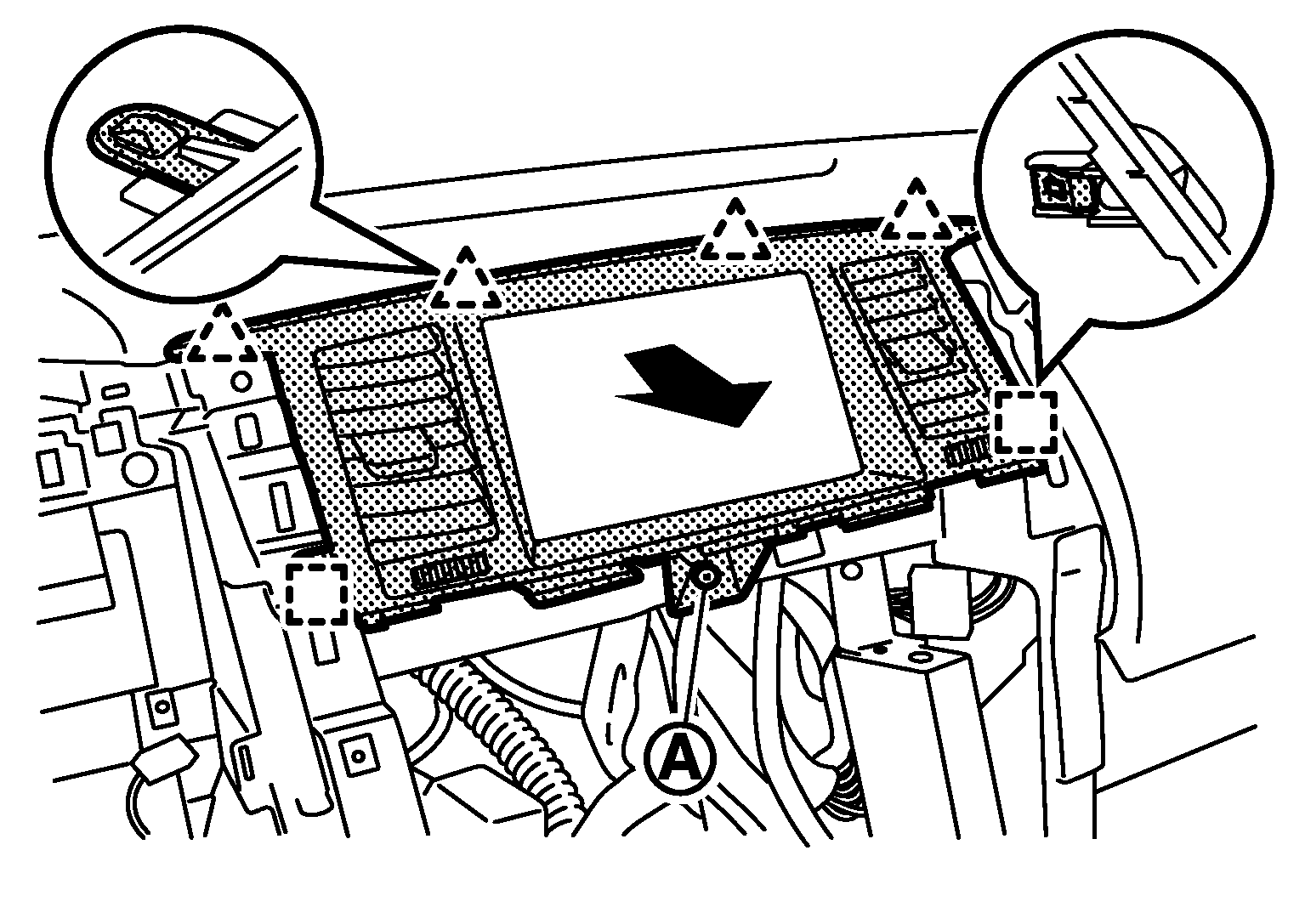

  35. Remove cluster lid D.
    1. Remove cluster lid D fixing screw (A).
      GNSJMJIA3847ZZ-847Courtesy of NISSAN NORTH AMERICA, INC.
    2. Pull back cluster lid D, and then disengage the pawls and metal clips.
    SANKAKU-H : Pawl
    SHIKAKU-H : Metal Clip
  36. Remove front display unit. Refer to REMOVAL AND INSTALLATION .
  37. Remove instrument panel assembly mounting screws (A) and bolts (B).

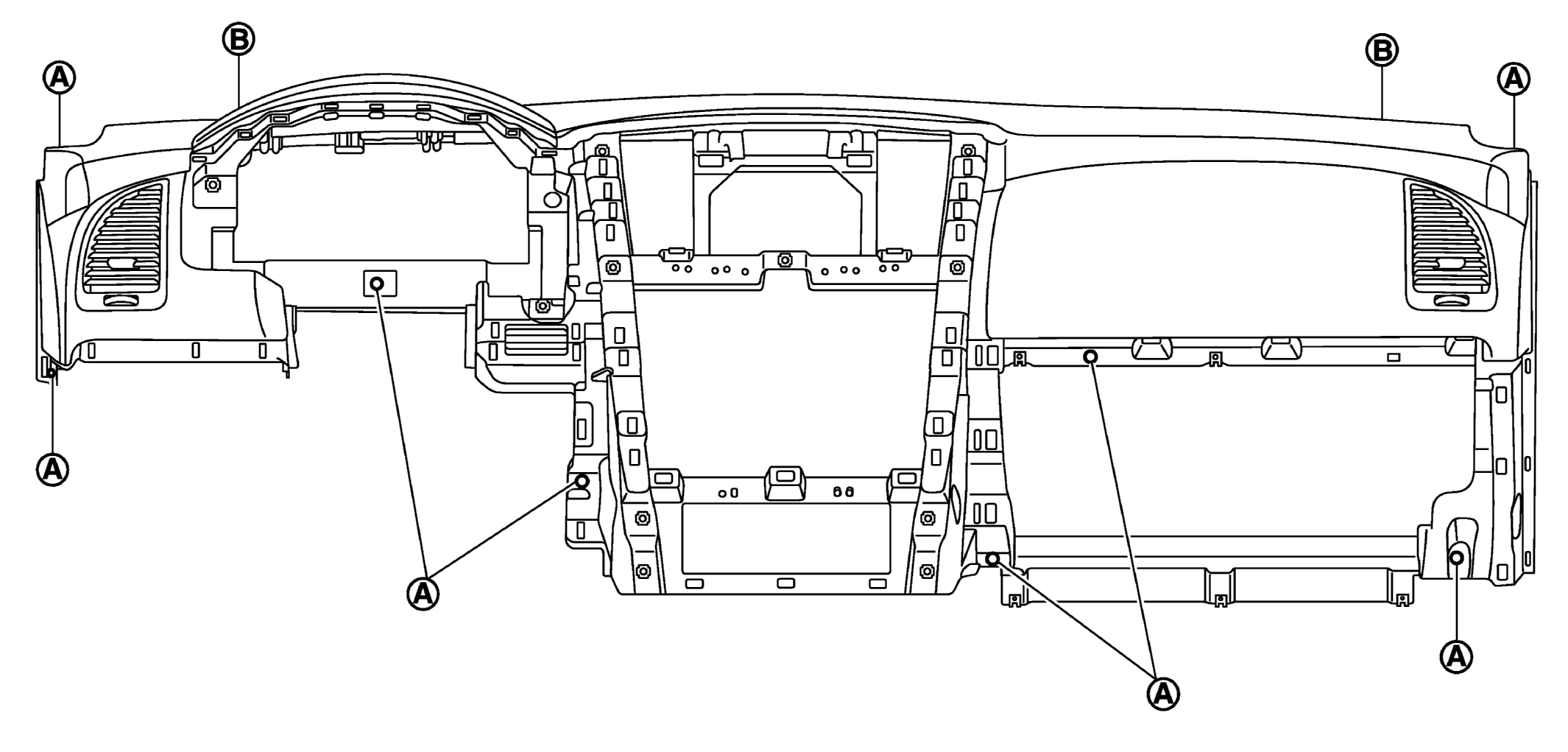

    G07025510Courtesy of NISSAN NORTH AMERICA, INC.
  38. Pull back instrument panel assembly, and then remove front squawker LH harness (1) fixing clip (A) from front ventilator duct (2).

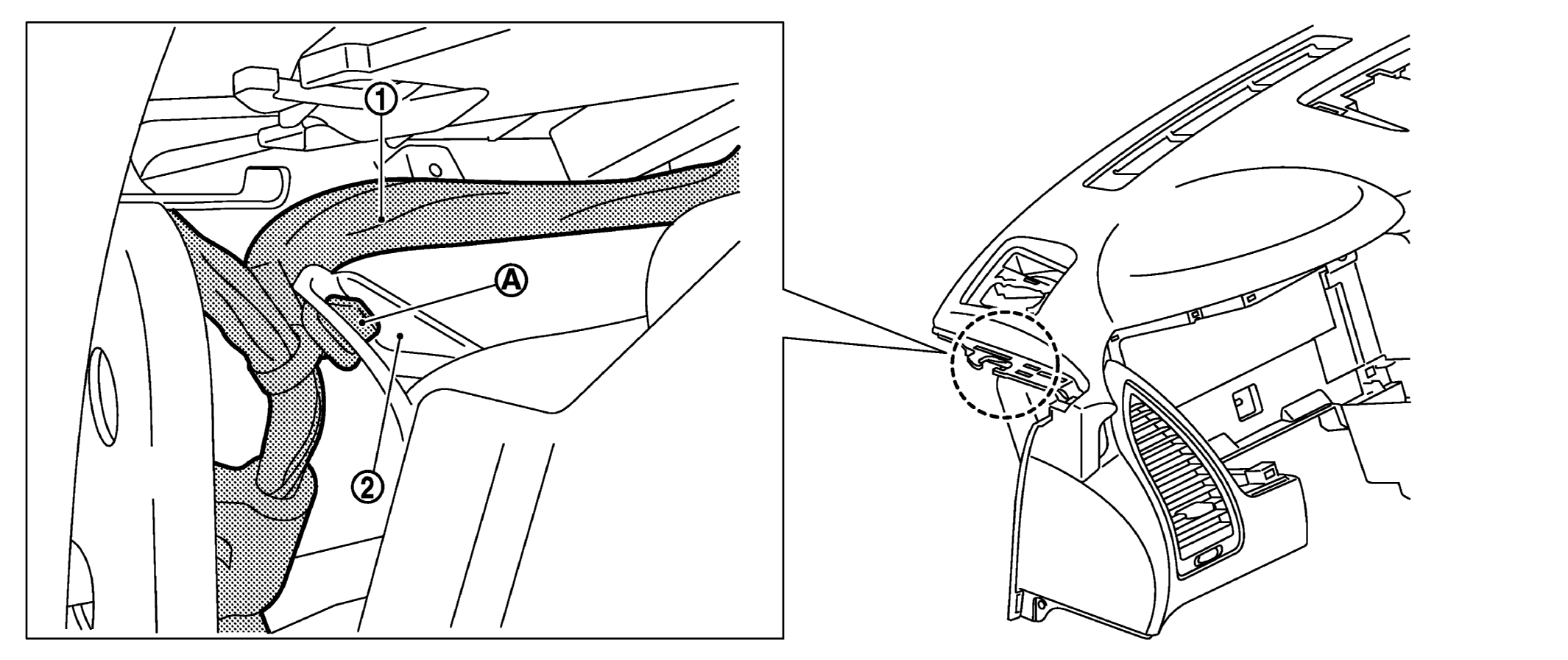

    G07025511Courtesy of NISSAN NORTH AMERICA, INC.
  39. Remove instrument panel from passenger door opening portion.
    CAUTION:
    • Cover tool with a shop cloth to prevent windshield glass from being damaged.
    • When removing instrument panel assembly, 2 workers are required so as to prevent it from dropping.
  40. Remove the following parts after removing instrument panel assembly.
