Rear Propeller Shaft: Inspection: Vibration

If vibration is present at high speed, inspect propeller shaft runout first.

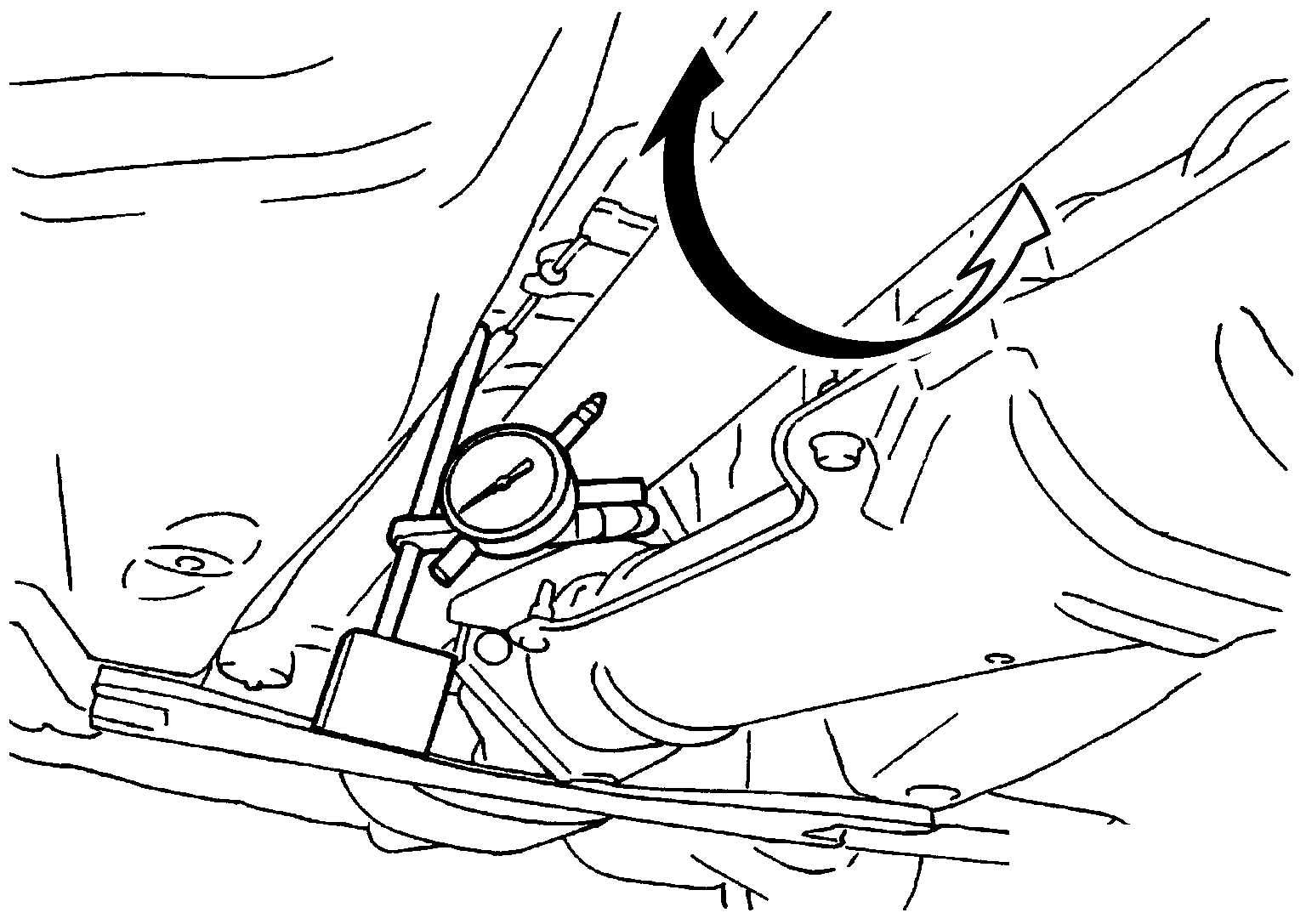

1. With a dial indicator, measure propeller shaft runout at runout measuring points by rotating final drive companion flange with hands.

   Courtesy of NISSAN NORTH AMERICA, INC.

   Propeller shaft runout

   : Refer to PROPELLER SHAFT RUNOUT .

   • Propeller shaft runout measuring point (Point " ")

     Courtesy of NISSAN NORTH AMERICA, INC.

     : Vehicle front

     Dimension	A : 162 mm (6.38 in)
     	B : 245 mm (9.65 in)
     	C : 185 mm (7.28 in)

2. If runout still exceeds specifications, separate propeller shaft at final drive companion flange or transfer companion flange; then change the phase between companion flange and propeller shaft by the one bolt hole at a time and install propeller shaft.
3. If runout is more than the limit value, remove and check propeller shaft.
4. Check the vibration by driving vehicle.
