Wiring Diagram - Integrated HOMELINK Transmitter System -

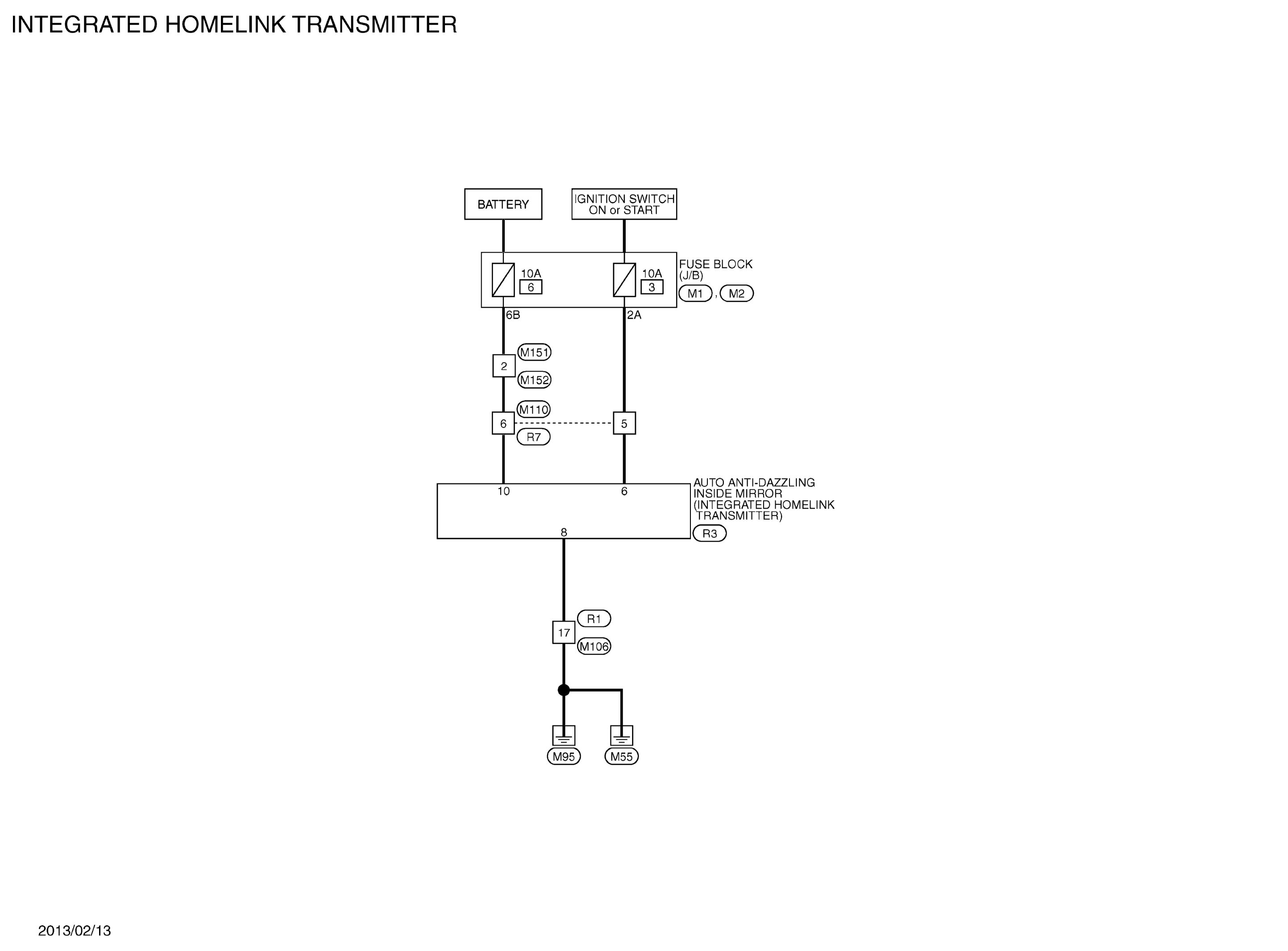

G09503355

Courtesy of NISSAN NORTH AMERICA, INC.

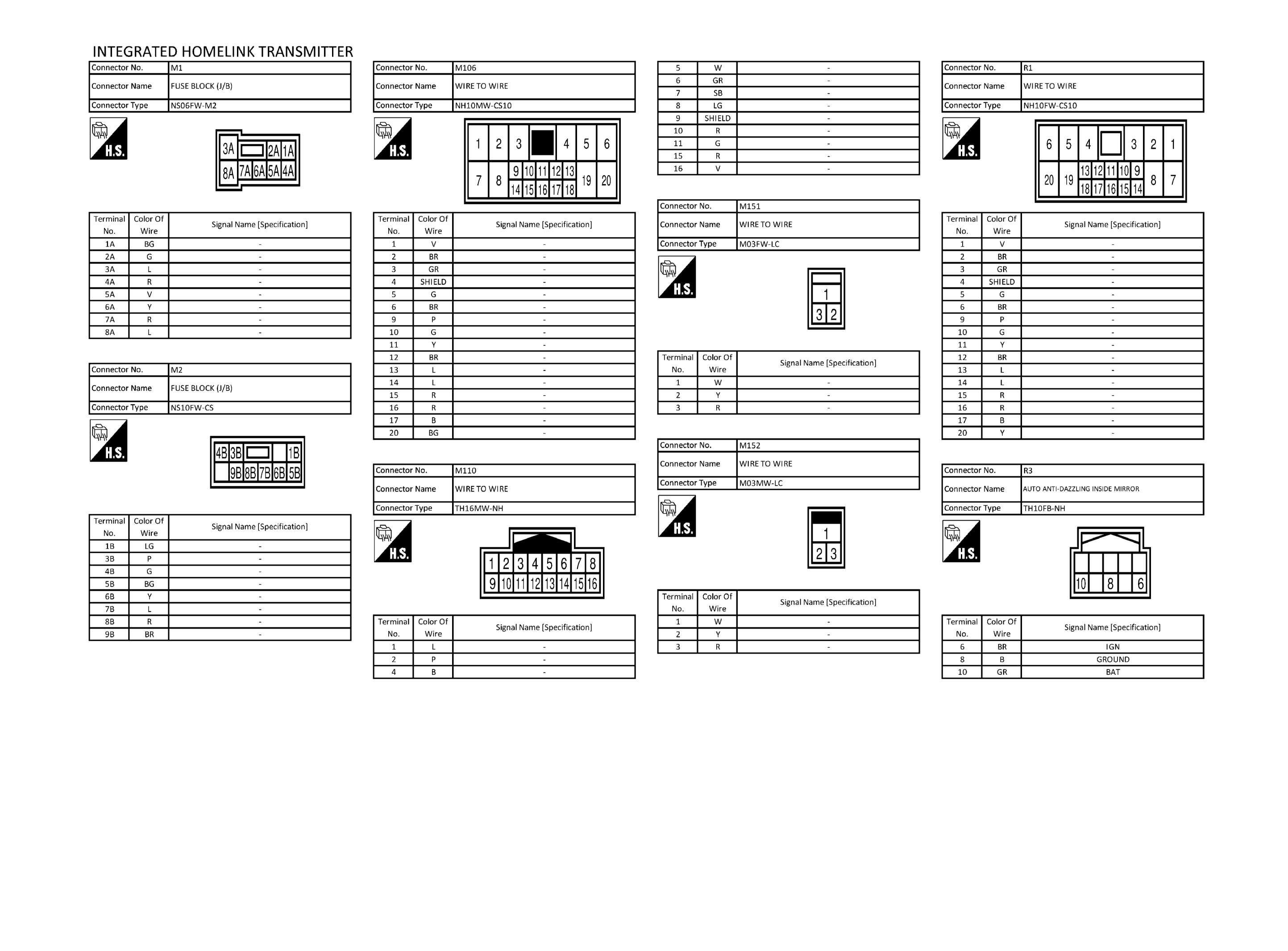

GNSJRKWF0447GB-447

Courtesy of NISSAN NORTH AMERICA, INC.

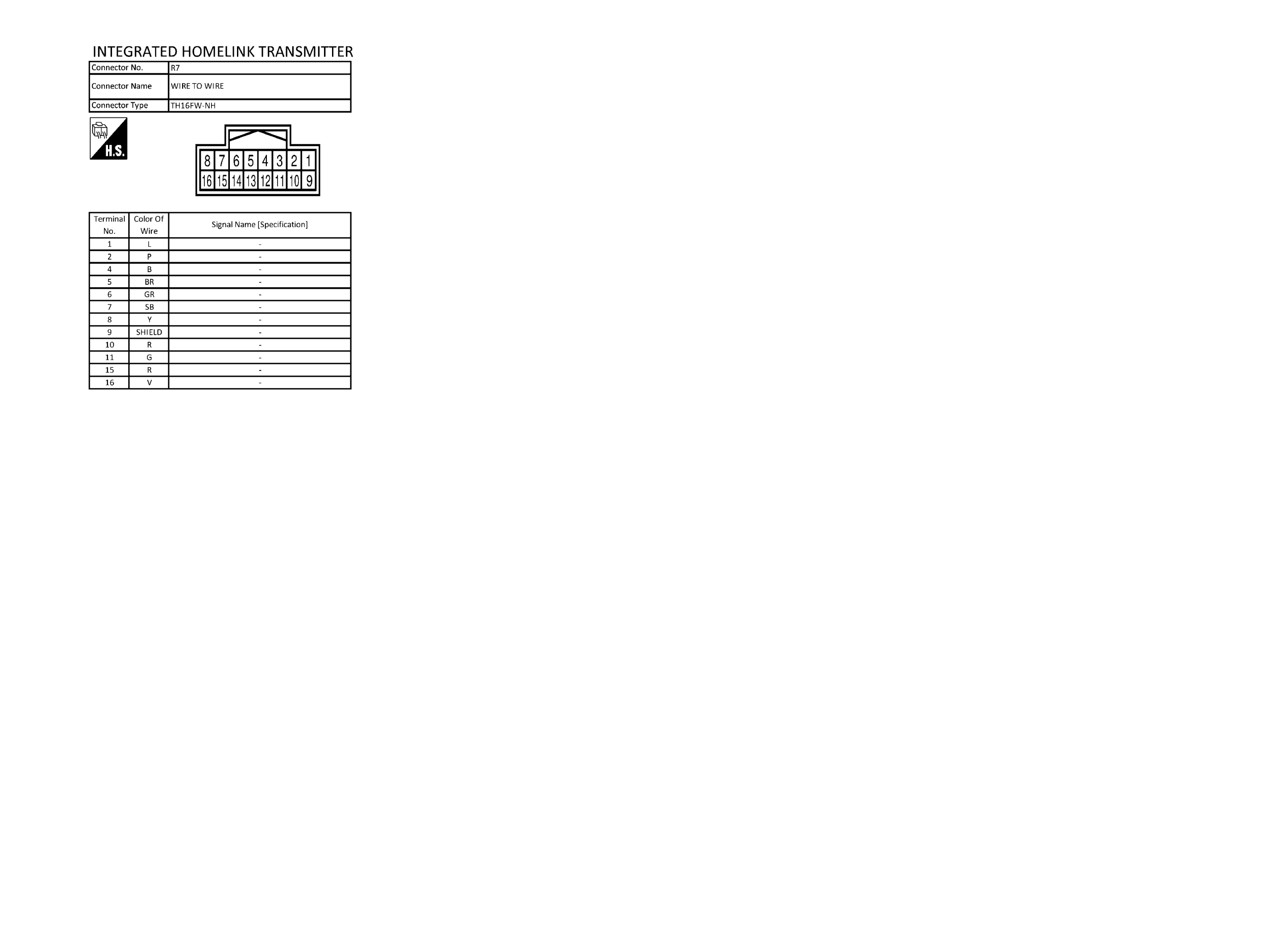

GNSJRKWF0448GB-448

Courtesy of NISSAN NORTH AMERICA, INC.
