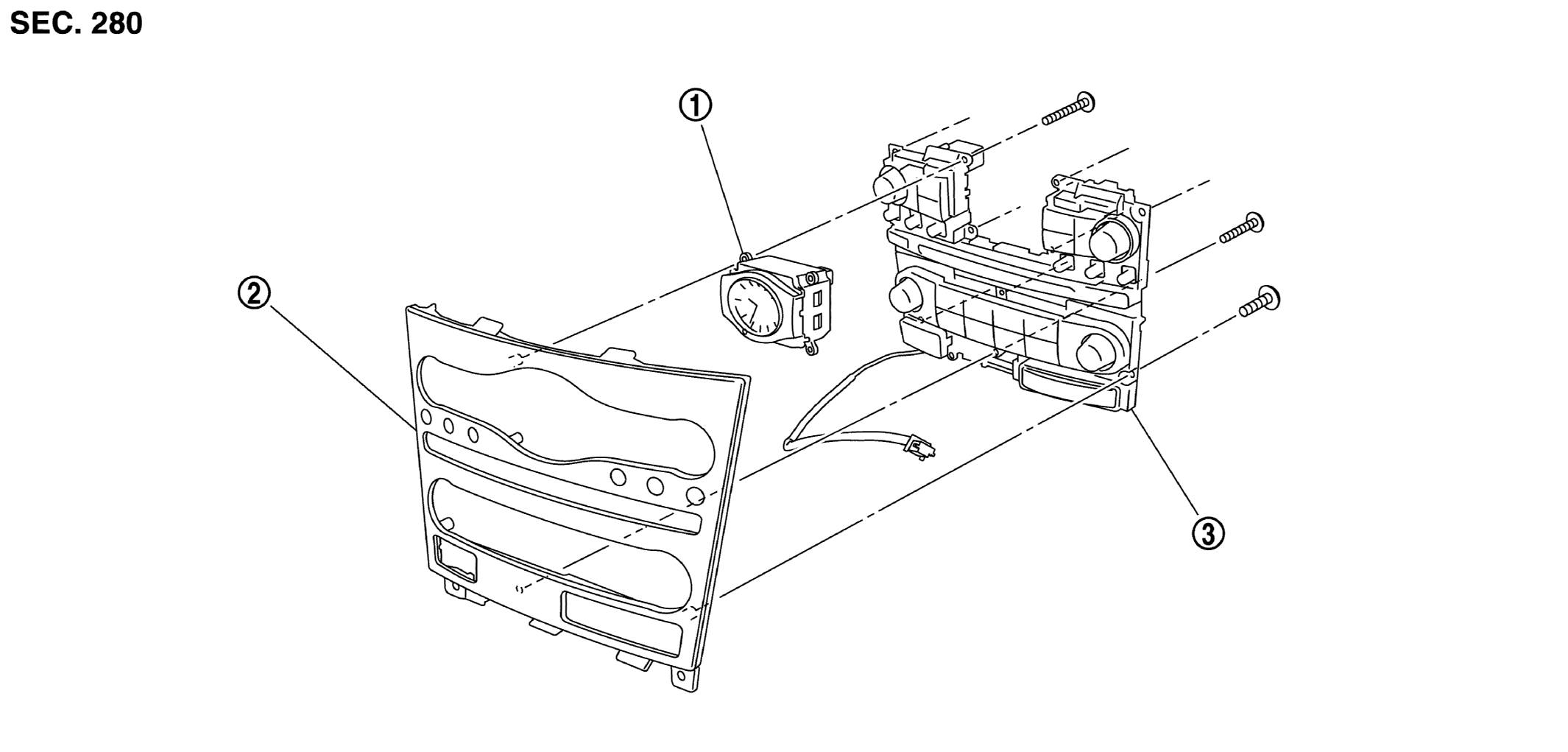

Exploded View With Torque Specifications

GNSJSNIA0107ZZ-107

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Clock

2.

Cluster lid C

3.

Preset switch
