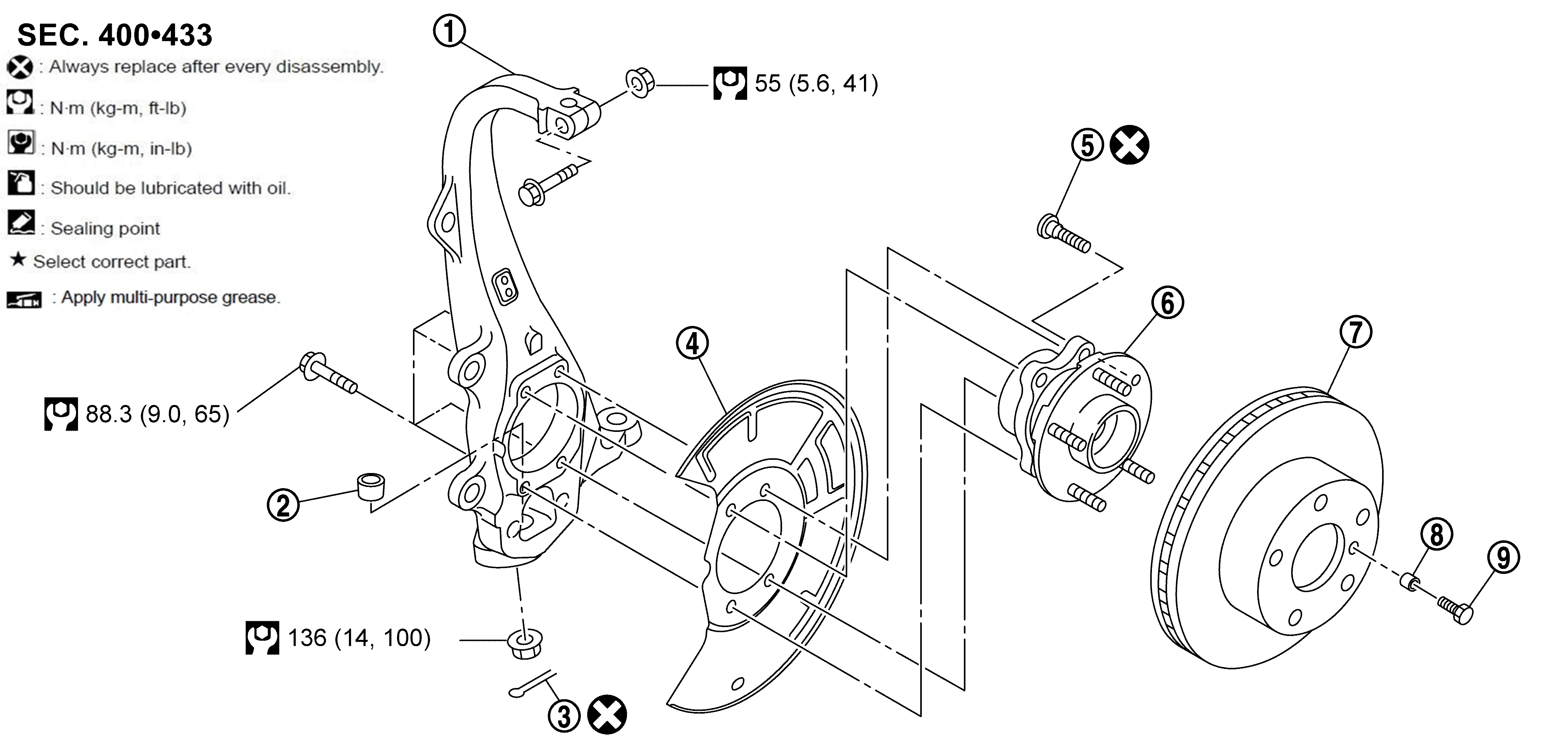

Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

	Steering knuckle	Ball seat	Cotter pin
	Splash guard	Hub bolt	Wheel hub and bearing assembly
	Disc rotor	Spacer (VR30DDTT)	Special pin (VR30DDTT)
: N•m (kg - m, ft - lb)
: Always replace after every disassembly.
