Microphone (For Hands-Free Phone/Voice Recognition)

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Microphone is installed on the map lamp assembly.

Courtesy of NISSAN NORTH AMERICA, INC.

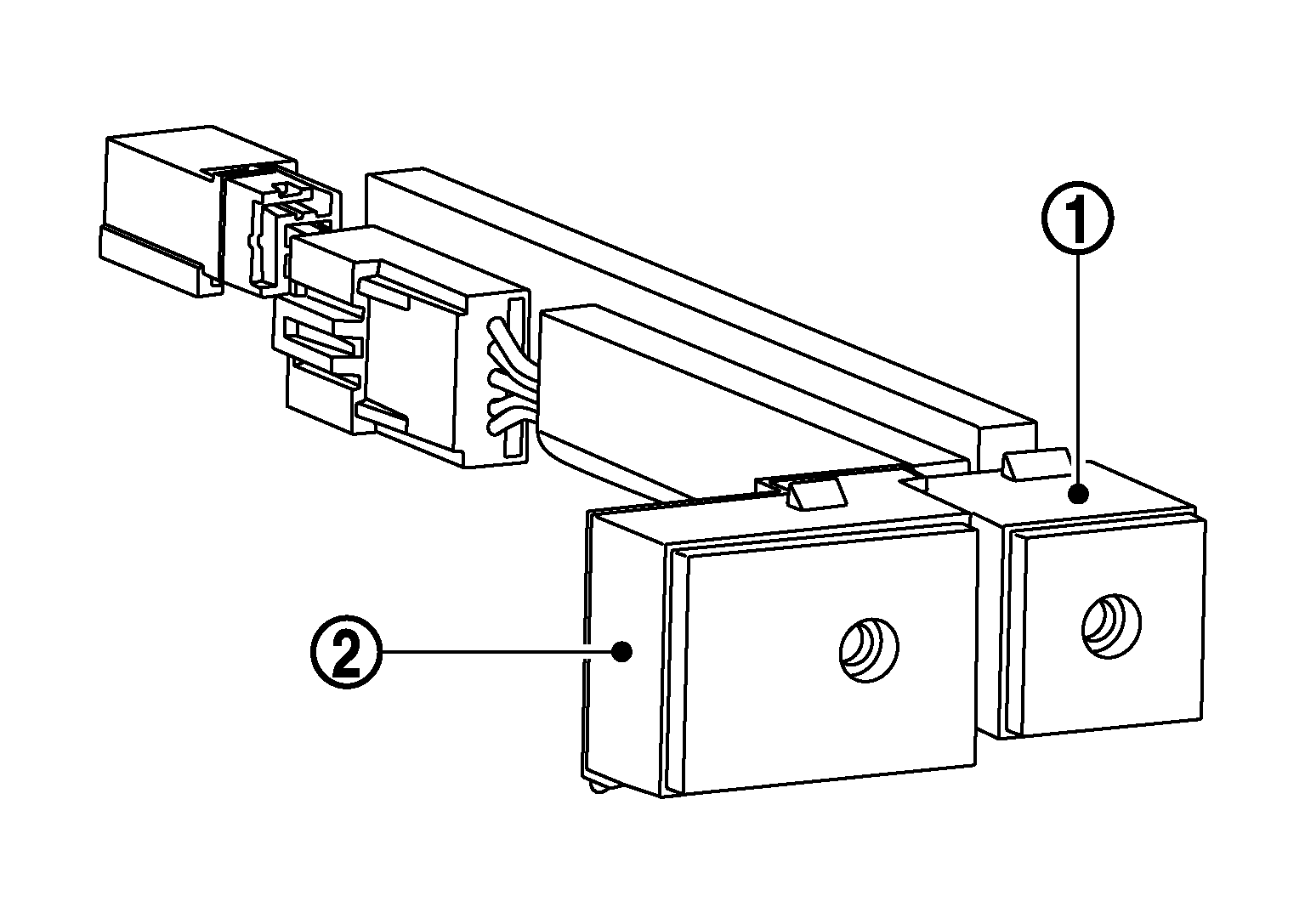

	Microphone (for hands-free phone/voice recognition)
	Front microphone (active noise cancellation)

The microphone is used for the operator system of CARWINGS, hands-free phone system, voice recognition function.
The power is supplied from the TCU to the microphone, transmitting sound signals to the TCU at the during operator system of CARWINGS, hands-free phone communication, and voice recognition.
