MULTIFUNCTION Switch

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

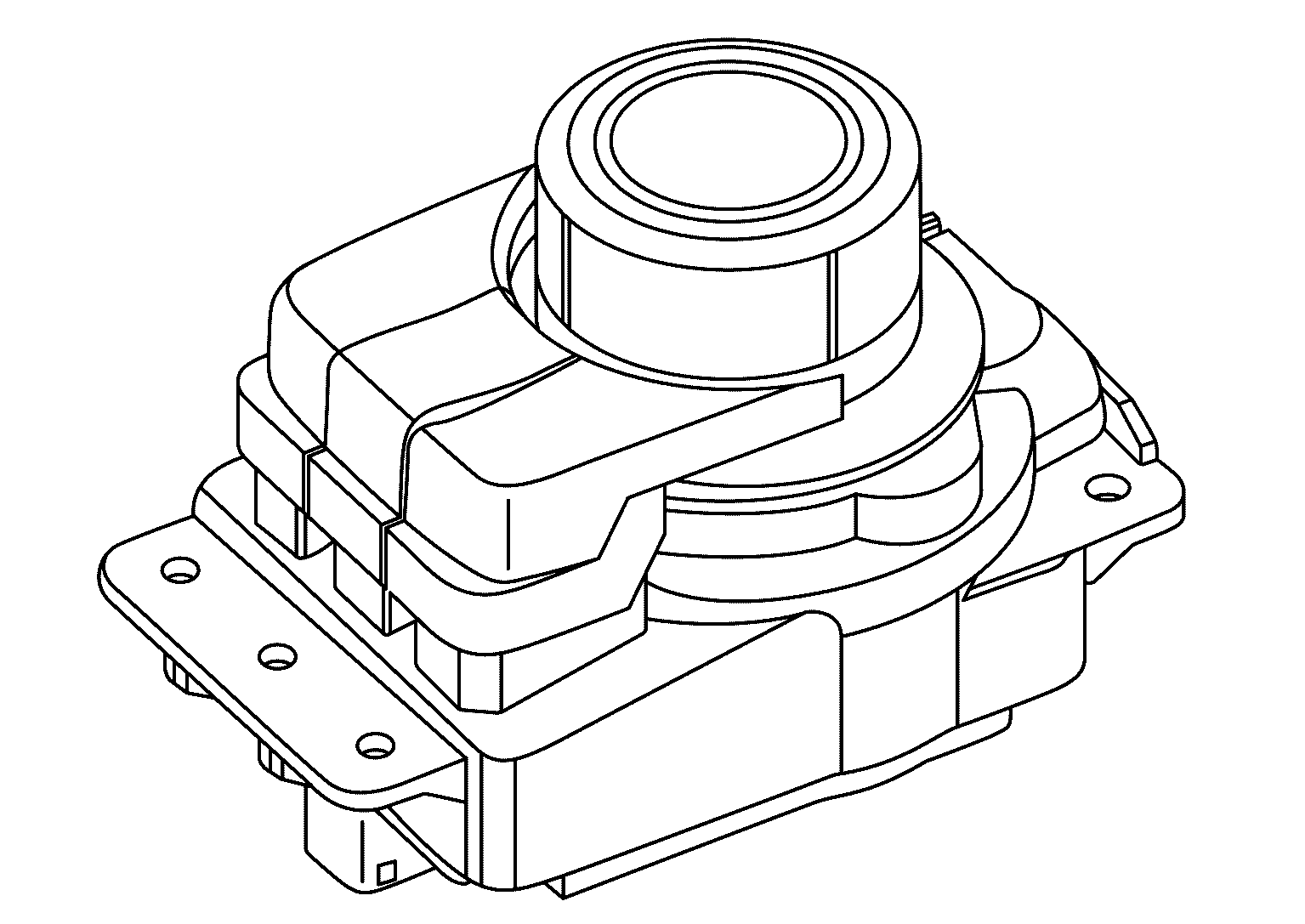

Multifunction switch is located on the center console.

Courtesy of NISSAN NORTH AMERICA, INC.
Display of the display control unit can be operated.
The multifunction switch is connected to the integral switch and a switch operation signal is transmitted to the display control unit by way of the integral switch via AV communication.
NOTE:
Camera switch signal is transmitted to the display control unit by way of the integral switch via hard wire.
