Component Location

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

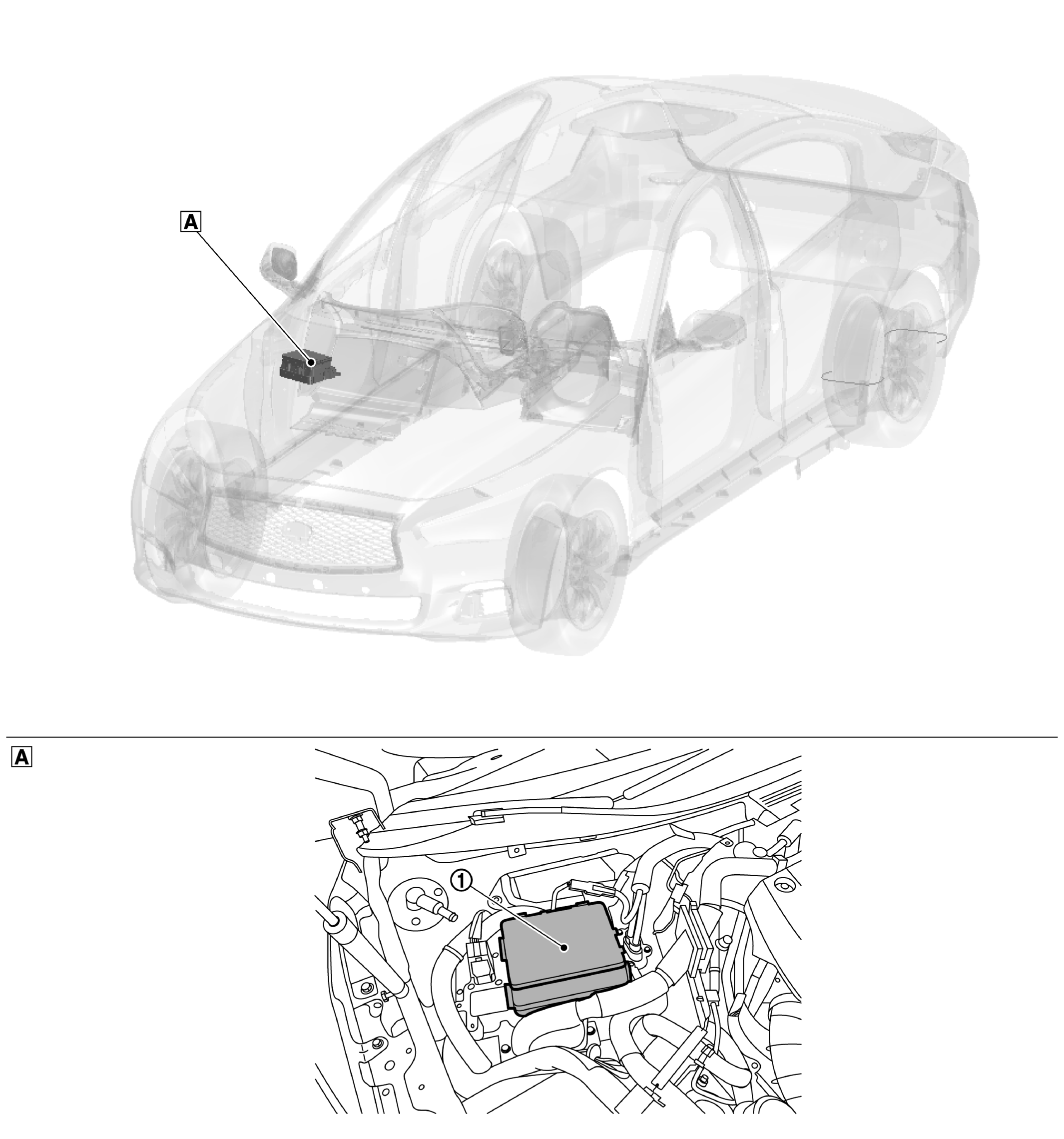

GNSJMMIA1451ZZ-451Courtesy of NISSAN NORTH AMERICA, INC.
WZ-A Engine room dash panel
WHITE-1 IPDM E/R
