Hood Lock: Inspection

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If the hood lock control cable is bent or deformed, replace it.

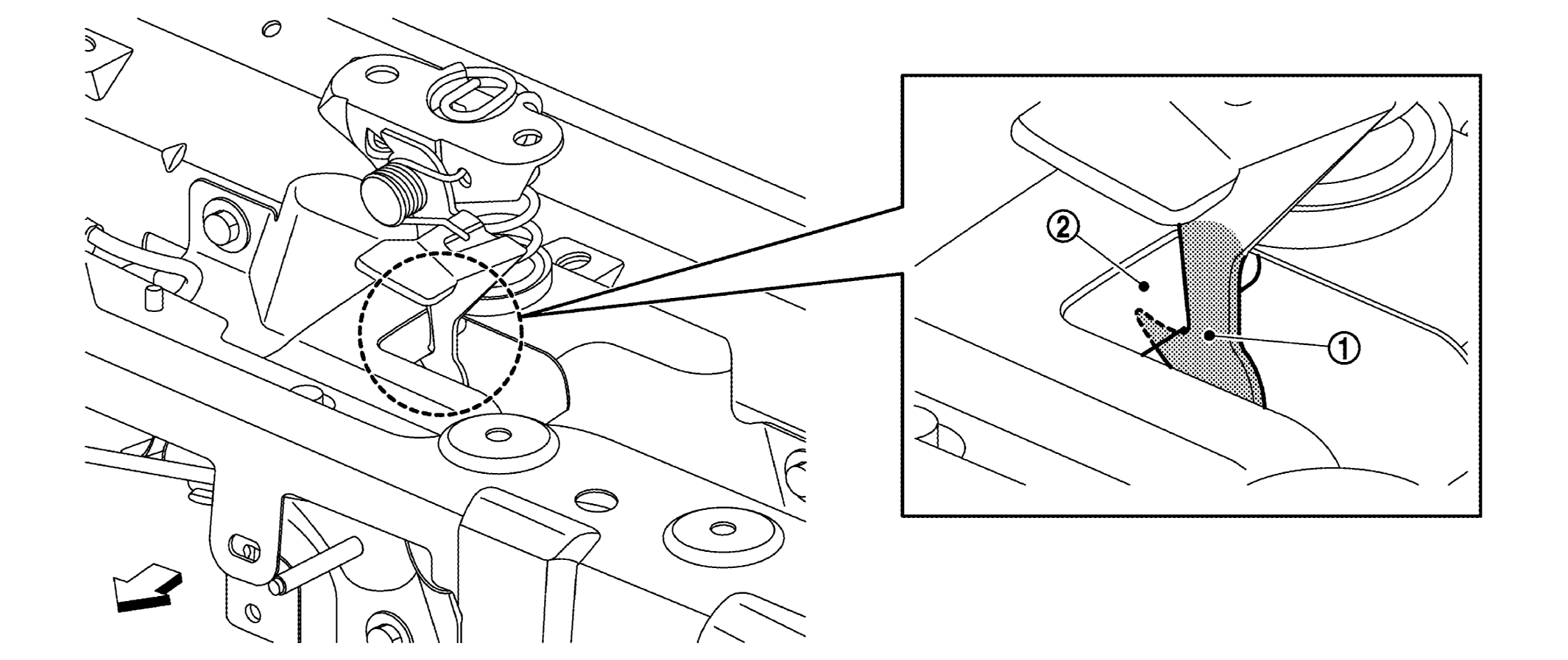

Check that secondary latch is securely engaged with hood lock support stay from the dead load of the hood assembly.

Courtesy of NISSAN NORTH AMERICA, INC.

: Vehicle front

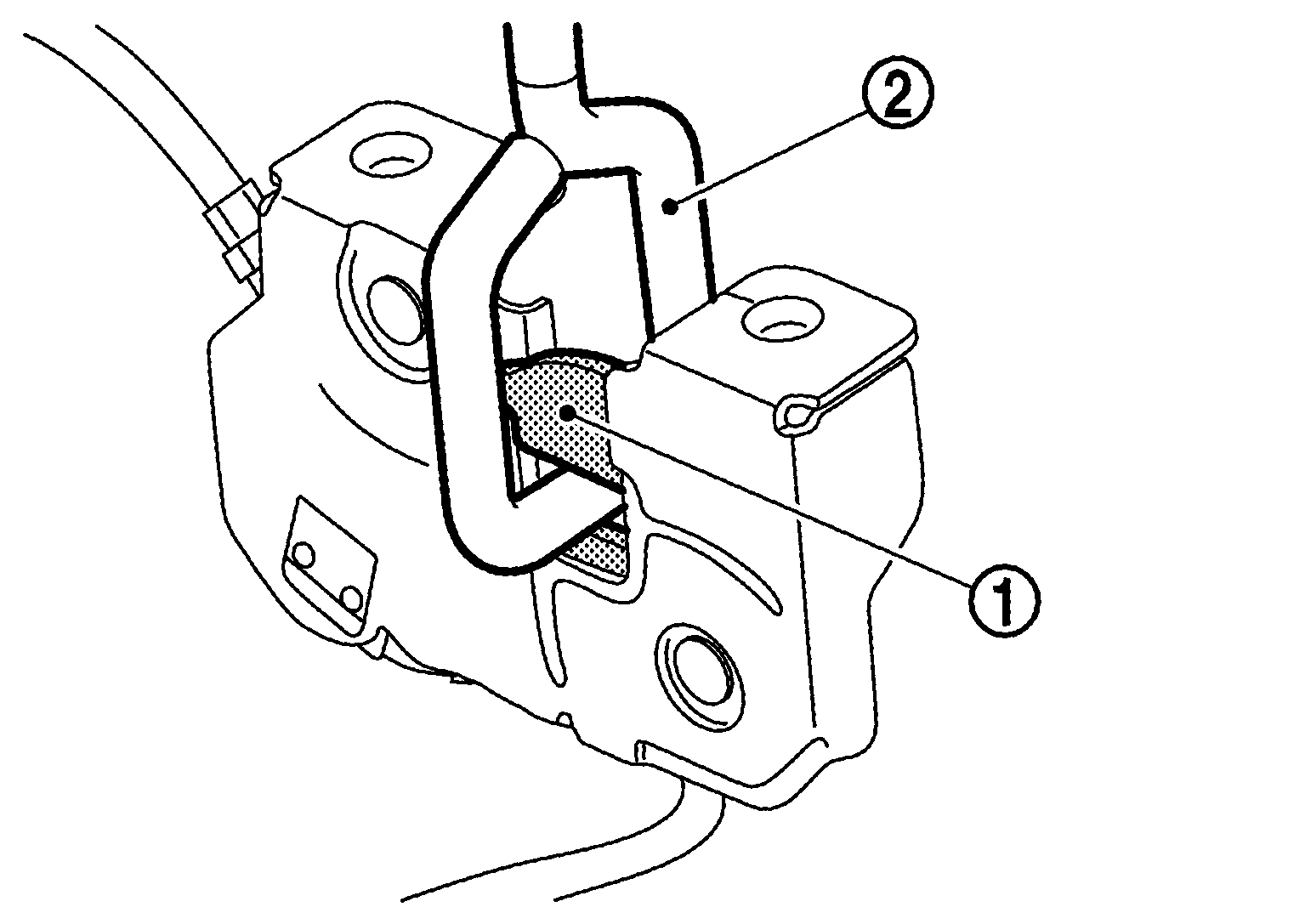

Check that primary latch is securely engaged with hood lock striker when hood assembly is closed (when close it in 1.5 m/sec at the latest).

Courtesy of NISSAN NORTH AMERICA, INC.
While operating the hood opener carefully, check that the front end of the hood is lifted by approximately 20 mm (0.787 in) (A). Also, check that the hood opener returns to the original position.

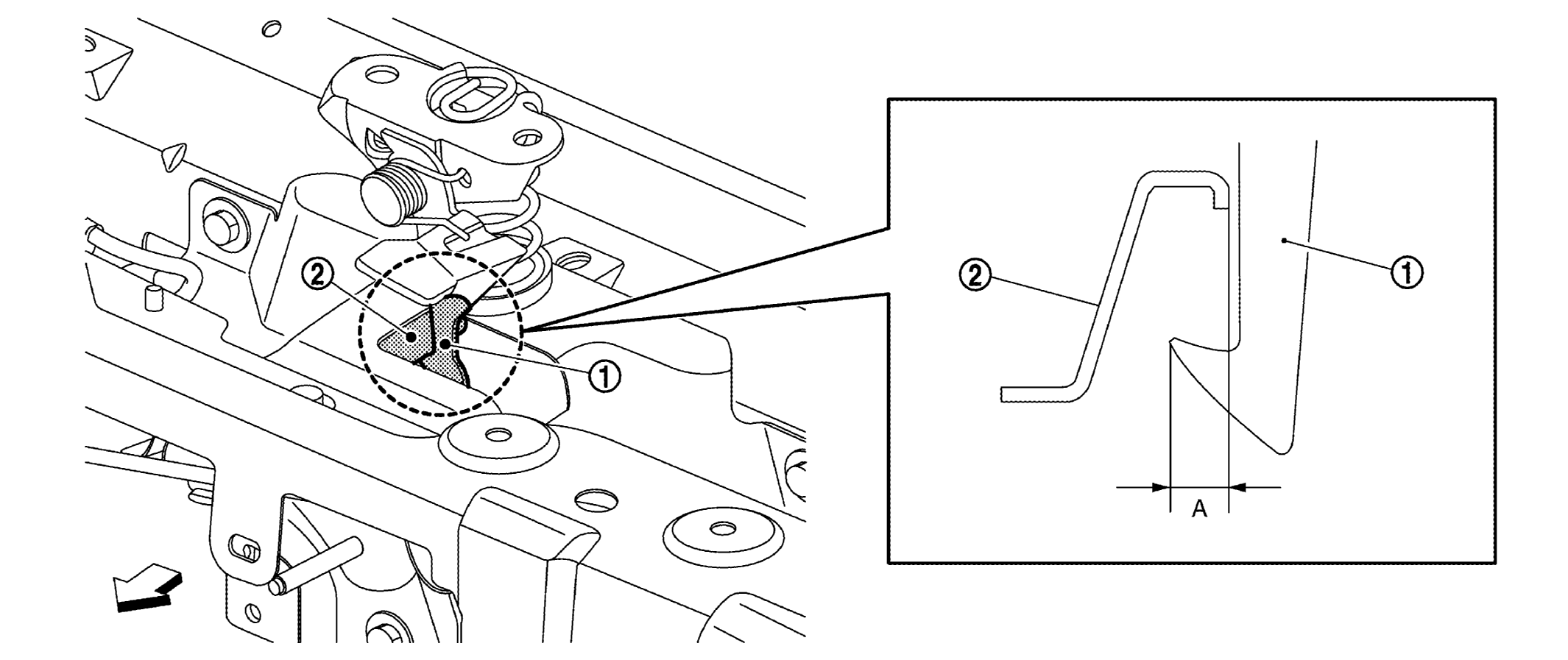

Check that secondary latch is properly engaged with hood lock support stay [6.8 mm (0.268 in) MIN] (A).

Courtesy of NISSAN NORTH AMERICA, INC.

: Vehicle front
Check that the tension of hood opener lever is less than 49.0 N (5.0 kg, 11.02 lb).

Check hood lock and hood lock control secondary assembly lubrication condition. If necessary, apply body grease.

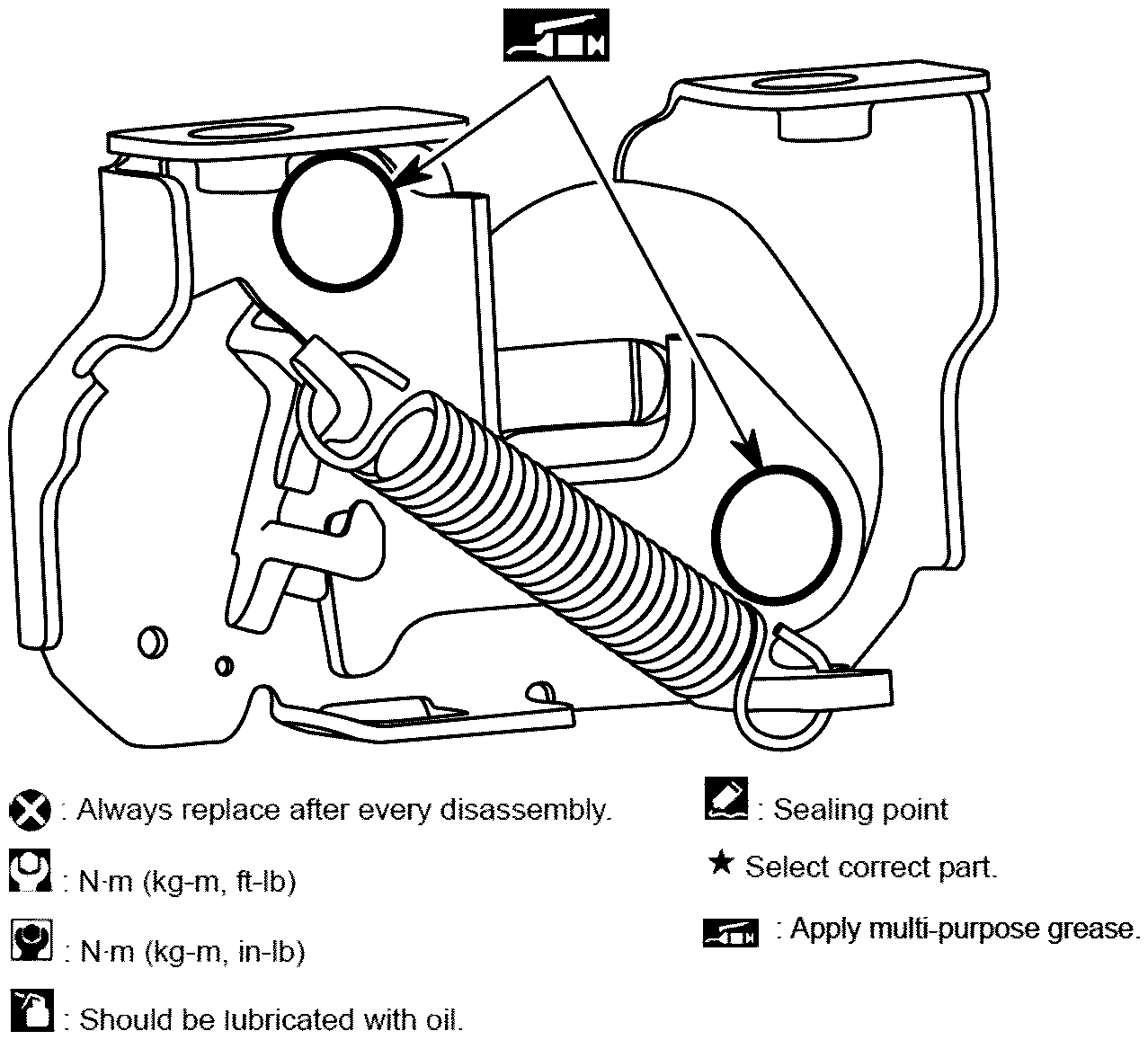

Hood lock

Courtesy of NISSAN NORTH AMERICA, INC.

: Body grease

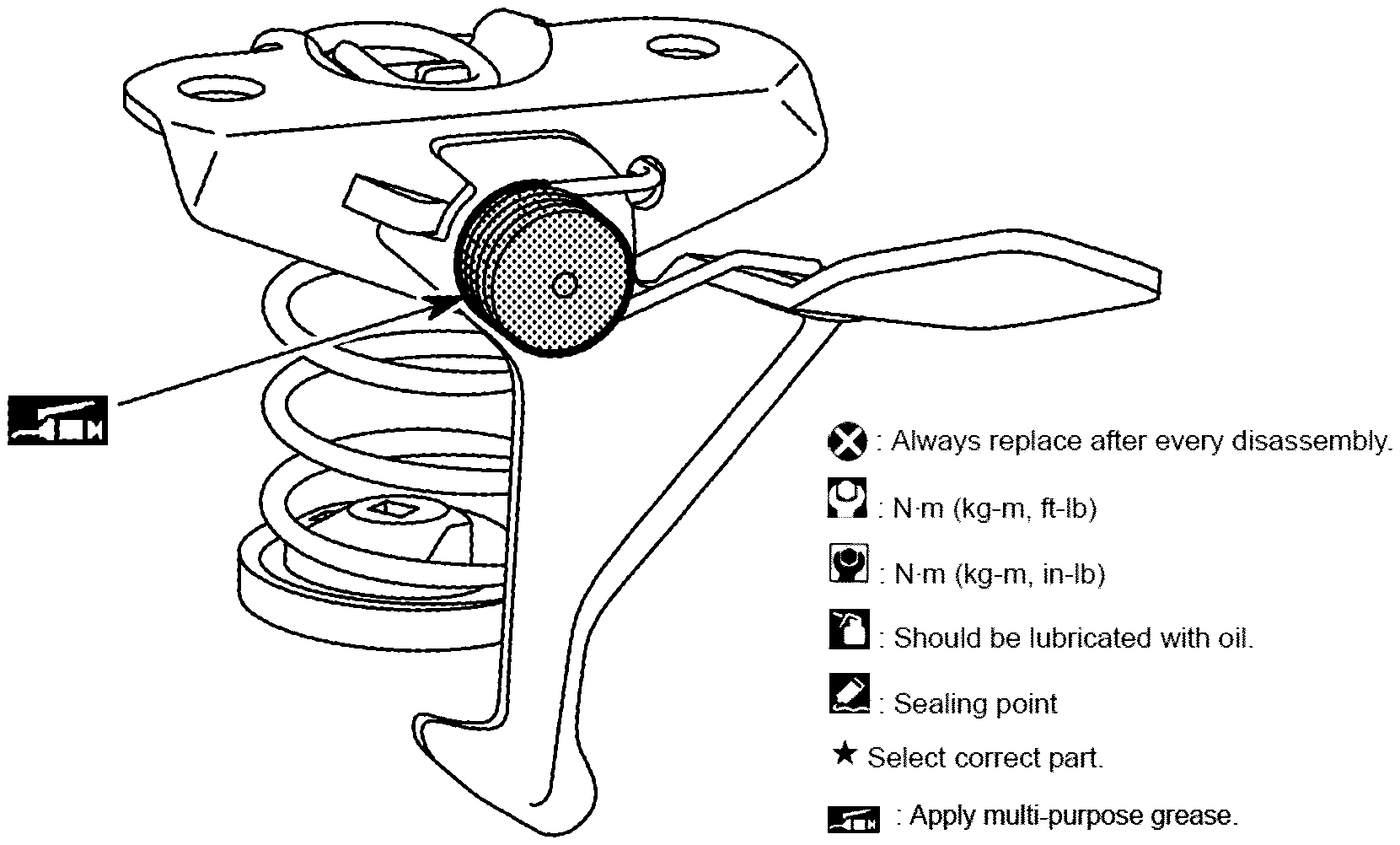

Hood lock control secondary assembly

Courtesy of NISSAN NORTH AMERICA, INC.

: Body grease
