Circuit Diagram

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

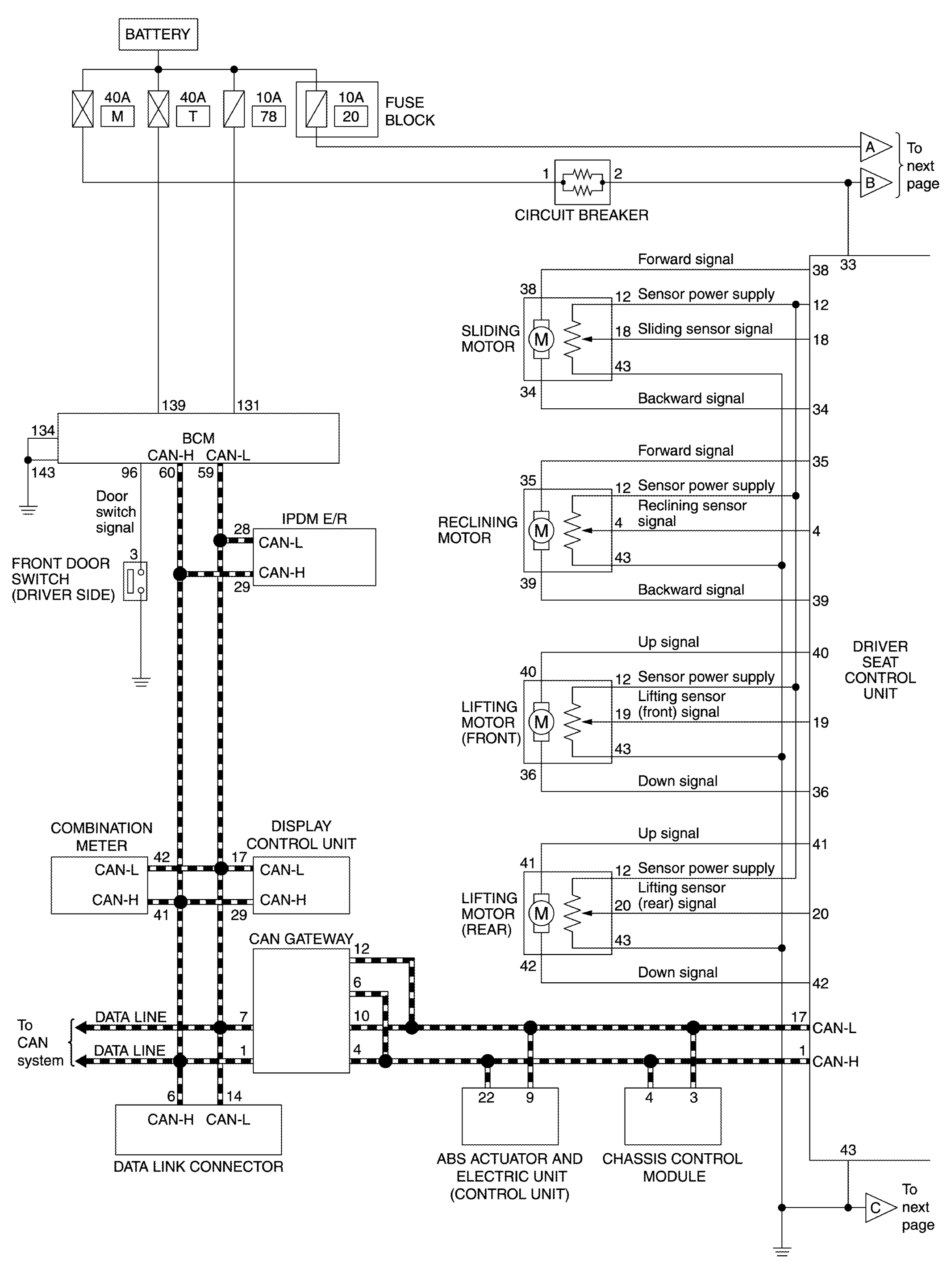

G09168892Courtesy of NISSAN NORTH AMERICA, INC.

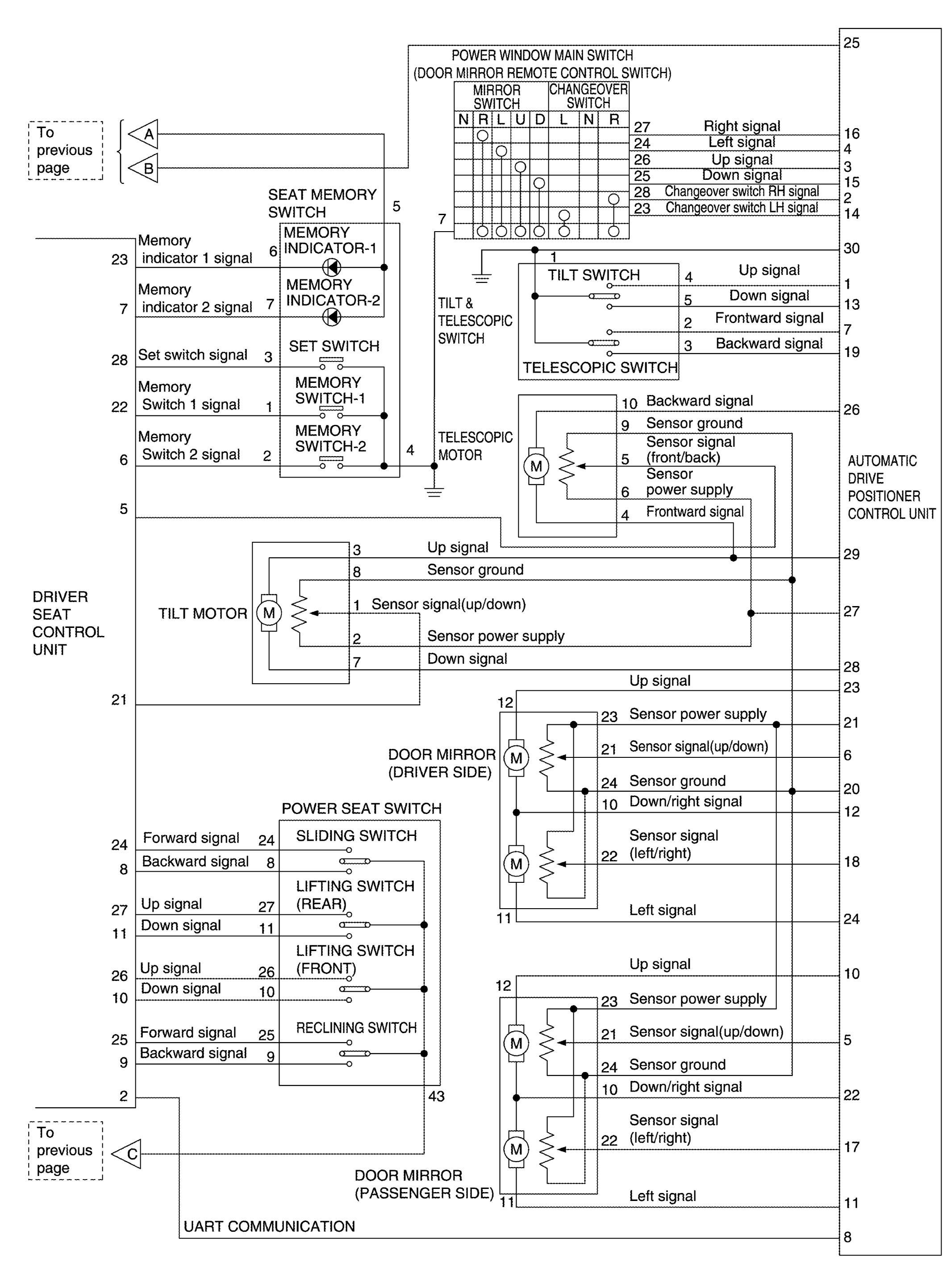

G09168893Courtesy of NISSAN NORTH AMERICA, INC.

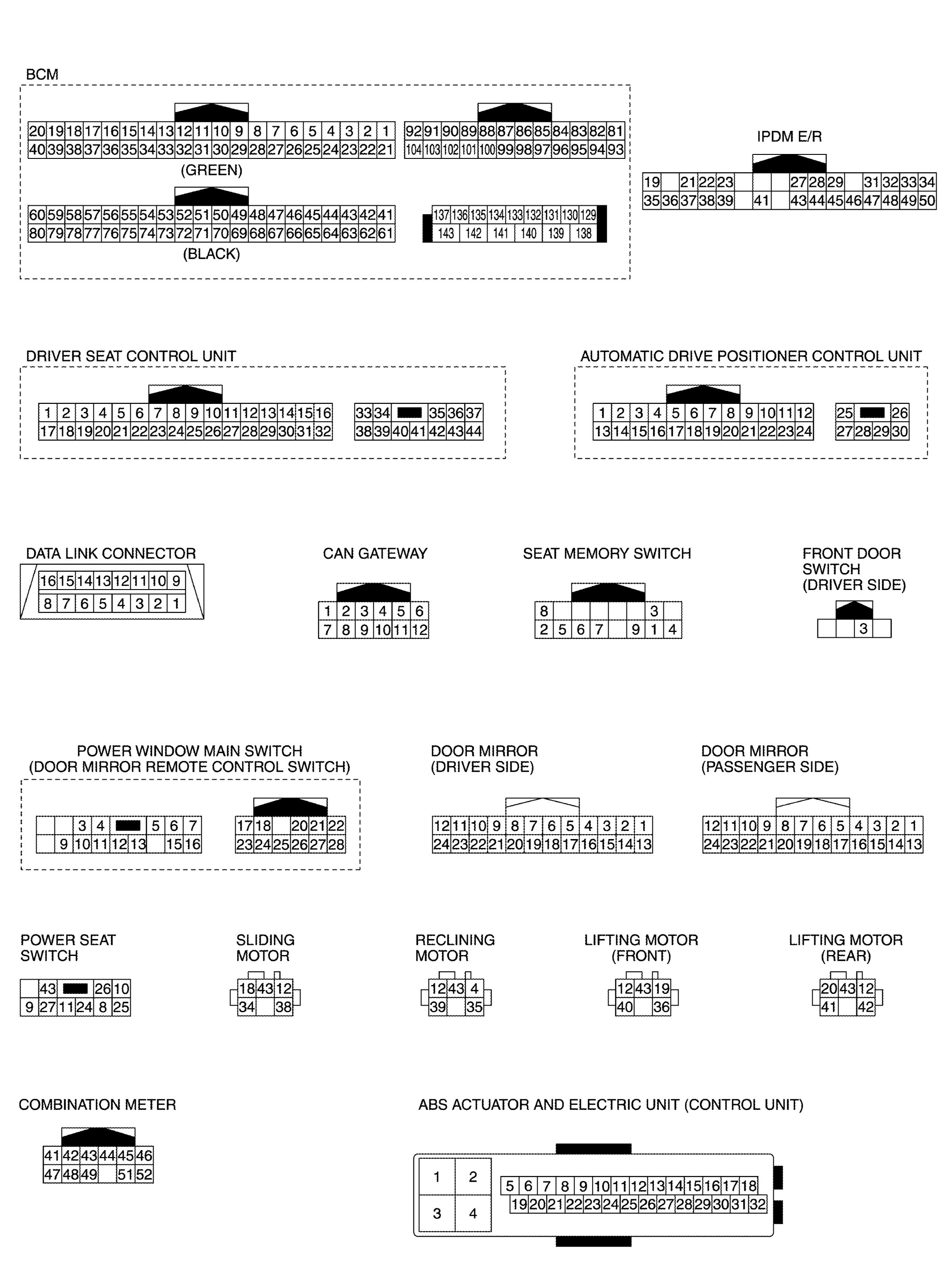

G09168894Courtesy of NISSAN NORTH AMERICA, INC.

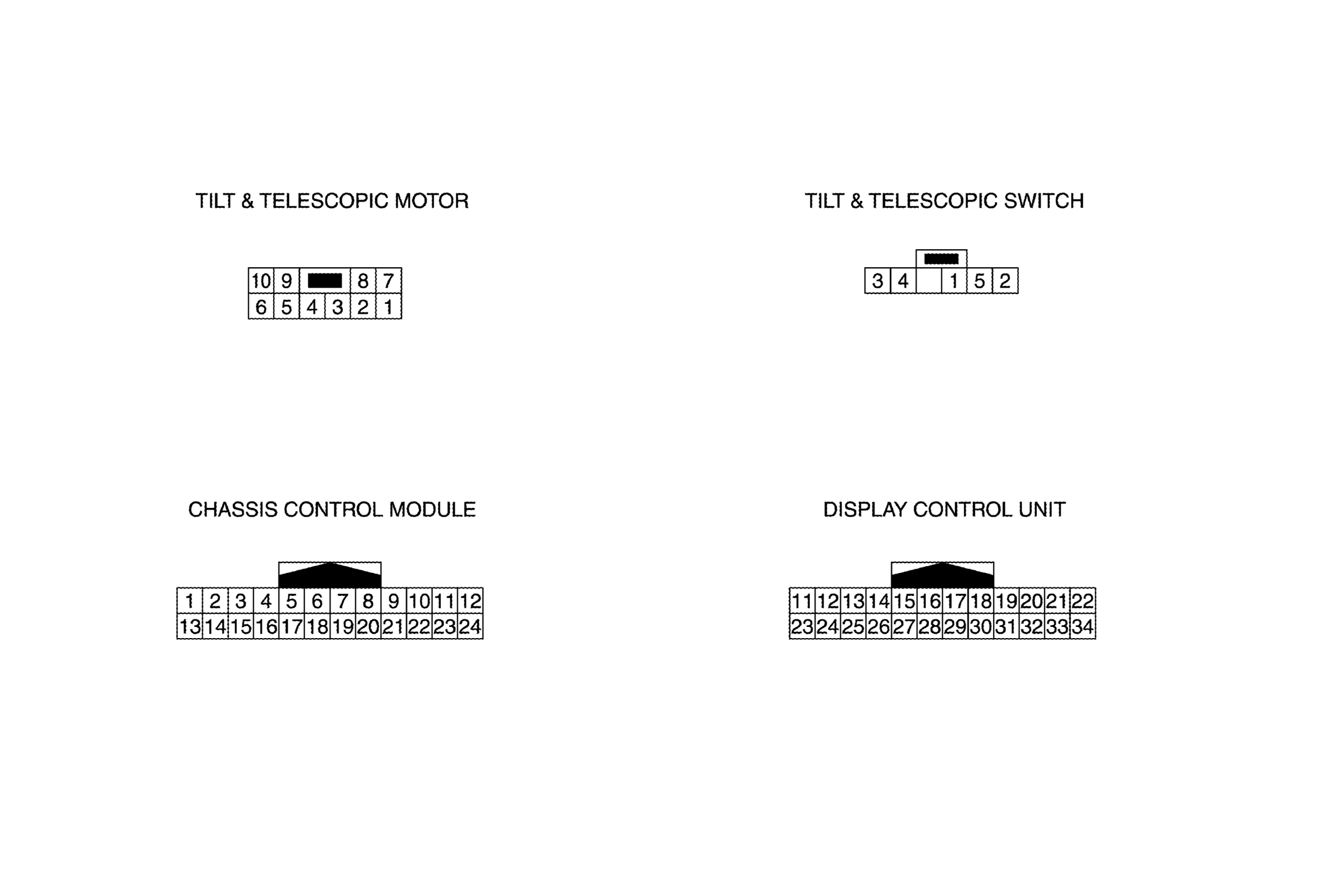

G09159481Courtesy of NISSAN NORTH AMERICA, INC.
