Removal And Installation: Removal

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front door finisher LH. Refer to REMOVAL AND INSTALLATION .

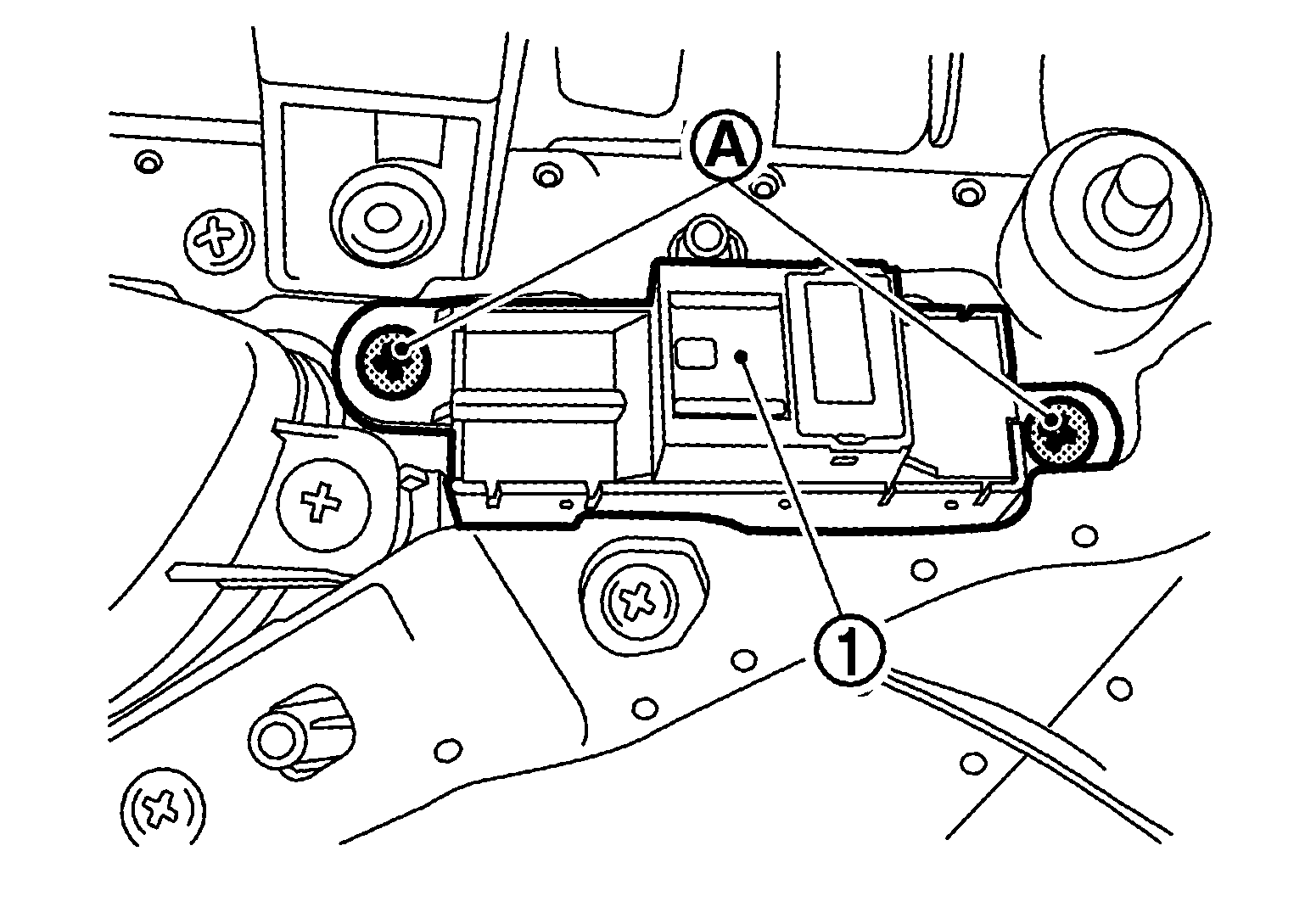

    G09159519Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove mounting screws MARU-A-W .
  3. Remove seat memory switch WHITE-1 .
