Wiring Diagram - Automatic Drive Positioner Control System -

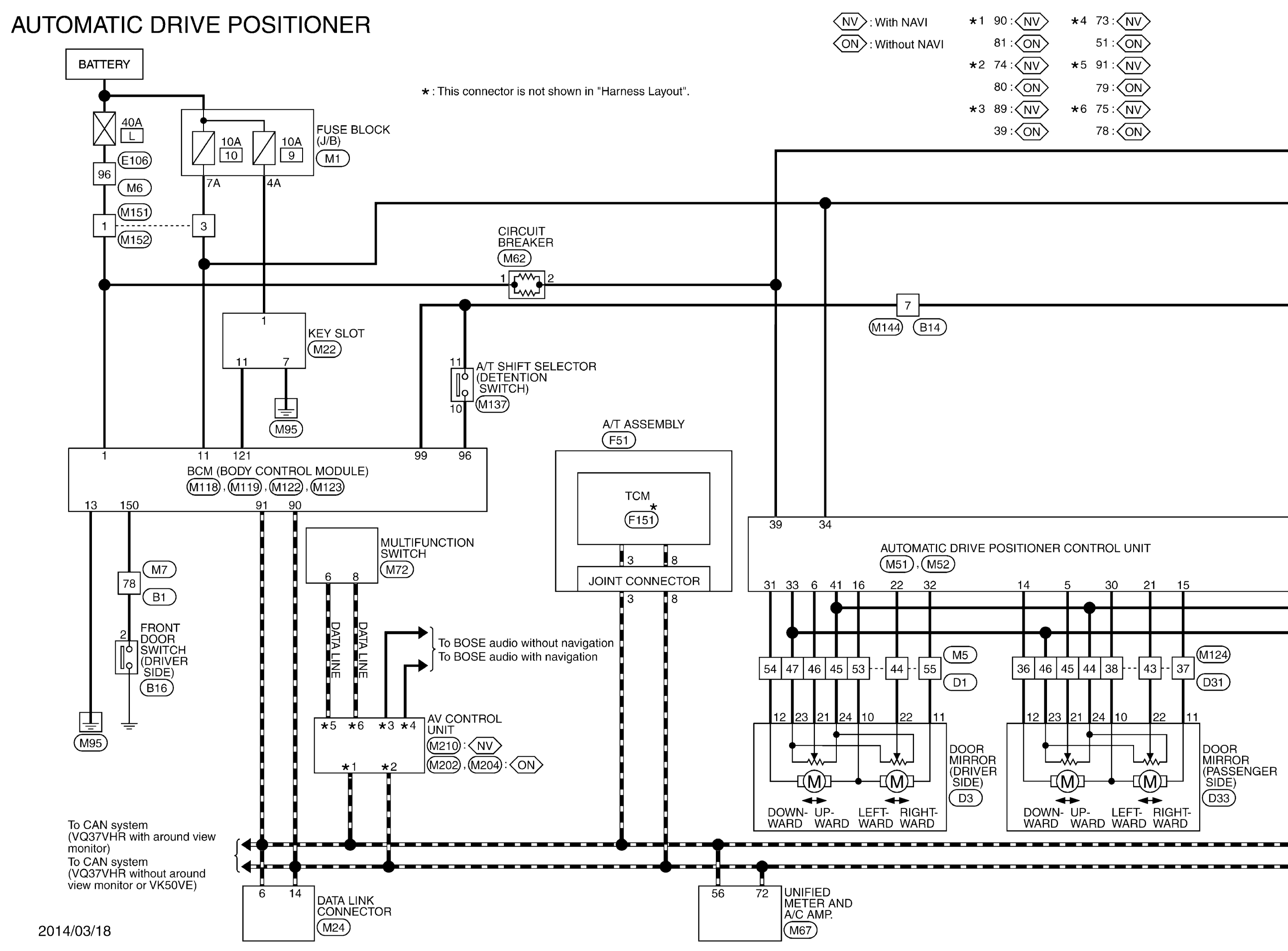

GNSJRJWC5590GB-590

Courtesy of NISSAN NORTH AMERICA, INC.

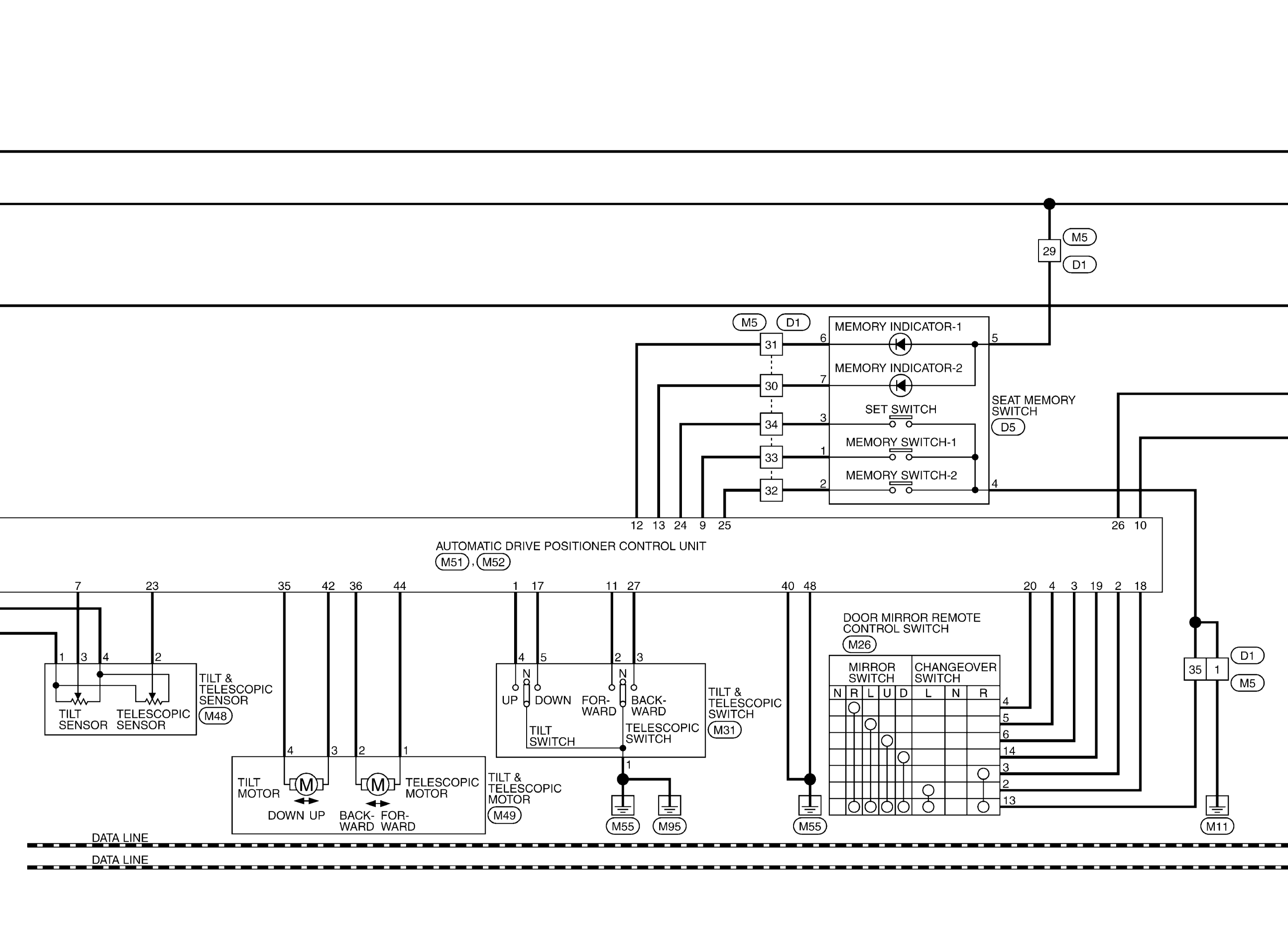

GNSJRJWC5591GB-591

Courtesy of NISSAN NORTH AMERICA, INC.

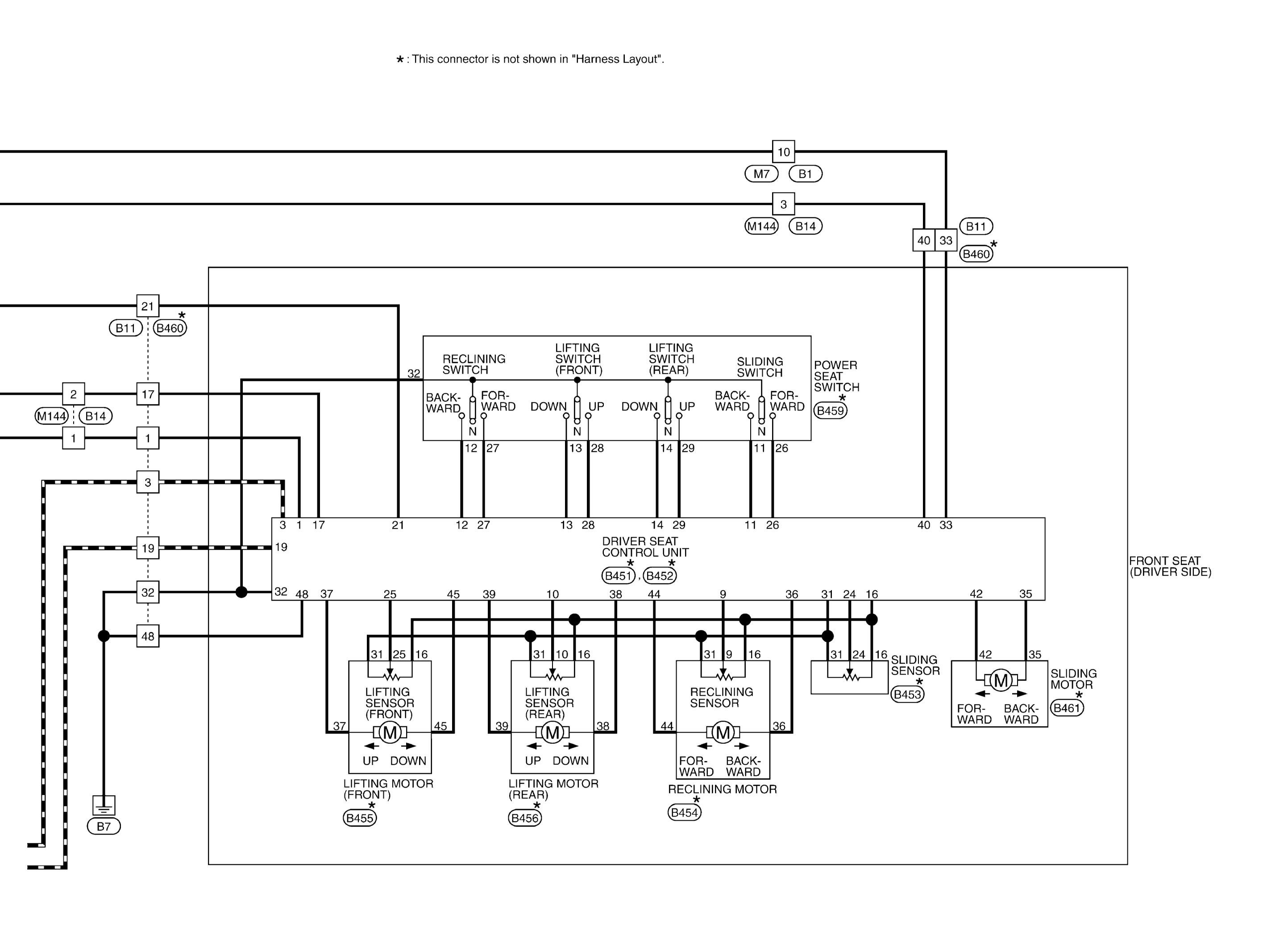

GNSJRJWC5592GB-592

Courtesy of NISSAN NORTH AMERICA, INC.

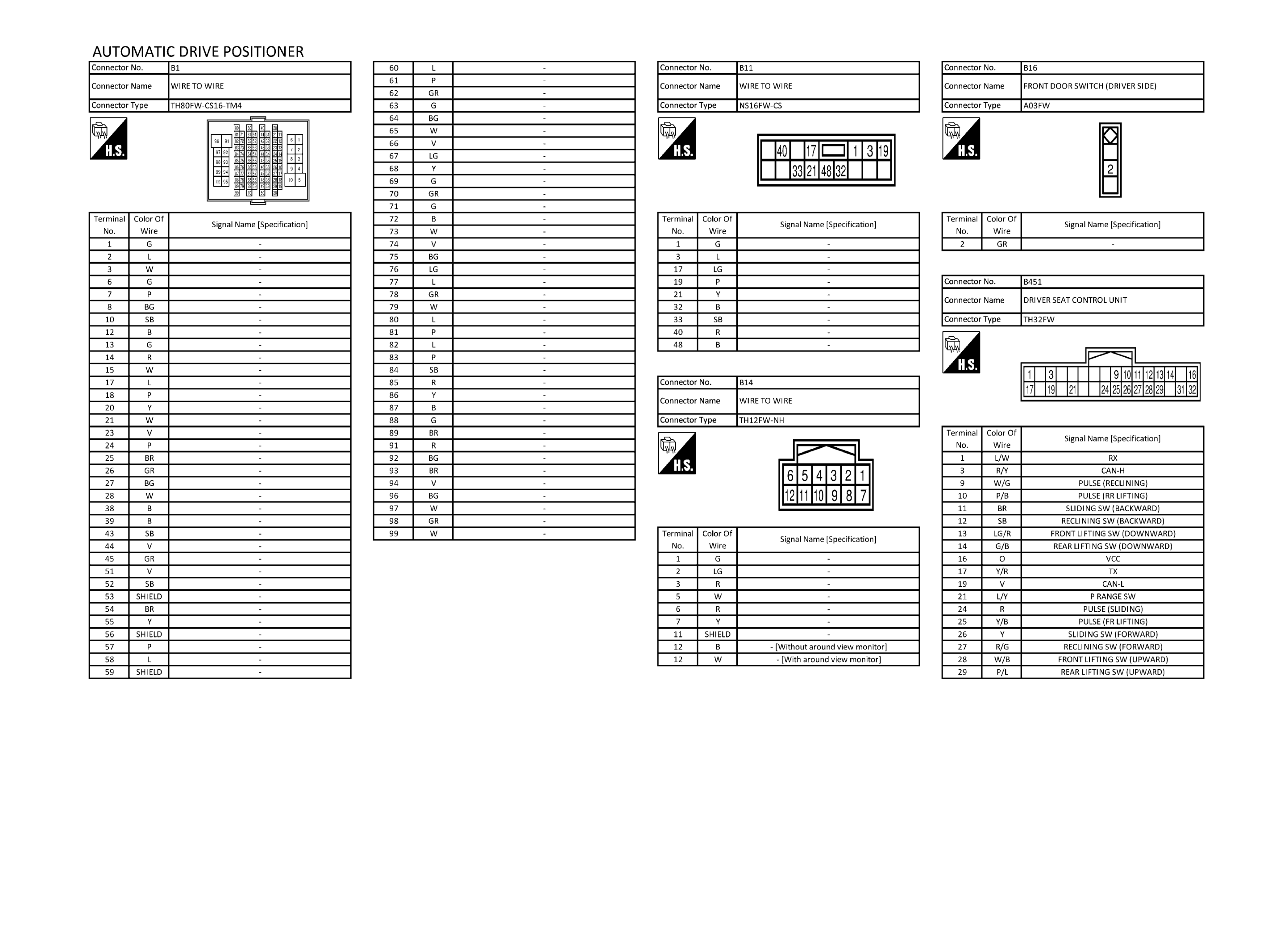

GNSJRJWD1585GB-585

Courtesy of NISSAN NORTH AMERICA, INC.

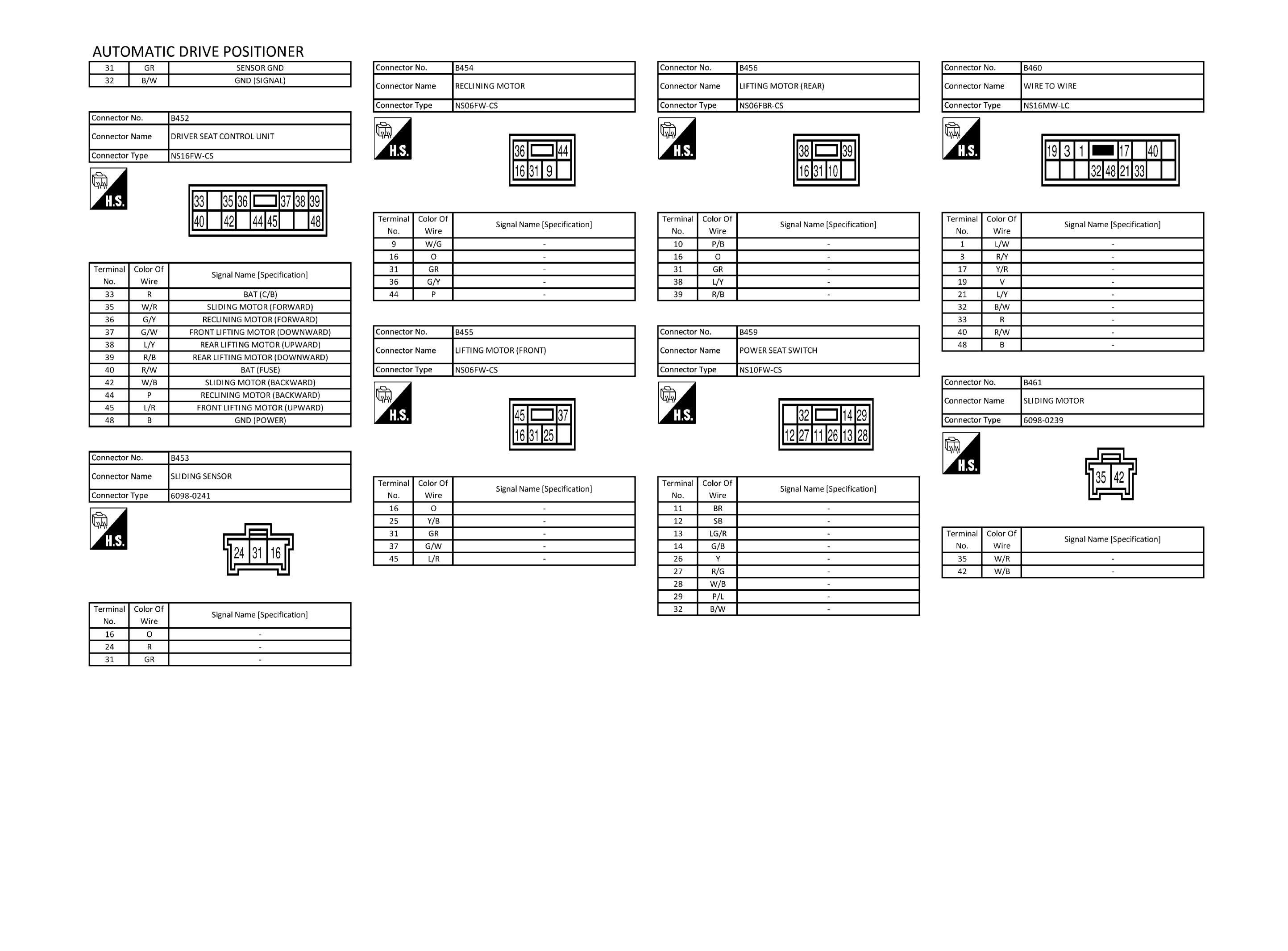

GNSJRJWD1586GB-586

Courtesy of NISSAN NORTH AMERICA, INC.

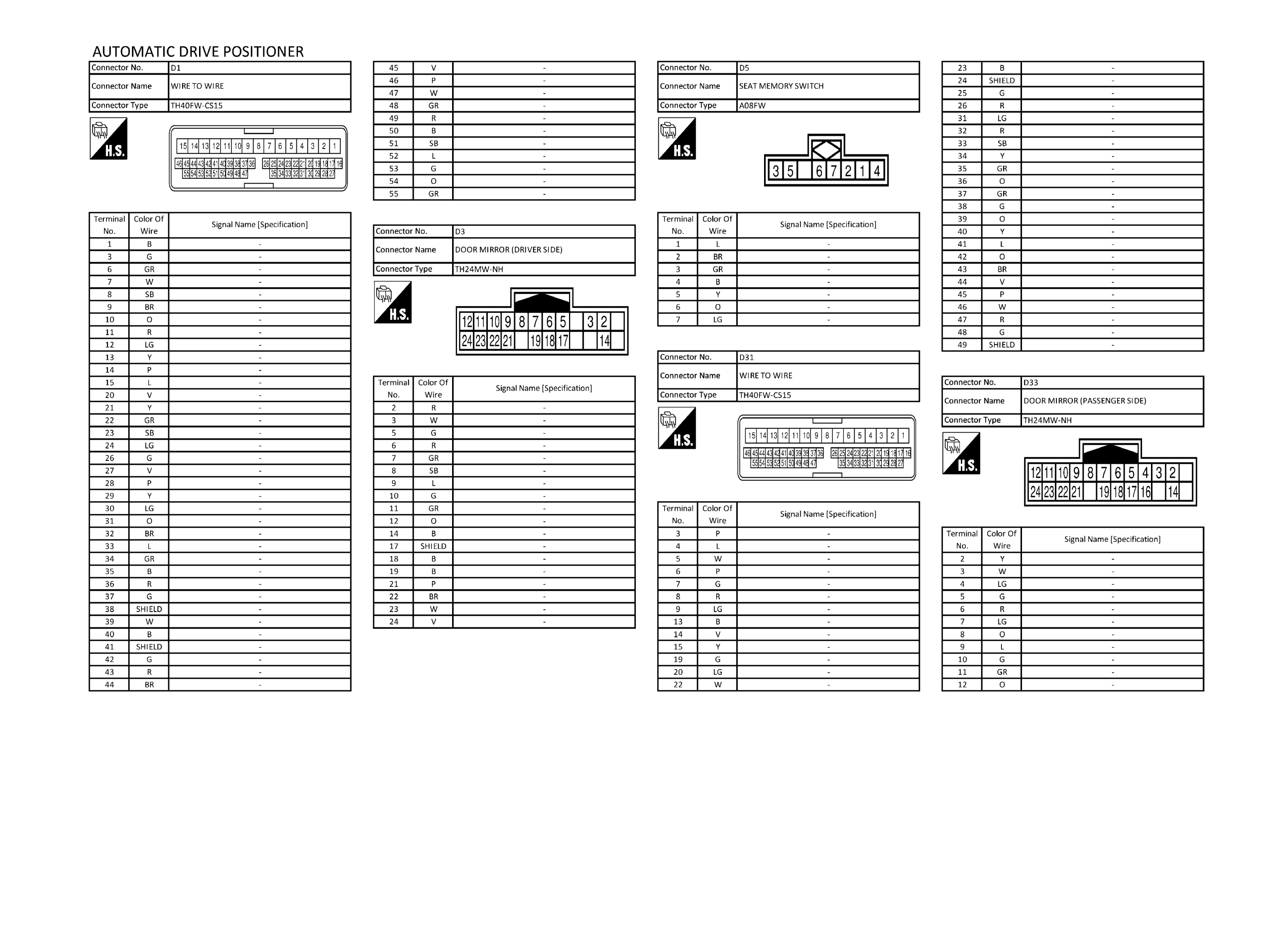

GNSJRJWD1587GB-587

Courtesy of NISSAN NORTH AMERICA, INC.

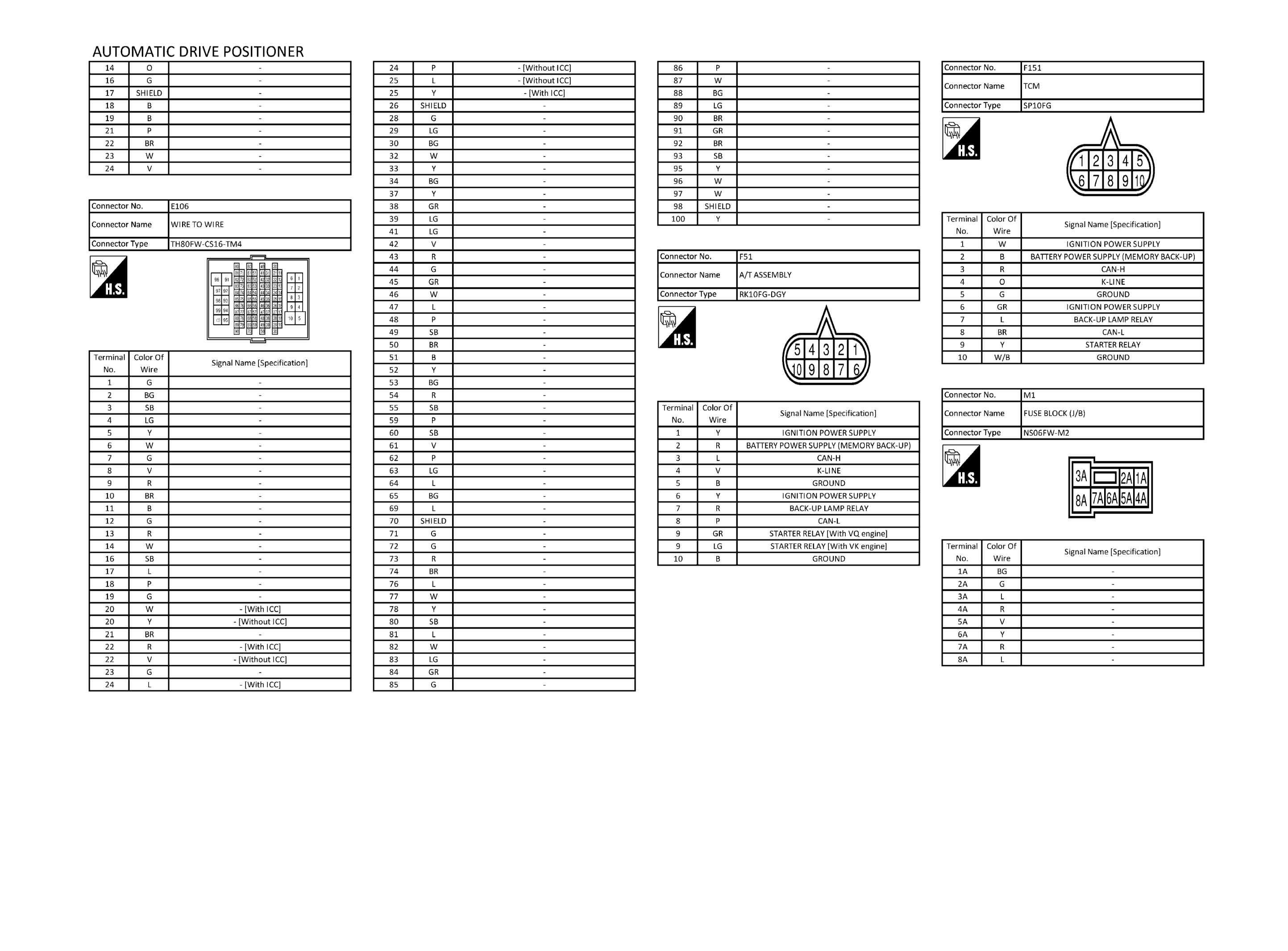

GNSJRJWD1588GB-588

Courtesy of NISSAN NORTH AMERICA, INC.

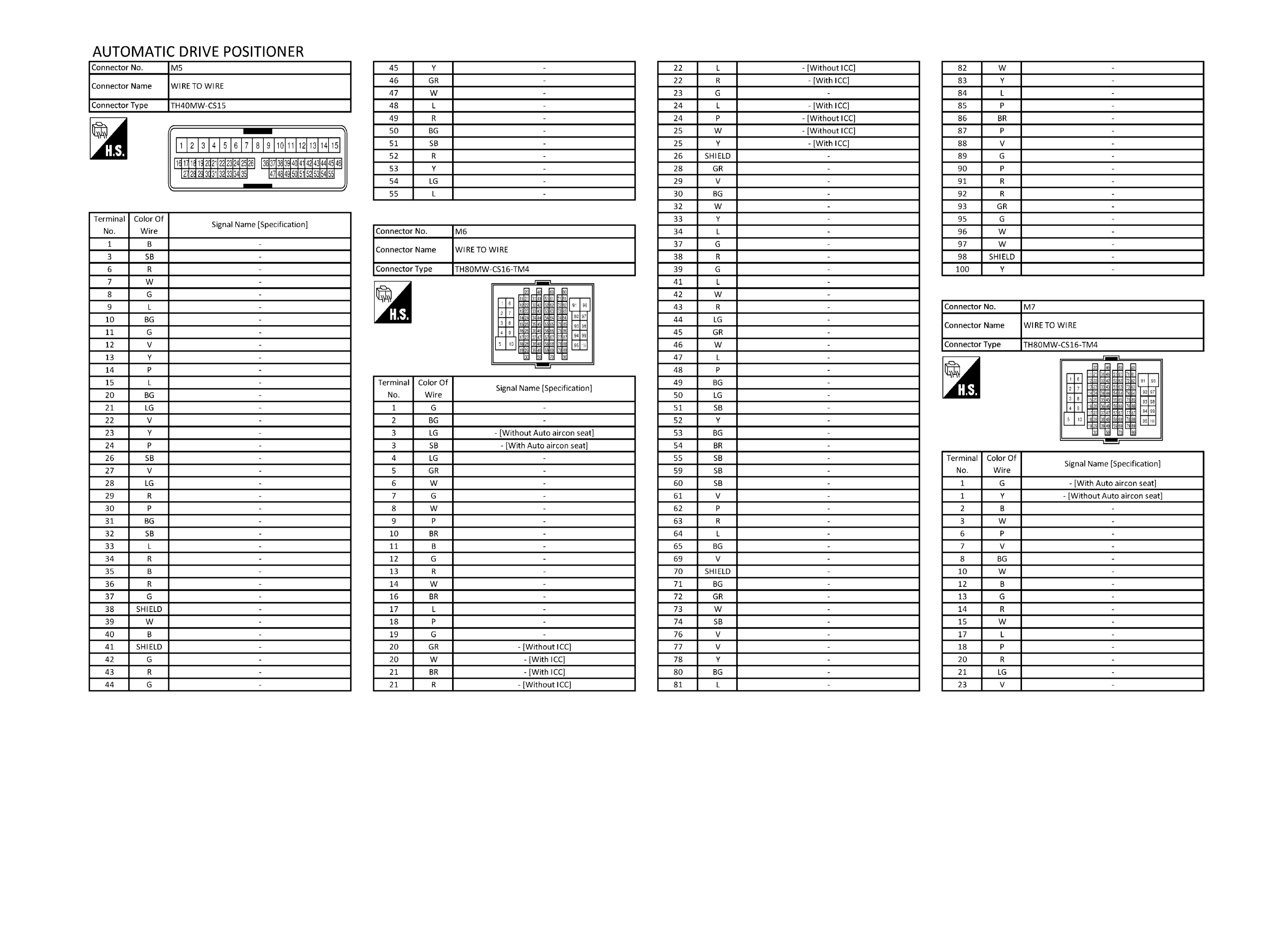

GNSJRJWD1589GB-589

Courtesy of NISSAN NORTH AMERICA, INC.

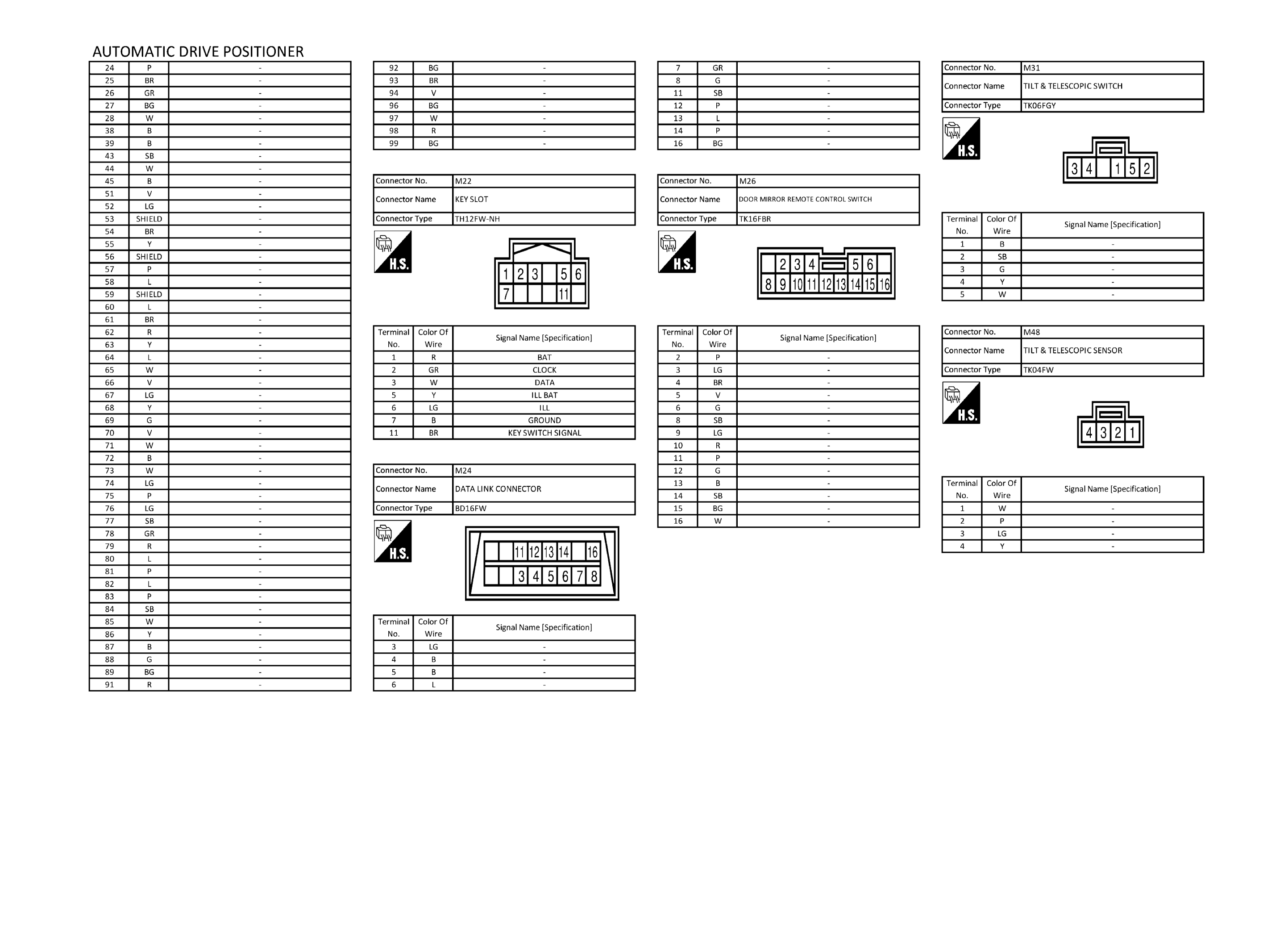

GNSJRJWD1590GB-590

Courtesy of NISSAN NORTH AMERICA, INC.

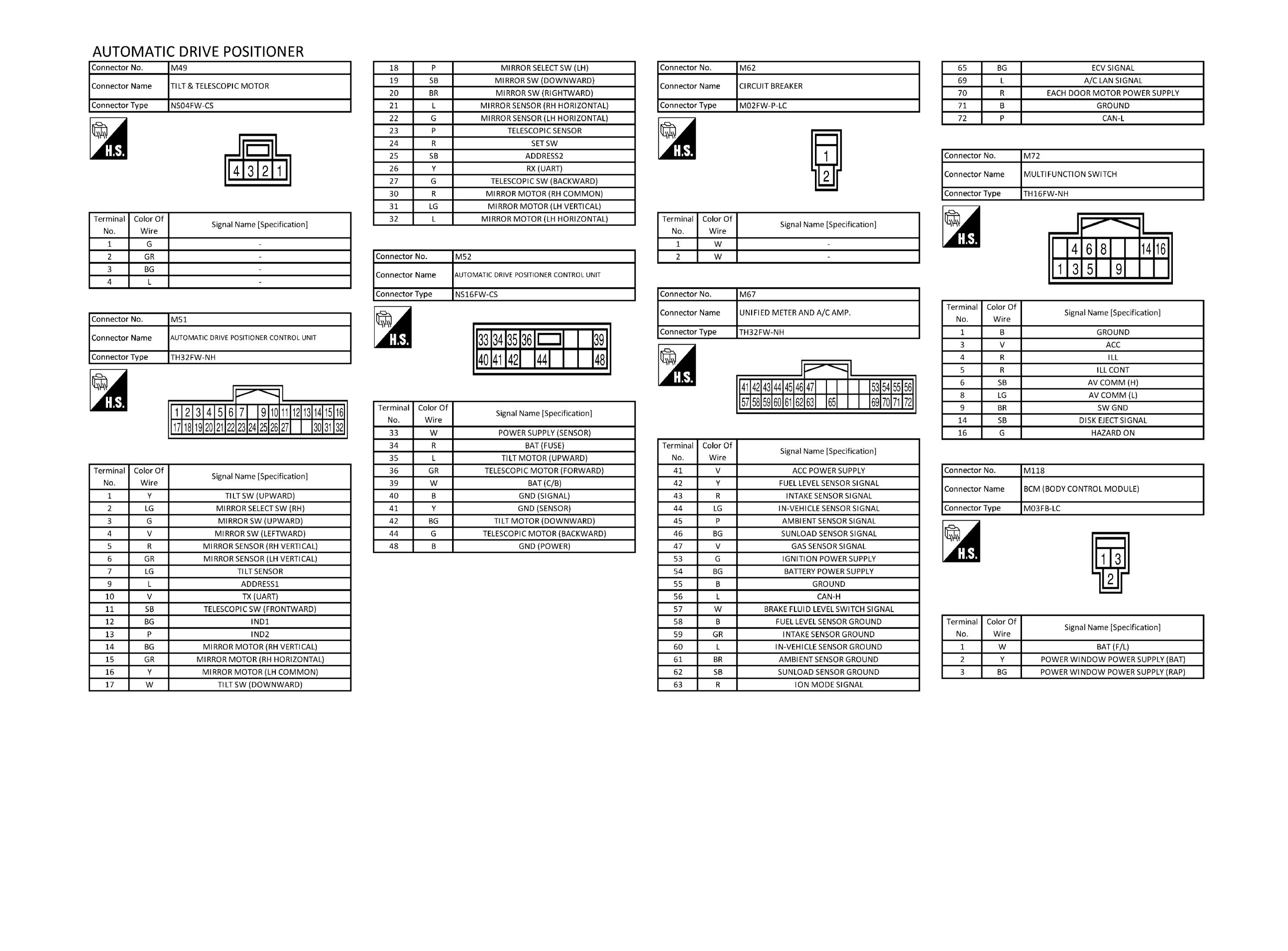

GNSJRJWD1591GB-591

Courtesy of NISSAN NORTH AMERICA, INC.

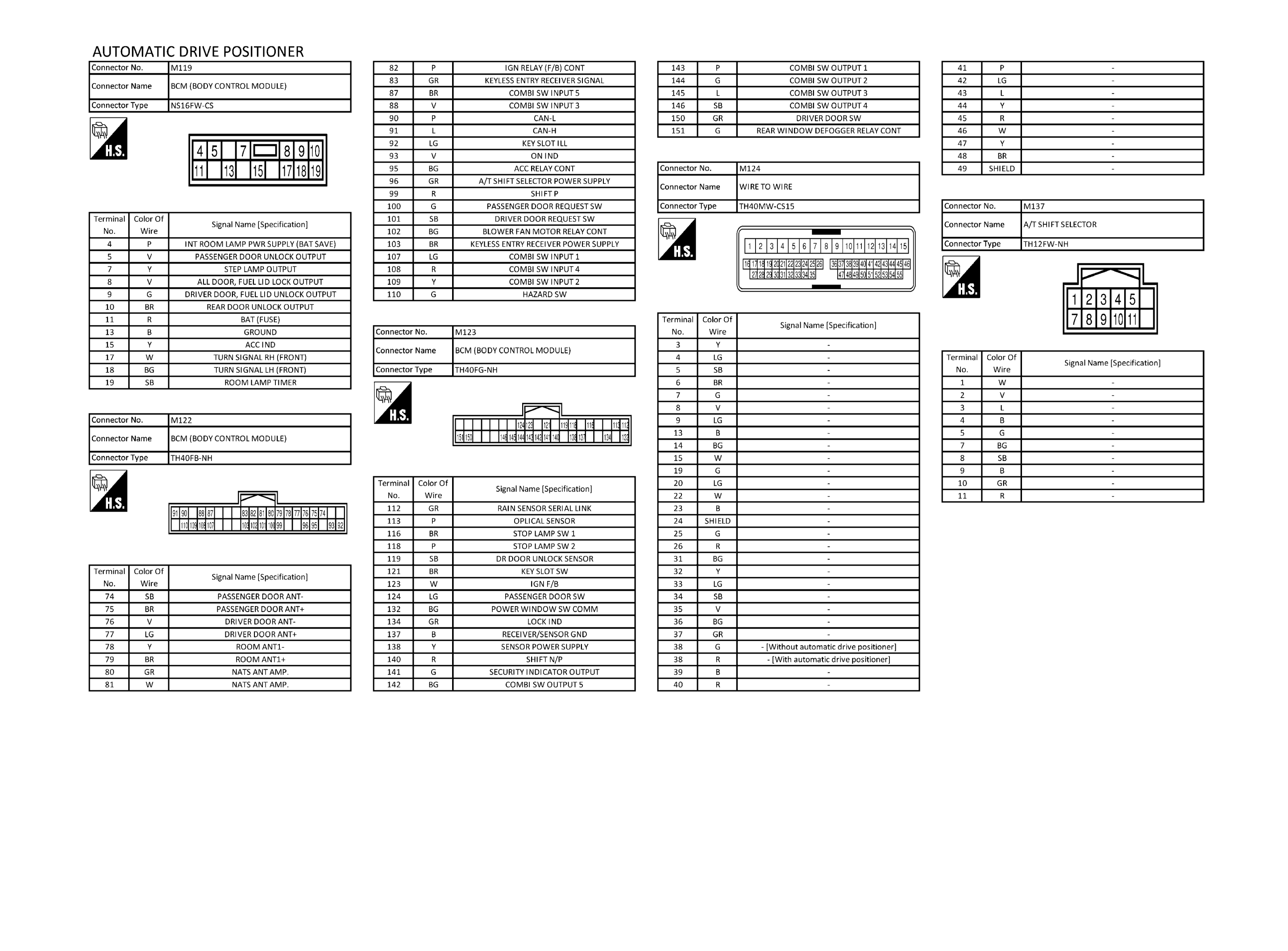

GNSJRJWD1592GB-592

Courtesy of NISSAN NORTH AMERICA, INC.

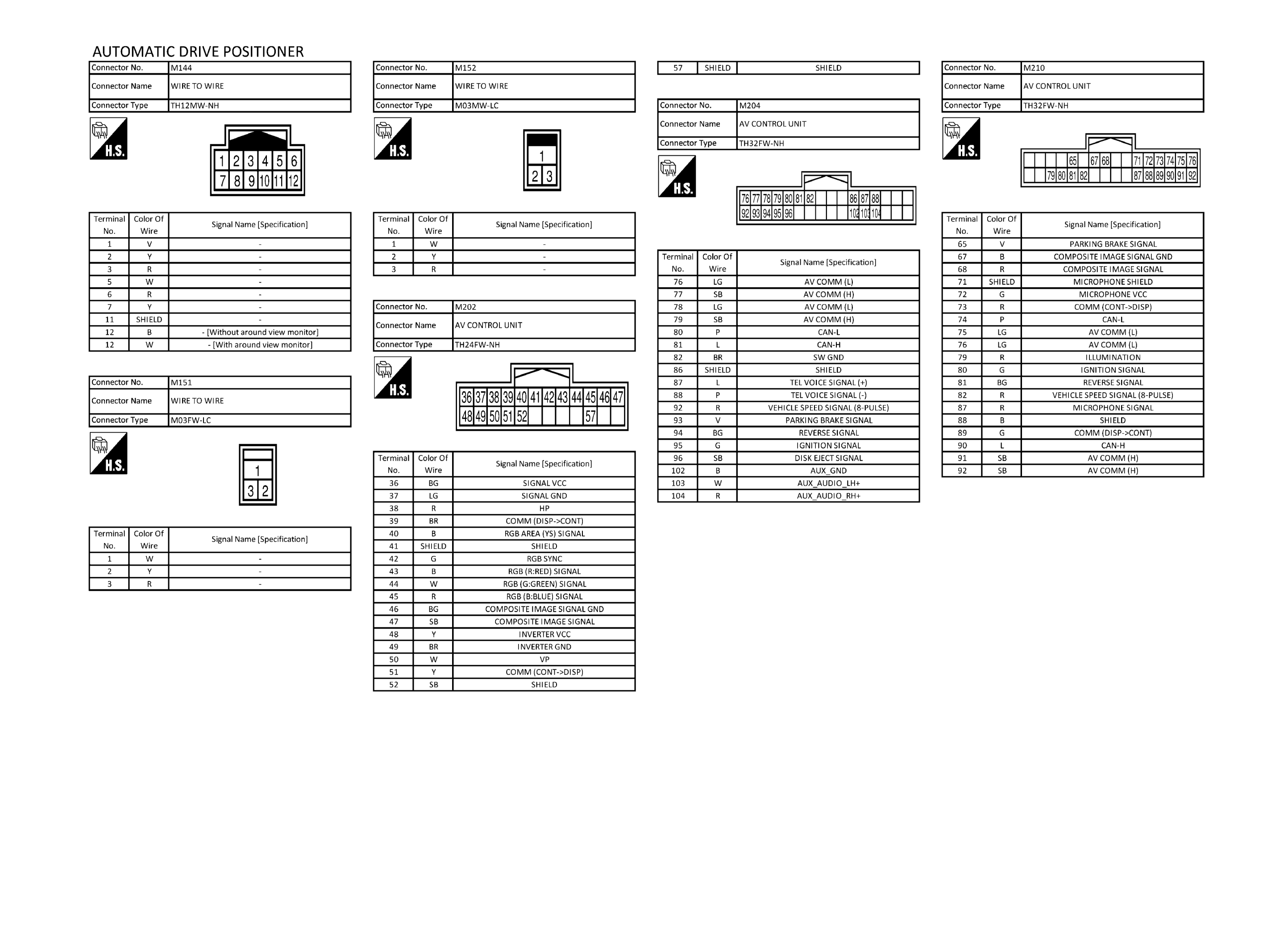

GNSJRJWD1593GB-593

Courtesy of NISSAN NORTH AMERICA, INC.
