Wiring Diagram - IPDM E/R -

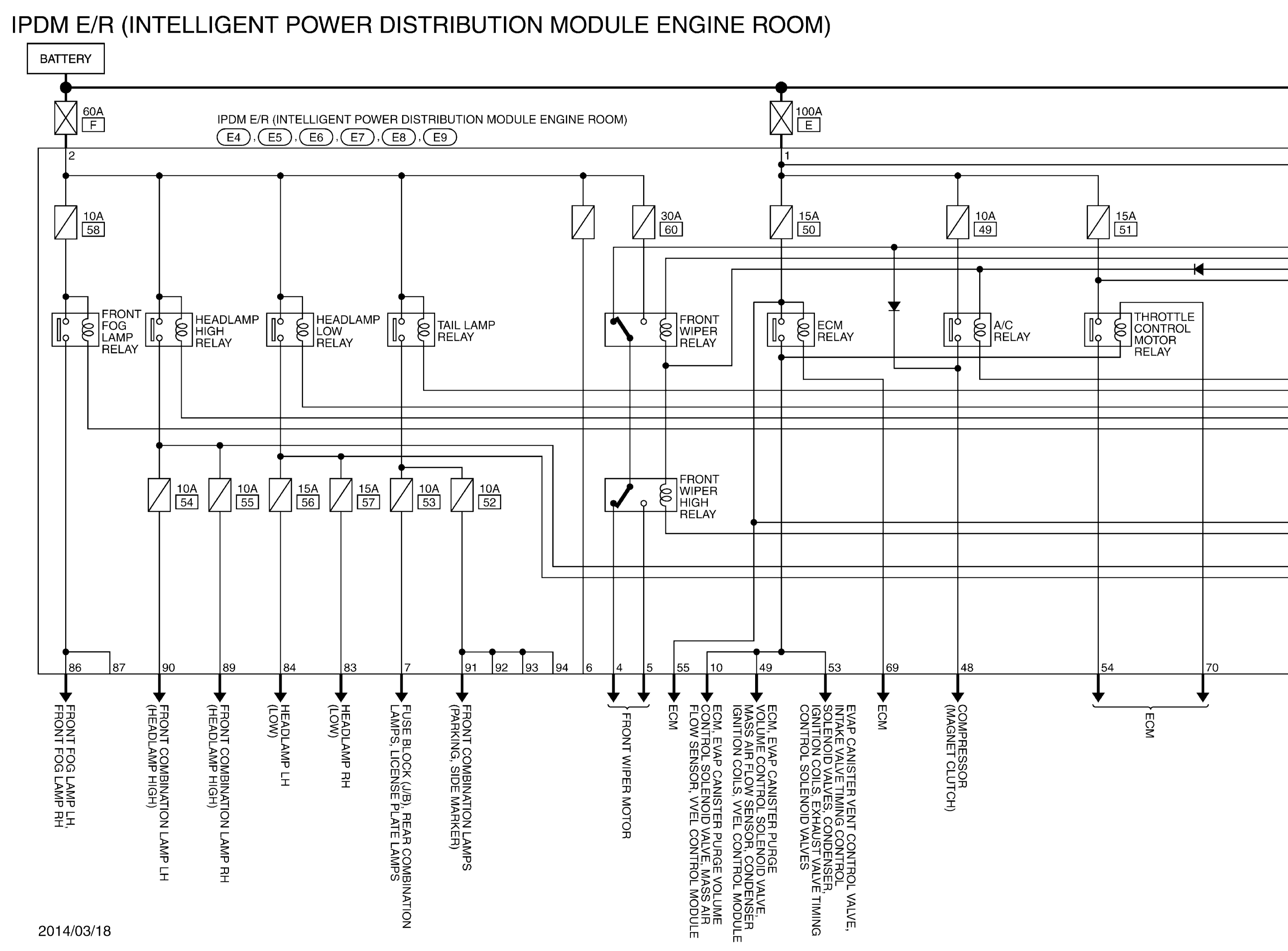

GNSJRMWF4523GB-523

Courtesy of NISSAN NORTH AMERICA, INC.

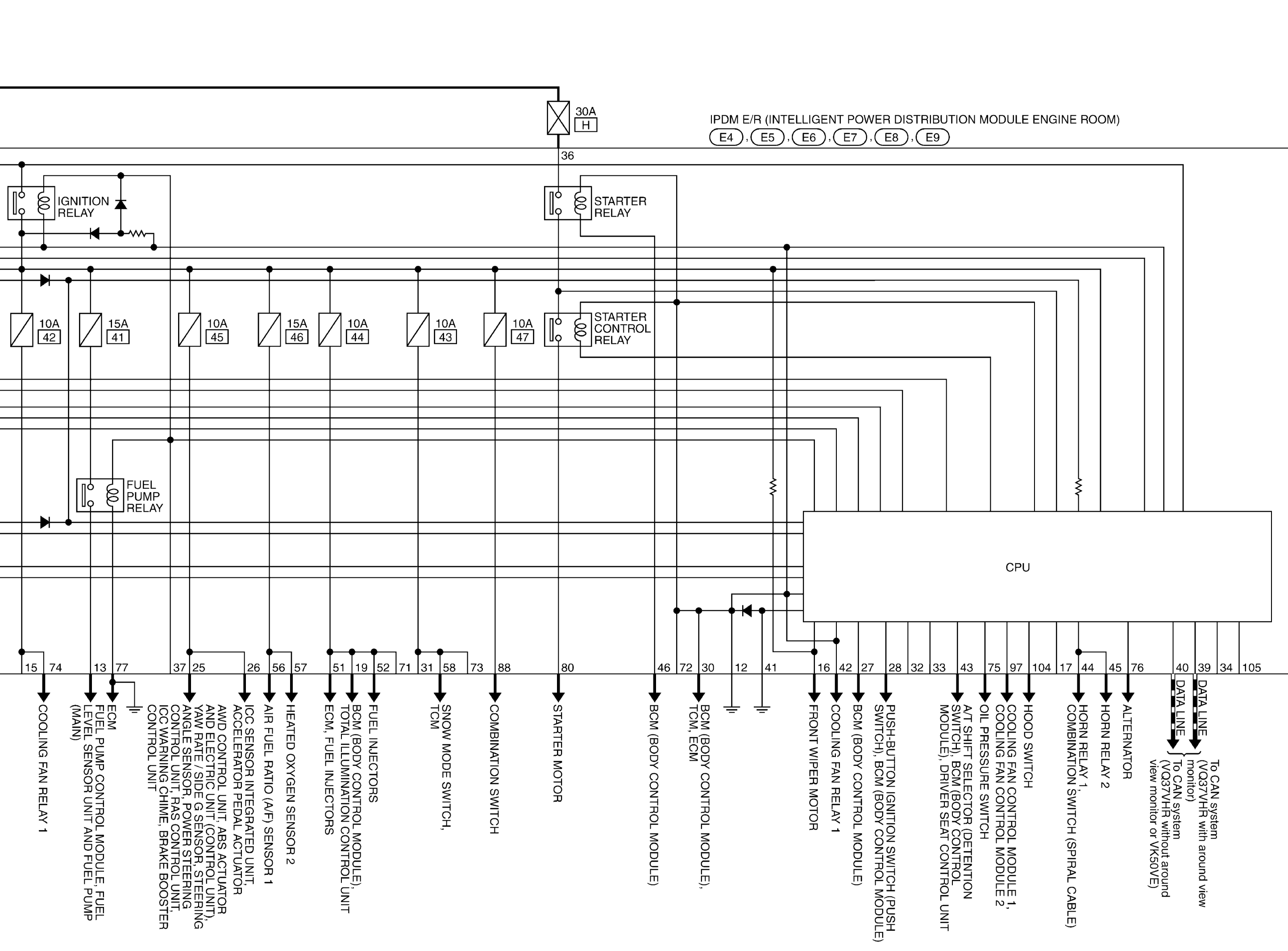

GNSJRMWF4524GB-524

Courtesy of NISSAN NORTH AMERICA, INC.

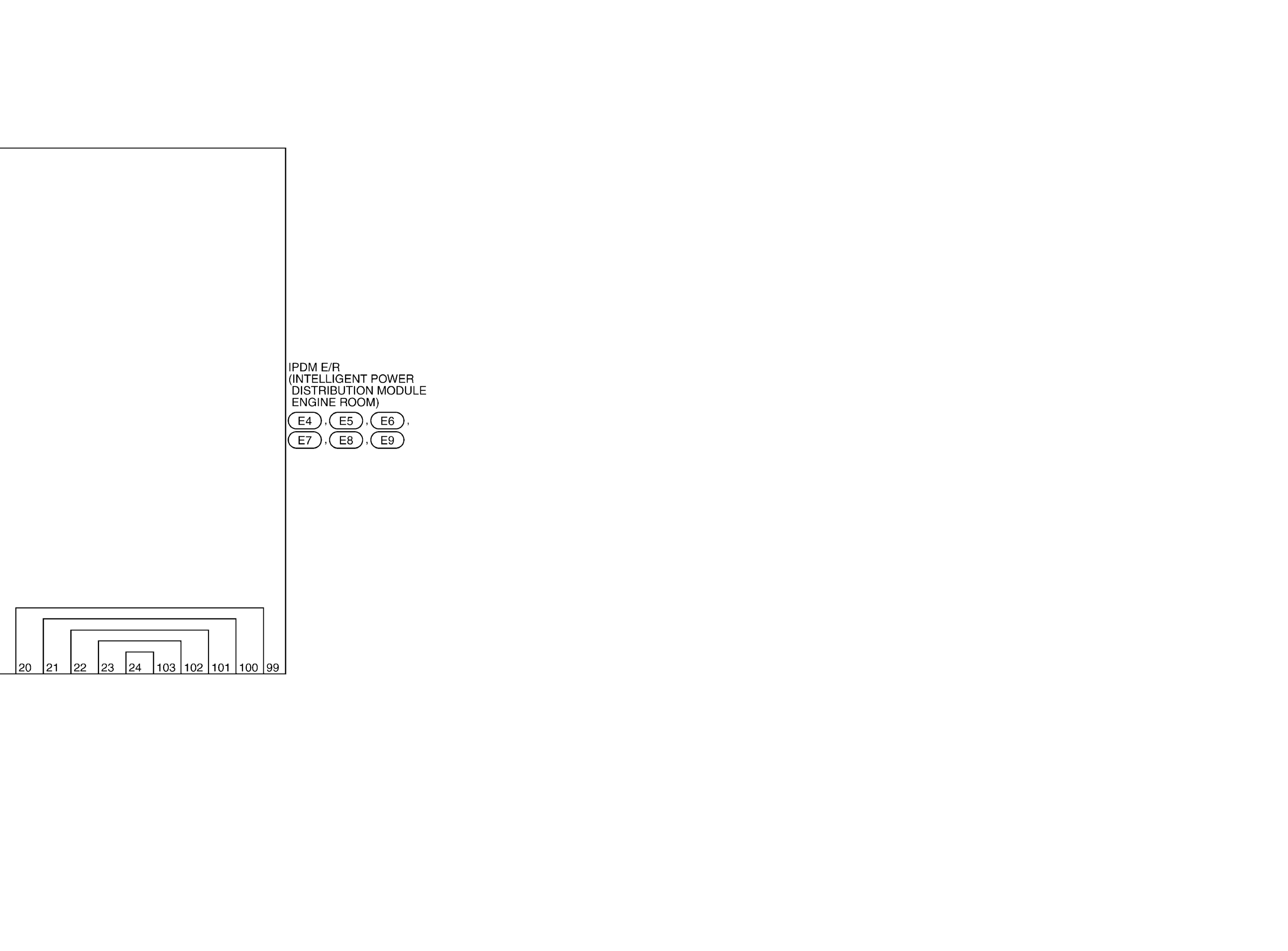

GNSJRMWF4525GB-525

Courtesy of NISSAN NORTH AMERICA, INC.

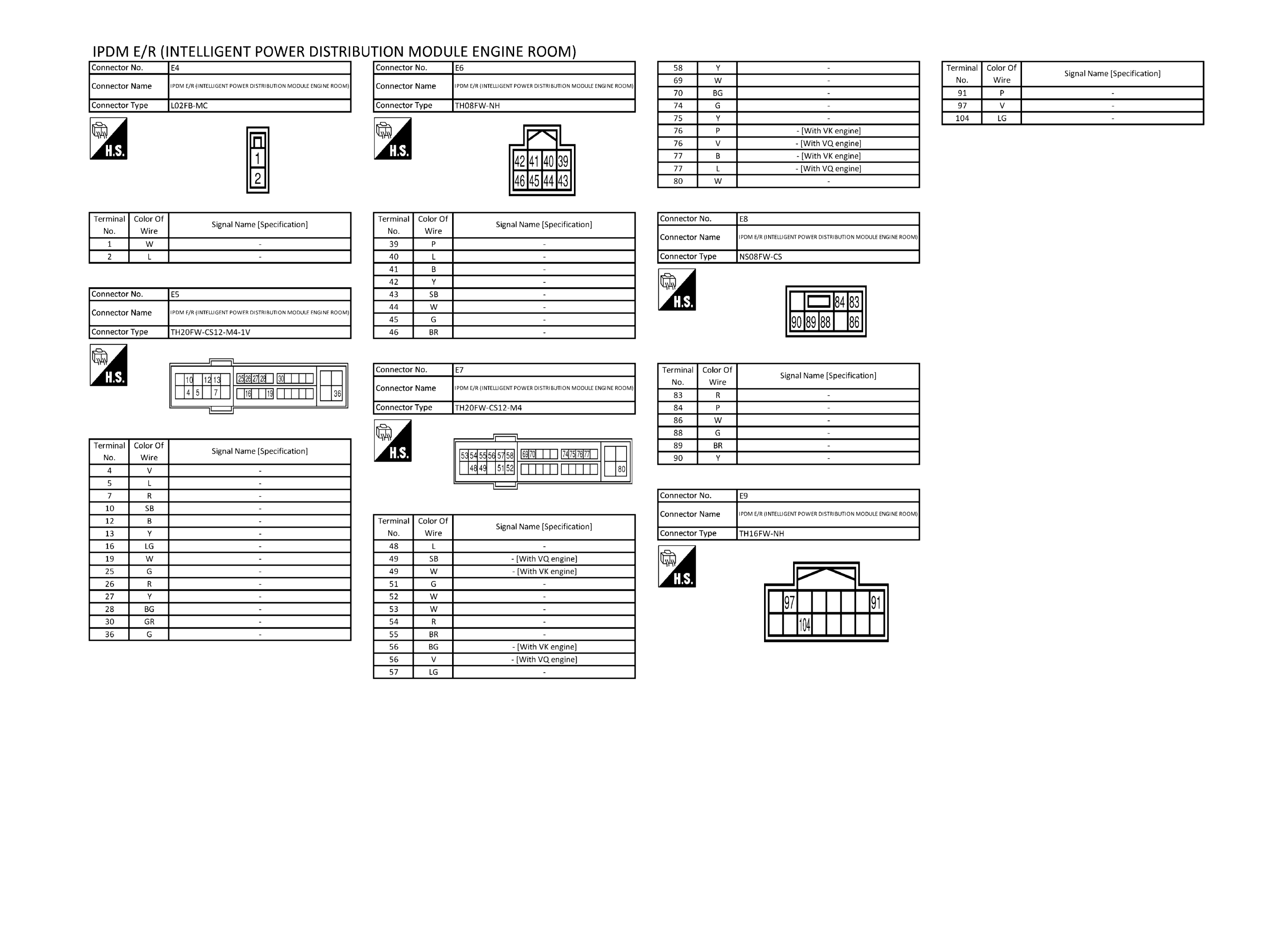

GNSJRMWH7903GB-903

Courtesy of NISSAN NORTH AMERICA, INC.
