Wiring Diagram - Meter -

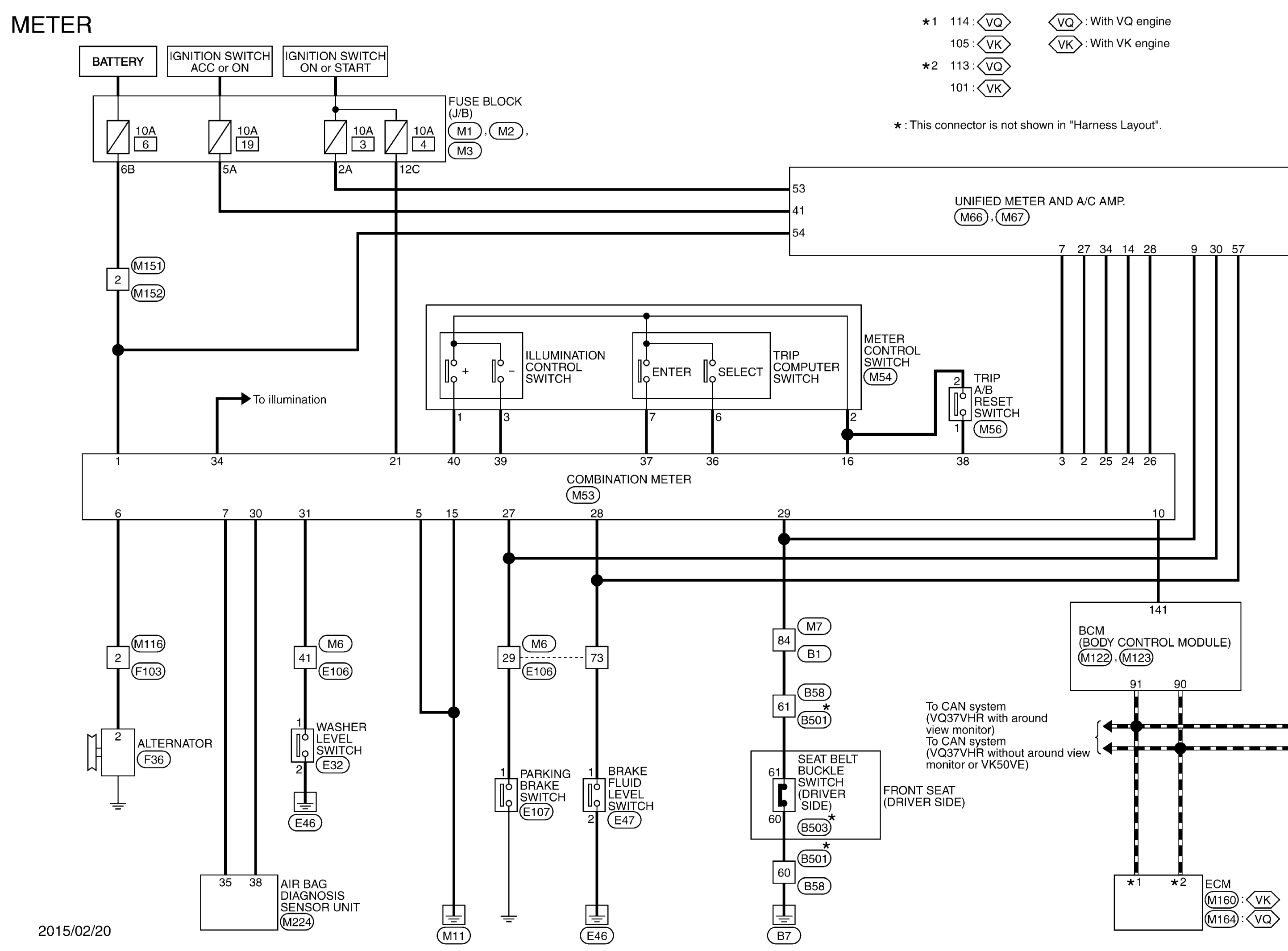

GNSJRNWE6399GB-399

Courtesy of NISSAN NORTH AMERICA, INC.

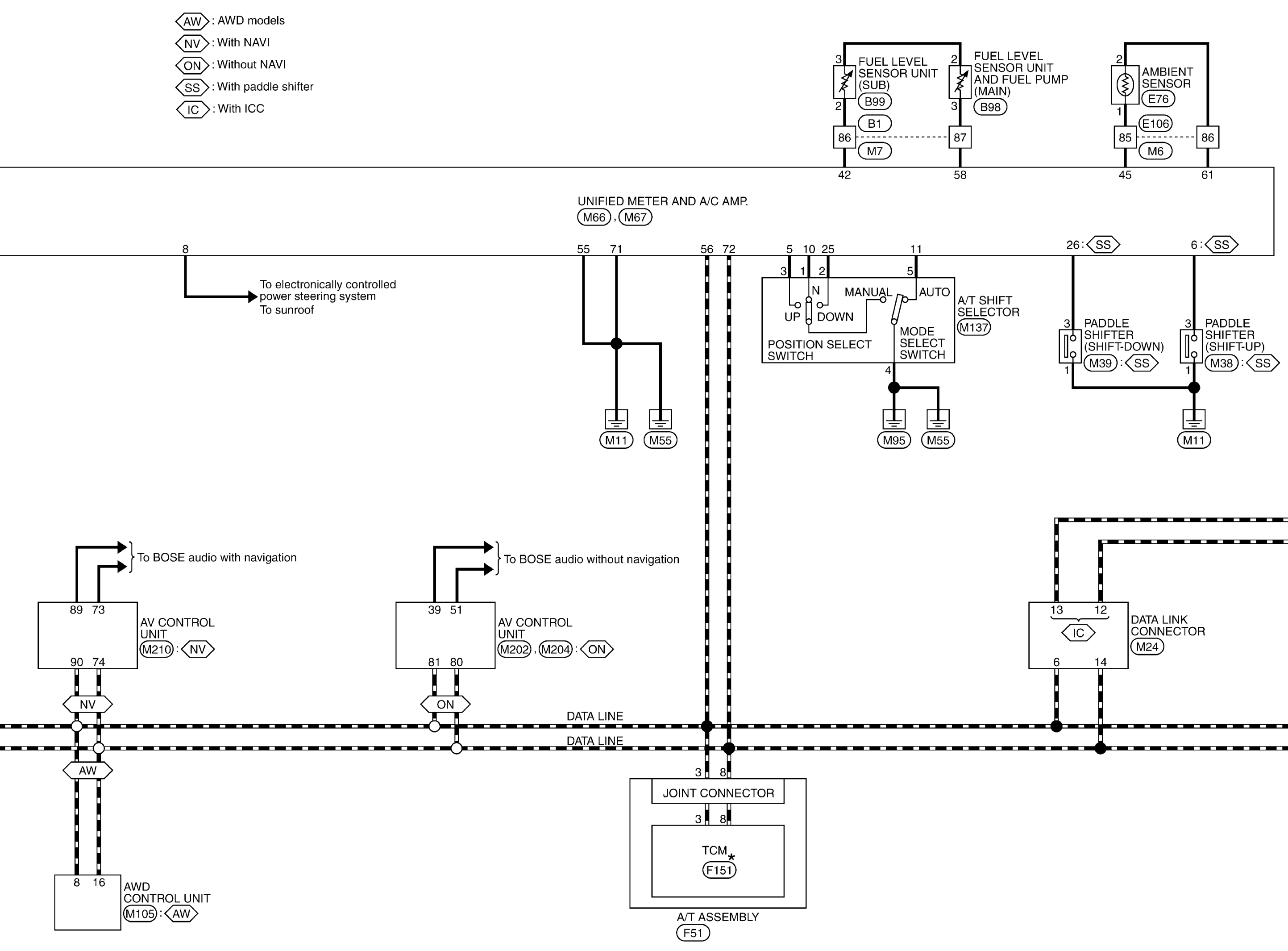

GNSJRNWE6400GB-400

Courtesy of NISSAN NORTH AMERICA, INC.

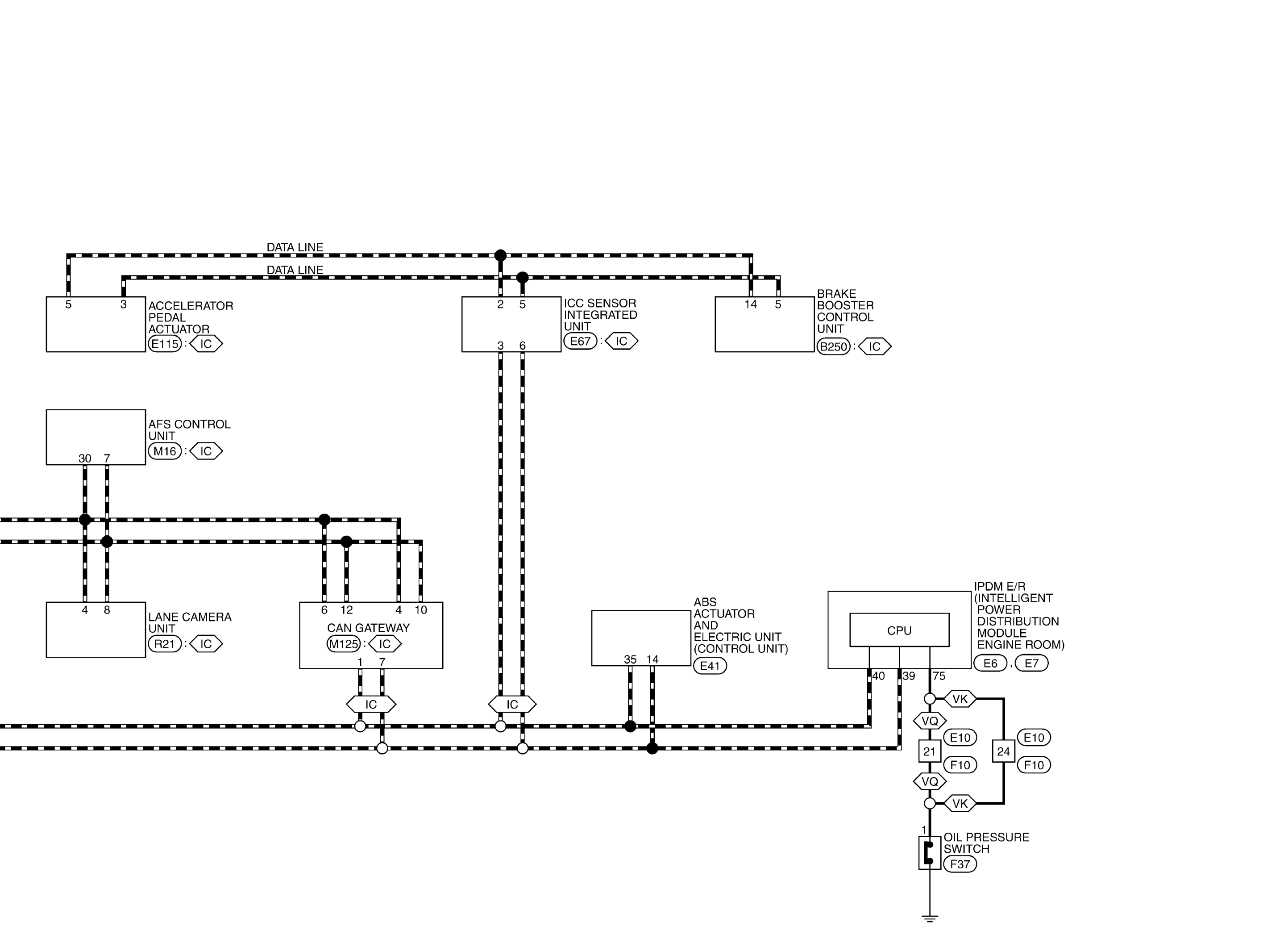

GNSJRNWE6401GB-401

Courtesy of NISSAN NORTH AMERICA, INC.

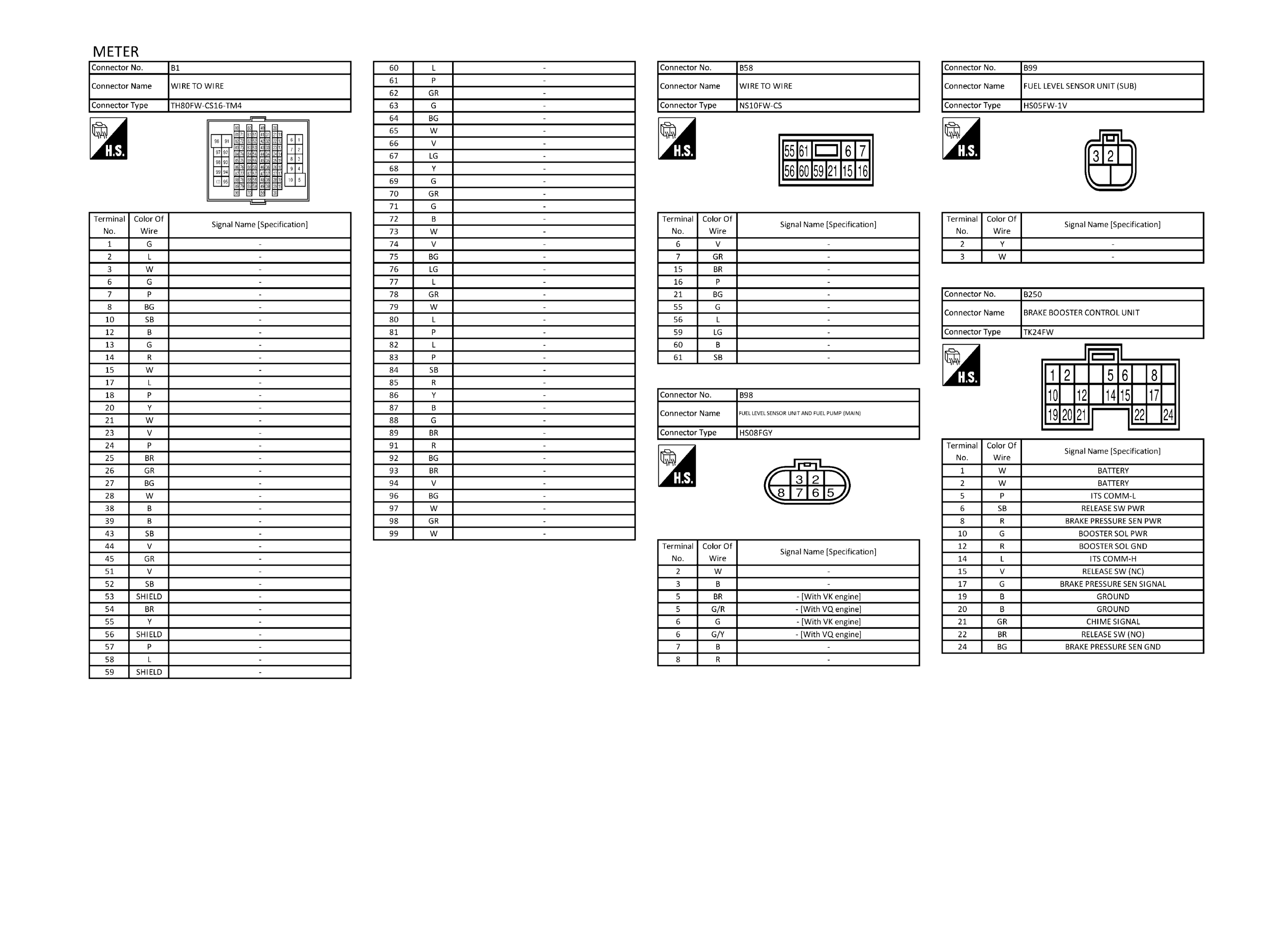

GNSJRNWE6402GB-402

Courtesy of NISSAN NORTH AMERICA, INC.

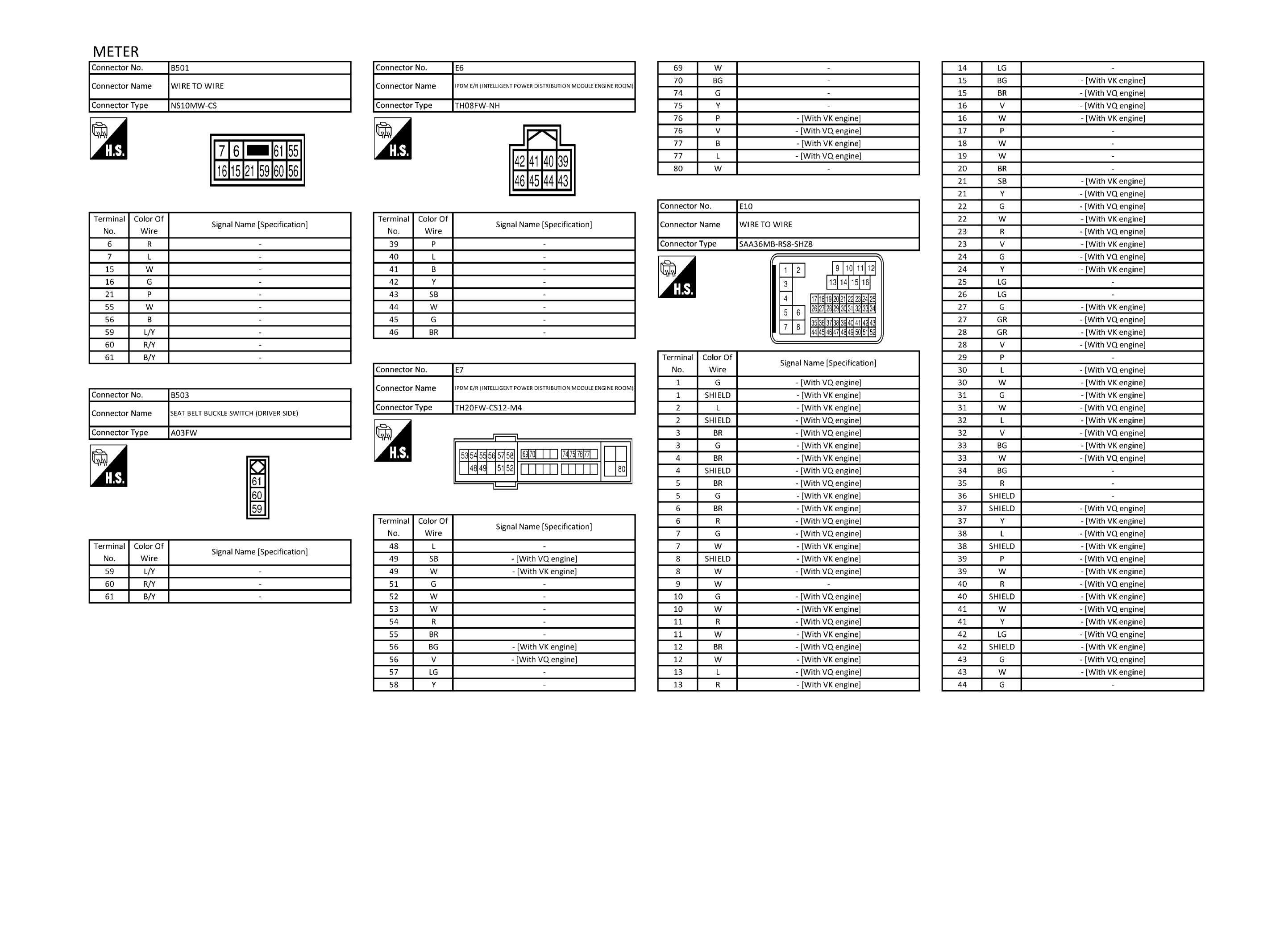

GNSJRNWE6403GB-403

Courtesy of NISSAN NORTH AMERICA, INC.

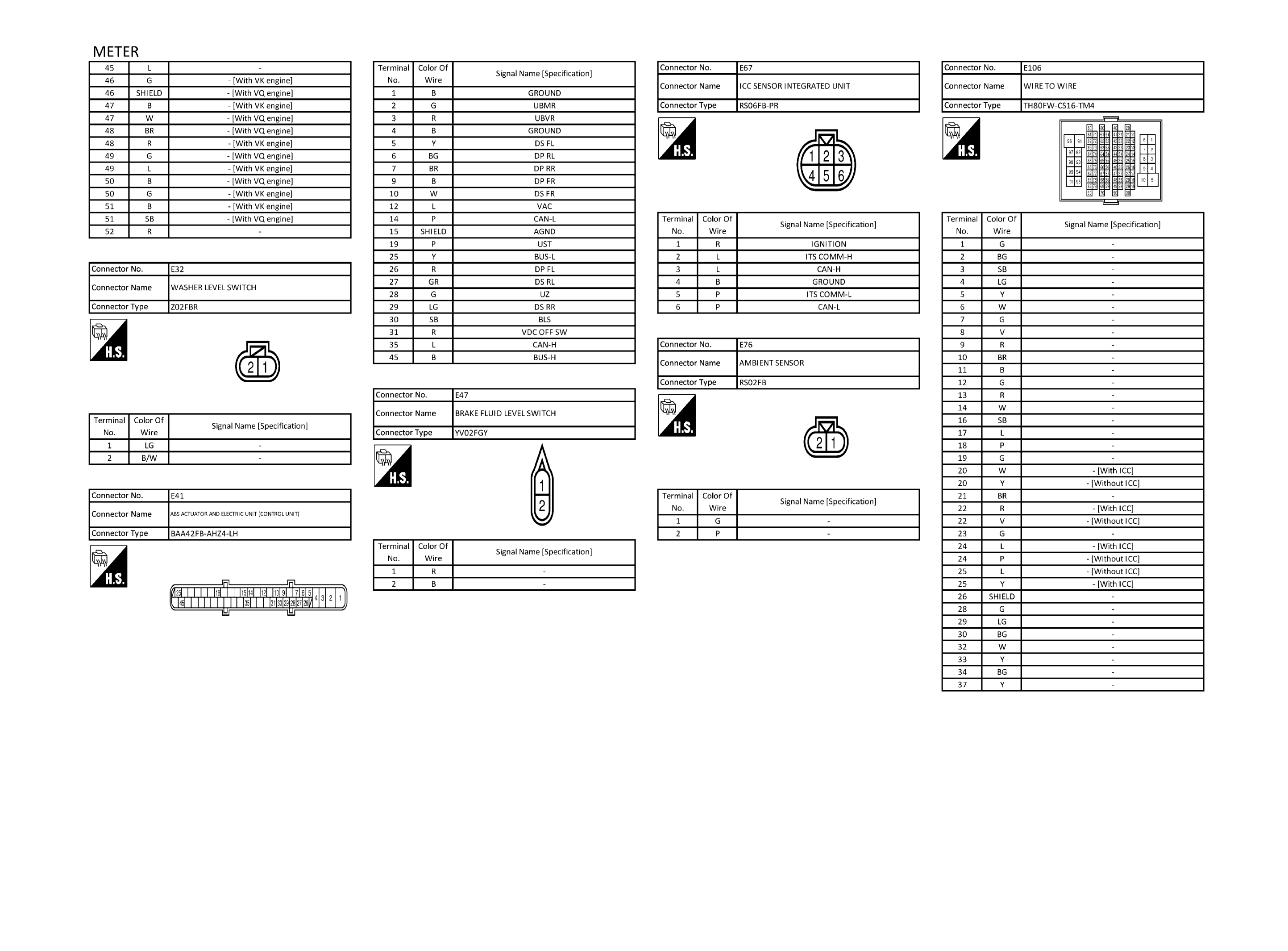

GNSJRNWE6404GB-404

Courtesy of NISSAN NORTH AMERICA, INC.

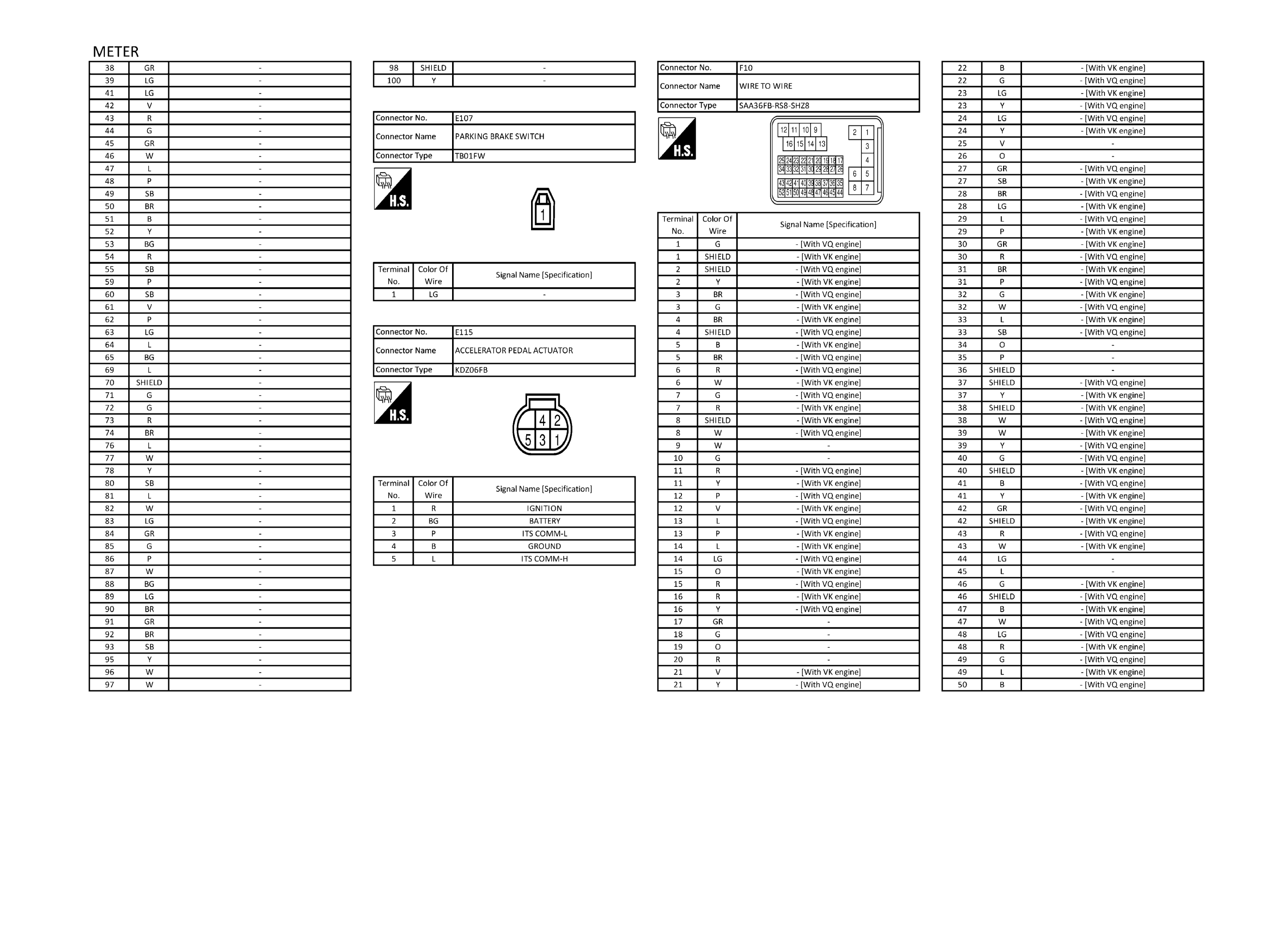

GNSJRNWE6405GB-405

Courtesy of NISSAN NORTH AMERICA, INC.

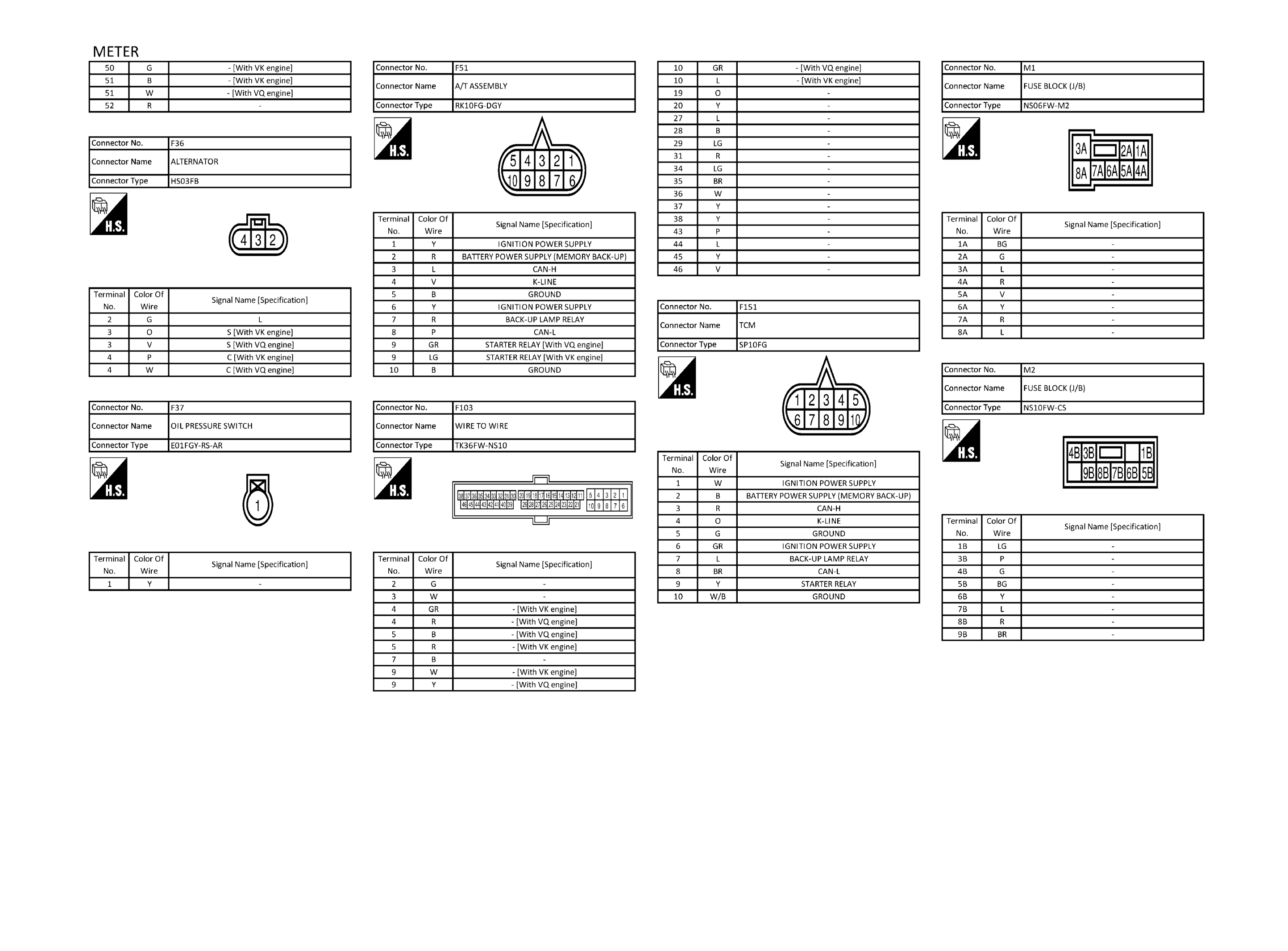

GNSJRNWE6406GB-406

Courtesy of NISSAN NORTH AMERICA, INC.

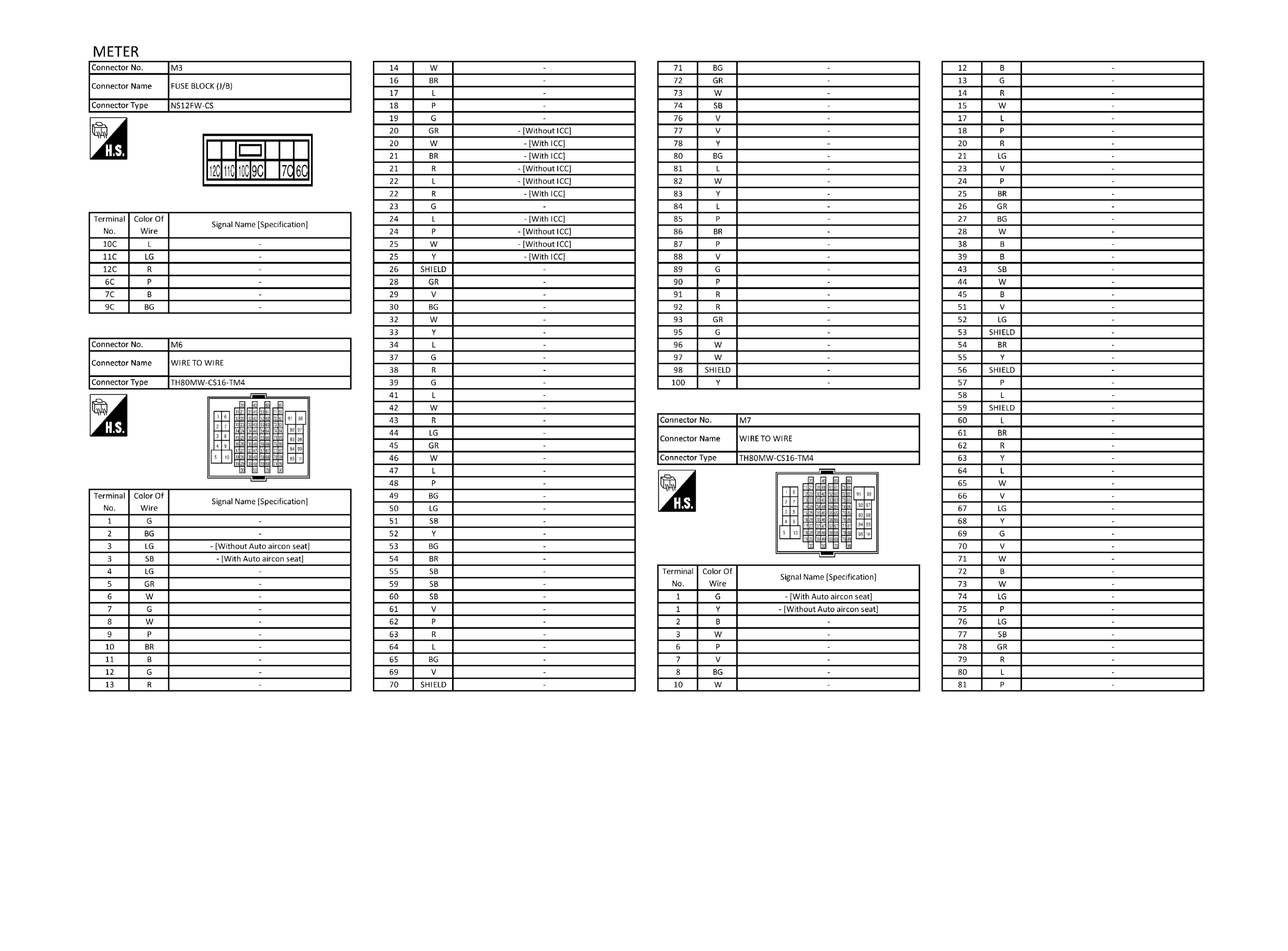

GNSJRNWE6407GB-407

Courtesy of NISSAN NORTH AMERICA, INC.

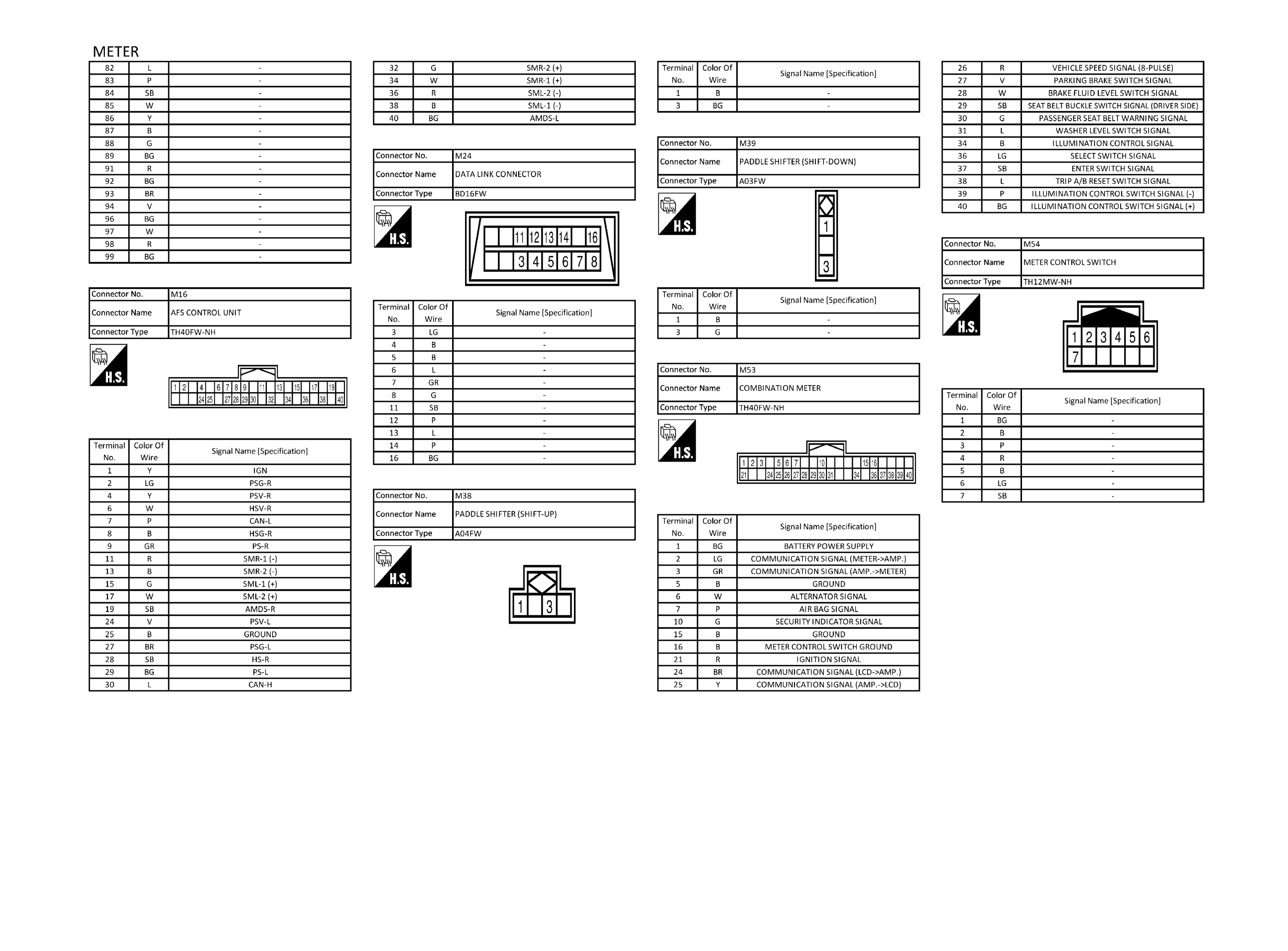

GNSJRNWE6408GB-408

Courtesy of NISSAN NORTH AMERICA, INC.

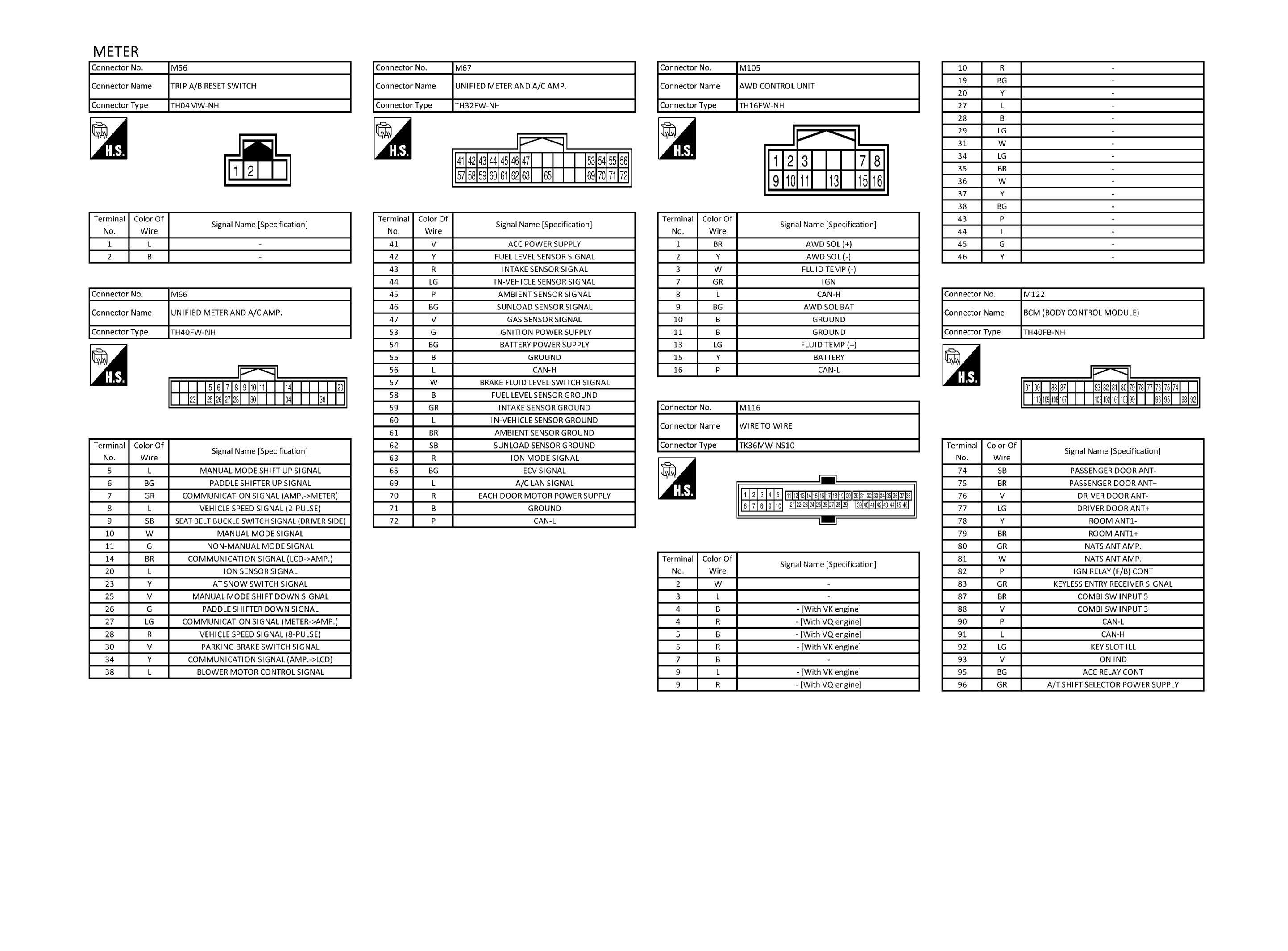

GNSJRNWE6409GB-409

Courtesy of NISSAN NORTH AMERICA, INC.

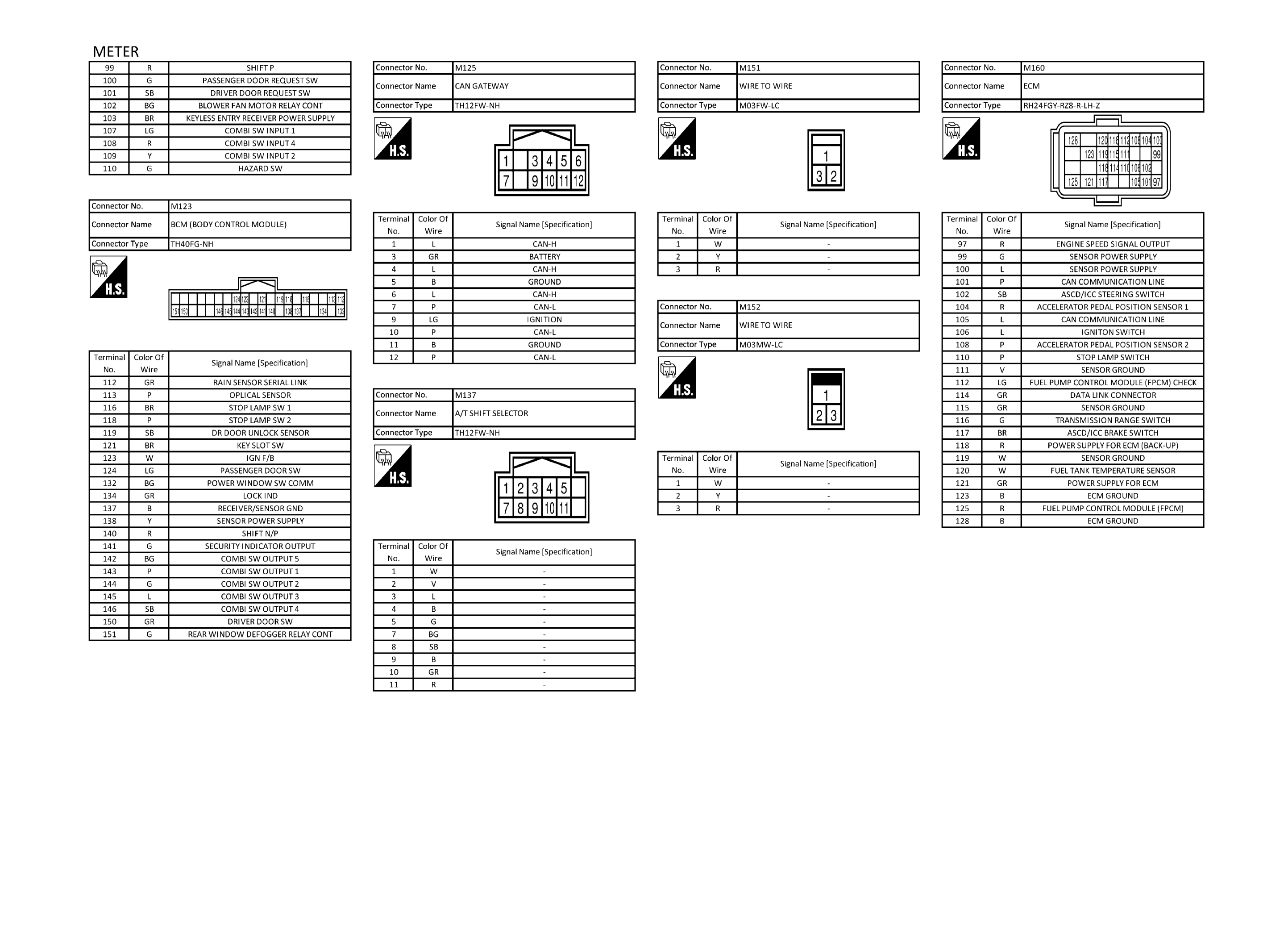

GNSJRNWE6410GB-410

Courtesy of NISSAN NORTH AMERICA, INC.

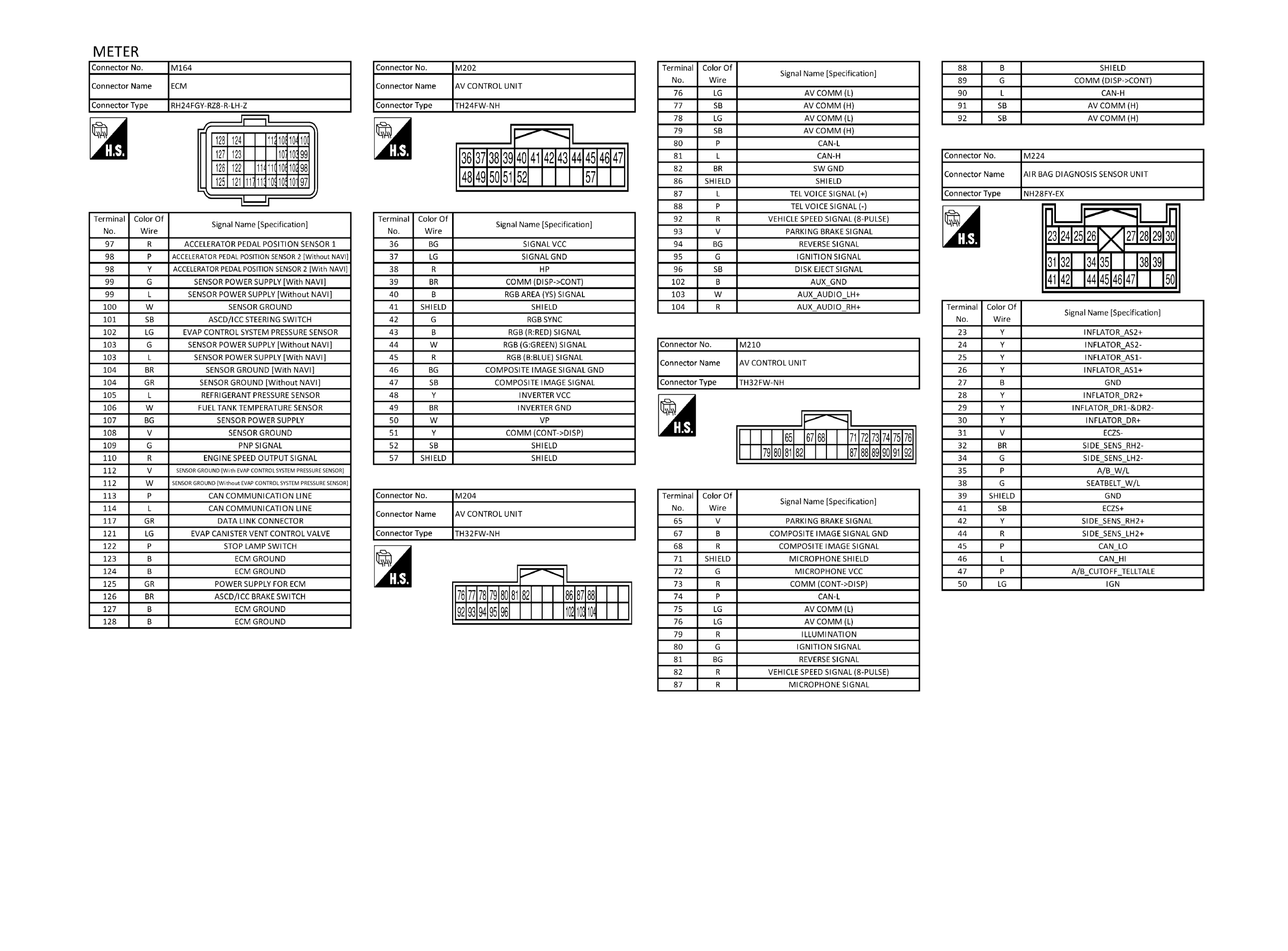

GNSJRNWE6411GB-411

Courtesy of NISSAN NORTH AMERICA, INC.

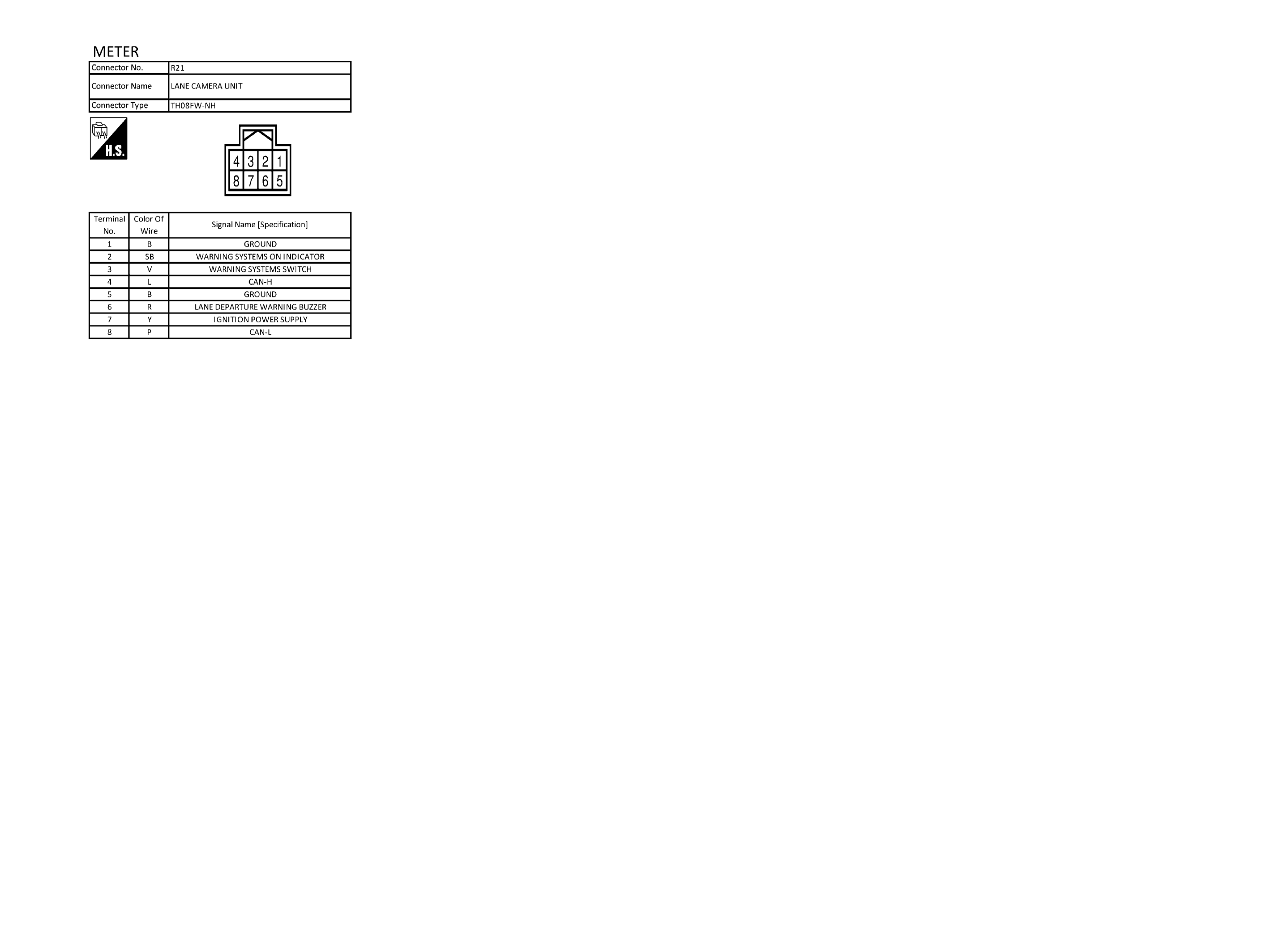

GNSJRNWE6412GB-412

Courtesy of NISSAN NORTH AMERICA, INC.
