Wiring Diagram - Compass -

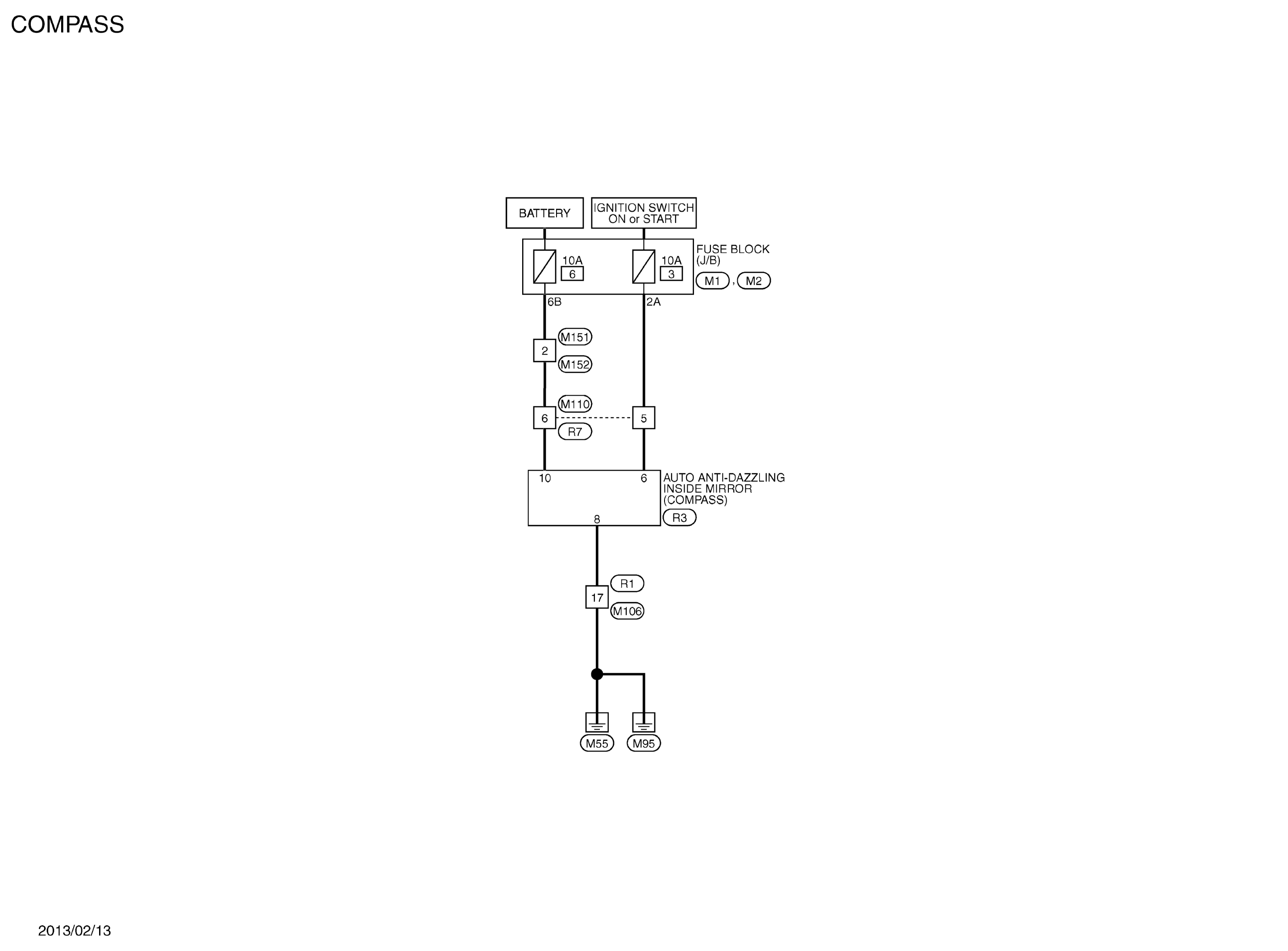

G09505420

Courtesy of NISSAN NORTH AMERICA, INC.

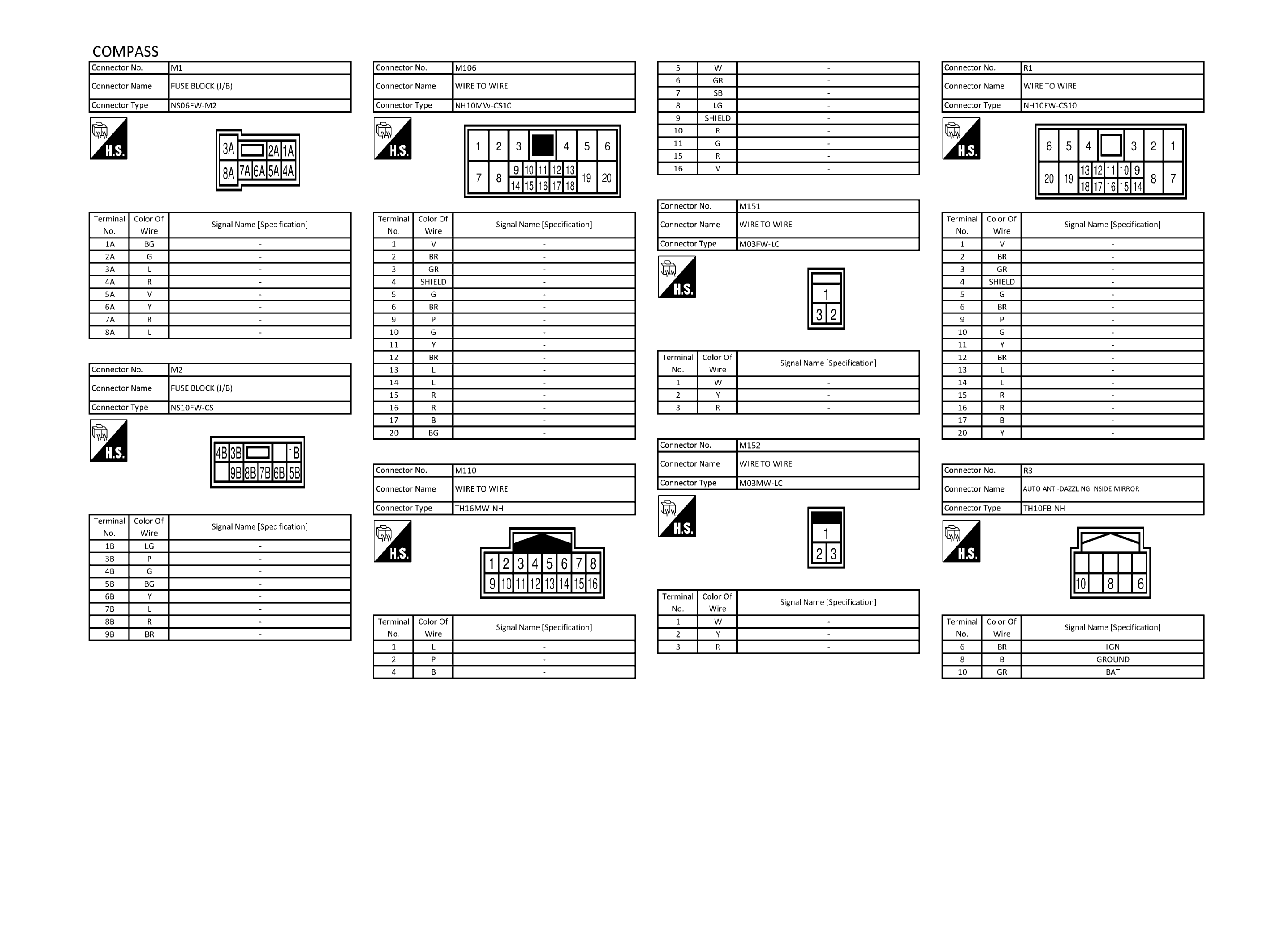

GNSJRNWE6413GB-413

Courtesy of NISSAN NORTH AMERICA, INC.

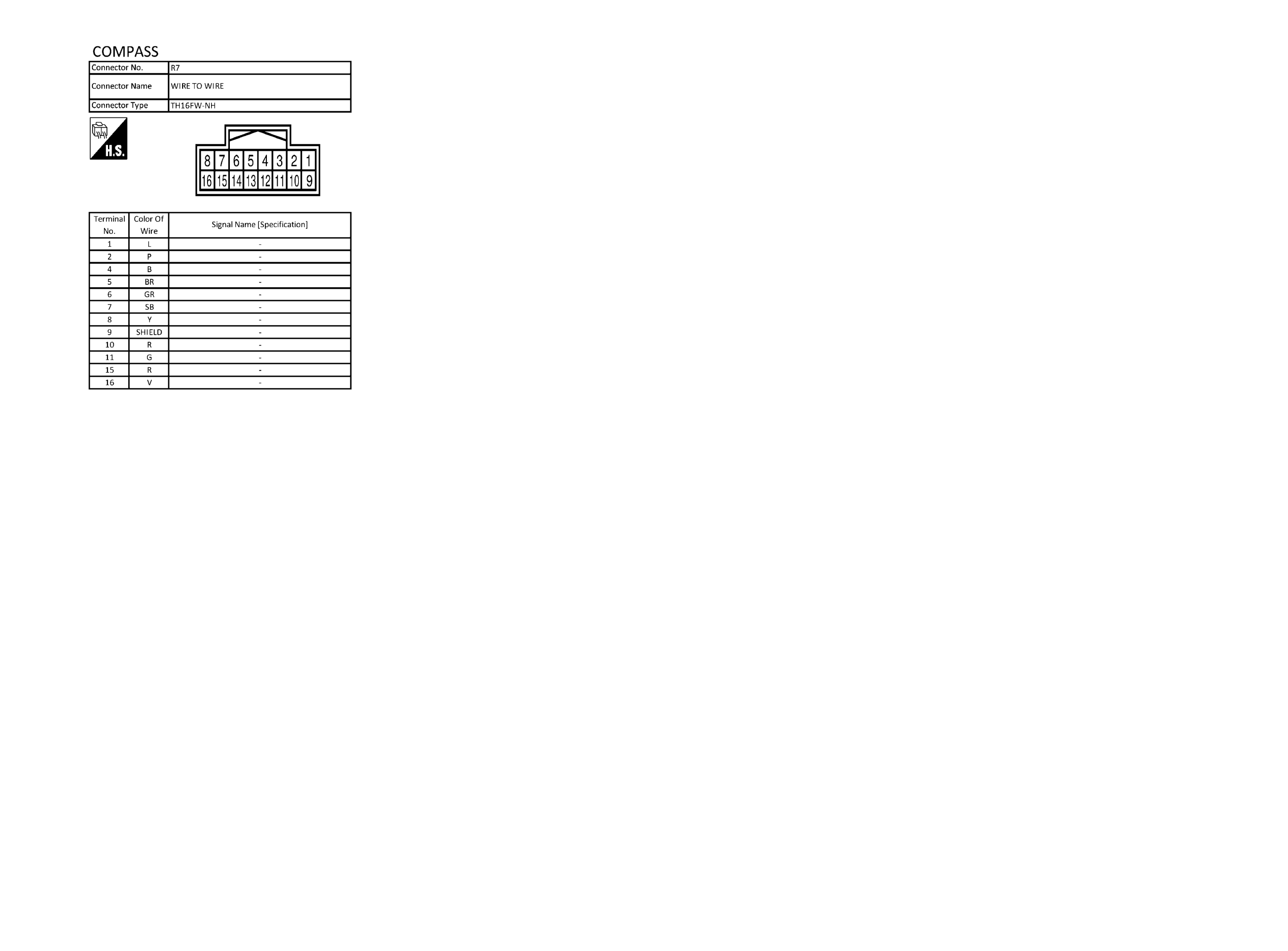

GNSJRNWE6414GB-414

Courtesy of NISSAN NORTH AMERICA, INC.
