Wiring Diagram - Clock -

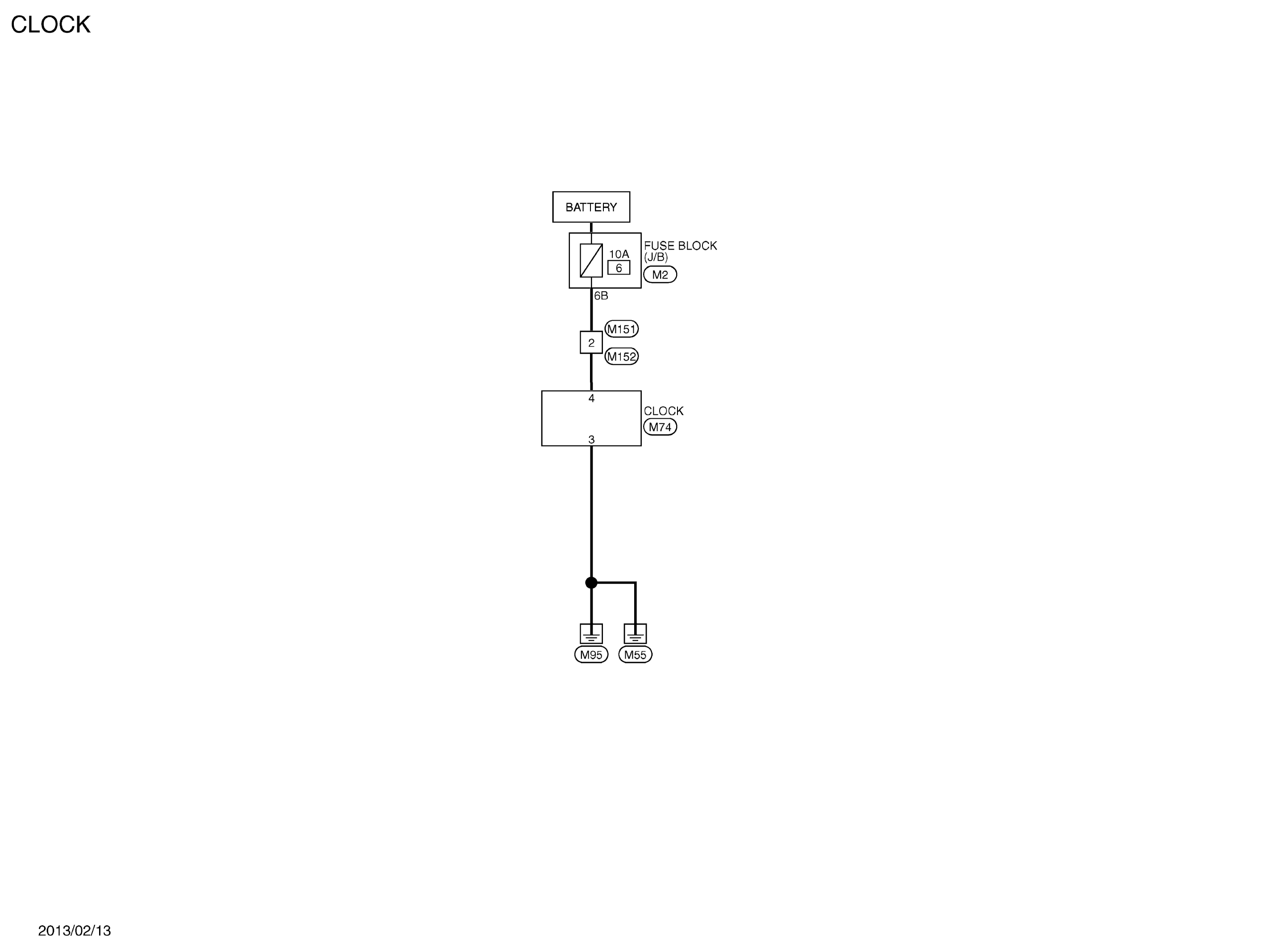

G09505423

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRNWE6415GB-415

Courtesy of NISSAN NORTH AMERICA, INC.
