Removal And Installation: Removal

  1. Remove console upper finisher.
    1. Open the console lid.
      GNSJMJIA1972ZZ-972Courtesy of NISSAN NORTH AMERICA, INC.

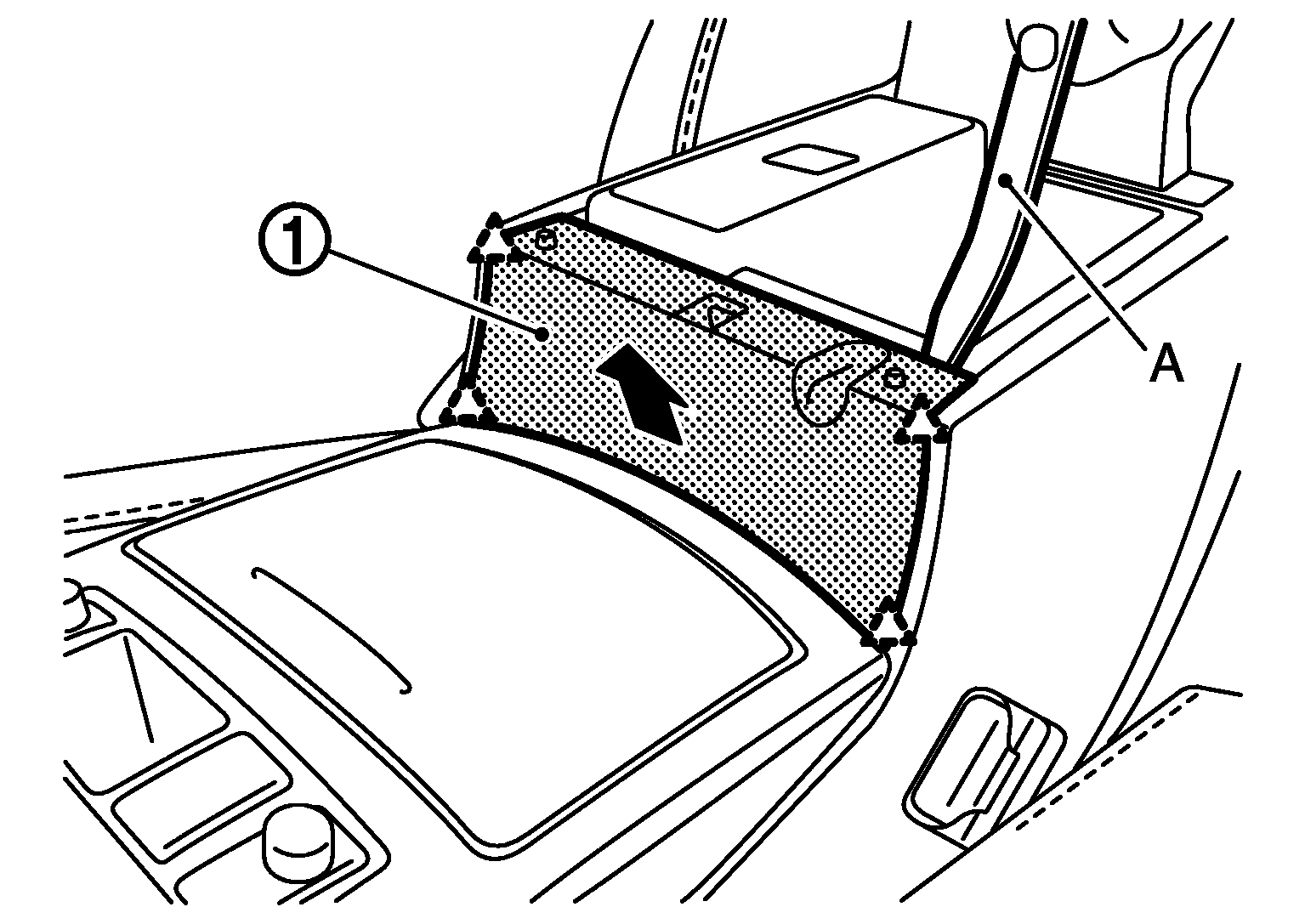

    2. Remove console upper finisher (1) fixing pawls with remover tool (A).
    3. Pull back console upper finisher.
      SANKAKU-H : Pawl
  2. Remove console finisher assembly.
    1. Remove selector lever knob. Refer to REMOVAL AND INSTALLATION .

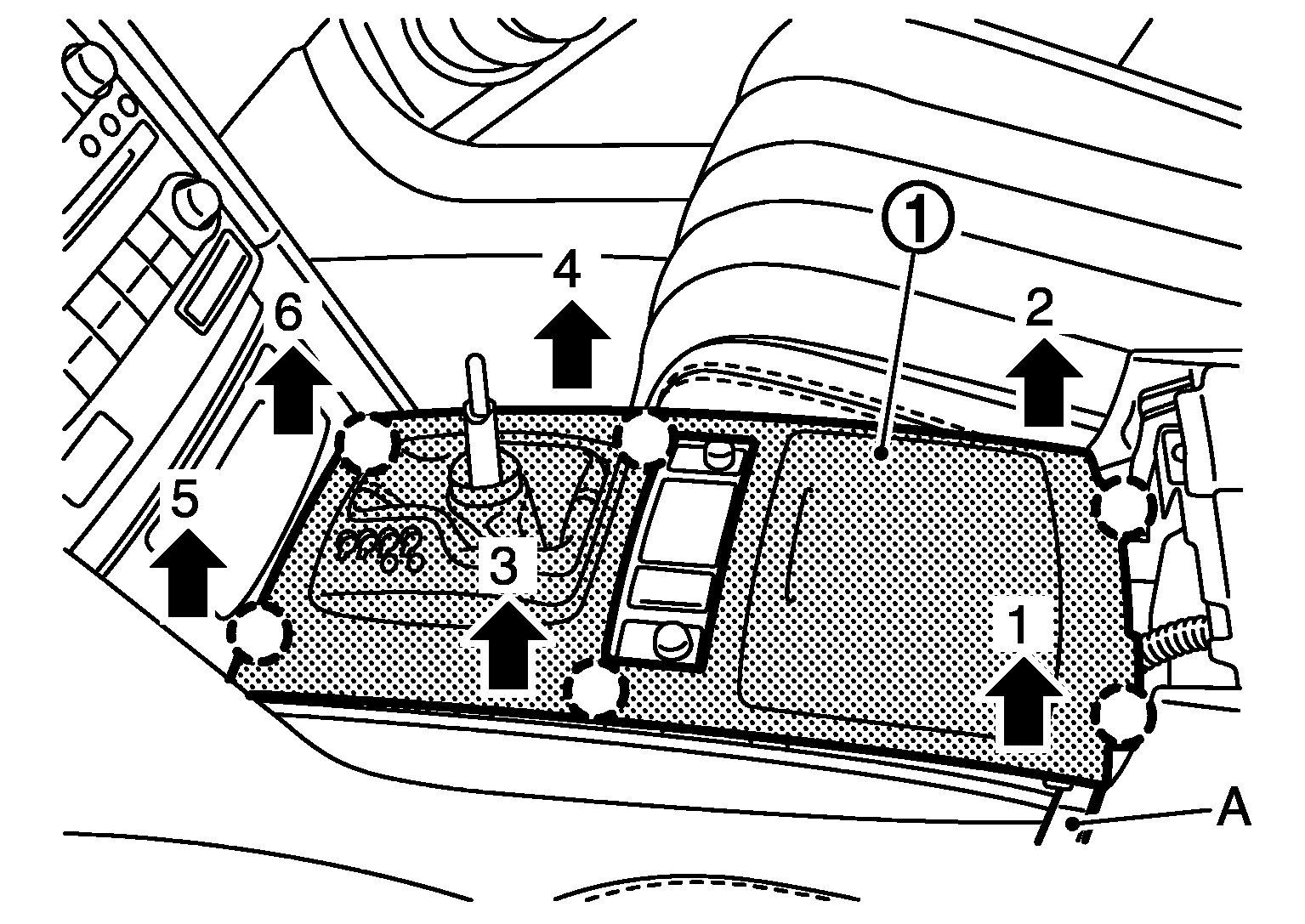

    2. Remove console finisher assembly (1) fixing clips with remover tool (A).
      GNSJMJIA1973ZZ-973Courtesy of NISSAN NORTH AMERICA, INC.
    3. Pull up console finisher assembly.
    4. Disconnect harness connector.
      MARU-H : Clip
  3. Remove console switch finisher.
    1. Remove console switch finisher (1) fixing screws (A).
      G05984799Courtesy of NISSAN NORTH AMERICA, INC.
    2. Pull up console switch finisher.
    3. Disconnect harness connectors.
  4. Remove console pocket assembly.

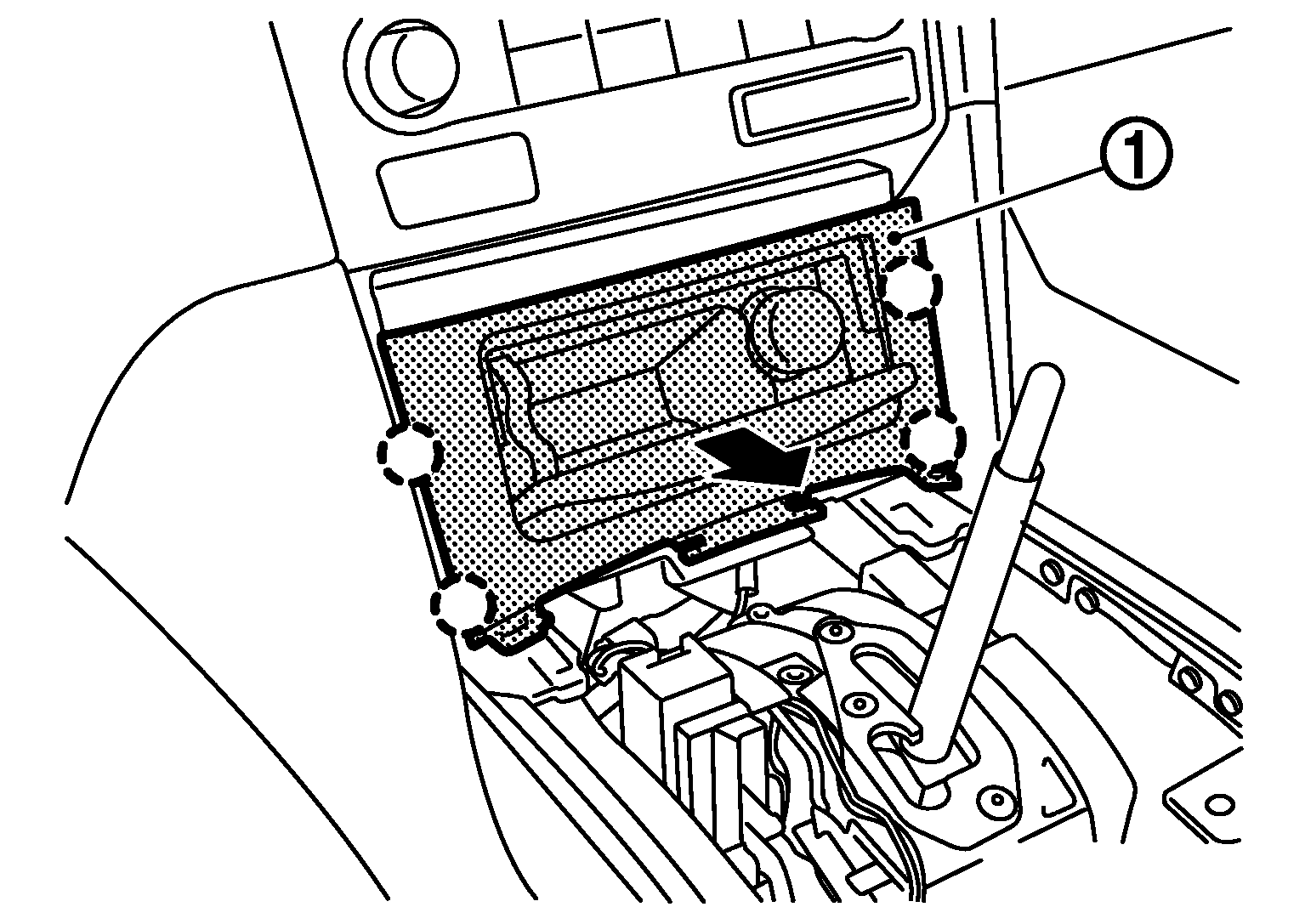

    1. Pull back console pocket assembly (1), and disengage clips.
      GNSJMJIA1975ZZ-975Courtesy of NISSAN NORTH AMERICA, INC.
    2. Disconnect harness connector.
      MARU-H : Clip
  5. Remove console rear finisher.
    1. Put front seat to front must position.

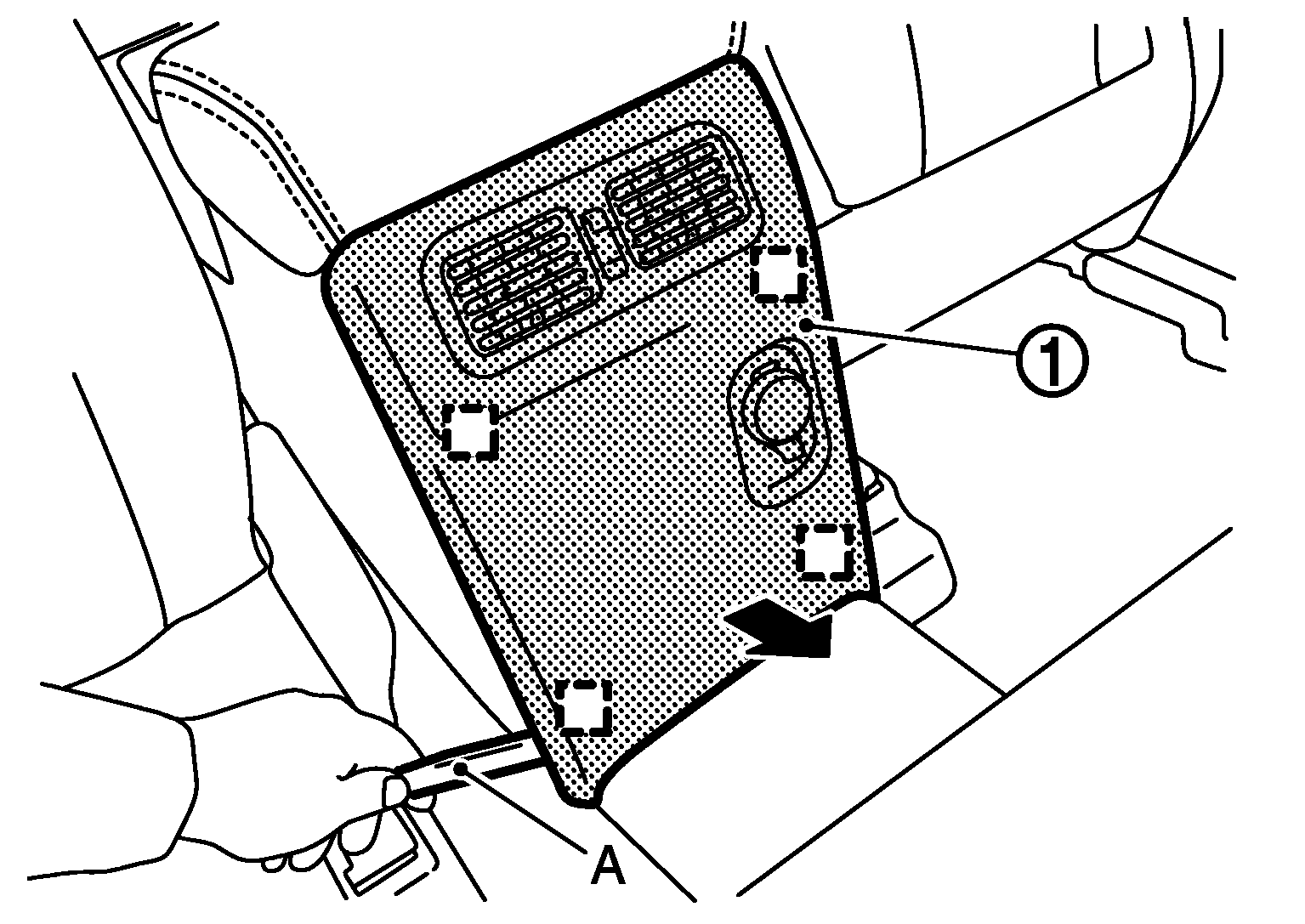

    2. Pull back the console rear finisher (1) with remover tool (A).
      GNSJMJIA1978ZZ-978Courtesy of NISSAN NORTH AMERICA, INC.
      SHIKAKU-H : Metal clip
  6. Remove rear ventilator duct. Refer to REMOVAL AND INSTALLATION .
  7. Remove center console assembly.
    1. Remove center console fixing screws (A).
      G06622769Courtesy of NISSAN NORTH AMERICA, INC.
    2. Disconnect USB connector harness connector. Refer to REMOVAL AND INSTALLATION .
    3. Disconnect console power socket harness connector. Refer to REMOVAL AND INSTALLATION .
    4. Remove center console assembly fixing screws (A).
      G05984802Courtesy of NISSAN NORTH AMERICA, INC.

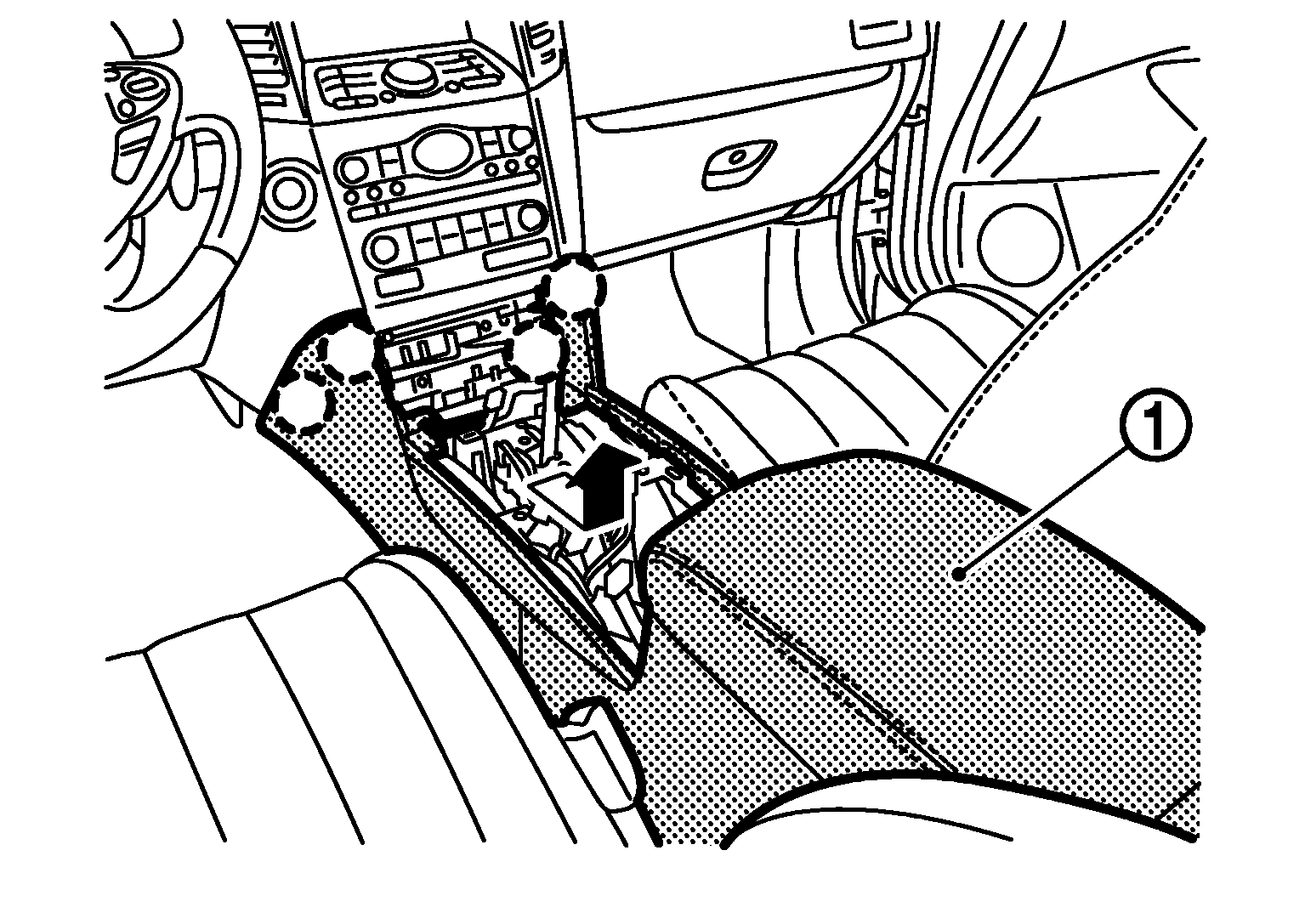

    5. Pull back and lift up center console assembly (1).
      GNSJMJIA1980ZZ-980Courtesy of NISSAN NORTH AMERICA, INC.
      MARU-H : Clip
