How To Use Can Communication Signal Chart

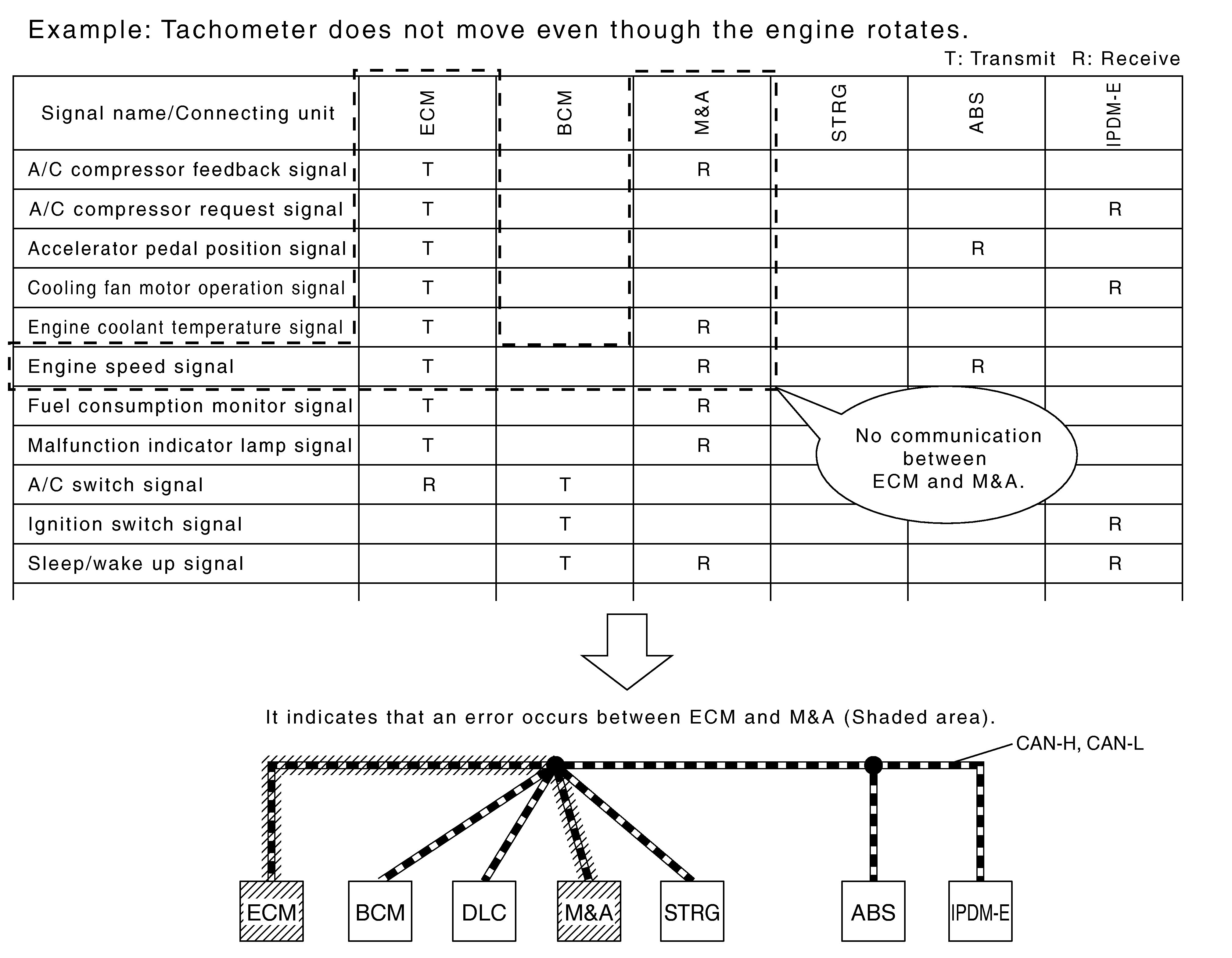

The CAN communication signal chart lists the signals needed for trouble diagnosis. It is useful for detecting the root cause by finding a signal related to the symptom, and by checking transmission and reception unit.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
