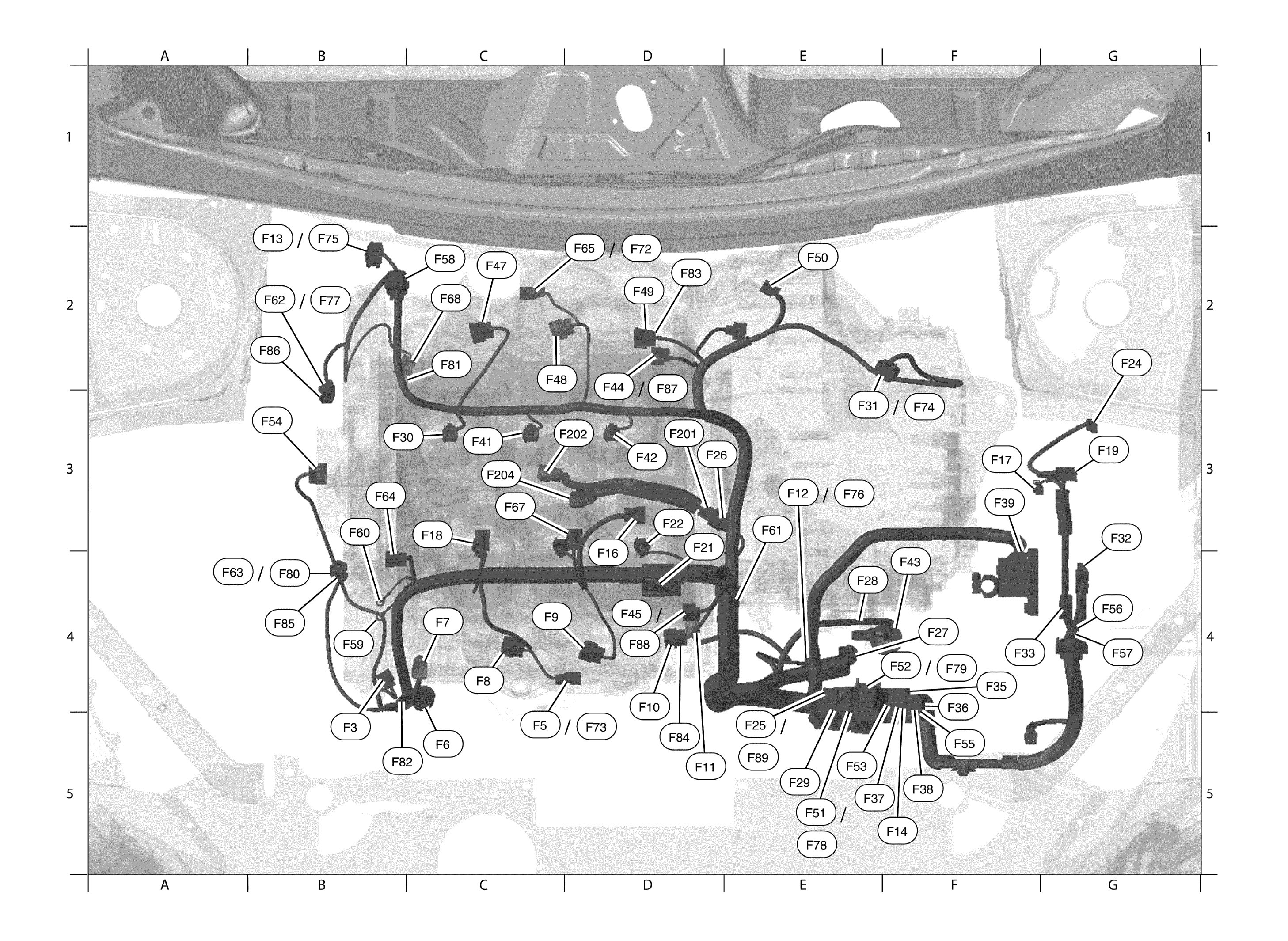

Engine Control Harness

Courtesy of NISSAN NORTH AMERICA, INC.

B5	F3	B/2	: A/C compressor	E2	F50	B/6	: Electric throttle control actuator
C5	F5	BR/4	: Air fuel ratio (A/F) sensor 1 (Bank 2) (For Mexico)	E5	F51	B/48	: ECM (For Mexico)
C5	F6	-/1	: Generator	F4	F52	BR/48	: ECM (For Mexico)
C4	F7	B/3	: Generator	E5	F53	B/10	: Joint connector-F03
C4	F8	GR/3	: Ignition coil No. 2 (With power transistor)	B3	F54	B/3	: Engine oil pressure sensor
C4	F9	GR/3	: Ignition coil No. 4 (With power transistor)	F5	F55	B/10	: Joint connector-F04
D4	F10	GR/3	: Ignition coil No. 6 (With power transistor)	G4	F56	W/4	: Joint connector-F07
D5	F11	B/3	: Crankshaft position sensor (POS)	G4	F57	W/4	: Joint connector-F08
E3	F12	B/4	: Heated oxygen sensor 2 (Bank 2) (For Mexico)	C2	F58	G/6	: Joint connector-F09
B2	F13	B/4	: Heated oxygen sensor 2 (Bank 1) (For Mexico)	B4	F59	-	: Engine ground
F5	F14	B/10	: Joint connector-F01	B3	F60	-	: Engine ground
D4	F16	L/2	: EVAP canister purge volume control solenoid valve	E3	F61	GR/2	: Engine coolant temperature sensor
F3	F17	B/1	: IPDM E/R (Intelligent power distribution module engine room)	B2	F62	GR/2	: Intake valve timing control solenoid valve (Bank 1) (For Mexico)
C3	F18	GR/2	: Fuel injector No. 2	A4	F63	GR/2	: Intake valve timing control solenoid valve (Bank 2) (For Mexico)
G3	F19	W/10	: IPDM E/R (Intelligent power distribution module engine room)	B3	F64	BR/2	: Electronic controlled engine mount control solenoid valve
C3	F20	GR/2	: Fuel injector No. 4	D2	F65	BR/4	: Air fuel ratio (A/F) sensor 1 (Bank 1) (For Mexico)
D3	F21	W/2	: Condenser-1	C3	F66	B/2	: VIAS control solenoid valve 1
D3	F22	GR/2	: Fuel injector No. 6	C3	F67	B/2	: VIAS control solenoid valve 2
G2	F24	W/12	: IPDM E/R (Intelligent power distribution module engine room)	C2	F68	GR/2	: Engine oil temperature sensor
E5	F25	B/48	: TCM (Transmission control module) (For Mexico)	D2	F72	GR/4	: Air fuel ratio (A/F) sensor 1 (Bank 1) (Except for Mexico)
D3	F26	L/4	: To F201	D5	F73	GR/4	: Air fuel ratio (A/F) sensor 1 (Bank 2) (Except for Mexico)
F4	F27	-/1	: Starter motor	F3	F74	B/4	: Mass air flow sensor (Except for Mexico)
E4	F28	GR/1	: Starter motor	B2	F75	GR/4	: Heated oxygen sensor 2 (Bank 1) (Except for Mexico)
E5	F29	B/10	: Transmission range switch	E3	F76	GR/4	: Heated oxygen sensor 2 (Bank 2) (Except for Mexico)
B3	F30	GR/2	: Fuel injector No. 1	B2	F77	GR/2	: Intake valve timing control solenoid valve (Bank 1) (Except for Mexico)
E3	F31	B/6	: Mass air flow sensor (For Mexico)	E5	F78	B/55	: ECM (Except for Mexico)
G3	F32	W/16	: To E2	F4	F79	B/65	: ECM (Except for Mexico)
F4	F33	W/10	: To E19	B4	F80	GR/2	: Intake valve timing control solenoid valve (Bank 2) (Except for Mexico)
F4	F35	B/3	: Primary speed sensor	C2	F81	GR/2	: Intake valve timing intermediate lock control solenoid valve (Bank 1)
F4	F36	B/3	: Output speed sensor	B5	F82	GR/2	: Intake valve timing intermediate lock control solenoid valve (Bank 2)
E5	F37	B/3	: Input speed sensor	D2	F83	B/3	: Exhaust valve timing control position sensor (PHASE) (Bank 1) (Except for Mexico)
F5	F38	B/10	: Joint connector-F02	D5	F84	B/3	: Exhaust valve timing control position sensor (PHASE) (Bank 2) (Except for Mexico)
F3	F39	-/1	: Fusible link box (Battery)	B4	F85	GR/2	: Exhaust valve timing control solenoid valve (Bank 2) (Except for Mexico)
C3	F41	GR/2	: Fuel injector No. 3	B2	F86	GR/2	: Exhaust valve timing control solenoid valve (Bank 1) (Except for Mexico)
D3	F42	GR/2	: Fuel injector No. 5	D2	F87	B/3	: Camshaft position sensor (PHASE) (Bank 1) (Except for Mexico)
F4	F43	GR/22	: CVT unit	D4	F88	B/3	: Camshaft position sensor (PHASE) (Bank 2) (Except for Mexico)
D2	F44	B/3	: Camshaft position sensor (PHASE) (Bank 1) (For Mexico)	E5	F89	B/48	: TCM (Transmission control module) (Except for Mexico)
D4	F45	B/3	: Camshaft position sensor (PHASE) (Bank 2) (For Mexico)	Knock sensor sub-harness
C2	F47	GR/3	: Ignition coil No. 1 (With power transistor)	D3	F201	L/4	: To F26
C2	F48	GR/3	: Ignition coil No. 3 (With power transistor)	D3	F202	GR/2	: Knock sensor (Bank 1)
D2	F49	GR/3	: Ignition coil No. 5 (With power transistor)	C3	F204	GR/2	: Knock sensor (Bank 2)
