Main Harness

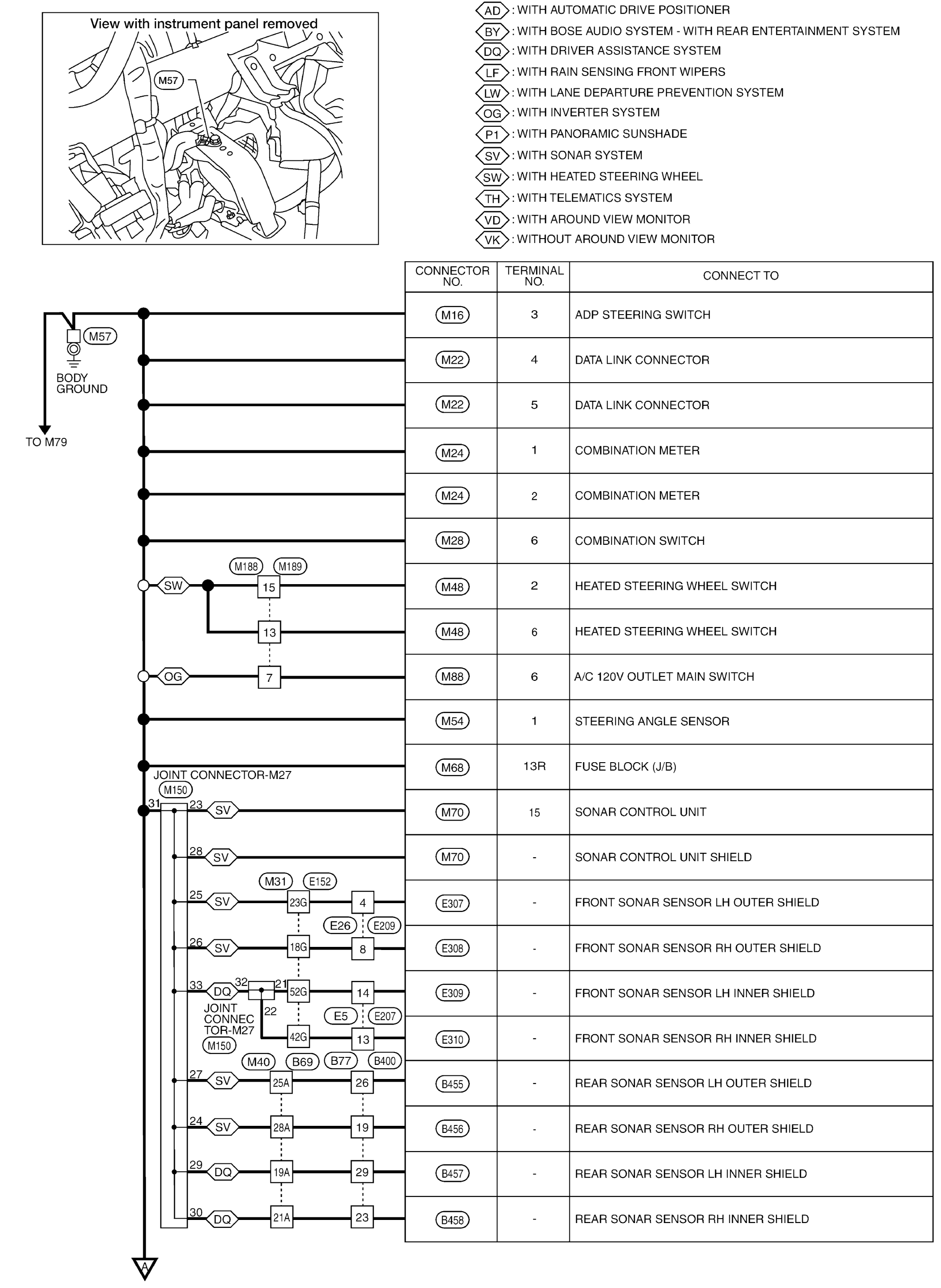

GNSABMIA8646GB-646Courtesy of NISSAN NORTH AMERICA, INC.

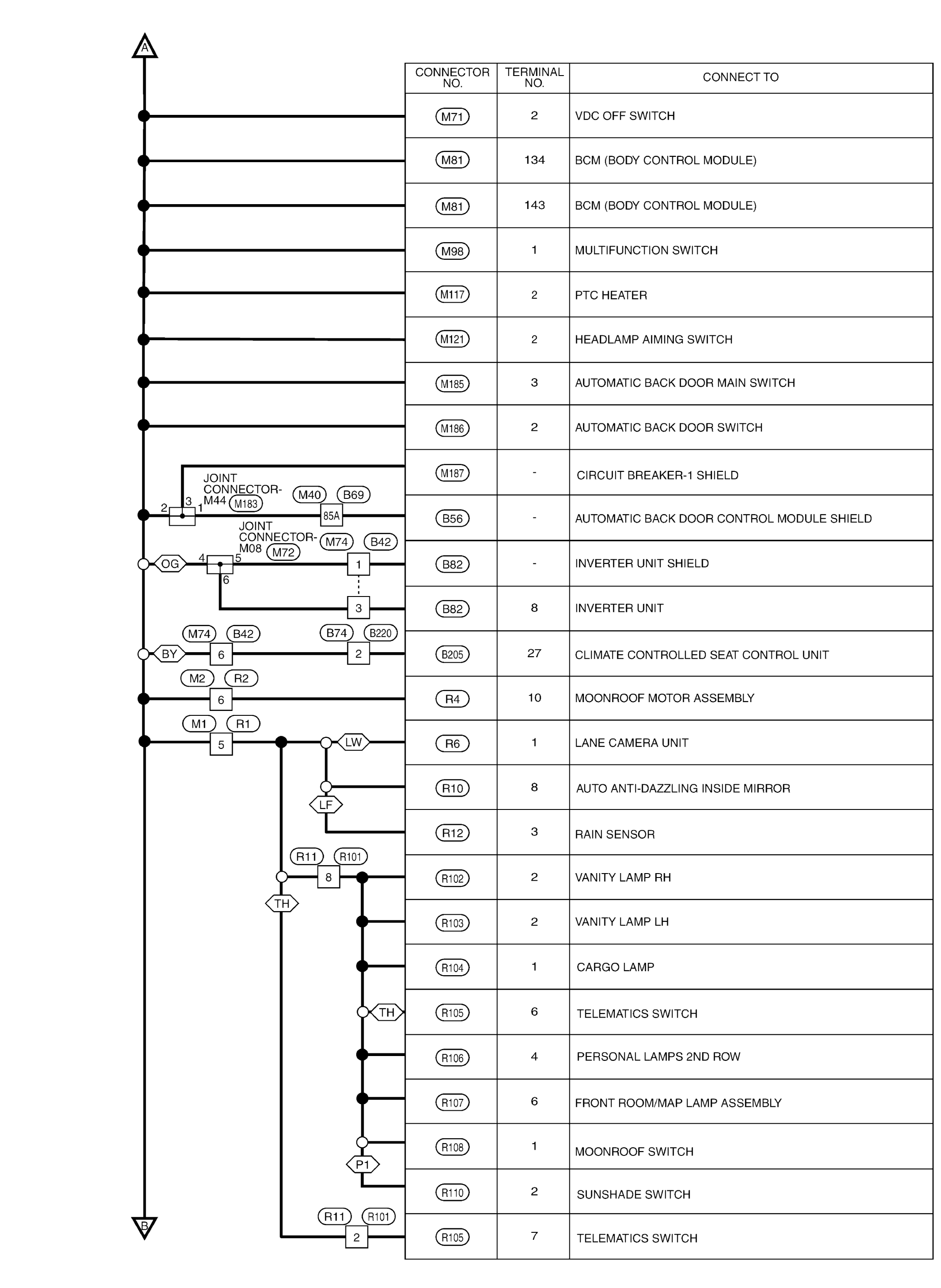

GNSABMIA8647GB-647Courtesy of NISSAN NORTH AMERICA, INC.

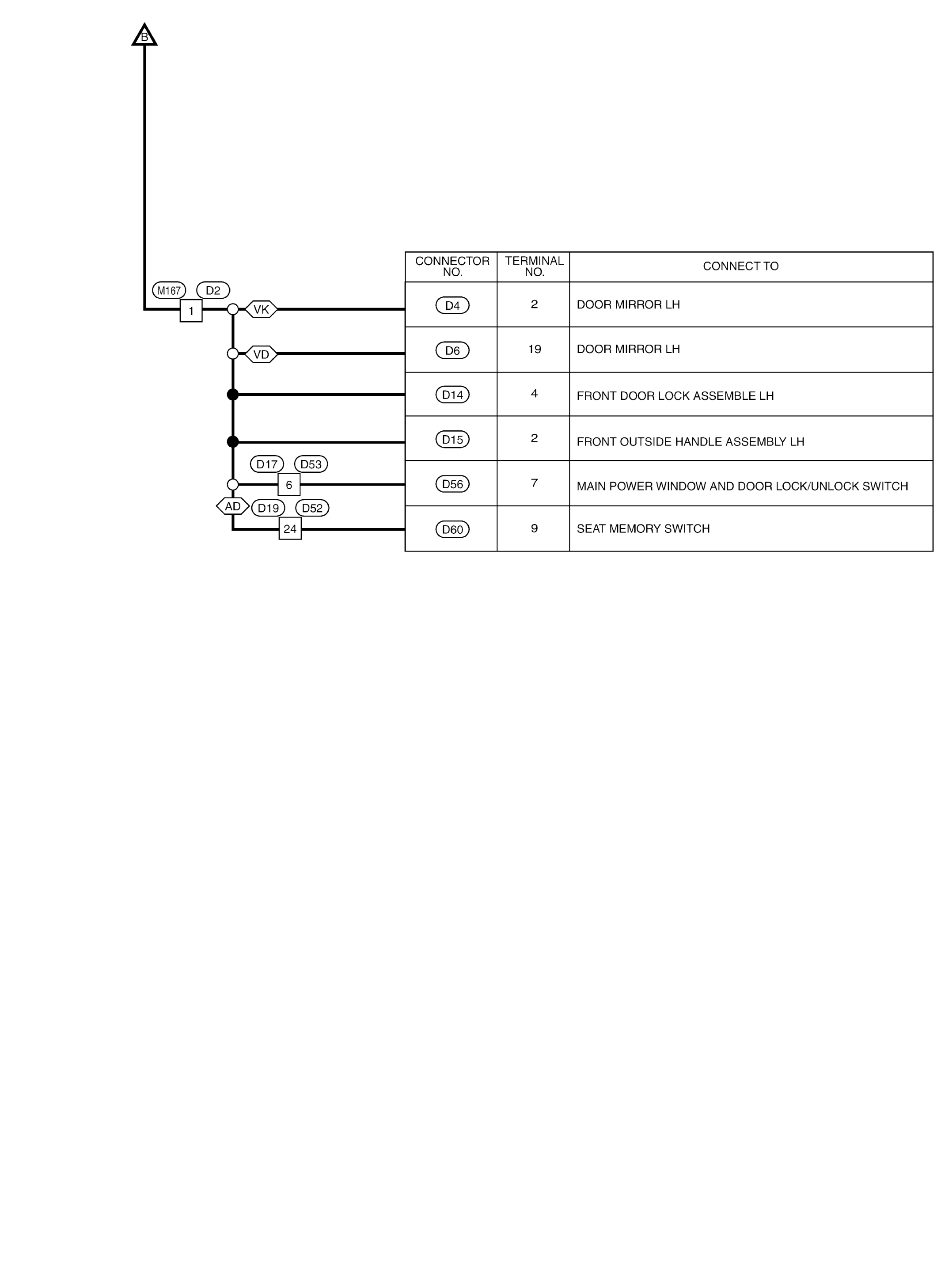

GNSABMIA8648GB-648Courtesy of NISSAN NORTH AMERICA, INC.

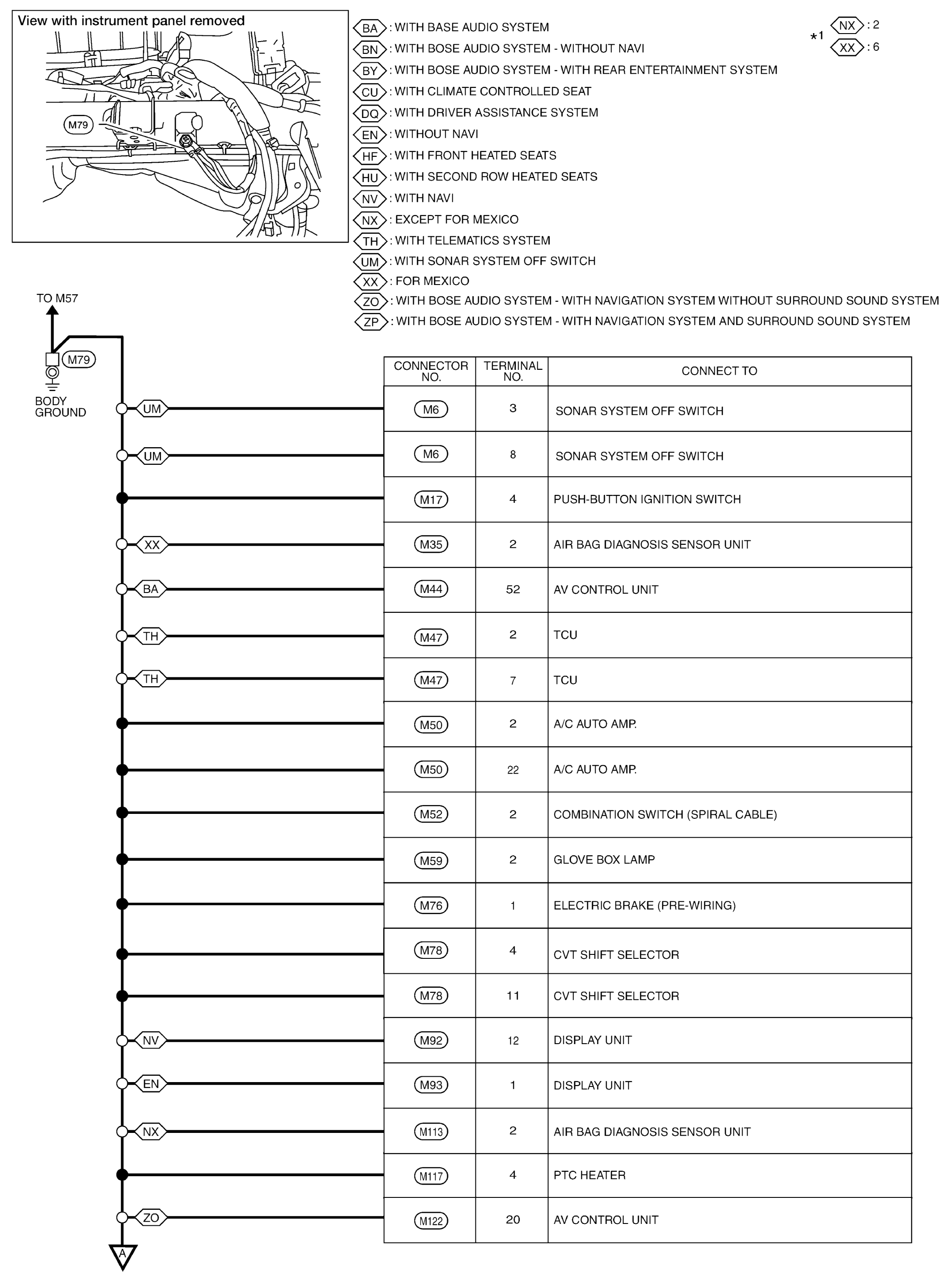

GNSABMIA8650GB-650Courtesy of NISSAN NORTH AMERICA, INC.

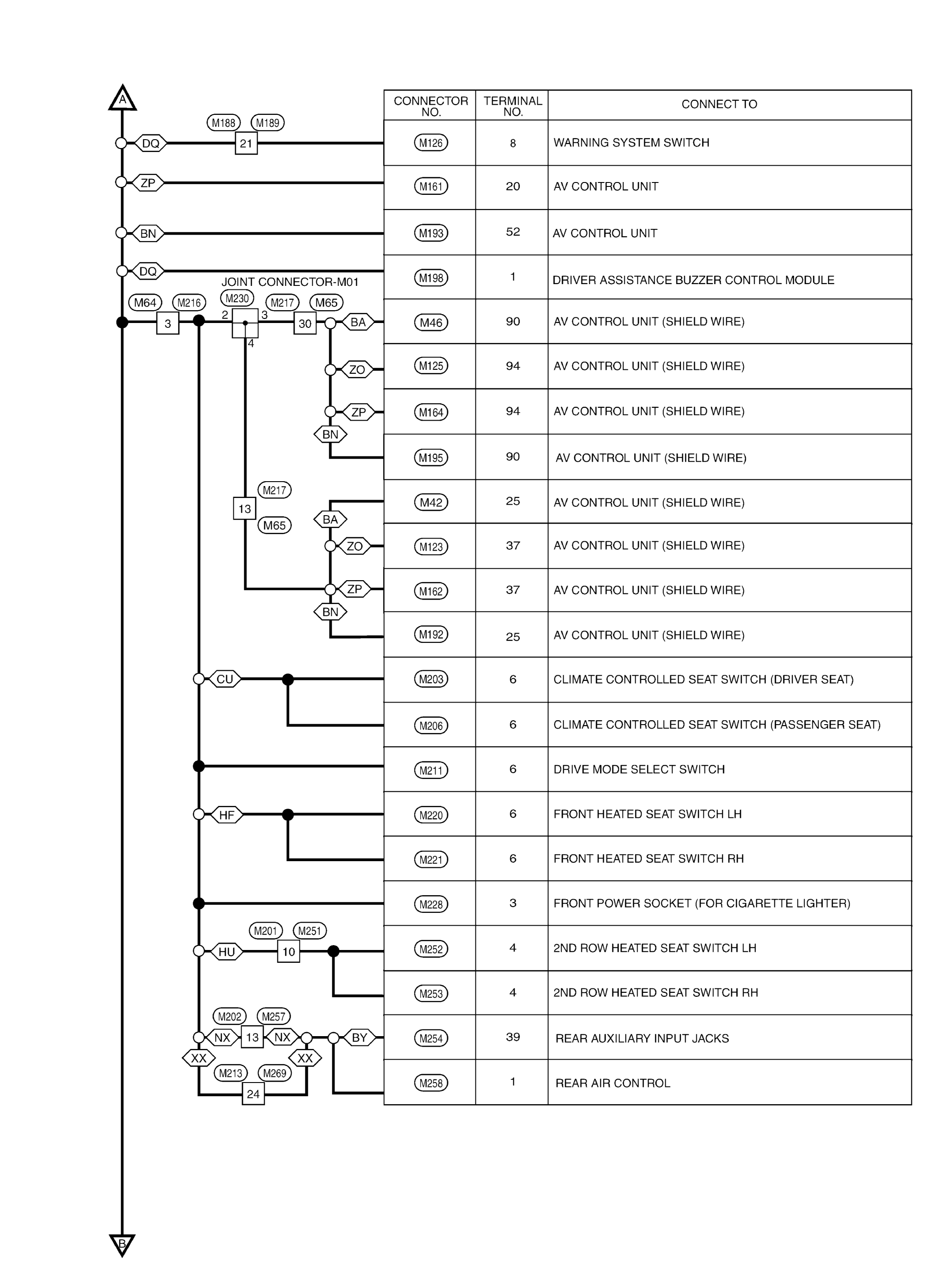

GNSABMIA8651GB-651Courtesy of NISSAN NORTH AMERICA, INC.

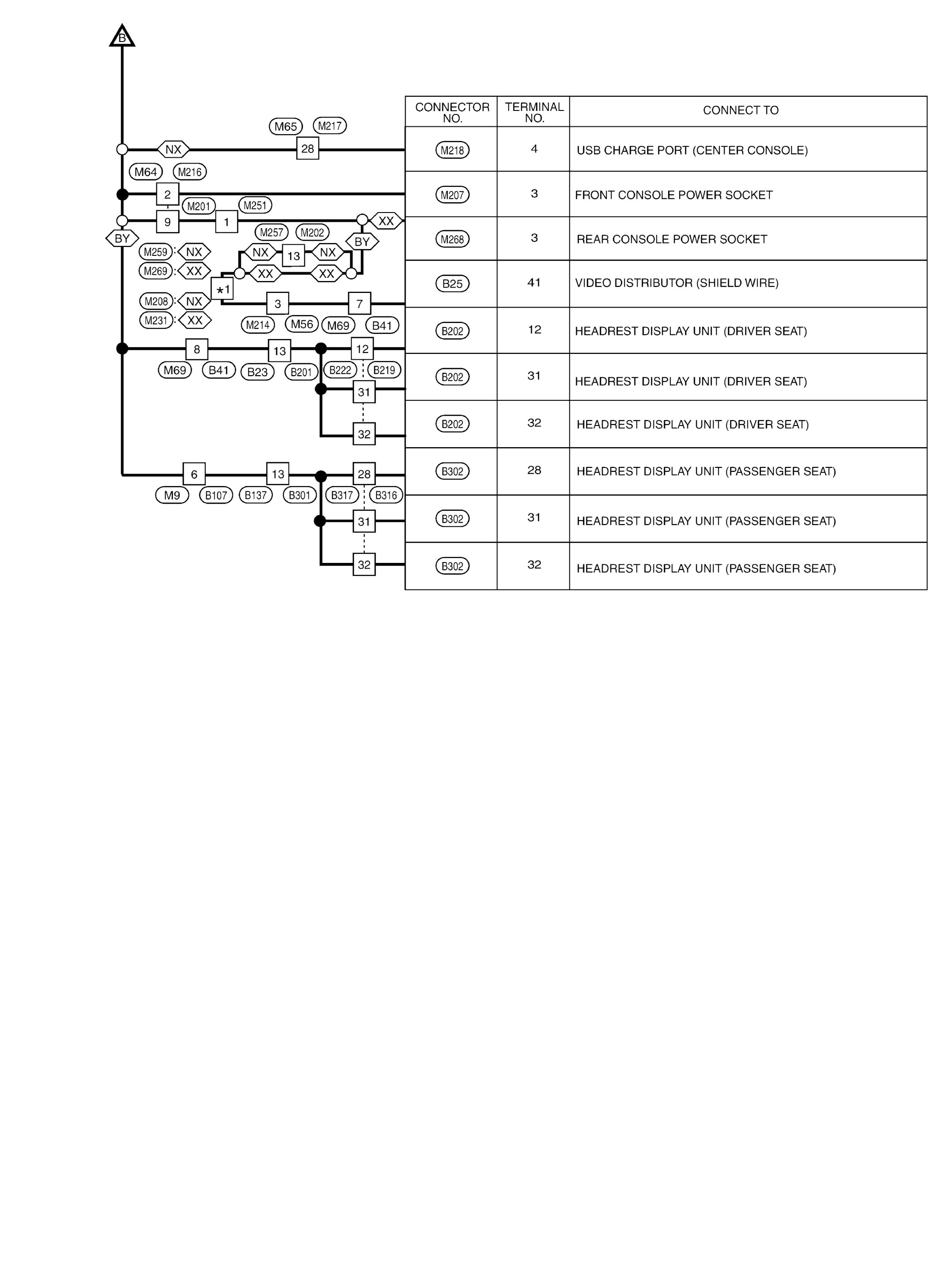

GNSABMIA8652GB-652Courtesy of NISSAN NORTH AMERICA, INC.

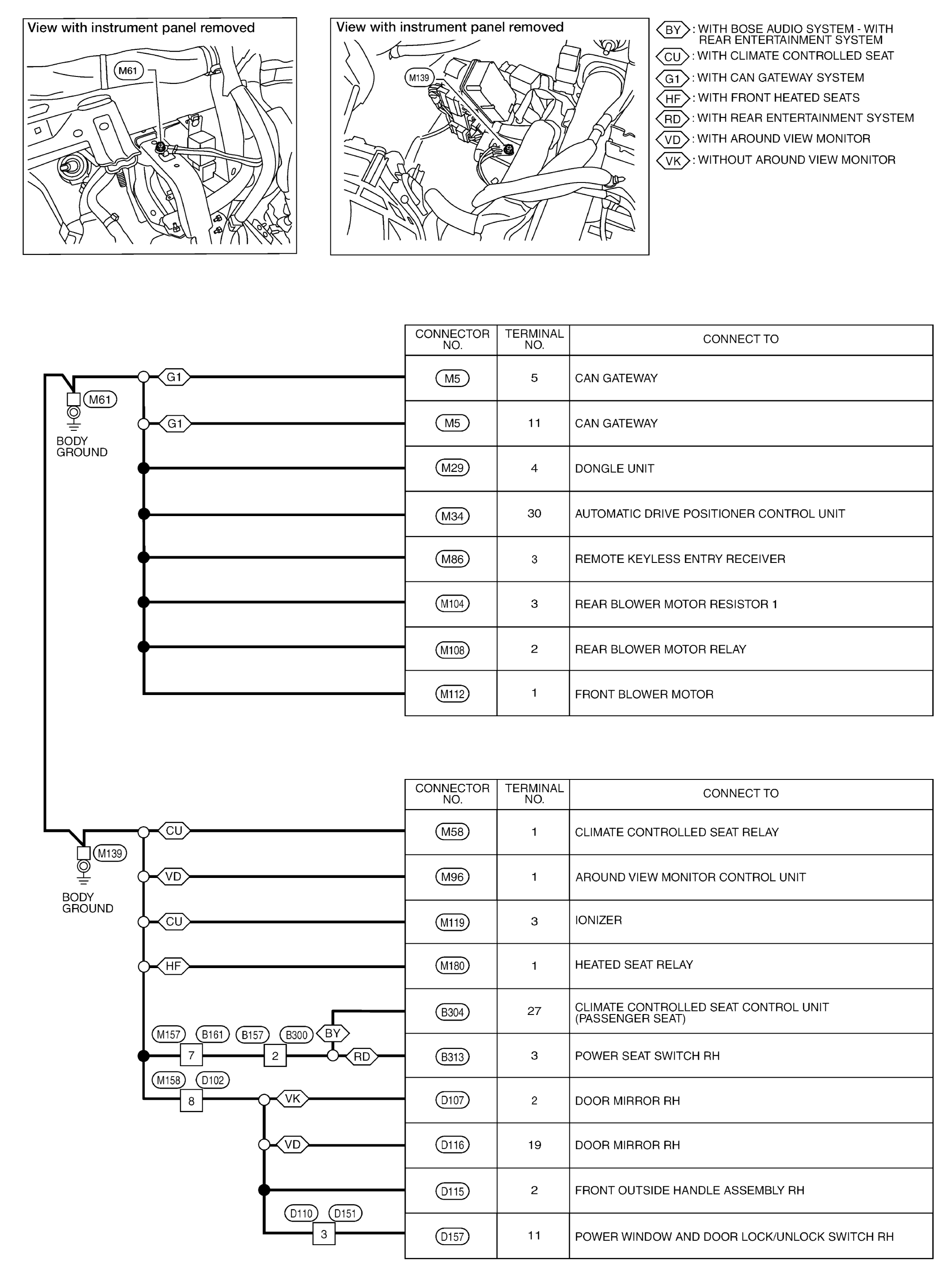

GNSABMIA8649GB-649Courtesy of NISSAN NORTH AMERICA, INC.
