Exploded View With Torque Specifications

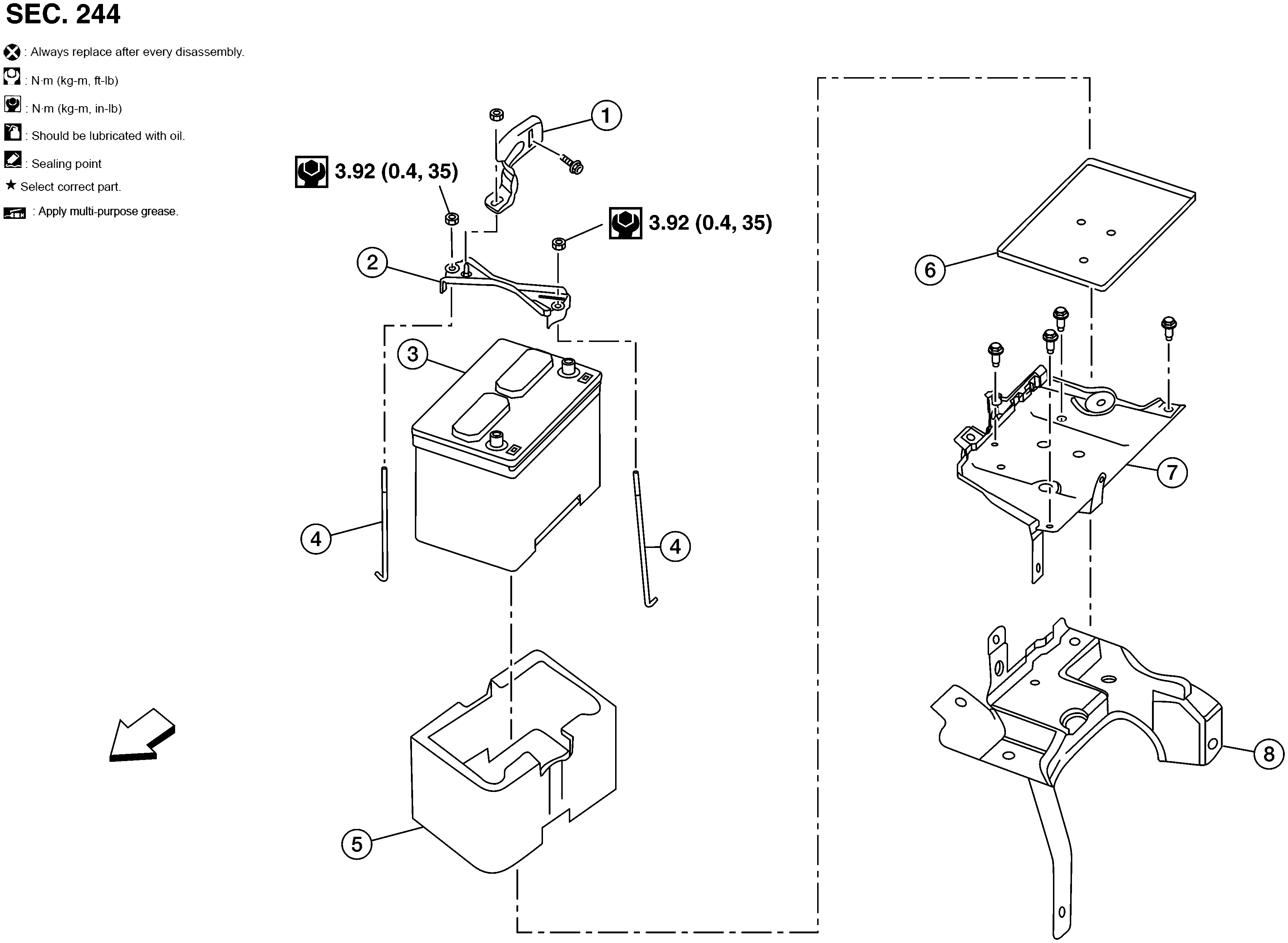

Fig 1: Battery With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Upper ECM bracket	2.	Battery frame	3.	Battery
4.	Battery rods	5.	Battery cover	6.	Battery tray liner
7.	Battery tray	8.	Battery tray support		Front
