Exploded View With Torque Specifications

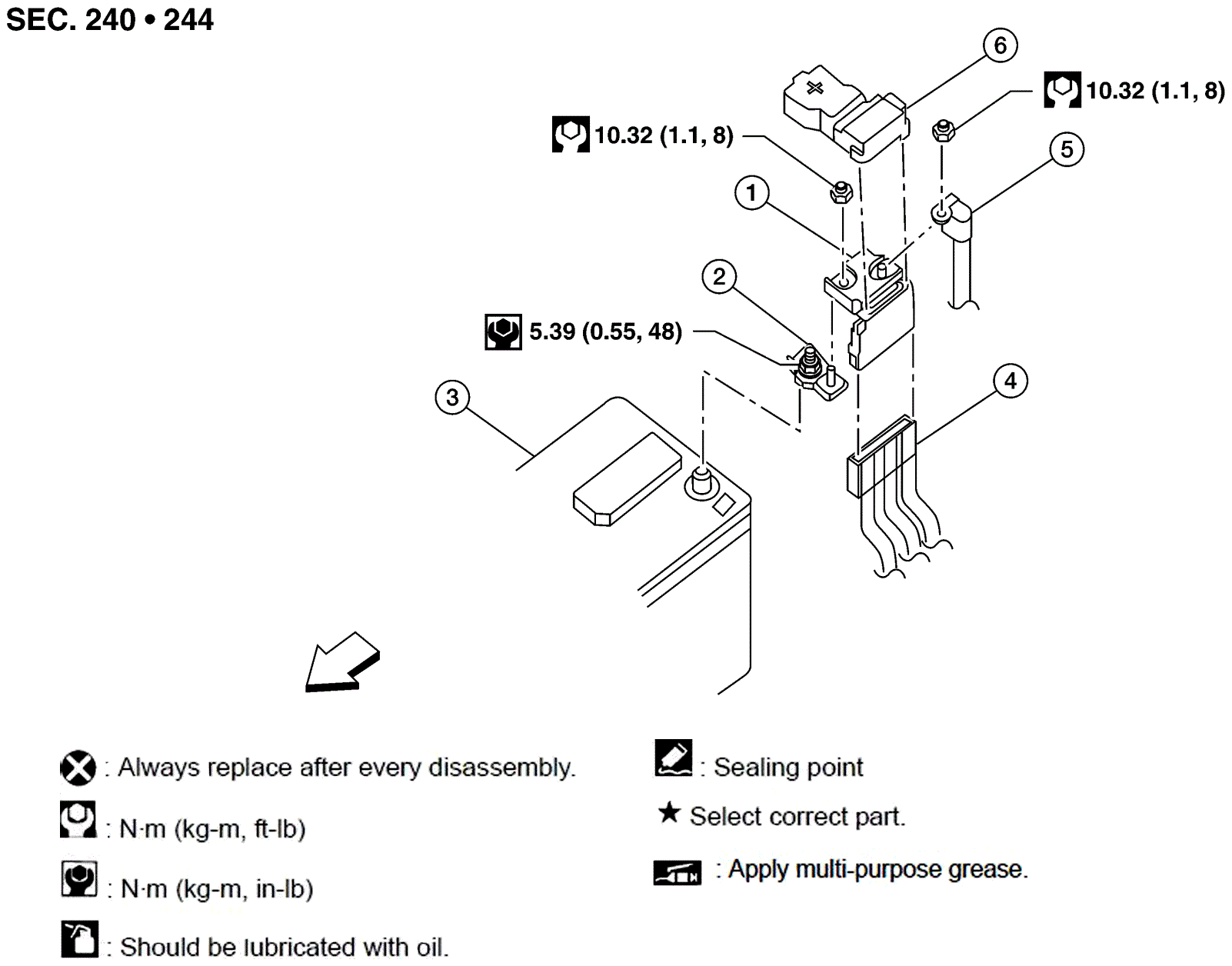

Fig 1: Battery Terminal With Fusible Link With Torque Specifications
GNSAWMIA1448ZZ-448ARROWCourtesy of NISSAN NORTH AMERICA, INC.
1. Fusible link box (battery) 2. Positive Terminal 3. Battery
4. Harness connectors 5. Positive cable 6. Cover
ARROW Front
