Removal And Installation: Removal

  1. Remove instrument lower panel LH. Refer to REMOVAL AND INSTALLATION .
  2. Remove steering column cover screw finishers (1) using a suitable tool, then remove screws.

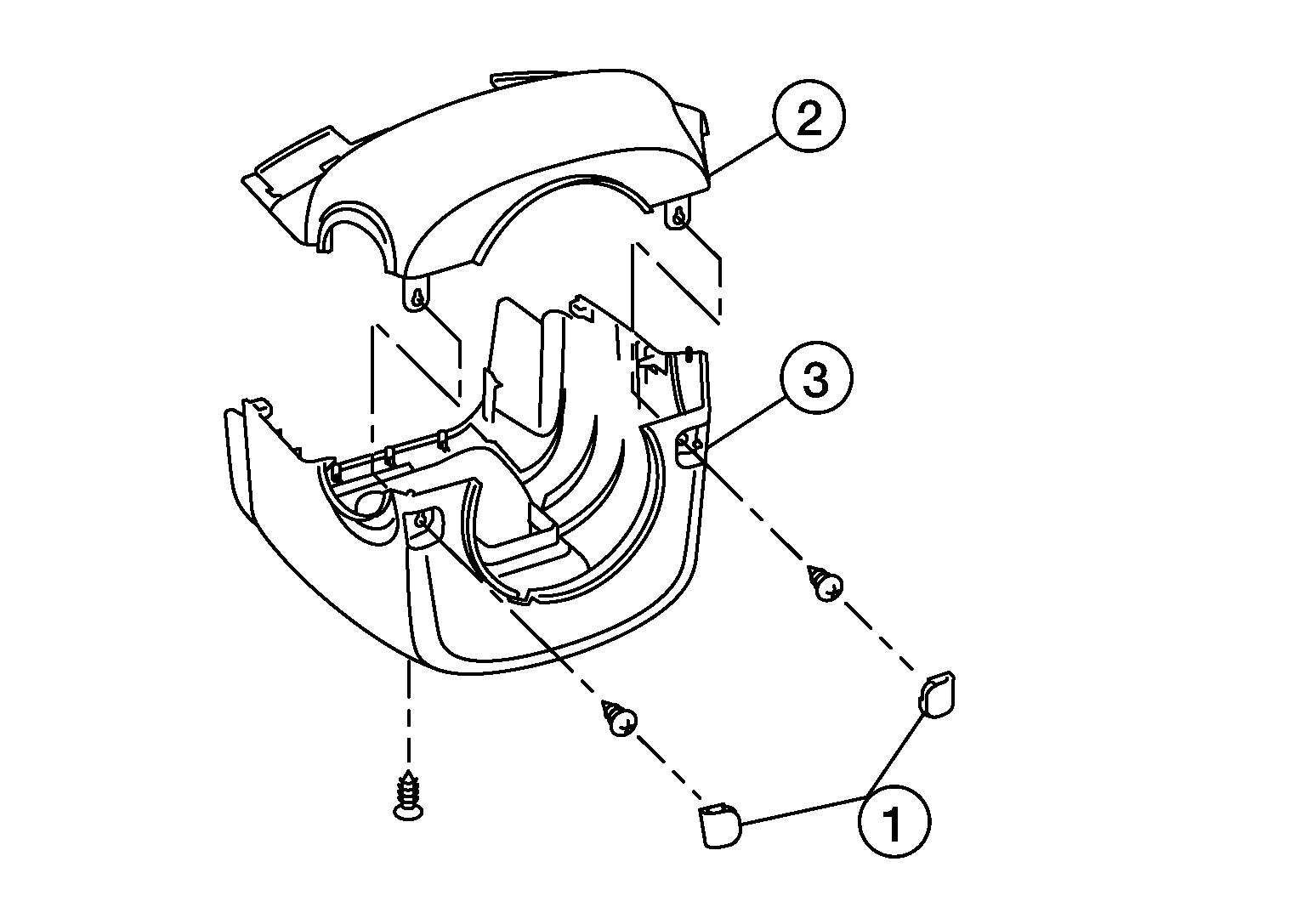

    G05878340Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE:

    If necessary, rotate steering wheel to access steering column cover screw finishers (1) and screws.

  3. Remove steering column upper cover (2).
  4. Remove steering column lower cover screw, then remove steering column lower cover (3).
