Infiniti
>>
2016
>>
QX60 Base, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
Power Outlet (Ac 120 V Outlet) (Except Hybrid)
>>
Wiring Diagram
>>
Inverter Unit
>>
Wiring Diagram

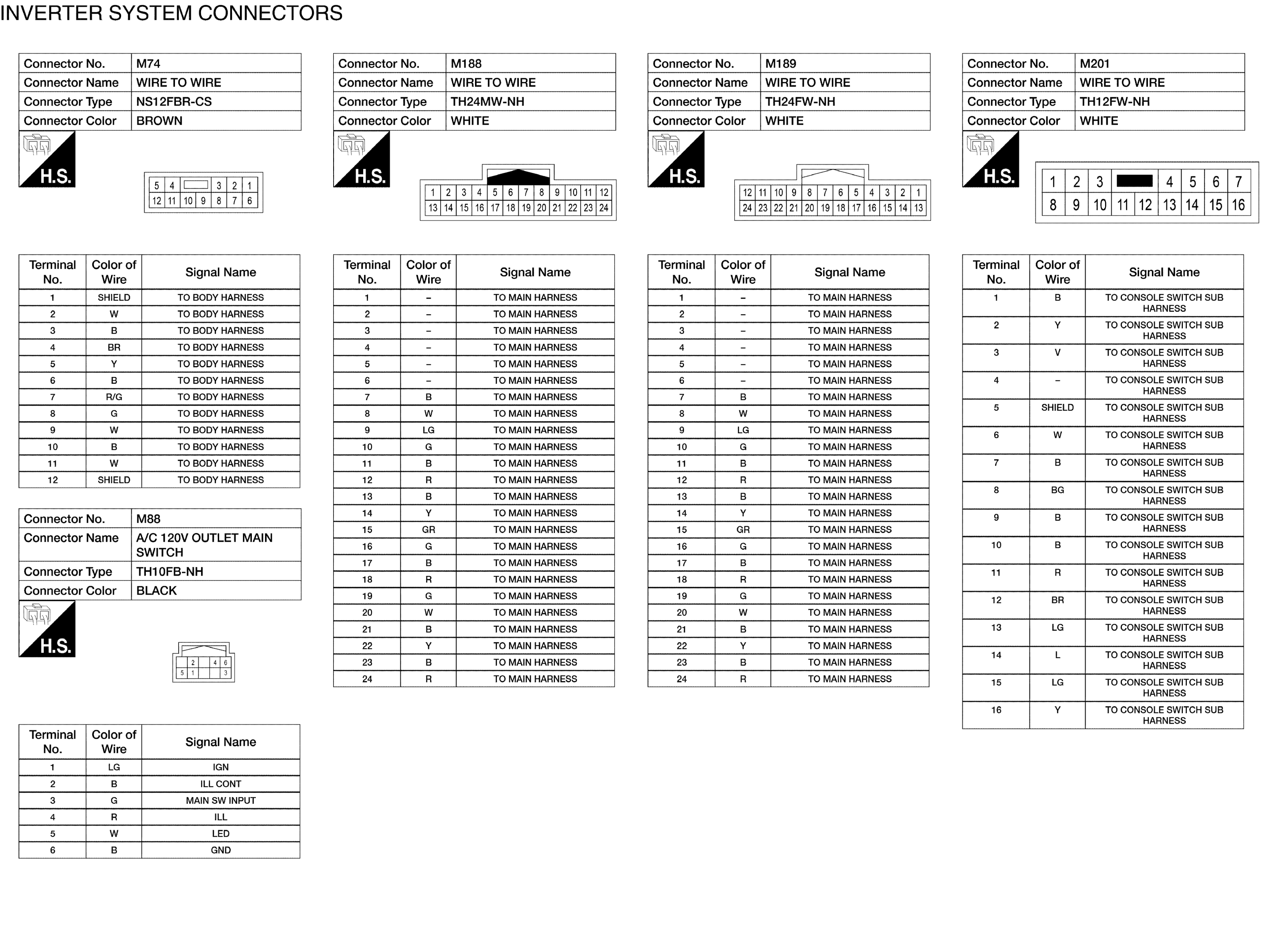

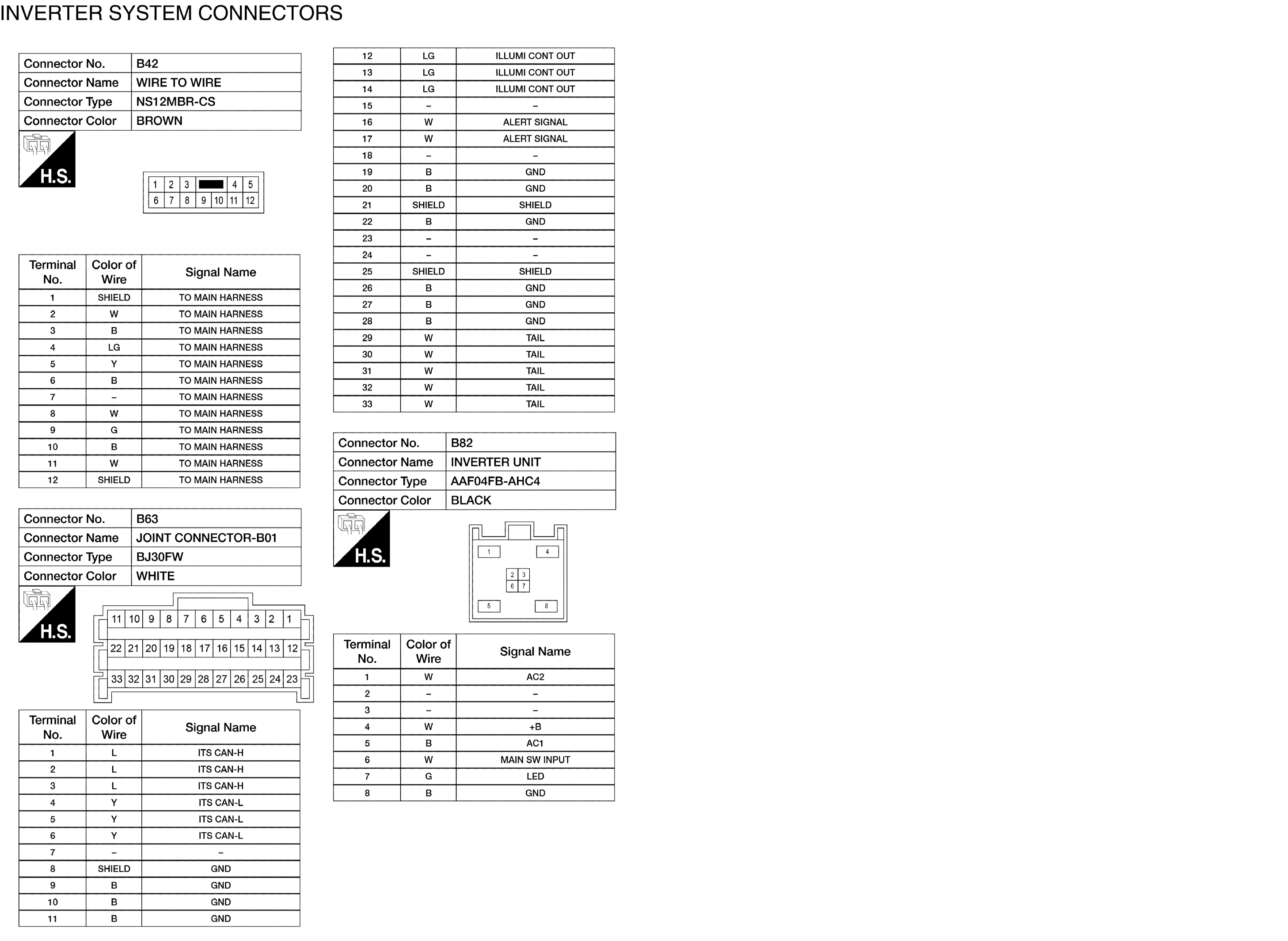

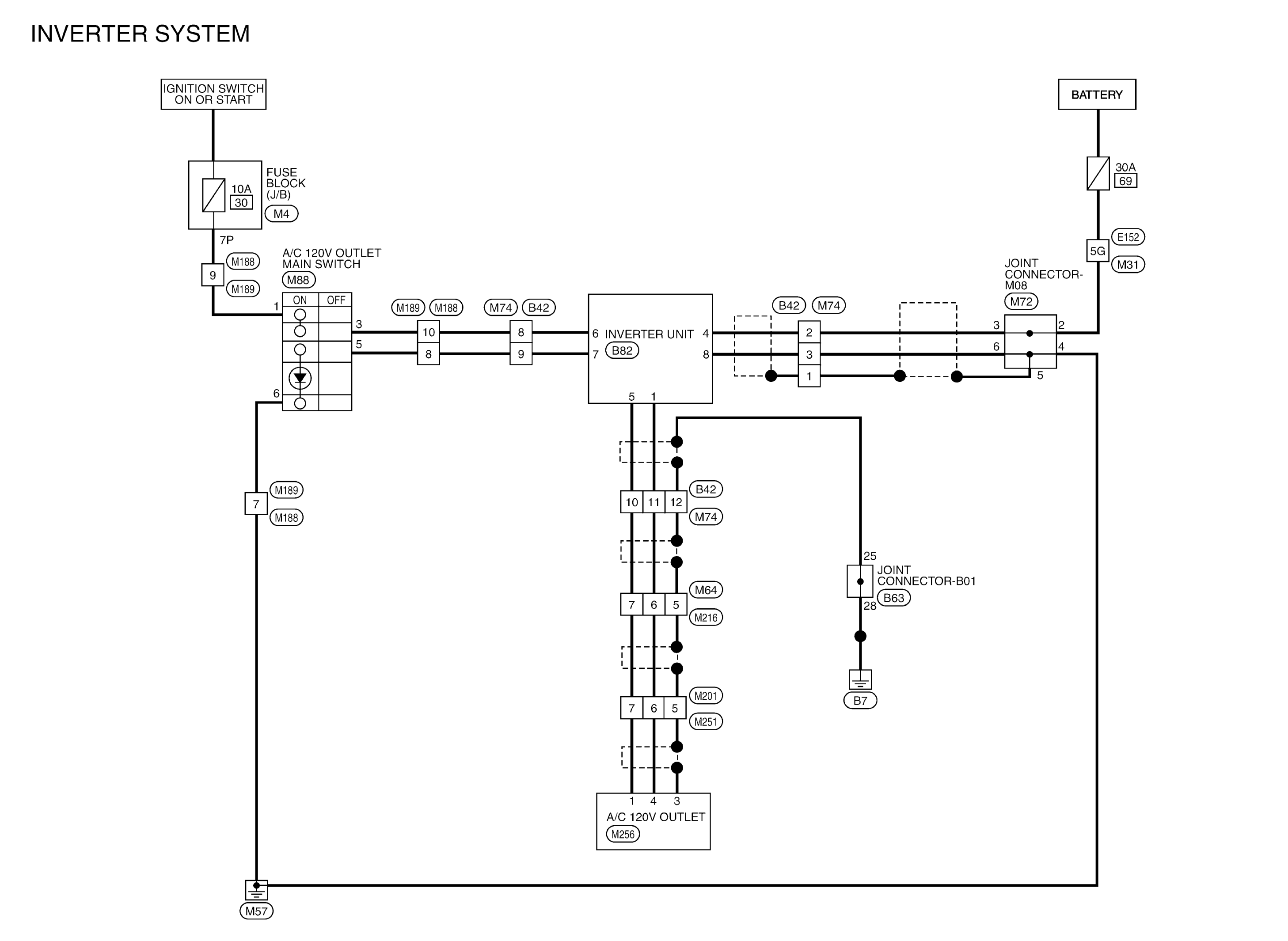

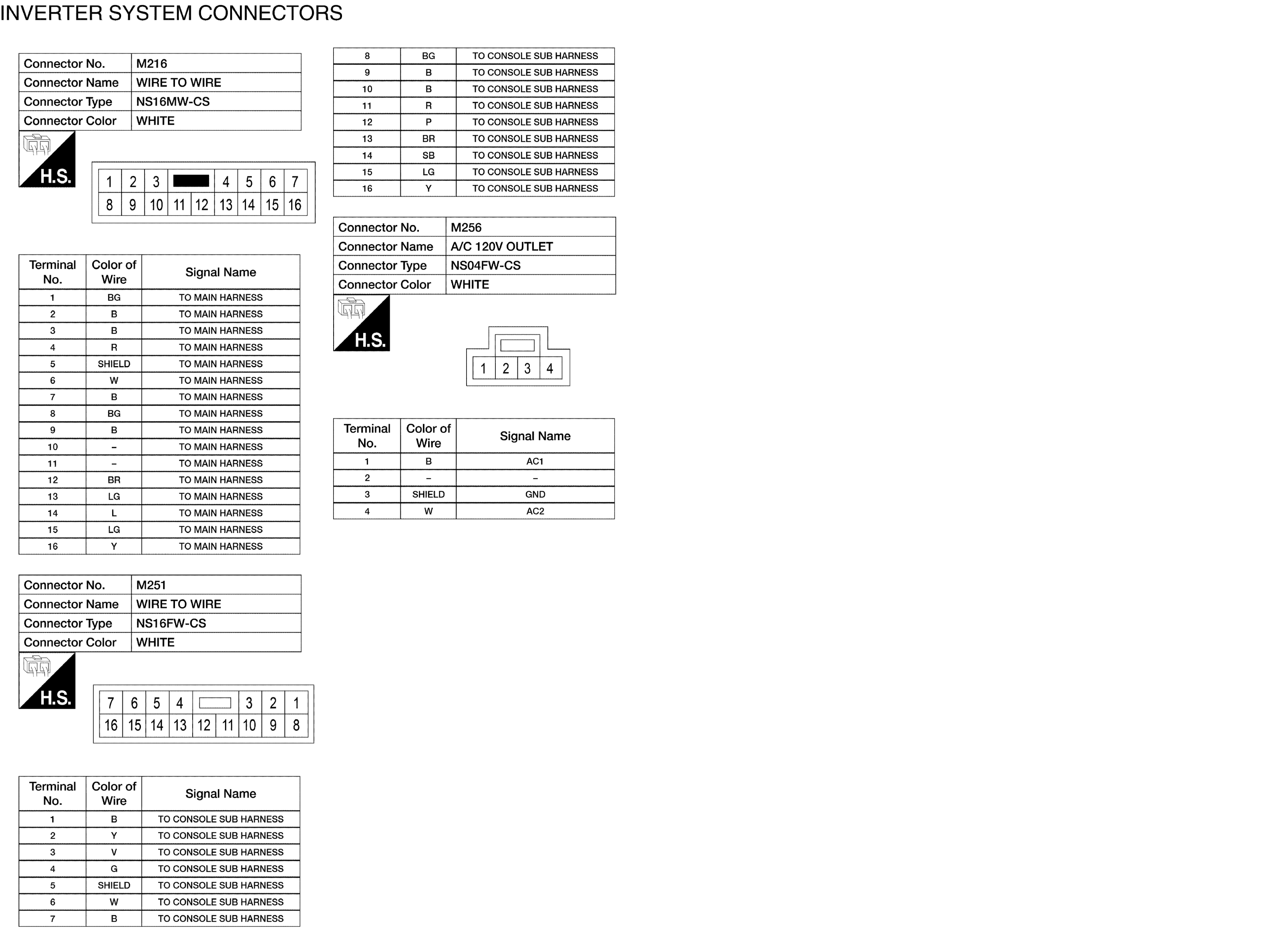

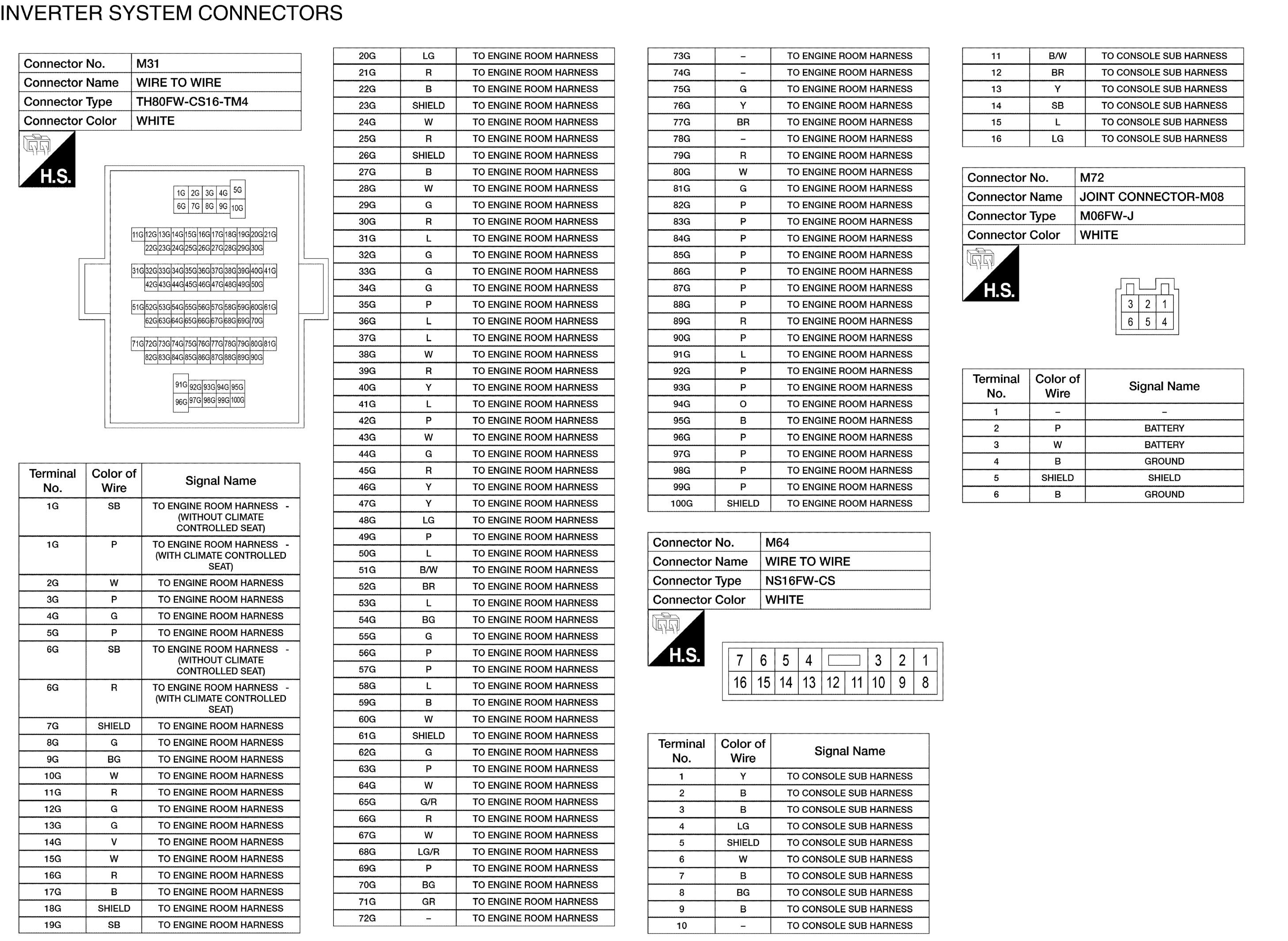

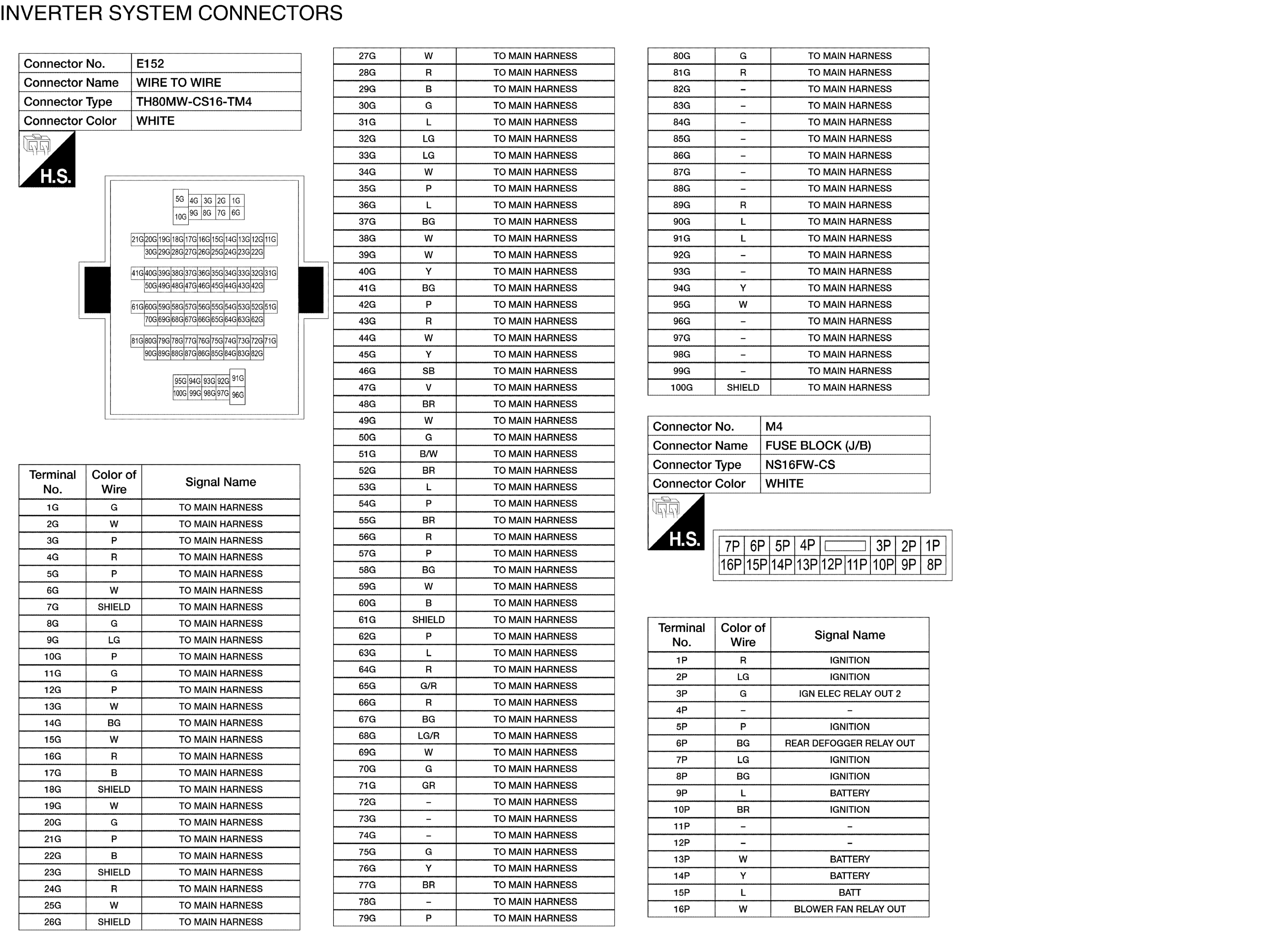

Inverter Unit: Wiring Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
