Wiring Diagram - Without Automatic Drive Positioner

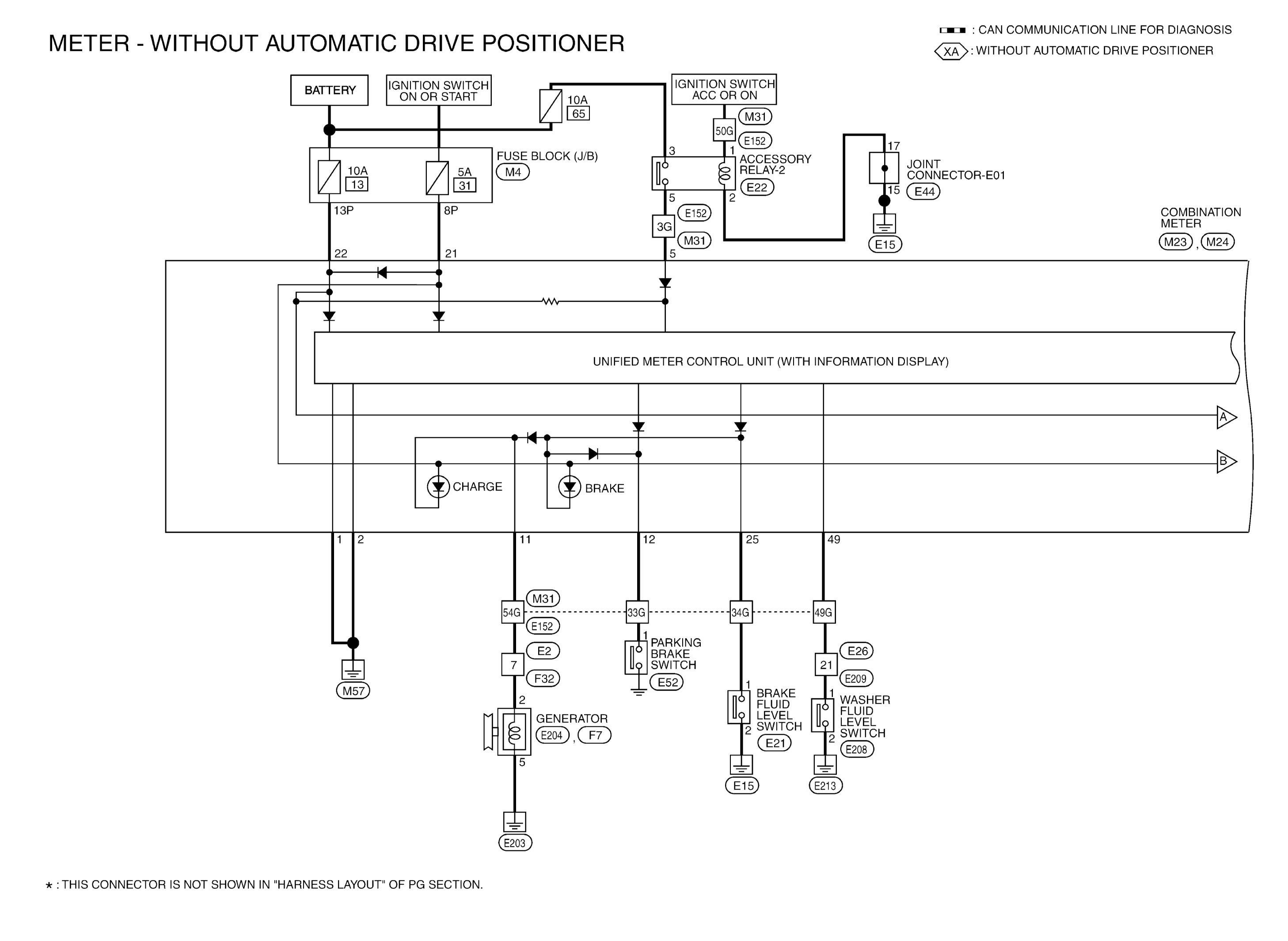

GNSABNWA3122GB-122

Courtesy of NISSAN NORTH AMERICA, INC.

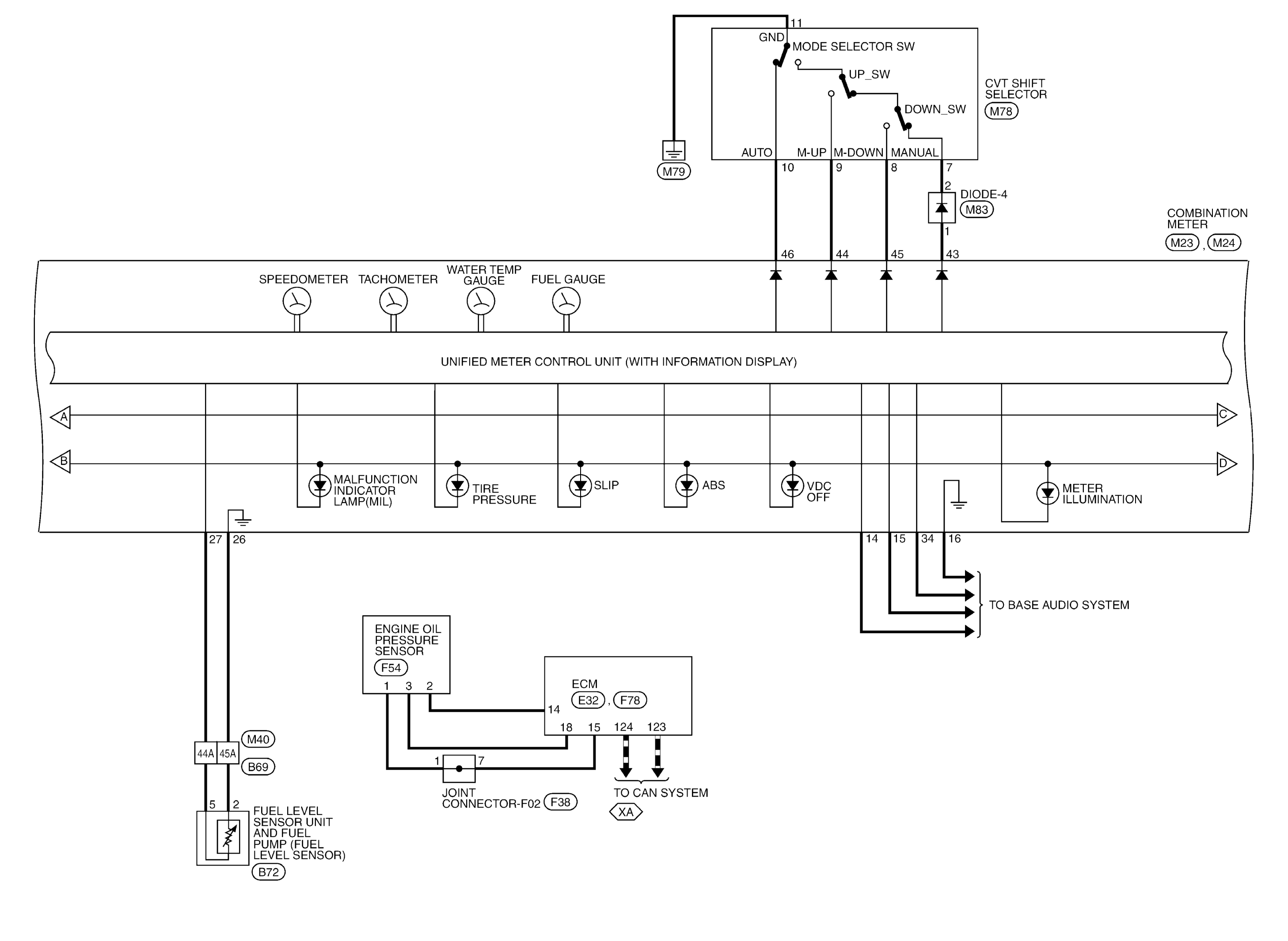

GNSABNWA3123GB-123

Courtesy of NISSAN NORTH AMERICA, INC.

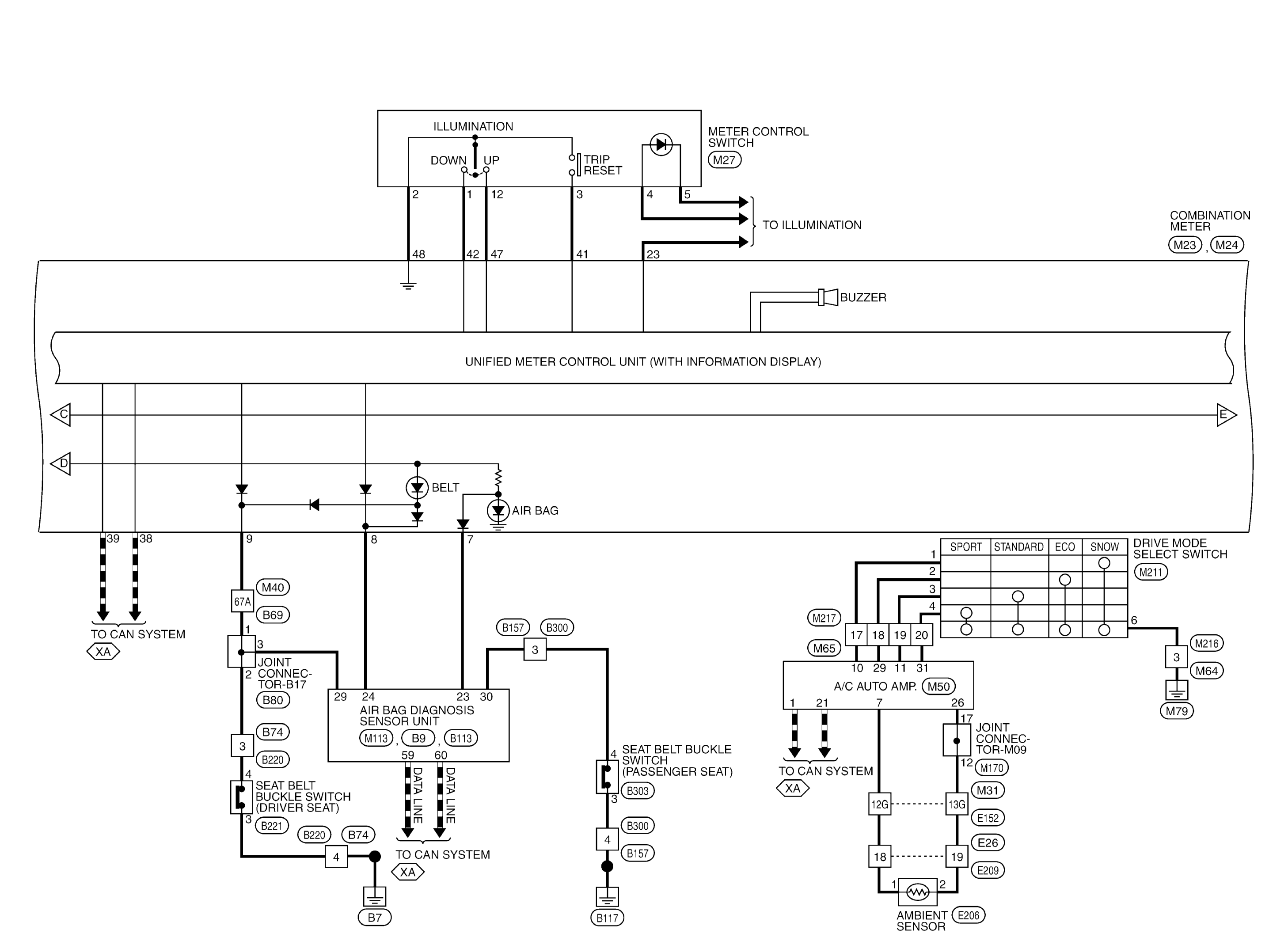

GNSABNWA3124GB-124

Courtesy of NISSAN NORTH AMERICA, INC.

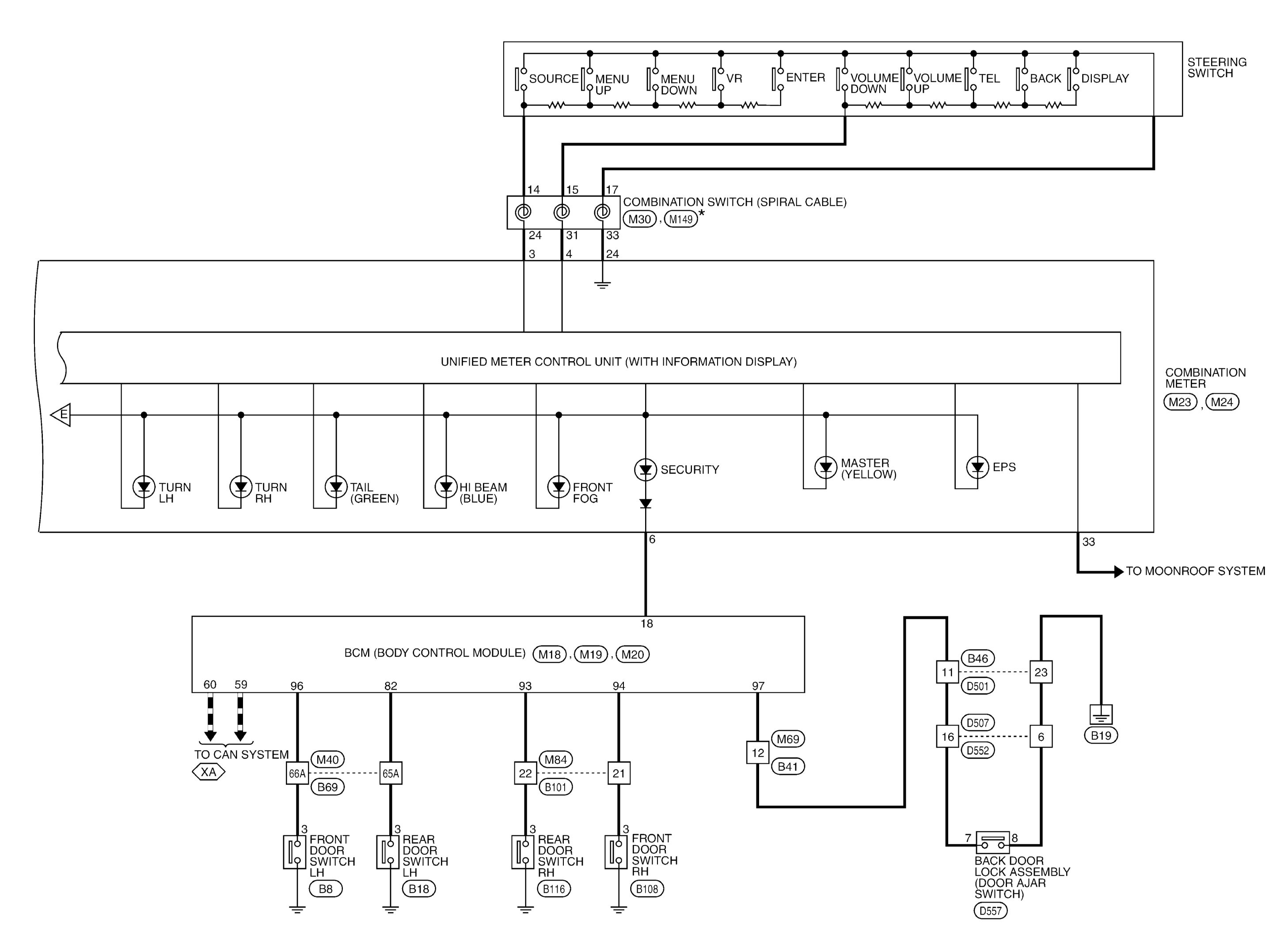

GNSABNWA3125GB-125

Courtesy of NISSAN NORTH AMERICA, INC.

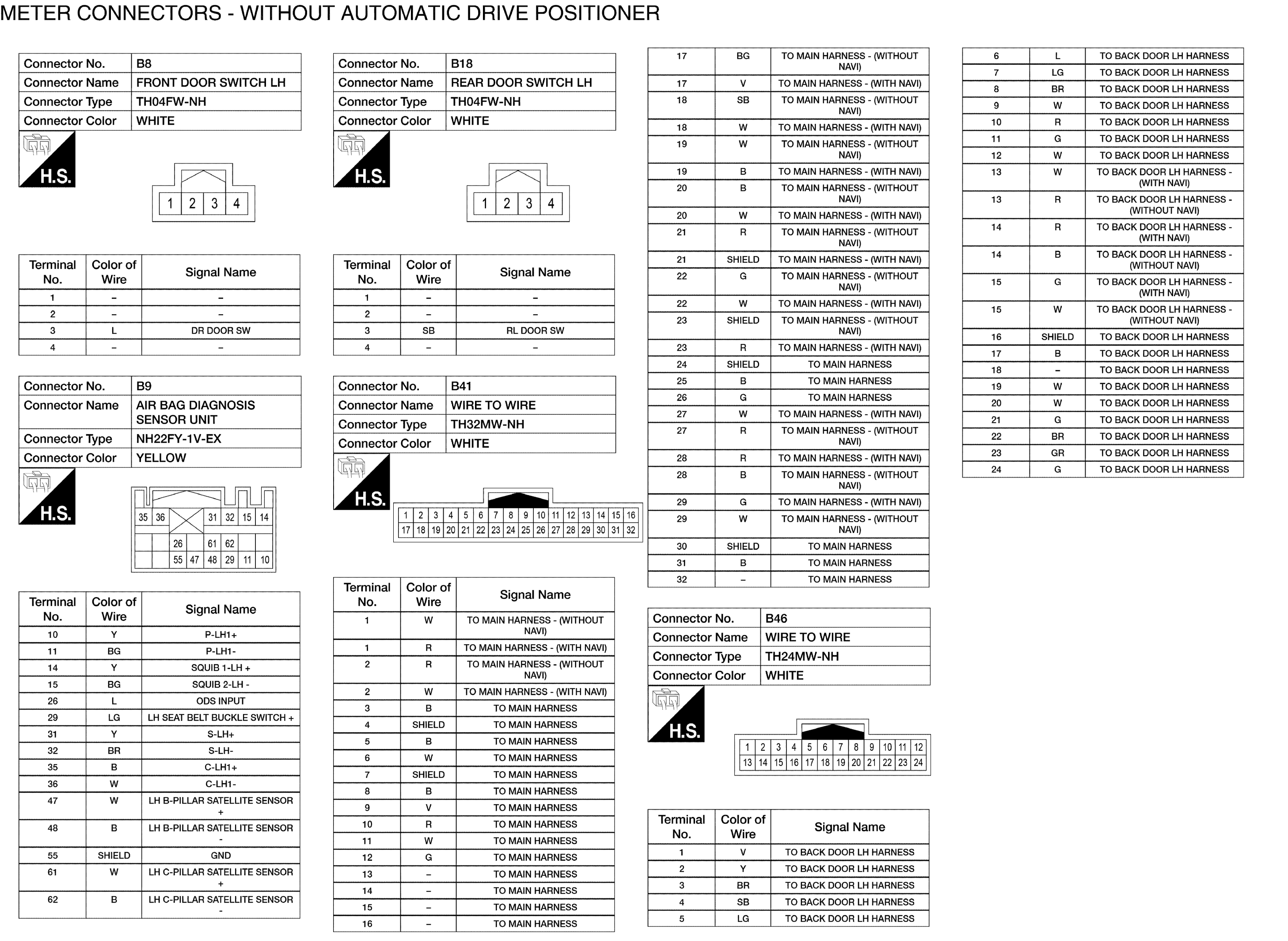

GNSABNIA9007GB-007

Courtesy of NISSAN NORTH AMERICA, INC.

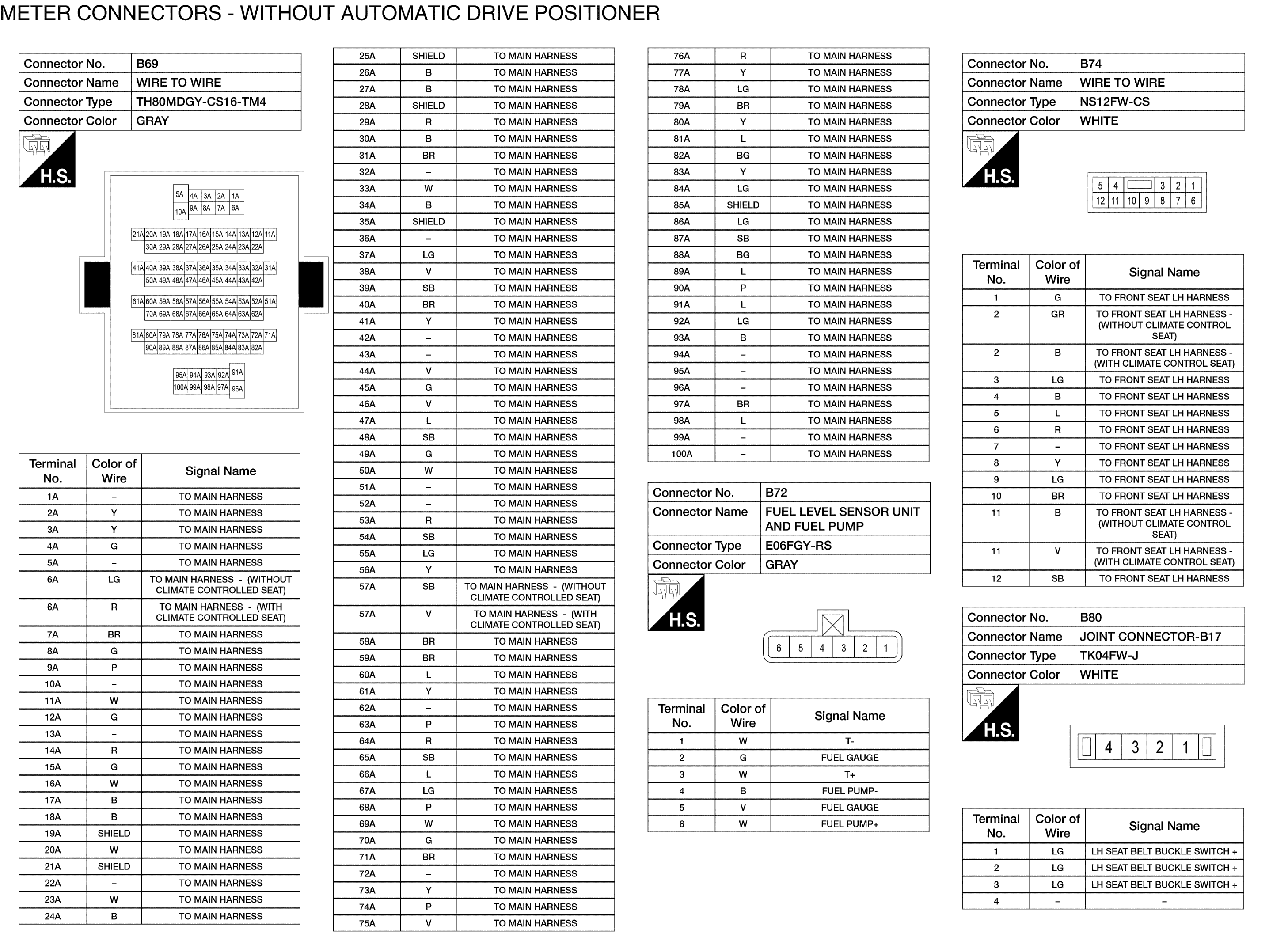

GNSABNIA9008GB-008

Courtesy of NISSAN NORTH AMERICA, INC.

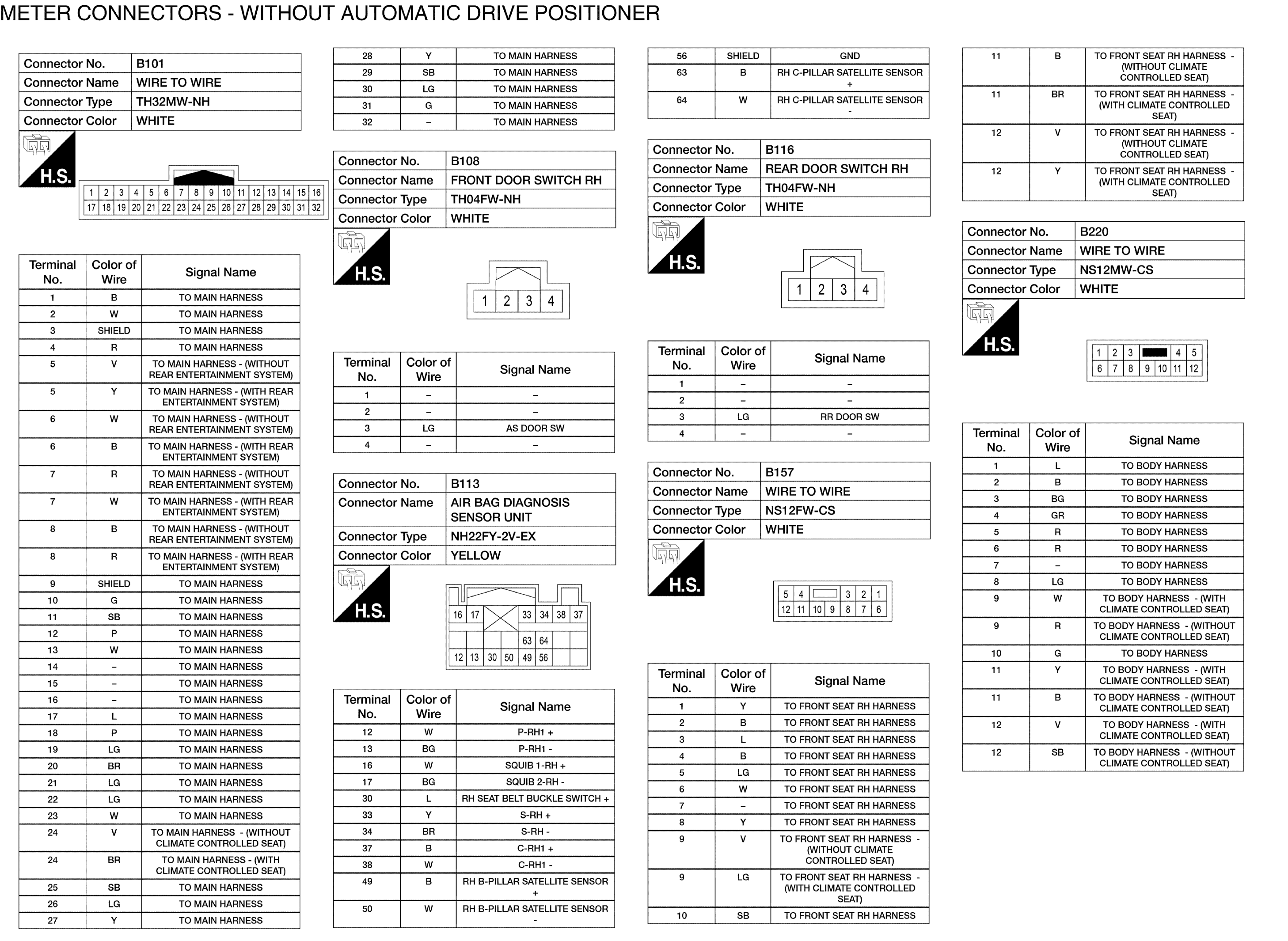

GNSABNIA9009GB-009

Courtesy of NISSAN NORTH AMERICA, INC.

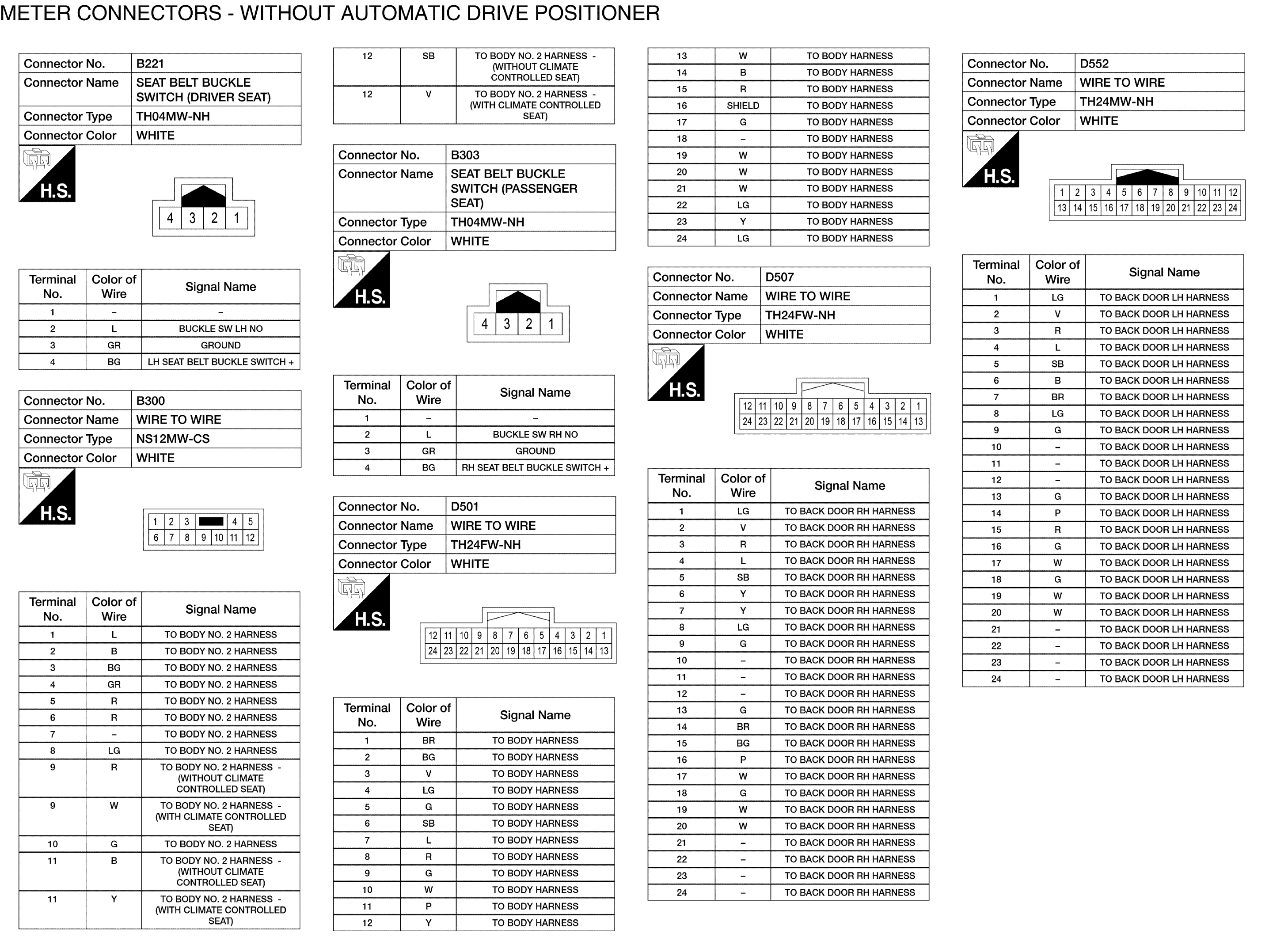

GNSABNIA9010GB-010

Courtesy of NISSAN NORTH AMERICA, INC.

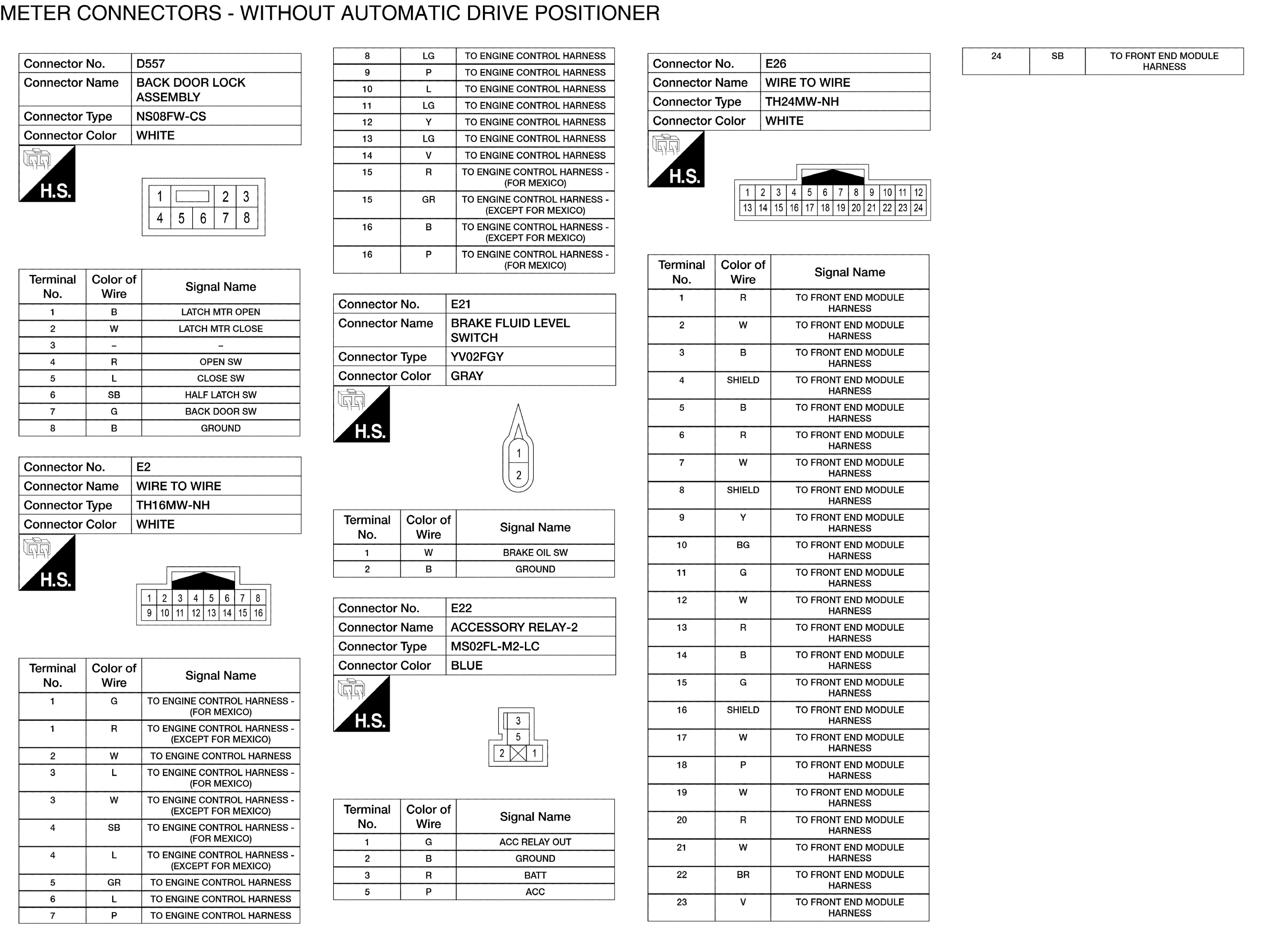

GNSABNIA9011GB-011

Courtesy of NISSAN NORTH AMERICA, INC.

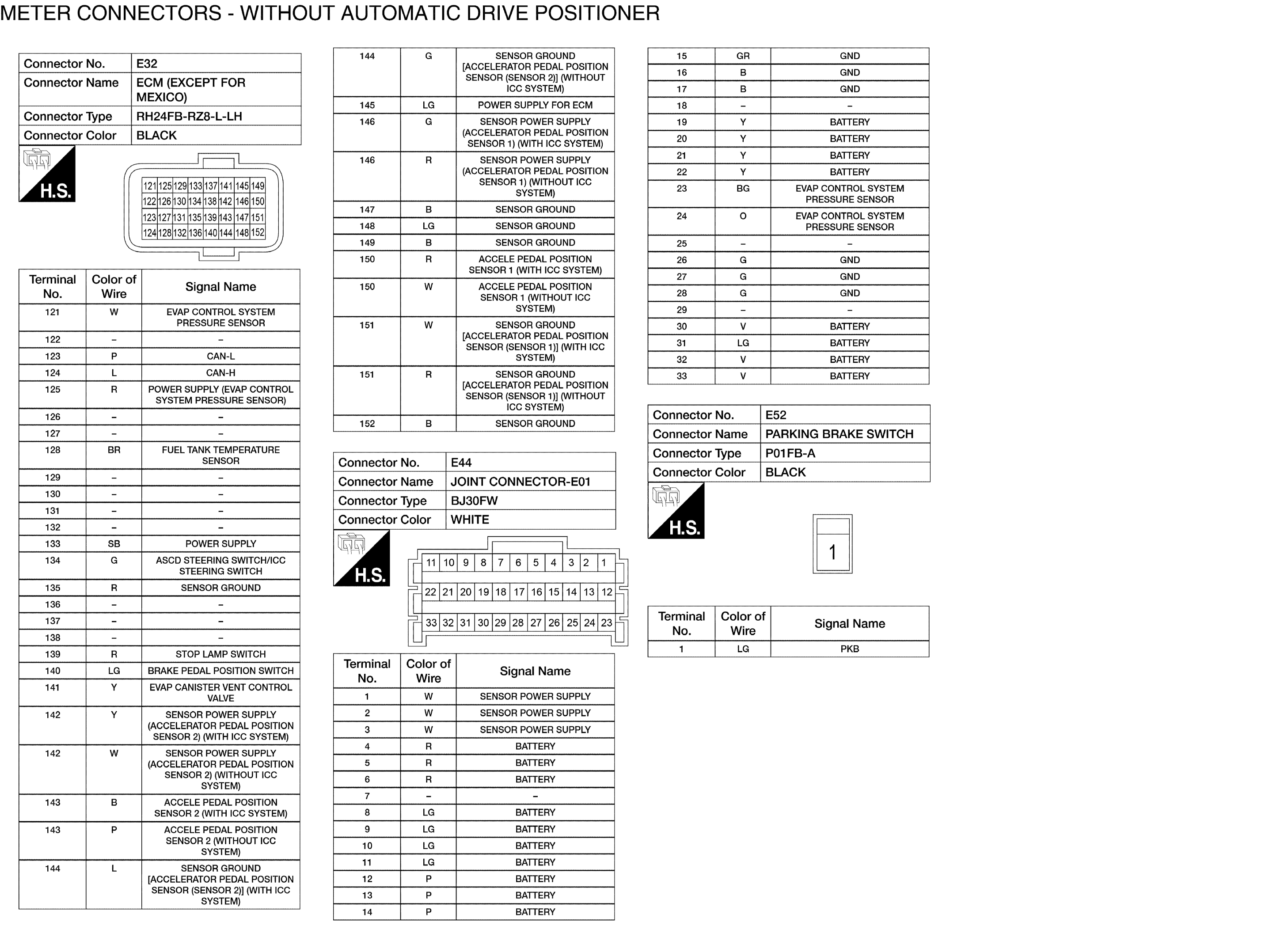

GNSABNIA9012GB-012

Courtesy of NISSAN NORTH AMERICA, INC.

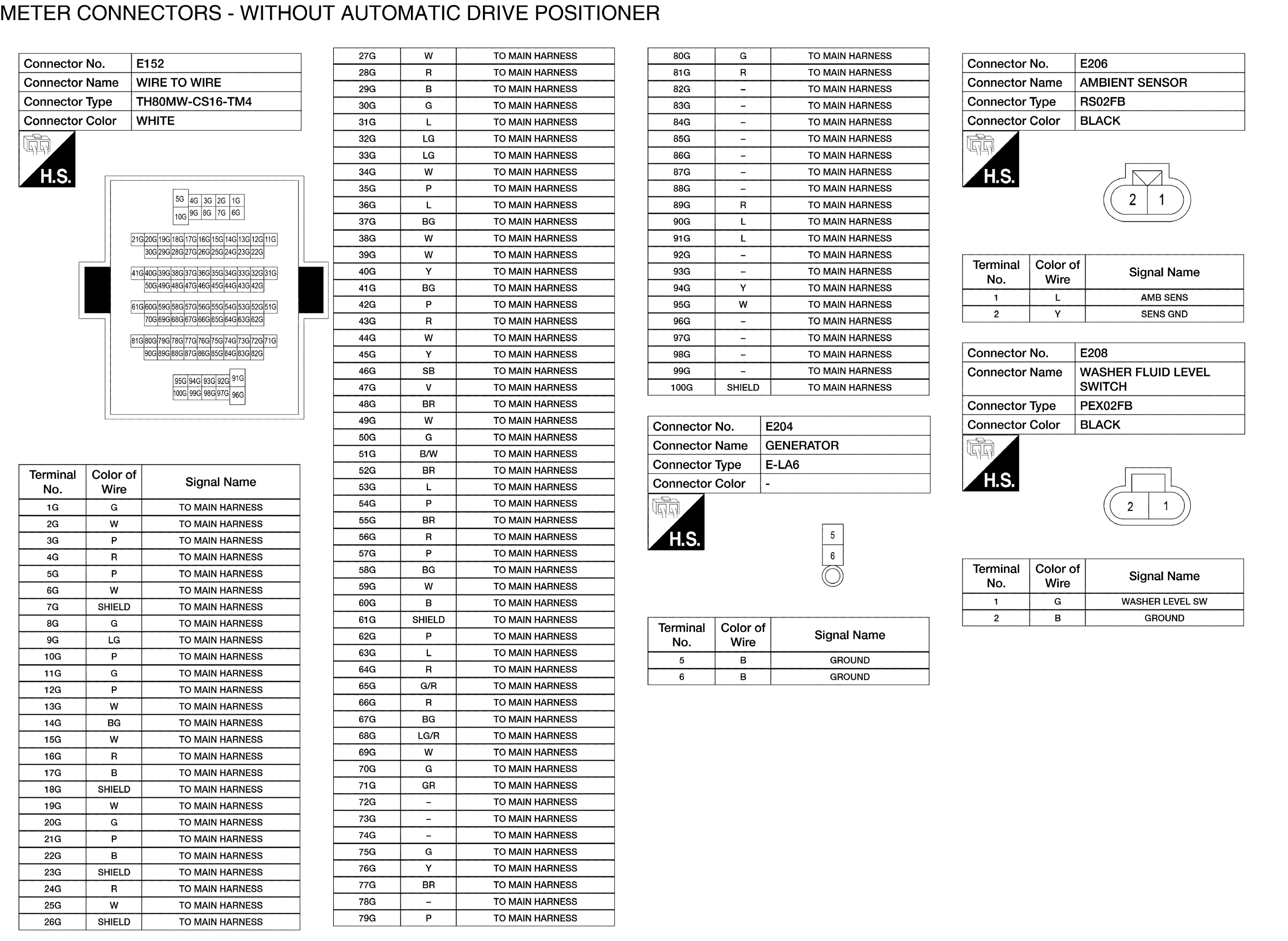

GNSABNIA9013GB-013

Courtesy of NISSAN NORTH AMERICA, INC.

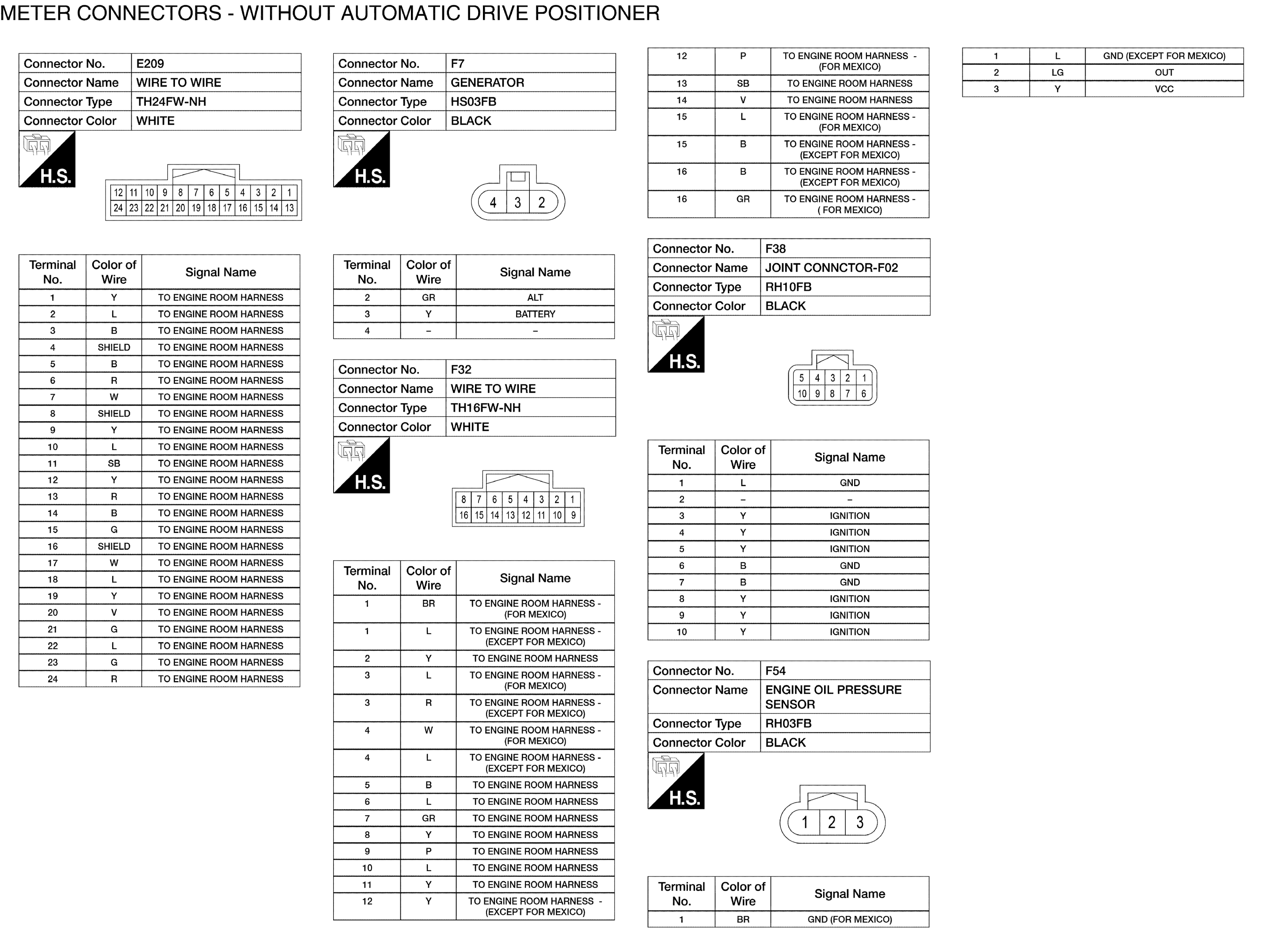

GNSABNIA9014GB-014

Courtesy of NISSAN NORTH AMERICA, INC.

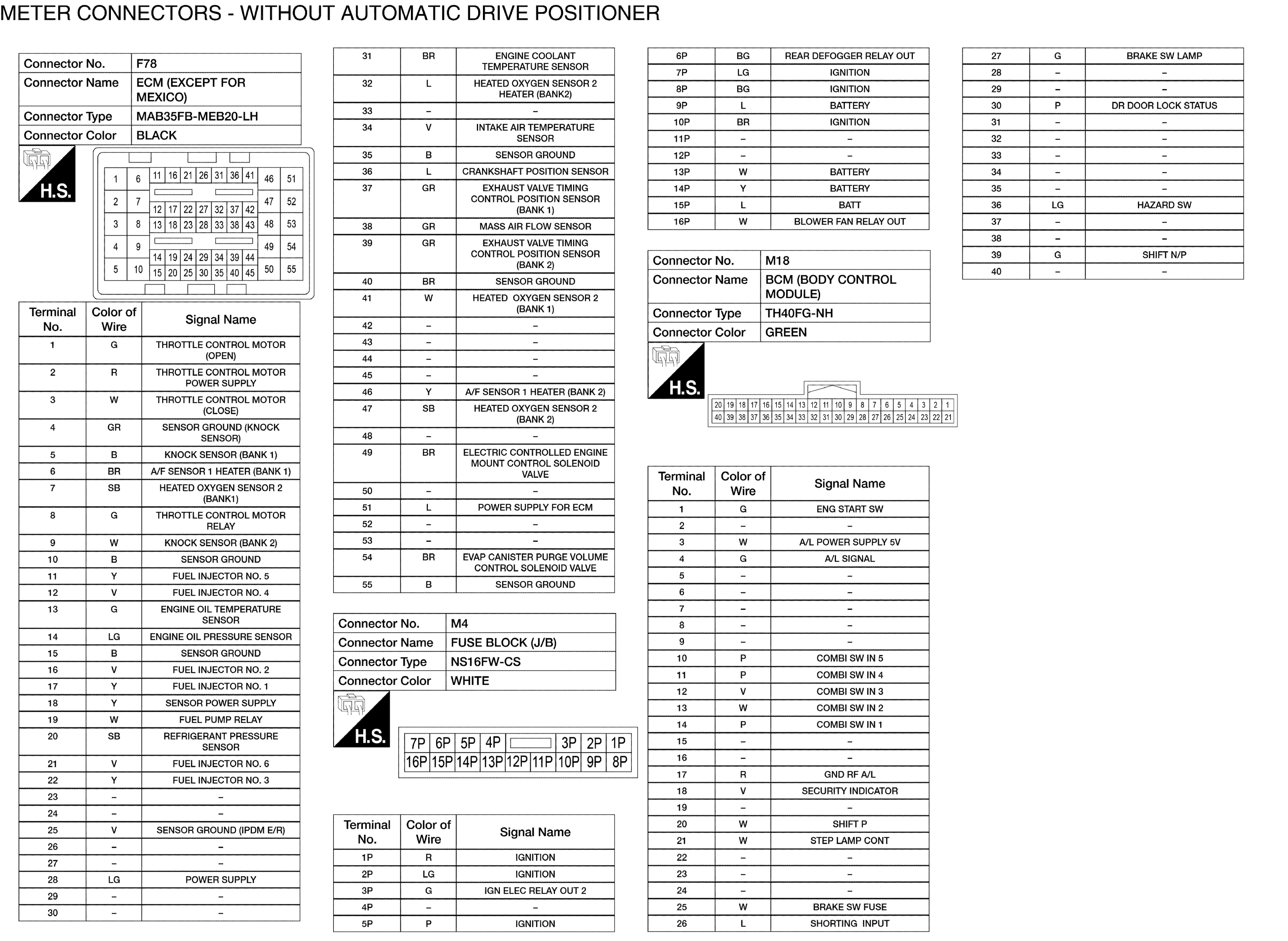

GNSABNIA9015GB-015

Courtesy of NISSAN NORTH AMERICA, INC.

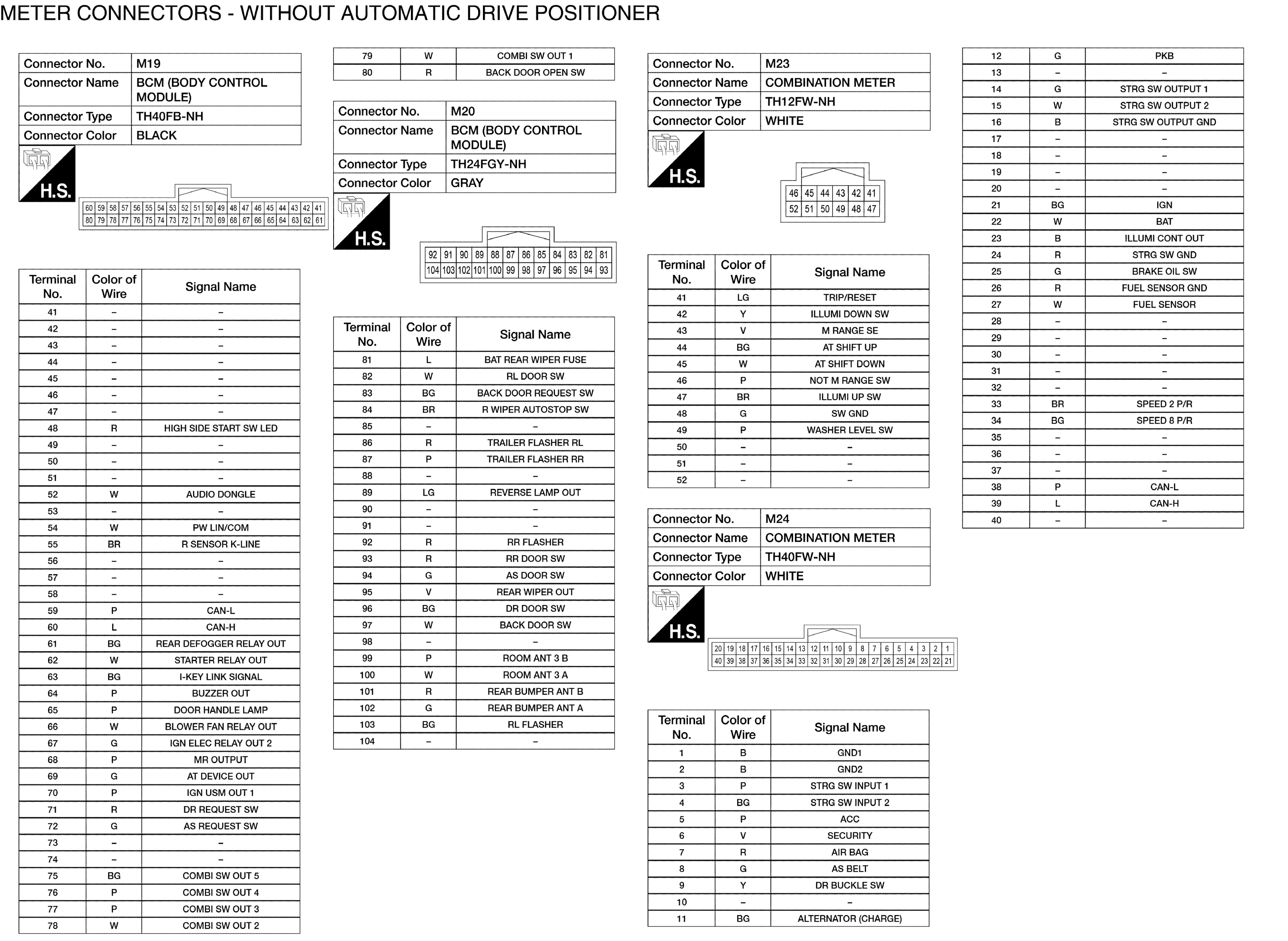

GNSABNIA9016GB-016

Courtesy of NISSAN NORTH AMERICA, INC.

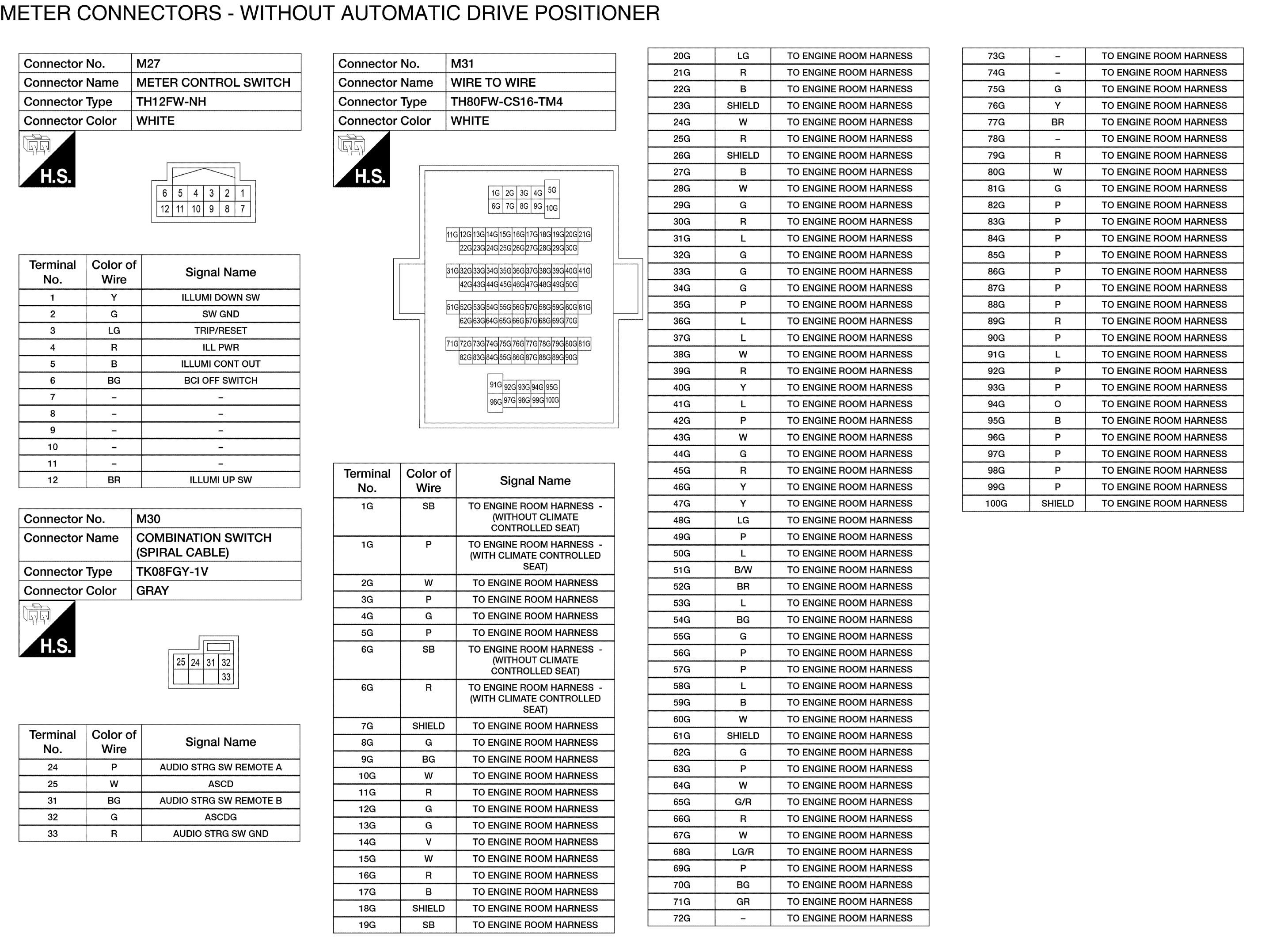

GNSABNIA9017GB-017

Courtesy of NISSAN NORTH AMERICA, INC.

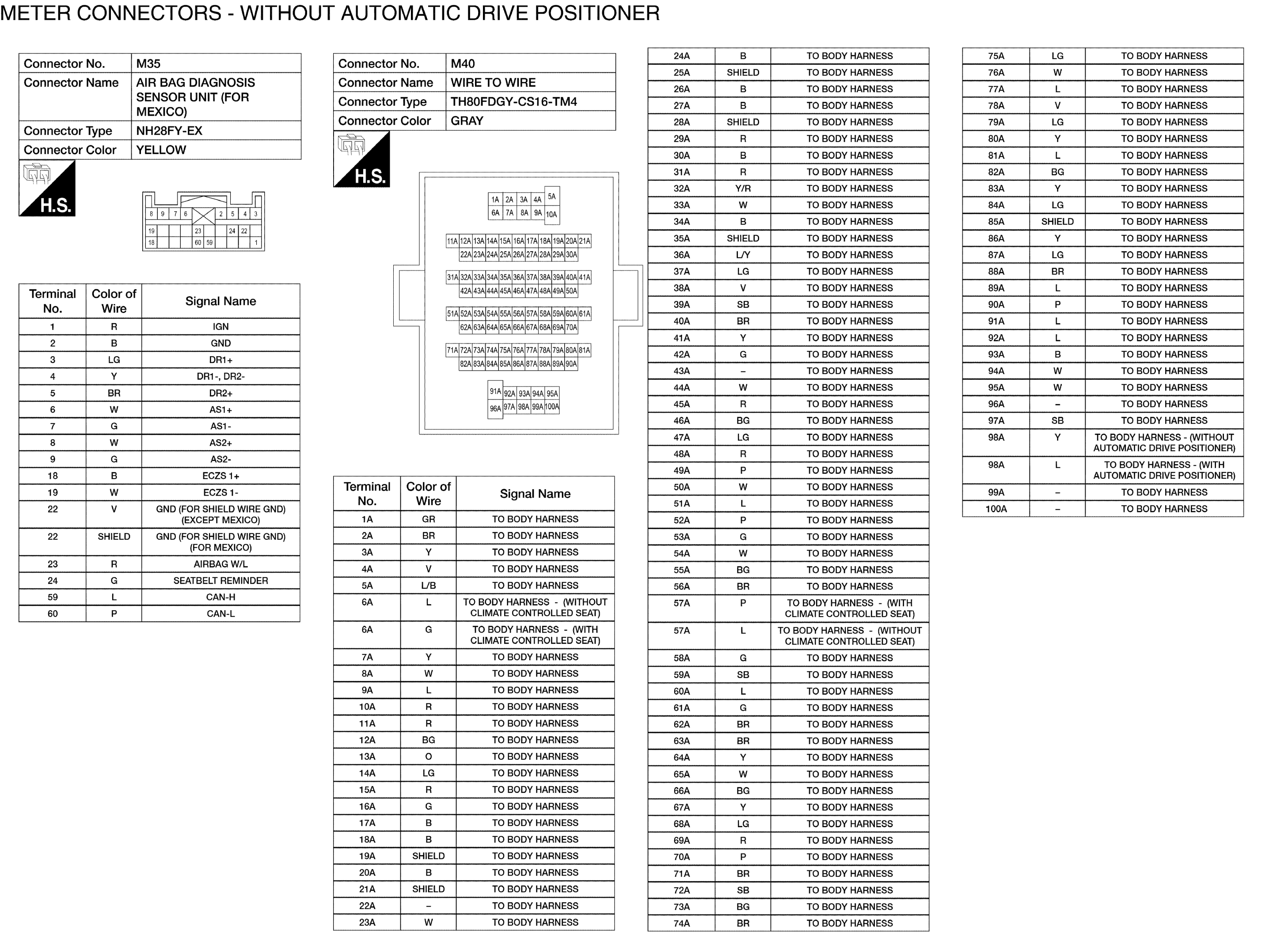

GNSABNIA9018GB-018

Courtesy of NISSAN NORTH AMERICA, INC.

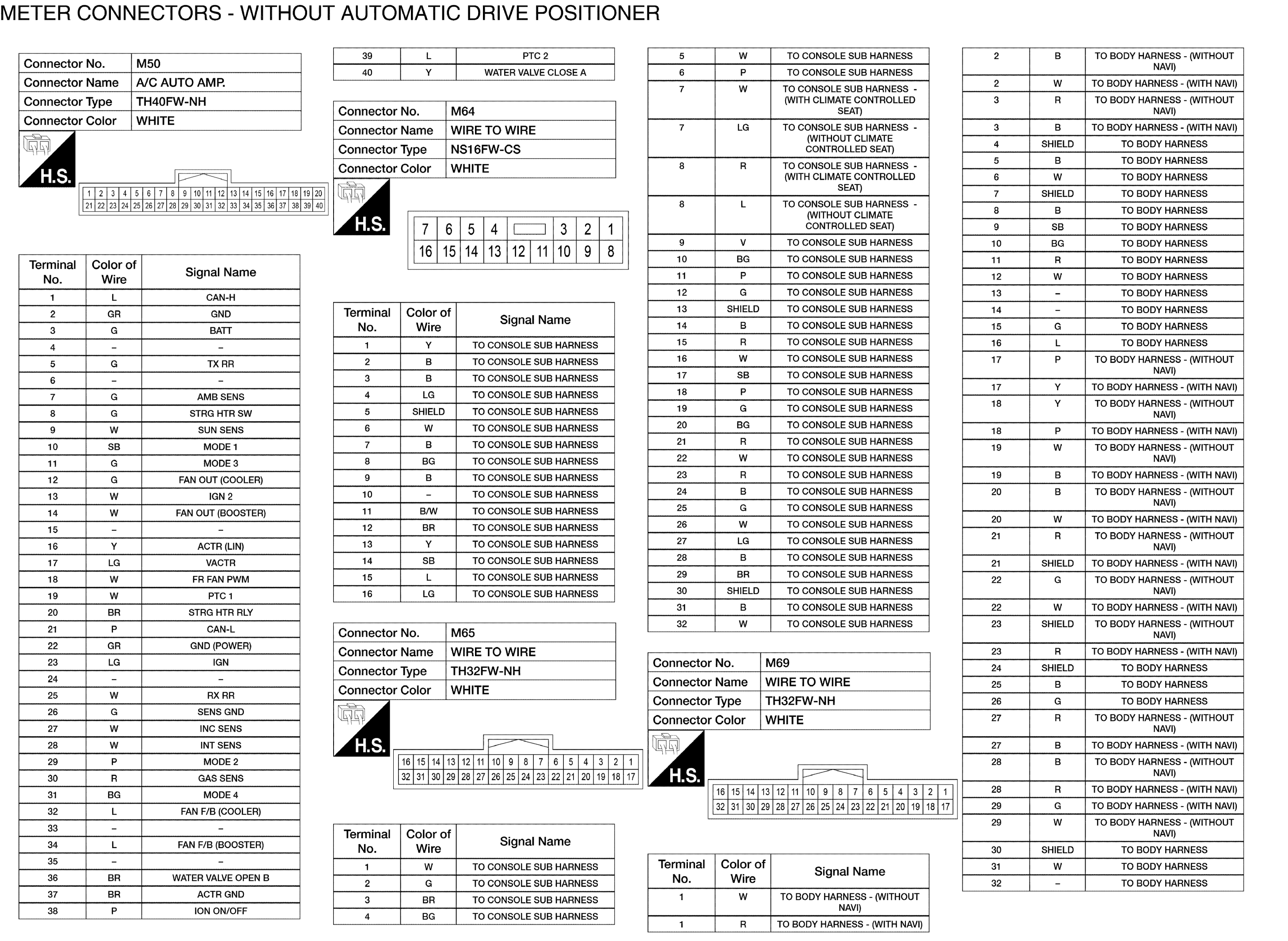

GNSABNIA9019GB-019

Courtesy of NISSAN NORTH AMERICA, INC.

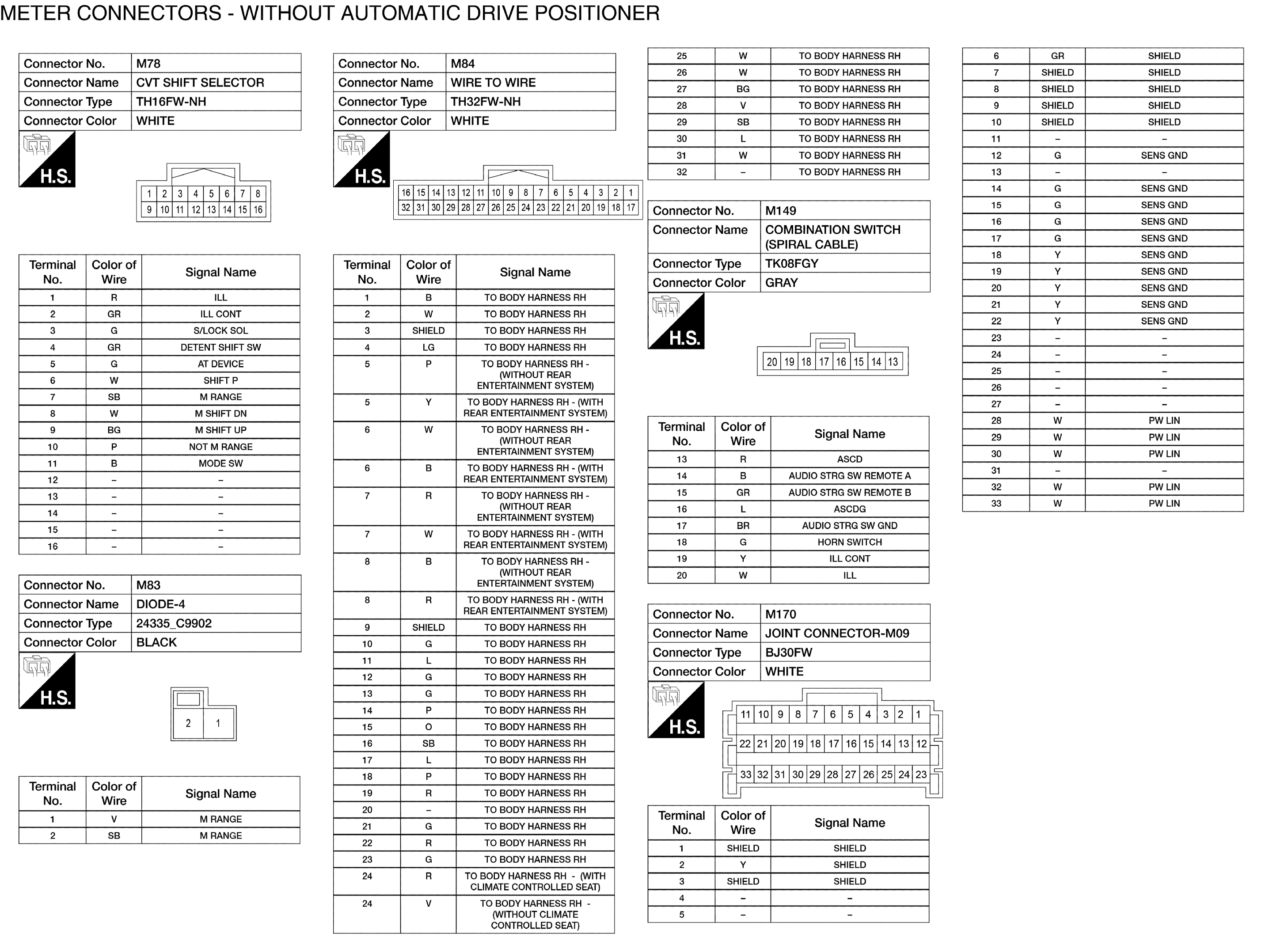

GNSABNIA9020GB-020

Courtesy of NISSAN NORTH AMERICA, INC.

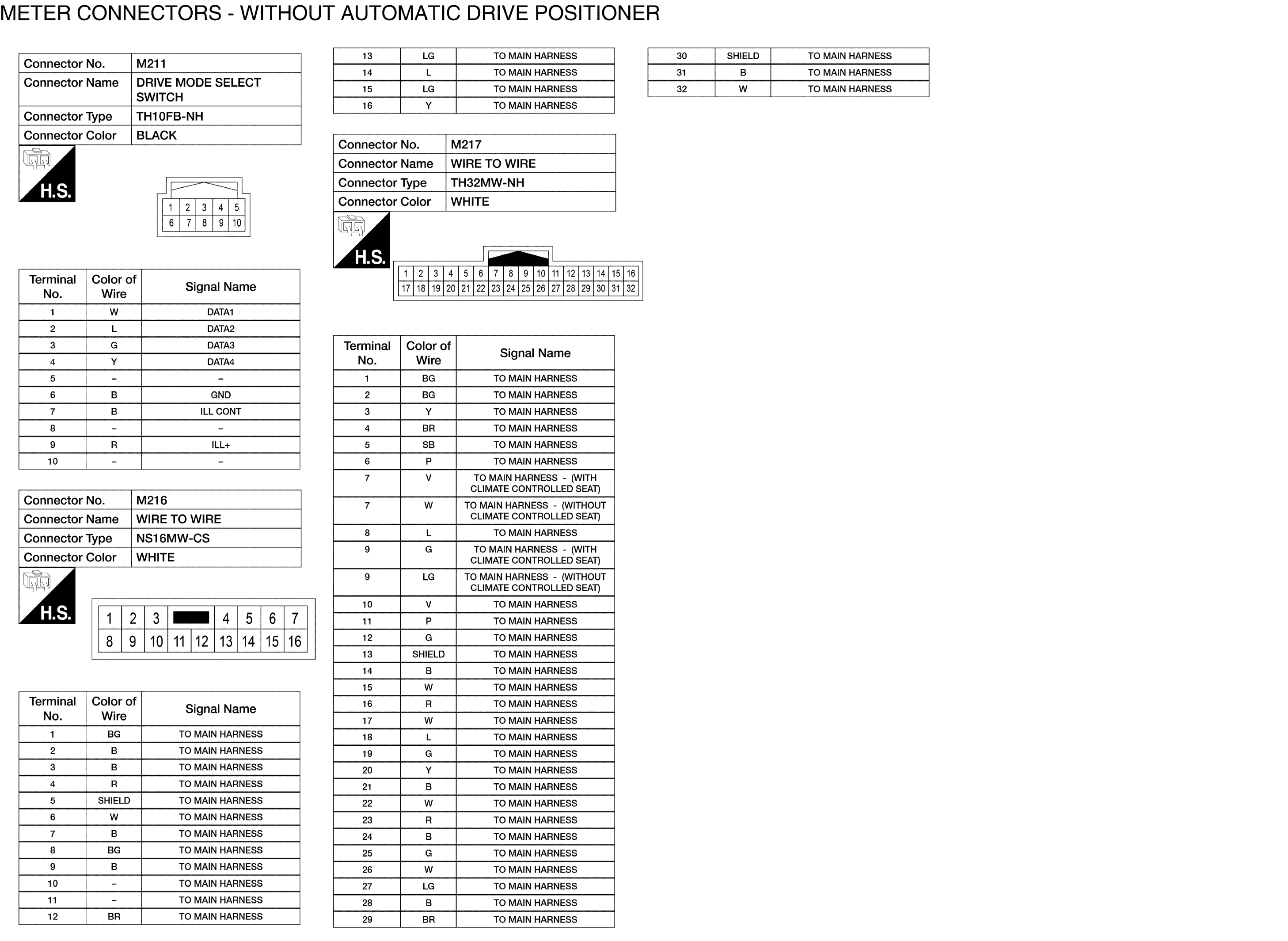

GNSABNIA9021GB-021

Courtesy of NISSAN NORTH AMERICA, INC.
