Wiring Diagram - With Automatic Drive Positioner

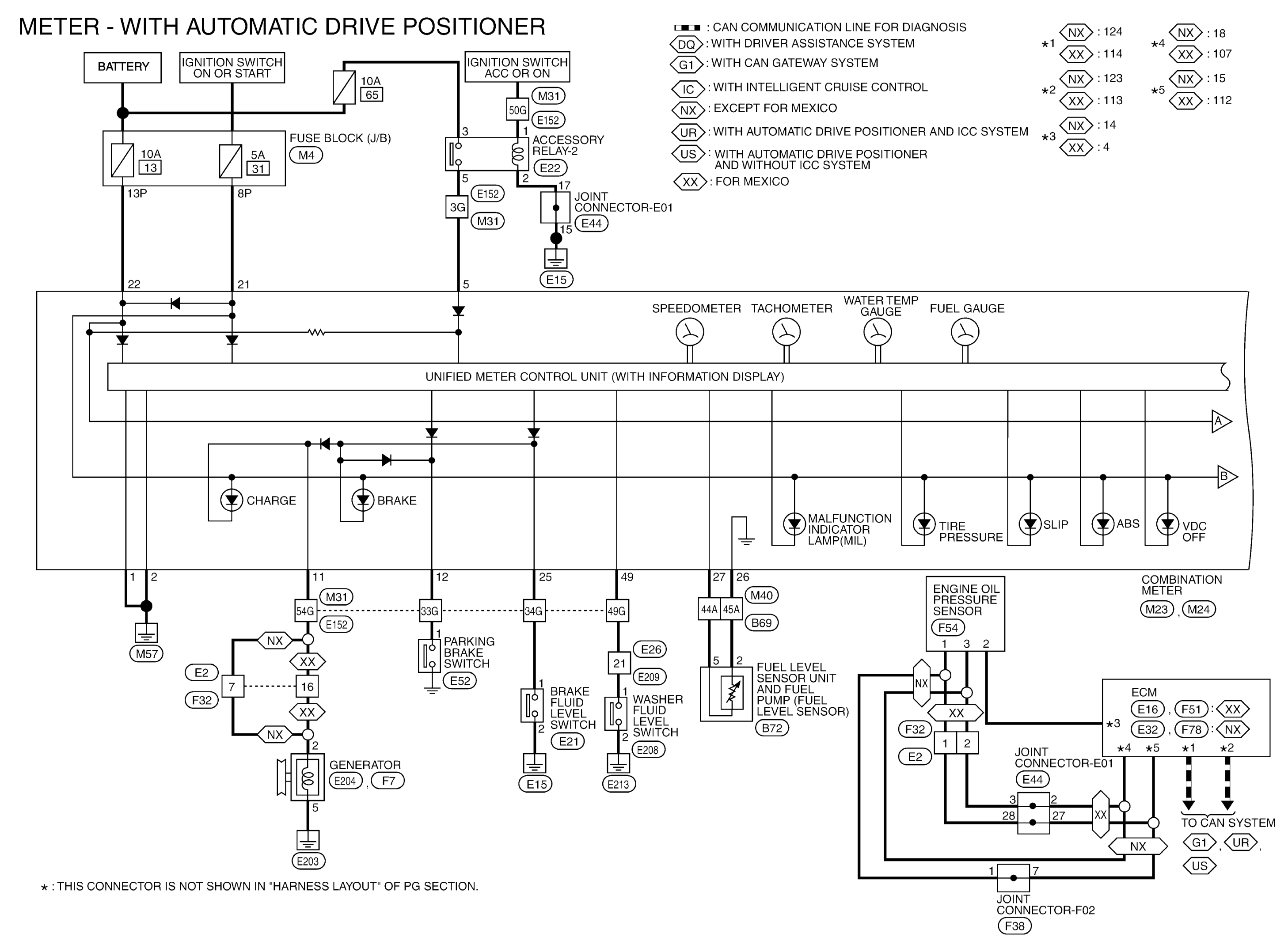

GNSABNWA3119GB-119

Courtesy of NISSAN NORTH AMERICA, INC.

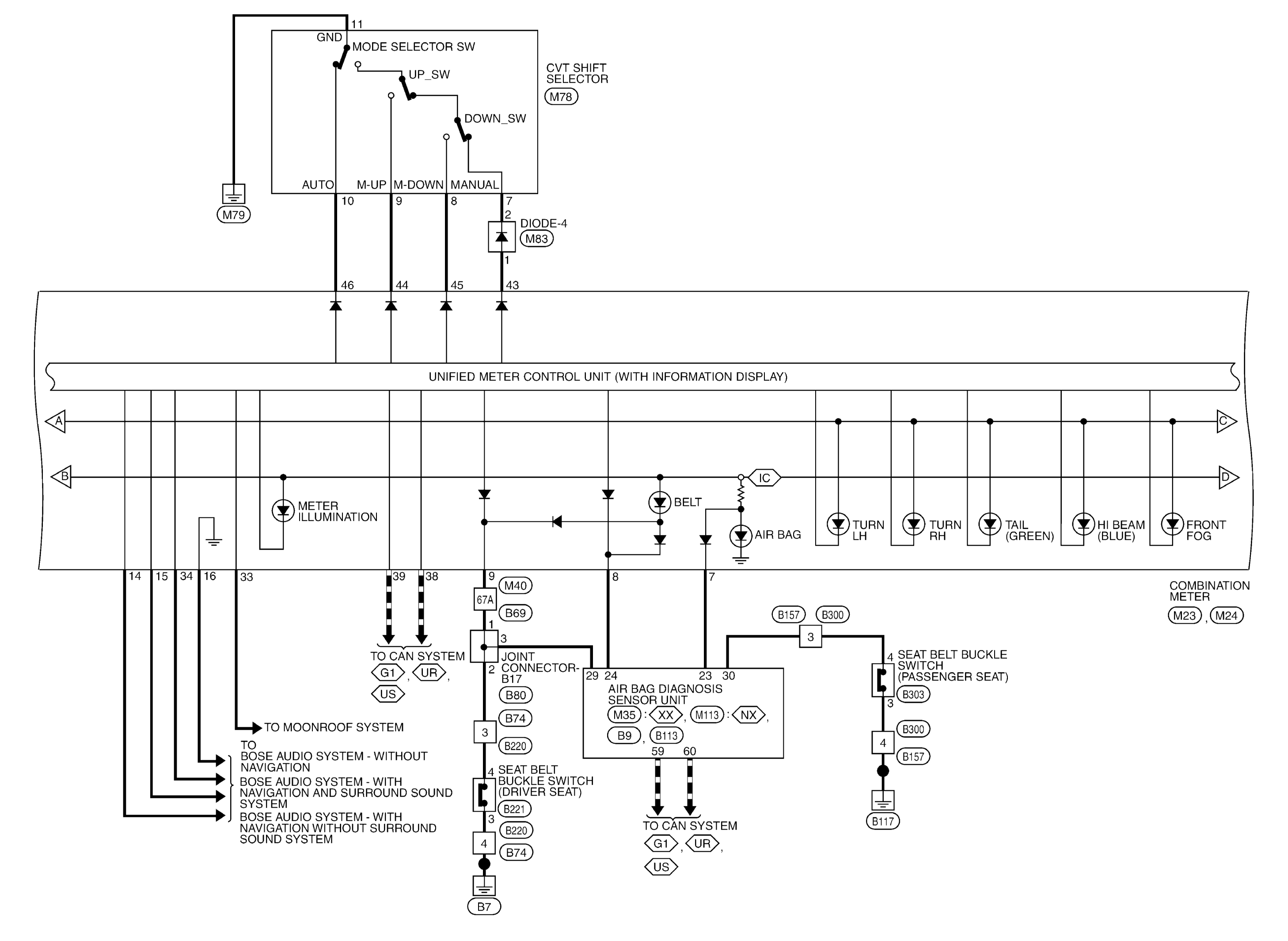

GNSABNWA3120GB-120

Courtesy of NISSAN NORTH AMERICA, INC.

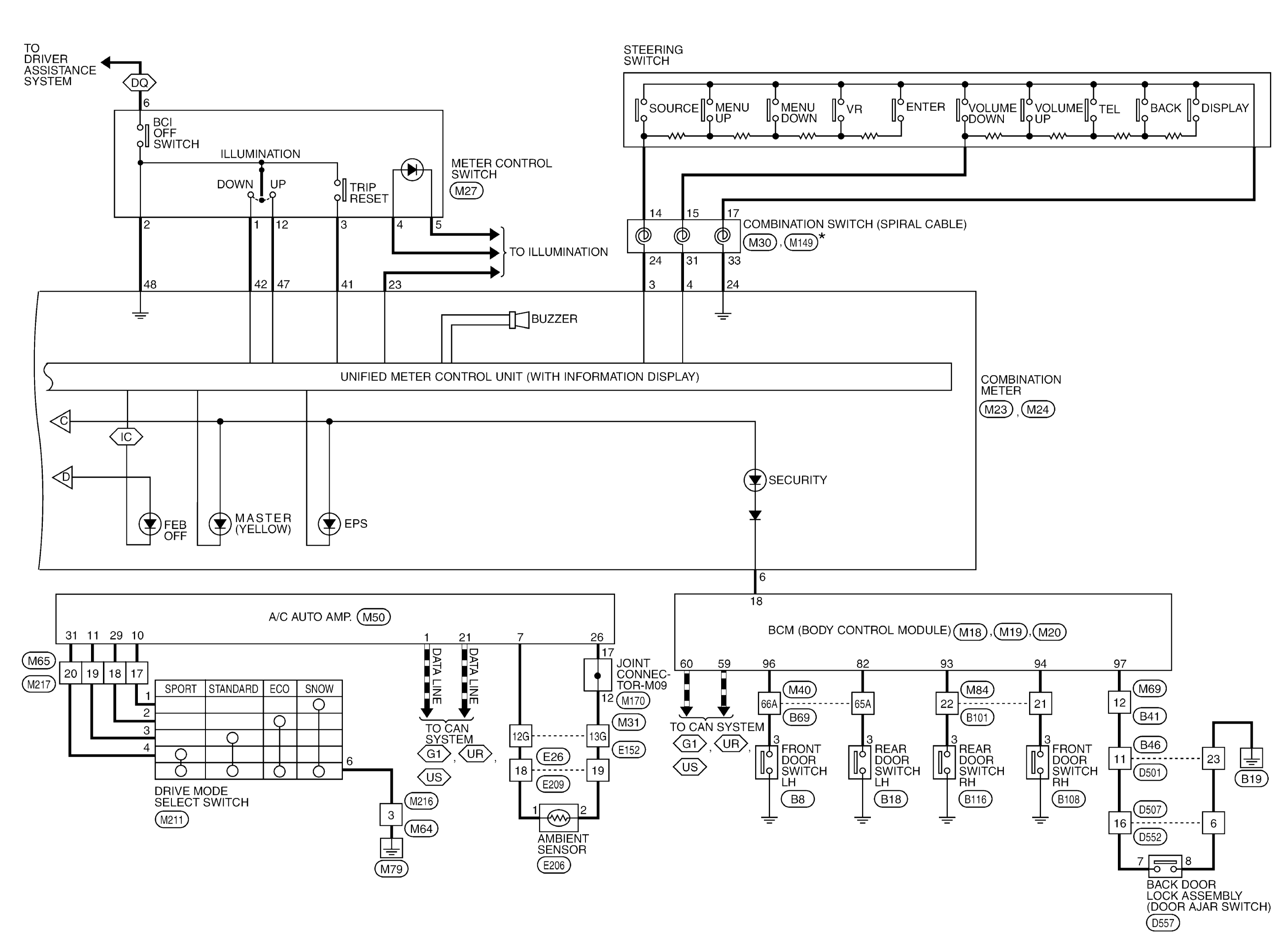

GNSABNWA3121GB-121

Courtesy of NISSAN NORTH AMERICA, INC.

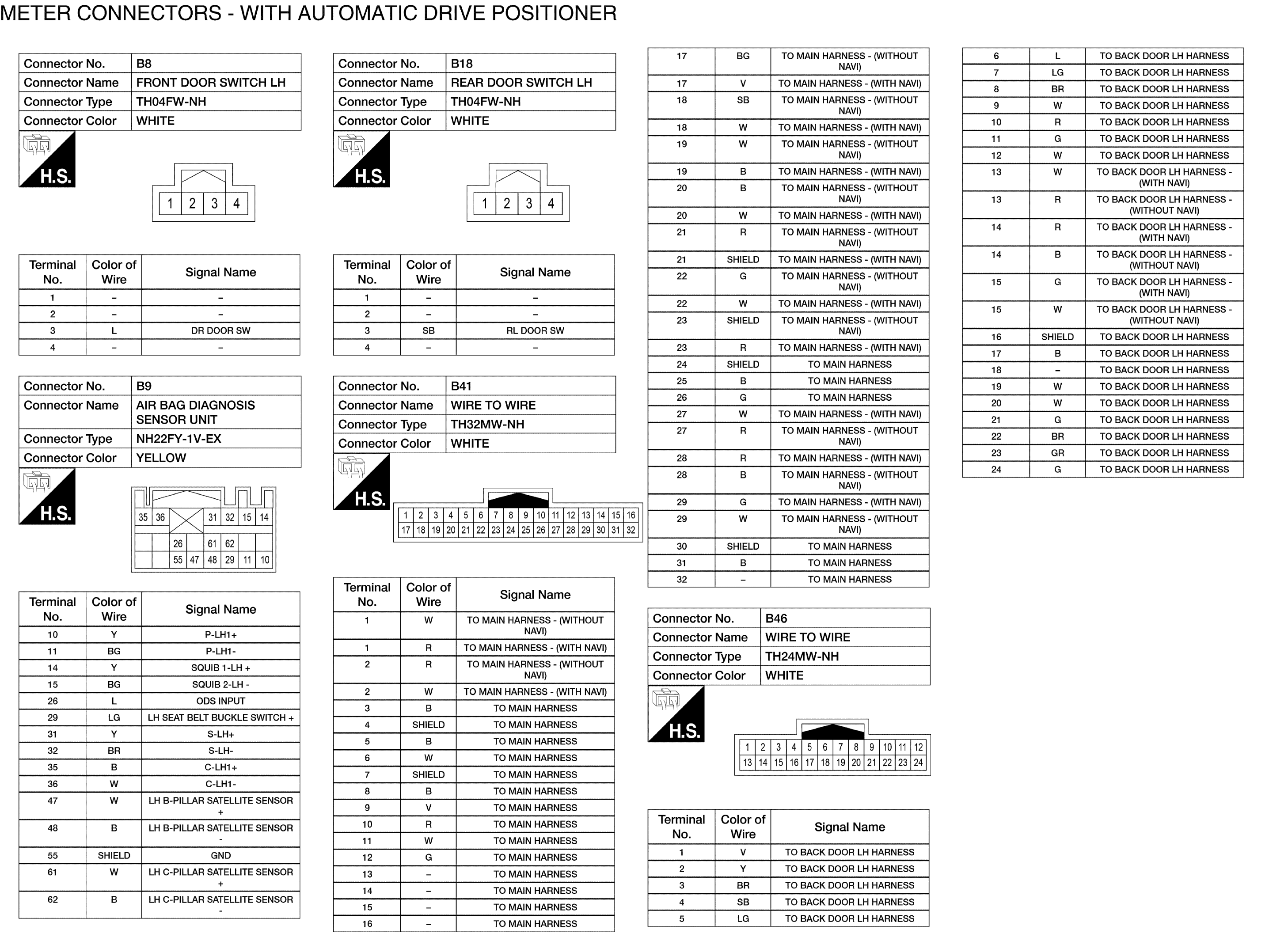

GNSABNIA8993GB-993

Courtesy of NISSAN NORTH AMERICA, INC.

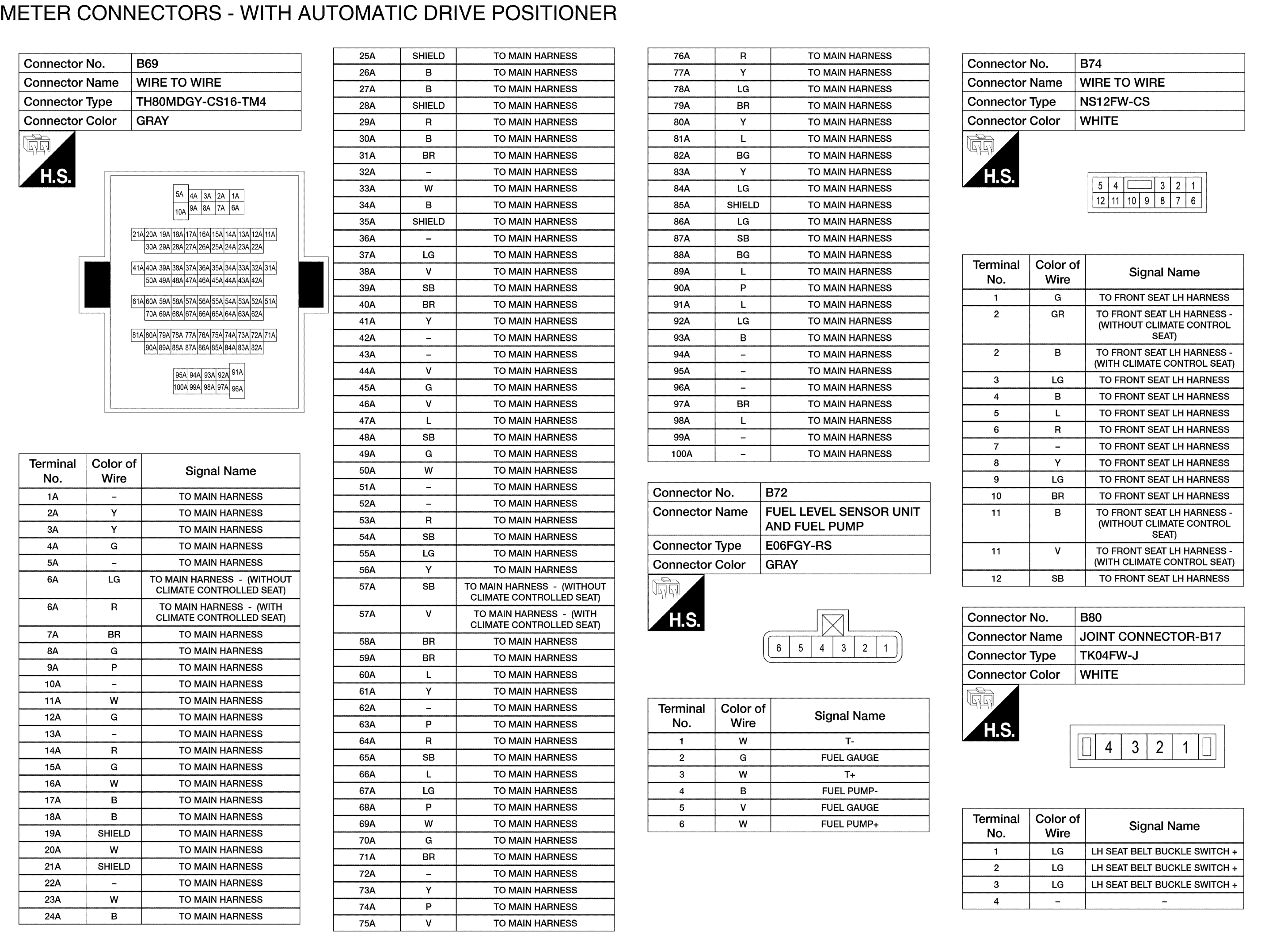

GNSABNIA8994GB-994

Courtesy of NISSAN NORTH AMERICA, INC.

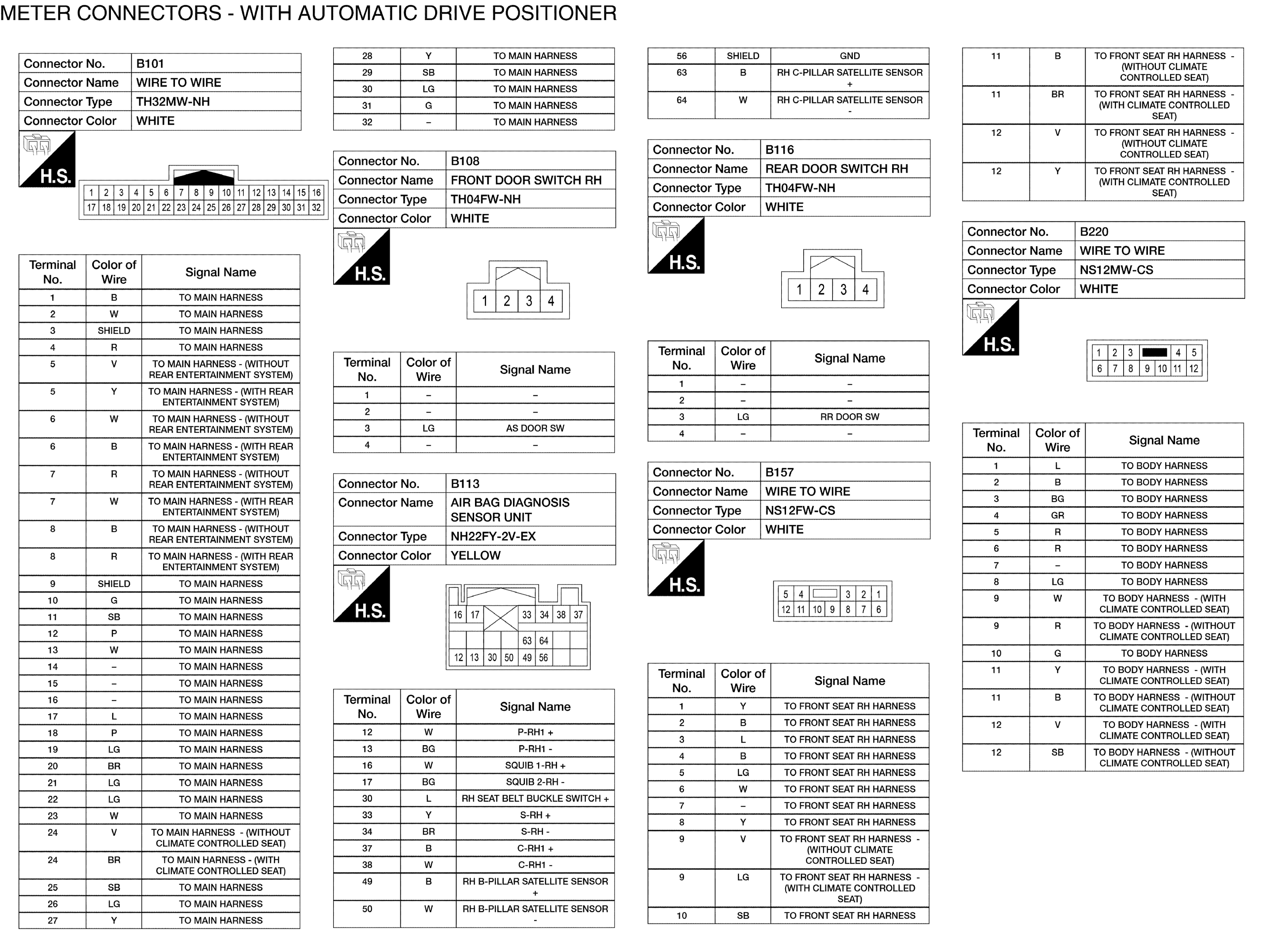

GNSABNIA8995GB-995

Courtesy of NISSAN NORTH AMERICA, INC.

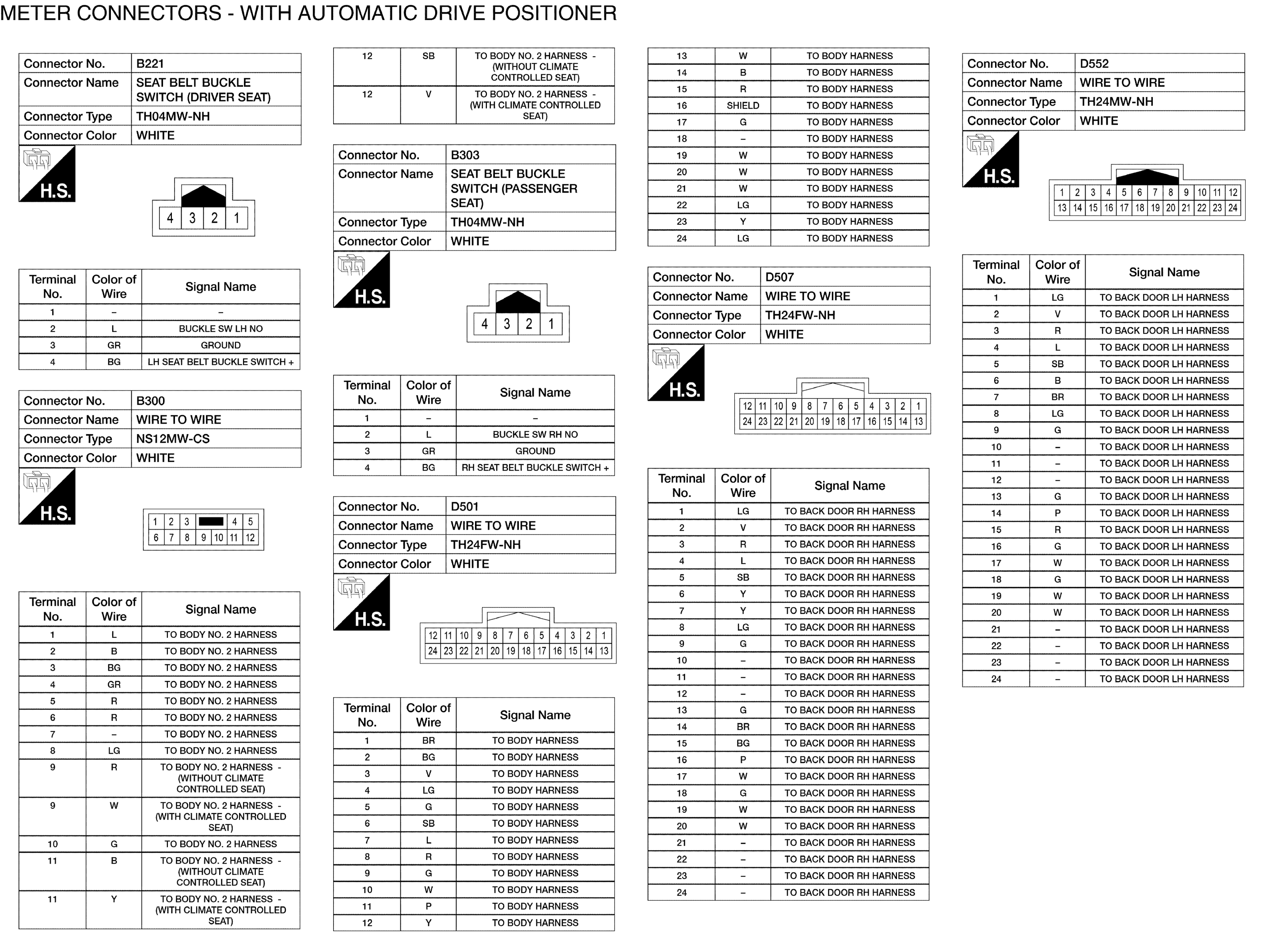

GNSABNIA8996GB-996

Courtesy of NISSAN NORTH AMERICA, INC.

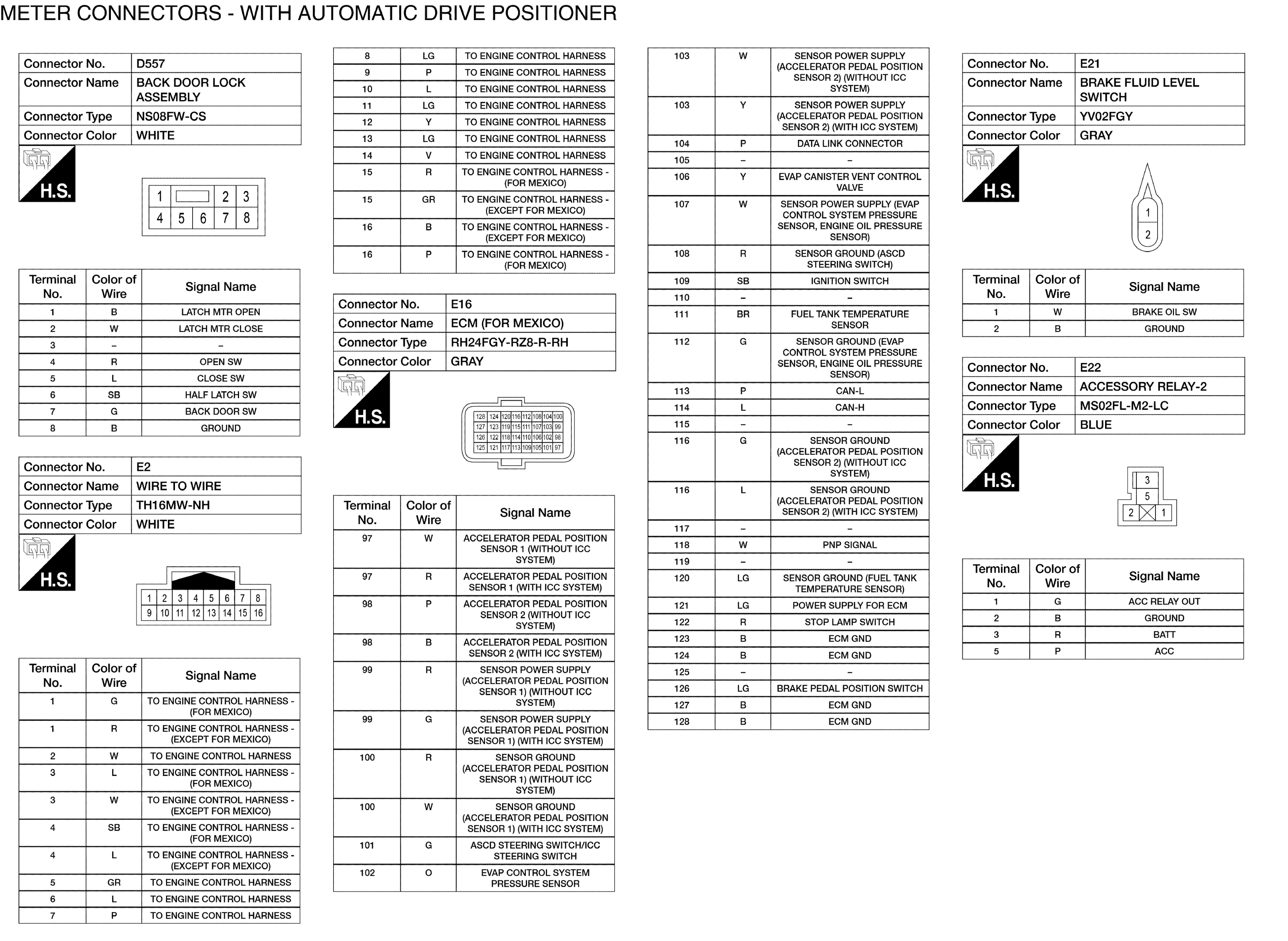

GNSABNIA8997GB-997

Courtesy of NISSAN NORTH AMERICA, INC.

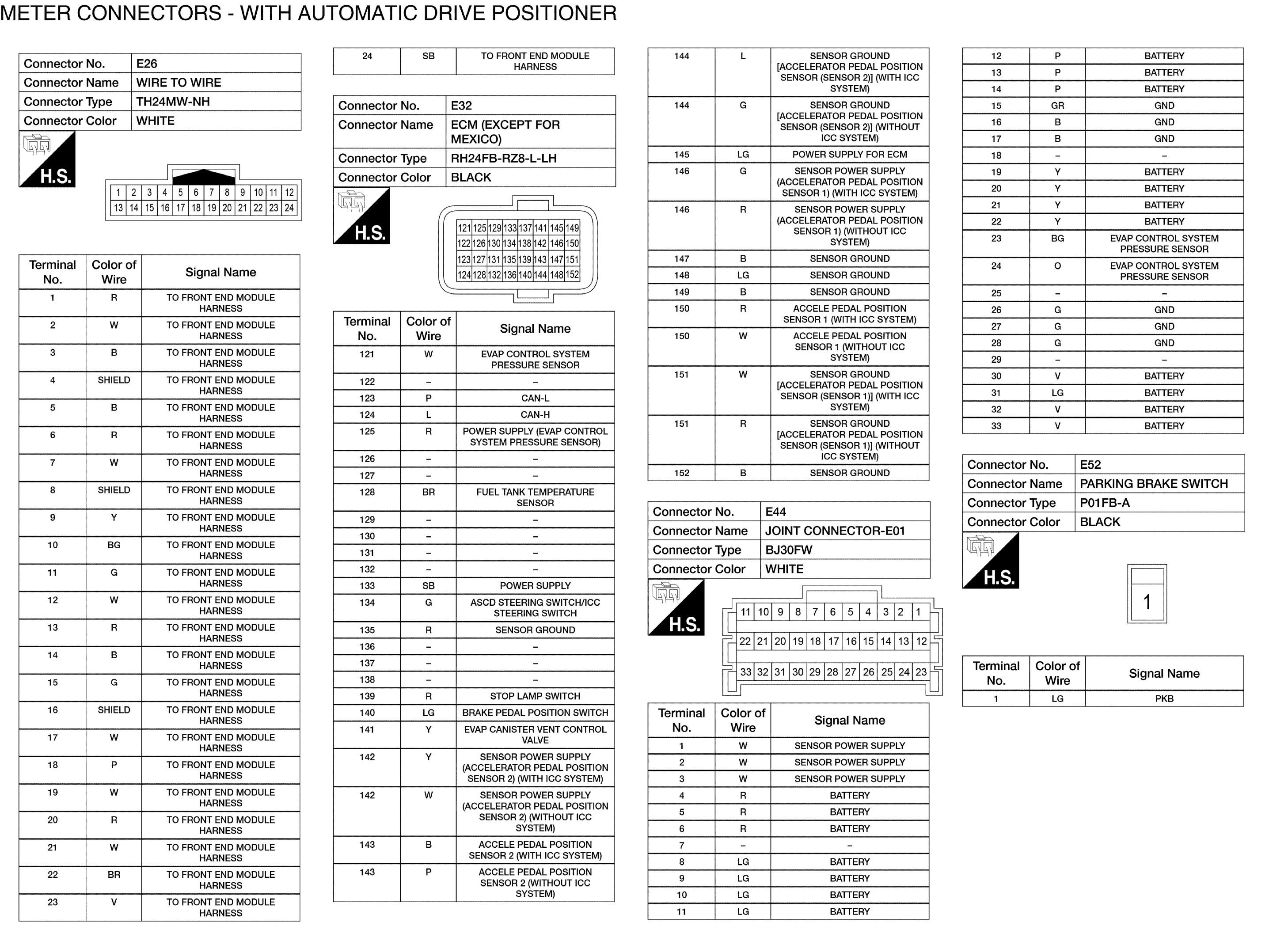

GNSABNIA8998GB-998

Courtesy of NISSAN NORTH AMERICA, INC.

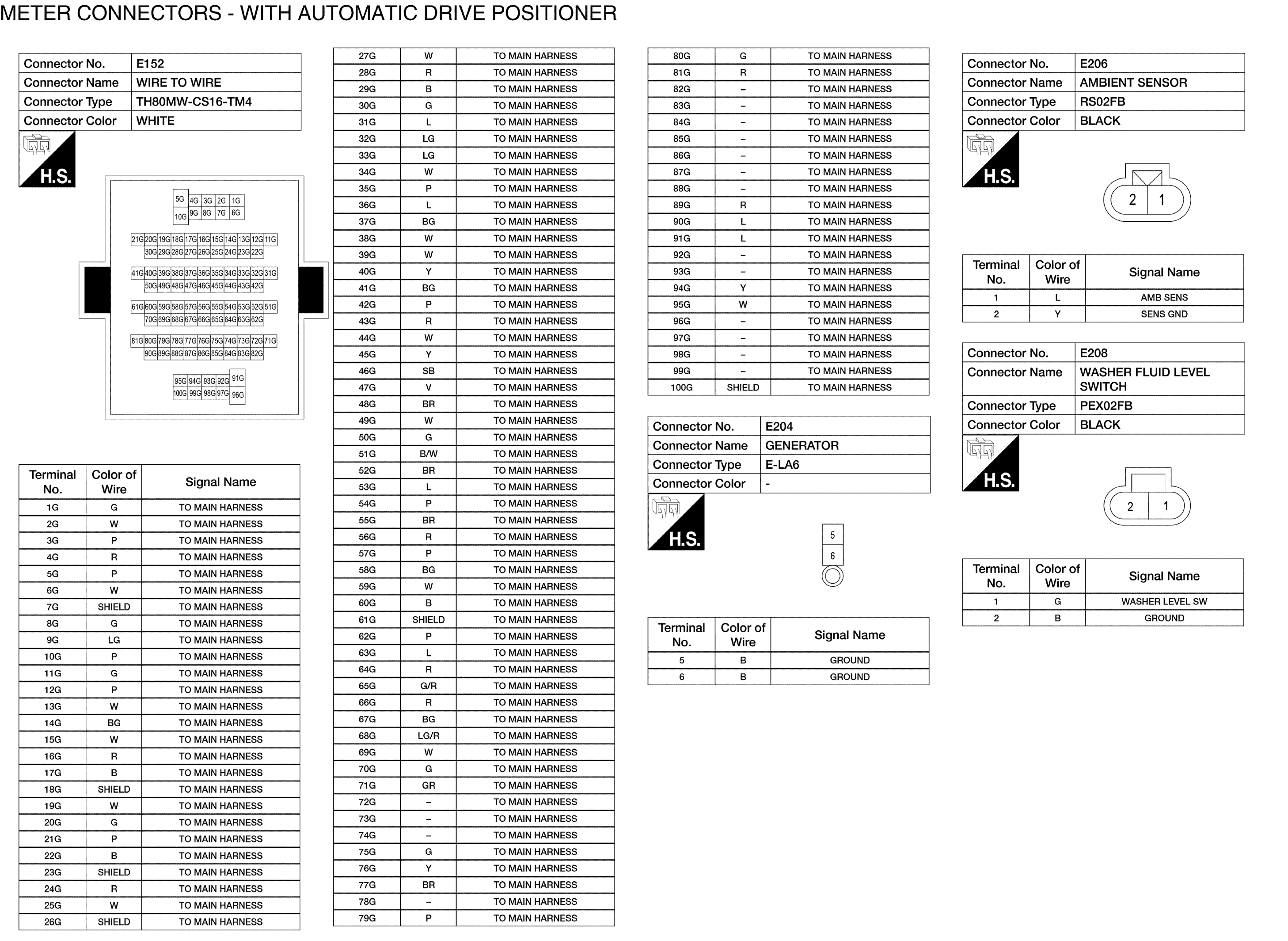

GNSABNIA8999GB-999

Courtesy of NISSAN NORTH AMERICA, INC.

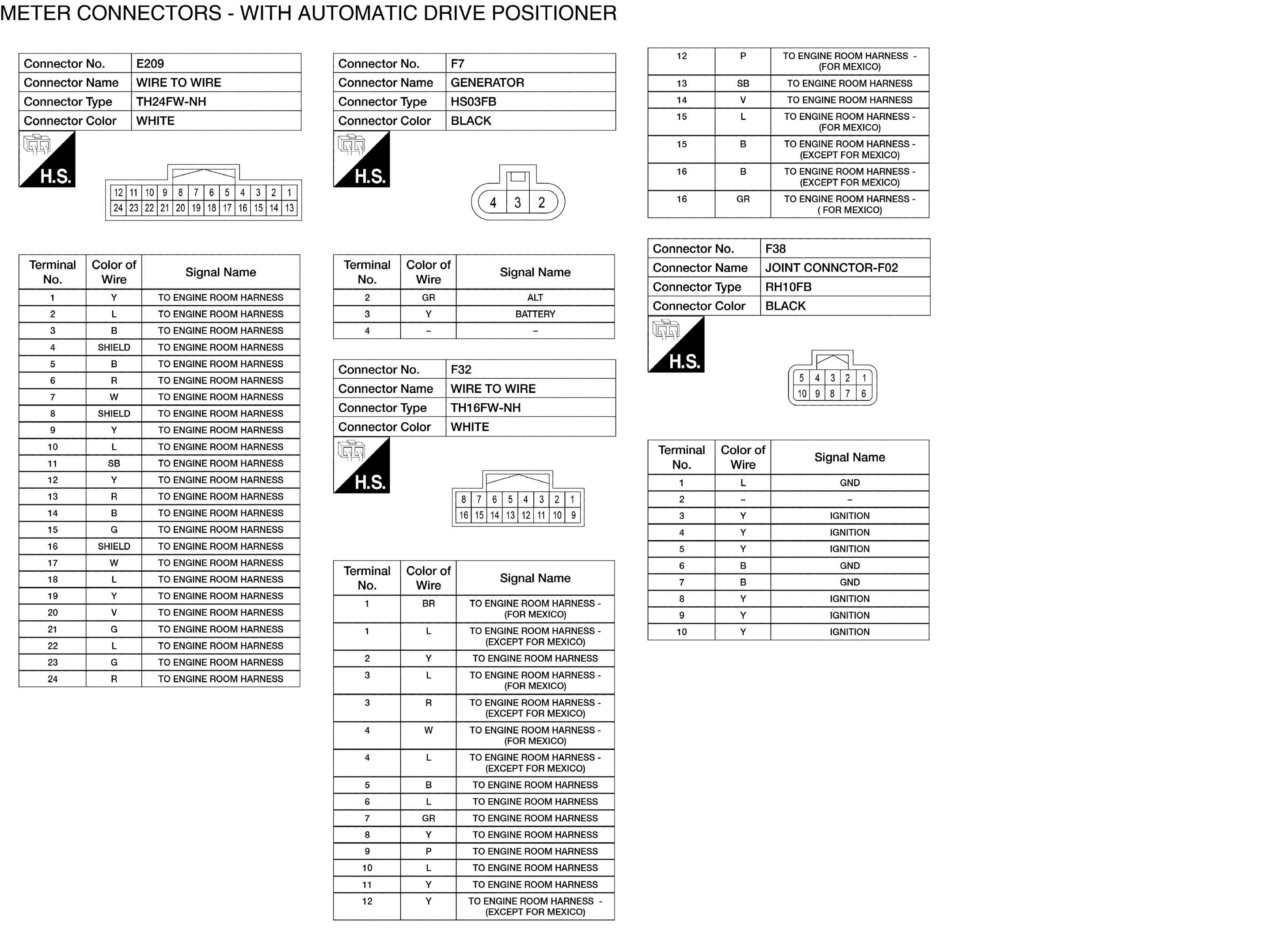

GNSABNIA9000GB-000

Courtesy of NISSAN NORTH AMERICA, INC.

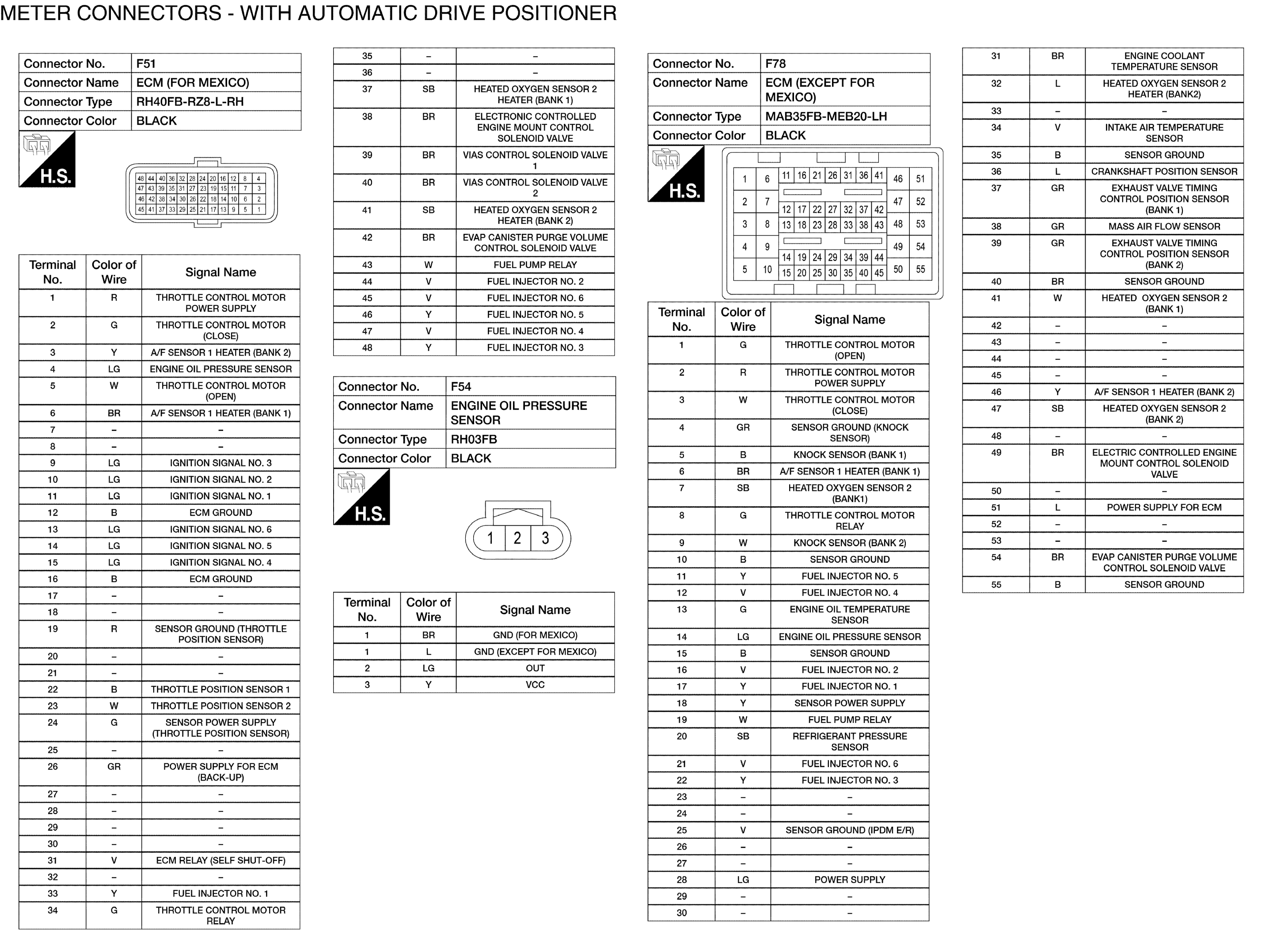

GNSABNIA9001GB-001

Courtesy of NISSAN NORTH AMERICA, INC.

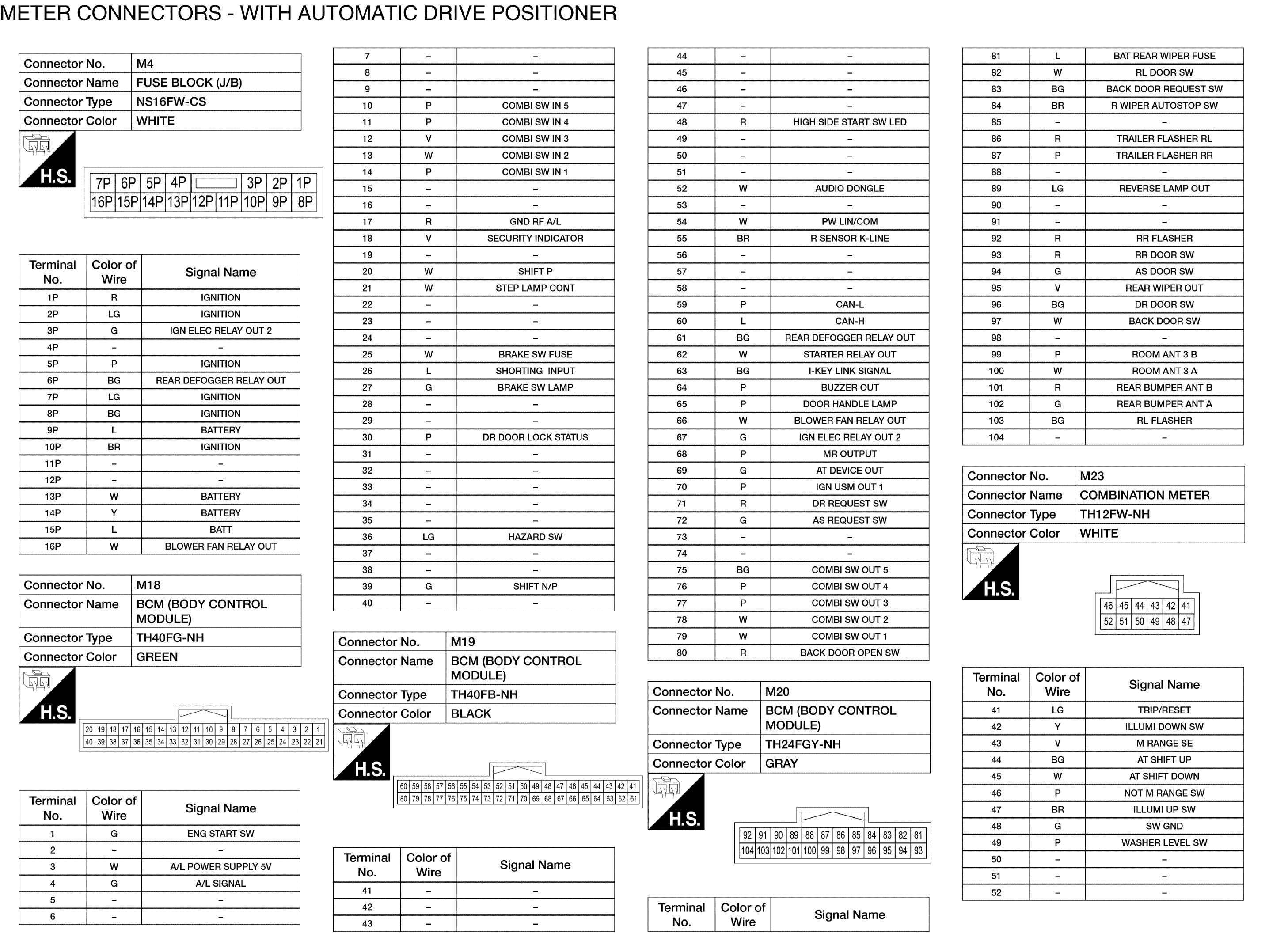

GNSABNIA9002GB-002

Courtesy of NISSAN NORTH AMERICA, INC.

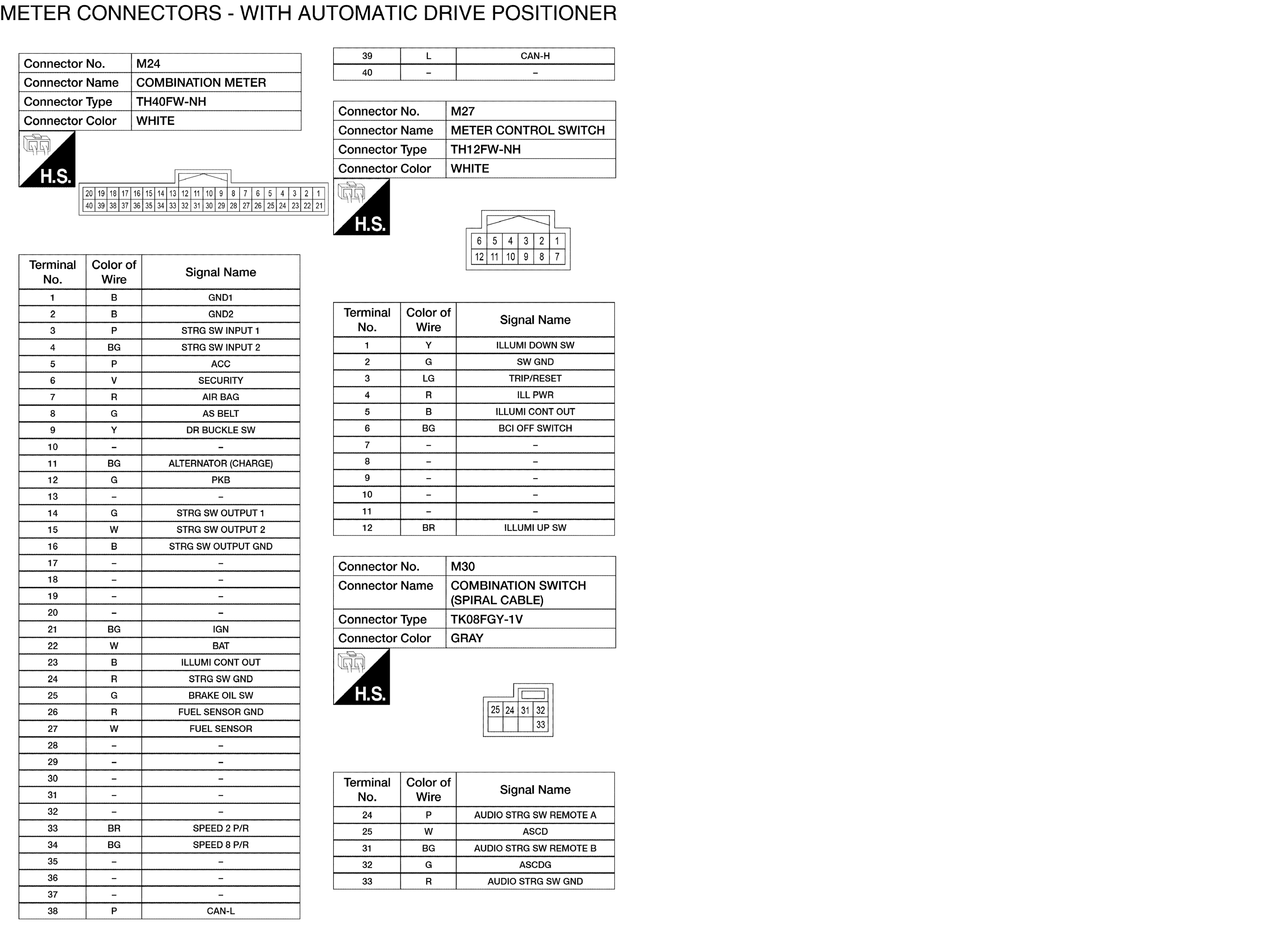

GNSABNIA9003GB-003

Courtesy of NISSAN NORTH AMERICA, INC.

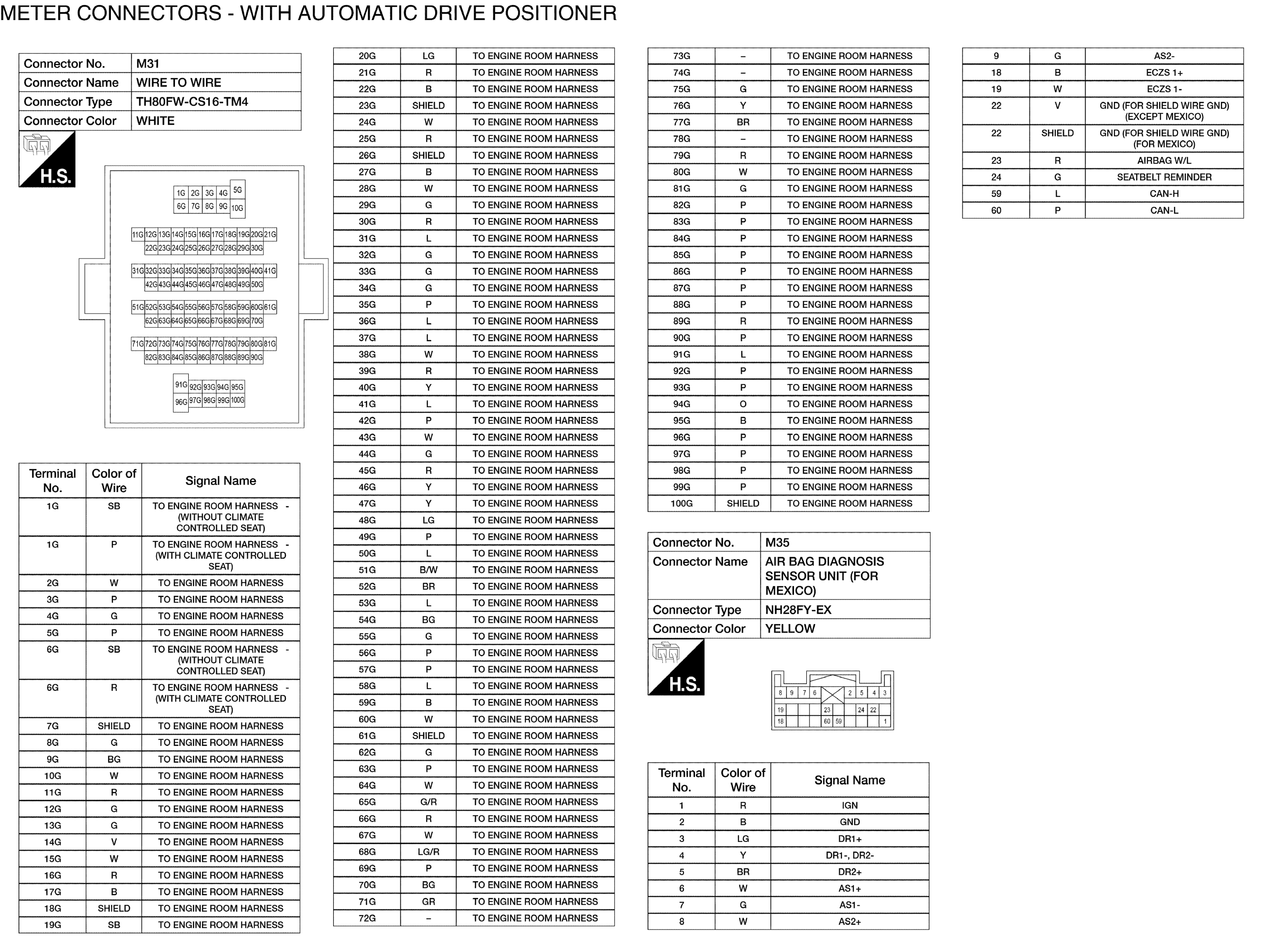

GNSABNIA9004GB-004

Courtesy of NISSAN NORTH AMERICA, INC.

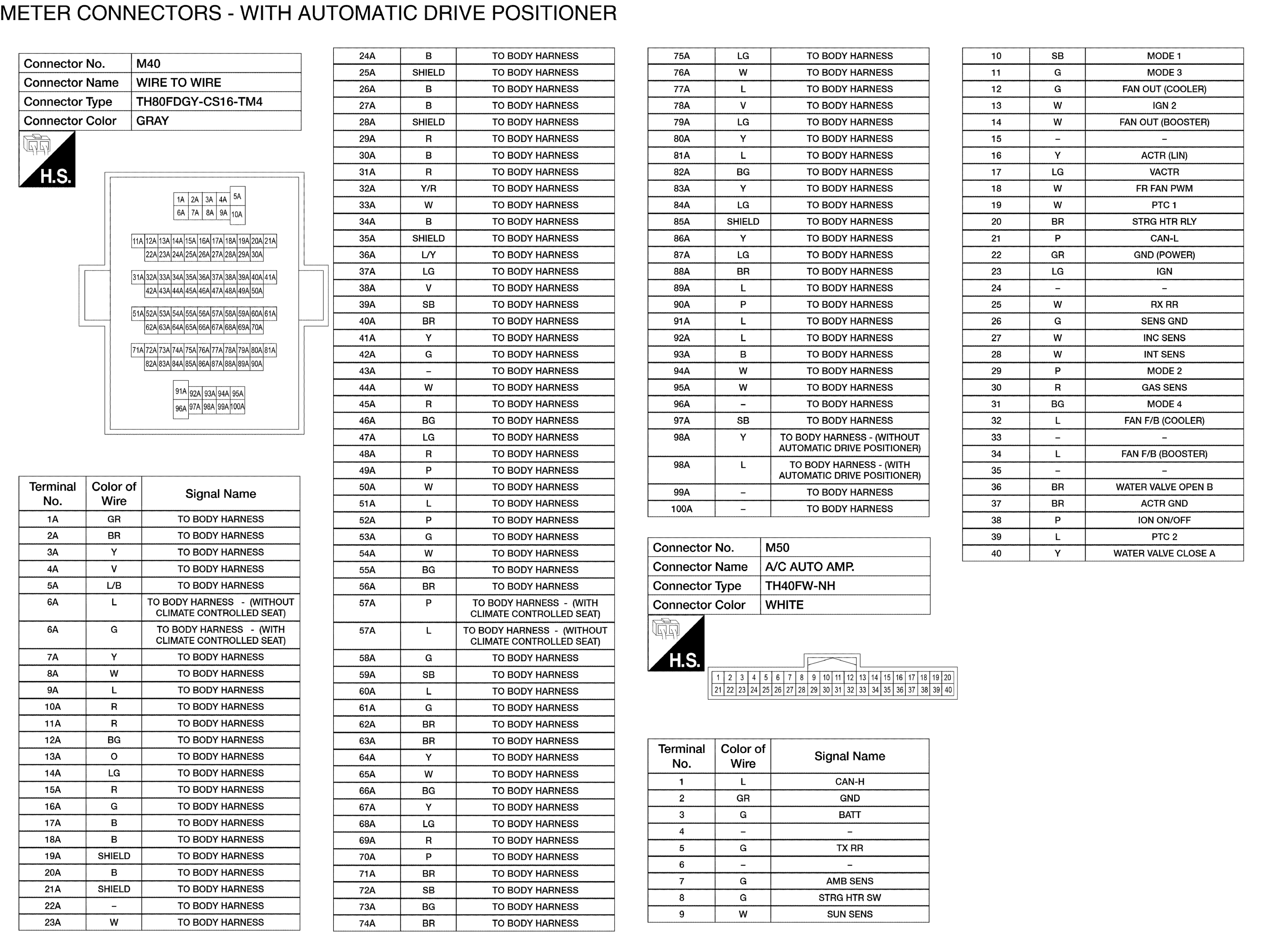

GNSABNIA9005GB-005

Courtesy of NISSAN NORTH AMERICA, INC.

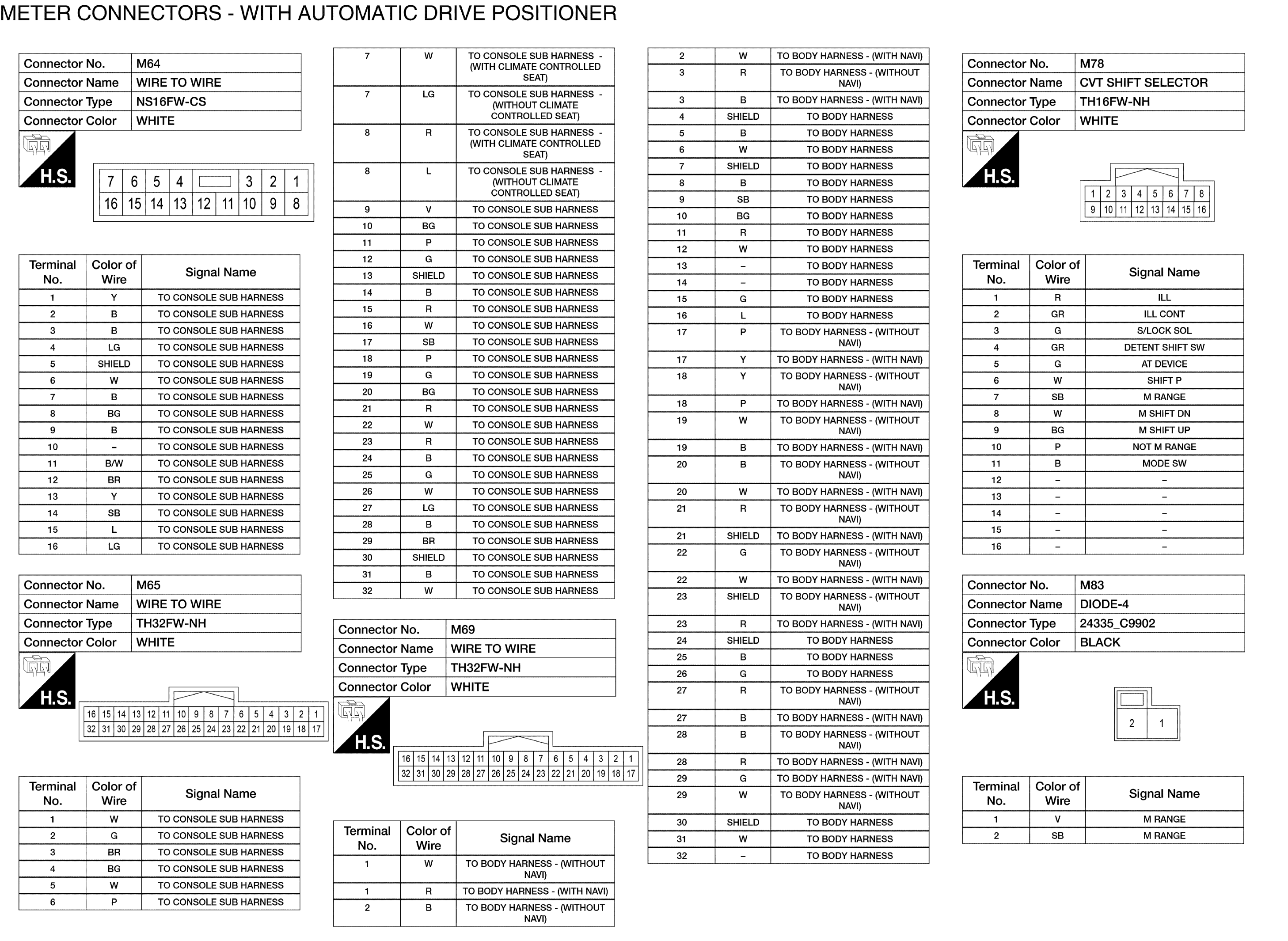

GNSABNIA9006GB-006

Courtesy of NISSAN NORTH AMERICA, INC.

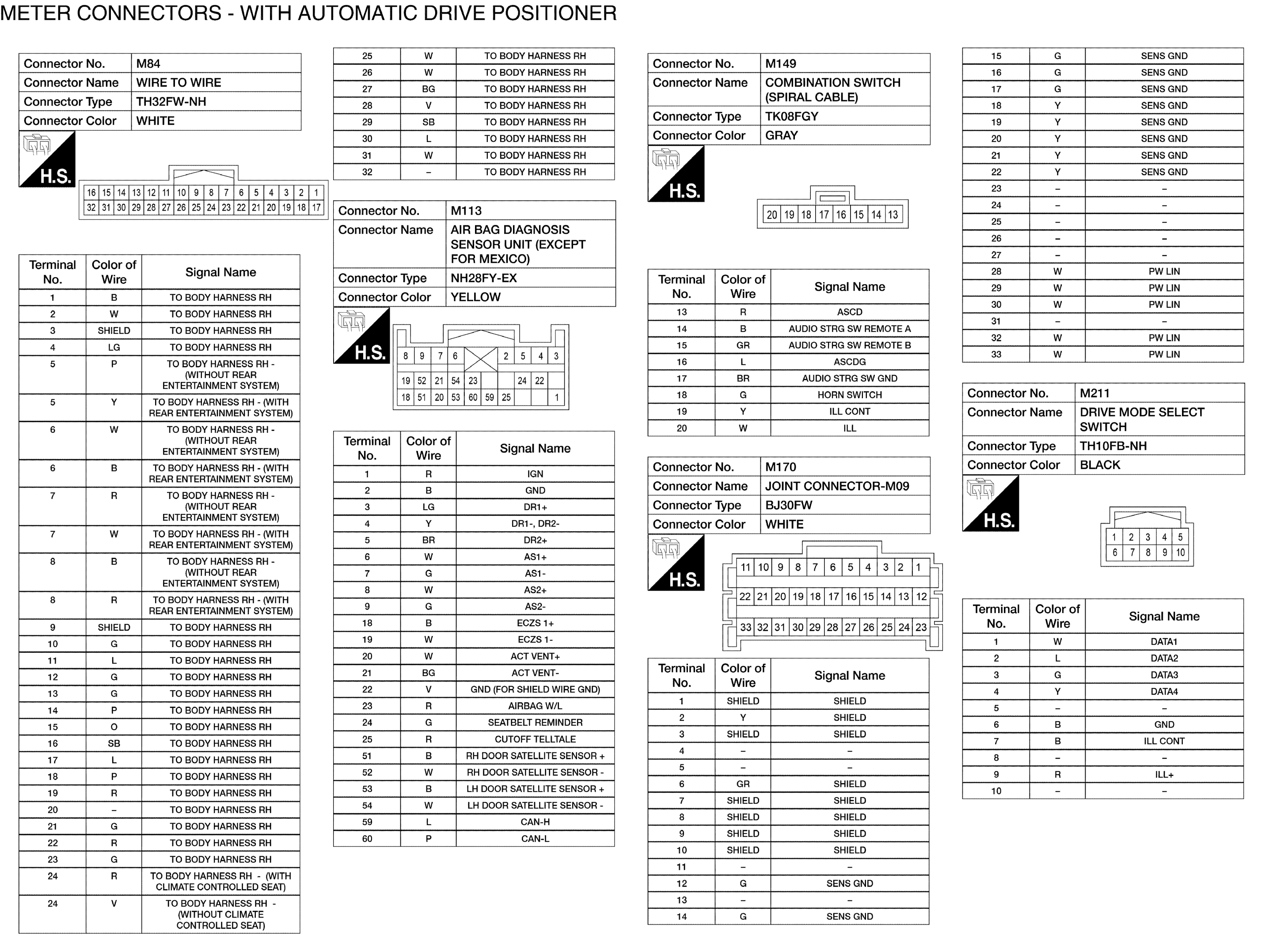

GNSABNIA9022GB-022

Courtesy of NISSAN NORTH AMERICA, INC.

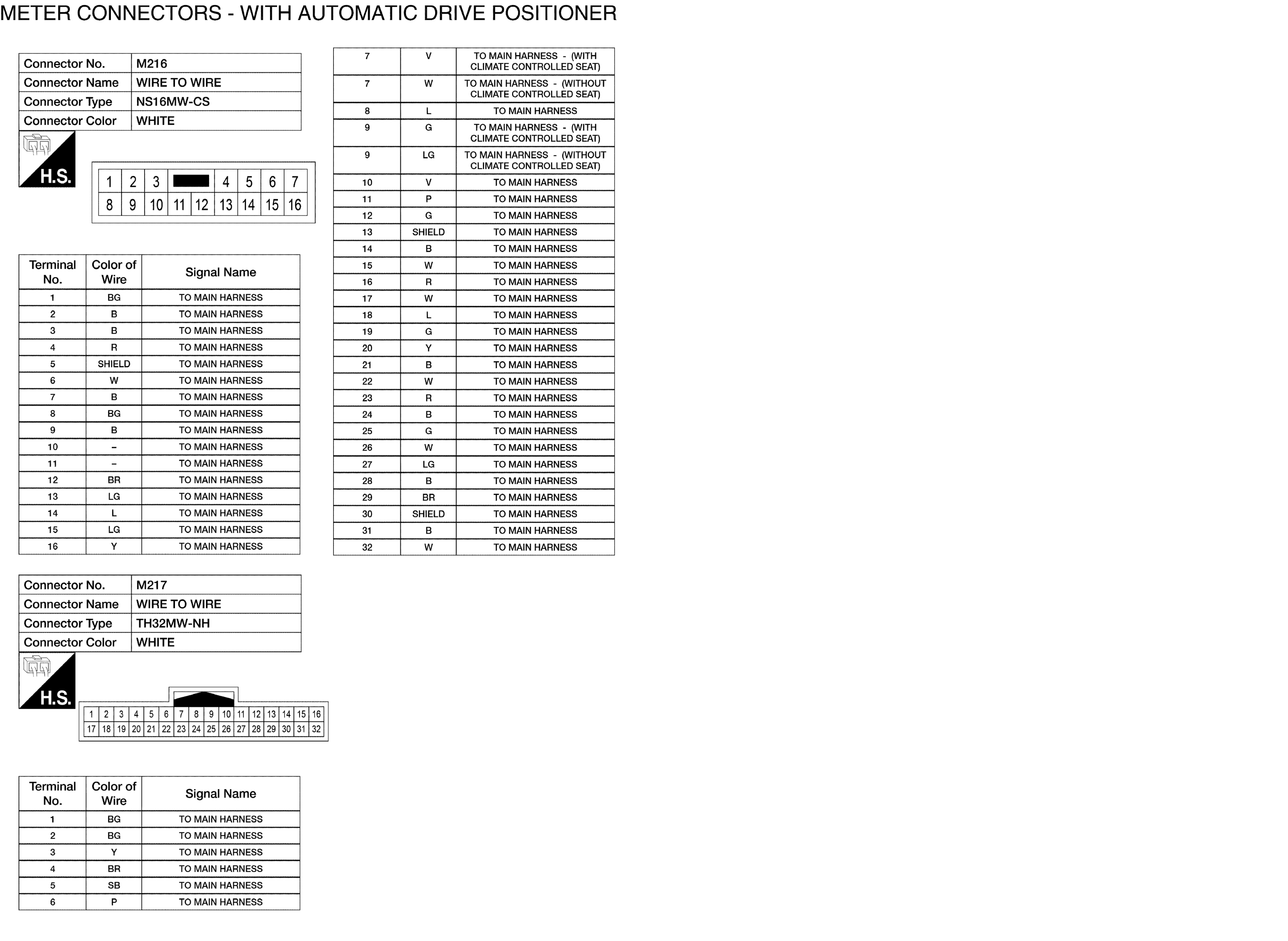

GNSABNIA9023GB-023

Courtesy of NISSAN NORTH AMERICA, INC.
